The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the “SRS AIR BAG” and “SEAT BELT” of this
Service Manual.

WARNING:

Always observe the following items for preventing accidental activation.
• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision that would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see “SRS AIR BAG”.

• Never use electrical test equipment on any circuit related to the SRS unless instructed to in this Ser-

vice Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness
connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

Always observe the following items for preventing accidental activation.
• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the

ignition ON or engine running, never use air or electric power tools or strike near the sensor(s) with
a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing
serious injury.

• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Precaution for Battery Service

INFOID:0000000009159994

Before disconnecting the battery, lower both the driver and passenger windows. This will prevent any interfer-
ence between the window edge and the vehicle when the door is opened/closed. During normal operation, the
window slightly raises and lowers automatically to prevent any window to vehicle interference. The automatic
window function will not work with the battery disconnected.

Revision: 2012 November

2014 GT-R

HRN-4

< REMOVAL AND INSTALLATION >

HORN

REMOVAL AND INSTALLATION

HORN

Exploded View

INFOID:0000000009159995

Removal and Installation

INFOID:0000000009159996

REMOVAL

Remove the radiator cover.

Disconnect the horn (LOW/HIGH) connector.

Remove the horn mounting bolt, and remove the horn (LOW/HIGH) from the vehicle.

INSTALLATION

Install in the reverse order of removal.

Horn (HIGH)

Horn (LOW)

NNLIA0039ZZ

Revision: 2012 November

2014 GT-R

INL-1

DRIVER CONTROLS

SECTION

INL

INL

CONTENTS

INTERIOR LIGHTING SYSTEM

SYSTEM DESCRIPTION ..............................

INTERIOR ROOM LAMP CONTROL SYSTEM

.....

System Diagram ........................................................

System Description ...................................................

Component Parts Location ........................................

Component Description ............................................

INTERIOR ROOM LAMP BATTERY SAVER
SYSTEM ..............................................................

System Diagram ........................................................

System Description ...................................................

Component Parts Location ........................................

Component Description ............................................

ILLUMINATION CONTROL SYSTEM .................

System Diagram ........................................................

System Description ...................................................

Component Parts Location ......................................

Component Description ...........................................

DTC/CIRCUIT DIAGNOSIS .........................

INTERIOR ROOM LAMP CONTROL SYSTEM

....

Wiring Diagram - INTERIOR ROOM LAMP - ..........

ILLUMINATION ..................................................

Wiring Diagram - ILLUMINATION - .........................

PRECAUTION ..............................................

PRECAUTIONS ..................................................

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................

Precautions Necessary for Steering Wheel Rota-
tion After Battery Disconnection ..............................

Precaution for Battery Service .................................

REMOVAL AND INSTALLATION ...............

MAP LAMP ........................................................

Exploded View .........................................................

Removal and Installation .........................................

Replacement ...........................................................

VANITY MIRROR LAMP ...................................

Exploded View .........................................................

Replacement ...........................................................

GLOVE BOX LAMP ..........................................

Exploded View .........................................................

Replacement ...........................................................

STEP LAMP ......................................................

Exploded View .........................................................

Removal and Installation .........................................

Replacement ...........................................................

TRUNK ROOM LAMP .......................................

Exploded View .........................................................

Removal and Installation .........................................

Replacement ...........................................................

SERVICE DATA AND SPECIFICATIONS
(SDS) ............................................................

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

Bulb Specifications ..................................................

Revision: 2012 November

2014 GT-R

INL-2

< SYSTEM DESCRIPTION >

INTERIOR ROOM LAMP CONTROL SYSTEM

SYSTEM DESCRIPTION

INTERIOR ROOM LAMP CONTROL SYSTEM

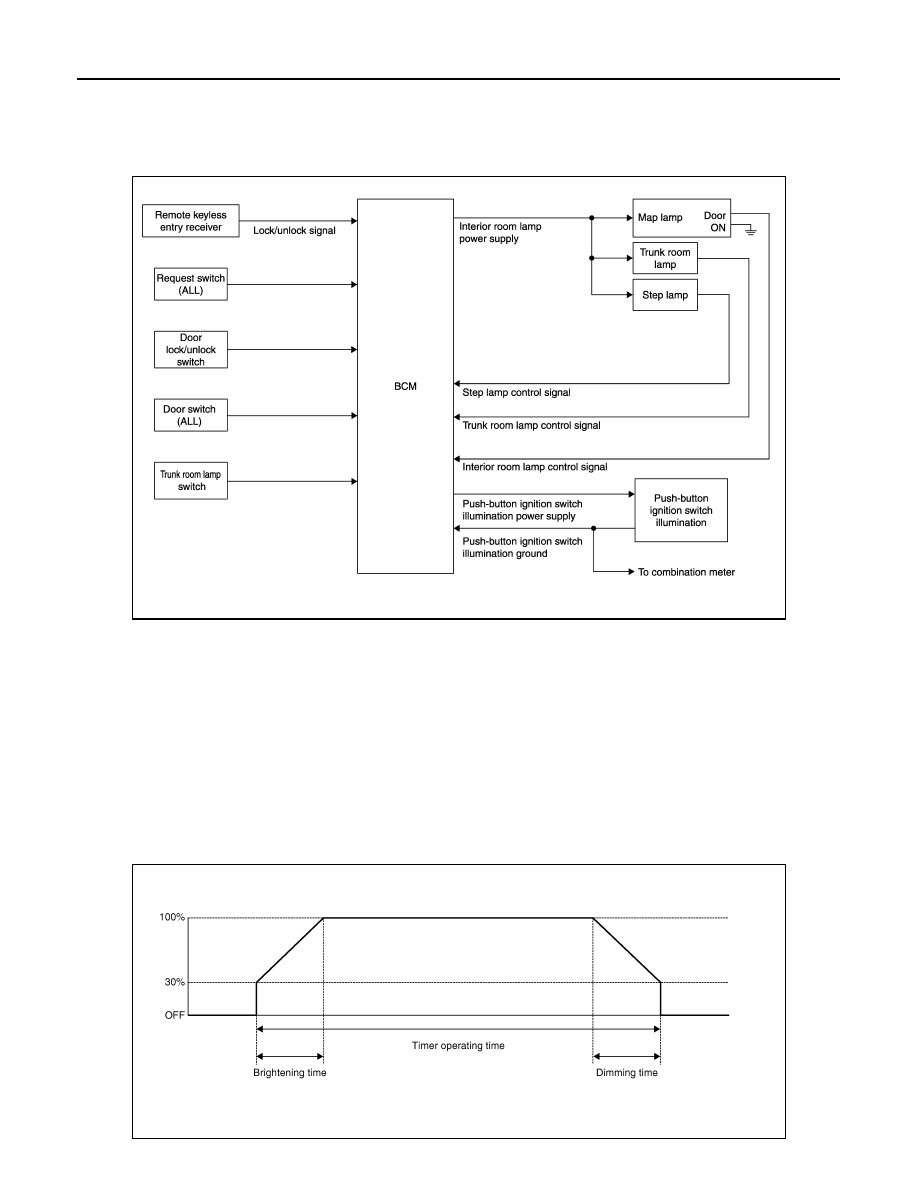

System Diagram

INFOID:0000000009161885

System Description

INFOID:0000000009161886

OUTLINE

• Interior room lamps* are controlled by interior room lamp timer control function of BCM.

*: Map lamp (when map lamp switch is in DOOR position).

• Trunk room lamp is controlled by trunk room lamp control function of BCM.
• Step lamp is controlled by step lamp control function of BCM.
• Push-button ignition switch illumination is controlled by the push-button ignition switch illumination control

function of BCM.

INTERIOR ROOM LAMP TIMER CONTROL

Interior Room Lamp Timer Basic Operation

JPLIA1187GB

JPLIA0093GB

Revision: 2012 November

2014 GT-R

INTERIOR ROOM LAMP CONTROL SYSTEM

INL-3

< SYSTEM DESCRIPTION >

INL

• The interior room lamp turns ON and OFF (gradual brightening and dimming) by the interior room timer.
• BCM judges the vehicle condition with the following items. It activates the interior room timer.
- Ignition switch status
- Door switch signal (ALL)
- Door lock/unlock signal (remote keyless entry receiver, each request switch, door lock and unlock switch)

Interior Room Lamp ON Operation

• BCM always turns the interior room lamp ON when any door opens.
• BCM activates the interior room timer in any of the following conditions to turn the interior room lamp ON for

a period of time.

- Any door opens before all doors close.
- Ignition switch is turned ON

→

OFF.

- Any door unlock signal is detected when all doors close with ignition switch OFF.
NOTE:
Restart the timer if new condition is input during the timer operating time.

Interior Room Lamp OFF Operation

BCM stops the timer in any of the following conditions to turns the interior room lamp OFF.
• The timer operating time is expired.
• Ignition switch position is other than OFF with all doors close.
• Any door lock operation is detected with all doors close.

TRUNK ROOM LAMP CONTROL

BCM controls the trunk room lamp (ground-side) to turn ON with the trunk room lamp switch ON.

STEP LAMP CONTROL

BCM controls the step lamp (ground-side) to turn ON with any door switch ON.

PUSH-BUTTON IGNITION SWITCH ILLUMINATION CONTROL

Push-button Ignition Switch Illumination Basic Operation

• BCM provides the power supply and the ground to turn the push-button ignition switch illumination ON.
• BCM cuts the ground supply while the each illumination (tail lamp) ON. BCM switches to the ground control

with the meter illumination control function.

Push-button Ignition Switch Illumination ON Operation

BCM turns the push-button ignition switch illumination ON in the following conditions.
• Ignition switch ON
• Each illumination (tail lamp) ON
• Any of the following conditions with ignition switch OFF
- Engine start permission is entered.
- Intelligent Key inserted into the key slot.
- Driver door is LOCK

→

UNLOCK.

- Driver door is open.

Push-button Ignition Switch Illumination OFF Operation

BCM turns the push-button ignition switch illumination OFF in any of the following conditions.
• The push-button ignition switch illumination ON conditions do not satisfy.
• All of the following conditions with ignition switch OFF
- Each illumination (tail lamp) OFF
- The push-button ignition switch illumination ON conditions do not change (15 seconds after the ignition

switch OFF) or the driver door is UNLOCK

→

LOCK.

Revision: 2012 November

2014 GT-R

INL-4

< SYSTEM DESCRIPTION >

INTERIOR ROOM LAMP CONTROL SYSTEM

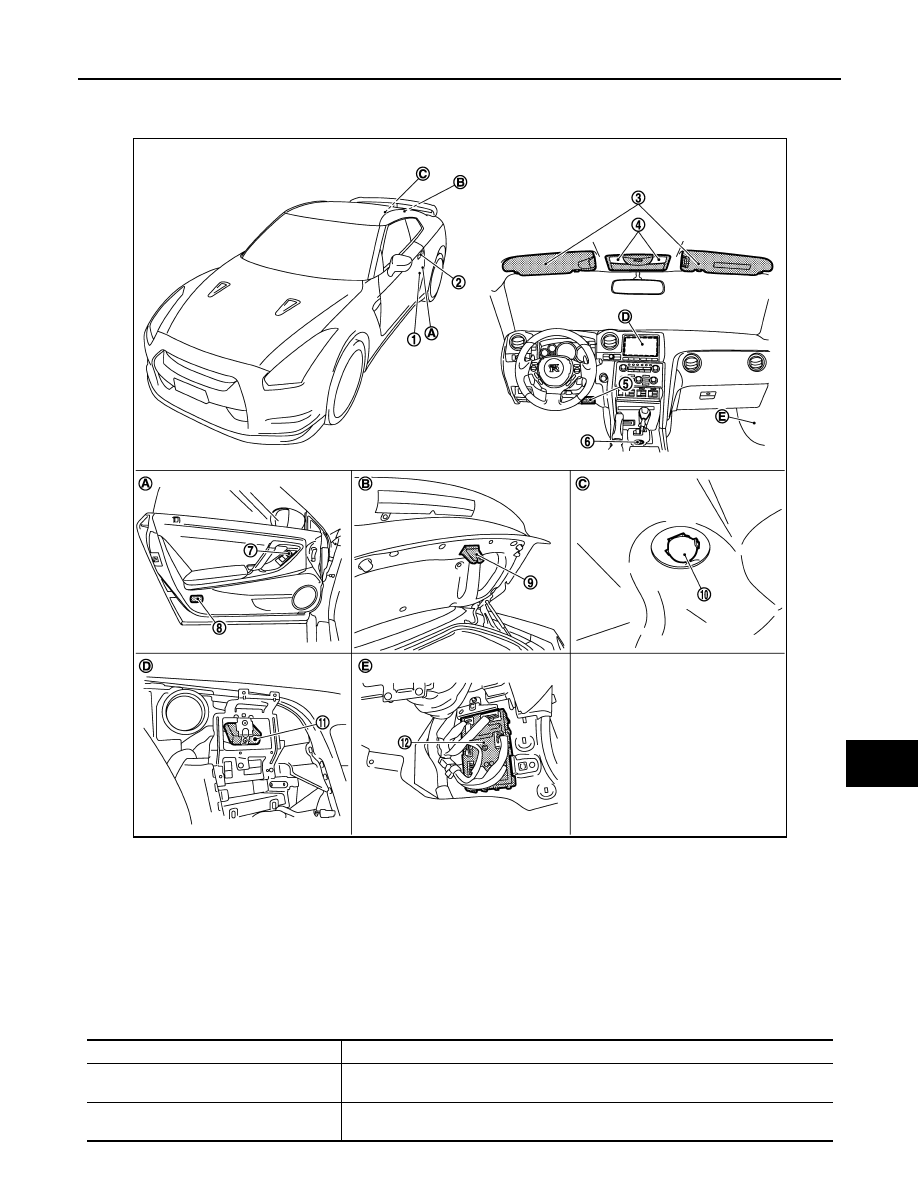

Component Parts Location

INFOID:0000000009161887

Door switch

Request switch

Map lamp

Combination meter

Push-button ignition switch
(Push-button ignition switch illumination)

Door lock and unlock switch

Step lamp

Trunk room lamp switch

Trunk room lamp

10. Remote keyless entry receiver

11. BCM

Front door

Trunk lid lock assembly

Trunk room upward

Behind the display

Dash side lower (passenger side)

JPLIA1200ZZ

Revision: 2012 November

2014 GT-R

INTERIOR ROOM LAMP CONTROL SYSTEM

INL-5

< SYSTEM DESCRIPTION >

INL

Component Description

INFOID:0000000009161888

Part

Description

BCM

• Activates the interior room lamp timer depending on the vehicle condition to turn the

interior room lamp ON/OFF.

• Turns the trunk room lamp ON /OFF according to the trunk room lamp switch status.
• Turns the step lamp ON /OFF according to any door switch status.

• Remote keyless entry receiver
• Door lock and unlock switch

Transmits the lock/unlock signal to BCM.

• Request switch
• Door switch

Inputs a switch signal to BCM.

Revision: 2012 November

2014 GT-R

INL-6

< SYSTEM DESCRIPTION >

INTERIOR ROOM LAMP BATTERY SAVER SYSTEM

INTERIOR ROOM LAMP BATTERY SAVER SYSTEM

System Diagram

INFOID:0000000009161889

System Description

INFOID:0000000009161890

OUTLINE

• Interior room lamp battery saver is controlled by BCM.
• BCM turns applicable lamps OFF depending on the vehicle condition. This function prevents the battery

from over-discharging if the driver neglect turning OFF the any lamps.

Applicable lamps

• Map lamp
• Step lamp
• Trunk room lamp
• Vanity mirror lamp

INTERIOR ROOM LAMP BATTERY SAVER FUNCTION

• When the ignition switch is turned OFF, BCM operates the timer for a period of time to cut the interior room

lamp power supply.

• BCM restart the timer when any of the following signals changes while operating the timer.
- Ignition switch status
- Door switch signal (ALL)
- Door lock/unlock signal (remote keyless entry receiver, each request switch, door lock and unlock switch)
- Trunk loom lamp switch signal
- Key switch signal (key slot)
• BCM provides the interior room lamp power supply continuously when the ignition switch position is other

than OFF.

NNLIA0072GB

Revision: 2012 November

2014 GT-R

INTERIOR ROOM LAMP BATTERY SAVER SYSTEM

INL-7

< SYSTEM DESCRIPTION >

INL

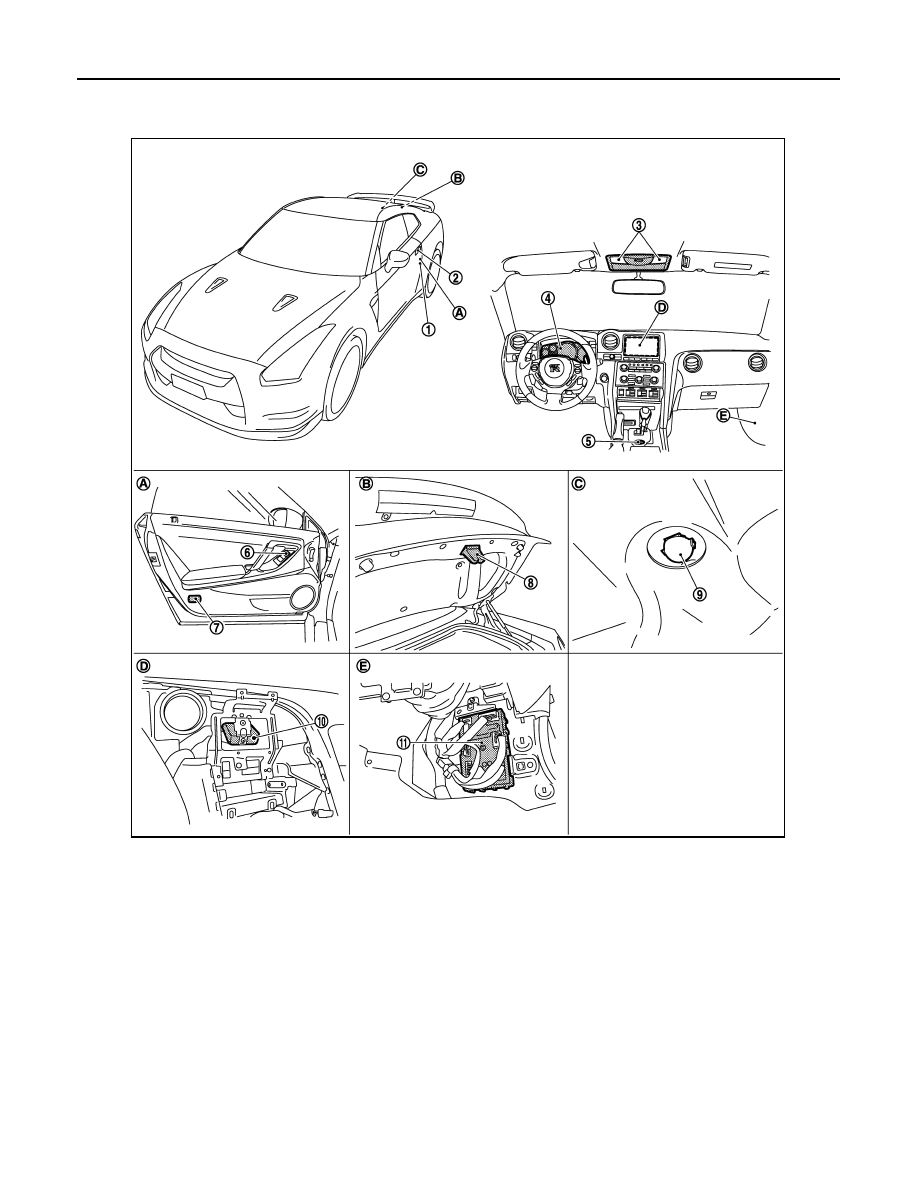

Component Parts Location

INFOID:0000000009161891

Component Description

INFOID:0000000009161892

Door switch

Request switch

Vanity mirror lamp

Map lamp

Key slot

Push-button ignition switch

Door lock and unlock switch

Step lamp

Trunk room lamp switch

10. Trunk room lamp

11. Remote keyless entry receiver

12.

BCM

Front door

Trunk lid lock assembly

Trunk room upward

Behind the display

Dash side lower (passenger side)

JPLIA1201ZZ

Part

Description

BCM

Operates the interior room lamp battery saver depending on the vehicle condition to
cut the interior room lamp power supply.

• Remote keyless entry receiver
• Door Lock and unlock switch

Transmits the lock/unlock signal to BCM.

Revision: 2012 November

2014 GT-R

INL-8

< SYSTEM DESCRIPTION >

INTERIOR ROOM LAMP BATTERY SAVER SYSTEM

• Request switch
• Door switch

Inputs a switch signal to BCM.

Key slot

Input the Intelligent key in status to BCM.

Part

Description

Revision: 2012 November

2014 GT-R

ILLUMINATION CONTROL SYSTEM

INL-9

< SYSTEM DESCRIPTION >

INL

ILLUMINATION CONTROL SYSTEM

System Diagram

INFOID:0000000009161893

System Description

INFOID:0000000009161894

OUTLINE

Each illumination lamp is controlled by each function of BCM, IPDM E/R and combination meter.

Control by BCM

• Combination switch reading function
• Headlamp control function

Control by IPDM E/R

• Relay control function

Control by combination meter

• Meter illumination control function (Refer to

MWI-24, "METER ILLUMINATION CONTROL : System Descrip-

tion"

ILLUMINATION CONTROL

• BCM detects the combination switch condition by the combination switch reading function.
• BCM transmits position light request signal to IPDM E/R and combination meter according to tail lamp ON

condition.

Tail lamp ON condition

- Lighting switch 1ST
- Lighting switch 2ND
• IPDM E/R turns the integrated tail lamp relay ON according to position light request signal. It provides the

power supply to each illumination lamp.

• Combination meter enters in the nighttime mode according to position light request signal. Under the night-

time mode the combination meter controls the illuminance by controlling the each illumination lamp (ground
side).

JPLIA0855GB

Revision: 2012 November

2014 GT-R

INL-10

< SYSTEM DESCRIPTION >

ILLUMINATION CONTROL SYSTEM

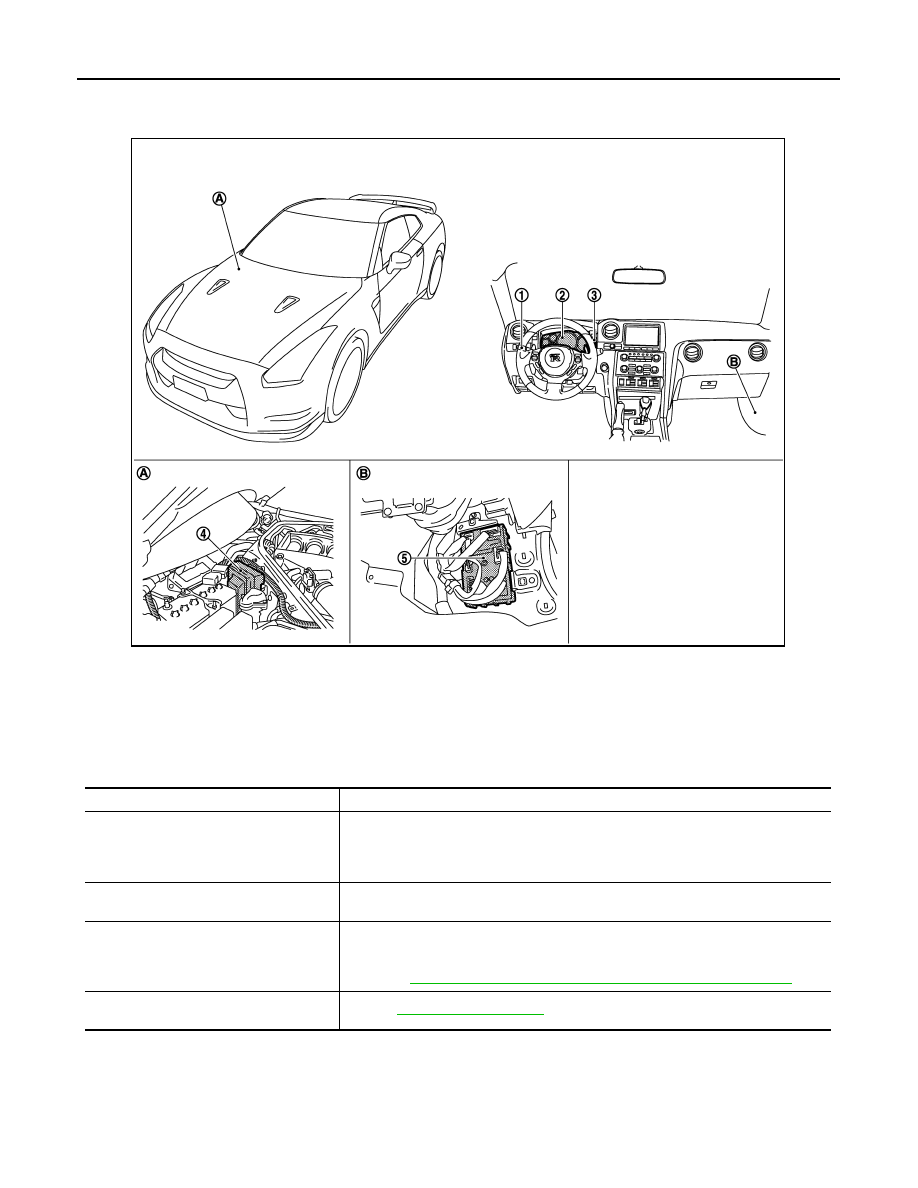

Component Parts Location

INFOID:0000000009161895

Component Description

INFOID:0000000009161896

Combination switch

Illumination control switch

Combination meter

IPDM E/R

BCM

Engine room dash panel (RH)

Dash side lower (passenger side)

JPLIA1202ZZ

Part

Description

BCM

• Detects each switch condition by the combination switch reading function.
• Judges the illumination lamp ON/OFF status depending on the vehicle condition.

And then it transmits position light request signal to IPDM E/R and combination
meter (with CAN communication).

IPDM E/R

Controls the integrated relay according to the request from BCM (with CAN communi-
cation).

Combination meter

• Enters in nighttime mode according to the request from BCM (with CAN communi-

cation).

• Controls the each illumination in the nighttime mode.

Refer to

MWI-24, "METER ILLUMINATION CONTROL : System Description"

Combination switch
(Lighting and turn signal switch)

Refer to

BCS-5, "System Diagram"
