DOOR OUTSIDE MOLDING

EXT-49

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

DOOR OUTSIDE MOLDING

Exploded View

INFOID:0000000009161579

Removal and Installation

INFOID:0000000009161580

REMOVAL

1.

Fully open the door window.

2.

Twist the door outside molding (1) toward the outside of the
vehicle, and then lift up and remove it while disengaging the
pawls.

INSTALLATION

Install in the reverse order of removal.

1.

Door outside molding

2.

Door panel assembly

Refer to

GI-4, "Components"

 for symbols in the figure.

NNKIA0153ZZ

JMKIA0116GB

Revision: 2012 November

2014 GT-R

EXT-50

< REMOVAL AND INSTALLATION >

DOOR PARTING SEAL

DOOR PARTING SEAL

Exploded View

INFOID:0000000009161581

Removal and Installation

INFOID:0000000009161582

REMOVAL

1.

Fully open the door.

2.

Remove the clips (parting seal clip) of door parting seal (1) with
the remover tool (A).

CAUTION:

 Be careful no to damage the body.

3.

Remove the door parting seal from the door assembly.

INSTALLATION

Note the following, and install in the reverse order of removal.

1.

Door assembly

2.

Door parting seal

3.

Parting seal clip

4.

Double-faced adhesive tape
[t: 2.0mm (0.079in)]

Refer to

GI-4, "Components"

 for symbols in the figure.

NNKIA1704ZZ

: Clip

NNKIA0155ZZ

Revision: 2012 November

2014 GT-R

DOOR PARTING SEAL

EXT-51

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

CAUTION:

Visually check the clips for deformation and damage at installation. Replace with new ones if neces-
sary.

Revision: 2012 November

2014 GT-R

EXT-52

< REMOVAL AND INSTALLATION >

REAR WING

REAR WING

Exploded View

INFOID:0000000009161583

Removal and Installation

INFOID:0000000009161584

REMOVAL

1.

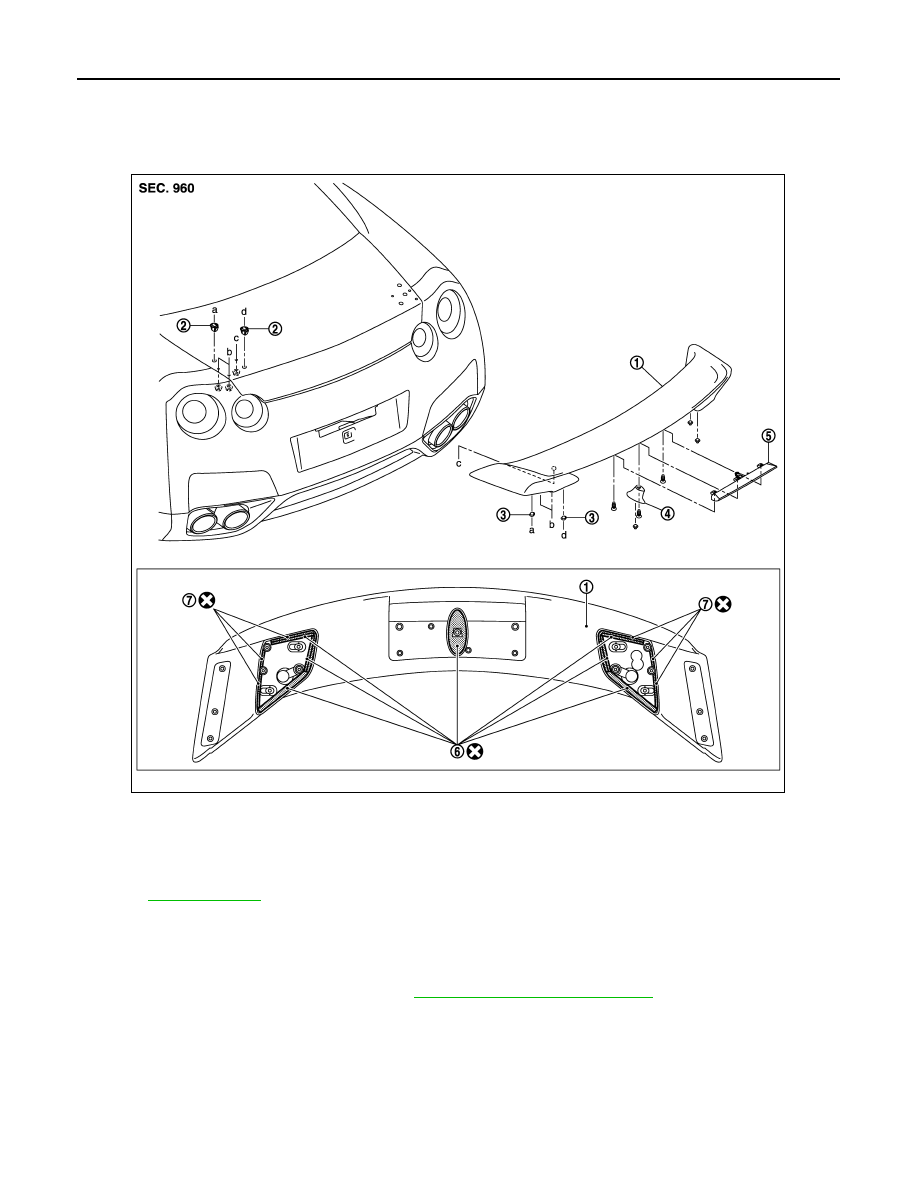

Remove the trunk lid finisher inner. Refer to

INT-29, "Removal and Installation"

.

1.

Rear wing assembly

2.

Grommet

3.

Rear wing clip

4.

Center leg bracket

5.

High-mounted stop lamp

6.

Double-faced adhesive tape
[t: 1.6 mm (0.063 in)]

7.

EPT sealer

Refer to

GI-4, "Components"

 for symbols in the figure.

NNKIA1705ZZ

Revision: 2012 November

2014 GT-R

REAR WING

EXT-53

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

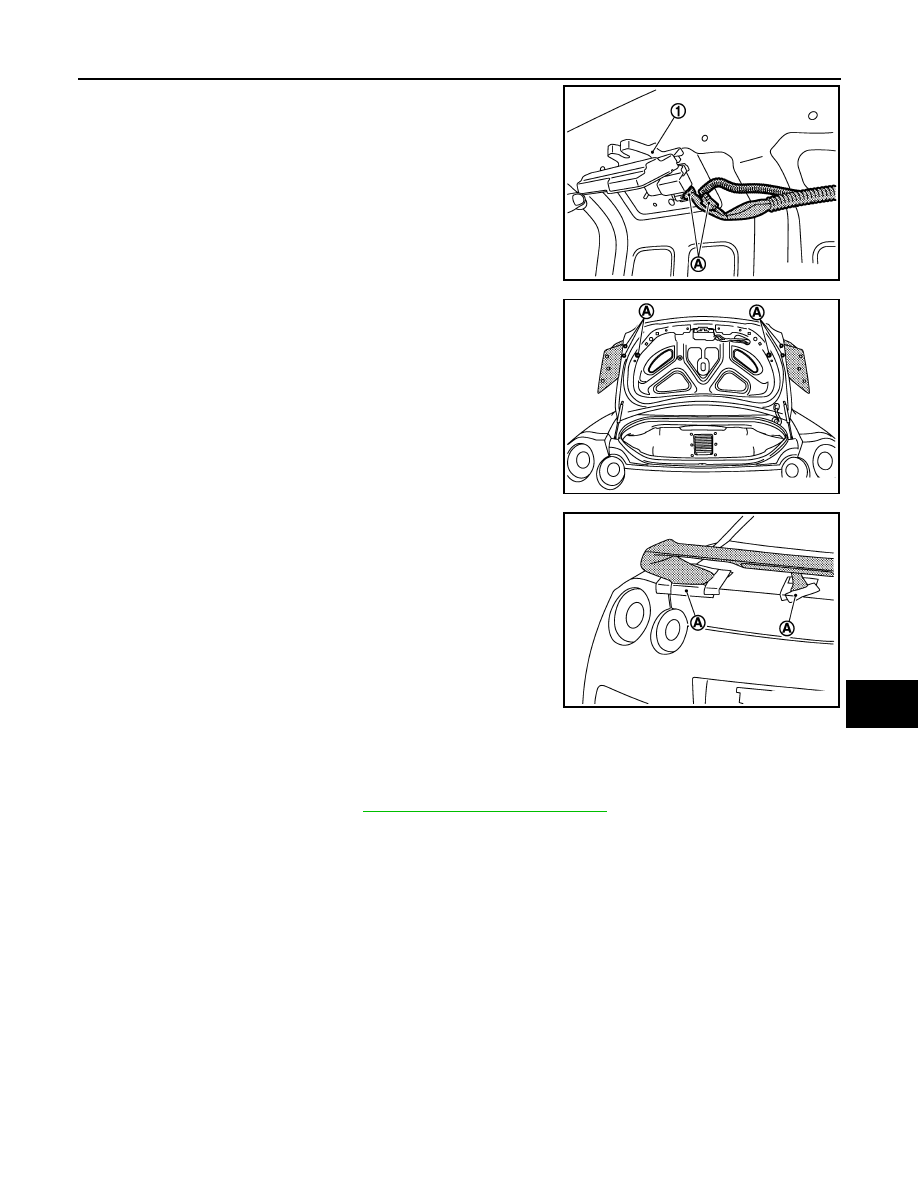

2.

Disconnect the harness connector of trunk lid lock assembly (1)
and the harness connectors (A) of high-mounted stop lamp.

3.

Remove the mounting nuts (A) of rear wing assembly.

4.

Apply protective tape (A) around the outer edge of mating sur-
face between rear wing assembly and trunk lid to prevent from
damage.

5.

Disengage the clips with the remover tool while peeling the double-faced adhesive tape with threads.

CAUTION:

Never bore the rear wing assembly with excessive power. It may cause cracks in the paint.

6.

Replace the following parts after removing the rear wing assembly.
• High-mounted stop lamp: Refer to

EXL-59, "Removal and Installation"

.

• Clip and grommet for rear wing assembly
• EPT sealer

INSTALLATION

Note the following, and install in the reverse order of removal.

CAUTION:

• Never disassemble the rear wing assembly.
• Replace the double-faced adhesive tape of the back surface with new tape when reusing the rear

wing assembly.

- Remove the double-faced adhesive tape remaining on the rear wing assembly with a double-faced

adhesive tape remover.

- Remove any double-faced adhesive tape remaining on the vehicle side in a similar manner, and then

apply the primer for painted surfaces (Nissan parts dealer).

- Heat the rear wing assembly application surface and panel surface to 20

°

C (68

°

F) or more.

- Press-fit the entire area of the double-faced adhesive tape with 5 kg/cm

2

 or more of pressure after

applying the rear wing assembly on the vehicle body.

• Replace the EPT sealer of the back surface with new sealer when reusing the rear wing assembly.

Remove the EPT sealer remaining on the rear wing assembly using a double-faced adhesive tape
remover.

NNKIA0161ZZ

NNKIA0158ZZ

NNKIA0157ZZ

Revision: 2012 November

2014 GT-R

EXT-54

< REMOVAL AND INSTALLATION >

REAR WING

• To maintain adhesion, never wash the vehicle within 24 hours after performing the above work.

Revision: 2012 November

2014 GT-R

FAX-2

< SYMPTOM DIAGNOSIS >

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

SYMPTOM DIAGNOSIS

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

NVH Troubleshooting Chart

INFOID:0000000009163148

Use chart below to find the cause of the symptom. If necessary, repair or replace these parts.

×

: Applicable

Reference

—

T

h

is

 wo

rk i

s

 rec

o

m

m

e

n

d

e

d

 to

 be

 p

e

rfo

rme

d

by

 G

T

-R ce

rti

fie

d NIS

SAN d

eal

er

.

—

T

h

is

 wo

rk i

s

 rec

o

m

m

e

n

d

e

d

 to

 be

 p

e

rfo

rme

d

by

 G

T

-R ce

rti

fie

d NIS

SAN d

eal

er

.

—

T

h

is

 wo

rk i

s

 rec

o

m

m

e

n

d

e

d

 to

 be

 p

e

rfo

rme

d

by

 G

T

-R ce

rti

fie

d NIS

SAN d

eal

er

.

NVH in F

AX and

FSU

sections

Re

fe

r

to Fron

t

a

x

le

 in thi

s

 cha

rt.

NVH in WT

section

NVH in WT

section

Re

fe

r to

DRIVE SHA

FT i

n

 t

h

is cha

rt.

NVH in BR

section

NVH in ST

section

Possible cause and SUSPECTED PARTS

Ex

ce

ssi

v

e

 jo

in

t an

gl

e

Jo

in

t s

lid

in

g re

si

st

a

n

c

e

Im

ba

la

nc

e

Imp

rop

er ins

ta

lla

tio

n

,

lo

os

en

es

s

Part

s interference

Whe

el

 be

ari

ng

 da

ma

ge

FRONT AXLE AND F

R

ONT

SUSPENSI

ON

FRONT AXL

E

TIRE

ROA

D

 WHEEL

DR

IVE SHAF

T

BRAKE

STEERING

Symptom

DRIVE
SHAFT

Noise

×

×

×

×

×

×

×

×

×

Shake

×

×

×

×

×

×

×

×

×

FRONT
AXLE

Noise

×

×

×

×

×

×

×

×

×

Shake

×

×

×

×

×

×

×

×

×

Vibration

×

×

×

×

×

×

×

Shimmy

×

×

×

×

×

×

×

Judder

×

×

×

×

×

×

Poor quality ride or handling

×

×

×

×

×

Revision: 2012 November

2014 GT-R

PRECAUTIONS

FAX-3

< PRECAUTION >

C

E

F

G

H

I

J

K

L

M

A

B

FAX

N

O

P

PRECAUTION

PRECAUTIONS

Precaution for Working Range at a Regular Dealership

INFOID:0000000009186877

CAUTION:

The service items unmentioned on this manual are recommended to be performed by a GT-R certified
NISSAN dealer. Because those service items require special equipment and a GT-R certified technical
staff who completed special training.

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000009163149

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the “SRS AIR BAG” and “SEAT BELT” of this
Service Manual.

WARNING:

Always observe the following items for preventing accidental activation.
• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision that would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see “SRS AIR BAG”.

• Never use electrical test equipment on any circuit related to the SRS unless instructed to in this Ser-

vice Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness
connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

Always observe the following items for preventing accidental activation.
• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the

ignition ON or engine running, never use air or electric power tools or strike near the sensor(s) with
a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing
serious injury.

• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Precautions Necessary for Steering Wheel Rotation After Battery Disconnection

INFOID:0000000009163150

CAUTION:

Comply with the following cautions to prevent any error and malfunction.
• Before removing and installing any control units, first turn the ignition switch to the LOCK position,

then disconnect both battery cables.

• After finishing work, confirm that all control unit connectors are connected properly, then re-connect

both battery cables.

• Always use CONSULT to perform self-diagnosis as a part of each function inspection after finishing

work. If a DTC is detected, perform trouble diagnosis according to self-diagnosis results.

For vehicle with steering lock unit, if the battery is disconnected or discharged, the steering wheel will lock and
cannot be turned.
If turning the steering wheel is required with the battery disconnected or discharged, follow the operation pro-
cedure below before starting the repair operation.

OPERATION PROCEDURE

1.

Connect both battery cables.

Revision: 2012 November

2014 GT-R

FAX-4

< PRECAUTION >

PRECAUTIONS

NOTE:
Supply power using jumper cables if battery is discharged.

2.

Turn the ignition switch to ACC position.
(At this time, the steering lock will be released.)

3.

Disconnect both battery cables. The steering lock will remain released with both battery cables discon-
nected and the steering wheel can be turned.

4.

Perform the necessary repair operation.

5.

When the repair work is completed, re-connect both battery cables. With the brake pedal released, turn
the ignition switch from ACC position to ON position, then to LOCK position. (The steering wheel will lock
when the ignition switch is turned to LOCK position.)

6.

Perform self-diagnosis check of all control units using CONSULT.

General Precautions

INFOID:0000000009163151

CAUTION:

After finishing servicing, check that all the tools and waste are stored in a customary place.

Revision: 2012 November

2014 GT-R

FRONT WHEEL HUB AND KNUCKLE

FAX-5

< PERIODIC MAINTENANCE >

C

E

F

G

H

I

J

K

L

M

A

B

FAX

N

O

P

PERIODIC MAINTENANCE

FRONT WHEEL HUB AND KNUCKLE

Inspection

INFOID:0000000009163156

MOUNTING INSPECTION

Check that the mounting conditions (looseness, back lash) of each component and component conditions
(wear, damage) are normal.

WHEEL BEARING INSPECTION

• Move wheel hub and bearing assembly in the axial direction by hand. Check there is no looseness of wheel

bearing.

• Rotate wheel hub and check is no unusual noise or other irregular conditions. If there is any of abnormal

conditions, replace wheel hub and bearing assembly.

Axial end play

: 0.05 mm (0.002 in) or less

Revision: 2012 November

2014 GT-R

FAX-6

< PERIODIC MAINTENANCE >

FRONT DRIVE SHAFT

FRONT DRIVE SHAFT

Inspection

INFOID:0000000009163157

• Check drive shaft mounting point and joint for looseness and other damage.
• Check boot for cracks and other damage.

CAUTION:

Replace entire drive shaft assembly when noise or vibration occurs from drive shaft.

Revision: 2012 November

2014 GT-R

FRONT WHEEL HUB AND KNUCKLE

FAX-7

< REMOVAL AND INSTALLATION >

C

E

F

G

H

I

J

K

L

M

A

B

FAX

N

O

P

REMOVAL AND INSTALLATION

FRONT WHEEL HUB AND KNUCKLE

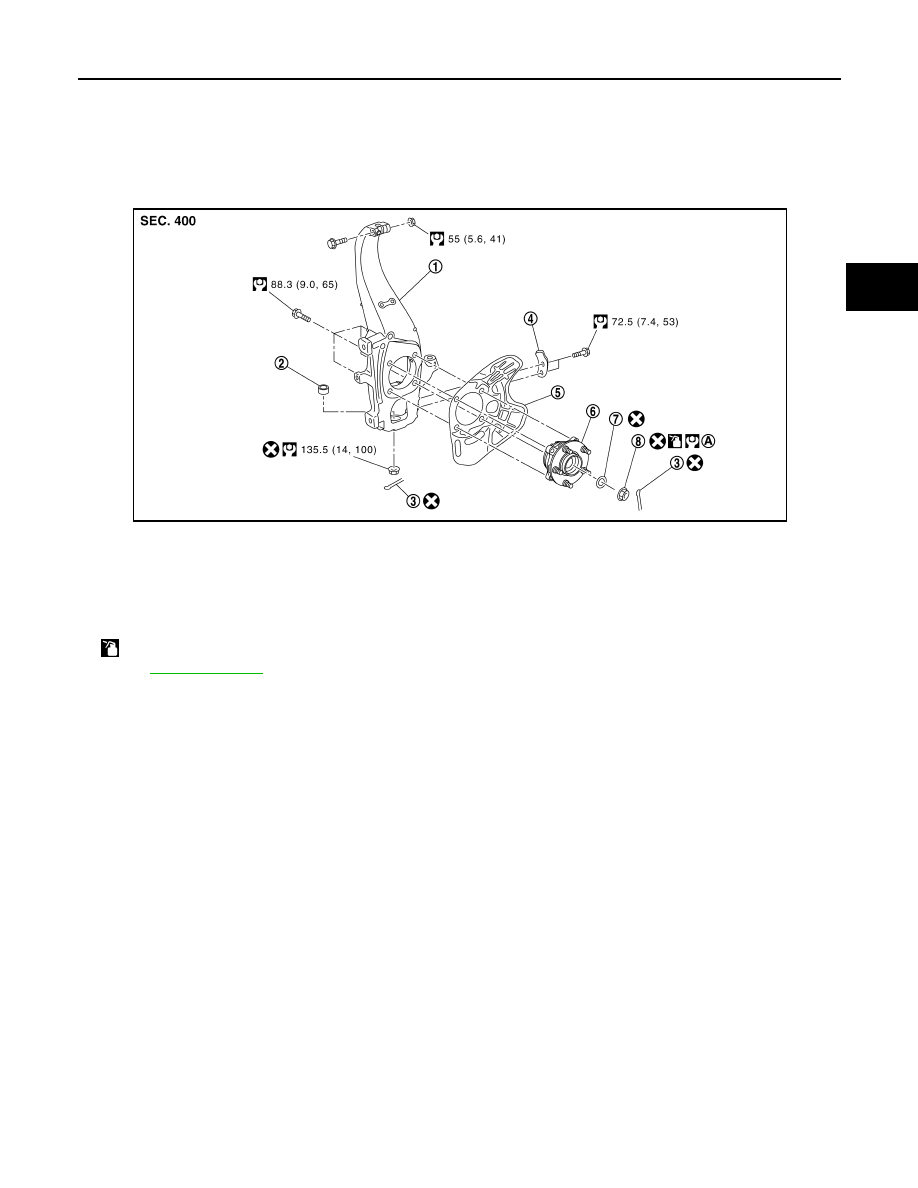

Exploded View

INFOID:0000000009163158

1.

Steering knuckle

2.

Ball seat

3.

Cotter pin

4.

Steering support bracket

5.

Splash guard

6.

Wheel hub and bearing assembly

7.

Spring washer

8.

Wheel hub lock nut

A.

When tightening wheel hub lock nut, tighten the lock nut to 225 N·m (23 kg-m, 166 ft-lb), loosen it, and retighten it to 350 N·m
(36 kg-m, 258 ft-lb) to break in spring washer and the contact surface of wheel hub assembly.

: Apply anti-corrosion.

Refer to

GI-4, "Components"

 for the symbols in the figure.

JSDIA3973GB

Revision: 2012 November

2014 GT-R

FL-2

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Working Range at a Regular Dealership

INFOID:0000000009164427

CAUTION:

The service items unmentioned on this manual are recommended to be performed by a GT-R certified
NISSAN dealer. Because those service items require special equipment and a GT-R certified technical
staff who completed special training.

Precaution for Battery Service

INFOID:0000000009159997

Before disconnecting the battery, lower both the driver and passenger windows. This will prevent any interfer-
ence between the window edge and the vehicle when the door is opened/closed. During normal operation, the
window slightly raises and lowers automatically to prevent any window to vehicle interference. The automatic
window function will not work with the battery disconnected.

Revision: 2012 November

2014 GT-R

EVAP CANISTER

FL-3

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

FL

N

P

O

REMOVAL AND INSTALLATION

EVAP CANISTER

Exploded View

INFOID:0000000009160008

Removal and Installation

INFOID:0000000009160009

REMOVAL

1.

Lift up the vehicle.

2.

Remove EVAP canister fixing bolt.

3.

Remove EVAP canister.

NOTE:
The EVAP canister vent control valve and EVAP canister system pressure sensor can be removed without
removing the EVAP canister.

INSTALLATION

Install in the reverse order of removal.
NOTE:
Tighten EVAP canister fixing bolt to the specified torque.

DISASSEMBLY

1.

Turn EVAP canister vent control valve counterclockwise.

2.

Remove the EVAP canister vent control valve.

1.

EVAP canister system pressure sen-
sor

2.

O-ring

3.

EVAP canister

4.

O-ring

5.

EVAP canister vent control valve

Refer to

GI-4, "Components"

 for symbols not described on the above.

JMBIA0049GB

A

:  Lock

B

:  Unlock

PBIB2730E

Revision: 2012 November

2014 GT-R

FL-4

< REMOVAL AND INSTALLATION >

EVAP CANISTER

ASSEMBLY

Assemble in the reverse order of disassembly.

CAUTION:

Always replace O-ring with a new one.

Inspection

INFOID:0000000009160010

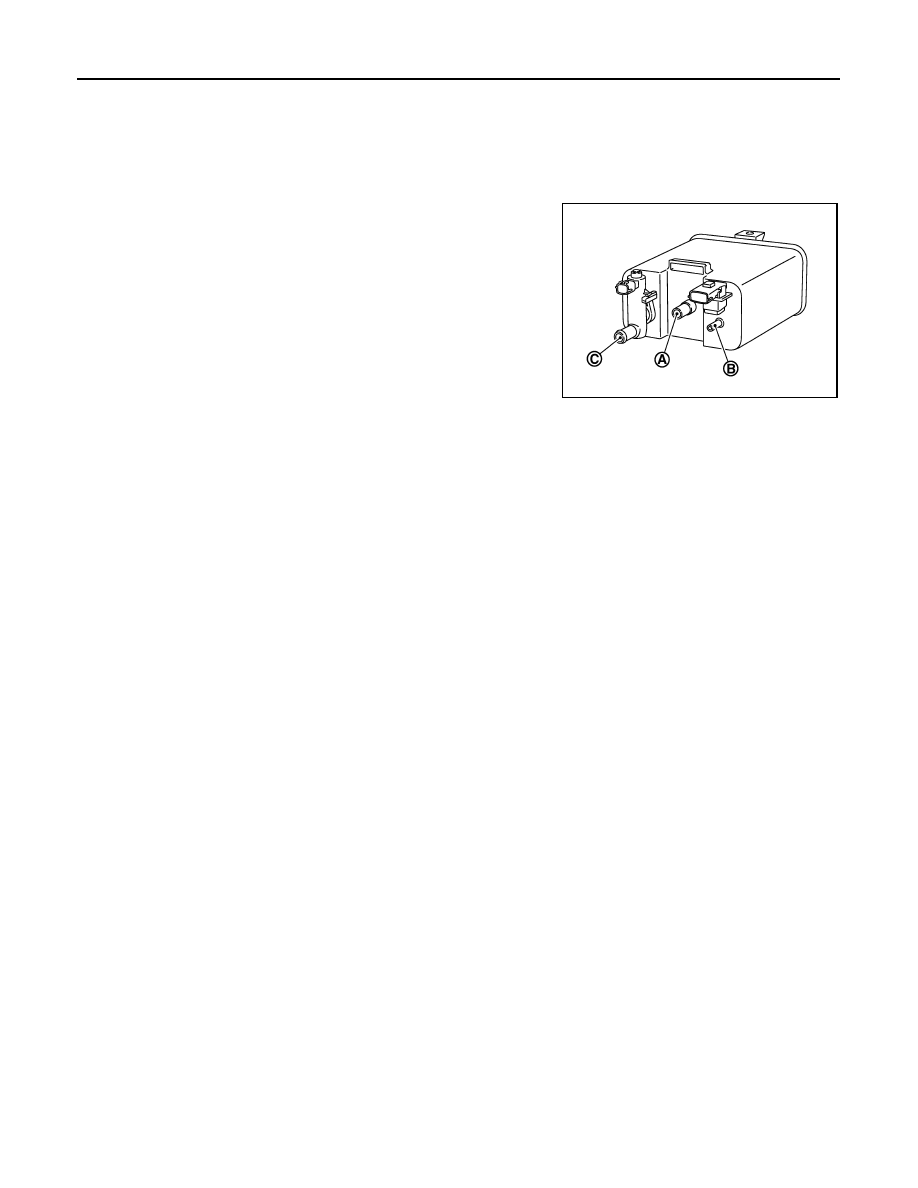

Check EVAP canister as follows:
1.

Block port (B).

2.

Blow air into port (A) and check that it flows freely out of port (C).

3.

Release blocked port (B).

4.

Apply vacuum pressure to port (B) and check that vacuum pres-
sure exists at the ports (A) and (C).

5.

Block port (A) and (B).

6.

Apply pressure to port (C) and check that there is no leakage.

PBIB2728E

Revision: 2012 November

2014 GT-R















Content      ..     2      3      4
