Nissan GT-R (2007-2014 year). AUDIO, VISUAL & NAVIGATION SYSTEM. Service Manual

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

AV-113

< SYSTEM DESCRIPTION >

[BOSE AUDIO WITH NAVIGATION]

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

Description

INFOID:0000000009163339

• The AV control unit diagnosis function starts up with multifunction switch operation and the AV control unit

performs a diagnosis for each unit in the system during the on board diagnosis.

• Perform a CONSULT diagnosis if the on board diagnosis does not start, e.g., the screen does not display

anything, the multifunction switch does not function, etc.

On Board Diagnosis Function

INFOID:0000000009163340

MULTIFUNCTION SWITCH AND PRESET SWITCH SELF-DIAGNOSIS FUNCTION

The ON/OFF operation (continuity) of each switch in the multifunction switch and preset switch can be
checked.

Self-diagnosis Mode

• Press both the preset switches “1” and “6” simultaneously within 10

seconds after turning the ignition switch from OFF to ACC and hold
them for 3 seconds or more. Then release the switches. The
buzzer sounds, all indicators of the centralized and preset switches
illuminate, and the self-diagnosis mode starts.

• The continuity of each switch at the ON position can be checked

by pressing the switch. The buzzer sounds if the switch is normal.

Finishing Self-diagnosis Mode

Self-diagnosis mode is canceled when turning the ignition switch OFF.

ON BOARD DIAGNOSIS ITEM

Description

• The trouble diagnosis function has a self-diagnosis mode for conducting trouble diagnosis automatically and

a confirmation/adjustment mode for operating manually.

• The self-diagnosis mode performs diagnoses on the AV control unit, connections between system compo-

nents as well as connections between AV control unit and GPS antenna. Then it displays the diagnosis
results on the display.

• The confirmation/adjustment mode allows the technician to check, modify or adjust the vehicle signals and

set values, as well as to monitor the system error records and system communication status. The checking,
modifying or adjusting generally require human intervention and judgment (the system cannot make judg-
ment automatically).

On Board Diagnosis Item

NNNIA0122ZZ

Mode

Description

Self Diagnosis

• AV control unit diagnosis.
• Diagnoses the connections across system components, between AV

control unit and GPS antenna.

Revision: 2012 November

2014 GT-R

AV-114

< SYSTEM DESCRIPTION >

[BOSE AUDIO WITH NAVIGATION]

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

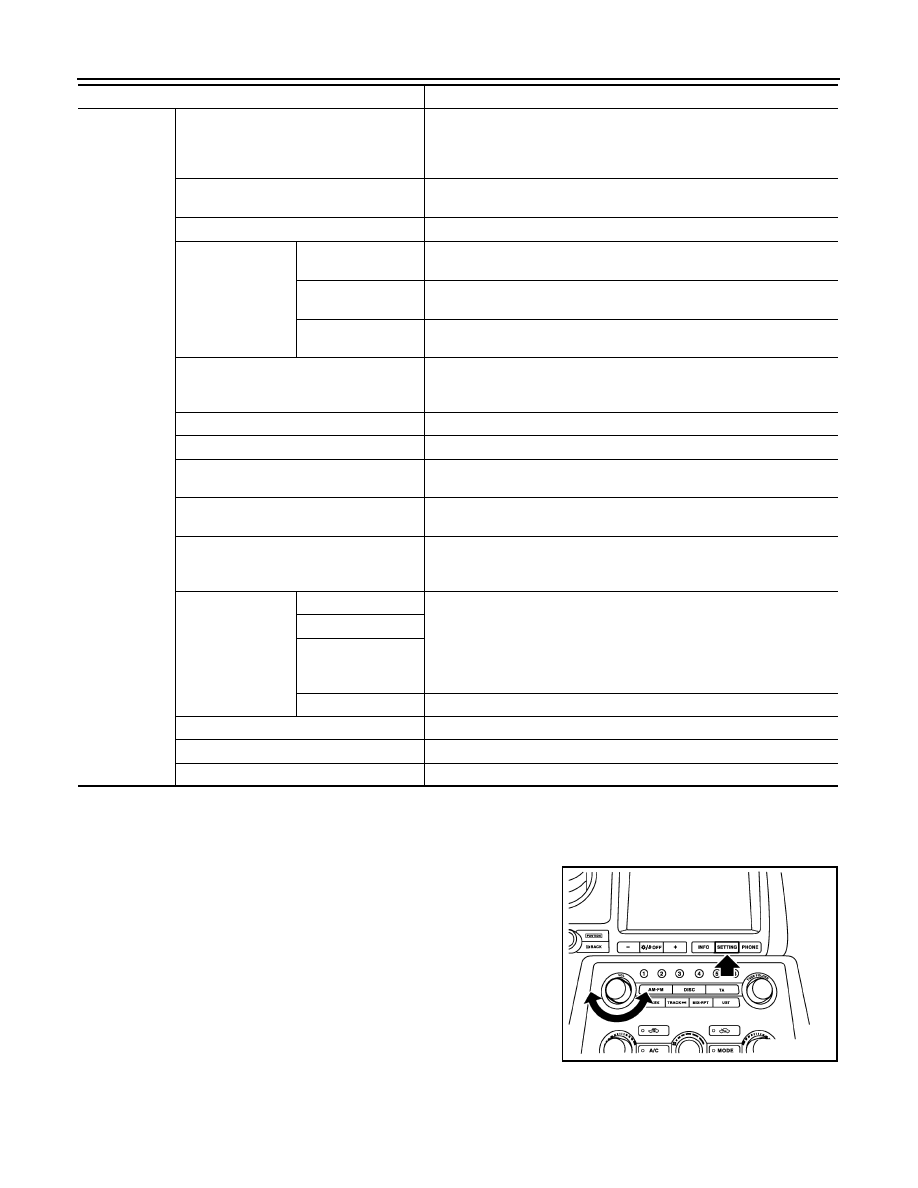

METHOD OF STARTING

Start the engine.

Turn the audio system OFF.

Turn the “VOL” dial either clockwise or counterclockwise for 40
clicks or more while pressing the “SETTING” button. (Beep
sounds when starting the self-diagnosis mode.) Press the
“BACK” switch and the initial system screen will be shown.

Confirmation/

Adjustment

Display Diagnosis

The following check functions are available: color tone check by color
bar display, light and shade check by gray scale display, touch panel cal-
ibration, touch panel response check and color tone check by white dis-
play.

Vehicle Signals

Diagnosis of signals can be performed for vehicle speed, parking brake,
lights, ignition, reverse, side view switch and room lamp.

Speaker Test

The connection of a speaker can be confirmed by test tone.

Navigation

Steering Angle Ad-
justment

When there is a difference between the actual turning angle and the ve-
hicle mark turning angle, it can be adjusted.

Speed Calibration

When there is a difference between the current location mark and the ac-
tual location, it can be adjusted.

XM SAT Subscrip-
tion Status

The XM NavTraffic subscription status can be checked.

Error History

The system malfunction and the frequency when occurring in the past
are displayed. When the malfunctioning item is selected, the time and
place that the selected malfunction last occurred are displayed.

Synchronizer FES Clock

–

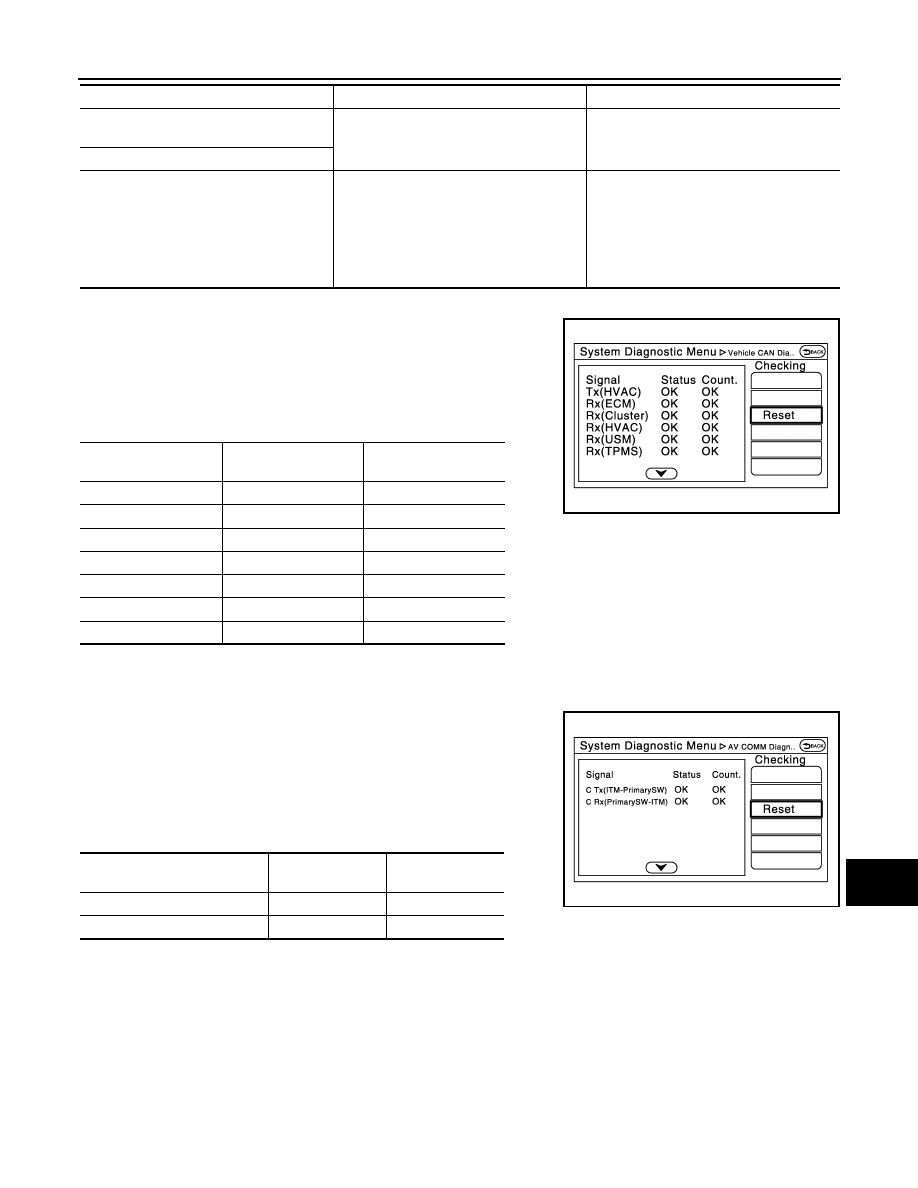

Vehicle CAN Diagnosis

The transmitting/receiving of CAN communication can be monitored.

AV COMM Diagnosis

The communication condition of each unit of Multi AV system can be
monitored.

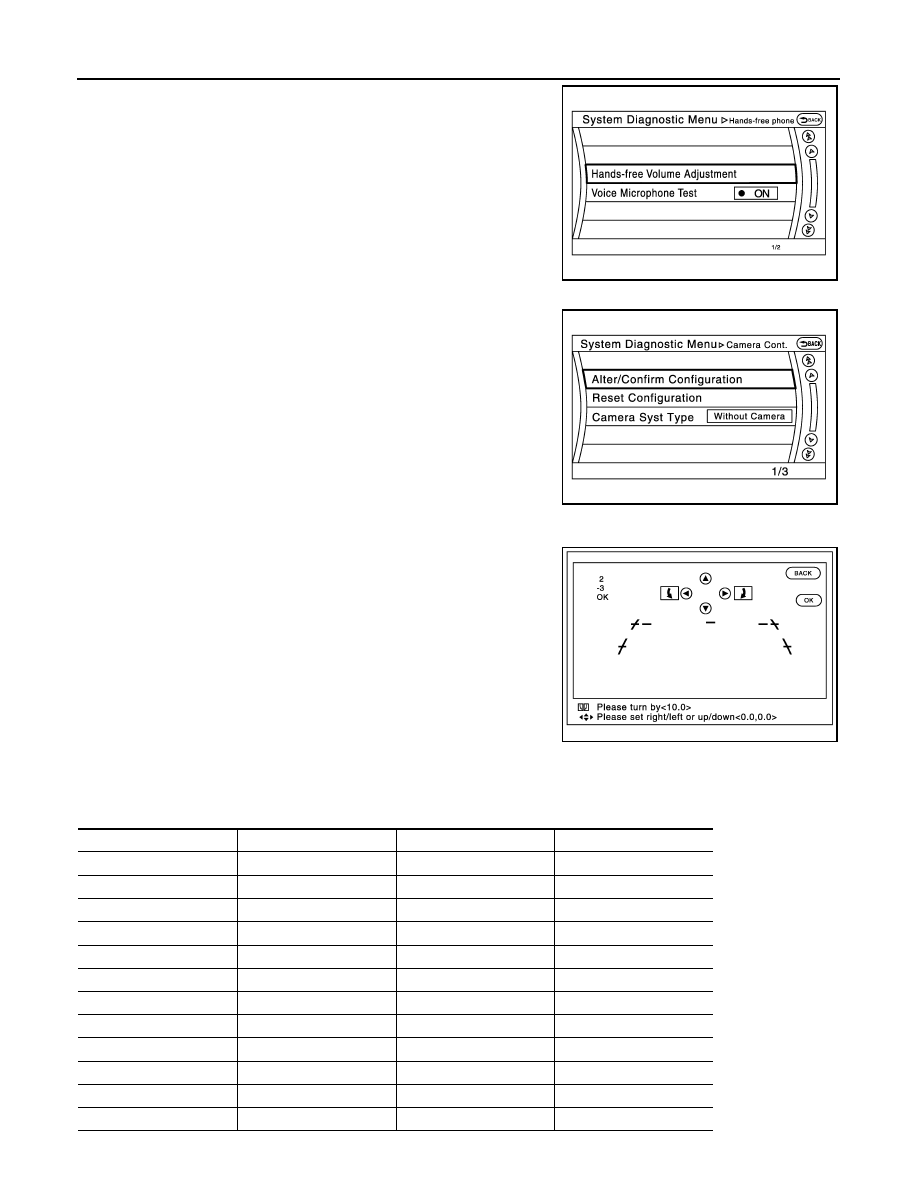

Hands-free Phone

The received volume adjustment of hands-free phone, microphone
speaker check, and erase memory can be performed.

Camera Cont.

The four functions of “Correct Draw Line of Rear view Camera”, “Alter/
Confirm Configuration”, “Reset Configuration” and “Camera Syst Type”
are available.

XM Navi Trffic

Change Channel

• Any necessary channels required to receive traffic information from

the satellite radio system can be set.
Change Application ID

• Any application ID'-s required to receive traffic information from the

satellite radio system can be set.

XM NavWeather

XM CGS

Diag

Not used.

Delete Unit Connection Log

Erase the connection history of unit and error history.

Initialize Settings

Initializes the AV control unit memory.

Version Information

Version information of the AV control unit is displayed.

Mode

Description

NNNIA0123ZZ

Revision: 2012 November

2014 GT-R

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

AV-115

< SYSTEM DESCRIPTION >

[BOSE AUDIO WITH NAVIGATION]

The trouble diagnosis initial screen is displayed, and then the
items of “Self Diagnosis” and “Confirmation/Adjustment” can be
selected.

SELF-DIAGNOSIS MODE

Start the self-diagnosis function and select “Self Diagnosis”.

Self-diagnosis subdivision screen is displayed, and the self-diagnosis mode starts.

The bar graph visible on the center of the self-diagnosis subdivision screen indicates progress of the trou-
ble diagnosis.

Diagnosis results are displayed after the self-diagnosis is com-
pleted. The unit names and the connection lines are color-coded
according to the diagnostic results.

NOTE:

• Only the control unit (AV control unit) is displayed in red.

• Replace AV control unit if “Self-Diagnosis did not run because of a control unit malfunction” is indicated. The symptom is AV con-

trol unit internal error. Refer to

AV-168, "Removal and Installation"

If multiple errors occur at the same time for a single unit, the screen switch colors are determined accord-
ing to the following order of priority: red > gray.

The comments of the self-diagnosis results can be viewed with a
component in the diagnosis result screen.

SELF-DIAGNOSIS RESULTS

Check the applicable display at the following table, and then repair the malfunctioning parts.

Only Unit Part Is Displayed In Red.

JSNIA2173ZZ

Diagnosis results

Unit

Con-

nection

line

Normal

Green

Connection malfunction

Gray

Yellow

Unit malfunction

Note

Red

Green

JSNIA2486ZZ

JPNIA1787ZZ

Screen switch

Description

Possible malfunction location / Action to

take

Control unit

Malfunction is detected in AV control unit
power supply and ground circuits.

Check AV control unit power supply and
ground circuits. When detecting no mal-
function in those components, replace AV
control unit.

Revision: 2012 November

2014 GT-R

AV-116

< SYSTEM DESCRIPTION >

[BOSE AUDIO WITH NAVIGATION]

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

A Connecting Cable Between Units Is Displayed In Yellow.

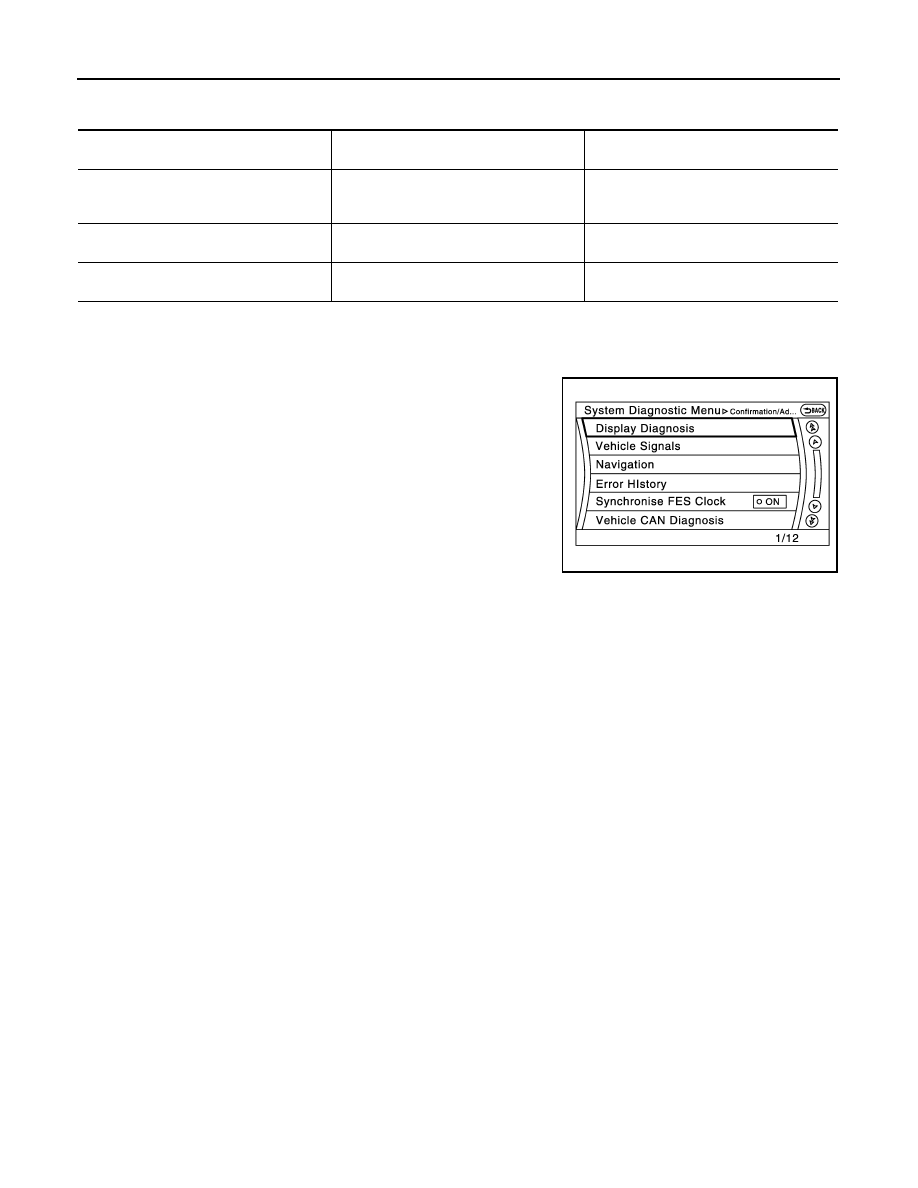

CONFIRMATION/ADJUSTMENT MODE

Start the diagnosis function and select “Confirmation/Adjustment”. The confirmation/adjustment mode
indicates where each item can be checked or adjusted.

Select each switch on the “Confirmation/Adjustment Mode”
screen to display the relevant trouble diagnosis screen. Press
the “Back” switch to return to the initial Confirmation/Adjustment
Mode screen.

Area with yellow connection lines

Description

Possible malfunction location / Action to

take

Control unit

⇔

Front Display

Malfunction is detected in serial communi-
cation circuits between AV control unit and
display unit.

Serial communication circuits between AV
control unit and display unit.

Control unit

⇔

GPS Antenna

GPS antenna connection malfunctions de-
tected.

GPS antenna

Control unit

⇔

SAT Antenna

Satellite radio antenna connection malfunc-
tions detected.

Satellite radio antenna

NNNIA0186ZZ

Revision: 2012 November

2014 GT-R

AV-118

< SYSTEM DESCRIPTION >

[BOSE AUDIO WITH NAVIGATION]

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

Navigation

STEERING ANGLE ADJUSTMENT
The steering angle output value detected with the gyroscope is
adjusted.

SPEED CALIBRATION
During normal driving, distance error caused by tire wear and tire
pressure change is automatically adjusted for by the automatic dis-
tance correction function. This function, on the other hand, is for
immediate adjustment, in cases such as driving with tire chain fitted
on tires.

XM SAT SUBSCRIPTION STATUS
The XM NavTraffic subscription status can be checked.

Error History

The self-diagnosis results are judged depending on whether any error occurs from when “Self-diagnosis” is
selected until the self-diagnosis results are displayed.
However, the diagnosis results are judged normal if an error has occurred before the ignition switch is turned
ON and then no error has occurred until the self-diagnosis start. Check the “Error Record” to detect any error
that may have occurred before the self-diagnosis start because of this situation.
The error record displays the time and place of the most recent occurrence of that error. However, take note of
the following points.

Diagnosis item

Display

Vehicle status

Remarks

Vehicle speed

Vehicle speed > 0 km/h (0 MPH)

Changes in indication may be delayed. This is normal.

OFF

Vehicle speed = 0 km/h (0 MPH)

Parking brake

Parking brake is applied

OFF

Parking brake is released

Lights

Light switch ON

—

OFF

Light switch OFF

Ignition

Ignition switch ON

—

OFF

Ignition switch in ACC position

Reverse

Shift the selector lever to “R” posi-
tion

Changes in indication may be delayed. This is normal.

OFF

Shift the selector lever other than
“R” position

SIDE VIEW SW

—

This item is displayed, but cannot be monitored.

ROOM LAMP

OFF

—

This item is displayed, but not used.

JSNIA2179ZZ

JSNIA2180ZZ

Revision: 2012 November

2014 GT-R

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

AV-119

< SYSTEM DESCRIPTION >

[BOSE AUDIO WITH NAVIGATION]

• If there is a malfunction with the GPS antenna circuit board in the AV control unit, the correct date and time

of occurrence may not be able to be displayed.

• Place of the error occurrence is represented by the position of the current location mark at the time an error

occurred. If current location mark has deviated from the correct position, then the place of the error occur-
rence cannot be located correctly.

• The frequency of occurrence is displayed in a count up manner. The actual count up method differs depend-

ing on the error item.

Count up method A
• The counter resets to 0 if an error occurs when IGN switch is turned ON. The counter increases by 1 if the

condition is normal at a next IGN ON cycle.

• The counter upper limit is 39. Any counts exceeding 39 are ignored.“ The counter can be reset (no error

record display) with the “Delete log” switch or CONSULT.

Count up method B
• The counter increases by 1 if an error occurs when IGN switch is ON. The counter will not decrease even if

the condition is normal at the next IGN ON cycle.

• The counter upper limit is 50. Any counts exceeding 50 are ignored. “ The counter can be reset (no error

record display) with the “Delete log” switch or CONSULT.

Error item
Some error items may be displayed simultaneously according to the cause. If some error items are displayed
simultaneously, the detection of the cause can be performed by the combination of display items

Display type of occur-

rence frequency

Error history display item

Count up method A

CAN communication line, control unit (CAN), AV communication line, control unit (AV)

Count up method B

Other than the above

JPNIA1788GB

Error item

Description

Possible malfunction factor/Action to take

CAN COMM CIRCUIT

CAN communication malfunction is detect-
ed.

This work is recommended to be performed
by NHPC.

Revision: 2012 November

2014 GT-R

AV-120

< SYSTEM DESCRIPTION >

[BOSE AUDIO WITH NAVIGATION]

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

CONTROL UNIT (CAN)

CAN initial diagnosis malfunction is detect-
ed.

Replace the AV control unit if the malfunc-
tion occurs constantly.

CONTROL UNIT (AV)

AV communication circuit initial diagnosis
malfunction is detected.

FLASH-ROM Error Of Control Unit

AV control unit malfunction is detected.

Connection Of Gyro

Connection of G Sensor

CAN Controller Memory Error

Bluetooth Module Connection Error

Sub CPU Connection Error

iPod authentification chip error

Audio connection error

DSP Connection Error

AV control unit malfunction is detected.

• If a disc can be played, then there is a

possibility of the detection of a temporary
malfunction.

• Replace the AV control unit if the mal-

function occurs constantly.

DSP Communication Error

HDD Connection Error

AV control unit malfunction is detected.

Replace the AV control unit if the malfunc-
tion occurs constantly.

HDD Read Error

HDD Write Error

HDD Communication Error

HDD Access Error

GPS Communication Error

GPS malfunction is detected.

An intermittent error caused by strong radio
interference may be detected unless any
symptom (GPS reception error, etc.) oc-
curs.
Replace the AV control unit if the malfunc-
tion occurs constantly.

GPS ROM Error

GPS RAM Error

GPS RTC Error

Unfinished configuration

The writing of configuration data is incom-
plete.

Write configuration data with CONSULT.

USB Controller Communication Error

USB connection malfunction is detected.

Check that the connection to the USB con-
nector is normal.

DVD Mechanism Communication Error

AV control unit malfunction is detected.

• If DVD can be played, then there is a

possibility of the detection of a temporary
malfunction.

• Replace the AV control unit if the mal-

function occurs constantly.

Front Display Connection Error

• Display unit power supply and ground

circuits malfunction is detected.

• Malfunction is detected in communica-

tion circuits between AV control unit and
display unit.

• Display unit power supply and ground

circuits.

• Communication circuits between AV con-

trol unit and display unit.

GPS Antenna Error

GPS antenna connection malfunction is de-
tected.

Check the connection of the GPS antenna
connector.

XM Antenna Connection Error

Satellite radio antenna connection malfunc-
tion is detected.

• Satellite radio antenna feeder.
• Satellite radio antenna.

USB electric current Error

Detection of over current in USB connector.

Check USB harness between the AV con-
trol unit and USB connector.

AM/FM antenna amplifier short to ground

Radio antenna amp. ON signal circuit mal-
function is detected.

Radio antenna amp. ON signal circuit be-
tween AV control unit and antenna amp.

AM/FM antenna amplifier open

Error item

Description

Possible malfunction factor/Action to take

Revision: 2012 November

2014 GT-R

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

AV-121

< SYSTEM DESCRIPTION >

[BOSE AUDIO WITH NAVIGATION]

Vehicle CAN Diagnosis

• CAN communication status and error counter is displayed.
• The error counter displays “OK” if any malfunction was not

detected in the past and displays “0” if a malfunction is detected. It
increases by 1 if the condition is normal at the next ignition switch
ON cycle. The upper limit of the counter is 39.

• The error counter is erased if “Reset” is pressed.

NOTE:
“???” indicates UNKWN

AV COMM Diagnosis

• Displays the communication status between AV control unit (mas-

ter unit) and each unit.

• The error counter displays “OK” if any malfunction was not

detected in the past and displays “0” if a malfunction is detected. It
increases by 1 if the condition is normal at the next ignition switch
ON cycle. The upper limit of the counter is 39.

• The error counter is erased if “Reset” is pressed.

NOTE:
“???” indicates UNKWN

Hands-Free Phone

Ext_Amp_ON output terminal short to
ground

BOSE amp. ON signal circuit malfunction is
detected.

BOSE amp. ON signal circuit between AV
control unit and BOSE amp.

Ext_Amp_ON output terminal :open

• AV COMM CIRCUIT
• Switches Connection Error

When either one of the following items are
detected:
• multifunction switch power supply and

ground circuits are malfunctioning.

• AV communication circuits between AV

control unit and multifunction switch are
malfunctioning.

• Multifunction switch power supply and

ground circuits.

• AV communication circuits between AV

control unit and multifunction switch.

Error item

Description

Possible malfunction factor/Action to take

Items

Display (Current)

Malfunction counter

(Past)

Tx(HVAC)

OK / ???

OK / 0 – 39

Rx(ECM)

OK / ???

OK / 0 – 39

Rx(Cluster)

OK / ???

OK / 0 – 39

Rx(HVAC)

OK / ???

OK / 0 – 39

Rx(USM)

OK / ???

OK / 0 – 39

Rx (TPMS)

OK / ???

OK / 0 - 39

Rx (VDC)

OK / ???

OK / 0 - 39

NNNIA0188ZZ

Items

Status

(Current)

Counter

(Past)

C Tx(ITM–PrimarySW)

OK / ???

OK / 0 – 39

C Rx(PrimarySW–ITM)

OK / ???

OK / 0 – 39

NNNIA0189ZZ

Revision: 2012 November

2014 GT-R

AV-122

< SYSTEM DESCRIPTION >

[BOSE AUDIO WITH NAVIGATION]

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

The hands-free phone reception volume adjustment and microphone
and speaker test functions are also available.

Camera Cont.

The four functions of “Correct Draw Line of Rear view Camera”,
“Alter/Confirm Configuration”, “Reset Configuration” and “Camera
Syst Type” are available.

Correct Draw Line of Rear view Camera

• Use this mode to adjust the guide line display position of the rear

view monitor if necessary after removing the rear view monitor
camera.

Alter/Confirm Configuration

• Configuration stored in the AV control unit can be checked and modified.

Configuration list

NNNIA0190ZZ

NNNIA0179ZZ

JSNIA2185ZZ

Setting item

Setting

Setting item

Setting

Predi. Course Lines

With

Wheelbase

2.7800000

Rear Coeff. K

−

133446.7

Total Length

0.0000000

Rear Coeff. F

0.0016960

Steering Gear Ratio

14.368316

Rear Coeff. P1

0.0000046

Side Coeff. K

0.0000000

Rear Coeff. P2

0.0000056

Side Coeff. F

0.0000000

Rear Coeff. C1

823.00000

Side Coeff. P1

0.0000000

Rear Coeff. C2

480.00000

Side Coeff. P2

0.0000000

Rear Coeff. D1

800.00000

Side Coeff. C1

0.0000000

Rear Coeff. D2

494.00000

Side Coeff. C2

0.0000000

Car Width

1.8950000

Side Coeff. D1

0.0000000

Rear Offset

−

0.207930

Side Coeff. D2

0.0000000

Rear Height

0.6846400

Side Offset

0.0000000

Revision: 2012 November

2014 GT-R

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

AV-123

< SYSTEM DESCRIPTION >

[BOSE AUDIO WITH NAVIGATION]

Reset Configuration

• Configuration stored in the AV control unit can be initialized.

Camera Syst Type

• Type of camera system is selectable.

• Change Channel
- Any necessary channels required to receive traffic information from the satellite radio system can be set.
• Change Application ID
- Any application ID'-s required to receive traffic information from the

satellite radio system can be set.

Delete Unit Connection Log

Rear L/R Angle

0.0000000

Overall Height

0.0000000

Rear Up/Dn Angle

49.409999

Side L/R Angle

0.0000000

Rear Roll Angle

0.0000000

Side Up/Dn Angle

0.0000000

Bumper Rear Dist.

0.0383800

Side Roll Angle

0.0000000

Bumper Rear Ax Dist

0.9710000

Side Front End Dist

0.0000000

Steer. Max Angle

443.83728

Total Width

0.0000000

Min. Turning Red.

5.7049999

—

Setting item

Setting

Setting item

Setting

NNNIA0180ZZ

JSNIA2188ZZ

JSNIA2484ZZ

Revision: 2012 November

2014 GT-R

AV-124

< SYSTEM DESCRIPTION >

[BOSE AUDIO WITH NAVIGATION]

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

Deletes any unit connection records and error records from the AV
control unit memory. (Clear the records of the unit that has been
removed.)

Initialize Settings

“User Data Initialization” and “Accessory Number Initialization” are
possible.

CAUTION:

• Never perform Accessory Number Initialization except when

configuration is unsuccessful.

• Accessory Number Initialization requires configuration. For

details, refer to

AV-141, "CONFIGURATION (AV CONTROL

UNIT) : Description"

Version Information

Version information of the AV control unit is displayed.

CONSULT Function (MULTI AV)

INFOID:0000000009163341

APPLICATION ITEMS

CONSULT performs the following functions via the communication with the AV control unit.

CONFIGURATION

Configuration includes functions as follows.

JSNIA2189ZZ

JSNIA2190ZZ

NNNIA0181ZZ

Diagnosis mode

Description

Configuration

• Read and save the vehicle specification.
• Write the vehicle specification when replacing AV control unit.

Function

Description

Read/Write Configuration

Before Replace ECU

Allows the reading of vehicle specification written in AV control unit
to store the specification in CONSULT.

After Replace ECU

Allows the writing of the vehicle information stored in CONSULT
into the AV control unit.

Manual Configuration

Allows the writing of the vehicle specification into the AV control
unit by hand.

Revision: 2012 November

2014 GT-R

AV CONTROL UNIT

AV-125

< ECU DIAGNOSIS INFORMATION >

[BOSE AUDIO WITH NAVIGATION]

ECU DIAGNOSIS INFORMATION

AV CONTROL UNIT

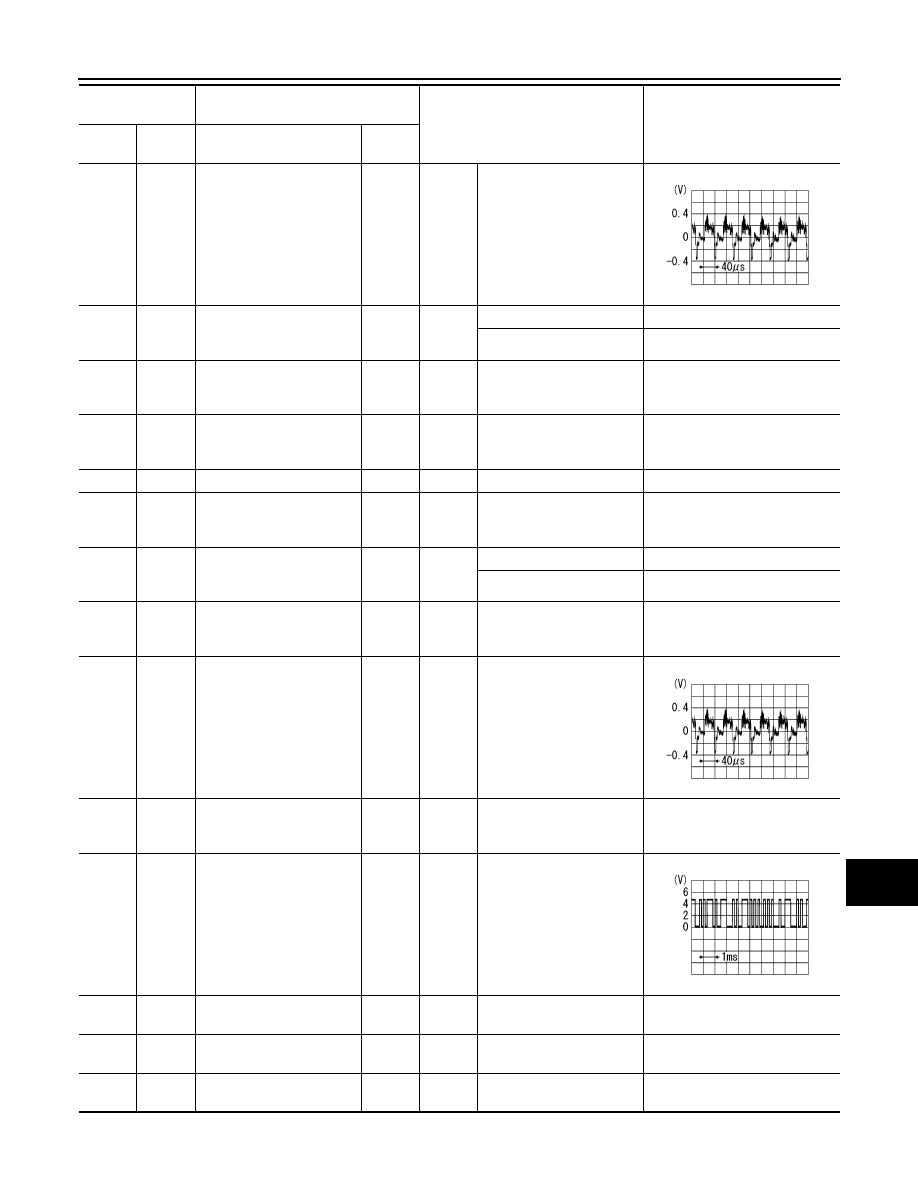

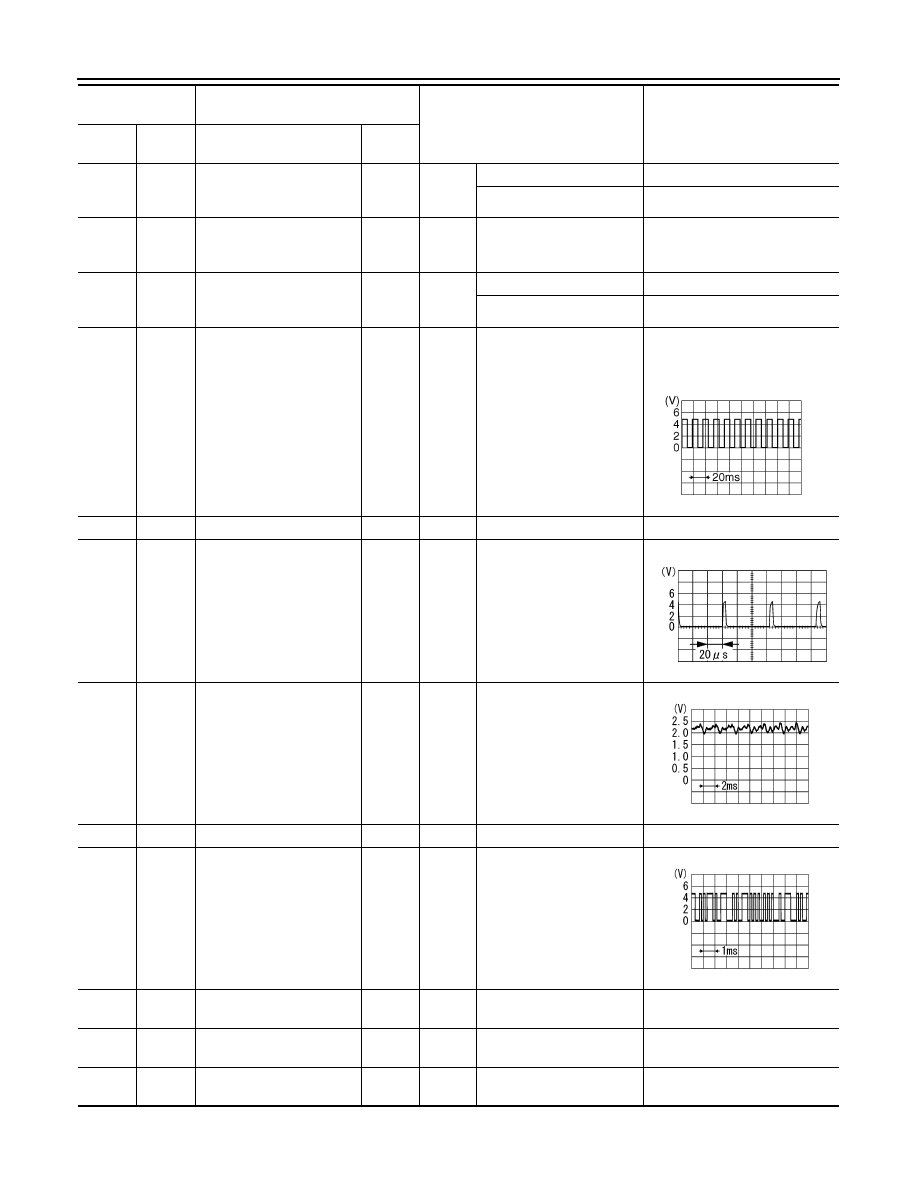

Reference Value

INFOID:0000000009163342

TERMINAL LAYOUT

PHYSICAL VALUES

JSNIA2842ZZ

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

–

Signal name

Input/

Output

(V)

Ground

BOSE amp. ON signal

Output

Ignition

switch

—

12.0 V

(R)

(P)

Audio signal front LH

Output

Ignition

switch

Sound output

(V)

(W)

Audio signal rear LH

Output

Ignition

switch

Sound output

SKIB3609E

Revision: 2012 November

2014 GT-R

AV-126

< ECU DIAGNOSIS INFORMATION >

[BOSE AUDIO WITH NAVIGATION]

AV CONTROL UNIT

(V)

(GR)

Steering switch signal A

Input

Ignition

switch

Keep pressing SOURCE
switch.

0 V

Keep pressing SEEK

switch to

1.0 V

Keep pressing SEEK

switch to

2.0 V

Keep pressing

switch.

3.0 V

Keep pressing START /
STOP switch.

4.0 V

Except for above.

5.0 V

(V)

Ground

ACC power supply

Input

Ignition

switch

ACC

—

Battery voltage

(B)

—

Shield

—

(R)

(G)

Audio signal front RH

Output

Ignition

switch

Sound output

(BR)

(Y)

Audio signal rear RH

Output

Ignition

switch

Sound output

(SB)

(GR)

Steering switch signal B

Input

Ignition

switch

Keep pressing VOL switch
to -.

0 V

Keep pressing VOL switch
to +.

1.0 V

Keep pressing

switch.

2.0 V

Keep pressing MRK switch.

3.0 V

Except for above.

5.0 V

(Y)

Ground

Battery power supply

Input

Ignition

switch

OFF

—

Battery voltage

(B)

Ground

—

Ignition

switch

—

0 V

(G)

Ground

Camera power supply

Output

Ignition

switch

At rear view camera image
is displayed.

6.0 V

Except for above.

0 V

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

–

Signal name

Input/

Output

SKIB3609E

Revision: 2012 November

2014 GT-R

AV CONTROL UNIT

AV-127

< ECU DIAGNOSIS INFORMATION >

[BOSE AUDIO WITH NAVIGATION]

(G)

Ground

AUX image signal

Input

Ignition

switch

At AUX image is displayed.

(SB)

Ground

Disk eject signal

Input

Ignition

switch

Pressing the eject switch.

0 V

Except for above.

5.0 V

(R)

Ground

Camera ground

—

Ignition

switch

—

0 V

(R)

Ground

AUX image signal ground

—

Ignition

switch

—

0 V

—

Shield

—

(BR)

Ground

Switch ground

—

Ignition

switch

—

0 V

(R)

Ground

Parking brake signal

Input

Ignition

switch

Parking brake is ON.

4.5 V

Parking brake is OFF.

0 V

(W)

Ground

Composite image ground

—

Ignition

switch

—

0 V

(R)

Ground

Composite image signal

Output

Ignition

switch

At DVD image is displayed.

(L)

Ground

Microphone VCC

Output

Ignition

switch

—

5.0 V

(V)

Ground

Communication signal
(CONT

→

DISP)

Output

Ignition

switch

When adjusting display
brightness.

(P)

—

CAN–L

Input/

Output

—

(R)

—

AV communication signal
(L)

Input/

Output

—

(R)

—

AV communication signal
(L)

Input/

Output

—

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

–

Signal name

Input/

Output

SKIB2251J

PKIB5039J

Revision: 2012 November

2014 GT-R

AV-128

< ECU DIAGNOSIS INFORMATION >

[BOSE AUDIO WITH NAVIGATION]

AV CONTROL UNIT

(R)

Ground

Illumination signal

Input

Ignition

switch

OFF

Lighting switch is OFF.

0 V

Lighting switch is ON.

12.0 V

(W)

Ground

Ignition signal

Input

Ignition

switch

—

Battery voltage

(O)

Ground

Reverse signal

Input

Ignition

switch

R position

12.0 V

Other than R position

0 V

(V)

Ground

Vehicle speed signal (8-
pulse)

Input

Ignition

switch

When vehicle speed is ap-
prox. 40 km/h (25 MPH)

NOTE:
Maximum voltage may be 12.0 V
due to specifications (connected
units).

—

Shield

—

(B)

Ground

Composite synchronizing
signal

Output

Ignition

switch

—

(P)

Microphone signal

Input

Ignition

switch

Give a voice

—

Shield

—

(SB)

Ground

Communication signal
(DISP

→

CONT)

Input

Ignition

switch

When adjusting display
brightness.

(L)

—

CAN–H

Input/

Output

—

(G)

—

AV communication signal
(H)

Input/

Output

—

(G)

—

AV communication signal
(H)

Input/

Output

—

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

–

Signal name

Input/

Output

SKIA6649J

SKIA0187E

PKIB5037J

PKIB5039J

Revision: 2012 November

2014 GT-R

Nissan GT-R (2007-2014 year). AUDIO, VISUAL & NAVIGATION SYSTEM. Service Manual - part 8
