Nissan GT-R (2007-2014 year). AUDIO, VISUAL & NAVIGATION SYSTEM. Service Manual

STEERING SWITCH GROUND CIRCUIT

AV-65

< DTC/CIRCUIT DIAGNOSIS >

[BASE AUDIO WITH NAVIGATION]

STEERING SWITCH GROUND CIRCUIT

Description

INFOID:0000000009163289

Transmits the steering switch signal to AV control unit.

Diagnosis Procedure

INFOID:0000000009163290

CHECK STEERING SWITCH SIGNAL GND CIRCUIT

Disconnect AV control unit connector and spiral cable connector.

Check continuity between AV control unit harness connector and spiral cable harness connector.

Connect AV control unit connector.

Is the inspection result normal?

YES

>> GO TO 2.

>> Repair harness or connector.

CHECK SPIRAL CABLE

Check spiral cable.
Is the inspection result normal?

YES

>> GO TO 3.

>> Replace spiral cable.

CHECK GROUND CIRCUIT

Connect AV control unit connector.

Check continuity between AV control unit harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 4.

>> Replace AV control unit.

CHECK STEERING SWITCH

Turn ignition switch OFF.

Check steering switch. Refer to

AV-66, "Component Inspection"

Is the inspection result normal?

YES

>> INSPECTION END

>> Replace steering switch.

AV control unit

Spiral cable

Continuity

Connector

Terminal

Connector

Terminal

M201

M36

Existed

AV control unit

Ground

Continuity

Connector

Terminal

M201

Existed

Revision: 2012 November

2014 GT-R

AV-66

< DTC/CIRCUIT DIAGNOSIS >

[BASE AUDIO WITH NAVIGATION]

STEERING SWITCH GROUND CIRCUIT

Component Inspection

INFOID:0000000009163291

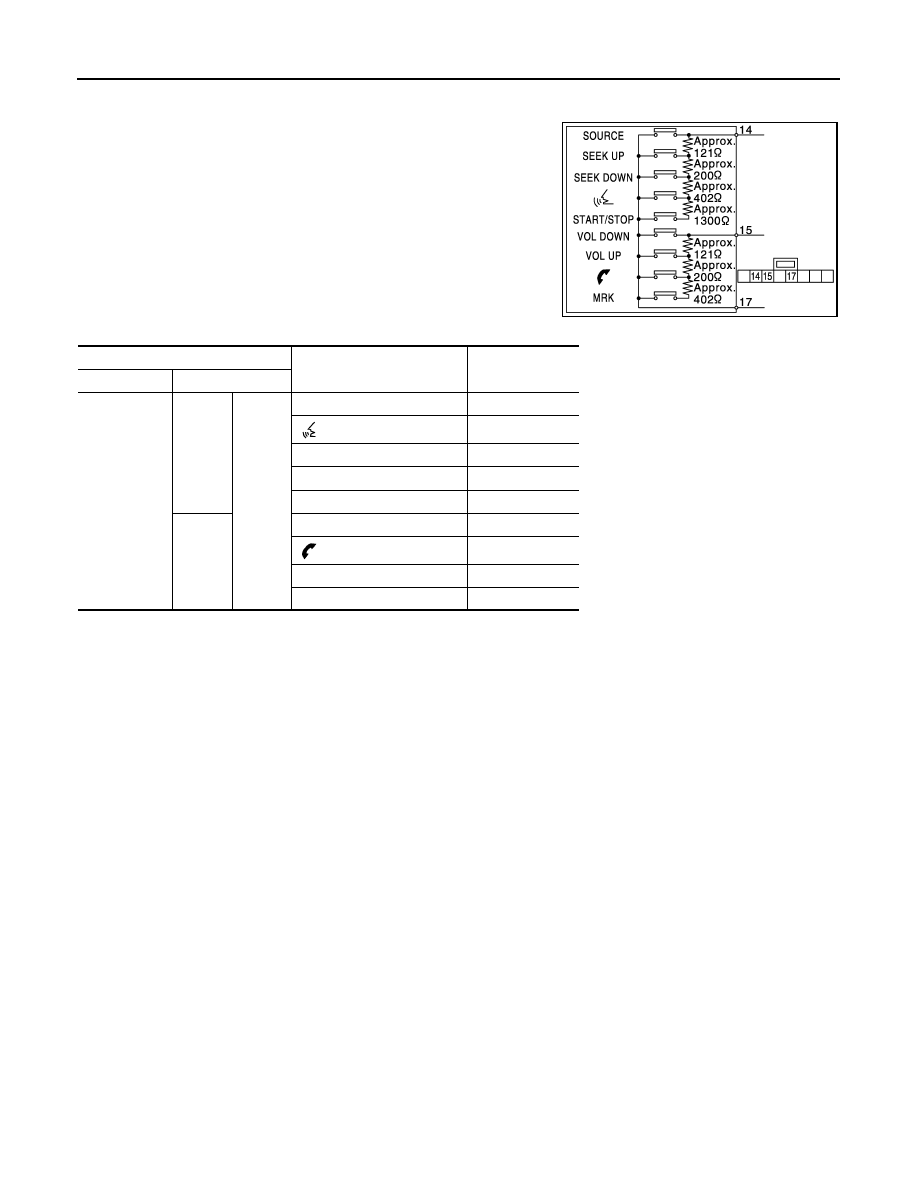

Measure the resistance between the steering switch connector ter-
minals 14 to 17 and 15 to 17.

Standard

JPNIA1238GB

Steering switch

Condition

Resistance

Ω

Connector

Terminals

M303

START / STOP switch ON

1982 – 2063

switch ON

708 – 737

SEEK DOWN switch ON

314 – 327

SEEK UP switch ON

118 – 123

SOURCE switch ON

Ω

or less

MRK switch ON

708 – 737

switch ON

314 – 327

VOL UP switch ON

118 – 123

VOL DOWN switch ON

Ω

or less

Revision: 2012 November

2014 GT-R

MULTI AV SYSTEM SYMPTOMS

AV-67

< SYMPTOM DIAGNOSIS >

[BASE AUDIO WITH NAVIGATION]

SYMPTOM DIAGNOSIS

MULTI AV SYSTEM SYMPTOMS

Symptom Table

INFOID:0000000009163292

RELATED TO HANDS-FREE PHONE

• Before performing diagnosis, confirm that the cellular phone being used by the customer is compatible with

the vehicle.

• It is possible that a malfunction is occurring due to a version change of the phone even though the phone is

a compatible type. This can be confirmed by changing the cellular phone to another compatible type, and
checking that it operates normally. It is important to determine whether the cause of the malfunction is the
vehicle or the cellular phone.

Check Compatibility

Make sure the customer's Bluetooth

related concern is understood.

Verify the customer's concern.
NOTE:
The customer's phone may be required, depending upon their concern.

Write down the customer's phone brand, model, and service provider.
NOTE:
It is necessary to know the service provider. On occasion, a given phone may be on the approved list with
one provider, but may not be on the approved list with other providers.

Go to “www.nissanusa.com/bluetooth/”.

Using the website's search engine, find out if the customer's phone is on the approved list.

If the customer's phone is NOT on the approved list:
Stop diagnosis here. The customer needs to obtain a Bluetooth

phone that is on the approved list before

any further action.

If the feature related to the customer's concern shows as “N” (not compatible):
Stop diagnosis here. If the customer still wants the feature to function, they will need to get an approved
phone showing the feature as “Y” (compatible) in the “Basic Features” list.

If the feature related to the customer's concern shows as “Y” (compatible):
Perform diagnosis as per the following table.

Symptoms

Check items

Probable malfunction location

Does not recognize cellular
phone connection. (no connec-
tion is displayed on the display
at the guide.)

Repeat the registration of cellular phone.

AV control unit malfunction.
Replace AV control unit.
Refer to

AV-77, "Removal and Installation"

Hands-free phone cannot be
established.

• Hands-free phone operation can be

made, but the communication cannot
be established.

• Hands-free phone operation can be

performed, however, voice between
each other cannot be heard during the
conversation.

AV control unit malfunction.
Replace AV control unit.
Refer to

AV-77, "Removal and Installation"

The other party's voice cannot
be heard by hands-free phone.

Check the “microphone speaker” in In-
spection & Adjustment Mode if sound is
heard.

AV control unit malfunction.
Replace AV control unit.
Refer to

AV-77, "Removal and Installation"

Originating sound is not heard
by the other party with hands-
free phone communication.

Sound operation function is normal.

AV control unit malfunction.
Replace AV control unit.
Refer to

AV-77, "Removal and Installation"

Sound operation function does not work.

Microphone signal circuit malfunction.
Refer to

AV-57, "Diagnosis Procedure"

Revision: 2012 November

2014 GT-R

AV-68

< SYMPTOM DIAGNOSIS >

[BASE AUDIO WITH NAVIGATION]

MULTI AV SYSTEM SYMPTOMS

RELATED TO RGB IMAGE

RELATED TO VOICE CONTROL

RELATED TO AUDIO

The system cannot be operat-
ed.

• The retractable hard top is fully closed.
• The voice recognition can be controlled.
• Steering switch's “MRK”, “VOL UP”,

“VOL DOWN” switch works, but “

” it

does not work.

Steering switch malfunction.

• The retractable hard top is fully closed.
• The voice recognition can be controlled.
• Steering switch's “MRK”, “VOL UP”,

“VOL DOWN”, “

” switches do not

work.

Steering switch signal B circuit malfunction.
Refer to

AV-63, "Diagnosis Procedure"

All steering switches do not work.

Steering switch ground circuit malfunction.
Refer to

AV-65, "Diagnosis Procedure"

Symptoms

Check items

Probable malfunction location

Symptoms

Check items

Probable malfunction location

RGB image is not shown.

—

RGB digital image signal circuit malfunction.
Refer to

AV-54, "Diagnosis Procedure"

Symptoms

Check items

Probable malfunction location

The voice cannot be controlled
even if the voice control screen
is displayed.

Voice sounds at “Voice Microphone Test”
of Confirmation/Adjustment mode.

AV control unit malfunction.
Replace AV control unit.
Refer to

AV-77, "Removal and Installation"

Voice does not sound at “Voice Micro-
phone Test” of Confirmation/Adjustment
mode.

Microphone circuit malfunction.
Refer to

AV-57, "Diagnosis Procedure"

The voice cannot be controlled
(Voice control screen is not dis-
played).

Steering switch's “SOURCE”, “SEEK UP”,

“SEEK DOWN”, “

”, “START /

STOP”switches do not work.

Steering switch signal A circuit malfunction.
Refer to

AV-61, "Diagnosis Procedure"

All steering switches do not work.

Steering switch ground circuit malfunction.
Refer to

AV-65, "Diagnosis Procedure"

Symptoms

Check items

Probable malfunction location

The disk cannot be removed.

—

Disk eject signal circuit malfunction.
Refer to

AV-56, "Diagnosis Procedure"

Revision: 2012 November

2014 GT-R

MULTI AV SYSTEM SYMPTOMS

AV-69

< SYMPTOM DIAGNOSIS >

[BASE AUDIO WITH NAVIGATION]

RELATED TO USB

NOTE:
Check that there is no malfunction of USB equipment main body before performing a diagnosis.

iPod

is a trademark of Apple inc., registered in the U.S. and other countries.

RELATED TO DVD MODE

No sound comes out or the lev-
el of the sound is low.

No sound from all speakers.

• Audio amp. ON signal circuit malfunction.
• Audio amp. (LH and RH) power supply and ground cir-

cuits malfunction.
Refer to

AV-52, "AUDIO AMP. LH : Diagnosis Proce-

dure"

(audio amp. LH).

Refer to

AV-52, "AUDIO AMP. RH : Diagnosis Proce-

dure"

(audio amp. RH).

No sound from all LH speakers.

• Audio amp. ON signal circuit malfunction.
• Audio amp. LH power supply and ground circuits mal-

function.
Refer to

AV-52, "AUDIO AMP. LH : Diagnosis Proce-

dure"

No sound from all RH speakers.

• Audio amp. ON signal circuit malfunction.
• Audio amp. RH power supply and ground circuits mal-

function.
Refer to

AV-52, "AUDIO AMP. RH : Diagnosis Proce-

dure"

Only a certain speaker (front right, front
left, rear right, or rear left, etc.) does not
output sound.

• Poor connector connection of speaker.
• Sound signal circuit malfunction between AV control

unit and audio amp. (LH or RH).

• Sound signal circuit malfunction between audio amp.

(LH or RH) and speaker.

• Malfunction in speaker.
• Malfunction in AV control unit.
• Malfunction in audio amp. (LH or RH).

Noise is mixed with audio.

Noise comes out from all speakers.

• Malfunction in AV control unit.
• Malfunction in audio amp. (LH or RH).

Noise comes out only from a certain
speaker (front right, front left, rear right,
or rear left, etc.).

• Poor connector connection of speaker.
• Sound signal circuit malfunction between AV control

unit and audio amp. (LH or RH).

• Sound signal circuit malfunction between audio amp.

(LH or RH) and speaker.

• Malfunction in speaker.
• Poor installation of speaker (e.g. backlash and loose-

ness)

• Malfunction in AV control unit.
• Malfunction in audio amp. (LH or RH).

Noise is mixed with radio only (when the
car hits a bump or while driving over bad
roads).

Poor connector connection of antenna or antenna feeder.

Radio is not received or poor
reception.

• Other audio sounds are normal.
• Any radio cannot be received or poor

reception is caused even after moving
to a service area with good reception
(e.g. a place with clear view and no ob-
stacles generating external noises).

• Antenna amp. ON signal circuit malfunction.
• Poor connector connection of antenna or antenna feed-

er.

Symptoms

Check items

Probable malfunction location

Symptoms

Check items

Possible malfunction location / Action to take

iPod

or USB memory can not

be recognized.

—

• USB harness malfunction.
• USB connector malfunction.

Revision: 2012 November

2014 GT-R

AV-70

< SYMPTOM DIAGNOSIS >

[BASE AUDIO WITH NAVIGATION]

MULTI AV SYSTEM SYMPTOMS

RELATED TO CAMERA

RELATED TO STEERING SWITCH

Symptoms

Check items

Probable malfunction location

The disk cannot be removed.

—

Disk eject signal circuit malfunction.
Refer to

AV-56, "Diagnosis Procedure"

DVD sound is not heard.

No sound from all speakers LH.

• Audio amp. LH power supply and ground circuit.

Refer to

AV-52, "AUDIO AMP. LH : Diagnosis Proce-

dure"

• Audio amp. ON signal circuit.

No sound from all speakers RH.

• Audio amp. RH power supply and ground circuit.

Refer to

AV-52, "AUDIO AMP. RH : Diagnosis Proce-

dure"

• Audio amp. ON signal circuit.

Sound is heard only from specific places
(RH front, RH rear, LH front and LH rear).

Audio signal circuit of suspect system.

Symptoms

Check items

Probable malfunction location

Camera image is not shown.
(Vehicle width and predictive
course line are displayed.)

—

• Camera image signal circuit.
• Camera power supply and ground circuits.
Refer to

AV-59, "Diagnosis Procedure"

Camera image does not switch.

Select “Camera Cont.” of Confirmation/
Adjustment mode, Reverse Sensor is not
turned ON at “Connection Confirmation”.

Reverse signal circuit malfunction.

Select “Camera Cont.” of Confirmation/
Adjustment mode, Reverse Sensor is
turned ON at “Connection Confirmation”.

AV control unit malfunction.
Replace AV control unit. Refer to

AV-77, "Removal and

Installation"

Symptoms

Probable malfunction location

None of the steering switch operations work.

Steering switch ground circuit malfunction.
Refer to

AV-65, "Diagnosis Procedure"

Only specified switch cannot be operated.

Steering switch malfunction.

Steering switch's “SOURCE”, “SEEK UP”, “SEEK DOWN”,

“

”, “START / STOP” switches do not work.

Steering switch signal A circuit malfunction.
Refer to

AV-61, "Diagnosis Procedure"

Steering switch's “MRK”, “VOL UP”, “VOL DOWN”, “

”

switches do not work.

Steering switch signal B circuit malfunction.
Refer to

AV-63, "Diagnosis Procedure"

Revision: 2012 November

2014 GT-R

NORMAL OPERATING CONDITION

AV-71

< SYMPTOM DIAGNOSIS >

[BASE AUDIO WITH NAVIGATION]

NORMAL OPERATING CONDITION

Description

INFOID:0000000009163293

NOTE:
For Navigation system operation information, refer to Navigation system Owner's Manual.

BASIC OPERATIONS

NOTE:
Locations stored in the Address Book and other memory functions may be lost if the vehicle's battery is dis-
connected or becomes discharged. If this occurs, service the vehicle's battery as necessary and re-enter the
information in the Address Book.

RELATED TO VOICE RECOGNITION

Related to Basic Operation

Symptom

Possible cause

Possible solution

No image is displayed.

The brightness is at the lowest setting.

Adjust the brightness of the display.

The systems in the video mode.

Press “DISC-AUX” to change the mode.

The display is turned off.

Press “

-” to turn on the display.

The interior of the vehicle becomes the a little less
than 80

C (176

F) or high temperature, and the pro-

tection of the display acts, and a display is turned off.

Wait until the interior of the vehicle has
cooled down.

Screen not clear.

Contrast setting is not appropriate.

Adjust the contrast of the display.

No voice guidance is available. Or
The volume is too high or too low.

The volume is not set correctly, or it is turned off.

Adjust the volume of voice guidance.

Voice guidance is not provided for certain streets
(roads displayed in gray).

This is not a malfunction.

No map is displayed on the screen.

A screen other than map screen is displayed.

Press “MAP”.

The screen is too dim. The move-
ment is slow.

The temperature in the interior of the vehicle is low.

Wait until the interior of the vehicle has
warmed up.

Some pixels in the display are dark-
er or brighter than others.

This condition is an inherent characteristic of liquid
crystal displays.

This is not a malfunction.

Some menu items cannot be se-
lected.

Some menu items become unavailable while the ve-
hicle is driven.

Park the vehicle in a safe location, and
then operate the navigation system.

Symptom

Possible cause

Possible solution

The system does not
recognize your com-
mand.
or
The system recognizes
your command incor-
rectly

The interior of the vehicle is too noisy.

Close the windows or have other occupants quiet.

The volume of your voice is too low.

Speak louder.

The volume if your voice is too loud.

Speak softer.

Your pronunciation is unclear.

Speak clearly.

You are speaking before the voice recognition is ready

Press and release “

” switch on the steering

switch, and speak a command after the tone
sounds.

8 seconds or more have passed after you pressed and

released “

” switch on the steering switch.

Make sure to speak a command within 8 seconds

after you press and release “

” switch on the

steering switch.

Only a limited range of voice commands is usable for
each screen.

Use a correct voice command appropriate for the
current screen.

The fan of the air conditioner is too loud.

Lower the fan speed as necessary as voice com-
mands can be recognized more easily.

The system cannot be
operated.

The retractable hard top is open.

• Close the retractable hard top.
• Open and close the retractable hard top before

operating the system.

Revision: 2012 November

2014 GT-R

AV-72

< SYMPTOM DIAGNOSIS >

[BASE AUDIO WITH NAVIGATION]

NORMAL OPERATING CONDITION

Related to Item Choice

The system should respond correctly to all voice commands without difficulty. If problems are encountered, fol-
low the solutions given in this guide for the appropriate error.
Where the solutions are listed by number, try each solution in turn, starting with number one, until the problem
is resolved.

Related to Telephone

The system should respond correctly to all voice commands without difficulty. If problems are encountered, try
the following solutions.
Where the solutions are listed by number, try each solution in turn, starting with number 1, until the problem is
resolved.

RELATED TO AUDIO

• The majority of the audio malfunctions are the result of outside causes (bad CD/cassette, electromagnetic

interference, etc.). Check the symptoms below to diagnose the malfunction.

• The vehicle itself can be a source of noise if noise prevention parts or electrical equipment is malfunctioning.

Check if noise is caused and/or changed by engine speed, ignition switch turned to each position, and oper-
ation of each piece of electrical equipment, and then determine the cause.

NOTE:
• CD-R is not guaranteed to play because they can contain compressed audio (MP3, WMA, AAC) or could be

incorrectly mastered by the customer on a computer.

• Check if the CDs carry the Compact Disc Logo. If not, the disc is not mastered to the “red book” Compact

Disc Standard and may not play.

Symptom/ error message

Solution

Displays “COMMAND NOT REC-
OGNIZED” or the system fails to in-
terpret the command correctly.

1. Ensure that the command format is valid.

2. Speak clearly without pausing between words and at a level appropriate to the ambient noise
level.

3. Ensure that the ambient noise level is not excessive, for example, windows open or defrost on.
NOTE:
If it is too noisy to use the phone, it is likely that voice commands will not be recognized.

4. If optional words of the command have been omitted, then command should be tried with these
in place.

The system consistently selects
the wrong voicetag

1. Ensure that the voicetag requested matches what was originally stored. This can be confirmed
by giving the “Addressbook” Directory or Phone Directory command.

2. Replace one of the voicetags being confused with a different voicetag.

Symptom

Solution

System fails to interpret the com-
mand correctly.

1. Ensure that the command is valid.

2. Ensure that the command is spoken after the tone.

3. Speak clearly without pausing between words and at level appropriate to the ambient noise lev-
el in the vehicle.

4. Ensure that the ambient noise level is not excessive (for example, windows open or defroster
on).
NOTE:
If it is too noisy to use the phone, it is likely that the voice commands will not be recognized.

5. If more than one command was said at a time, try saying the commands separately.

6. If the system consistently fails to recognize commands, the voice training procedure should be
carried out to improve the recognition response for the speaker. See “Speaker adaptation (SA)
mode” earlier in this section. Refer to “OWNER’S MANUAL”.

The system consistently selects
the wrong voicetag

1. Ensure that the phone book entry name requested matches what was originally stored. This
can be confirmed by using the “List Names” command.

2. Replace one of the names being confused with a new name.

Revision: 2012 November

2014 GT-R

NORMAL OPERATING CONDITION

AV-73

< SYMPTOM DIAGNOSIS >

[BASE AUDIO WITH NAVIGATION]

Noise resulting from variations in field strength, such as fading noise and multi-path noise, or external noise from trains and other
sources, is not a malfunction.

NOTE:

• Fading noise: This noise occurs because of variations in the field strength in a narrow range due to mountains or buildings blocking

the signal.

• Multi-path noise: This noise results from a time difference between the broadcast waves directly from the station arriving at the

antenna and the waves reflected by mountains or buildings.

RELATED TO DVD

Symptom

Cause and Counter measure

Cannot play

Check if the CD was inserted correctly.

Check if the CD is scratched or dirty.

Check if there is condensation inside the player, and if there is, wait until the condensation is gone
(about 1 hour) before using the player.

If there is a temperature increase error, the player will play correctly after it returns to the normal
temperature.

If there is a mixture of music CD files (CD-DA data) and MP3/WMA/AAC files on a CD, only the
music CD files (CD-DA data) will be played.

Files with extensions other than “.MP3”, “.WMA”, “.AAC” “.mp3”, “.wma”, or “.aac” cannot be
played. In addition, the character codes and number of characters for folder names and file names
should be in compliance with the specifications.

Check if the disc or the file is generated in an irregular format, This may occur depending on the
variation or the setting of MP3/WMA/AAC writing applications or other text editing applications.

Check if the finalization process, such as session close and disc close, is done for the disc.

Check if the CD is protected by copyright.

Disks recorded in live file system format are not supported. (For Microsoft Windows Vista, check
the settings.)

Poor sound quality

Check if the CD is scratched or dirty.

It takes a relatively long time before
the music starts playing.

If there are many folder or file levels on the MP3/WMA/AAC CD, or if it is a multisession disc,
some time may be required before the music starts playing.

Music cuts off or skips

The writing software and hardware combination might not match, or the writing speed, writing
depth, writing width might not match the specifications. Try using the slowest writing speed.

Skipping with high bit rate files

Skipping may occur with large quantities if data such as for high bit rate data.

Move immediately to the next song
when playing

When a non-MP3/WMA/AAC file has been given an extension of “.MP3”, “.WMA”, “”.AAC“.mp3”,
“.wma”, or “.aac” or when play is prohibited by copyright protection, the player will skip to the next
song.

The songs do not play back in the
desired order.

The playback order is the order in which the files were written by the software, so the files might
not play in the desired order.

Poor reception only from a certain
radio broadcast station.

Check incoming radio wave signal strength of applicable broadcast station.

Buzz/rattle sound from speaker

The majority of rattle sounds are not indicative of an issue with the speaker, usually something
nearby the speaker is causing the rattle.

Symptom

Possible cause

Possible solution

Not working as operated

Some operations may be rejected or may not function
as intended because of the manufacturer's intent, de-
pending on DVD.

This is not a malfunction.

Operation not accepted

If a requested operation is prohibited, then a message
is displayed on the screen. (Message display depends
on DVD.)

This is not a malfunction.

Revision: 2012 November

2014 GT-R

AV-74

< SYMPTOM DIAGNOSIS >

[BASE AUDIO WITH NAVIGATION]

NORMAL OPERATING CONDITION

RELATED TO VEHICLE ICON

DVD can not be played

Check that the DVD is inserted in the right place.

Upturn the DVD (facing the title upward).

Check if there is condensation inside the player.

wait until the condensation is gone (about 1 hour)
before using the player.

DVD menu is displayed.

Select item to touch “ENTER”

Insertion of a DVD with a different region code.

DVDs with a different region code can not be
played. Check DVD.

Some DVD softwares may not be played because not
all DVD softwares fully comply in the standard.

This is not a malfunction.

Interruption during play-
back or flicker in the dis-
play

Check that the DVD has no scratches and dirt.

Errors may not be corrected depending on the
size of scratches.

Low sound quality

Wipe and clean the dirt on the disc.

Distortion in picture

In the process of fast-forward or fast-reverse.

This is not a malfunction.

Subtitles not shown

Subtitle setting is OFF.

Set subtitle.

Subtitle is not included in the software.

Check DVD.

Not played in set language

If a language is not included in the DVD, then the DVD
is played in a recommended language.

Check DVD.

Not played with set subtitle

If a set subtitle is not included in the DVD, then the
DVD is played with a recommended subtitle.

Check DVD.

Subtitle and language not
selectable (not played with
set subtitle or in set lan-
guage)

The DVD is not multilanguage-capable.

The inclusion of the number of languages de-
pends on DVD. Languages may be selectable on
the Menu screen. Check DVD.

The DVD has a priority language or setting.

If the DVD has a priority language or settings,
then settings changed with this device are not re-
flected.

Angle unchangeable

Plural angles are not recorded in the software.

Check if the DVD is multi-angle-capable.

Unusual screen display

Display mode to the output aspect ratio for the DVD
software is inappropriate.

Switch to the appropriate display mode.

Playback time is indicated,
but no sound comes out.

Playback of Mix mode Truck 1. (Mix mode: Format in-
cluding Truck 1 with data other than music and Trucks
from Truck 2 with music data.)

Play music data included in trucks from Truck 2.

Symptom

Possible cause

Possible solution

Symptom

Possible cause

Possible solution

Names of roads differ between Plan

View and Birdview

This is because the quantity of the displayed in-
formation is reduced so that the screen does
not become too crowded. There is also a
chance that names of the roads may be dis-
played multiple times, and the names appear-
ing on the screen may be different because of
a processing procedure.

This is not a malfunction.

The vehicle icon is not displayed in
the correct position.

The vehicle was transported after the ignition
switch was pressed off, for example, by a ferry
or car transporter.

Drive the vehicle for a while on a road where
GPS signals can be received.

The position and direction of the vehicle icon
may be incorrect depending on the driving en-
vironments and the levels of positioning accu-
racy of the navigation system.

This is not a malfunction. Drive the vehicle for
a while to automatically correct the position
and direction of the vehicle icon.

When the vehicle is traveling on a
new road, the vehicle icon is located
on another road nearby.

Because the new road is not stored in the map
data, the system automatically places the vehi-
cle icon on the nearest road available.

Updated road information will be included in
the next version of the map data.

The screen does not switch to the
night screen even after turning on
the headlights.

The daytime screen was set the last time the
headlights were turned on.

Set the screen to the night screen mode using
<Day/Night> when you turn on the headlights.

Revision: 2012 November

2014 GT-R

NORMAL OPERATING CONDITION

AV-75

< SYMPTOM DIAGNOSIS >

[BASE AUDIO WITH NAVIGATION]

RELATED TO ROUTE CALCULATION AND VISUAL GUIDANCE

The map does not scroll even when
the vehicle is moving.

The current location map screen is not dis-
played.

Press “MAP”.

The vehicle icon is not displayed.

The current location map screen is not dis-
played.

Press “MAP”.

The location of the vehicle icon is
misaligned from the actual position.

When using tire chains or replacing the tires,
speed calculations based on the speed sensor
may be incorrect.

Drive the vehicle for a while [at approximately
30 km/h (19 MPH) for about 30 minutes] to
automatically correct the vehicle icon posi-
tion.
If this does not correct the vehicle icon posi-
tion, contact an INFINITI dealer.

The map data has a mistake or is incomplete
(the vehicle icon position is always misaligned
in the same area).

Updated road information will be included in
the next version of the map data.

Symptom

Possible cause

Possible solution

Symptom

Possible cause

Possible solution

Waypoints are not included in
the auto reroute calculation.

Waypoints that you have already passed are not included in
the auto reroute calculation.

If you want to go to that waypoint
again, you need to edit the route.

Route information is not dis-
played.

Route calculation has not yet been performed.

Set the destination and perform route
calculation.

You are not driving on the suggested route.

Drive on the suggested route.

Route guidance is set to off.

Turn on route guidance.

Route information is not provided for certain types of roads
(roads displayed in gray).

This is not a malfunction.

The auto reroute calculation (or
detour calculation) suggests
the same route as the one pre-
viously suggested.

Route calculations took priority conditions into consider-
ation, but the same route was calculated.

This is not a malfunction.

A waypoint cannot be added.

Five waypoints are already set on the route, including ones
that you have already passed.

A maximum of 5 waypoints can be set
on the route. If you want to go to 6 or
more waypoints, perform route calcu-
lations multiple times as necessary.

The suggested route is not dis-
played.

Roads near the destination cannot be calculated.

Reset the destination to a main or or-
dinary road, and recalculate the route.

The starting point and destination are too close.

Set a more distant destination.

The starting point and destination are too far away.

Divide your trip by selecting one or two
intermediate destinations, and per-
form route calculations multiple times.

There are time restricted roads (by the day of the week, by
time) near the current vehicle location or destination.

Set [Use Time Restricted Roads] to
off.

The part of the route that you
have already passed is deleted.

A route is managed by sections between waypoints. If you
passed the first waypoint, the section between the starting
point and the waypoint is deleted. (It may not be deleted de-
pending on the area.)

This is not a malfunction.

An indirect route is suggested.

If there are restrictions (such as one-way streets) on roads
close to the starting point or destination, the system may
suggest an indirect route.

Adjust the location of the starting of
the starting point or destination.

The system may suggest an indirect route because route
calculation does not take into consideration some areas
such as narrow streets (gray roads.)

Reset the destination to a main or or-
dinary road, and recalculate the route.

Revision: 2012 November

2014 GT-R

AV-76

< SYMPTOM DIAGNOSIS >

[BASE AUDIO WITH NAVIGATION]

NORMAL OPERATING CONDITION

RELATED TO VOICE GUIDANCE

RELATED TO HANDS-FREE PHONE

The landmark information does
not correspond to the actual in-
formation.

This may be caused by insufficient or incorrect map data.

Updated information will be included
in the next version of the data.

The suggested route does not
exactly connect to the starting
point, waypoints, or destina-
tion.

There is no data for route calculation closes to these loca-
tions.

Set the starting point, waypoints and
destination on a main road, and per-
form route calculation.

Symptom

Possible cause

Possible solution

Symptom

Possible cause

Possible solution

Voice guidance is not available

Voice guidance is only available at certain intersections
marked with? In some case, voice guidance is not avail-
able even when the vehicle should make a turn.

This is not a malfunction.

The vehicle has deviated from the suggested route.

Go back to the suggested route or request
route calculation again

Voice guide is set to off.

Turn on voice guidance.

Route guidance is set to off.

Turn on voice guidance.

The guidance contact does not
correspond to the actual condi-
tion.

The contact of voice guidance may vary, depending on
the types of intersections at which turn are made.

Follow all traffic rules and regulations.

Symptom

Cause and Counter measure

Does not recognize cellular phone connection. (No connection is
displayed on the display at the guide.)

Some Bluetooth

enabled cellular phones may not be recognized

by the in-vehicle phone module. Refer to “RELATED TO HANDS-
FREE PHONE (Check Compatibility)” of MULTI AV SYSTEM
SYMPTOM.

Cannot use hands-free phone

Customer will not be able to use a hands-free phone under the fol-
lowing conditions.
• The vehicle is outside of the telephone service area.
• The vehicle is in an area where it is difficult to receive radio

waves; such as in a tunnel, in an underground parking garage,
near a tall building or in a mountainous area.

• The cellular phone is locked to prevent it from being dialed.
NOTE:

While a cellular phone is connected through the Bluetooth

wire-

less connection, the battery power of the cellular phone may dis-

charge quicker than usual. The Bluetooth

Hands-Free Phone

System cannot charge cellular phones.

The other party's voice cannot be heard by hands-free phone.

When the radio wave condition is not ideal or ambient sound is too
loud, it may be difficult to hear the other person's voice during a
call.

Poor sound quality

Do not place the cellular phone in an area surrounded by metal or
far away from the in-vehicle phone module to prevent tone quality
degradation and wireless connection disruption.

Revision: 2012 November

2014 GT-R

AV CONTROL UNIT

AV-77

< REMOVAL AND INSTALLATION >

[BASE AUDIO WITH NAVIGATION]

REMOVAL AND INSTALLATION

AV CONTROL UNIT

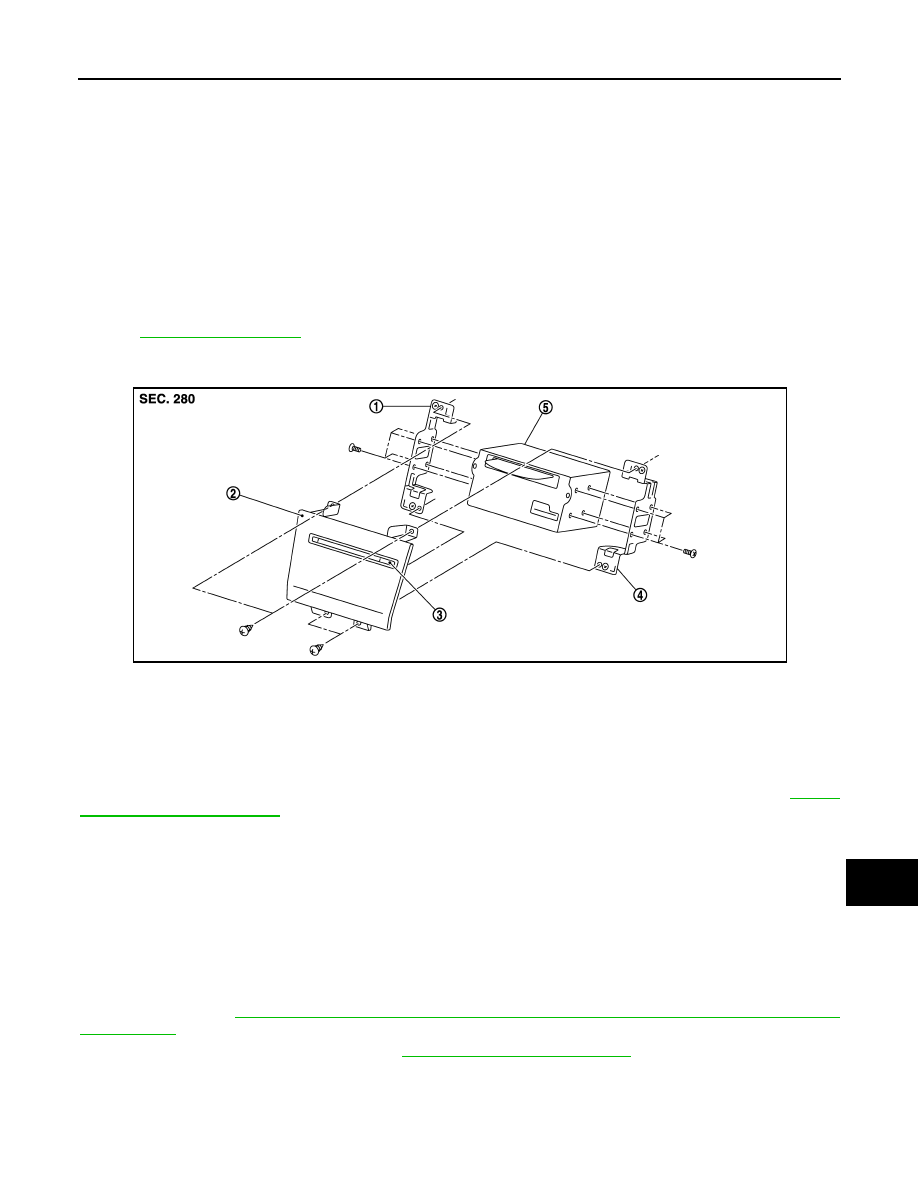

Exploded View

INFOID:0000000009163294

CAUTION:

Remove battery terminal and AV control unit after a lapse of 30 seconds or more after turning the igni-
tion switch OFF.
NOTE:
After the ignition switch is turned OFF, the AV control unit continues operating for approximately 30 seconds.
Therefore, data corruption may occur if battery voltage is cut off within 30 seconds.

REMOVAL

Refer to

IP-12, "Exploded View"

DISASSEMBLY

Removal and Installation

INFOID:0000000009163295

CAUTION:

Be careful of the following items at removal and installation of A/T shift selector. Refer to

TM-16,

"Removal and Installation"

for details.

• For electro-medical apparatus user, keep the range sensor away from the device.
• Keep the range sensor away from magnetic objects during work.
• Remove battery terminal and AV control unit after a lapse of 30 seconds or more after turning the

ignition switch OFF.

NOTE:
After the ignition switch is turned OFF, the AV control unit continues operating for approximately 30 seconds.
Therefore, data corruption may occur if battery voltage is cut off within 30 seconds.

REMOVAL

NOTE:
When replacing AV control unit, save or print current vehicle specification with CONSULT configuration before
replacement. Refer to

AV-49, "ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Special Repair

Requirement"

Remove the cluster lid C (lower). Refer to

IP-13, "Removal and Installation"

Disconnect the connector, and then remove the AV control unit together with the bracket from the vehicle.

Remove the bracket from the AV control unit.

INSTALLATION

Bracket LH

Cluster lid C (lower)

Disk eject switch
