Nissan GT-R. Manual - part 318





WCS

WARNING CHIME SYSTEM

WCS-11

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

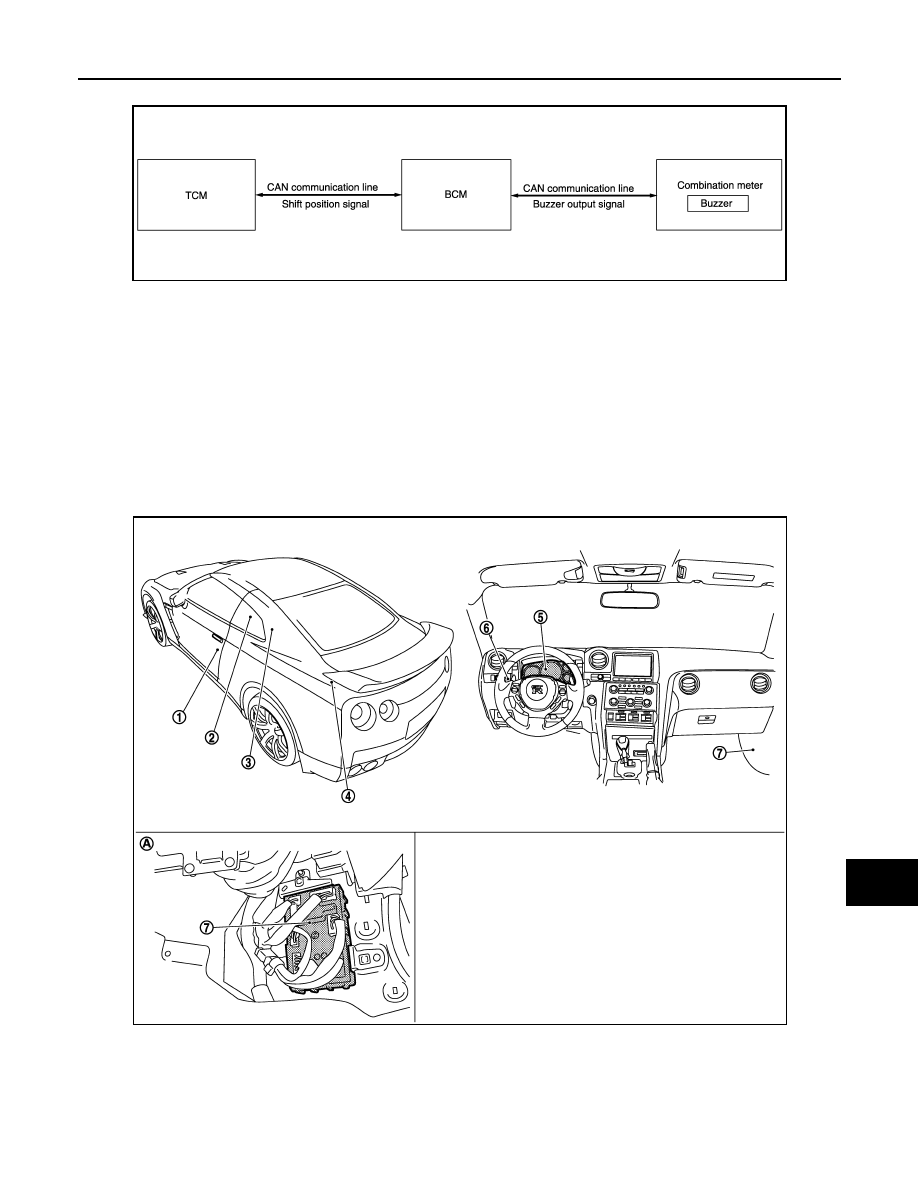

REVERSE WARNING CHIME : System Diagram

INFOID:0000000009188782

REVERSE WARNING CHIME : System Description

INFOID:0000000009188783

DESCRIPTION

• The BCM receives shift position signal (reverse range) from TCM via CAN communication.
• The BCM detects reverse warning chime based on the received signal and transmits the buzzer output sig-

nal to combination meter via CAN communication.

• The combination meter receives the buzzer output signal from BCM via CAN communication and sounds the

warning buzzer.

REVERSE WARNING CHIME : Component Parts Location

INFOID:0000000009188784

NNNIA0185GB

1.

Door switch (driver side)

2.

Seat belt buckle switch (driver side)

3.

Parking brake switch

4.

TCM

5.

Combination meter

6.

Combination switch (lighting switch)

7.

BCM

A.

Lower part of passenger side dash-
board

NNNIA0184ZZ

WCS-12

< SYSTEM DESCRIPTION >

WARNING CHIME SYSTEM

REVERSE WARNING CHIME : Component Description

INFOID:0000000009188785

Unit

Description

Combination meter

Receives a buzzer output signal from the BCM and sounds the buzzer.

BCM

• The BCM receives shift position signal from TCM via CAN communication.
• The BCM detects reverse warning  based on the received signal and transmits the buzzer output

signal to combination meter via CAN communication.

TCM

Transmits the shift position signal to BCM via CAN communication.

WCS

POWER SUPPLY AND GROUND CIRCUIT

WCS-13

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

DTC/CIRCUIT DIAGNOSIS

POWER SUPPLY AND GROUND CIRCUIT

COMBINATION METER

COMBINATION METER : Diagnosis Procedure

INFOID:0000000009188786

1.

CHECK FUSES

Check that the following fuses are not blown:

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Replace the fuse with a new one after repairing the applicable circuit.

2.

CHECK POWER SUPPLY CIRCUIT

Check the voltage between the combination meter harness connector terminals and the ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair the harness between the fuse and the combination meter.

3.

CHECK GROUND CIRCUIT

1.

Turn the ignition switch OFF.

2.

Disconnect the combination meter connector.

3.

Check for continuity between the combination meter harness connector terminals and the ground.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Repair the harnesses or connectors.

BCM (BODY CONTROL MODULE)

BCM (BODY CONTROL MODULE) : Diagnosis Procedure

INFOID:0000000009188787

1.

CHECK FUSE AND FUSIBLE LINK

Check that the following fuse and fusible link are not blown.

Is the fuse fusing?

YES

>> Replace the blown fuse or fusible link after repairing the affected circuit if a fuse or fusible link is

blown.

Power source

Fuse No.

Battery

11

Ignition switch ON or START

4

Terminal No.

Signal name

Ignition switch

Voltage

1

Battery power supply

OFF

Battery voltage

2

Ignition signal

ON

Battery voltage

Combination meter

Ground

Continuity

Connector

Terminal

M53

3

Existed

5

Signal name

Fuse and fusible link No.

Battery power supply

I

10

WCS-14

< DTC/CIRCUIT DIAGNOSIS >

POWER SUPPLY AND GROUND CIRCUIT

NO

>> GO TO 2.

2.

CHECK POWER SUPPLY CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect BCM connectors.

3.

Check voltage between BCM harness connector and ground.

Is the measurement value normal?

YES

>> GO TO 3.

NO

>> Repair harness or connector.

3.

CHECK GROUND CIRCUIT

Check continuity between BCM harness connector and ground.

Does continuity exist?

YES

>> INSPECTION END

NO

>> Repair harness or connector.

Terminals

Voltage

(Approx.)

(+)

(

)

BCM

Ground

Connector

Terminal

M118

1

Battery voltage

M119

11

BCM

Ground

Continuity

Connector

Terminal

M119

13

Existed
