OIL PAN

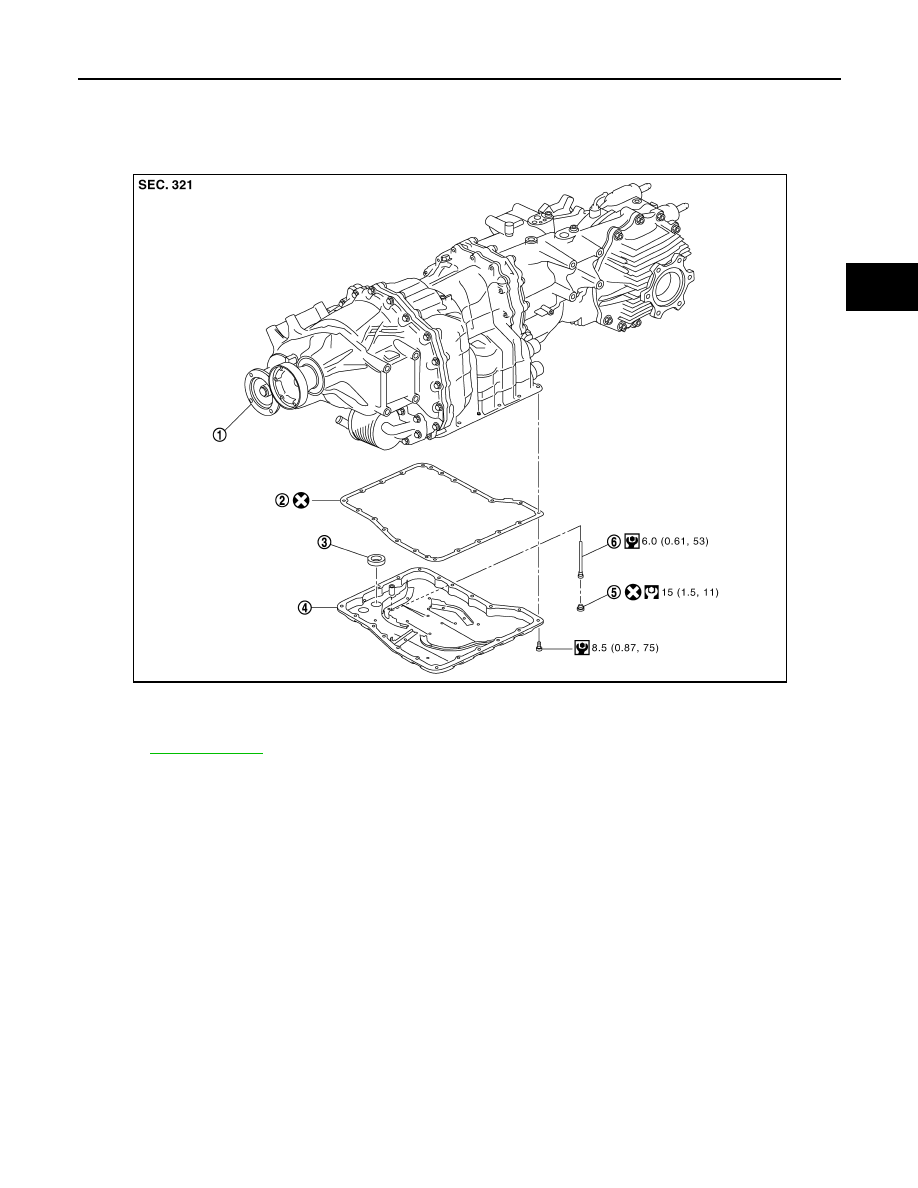

Exploded View

INFOID:0000000009162757

1.

Transmission assembly

2.

Oil pan gasket

3.

Magnet

4.

Oil pan

5.

Drain plug

6.

Drain tube

Refer to

GI-4, "Components"

 in GI section for the symbols shown in the figure.

JSDIA2951GB

TM-20

< UNIT DISASSEMBLY AND ASSEMBLY >

[TRANSMISSION: GR6Z30A]

TRANSMISSION ASSEMBLY

UNIT DISASSEMBLY AND ASSEMBLY

TRANSMISSION ASSEMBLY

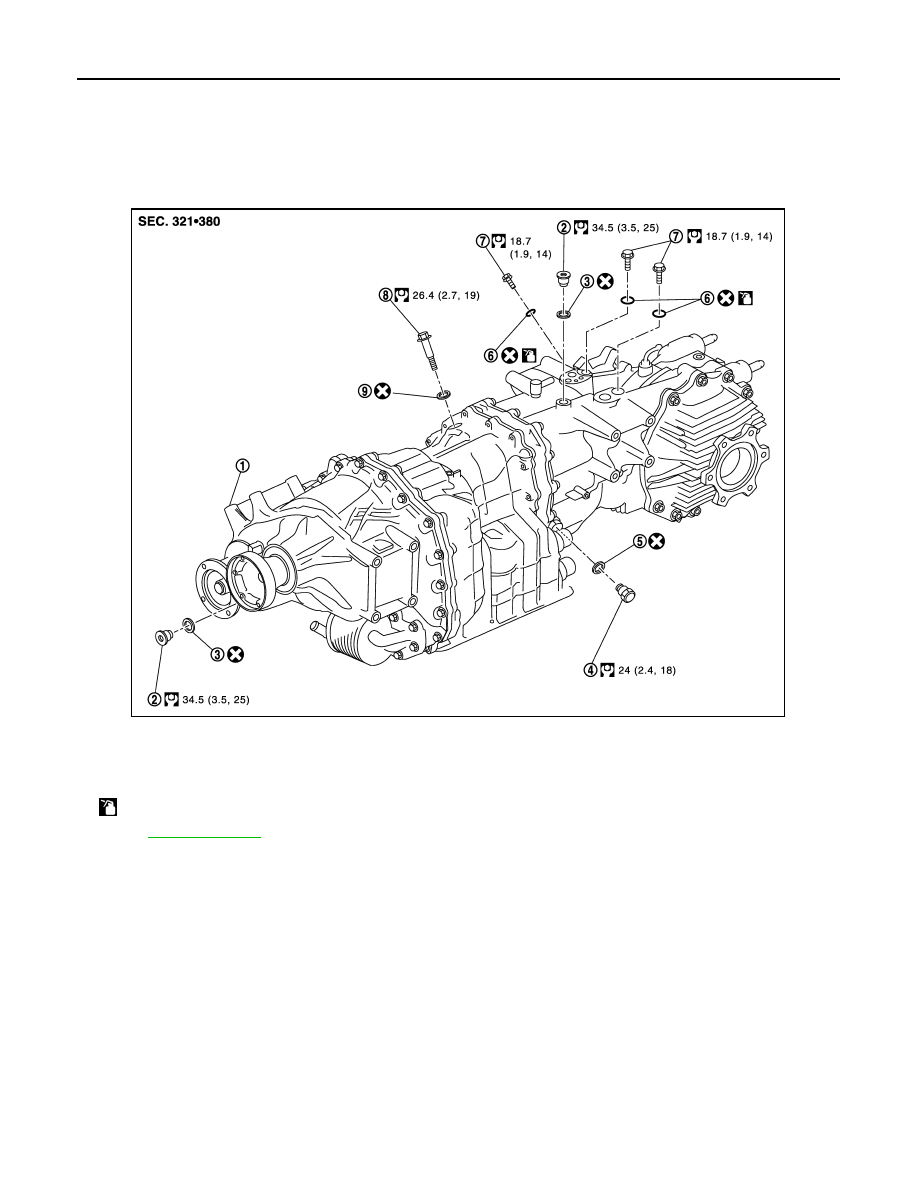

Exploded View

INFOID:0000000009162778

1.

Transmission assembly

2.

Filler plug

3.

Filler plug gasket

4.

3rd-5th check pin

5.

Plane washer

6.

O-ring

7.

Plug

8.

Idler bolt

9.

Plane washer

: Apply Genuine NISSAN Transmission oil R35 Special.

Refer to

GI-4, "Components"

 in GI section for the symbols other than above.

NNDIA0040GB

SERVICE DATA AND SPECIFICATIONS (SDS)

TM-21

< SERVICE DATA AND SPECIFICATIONS (SDS)

[TRANSMISSION: GR6Z30A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

General Specification

INFOID:0000000009162780

Applied model

VR38DETT

AWD

Transmission model

GR6Z30A

TM-22

< SERVICE DATA AND SPECIFICATIONS (SDS)

[TRANSMISSION: GR6Z30A]

SERVICE DATA AND SPECIFICATIONS (SDS)

Transmission

Transmission model code number

(*1)

KJ10A

Operating system

Remote control floor shifter and paddle shifter

Shift position

P

Fixed to output shaft (engine start is possible)

R

Reverse

N

Neutral (engine start is possible)

A

R

1

←→

2

←→

3

←→

4

←→

5

←→

6

Normal

1

←→

2

←→

3

←→

4

←→

5

←→

6

SAVE

1

←→

2

←→

3

←→

4

←→

5

←→

6

M

R

6

M

Fixed to 6GR

With the under rev protection au-
tomatic shift function
(In order to keep running function,
it shifts down automatically when
engine speed becomes low.)

5

M

Fixed to 5GR

4

M

Fixed to 4GR

3

M

Fixed to 3GR

2

M

Fixed to 2GR

1

M

Fixed to 1GR

Normal

6

M

Fixed to 6GR

With the over rev and under rev
protection automatic shift function
(In order to keep running function,
it shifts down automatically when
engine speed becomes low. In or-
der to avoid engine over-speed, it
shifts up automatically under red
zone.)

5

M

Fixed to 5GR

4

M

Fixed to 4GR

3

M

Fixed to 3GR

2

M

Fixed to 2GR

1

M

Fixed to 1GR

SAVE

6

M

Fixed to 6GR

With the over rev and under rev
protection automatic shift function
(In order to keep running function,
it shifts down automatically when
engine speed becomes low. In or-
der to avoid engine over-speed, it
shifts up automatically under red
zone.)

5

M

Fixed to 5GR

4

M

Fixed to 4GR

3

M

Fixed to 3GR

2

M

Fixed to 2GR

1

M

Fixed to 1GR

Gear ratio

1GR

4.056

2GR

2.301

3GR

1.595

4GR

1.248

5GR

1.001

6GR

0.796

Reverse

3.383

Control system

Electronic controls

Function

Self-diagnosis function

With

Fail safe function

With

Synchronizer system

Borg Warner type triple cone synchronizer

Oil pump

Type

External gear pump

Drive type

Drive with the engine

Oil

Recommended

Genuine NISSAN Transmission Oil R35 Special

Capacity

9.4 liter (9-7/8 US qt, 8-1/4 Imp qt)

(*2)

Applied model

VR38DETT

AWD
