CONTENTS

POWER CONTROL SYSTEM

IPDM E/R

SYSTEM DESCRIPTION  ..............................

3

RELAY CONTROL SYSTEM  ..............................

3

System Diagram ........................................................

3

System Description  ...................................................

3

Component Parts Location ........................................

4

SIGNAL BUFFER SYSTEM  ................................

6

System Diagram ........................................................

6

System Description  ...................................................

6

POWER CONSUMPTION CONTROL SYS-
TEM .....................................................................

7

System Diagram ........................................................

7

System Description  ...................................................

7

Component Parts Location ........................................

8

DIAGNOSIS SYSTEM (IPDM E/R) ......................

9

Diagnosis Description  ...............................................

9

DTC/CIRCUIT DIAGNOSIS  .........................

11

POWER SUPPLY AND GROUND CIRCUIT ......

11

Diagnosis Procedure ...............................................

11

ECU DIAGNOSIS INFORMATION ..............

12

IPDM E/R (INTELLIGENT POWER DISTRI-
BUTION MODULE ENGINE ROOM)  .................

12

Wiring Diagram - IPDM E/R -  ..................................

13

PRECAUTION ..............................................

16

PRECAUTIONS ..................................................

16

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................

16

Precaution for Procedure without Cowl Top Cover

....

16

Precaution for Battery Service  ................................

16

REMOVAL AND INSTALLATION ...............

17

IPDM E/R (INTELLIGENT POWER DISTRI-
BUTION MODULE ENGINE ROOM)  ................

17

Exploded View .........................................................

17

Removal and Installation  .........................................

17

POWER DISTRIBUTION SYSTEM

SYSTEM DESCRIPTION  .............................

19

POWER DISTRIBUTION SYSTEM  ...................

19

System Description ..................................................

19

Component Parts Location  ......................................

21

DTC/CIRCUIT DIAGNOSIS  .........................

22

POWER SUPPLY AND GROUND CIRCUIT  ....

22

BCM ...........................................................................

22

BCM : Diagnosis Procedure  ....................................

22

PUSH-BUTTON IGNITION SWITCH  ................

23

Description ...............................................................

23

Diagnosis Procedure  ...............................................

23

Component Inspection .............................................

24

PUSH-BUTTON IGNITION SWITCH POSI-
TION INDICATOR  .............................................

25

Description ...............................................................

25

Diagnosis Procedure  ...............................................

25

POWER DISTRIBUTION SYSTEM  ...................

27

Wiring Diagram - PDS (POWER DISTRIBUTION
SYSTEM) -  ..............................................................

27

PRECAUTION ..............................................

29

PRECAUTIONS .................................................

29

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................

29

Precaution for Procedure without Cowl Top Cover ....

29

Precautions Necessary for Steering Wheel Rota-
tion After Battery Disconnection  ..............................

29

PCS-2

Precaution for Battery Service  ................................

30

REMOVAL AND INSTALLATION ...............

31

PUSH-BUTTON IGNITION SWITCH  .................

31

Removal and Installation .........................................

31

PCS

RELAY CONTROL SYSTEM

PCS-3

< SYSTEM DESCRIPTION >

[IPDM E/R]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

SYSTEM DESCRIPTION

RELAY CONTROL SYSTEM

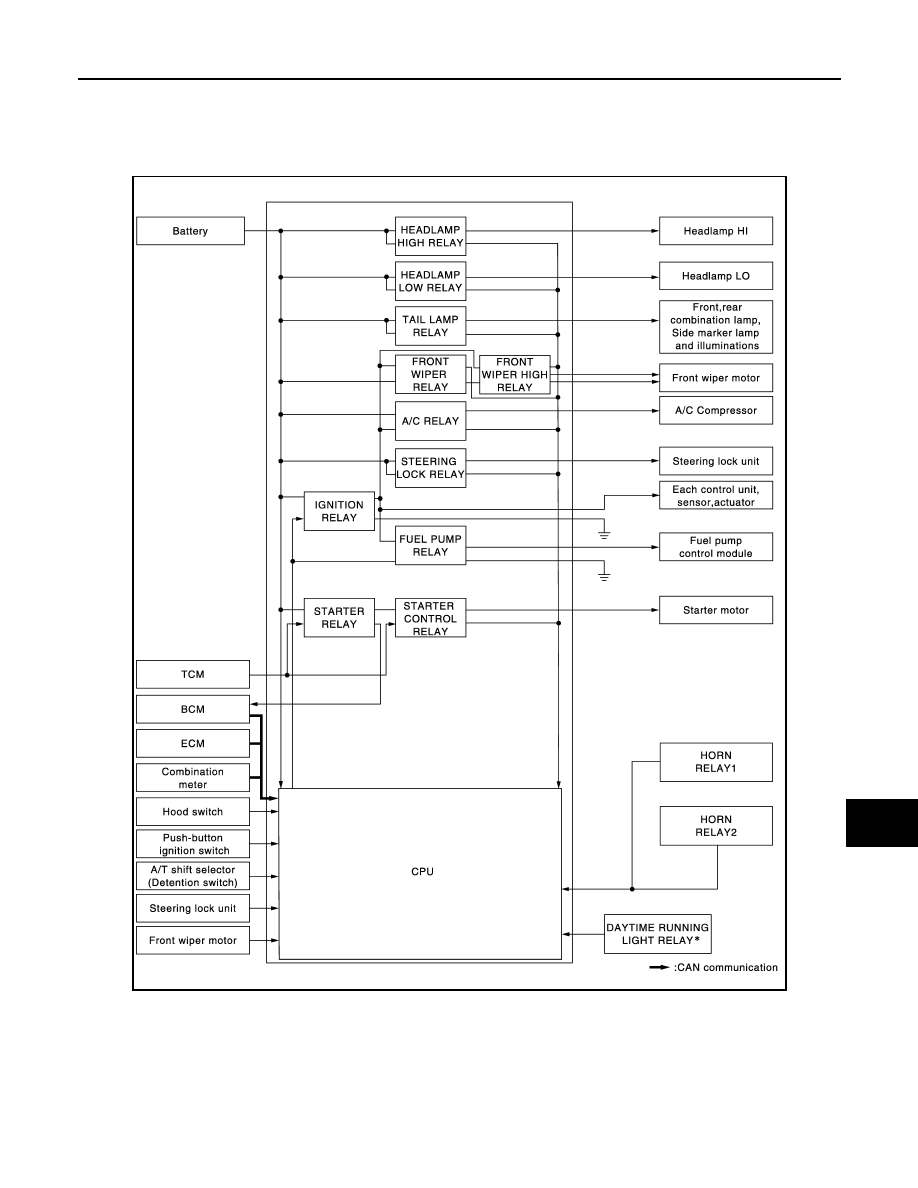

System Diagram

INFOID:0000000009163841

*: With daytime running light system

System Description

INFOID:0000000009163842

IPDM E/R activates the internal control circuit to perform the relay ON-OFF control according to the input sig-
nals from various sensors and the request signals received from control units via CAN communication.

CAUTION:

IPDM E/R integrated relays cannot be removed.

NNMIB0004GB

PCS-4

< SYSTEM DESCRIPTION >

[IPDM E/R]

RELAY CONTROL SYSTEM

NOTE:

BCM controls the starter relay.

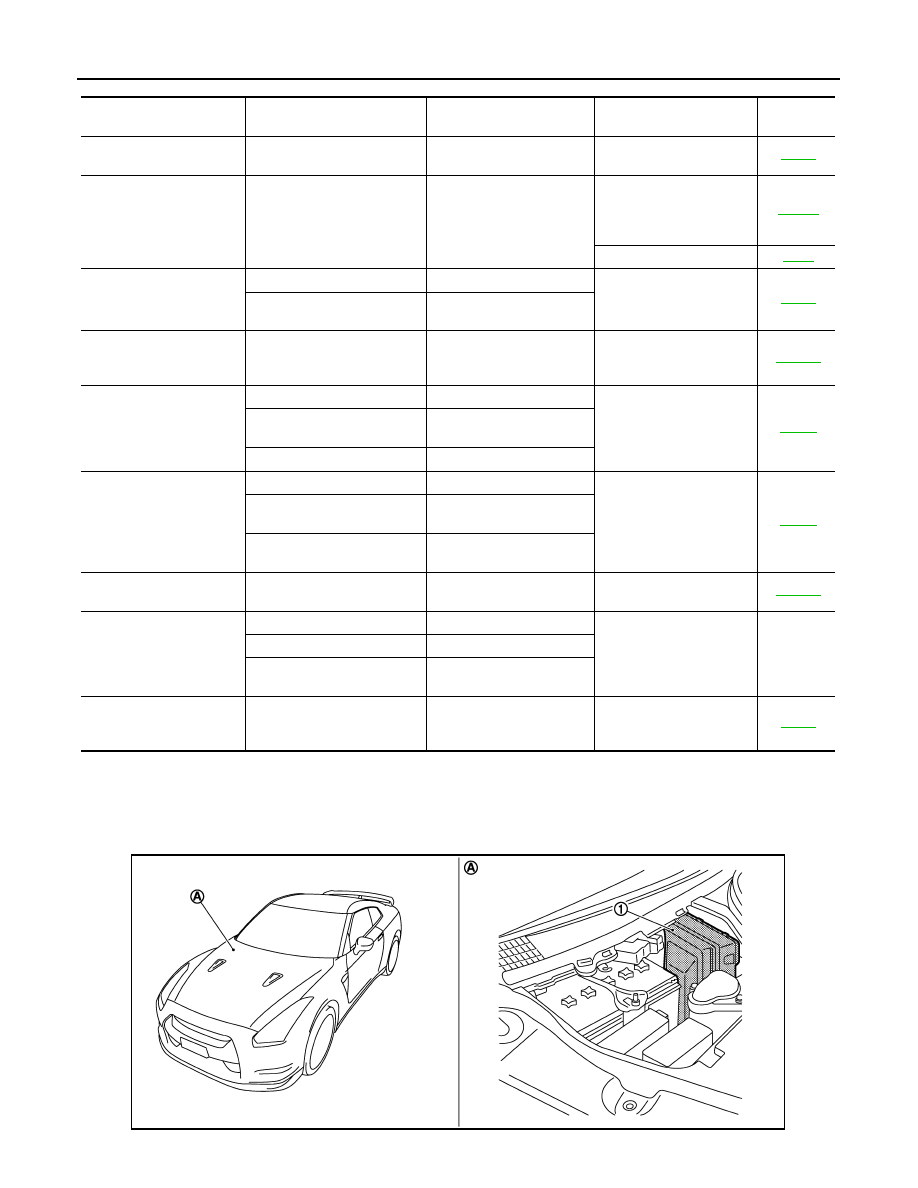

Component Parts Location

INFOID:0000000009163843

Control relay

Input/output

Transmit unit

Control part

Reference

page

• Headlamp low relay
• Headlamp high relay

• Low beam request signal
• High beam request signal

BCM (CAN)

• Headlamp low
• Headlamp high

EXL-3

Tail lamp relay

Position light request signal

BCM (CAN)

• Parking lamp
• Side marker lamp
• License plate lamp
• Tail  lamp

EXL-11

Illuminations

INL-9

• Front wiper relay
• Front wiper high relay

Front wiper request signal

BCM (CAN)

Front wiper

WW-2

Front wiper stop position sig-
nal

Front wiper motor

• Horn  relay  1
• Horn  relay  2

• Theft warning horn request

signal

• Horn reminder signal

BCM (CAN)

• Horn (low)
• Horn (high)

SEC-12

• Starter relay

NOTE

• Starter control relay

Starter control relay signal

BCM (CAN)

Starter motor

SEC-4

Steering lock unit condition
signal

Steering lock unit

Starter relay control signal

TCM

Steering lock relay

Steering lock relay signal

BCM (CAN)

Steering lock unit

SEC-4

Steering lock unit condition
signal

Steering lock unit

A/T shift selector (Detention
switch) signal

A/T shift selector
(Detention switch)

A/C relay

A/C compressor request sig-
nal

ECM (CAN)

A/C compressor
(Magnet clutch)

HAC-19

Ignition relay

Ignition switch ON signal

BCM (CAN)

Ignition relay

—

Vehicle speed signal

Combination meter (CAN)

Push-button ignition switch
signal

Push-button ignition switch

Daytime running light relay

Daytime running light request
signal

BCM (CAN)

Headlamp high
(High beam at approxi-
mately half illumination)

EXL-7

NNMIA0048ZZ
