COMBINATION METER

MWI-55

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

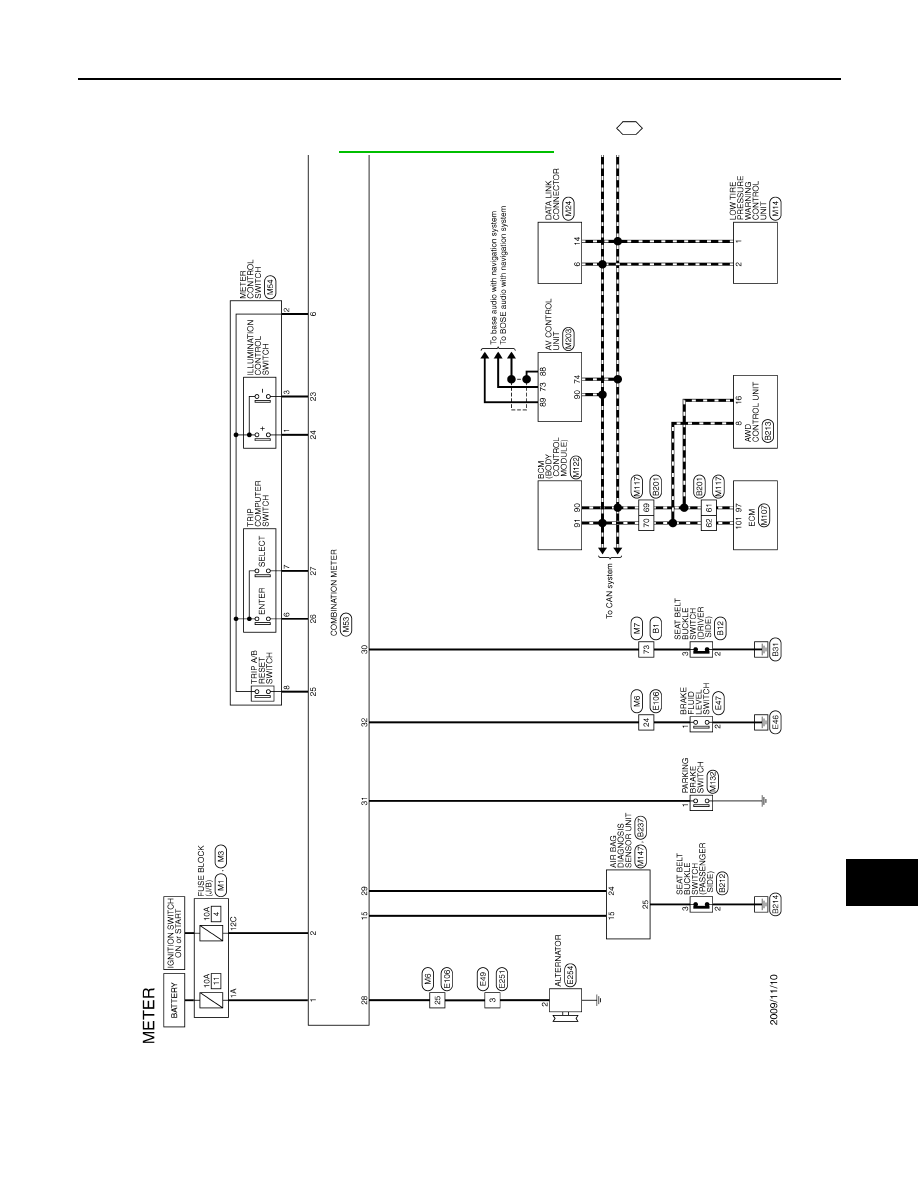

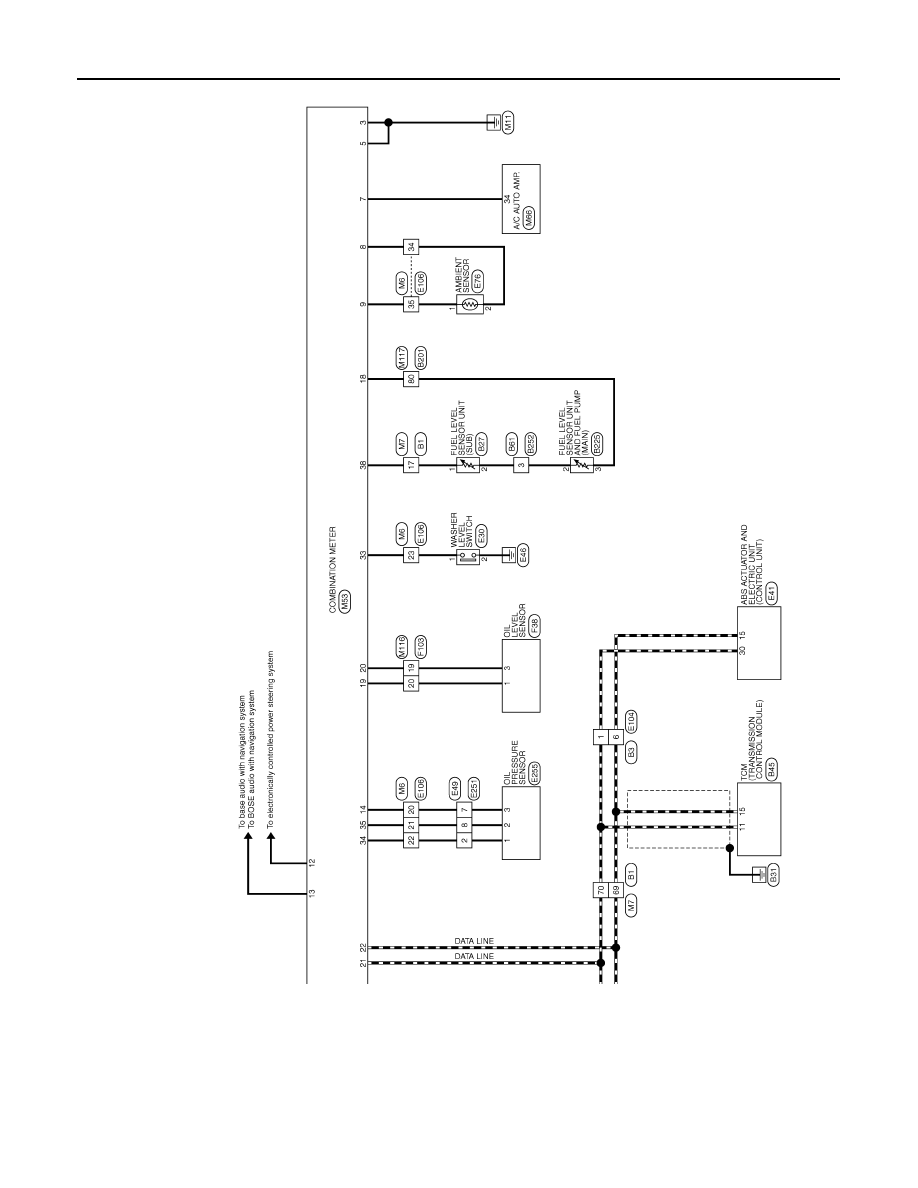

Wiring Diagram - METER -

INFOID:0000000009189353

For connector terminal arrangements, harness layouts, and alphabets in a

 (option abbreviation; if not

described in wiring diagram), refer to

GI-12, "Connector Information"

.

JCNWA3092GB

MWI-56

< ECU DIAGNOSIS INFORMATION >

COMBINATION METER

Fail-safe

INFOID:0000000009189354

FAIL-SAFE

If the CAN communication with each unit is activates, the combination meter broken the fail-safe control.

JCNWA3093GB

MWI

COMBINATION METER

MWI-57

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

System

Processing

Speedometer

Returns to zero when communication is
blocked.

Tachometer

Engine coolant temperature gauge

Meter illumination control

Shifts to night mode when communication is
blocked.

Shift position indicator

Turned OFF when communication is blocked.

Information display

Door open warning

Indication is turned OFF when communication
is blocked.

Trunk open warning

Parking brake release warning

Shift “ P ” warning

Transmission system check

Shift lever position warning

Transmission clutch high temperature warning

Transmission oil high temperature warning

Transmission system warning

Run-flat tire warning

Low tire pressure warning

Tire pressure monitoring system warning

AWD clutch high temperature warning

Front/rear tire size discrepancy warning

AWD system warning

Anti-lock braking system (ABS) warning

Vehicle dynamic control (VDC) system warning

Engine system warning

CRUISE control system warning

CRUISE control system status

Vehicle speed display

0 km/h (0 MPH) is indicated when communi-
cation is blocked.

Possible driving distance

Displays the last calculation result calculated
under a normal status when communication is
blocked.

Average fuel consumption

Instantaneous fuel consumption

Average vehicle speed

Warning buzzer

Warning is turned OFF when communication
is blocked.

MWI-58

< ECU DIAGNOSIS INFORMATION >

COMBINATION METER

Warning lamp/indicator
lamp

ABS warning lamp

Turned ON when communication is broken.

VDC warning lamp

Brake warning lamp

AWD warning lamp

Malfunction indicator lamp (MIL)

Tire pressure warning lamp

Blinks first, then illuminates after approxi-
mately 1 minute.

High beam indicator lamp

Turned OFF when communication is broken.

Turn signal indicator lamp

Tail lamp indicator lamp

CRUISE indicator lamp

SET indicator lamp

KEY warning lamp

Up-shift indicator (green)

Up-shift indicator (yellow)

Up-shift indicator (red)

Transmission check warning lamp

VDC OFF indicator lamp

System

Processing
