MIR-1

DRIVER CONTROLS

C

D

E

F

G

H

I

J

K

M

SECTION

MIR

A

B

MIR

N

O

P

CONTENTS

MIRRORS

SYSTEM DESCRIPTION  ..............................

2

DOOR MIRROR SYSTEM  ...................................

2

System Description  ...................................................

2

Component Description .............................................

2

INSIDE MIRROR SYSTEM ..................................

3

System Description  ...................................................

3

Component Description .............................................

3

DTC/CIRCUIT DIAGNOSIS  ..........................

4

DOOR MIRROR ...................................................

4

Wiring Diagram - DOOR MIRROR SYSTEM -  ..........

4

AUTO ANTI-DAZZLING INSIDE MIRROR
SYSTEM ..............................................................

5

Wiring Diagram - INSIDE MIRROR SYSTEM - .........

5

SYMPTOM DIAGNOSIS  ...............................

6

SQUEAK AND RATTLE TROUBLE DIAGNO-
SIS .......................................................................

6

Work Flow  .................................................................

6

Inspection Procedure  ................................................

8

Diagnostic Worksheet  .............................................

10

PRECAUTION ..............................................

12

PRECAUTIONS ..................................................

12

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................

12

Precautions Necessary for Steering Wheel Rota-
tion After Battery Disconnection  ..............................

12

Precaution for Battery Service .................................

13

PREPARATION ...........................................

14

PREPARATION .................................................

14

Special Service Tools  ..............................................

14

Commercial Service Tools .......................................

14

REMOVAL AND INSTALLATION  ...............

15

INSIDE MIRROR  ...............................................

15

Exploded View .........................................................

15

Removal and Installation  .........................................

15

OUTSIDE MIRROR  ...........................................

16

DOOR MIRROR ASSEMBLY  ....................................

16

DOOR MIRROR ASSEMBLY : Exploded View  .......

16

DOOR MIRROR ASSEMBLY : Removal and In-
stallation ..................................................................

16

GLASS MIRROR ........................................................

17

GLASS MIRROR : Exploded View ..........................

17

GLASS MIRROR : Disassembly and Assembly  ......

17

DOOR MIRROR REMOTE CONTROL
SWITCH .............................................................

18

Exploded View .........................................................

18

Removal and Installation  .........................................

18

MIR-2

< SYSTEM DESCRIPTION >

DOOR MIRROR SYSTEM

SYSTEM DESCRIPTION

DOOR MIRROR SYSTEM

System Description

INFOID:0000000009159970

It is possible to open/close and adjust the mirror by operating on the door mirror remote control switch.

Component Description

INFOID:0000000009159971

Component

Function

Door mirror remote control switch (mirror switch

･

change over switch)

It supplies power to mirror motor by operating mirror switch and change
over switch.

Door mirror remote control switch (open/close
switch)

It supplies power to folding motor by operating open/close switch.

Door mirror motor

It makes mirror face operate from side to side and up and down with the
mirror control switch operation.

Folding motor

It makes mirror folding with the mirror control switch operation.

INSIDE MIRROR SYSTEM

MIR-3

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

INSIDE MIRROR SYSTEM

System Description

INFOID:0000000009159972

The sensor built in inside mirror detects the headlight of the vehicle behind and automatically changes the light
transmission to decrease the brightness.

Component Description

INFOID:0000000009159973

Component

Function

Auto anti-dazzling inside mirror

It automatically changes the light transmittance according to the brightness of the
light from the headlight of the vehicle behind.

MIR-4

< DTC/CIRCUIT DIAGNOSIS >

DOOR MIRROR

DTC/CIRCUIT DIAGNOSIS

DOOR MIRROR

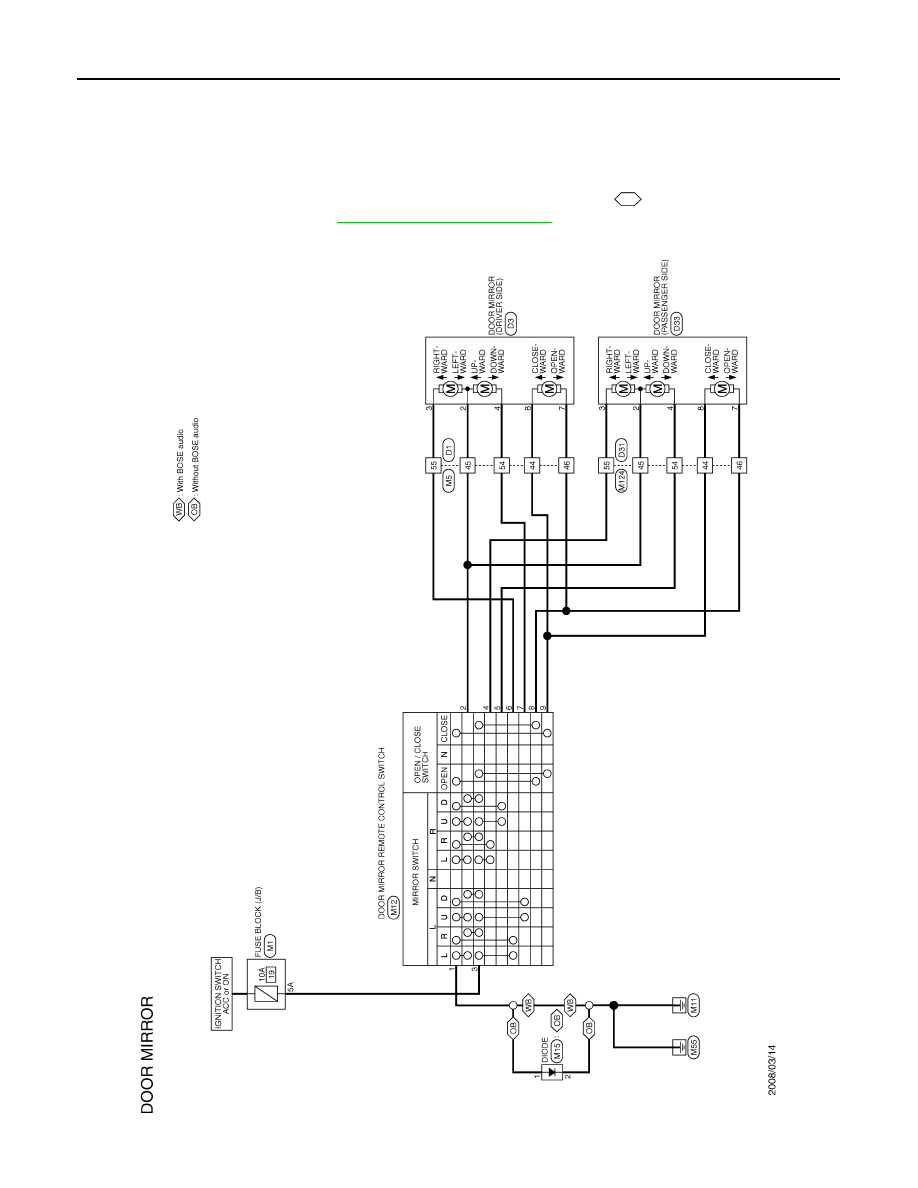

Wiring Diagram - DOOR MIRROR SYSTEM -

INFOID:0000000009159974

For connector terminal arrangements, harness layouts, and alphabets in a

 (option abbreviation; if not

described in wiring diagram), refer to

GI-12, "Connector Information"

.

JCLWA1661GB
