Nissan GT-R. Manual - part 205





MA-42

< PERIODIC MAINTENANCE >

CHASSIS MAINTENANCE

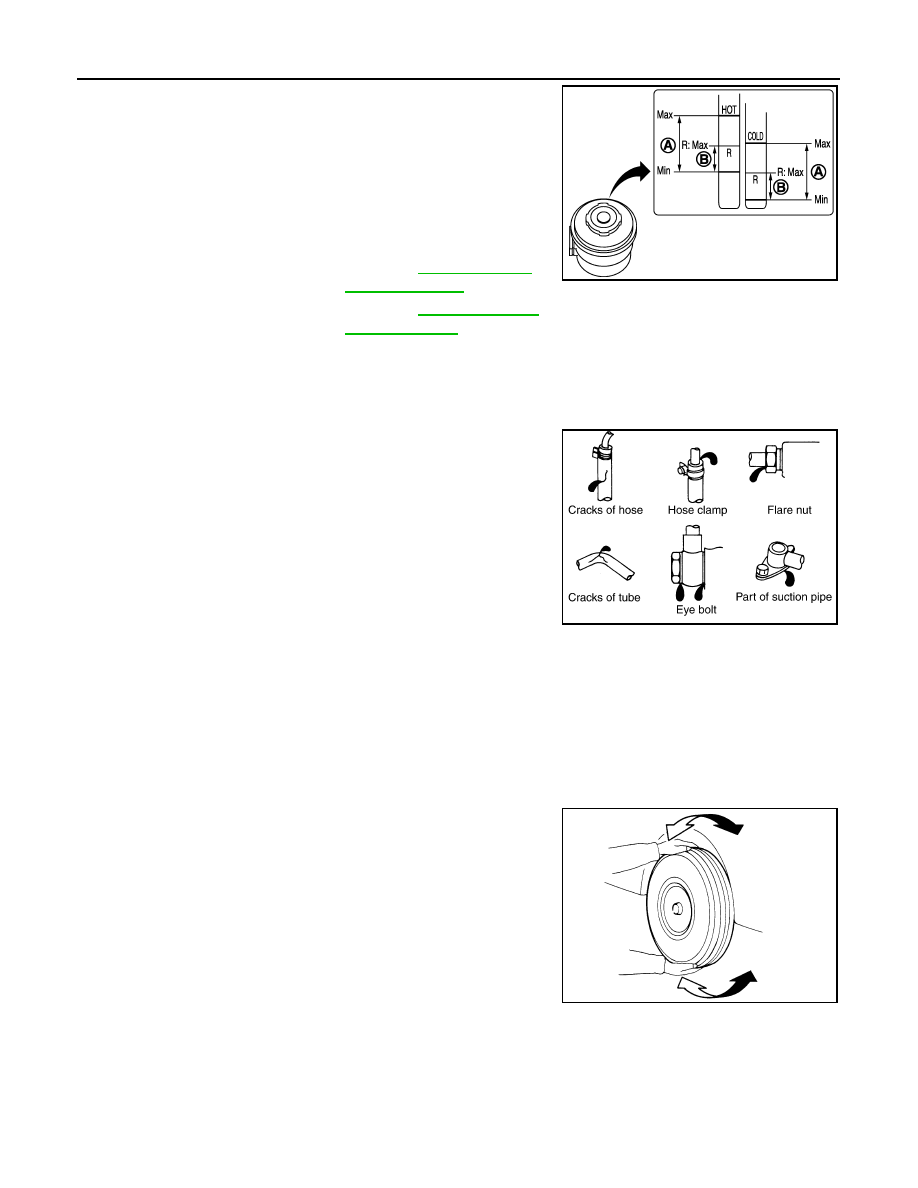

Adjust the fluid level to the R level (B) rather than the fluid
level (A) in sports driving mode or in high road driving
mode.

3.

Fluid levels at HOT and COLD are different. Do not confuse
them.

CAUTION:

• The fluid level must not exceed the MAX line. Excessive fluid causes fluid leakage from the cap.
• Never reuse drained power steering fluid.

FLUID LEAKAGE

Check hydraulic connections for fluid leakage, cracks, damage,
looseness, or wear.
1.

Run the engine until the fluid temperature reaches 50 to 80

°

C

(122 to 176

°

F) in reservoir tank, and keep engine speed idle.

2.

Turn steering wheel several times from full left stop to full right
stop.

3.

Hold steering wheel at each lock position for five seconds and
carefully check for fluid leakage.

CAUTION:

Never hold the steering wheel in a locked position for more
than 10 seconds. (There is the possibility that power steer-
ing oil pump assembly may be damaged.)

4.

If fluid leakage at connections occurs, loosen flare nut and then retighten. Do not overtighten connector as
this can damage O-ring, washer and connector.

5.

If fluid leakage from oil pump occurs, check oil pump.

6.

Check steering gear boots for accumulation of fluid leakage from steering gear.

AXLE AND SUSPENSION PARTS

AXLE AND SUSPENSION PARTS : Inspection

INFOID:0000000009161798

Check front and rear axle and suspension parts for excessive play,
cracks, wear or other damage.
• Shake each wheel to check for excessive play.
• Check wheel bearings for smooth operation.
• Check axle and suspension nuts and bolts for looseness.
• Check strut (shock absorber) for oil leakage or other damage.
• Check suspension ball joint for grease leakage and ball joint dust

cover for cracks or other damage.

HOT

: Fluid temperature 50 – 80

°

C (122 – 176

°

F)

COLD

: Fluid temperature 0 – 30

°

C (32 – 86

°

F)

Recommended fluid

: Refer to

MA-22, "Fluids

and Lubricants"

.

Fluid capacity

: Refer to

ST-18, "General

Specifications"

.

NNGIA0026GB

SGIA0506E

SMA525A

CHASSIS MAINTENANCE

MA-43

< PERIODIC MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

B

MA

N

O

A

DRIVE SHAFT

DRIVE SHAFT : Inspection

INFOID:0000000009161799

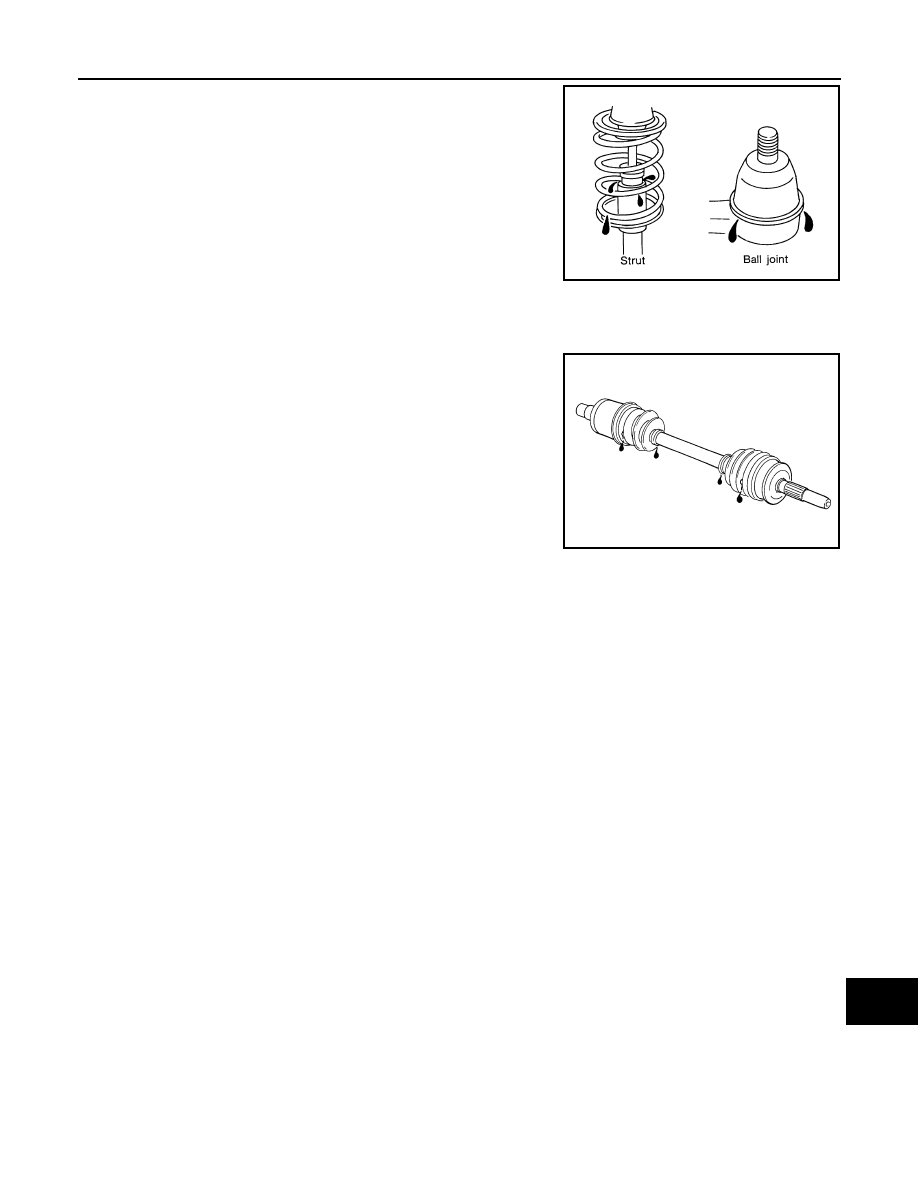

Check boot and drive shaft for cracks, wear, damage and grease
leakage.

SFA392B

SFA108A

MA-44

< PERIODIC MAINTENANCE >

BODY MAINTENANCE

BODY MAINTENANCE

LOCKS, HINGES AND HOOD LATCH

LOCKS, HINGES AND HOOD LATCH : Lubricating

INFOID:0000000009161800

For hood and hood lock illustration. Refer to

DLK-128, "HOOD ASSEMBLY : Exploded View"

.

For trunk lid illustration. Refer to

DLK-144, "TRUNK LID ASSEMBLY : Exploded View"

.

SEAT BELT, BUCKLES, RETRACTORS, ANCHORS AND ADJUSTERS

SEAT BELT, BUCKLES, RETRACTORS, ANCHORS AND ADJUSTERS : Inspection

INFOID:0000000009161801

For front seat belt illustration. Refer to

SB-6, "SEAT BELT RETRACTOR : Exploded View"

.

For rear seat belt illustration. Refer to

SB-11, "SEAT BELT RETRACTOR : Exploded View"

.

CAUTION:

• After any collision, inspect all seat belt assemblies, including retractors and other attached hard-

wares (I.e. anchor bolt, guide rail set). Nissan recommends to replace all seat belt assemblies in use
during a collision, unless not damaged and properly operating after minor collision.
Also inspect seat belt assemblies not in use during a collision, and replace if damaged or improperly
operating.
Seat belt pre-tensioner should be replaced even if the seat belts are not in use during a frontal colli-
sion where the driver and passenger air bags are deployed.

• If any component of seat belt assembly is questionable, do not repair.

Replace as seat belt assembly.

• If webbing is cut, frayed, or damaged, replace belt assembly.
• Never oil tongue and buckle.
• Use a genuine NISSAN seat belt assembly.
For details, refer to

SB-4, "SEAT BELT RETRACTOR : Inspection"

SB-9, "SEAT BELT RETRACTOR : Inspec-

tion"

 in SB section.

• Check anchors for loose mounting
• Check belts for damage
• Check retractor for smooth operation
• Check function of buckles and tongues when buckled and released

SERVICE DATA AND SPECIFICATIONS (SDS)

MA-45

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

G

H

I

J

K

L

M

B

MA

N

O

A

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

DRIVE BELT

DRIVE BELT : Drive Belt (GT-R certified NISSAN dealer)

INFOID:0000000009161802

DRIVE BELT

ENGINE COOLANT

ENGINE COOLANT : Periodical Maintenance Specification

INFOID:0000000009161803

ENGINE COOLANT CAPACITY (APPROXIMATELY)

Unit:

 (US qt, Imp qt)

ENGINE OIL

ENGINE OIL : Periodical Maintenance Specification

INFOID:0000000009161804

ENGINE OIL CAPACITY (APPROXIMATELY)

Unit:

 (US qt, lmp qt)

SPARK PLUG

SPARK PLUG : Spark Plug

INFOID:0000000009161805

SPARK PLUG

Unit: mm (in)

ROAD WHEEL

ROAD WHEEL : Road Wheel (GT-R certified NISSAN dealer)

INFOID:0000000009161806

Tension of drive belt

Belt tension is not necessary, as it is automatically adjusted by drive belt auto-tensioner.

Engine coolant capacity [With reservoir tank (Between MIN and MAX level)]

11.3 (12, 10)

Reservoir tank engine coolant capacity (Between MIN and MAX level)

1.2 (1-1/4, 1)

Drain and refill

With oil filter change

5.0 (5-1/4, 4-3/8)

Without oil filter change

4.5 (4-3/4, 4)

Dry engine (Overhaul)

6.2 (6-4/8, 5-4/8)

Make

NGK

Standard type

DILKAR8A8

Gap (Nominal)

Standard

0.7 - 0.8 (0.028 - 0.031)

Limit

1.0 (0.039)

Item

Limit

Radial runout

Lateral deflection

Less than 0.3 mm (0.012 in)

Vertical deflection

Allowable unbalance

Dynamic (At flange)

Less than 5 g (0.17 oz) (one side)

Static (At flange)

Less than 10 g (0.35 oz)
