Nissan GT-R. Manual - part 169





INL-1

DRIVER CONTROLS

C

D

E

F

G

H

I

J

K

M

SECTION

INL

A

B

INL

N

O

P

CONTENTS

INTERIOR LIGHTING SYSTEM

SYSTEM DESCRIPTION  ..............................

2

INTERIOR ROOM LAMP CONTROL SYSTEM

.....

2

System Diagram ........................................................

2

System Description  ...................................................

2

Component Parts Location ........................................

4

Component Description ............................................

5

INTERIOR ROOM LAMP BATTERY SAVER
SYSTEM ..............................................................

6

System Diagram ........................................................

6

System Description  ...................................................

6

Component Parts Location ........................................

7

Component Description ............................................

7

ILLUMINATION CONTROL SYSTEM .................

9

System Diagram ........................................................

9

System Description  ...................................................

9

Component Parts Location ......................................

10

Component Description ...........................................

10

DTC/CIRCUIT DIAGNOSIS  .........................

11

INTERIOR ROOM LAMP CONTROL SYSTEM

....

11

Wiring Diagram - INTERIOR ROOM LAMP -  ..........

11

ILLUMINATION ..................................................

13

Wiring Diagram - ILLUMINATION -  .........................

13

PRECAUTION ..............................................

16

PRECAUTIONS ..................................................

16

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................

16

Precautions Necessary for Steering Wheel Rota-
tion After Battery Disconnection  ..............................

16

Precaution for Battery Service .................................

17

REMOVAL AND INSTALLATION  ...............

18

MAP LAMP ........................................................

18

Exploded View .........................................................

18

Removal and Installation  .........................................

18

Replacement ...........................................................

18

VANITY MIRROR LAMP ...................................

19

Exploded View .........................................................

19

Replacement ...........................................................

19

GLOVE BOX LAMP  ..........................................

20

Exploded View .........................................................

20

Replacement ...........................................................

20

STEP LAMP  ......................................................

21

Exploded View .........................................................

21

Removal and Installation  .........................................

21

Replacement ...........................................................

21

TRUNK ROOM LAMP .......................................

22

Exploded View .........................................................

22

Removal and Installation  .........................................

22

Replacement ...........................................................

22

SERVICE DATA AND SPECIFICATIONS
(SDS) ............................................................

23

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

23

Bulb Specifications  ..................................................

23

INL-2

< SYSTEM DESCRIPTION >

INTERIOR ROOM LAMP CONTROL SYSTEM

SYSTEM DESCRIPTION

INTERIOR ROOM LAMP CONTROL SYSTEM

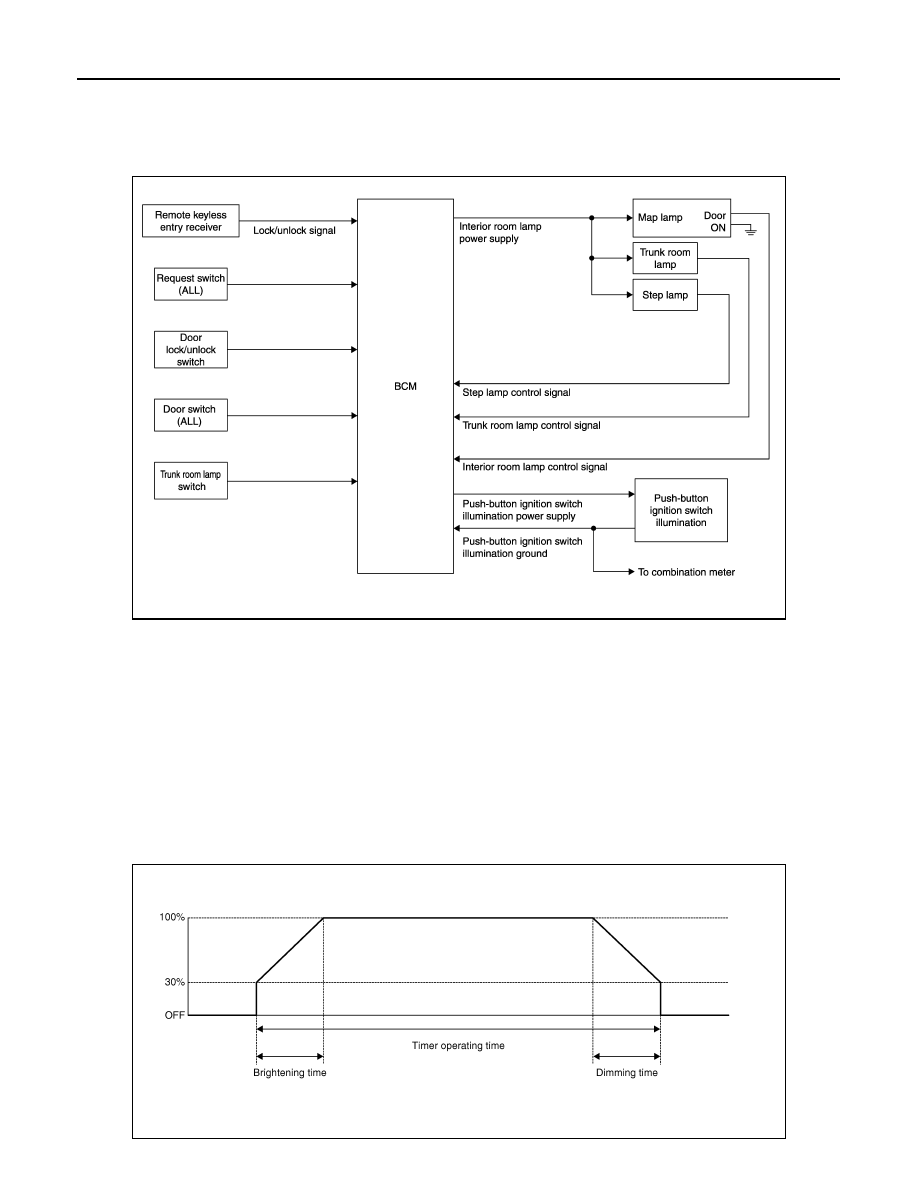

System Diagram

INFOID:0000000009161885

System Description

INFOID:0000000009161886

OUTLINE

• Interior room lamps* are controlled by interior room lamp timer control function of BCM.

*: Map lamp (when map lamp switch is in DOOR position).

• Trunk room lamp is controlled by trunk room lamp control function of BCM.
• Step lamp is controlled by step lamp control function of BCM.
• Push-button ignition switch illumination is controlled by the push-button ignition switch illumination control

function of BCM.

INTERIOR ROOM LAMP TIMER CONTROL

Interior Room Lamp Timer Basic Operation

JPLIA1187GB

JPLIA0093GB

INTERIOR ROOM LAMP CONTROL SYSTEM

INL-3

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

• The interior room lamp turns ON and OFF (gradual brightening and dimming) by the interior room timer.
• BCM judges the vehicle condition with the following items. It activates the interior room timer.
- Ignition switch status
- Door switch signal (ALL)
- Door lock/unlock signal (remote keyless entry receiver, each request switch, door lock and unlock switch)

Interior Room Lamp ON Operation

• BCM always turns the interior room lamp ON when any door opens.
• BCM activates the interior room timer in any of the following conditions to turn the interior room lamp ON for

a period of time.

- Any door opens before all doors close.
- Ignition switch is turned ON

 OFF.

- Any door unlock signal is detected when all doors close with ignition switch OFF.
NOTE:
Restart the timer if new condition is input during the timer operating time.

Interior Room Lamp OFF Operation

BCM stops the timer in any of the following conditions to turns the interior room lamp OFF.
• The timer operating time is expired.
• Ignition switch position is other than OFF with all doors close.
• Any door lock operation is detected with all doors close.

TRUNK ROOM LAMP CONTROL

BCM controls the trunk room lamp (ground-side) to turn ON with the trunk room lamp switch ON.

STEP LAMP CONTROL

BCM controls the step lamp (ground-side) to turn ON with any door switch ON.

PUSH-BUTTON IGNITION SWITCH ILLUMINATION CONTROL

Push-button Ignition Switch Illumination Basic Operation

• BCM provides the power supply and the ground to turn the push-button ignition switch illumination ON.
• BCM cuts the ground supply while the each illumination (tail lamp) ON. BCM switches to the ground control

with the meter illumination control function.

Push-button Ignition Switch Illumination ON Operation

BCM turns the push-button ignition switch illumination ON in the following conditions.
• Ignition switch ON
• Each illumination (tail lamp) ON
• Any of the following conditions with ignition switch OFF
- Engine start permission is entered.
- Intelligent Key inserted into the key slot.
- Driver door is LOCK

 UNLOCK.

- Driver door is open.

Push-button Ignition Switch Illumination OFF Operation

BCM turns the push-button ignition switch illumination OFF in any of the following conditions.
• The push-button ignition switch illumination ON conditions do not satisfy.
• All of the following conditions with ignition switch OFF
- Each illumination (tail lamp) OFF
- The push-button ignition switch illumination ON conditions do not change (15 seconds after the ignition

switch OFF) or the driver door is UNLOCK

 LOCK.

INL-4

< SYSTEM DESCRIPTION >

INTERIOR ROOM LAMP CONTROL SYSTEM

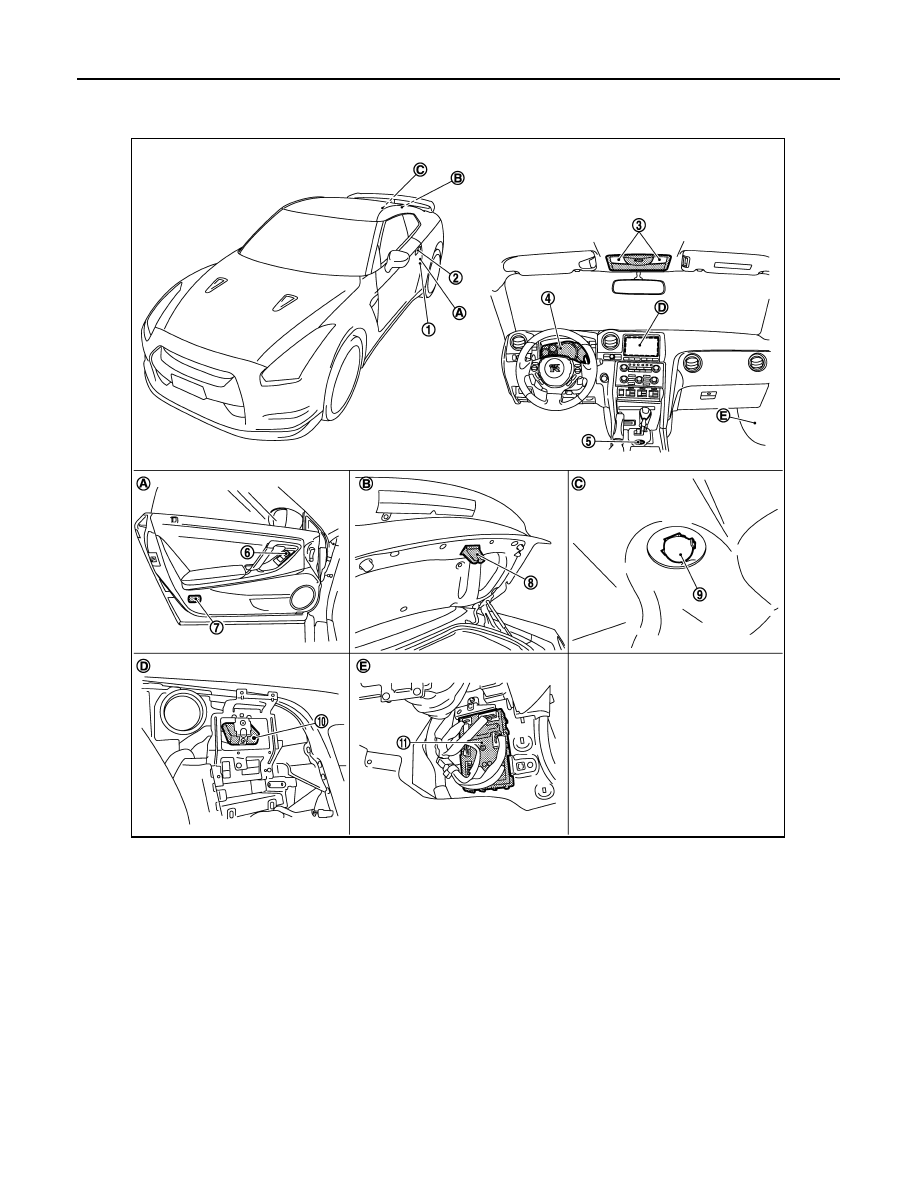

Component Parts Location

INFOID:0000000009161887

1.

Door switch

2.

Request switch

3.

Map lamp

4.

Combination meter

5.

Push-button ignition switch
(Push-button ignition switch illumination)

6.

Door lock and unlock switch

7.

Step lamp

8.

Trunk room lamp switch

9.

Trunk room lamp

10. Remote keyless entry receiver

11. BCM

A.

Front door

B.

Trunk lid lock assembly

C.

Trunk room upward

D.

Behind the display

E.

Dash side lower (passenger side)

JPLIA1200ZZ
