• If the body side bonding surface is repaired with a two-liquid type urethane paint, always apply

the primer after drying the paint.

• If primer for painted surfaces adheres to a painted surface other than the bonding area, or if it

overflows, quickly remove it with white gasoline or degreasing agent.

• Always use a Standish cover (stainless plate) to prevent primer for painted surfaces from adher-

ing to the instrument panel.

10. Affix the dam rubber and apply adhesive along the edge of the glass within the time period indicated in the

service manual after applying primer.
• When reusing the glass, affix new dam rubber at the same place where old dam rubber is affixed.
• When installing new glass, apply the dam rubber from the edge of the glass so as to hide the black print.

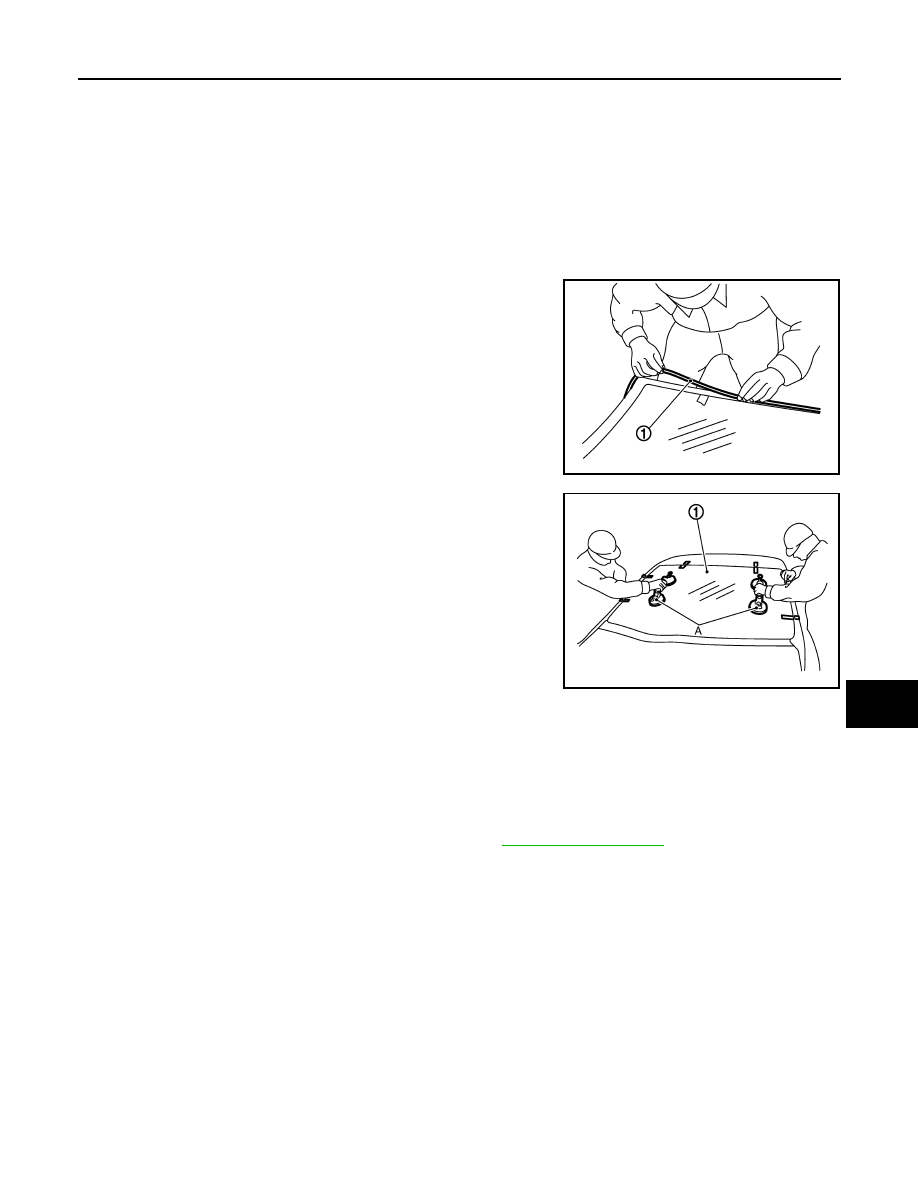

CAUTION:

• Apply the dam rubber (1) from the outline mark of black

print as shown in Exploded View.

• Start to apply the dam rubber at the outline mark of black

print. Apply it so as to only place it without pulling. Stop
applying at another outline mark of black print.

NOTE:
Open adhesive by cutting off the nozzle tip and set it in a sealant
gun.

11. Use rubber suction cups or suction lifter (A) that are installed in

advance, align the matching marks between the spacer and roof
panel hole and between the body and glass (1) to install them on
the vehicle.

CAUTION:

2 or more workers are required when installing the glass.

12. Press the entire surface of the glass lightly to fit it completely.

13. Correct any adhesive overflow or shortage using a spatula to make the surface smooth.

14. Remove the protective tape.

15. Install the removed parts.

CAUTION:

• Adjust the front wiper arms stop position. Refer to

WW-22, "Adjustment"

.

• Check the mating area with surrounding parts. Adjust if necessary.

Inspection (GT-R certified NISSAN dealer)

INFOID:0000000009161680

WATER LEAKAGE INSPECTION

CAUTION:

Wait at least 2 hours after installing the glass because the adhesive must be cured before performing
the leakage test.

JMKIA0727ZZ

JMKIA0732ZZ

GW-16

< REMOVAL AND INSTALLATION >

SIDE WINDOW GLASS

SIDE WINDOW GLASS

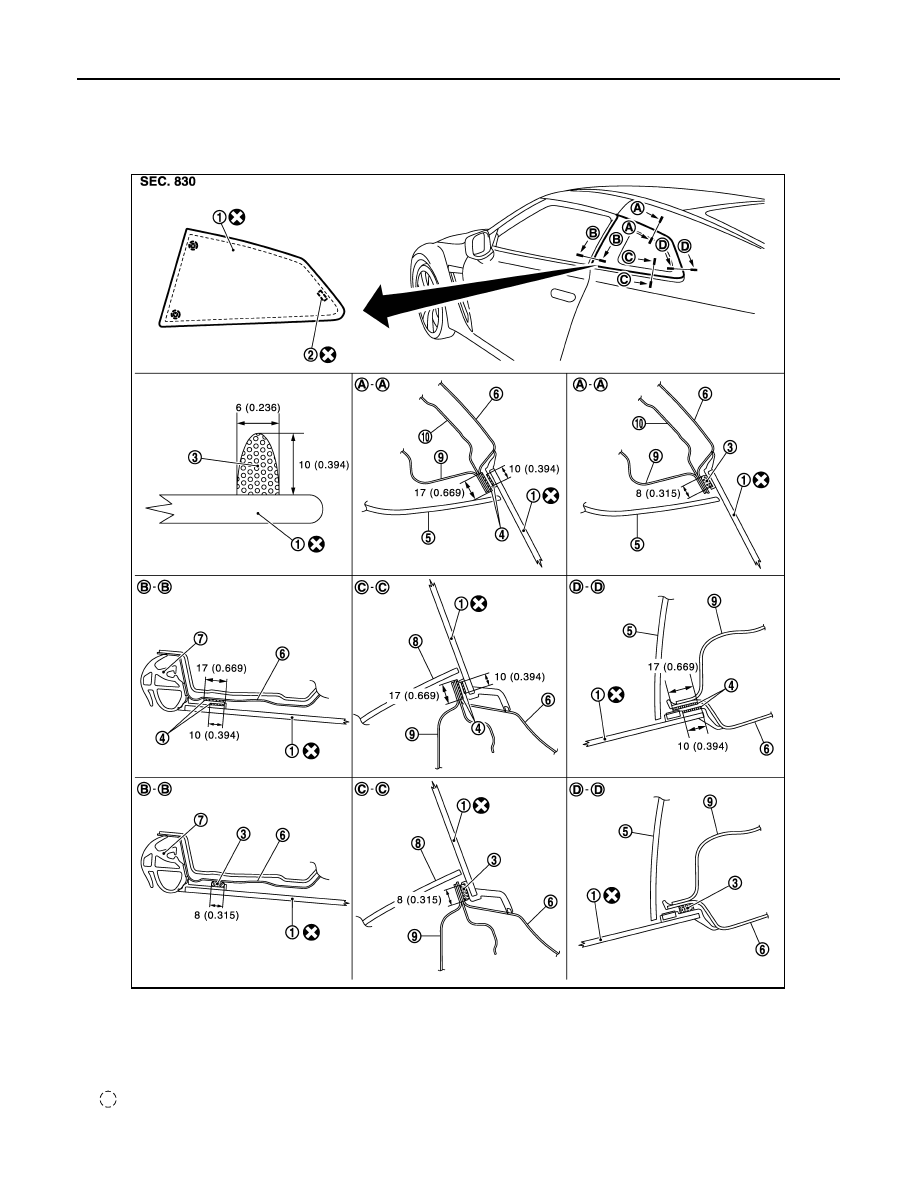

Exploded View (GT-R certified NISSAN dealer)

INFOID:0000000009161681

1.

Side window glass

2.

Spacer

3.

Adhesive

4.

Primer

5.

Rear pillar finisher

6.

Rear fender

7.

Body side weather-strip

8.

Rear side finisher

9.

Rear pillar inner

10. Rear pillar outer

: Clip

Unit: mm (in)

NNKIA0002GB

SIDE WINDOW GLASS

GW-17

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

GW

N

O

P

Refer to

GI-4, "Components"

 for the symbols shown in the figure.

Removal and Installation (GT-R certified NISSAN dealer)

INFOID:0000000009161682

REMOVAL

1.

Remove the rear pillar finisher. Refer to

INT-15, "Removal and Installation"

.

2.

Apply protective tape on body panel around side window glass to protect painted surfaces from damage.

3.

Cut the adhesive from passenger room side.
Use a windshield cutter for straight section. For the area that the windshield cutter cannot be used, use
piano wire or a cutter knife.

a.

With a windshield cutter

i.

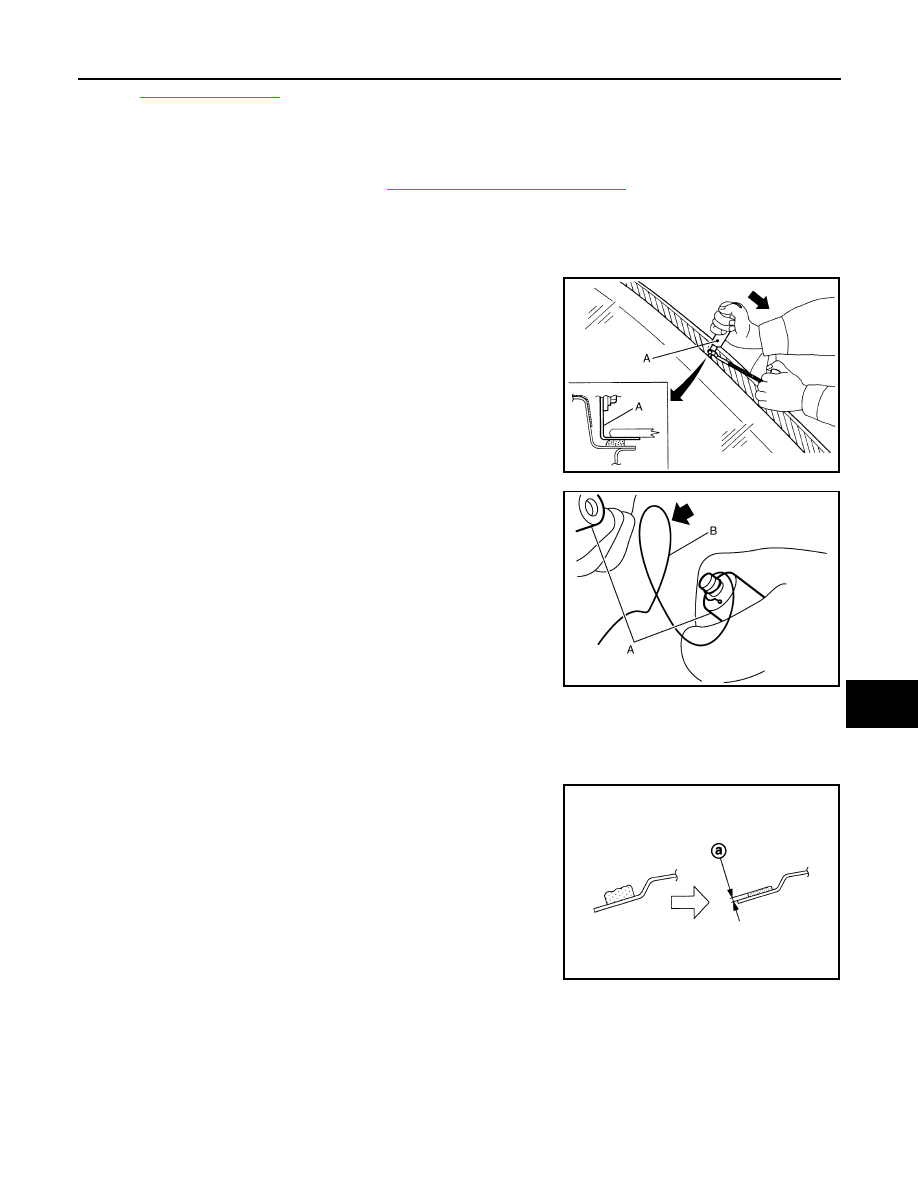

Apply soapy water around the bonded area on the body for
smooth movement of the windshield cutter (A).

ii.

Insert windshield cutter into the bonded area. Cut adhesive by
pulling the knife, keeping the tip parallel to body flange edge.

b.

With piano wire

i.

Pass both sides of piano wire through each passenger room
side from the area cut by the windshield cutter.

ii.

Tie both ends of the piano wire (B) to the wire grip (A), etc.

iii.

Lift up the molding using a plastic spatula, pass the piano wire
through the inside of molding, and then cut the adhesive by pull-
ing the wire grips alternately.

CAUTION:

Never contact the piano wire with the coated panel surface.

c.

With a cutter knife

i.

Working from inside vehicle, insert cutter knife between side
window glass and body panel. Guide cutter edge along molding
to cut off adhesive.

CAUTION:

Never contact painted surfaces with the cutter knife tip.

4.

Use piano wire to cut the side window glass mounting clip. Use rubber suction cups or suction lifter to
remove the glass from the vehicle.

INSTALLATION

1.

Using a scraper, remove remaining adhesive on the body side
down to approximately a depth that is 2.0mm (0.079in) thick (a)
so that entire contour becomes smooth.

CAUTION:

If the bonded area on the body is scratched, repair it with a
two-liquid type urethane paint. Never use lacquer type
paint.

2.

Clean bonded and surrounding area on glass with white gasoline or degreasing agent.

3.

Apply primer for the glass along the entire circumference of the glass.
• Use the sealing kit for glass application and the special holder for cartridge or similar tools.

CAUTION:

There are 2 types of primer. Never confuse the application methods.
• Primer for painted surfaces
• Primer for glass
NOTE:

JMKIA0306ZZ

JMKIA0722ZZ

JMKIA0307ZZ

GW-18

< REMOVAL AND INSTALLATION >

SIDE WINDOW GLASS

The essential function of primers is to strengthen adhesion between glass and painted surface.

4.

Apply primer for the painted surface to the body side bonding surface.

CAUTION:

• If the body side bonding surface is repaired with a two-liquid type urethane paint, always apply

the primer after drying the paint.

• If primer for painted surfaces adheres to a painted surface other than the bonding area, or if it

overflows, quickly remove it with white gasoline or degreasing agent.

5.

Apply adhesive along glass edge within the time period indicated in the service manual after applying
primer with the procedure shown in the Exploded View.
NOTE:
Open adhesive by cutting off the nozzle tip and set it in a sealant gun.

6.

After setting rubber suction cups or suction lifter to glass, align matching marks on body and glass. Install
glass to the body.

7.

Press the entire surface of the glass lightly to fit it completely.

8.

Correct any adhesive overflow or shortage using a spatula to make the surface smooth.

CAUTION:

After installing glass, keep the front door glass open until the adhesive has completely cured.
Avoid driving the vehicle.

9.

Remove the protective tape.

10. Install the removed parts.

Inspection (GT-R certified NISSAN dealer)

INFOID:0000000009161683

WATER LEAKAGE INSPECTION

CAUTION:

Wait at least 2 hours after installing the glass because the adhesive must be cured before performing
the leakage test.
