ROOF SIDE MOLDING

2.

Heat adhesive tape interface with a dryer, and then peel roof side molding clips with long-nose pliers.

CAUTION:

Be careful not to damage the body.

Installation

1.

Clean tape removed surface with a shop cloth soaked in white gasoline or IPA.

2.

Use two-part epoxy adhesive.

3.

Apply adhesive evenly to clip tape surface.

4.

Position applied parts to the proper location, and then sufficiently press-fit until the adhesive protrudes to
tape side.

5.

Tape clips after press fit, and temporarily hold it for specified time based on the following.

6.

Install from roof side molding rear end to front end in this order after temporarily holding.

CAUTION:

• When installing roof side molding of windshield portion, check that molding fastener is securely

inserted and then press in.

• Never wash the vehicle with in 24 hours so as to keep adhesive.

Adhesive

: 3M–weld DP-100 or equivalent

Thickness

: Approximately 0.5 mm (0.020 in)

Press-fit limit

: 19.6 N

×

 2 seconds

 5 to 10

°

C (41 to 50

°

F)

: 1 hour or more

11 to 23

°

C (52 to 73

°

F)

: 30 minutes or more

24

°

C or more (75

°

F or more)

: 15 minutes or more

FRONT PILLAR FINISHER

EXT-47

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

FRONT PILLAR FINISHER

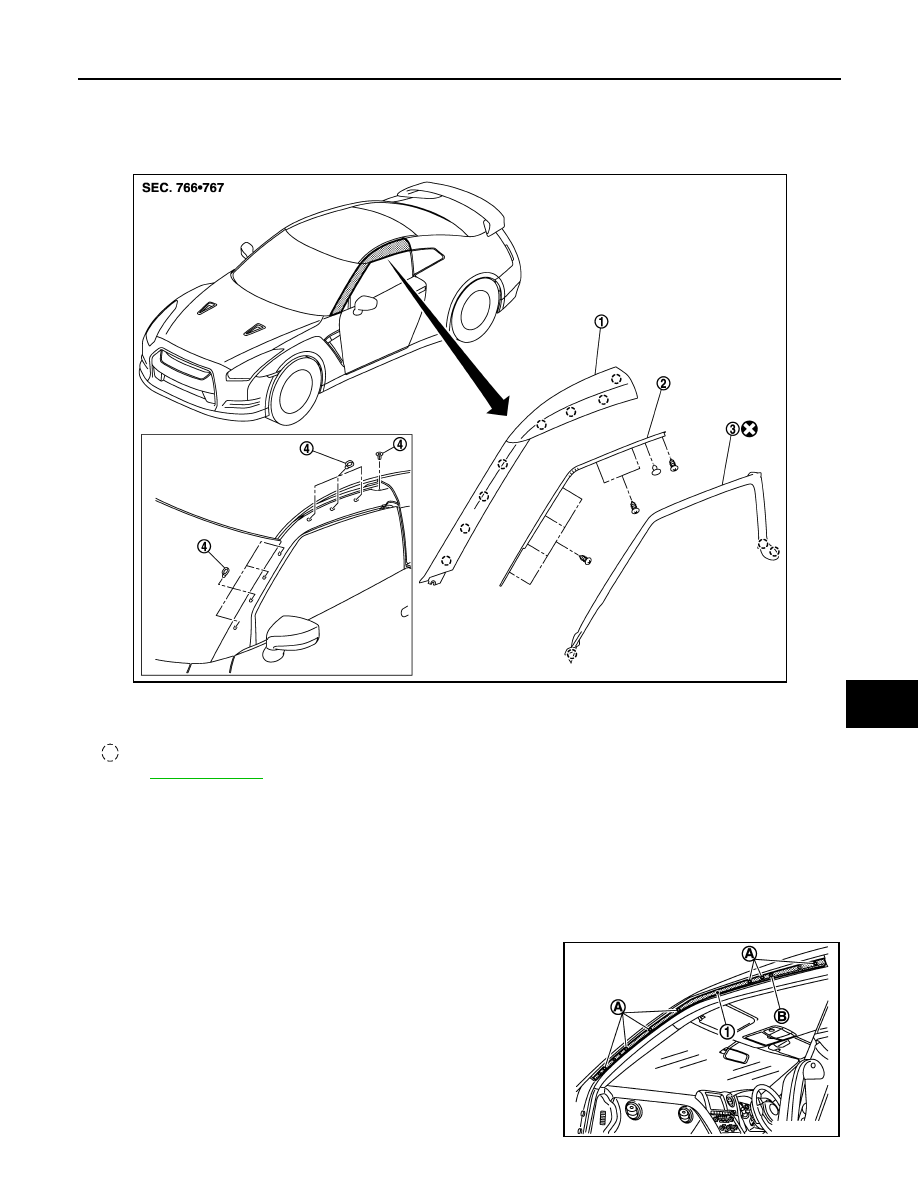

Exploded View

INFOID:0000000009161577

Removal and Installation

INFOID:0000000009161578

REMOVAL

1.

Remove the mounting clips and the double-faced adhesive tape of the body side weather-strip.

2.

Remove the body side weather-strip.
NOTE:
Disengage the joint of front pillar clip while sliding upward.

3.

Remove the mounting screws (A) and the clip (B), and then
remove the weather-strip retainer (1).

1.

Front pillar finisher

2.

Weather-strip retainer

3.

Body side weather-strip

4.

Grommet

 : Clip

Refer to

GI-4, "Components"

 for symbols in the figure.

NNKIA0150ZZ

NNKIA0151ZZ

EXT-48

< REMOVAL AND INSTALLATION >

FRONT PILLAR FINISHER

4.

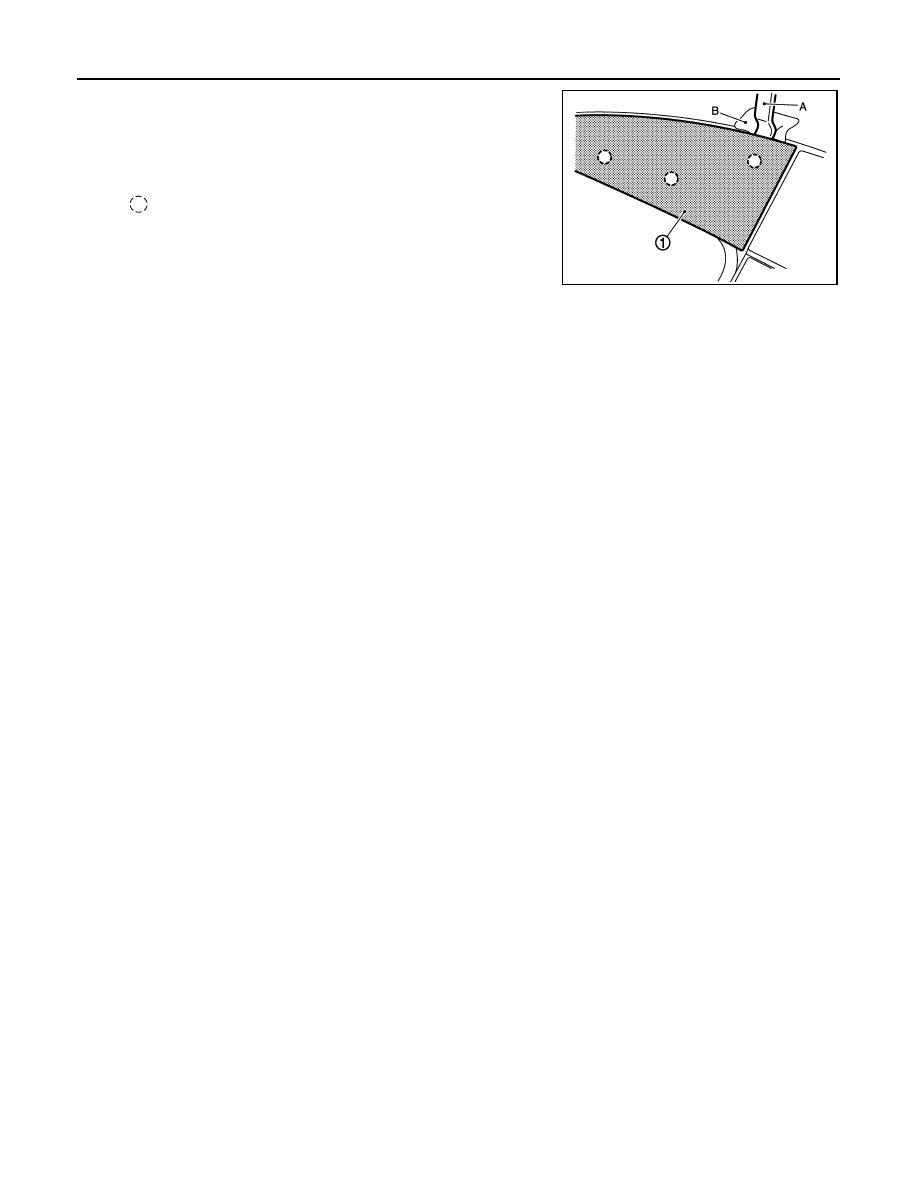

Insert the remover tool (A) from the rear edge of the front pillar
finisher (1), and then disengage the clips toward vehicle front.

CAUTION:

Apply protective tape (B) to the body side to protect from
damage.

5.

Remove the front door finisher from the vehicle body.

INSTALLATION

Note the following, and install in the reverse order of removal.

CAUTION:

• During installation check that the clips are aligned with the vehicle body side panel holes, and then

press.

• Never reuse the body side weather-strip.
• To maintain adhesion, never wash the vehicle within 24 hours after installing the body side weather-

strip.

: Clip

NNKIA1738ZZ

DOOR OUTSIDE MOLDING

EXT-49

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

DOOR OUTSIDE MOLDING

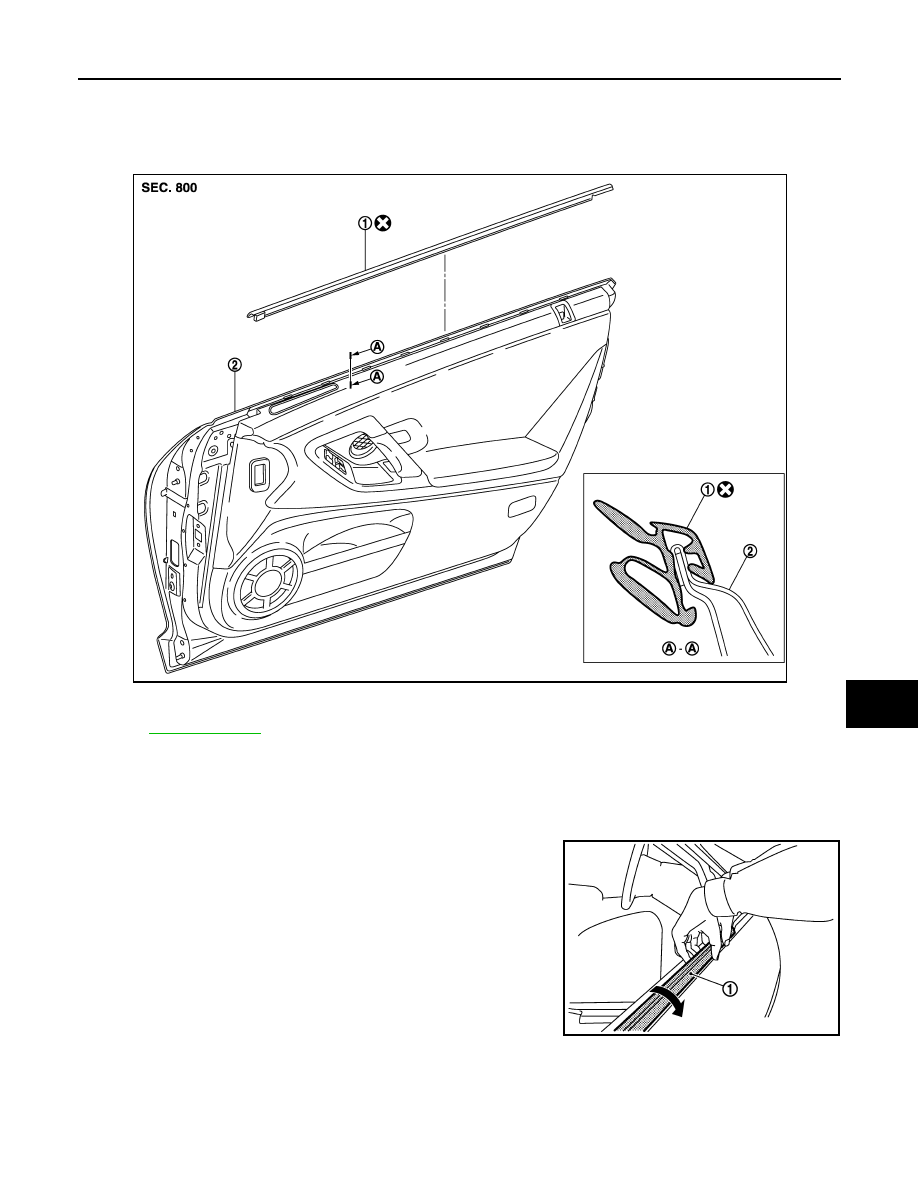

Exploded View

INFOID:0000000009161579

Removal and Installation

INFOID:0000000009161580

REMOVAL

1.

Fully open the door window.

2.

Twist the door outside molding (1) toward the outside of the
vehicle, and then lift up and remove it while disengaging the
pawls.

INSTALLATION

Install in the reverse order of removal.

1.

Door outside molding

2.

Door panel assembly

Refer to

GI-4, "Components"

 for symbols in the figure.

NNKIA0153ZZ

JMKIA0116GB
