EXT-42

< REMOVAL AND INSTALLATION >

FLOOR SIDE FAIRING

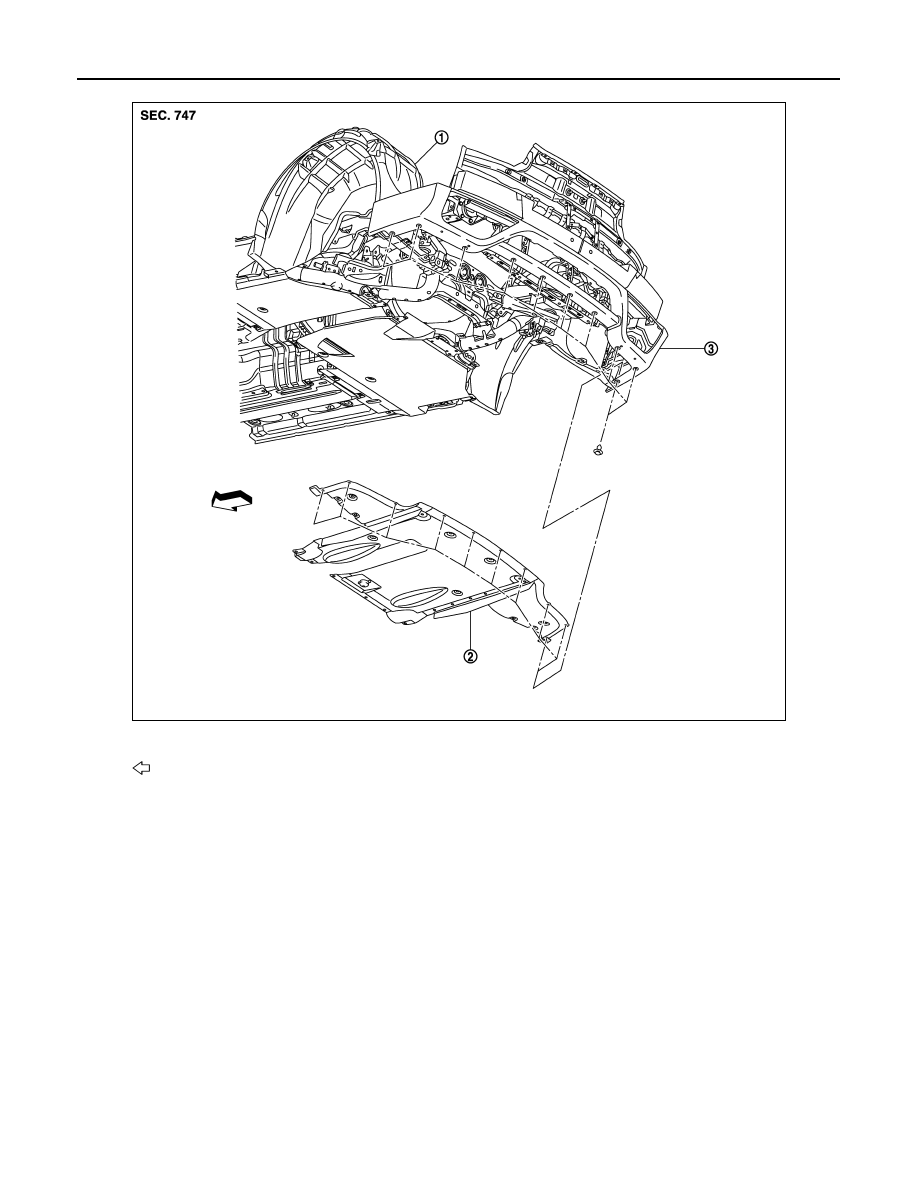

Installation position for clip

NNKIA0108GB

1.

Rear wheel well protector LH

2.

Rear diffuser assembly

3.

Rear bumper fascia (lower)

: Vehicle front

FLOOR SIDE FAIRING

EXT-43

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

Bracket construction

REAR DIFFUSER : Removal and Installation

INFOID:0000000009161574

CAUTION:

• Never apply any chemical products like wax, coating agent, and compound for carbon parts. They

are produced by composite manufacturing methods similar to a racing vehicle and special paint is
adopted to enhance the look and feel of materials. (Otherwise, water may penetrate to carbon layers
and may cause corrosion.)

• Never place any carbon parts directly on the ground. Always protect them using a soft sheet during

removal, installation, and replacement operations.Never touch carbon parts with oily hands or allow
oil or grease to get on them.

REMOVAL

Rear diffuser (center)

1.

Remove the clips connecting with the rear bumper fascia (lower) lower surface.

2.

Remove the rear diffuser (center) mounting bolts.

3.

Remove the rear diffuser (center).

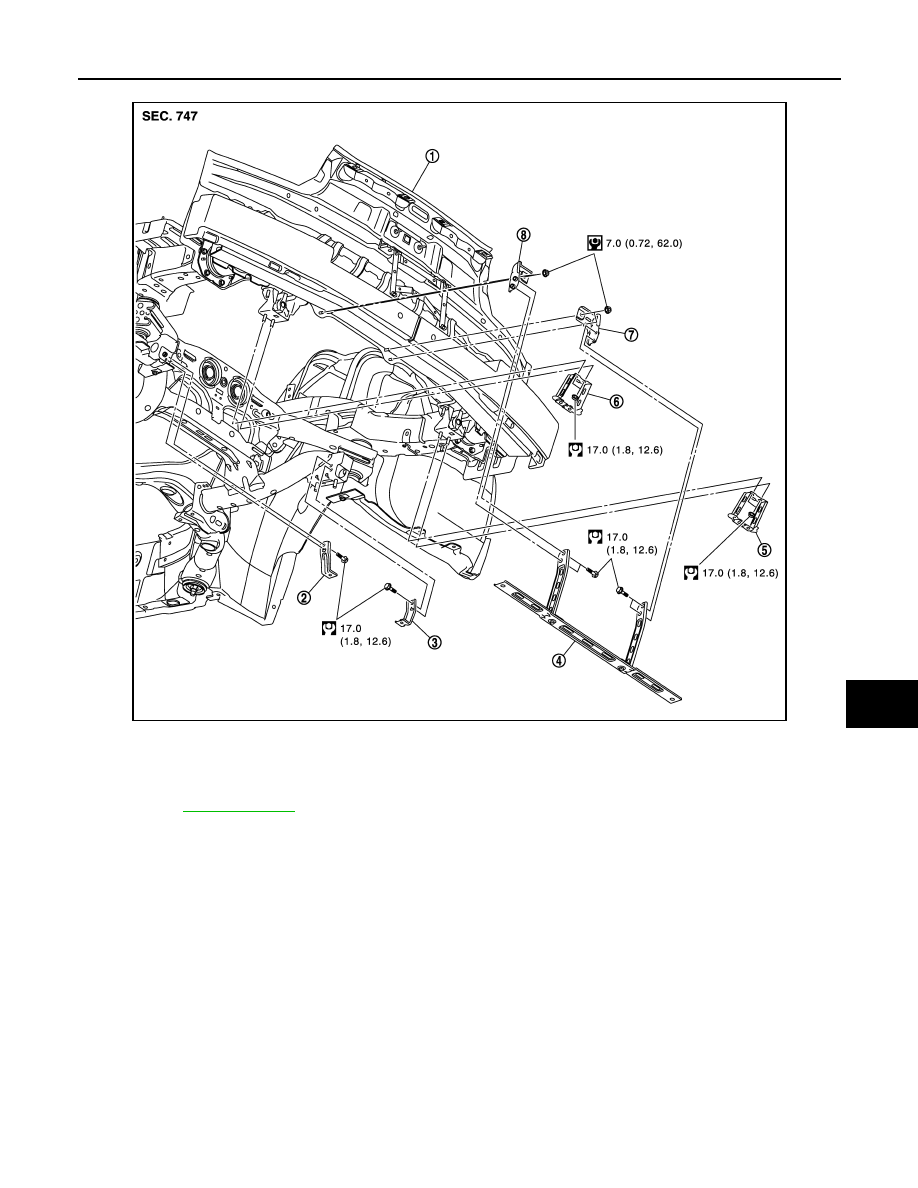

NNKIA0106GB

1.

Rear panel assembly

2.

Diffuser bracket A LH

3.

Diffuser bracket A RH

4.

Diffuser center bracket

5.

Diffuser bracket B RH

6.

Diffuser bracket B LH

7.

Diffuser bracket C RH

8.

Diffuser bracket C LH

Refer to

GI-4, "Components"

 for symbols in the figure.

EXT-44

< REMOVAL AND INSTALLATION >

FLOOR SIDE FAIRING

Rear diffuser RH

1.

Remove the rear diffuser (center).

2.

Remove the mounting bolts and clips of rear diffuser RH.

3.

Remove the rear diffuser RH.

Rear diffuser LH

1.

Remove the rear diffuser (center).

2.

Remove the mounting bolts and clips of rear diffuser LH.

3.

Remove the rear diffuser LH.

INSTALLATION

Note the following, and install in the reverse order of removal.

CAUTION:

• When rear diffuser mounting bolt is removed, check for surface treatment peel off and oxidation of

mounting bolt and washer so that electric corrosion is prevented.

• Regarding mounting bolt and washer with surface treatment peel off, paint contact surface of washer

and carbon using touch pen or others. By doing so, mounting bolt and washer are reusable. How-
ever, regarding oxidation, never reuse.

• Visually check the clips for deformation and damage at installation. Replace with new ones if neces-

sary.

• Always tighten the mounting bolts to the specified torque.

ROOF SIDE MOLDING

EXT-45

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

ROOF SIDE MOLDING

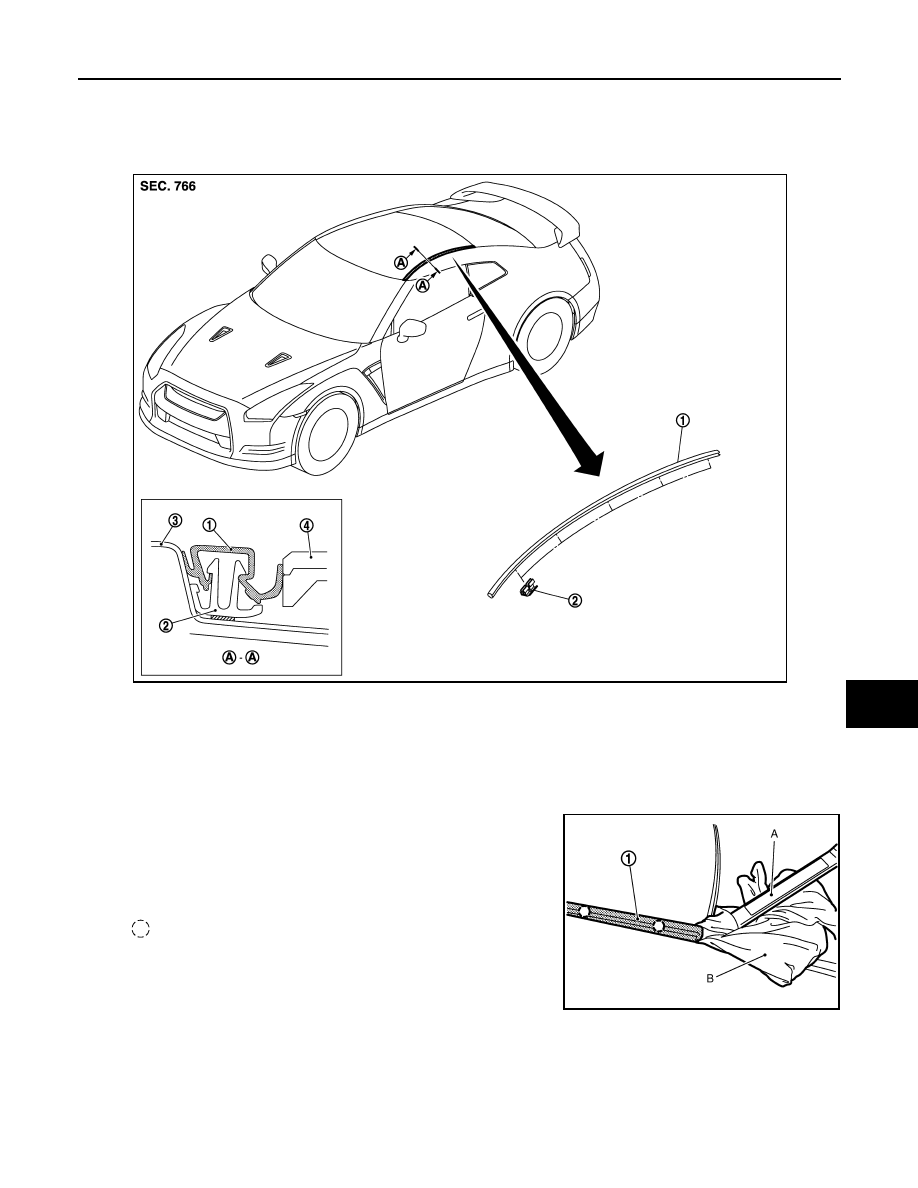

Exploded View

INFOID:0000000009161575

Removal and Installation

INFOID:0000000009161576

REMOVAL

Disengage the joint of clips from the roof side molding (1) rear edge
with the remover tool (A).

CAUTION:

Wrap a shop cloth (B) around the remover tool to protect the
body panel from damage.

INSTALLATION

Install in the reveres order of removal.

REMOVAL AND INSTALLATION OF ROOF SIDE MOLDING CLIP

Removal

1.

Remove roof side molding.

1.

Roof side molding

2.

Roof side molding clip

3.

Roof panel

4.

Front pillar finisher

NNKIA0149ZZ

: Clip

JMKIA1246ZZ
