EXT-30

< REMOVAL AND INSTALLATION >

FENDER PROTECTOR

FENDER PROTECTOR : Removal and Installation

INFOID:0000000009161560

REMOVAL

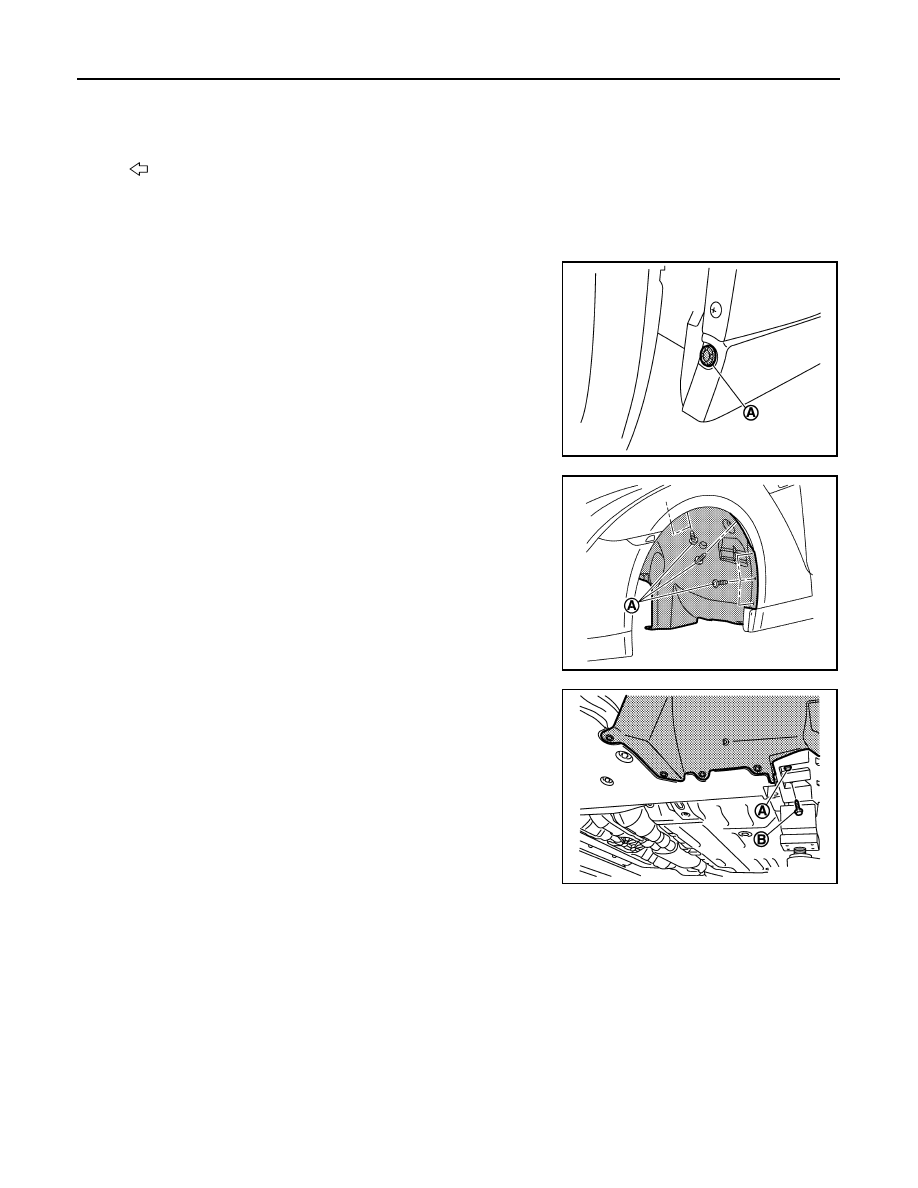

1.

Remove the clip (A) from the front edge of the center mud
guard.

2.

Remove the screws (A) connecting the fender protector (rear).

3.

Remove the bolt (A) and the screw (B) on the center mud guard
lower surface.

4.

Remove the clip of the fender protector (rear).

5.

Remove the fender clips from wheel house arches, and then remove fender protector (rear) from wheel
house.

1.

Fender protector (front)

2.

Grommet

3.

Fender clip

4.

Fender protector (rear)

5.

J-nut

6.

Center mud guard

7.

Floor under cover

8.

Front under cover

9.

Engine under cover

: Vehicle front

NNKIA0129ZZ

JMKIB1366ZZ

NNKIA0131ZZ

FENDER PROTECTOR

EXT-31

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

6.

Remove the screw (A) connecting the fender protector (front).

7.

Remove the clips of the fender protector (front).

8.

Remove the fender clips from wheel house arches, and then remove fender protector (front) from wheel
house.

9.

Remove the fender clips after removing the fender protector.

INSTALLATION

Install in the reverse order of removal.

REAR WHEEL HOUSE PROTECTOR

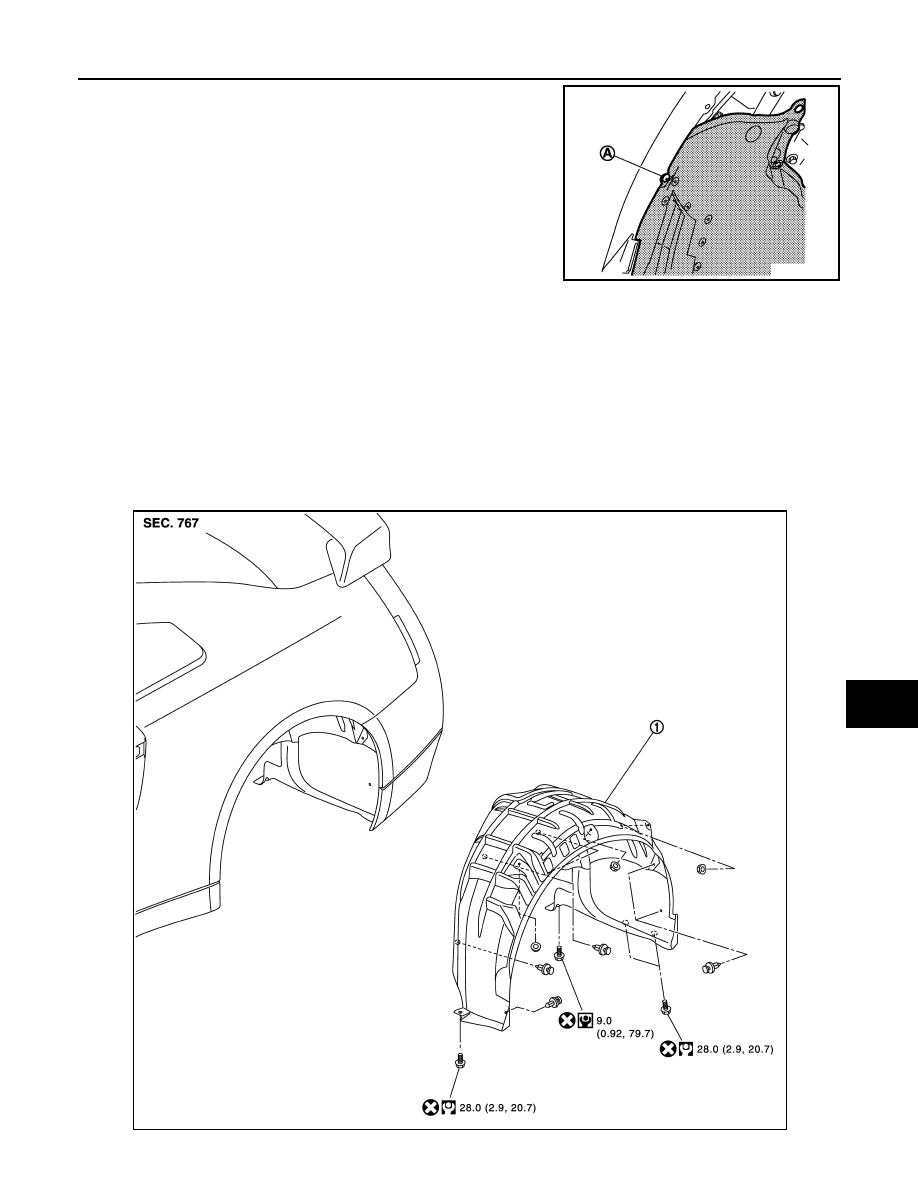

REAR WHEEL HOUSE PROTECTOR : Exploded View

INFOID:0000000009161561

NNKIA0132ZZ

NNKIA0134GB

EXT-32

< REMOVAL AND INSTALLATION >

FENDER PROTECTOR

REAR WHEEL HOUSE PROTECTOR : Removal and Installation

INFOID:0000000009161562

REMOVAL

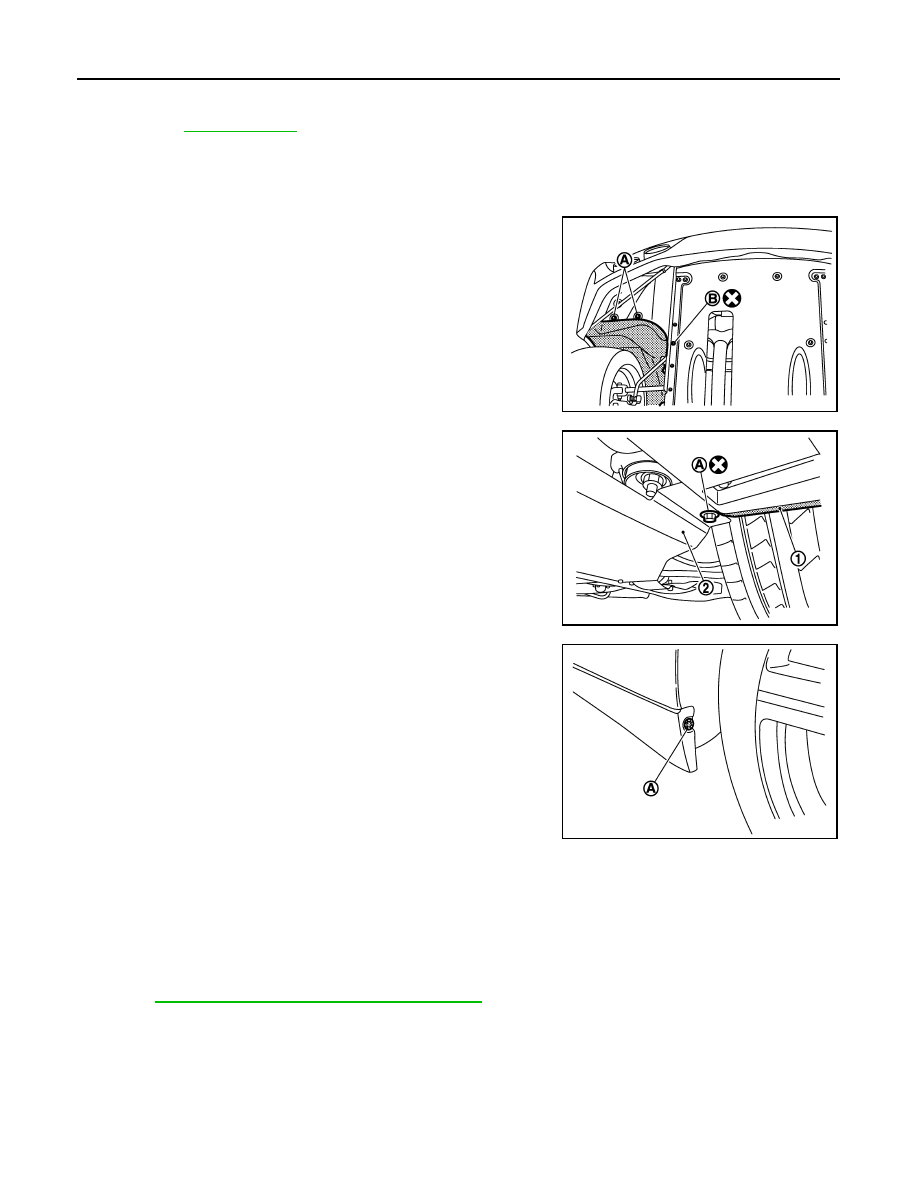

1.

Remove the bolts (A) and (B) tighten the rear diffuser together
with the rear of rear wheel house protector.

2.

Remove the bolt (A) tighten the rear diffuser (2) together with the
front of rear wheel house protector (1).

3.

Remove the clip (A) connecting the center mud guard with the
rear wheel house protector.

4.

Remove the clips of rear wheel house protector, and then remove it from the wheel house.

INSTALLATION

Note the following, and install in the reverse order of removal.

CAUTION:

• Replace the mounting bolts with new ones to prevent electric corrosion when removing the rear dif-

fuser mounting bolt.

• Tighten the bolts of the rear wheel house protector and the rear diffuser to the specified torque.

Refer to

EXT-41, "REAR DIFFUSER : Exploded View"

.

1.

Rear wheel house protector

Refer to

GI-4, "Components"

 for symbols shown the figure.

NNKIA0137ZZ

NNKIA0136ZZ

NNKIA0135ZZ

CENTER MUD GUARD

EXT-33

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

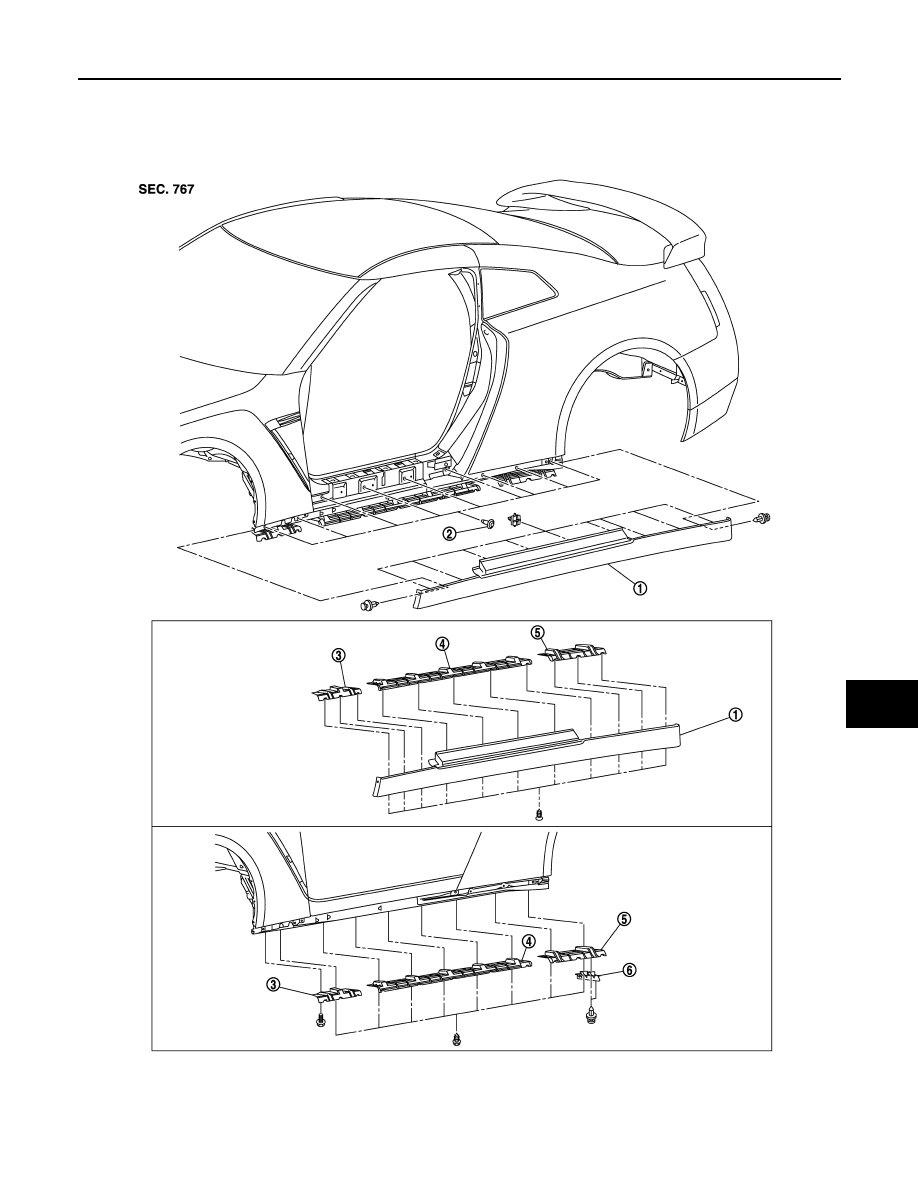

CENTER MUD GUARD

Exploded View

INFOID:0000000009161563

1.

Center mud guard

2.

Grommet

3.

Front bracket

4.

Center bracket

5.

Rear bracket

6.

Wind deflector

NNKIA0140ZZ
