Nissan GT-R. Manual - part 110

REAR COMBINATION LAMP

EXL-57

< REMOVAL AND INSTALLATION >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

Install in the reverse order of removal.

Replacement

INFOID:0000000009160393

CAUTION:

• Disconnect the battery negative terminal or remove the fuse.
• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.
• Never touch bulb by hand while it is lit or right after being turned off.
• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

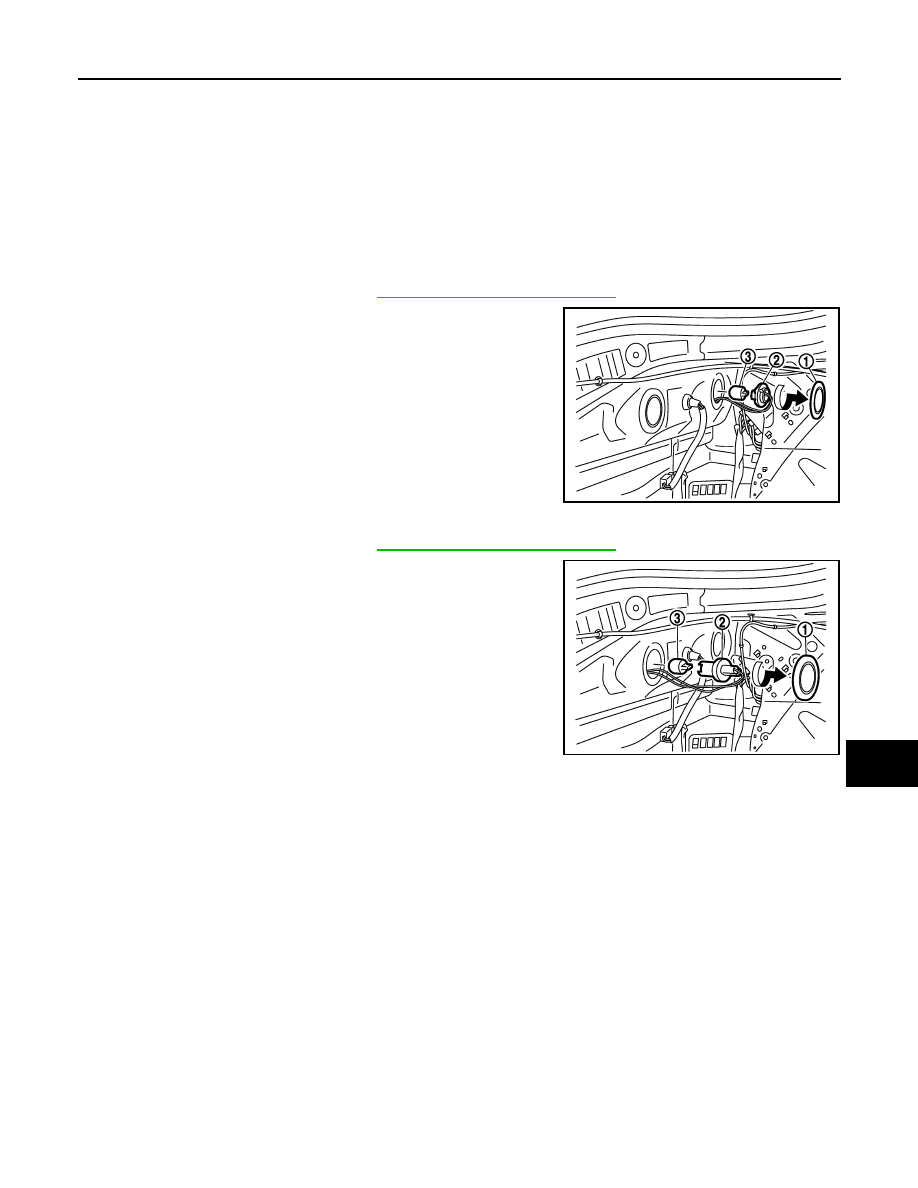

REAR TURN SIGNAL LAMP BULB

1.

Remove the trunk lid finisher. Refer to

INT-29, "Removal and Installation"

.

2.

Remove the rubber cover (1).

3.

Turn the rear turn signal lamp bulb socket (2) counterclockwise
and unlock it.

4.

Remove the bulb (3) from the rear turn signal lamp bulb socket.

BACK-UP LAMP BULB

1.

Remove the trunk lid finisher. Refer to

INT-29, "Removal and Installation"

.

2.

Remove the rubber cover (1).

3.

Turn the back-up lamp bulb socket (2) counterclockwise and
unlock it.

4.

Remove the bulb (3) from the back-up lamp bulb socket.

NNLIA0016ZZ

NNLIA0015ZZ

EXL-58

< REMOVAL AND INSTALLATION >

[XENON TYPE]

REAR SIDE MARKER LAMP

REAR SIDE MARKER LAMP

Exploded View

INFOID:0000000009160394

Removal and Installation

INFOID:0000000009160395

REMOVAL

CAUTION:

Disconnect the battery negative terminal or remove the fuse.
1.

Remove the rear bumper fascia. Refer to

EXT-20, "Exploded View"

.

2.

Disconnect the rear side marker lamp connector.

3.

Remove the rear side marker lamp mounting bolts and clip.

4.

Remove the rear side marker lamp.

INSTALLATION

Install in the reverse order of removal.

1.

Rear side marker lamp

JPLIA1160ZZ

HIGH-MOUNTED STOP LAMP

EXL-59

< REMOVAL AND INSTALLATION >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

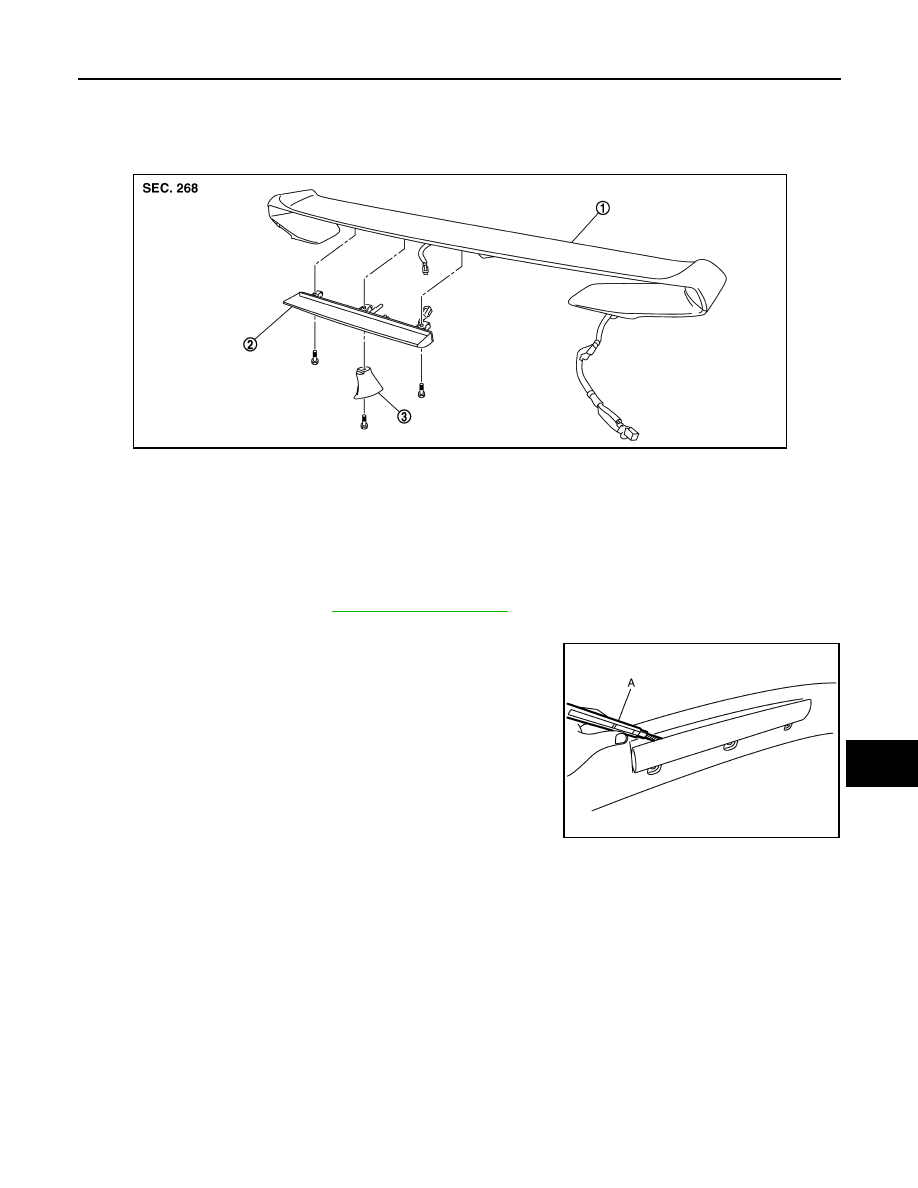

HIGH-MOUNTED STOP LAMP

Exploded View

INFOID:0000000009160396

Removal and Installation

INFOID:0000000009160397

REMOVAL

CAUTION:

Disconnect the battery negative terminal or the remove the fuse.
1.

Remove the rear wing. Refer to

EXT-52, "Exploded View"

.

2.

Remove the center leg bracket.

3.

Remove the high-mounted stop lamp mounting screw. And then
cut the two-sided tape by the any appropriate tool (A).

4.

Disconnect the connector. And then remove the high-mounted
stop lamp from the rear wing.

INSTALLATION

Install in the reverse order of removal.

1.

Rear wing

2.

High-mounted stop lamp

3.

Center leg bracket

NNLIA0017ZZ

NNLIA0018ZZ

EXL-60

< REMOVAL AND INSTALLATION >

[XENON TYPE]

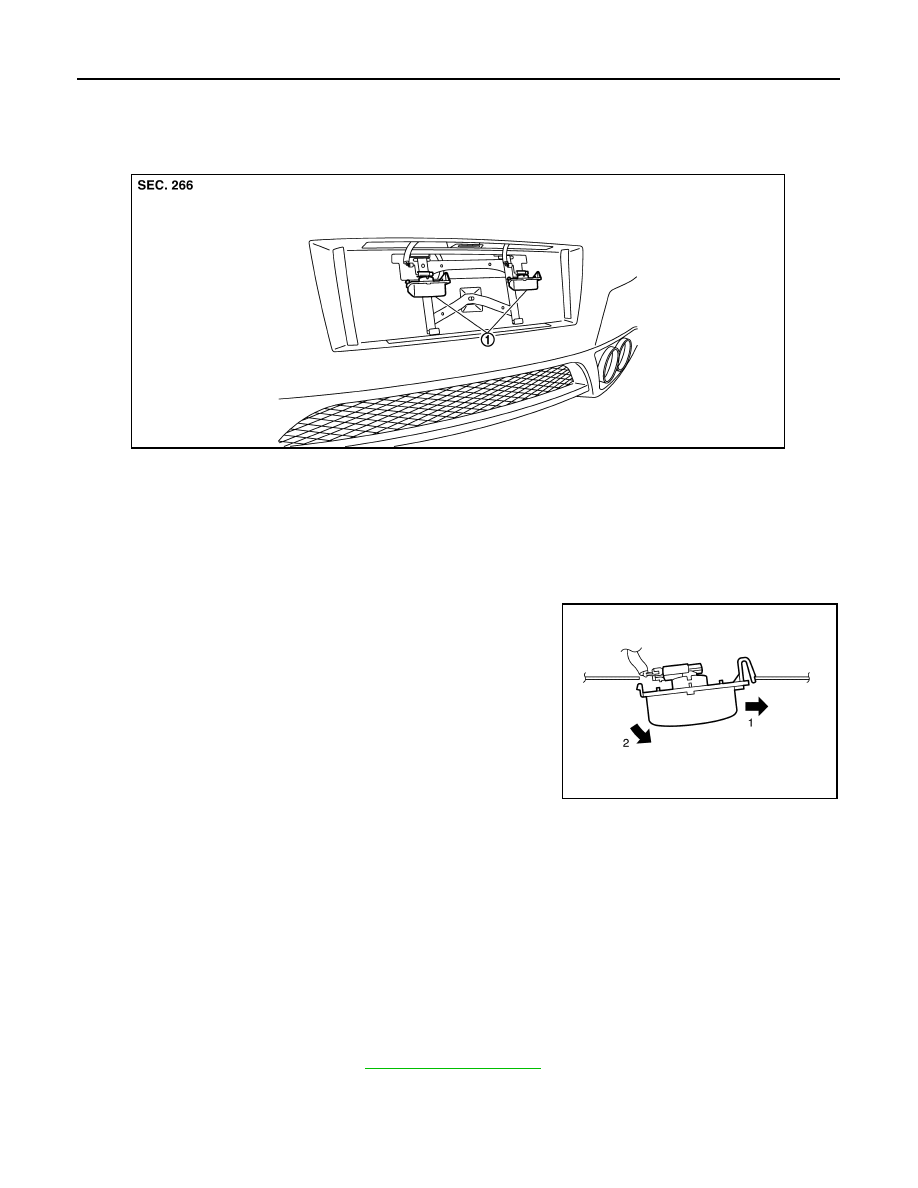

LICENSE PLATE LAMP

LICENSE PLATE LAMP

Exploded View

INFOID:0000000009160398

Removal and Installation

INFOID:0000000009160399

CAUTION:

Disconnect the battery negative terminal or remove the fuse.

REMOVAL

1.

Remove the license plate lamp in numerical order shown in the
figure.

2.

Disconnect the connector.

3.

Remove license plate lamp.

INSTALLATION

1.

Connect the connector.

2.

Fix the pawl side. And then push the resin clip side.

Replacement

INFOID:0000000009160400

CAUTION:

• Disconnect the battery negative terminal or remove the fuse.
• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.
• Never touch bulb by hand while it is lit or right after being turned off.
• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

LICENSE PLATE LAMP BULB

1.

Remove license plate lamp. Refer to

EXL-60, "Exploded View"

.

1.

License plate lamp

NNLIA0026ZZ

JPLIA0056ZZ
