FRONT COMBINATION LAMP

EXL-49

< REMOVAL AND INSTALLATION >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

4.

Headlamp is turn ON for about 30 minutes, check that there are not on and off light, abnormality such as
blinking whether brightness of right and left does not have a difference.

EXL-50

< REMOVAL AND INSTALLATION >

[XENON TYPE]

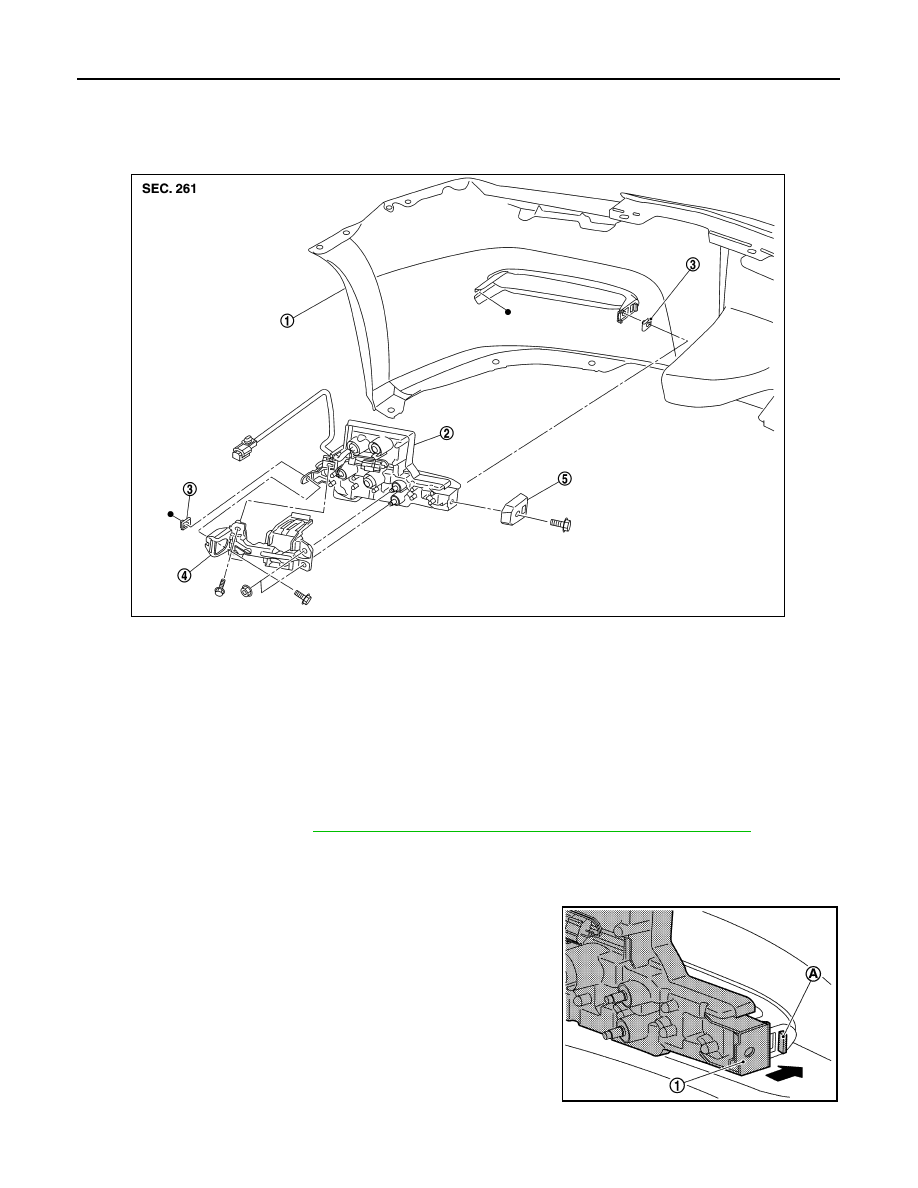

DAYTIME RUNNING LIGHT

DAYTIME RUNNING LIGHT

Exploded View

INFOID:0000000009160384

Removal and Installation

INFOID:0000000009160385

CAUTION:

Disconnect the battery negative terminal or remove the fuse.

REMOVAL

Left side

1.

Remove engine under cover.

EXT-36, "ENGINE UNDER COVER : Removal and Installation"

.

2.

Remove washer tank mounting bolt, and then keep a service area.

3.

Disconnect daytime running light harness connector.

4.

Remove daytime running light mounting bolt and nut, and then remove daytime running light bracket.

5.

Move daytime running light (1) until it contacts bumper fascia rib
portion (A).

1.

Bumper fascia

2.

Daytime running light

3.

U nut

4.

Daytime running light bracket A

5.

Daytime running light bracket B

JMLIA1867ZZ

JMLIA1918ZZ

DAYTIME RUNNING LIGHT

EXL-51

< REMOVAL AND INSTALLATION >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

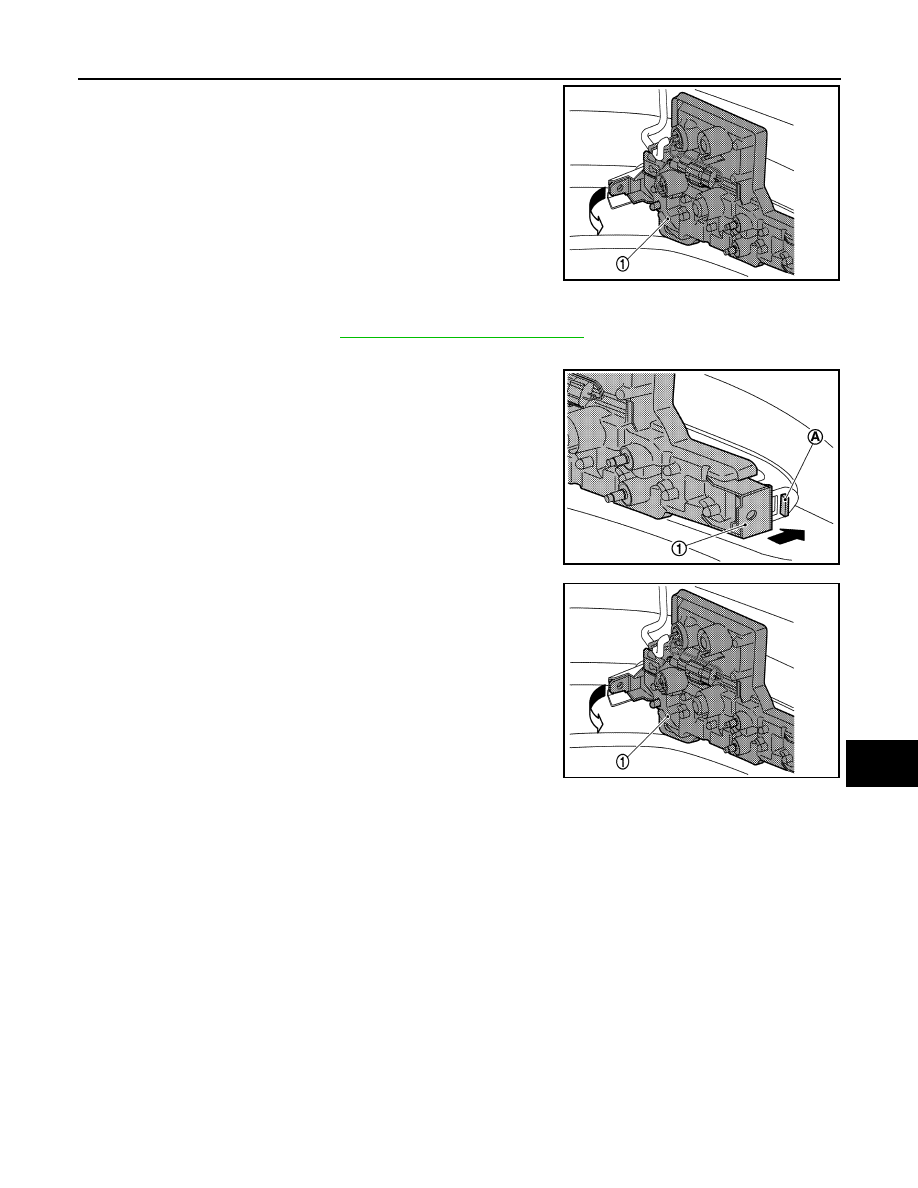

6.

Rotate daytime running light around center of rib portion and
remove LED hyper day light.

Right side

1.

Remove bumper fascia. Refer to

EXT-15, "Removal and Installation"

.

2.

Remove daytime running light mounting bolt and nut, and then remove daytime running light bracket.

3.

Move daytime running light (1) until it contacts bumper fascia rib
portion (A).

4.

Rotate daytime running light around center of rib portion and
remove LED hyper day light.

INSTALLATION

Install in the reverse order of removal.

JMLIA1919ZZ

JMLIA1918ZZ

JMLIA1919ZZ

EXL-52

< REMOVAL AND INSTALLATION >

[XENON TYPE]

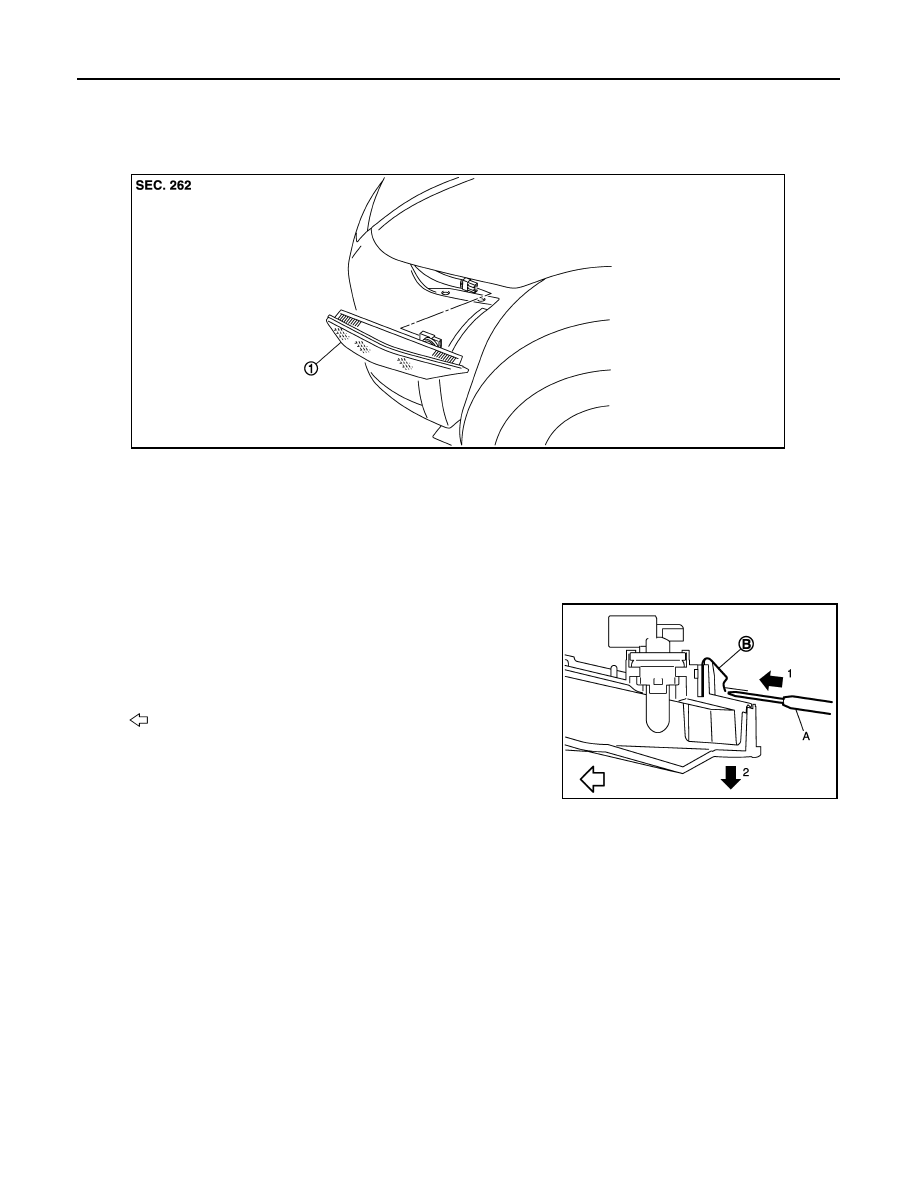

FRONT SIDE MARKER LAMP

FRONT SIDE MARKER LAMP

Exploded View

INFOID:0000000009160386

Removal and Installation

INFOID:0000000009160387

CAUTION:

Disconnect the battery negative terminal or remove the fuse.

REMOVAL

1.

Insert any appropriate tool (A) into the gap between the side turn
signal lamp and fender protector.

2.

Pull the side turn signal lamp toward vehicle outside while push-
ing metal clip (B) toward vehicle front, and then remove side turn
signal lamp from vehicle.

3.

Disconnect the side turn signal lamp connector.Remove the side turn signal lamp.

NOTE:
Support the vehicle-side harness of the side turn signal lamp with tape so that it does not drop inside the front
fender.

INSTALLATION

1.

Connect the side turn signal lamp connector.

2.

Fix the pawl side. And then push the clip side.

Replacement

INFOID:0000000009160388

CAUTION:

• Disconnect the battery negative terminal or remove the fuse.
• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.
• Never touch bulb by hand while it is lit or right after being turned off.
• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

FRONT SIDE MARKER LAMP BULB

1.

Front side marker lamp

JPLIA1330ZZ

: Vehicle front
