Nissan GT-R. Manual - part 48

AV

USB CONNECTOR

AV-187

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

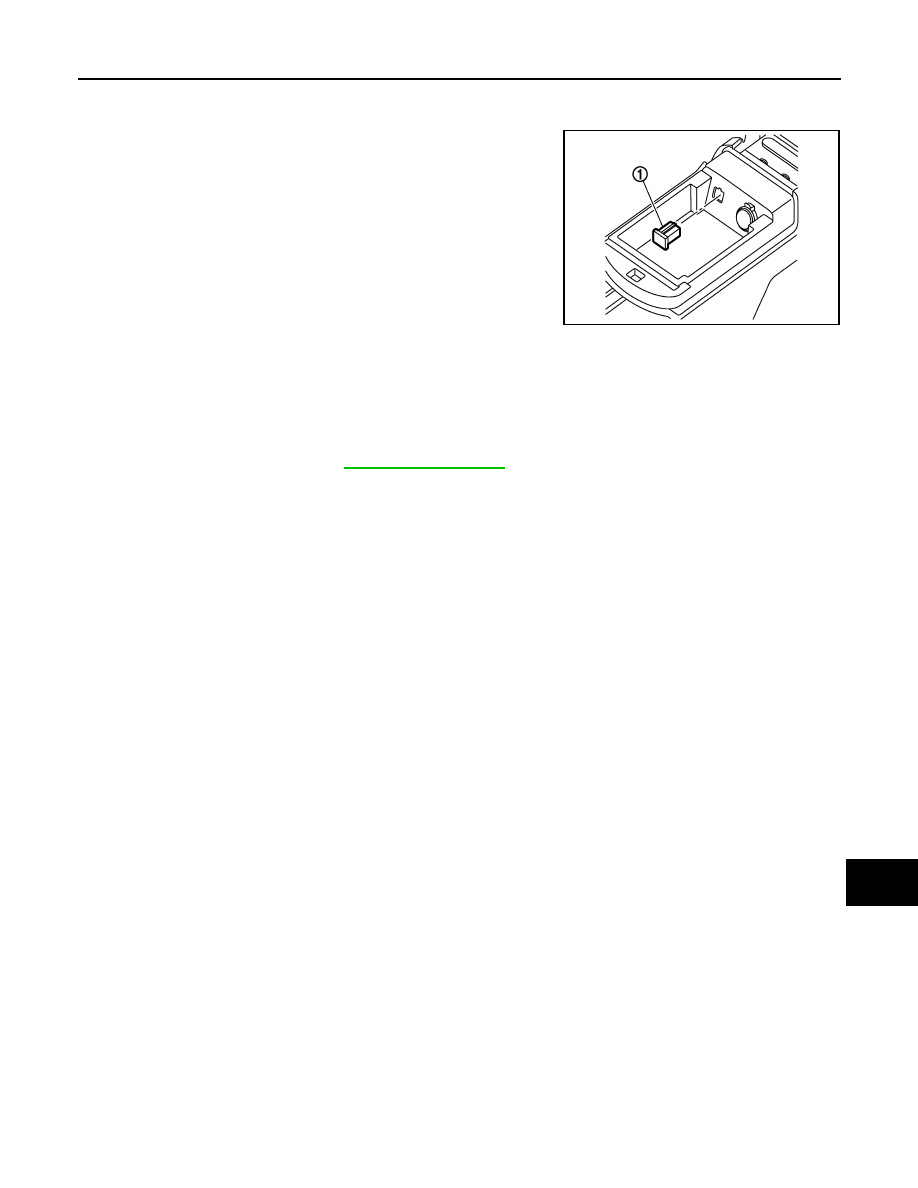

USB CONNECTOR

Exploded View

INFOID:0000000009163461

Removal and Installation

INFOID:0000000009163462

REMOVAL

1.

Remove center console. Refer to

IP-23, "Exploded View"

.

2.

Push the pawl from the back of center console to remove USB connector.

INSTALLATION

Install in the reverse order of removal.

NNNIA0182ZZ

1.

USB connector

AV-188

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITH NAVIGATION]

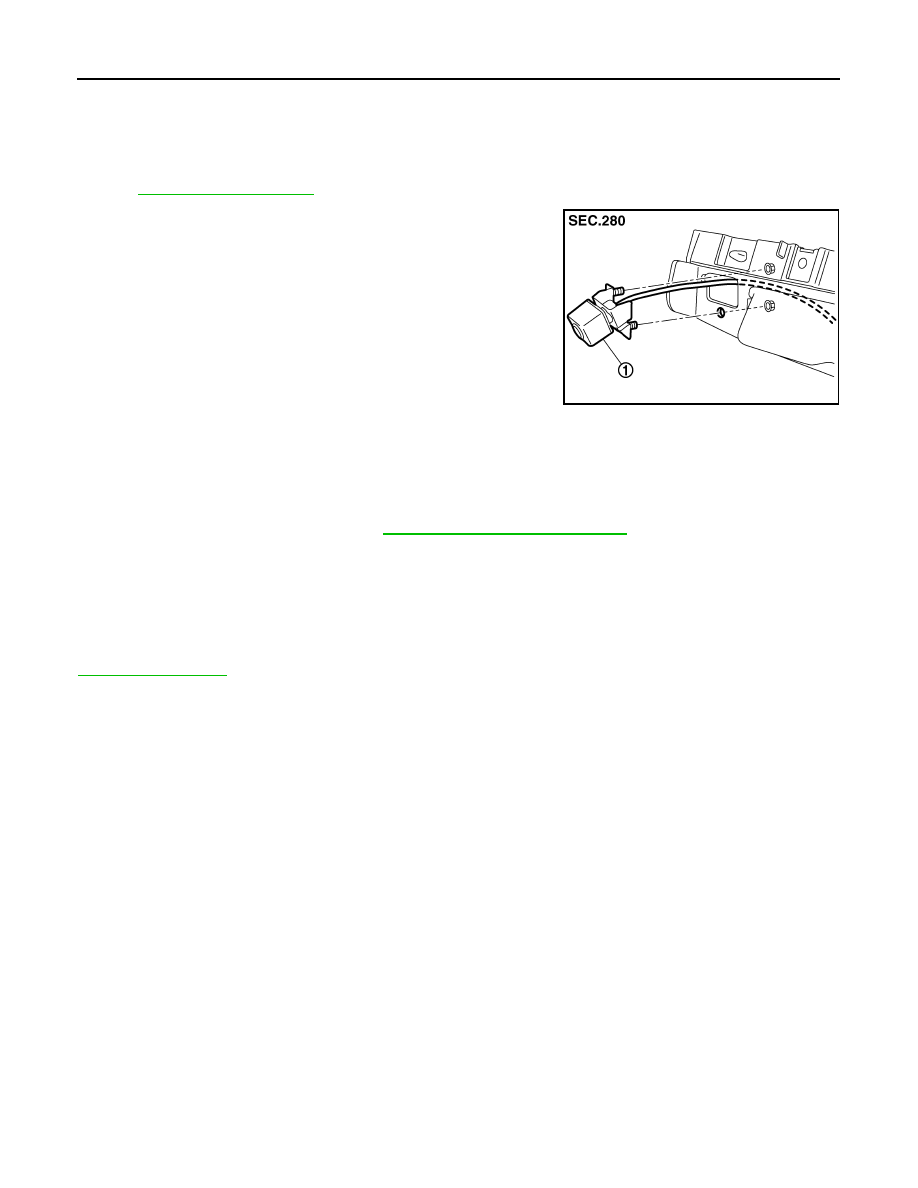

REAR VIEW CAMERA

REAR VIEW CAMERA

Exploded View

INFOID:0000000009163463

REMOVAL

Refer to

EXT-20, "Exploded View"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000009163464

REMOVAL

1.

Remove license lamp bracket. Refer to

EXT-21, "Removal and Installation"

.

2.

Remove the mounting nuts of rear view camera.

3.

Remove rear view camera from license lamp bracket.

INSTALLATION

Install in the reverse order of removal.
NOTE:
Adjust the guide line position if the guide line position is shifted after installing the rear view camera. Refer to

AV-188, "Adjustment"

.

Adjustment

INFOID:0000000009163465

Adjust the guide line position if the guide line position is shifted after installing the rear view camera.

JSNIA4792ZZ

1.

Rear view camera

AV

REAR VIEW CAMERA

AV-189

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

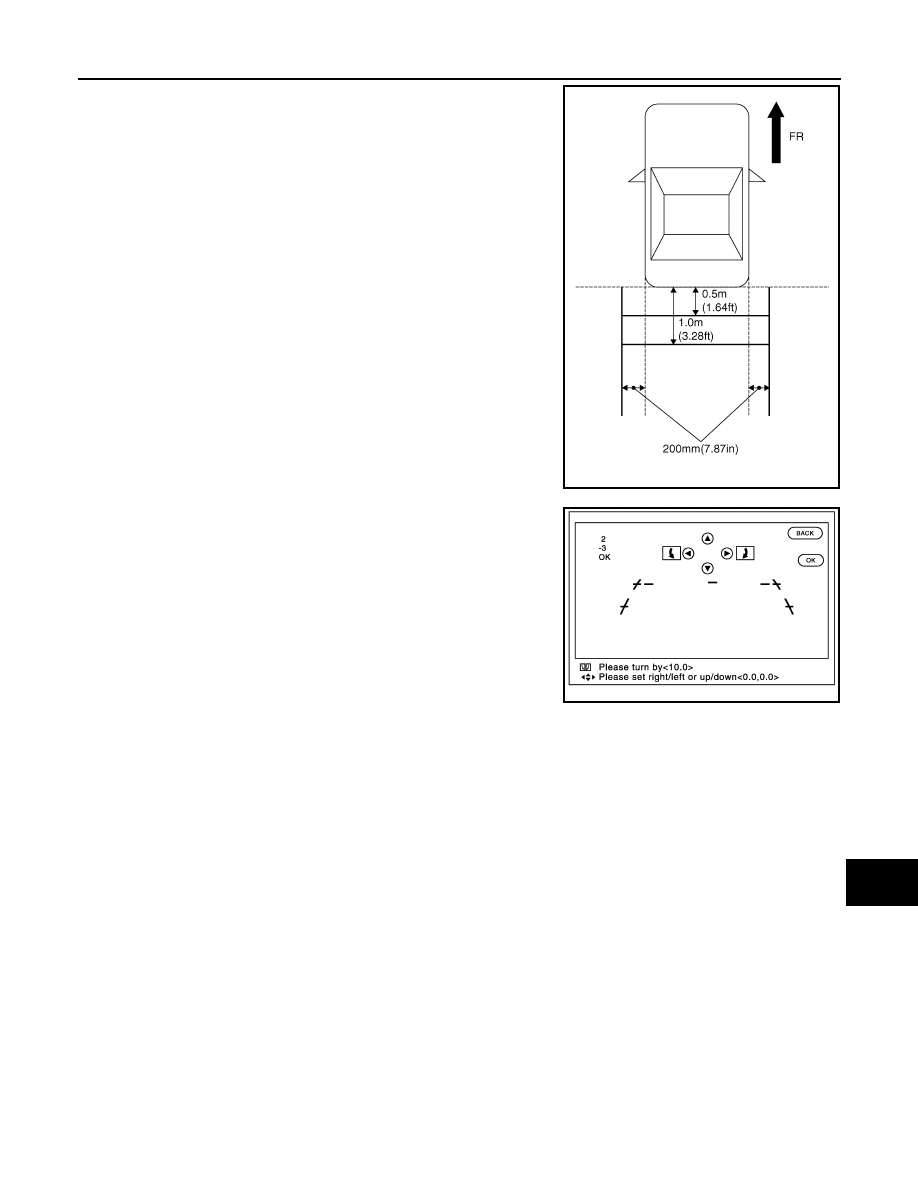

1.

Draw lines on rearward area of the vehicle passing through the
following points: 200 mm (7.87 in) from both sides of the vehicle,
and 0.5 m (1.64 ft), 1.0 m (3.28 ft) from the rear end of the
bumper.

2.

Set into “Adjust offset of rear view camera” mode of Confirma-
tion / Adjustment mode.

3.

Rotate the center dial, and then select the guiding line pattern so
that its angle is aligned with the correction line of the rear of the
vehicle.

4.

Make fine adjustment to the correction line of the rear of the
vehicle with up/down/left/right switches so that its position is
aligned with the guiding line. Press “OK” switch and record the
adjusted guiding line position to the camera control unit.

CAUTION:

Never operate other function such as pressing BACK while writing index data.

SKIB3691E

Selected pattern

:

−

10

°

 to 10

°

Up/Down adjustment range

:

−

10

°

 to 10

°

Left/Right adjustment range

:

−

10

°

 to 10

°

JSNIA2185ZZ

BCS

BCS-1

ELECTRICAL & POWER CONTROL

C

D

E

F

G

H

I

J

K

L

B

SECTION

BCS

A

O

P

N

CONTENTS

BODY CONTROL SYSTEM

BASIC INSPECTION  ....................................

2

TRANSIT MODE CANCEL OPERATION  ...........

2

Description ................................................................

2

Work Procedure  ........................................................

2

SYSTEM DESCRIPTION  ..............................

3

BODY CONTROL SYSTEM ................................

3

System Description  ...................................................

3

Component Parts Location ........................................

4

COMBINATION SWITCH READING SYSTEM

.....

5

System Diagram ........................................................

5

System Description  ...................................................

5

SIGNAL BUFFER SYSTEM  ................................

9

System Diagram ........................................................

9

System Description  ...................................................

9

POWER CONSUMPTION CONTROL SYS-
TEM ....................................................................

10

System Diagram ......................................................

10

System Description  .................................................

10

Component Parts Location ......................................

12

DTC/CIRCUIT DIAGNOSIS  .........................

13

POWER SUPPLY AND GROUND CIRCUIT ......

13

Diagnosis Procedure ...............................................

13

ECU DIAGNOSIS INFORMATION ..............

14

BCM (BODY CONTROL MODULE)  .................

14

Wiring Diagram - BCM -  ..........................................

14

SYMPTOM DIAGNOSIS  ..............................

18

NORMAL OPERATING CONDITION  ...............

18

Description ...............................................................

18

PRECAUTION ..............................................

19

PRECAUTIONS .................................................

19

Precaution for Working Range at a Regular Deal-
ership .......................................................................

19

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................

19

Precaution for Battery Service .................................

19

REMOVAL AND INSTALLATION  ...............

20

BCM (BODY CONTROL MODULE)  .................

20

Exploded View .........................................................

20

Removal and Installation  .........................................

20

COMBINATION SWITCH ..................................

21

Exploded View .........................................................

21

Removal and Installation  .........................................

21
