STEERING SWITCH SIGNAL B CIRCUIT

AV-155

< DTC/CIRCUIT DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Component Inspection

INFOID:0000000009163422

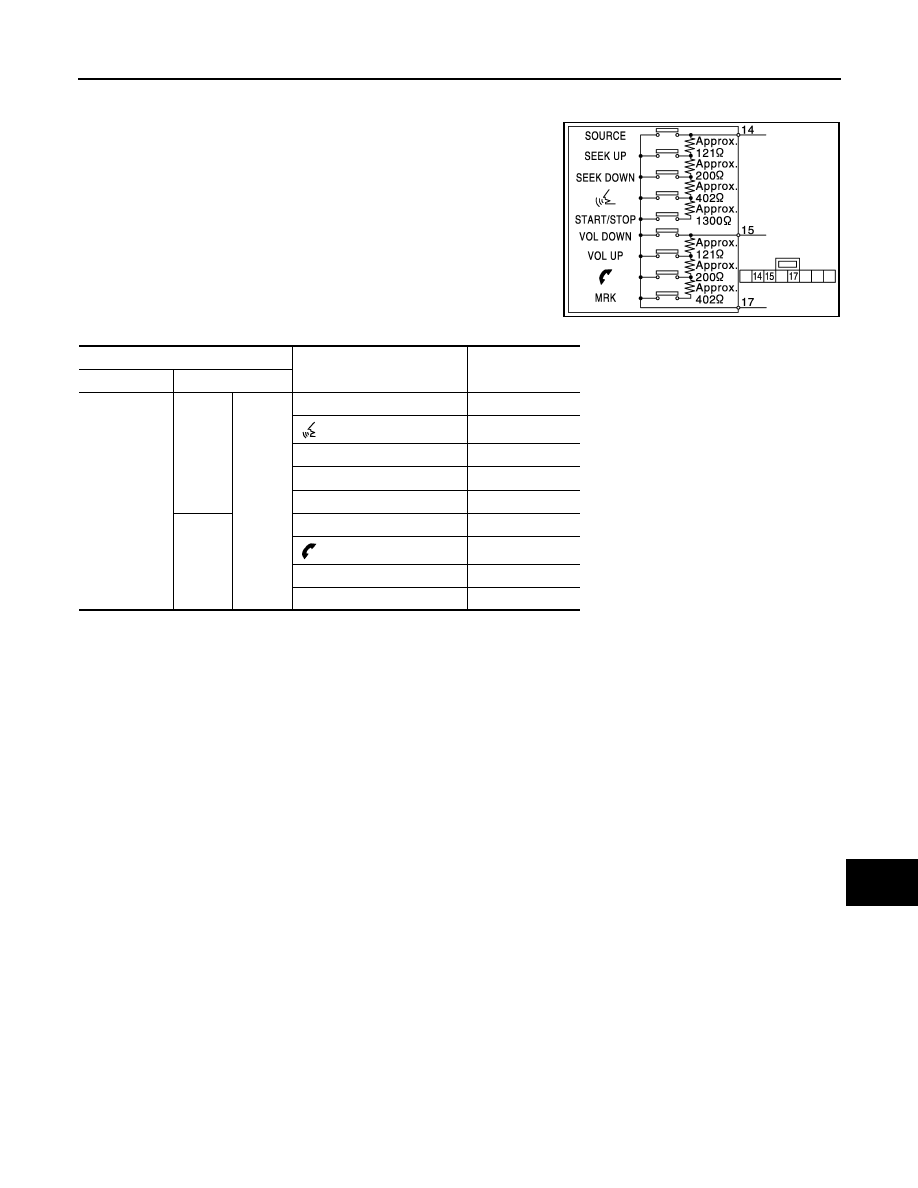

Measure the resistance between the steering switch connector ter-
minals 14 to 17 and 15 to 17.

Standard

JPNIA1238GB

Steering switch

Condition

Resistance

Ω

Connector

Terminals

M303

14

17

START / STOP switch ON

1982 – 2063

 switch ON

708 – 737

SEEK DOWN switch ON

314 – 327

SEEK UP switch ON

118 – 123

SOURCE switch ON

1

Ω

 or less

15

MRK switch ON

708 – 737

 switch ON

314 – 327

VOL UP switch ON

118 – 123

VOL DOWN switch ON

1

Ω

 or less

AV-156

< DTC/CIRCUIT DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

STEERING SWITCH GROUND CIRCUIT

STEERING SWITCH GROUND CIRCUIT

Description

INFOID:0000000009163423

Transmits the steering switch signal to AV control unit.

Diagnosis Procedure

INFOID:0000000009163424

1.

CHECK STEERING SWITCH SIGNAL GND CIRCUIT

1.

Disconnect AV control unit connector and spiral cable connector.

2.

Check continuity between AV control unit harness connector and spiral cable harness connector.

3.

Connect AV control unit connector.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair harness or connector.

2.

CHECK SPIRAL CABLE

Check spiral cable.
Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Replace spiral cable.

3.

CHECK GROUND CIRCUIT

1.

Connect AV control unit connector.

2.

Check continuity between AV control unit harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Replace AV control unit.

4.

CHECK STEERING SWITCH

1.

Turn ignition switch OFF.

2.

Check steering switch. Refer to

AV-157, "Component Inspection"

.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace steering switch.

AV control unit

Spiral cable

Continuity

Connector

Terminal

Connector

Terminal

M201

15

M36

33

Existed

AV control unit

Ground

Continuity

Connector

Terminal

M201

15

Existed

AV

STEERING SWITCH GROUND CIRCUIT

AV-157

< DTC/CIRCUIT DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Component Inspection

INFOID:0000000009163425

Measure the resistance between the steering switch connector ter-
minals 14 to 17 and 15 to 17.

Standard

JPNIA1238GB

Steering switch

Condition

Resistance

Ω

Connector

Terminals

M303

14

17

START / STOP switch ON

1982 – 2063

 switch ON

708 – 737

SEEK DOWN switch ON

314 – 327

SEEK UP switch ON

118 – 123

SOURCE switch ON

1

Ω

 or less

15

MRK switch ON

708 – 737

 switch ON

314 – 327

VOL UP switch ON

118 – 123

VOL DOWN switch ON

1

Ω

 or less

AV-158

< SYMPTOM DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

MULTI AV SYSTEM SYMPTOMS

SYMPTOM DIAGNOSIS

MULTI AV SYSTEM SYMPTOMS

Symptom Table

INFOID:0000000009163426

RELATED TO HANDS-FREE PHONE

• Before performing diagnosis, confirm that the cellular phone being used by the customer is compatible with

the vehicle.

• It is possible that a malfunction is occurring due to a version change of the phone even though the phone is

a compatible type. This can be confirmed by changing the cellular phone to another compatible type, and
checking that it operates normally. It is important to determine whether the cause of the malfunction is the
vehicle or the cellular phone.

Check Compatibility

1.

Make sure the customer's Bluetooth

®

 related concern is understood.

2.

Verify the customer's concern.
NOTE:
The customer's phone may be required, depending upon their concern.

3.

Write down the customer's phone brand, model, and service provider.
NOTE:
It is necessary to know the service provider. On occasion, a given phone may be on the approved list with
one provider, but may not be on the approved list with other providers.

4.

Go to “www.nissanusa.com/bluetooth/”.

a.

Using the website's search engine, find out if the customer's phone is on the approved list.

b.

If the customer's phone is NOT on the approved list:
Stop diagnosis here. The customer needs to obtain a Bluetooth

®

 phone that is on the approved list before

any further action.

c.

If the feature related to the customer's concern shows as “N” (not compatible):
Stop diagnosis here. If the customer still wants the feature to function, they will need to get an approved
phone showing the feature as “Y” (compatible) in the “Basic Features” list.

d.

If the feature related to the customer's concern shows as “Y” (compatible):
Perform diagnosis as per the following table.

Symptoms

Check items

Probable malfunction location

Does not recognize cellular
phone connection. (no connec-
tion is displayed on the display
at the guide.)

Repeat the registration of cellular phone.

AV control unit malfunction.
Replace AV control unit.
Refer to

AV-168, "Removal and Installation"

.

Hands-free phone cannot be
established.

• Hands-free phone operation can be

made, but the communication cannot
be established.

• Hands-free phone operation can be

performed, however, voice between
each other cannot be heard during the
conversation.

AV control unit malfunction.
Replace AV control unit.
Refer to

AV-168, "Removal and Installation"

.

The other party's voice cannot
be heard by hands-free phone.

Check the “microphone speaker” in In-
spection & Adjustment Mode if sound is
heard.

AV control unit malfunction.
Replace AV control unit.
Refer to

AV-168, "Removal and Installation"

.

Originating sound is not heard
by the other party with hands-
free phone communication.

Sound operation function is normal.

AV control unit malfunction.
Replace AV control unit.
Refer to

AV-168, "Removal and Installation"

.

Sound operation function does not work.

Microphone signal circuit malfunction.
Refer to

AV-148, "Diagnosis Procedure"

.
