Nissan GT-R. Manual - part 9





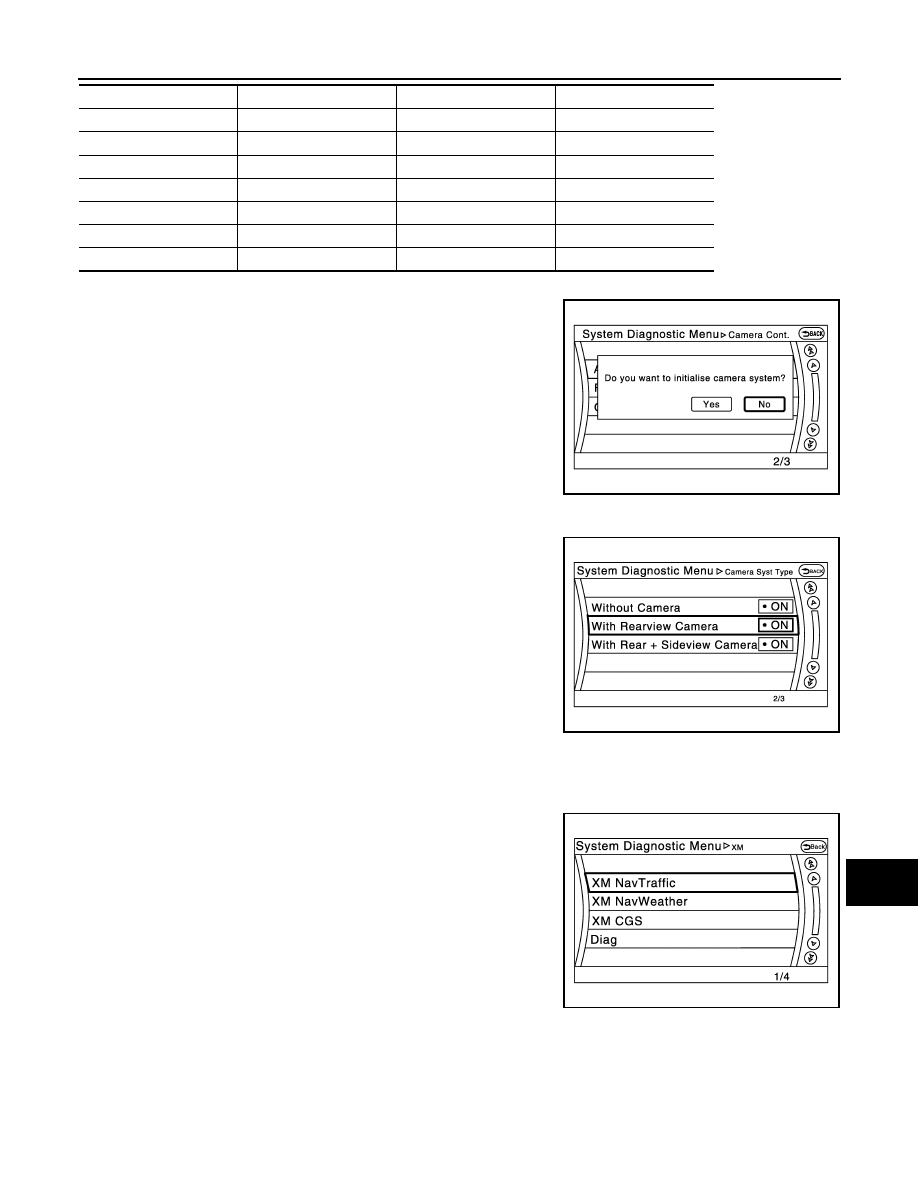

AV

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

AV-31

< SYSTEM DESCRIPTION >

[BASE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Reset Configuration

• Configuration stored in the AV control unit can be initialized.

Camera Syst Type

• Type of camera system is selectable.

XM

• Change Channel
- Any necessary channels required to receive traffic information from the satellite radio system can be set.
• Change Application ID
- Any application ID'-s required to receive traffic information from the

satellite radio system can be set.

Delete Unit Connection Log

Rear L/R Angle

0.0000000

Overall Height

0.0000000

Rear Up/Dn Angle

49.409999

Side L/R Angle

0.0000000

Rear Roll Angle

0.0000000

Side Up/Dn Angle

0.0000000

Bumper Rear Dist.

0.0383800

Side Roll Angle

0.0000000

Bumper Rear Ax Dist

0.9710000

Side Front End Dist

0.0000000

Steer. Max Angle

443.83728

Total Width

0.0000000

Min. Turning Red.

5.7049999

Setting item

Setting

Setting item

Setting

NNNIA0180ZZ

JSNIA2188ZZ

JSNIA2484ZZ

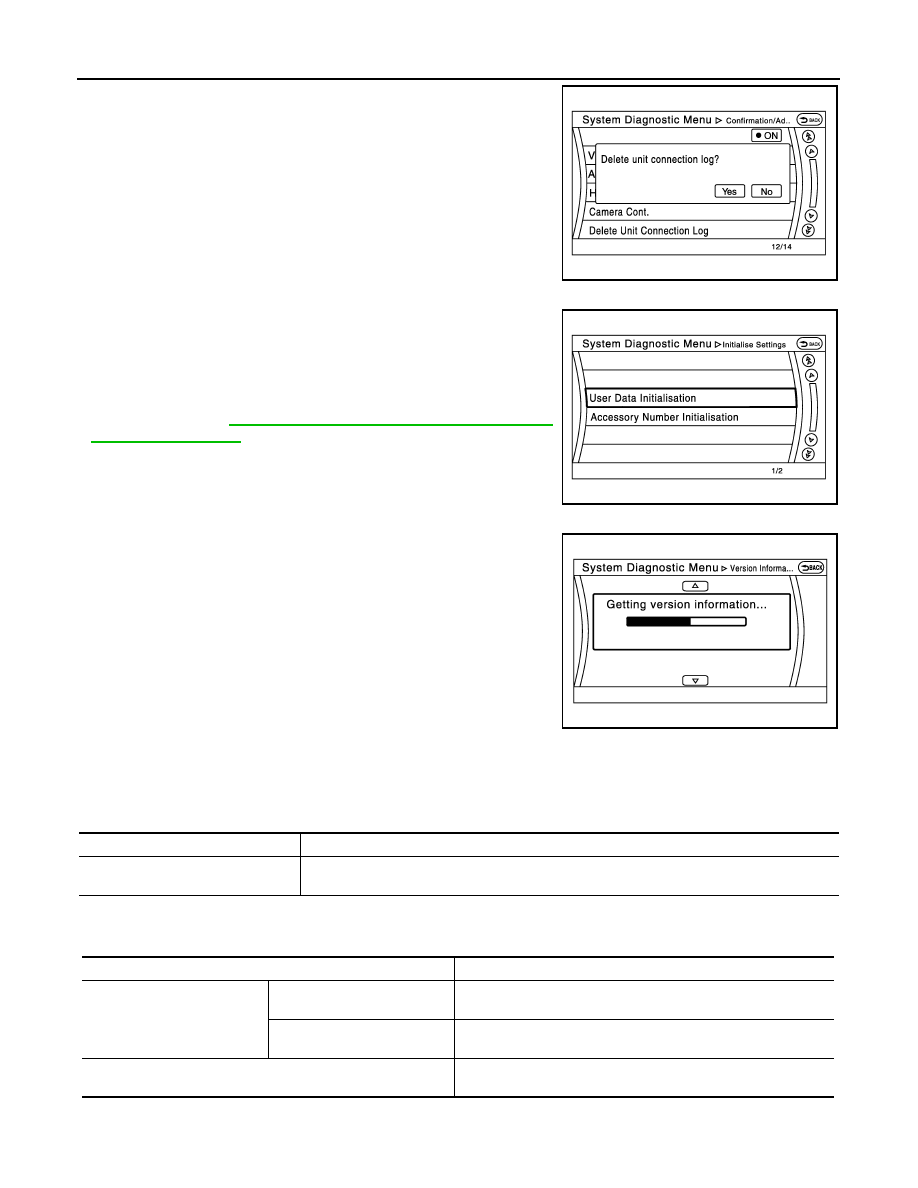

AV-32

< SYSTEM DESCRIPTION >

[BASE AUDIO WITH NAVIGATION]

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

Deletes any unit connection records and error records from the AV
control unit memory. (Clear the records of the unit that has been
removed.)

Initialize Settings

“User Data Initialization” and “Accessory Number Initialization” are
possible.

CAUTION:

• Never perform Accessory Number Initialization except when

configuration is unsuccessful.

• Accessory Number Initialization requires configuration. For

details, refer to

AV-49, "CONFIGURATION (AV CONTROL

UNIT) : Description"

.

Version Information

Version information of the AV control unit is displayed.

CONSULT Function (MULTI AV)

INFOID:0000000009163205

APPLICATION ITEMS

CONSULT performs the following functions via the communication with the AV control unit.

CONFIGURATION

Configuration includes functions as follows.

JSNIA2189ZZ

JSNIA2190ZZ

NNNIA0181ZZ

Diagnosis mode

Description

Configuration

• Read and save the vehicle specification.
• Write the vehicle specification when replacing AV control unit.

Function

Description

Read/Write Configuration

Before Replace ECU

Allows the reading of vehicle specification written in AV control unit
to store the specification in CONSULT.

After Replace ECU

Allows the writing of the vehicle information stored in CONSULT
into the AV control unit.

Manual Configuration

Allows the writing of the vehicle specification into the AV control
unit by hand.

AV

AV CONTROL UNIT

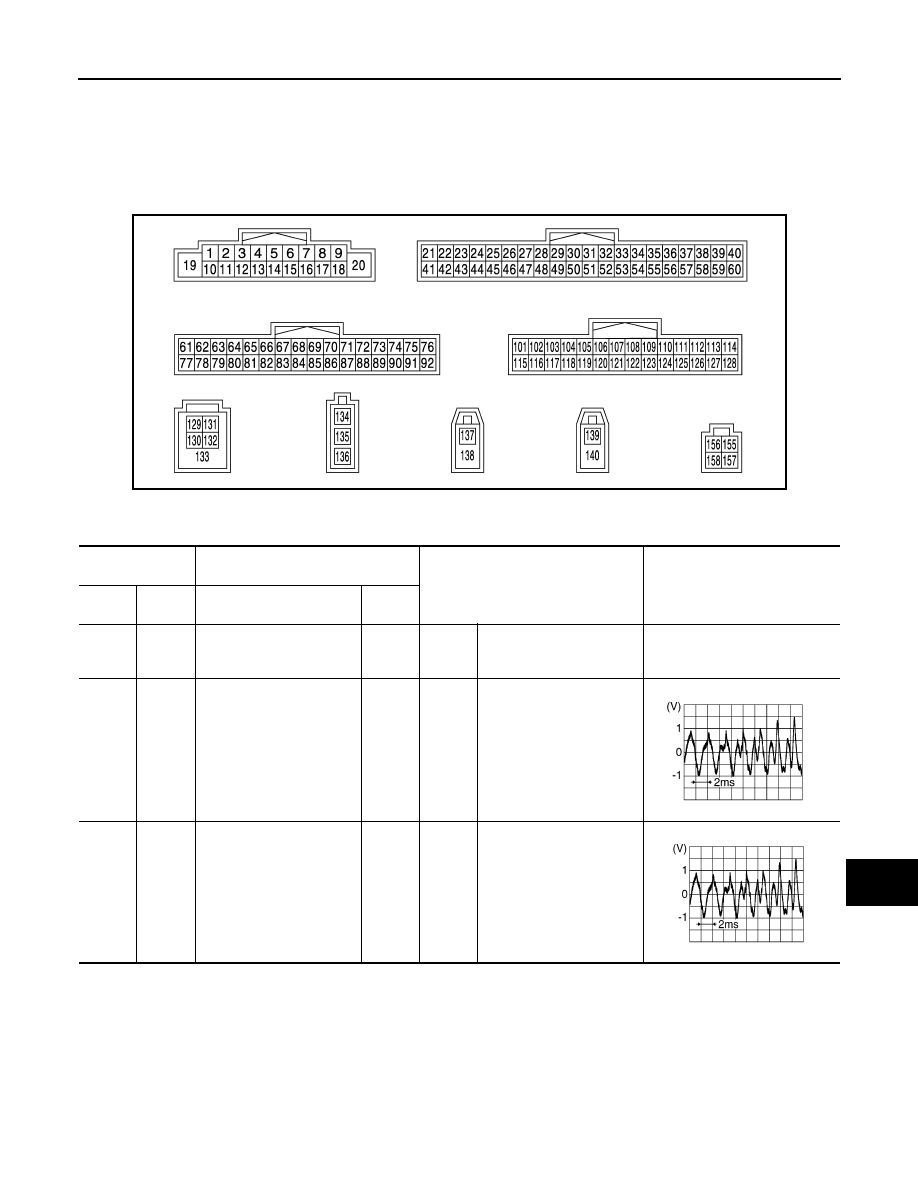

AV-33

< ECU DIAGNOSIS INFORMATION >

[BASE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

ECU DIAGNOSIS INFORMATION

AV CONTROL UNIT

Reference Value

INFOID:0000000009163206

TERMINAL LAYOUT

PHYSICAL VALUES

JSNIA2842ZZ

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

Signal name

Input/

Output

1

(V)

Ground

Audio amp. ON signal

Output

Ignition

switch

ON

12.0 V

2

(L)

3

(G)

Audio signal front LH

Output

Ignition

switch

ON

Sound output

4

(B)

5

(LG)

Audio signal rear LH

Output

Ignition

switch

ON

Sound output

SKIB3609E

SKIB3609E

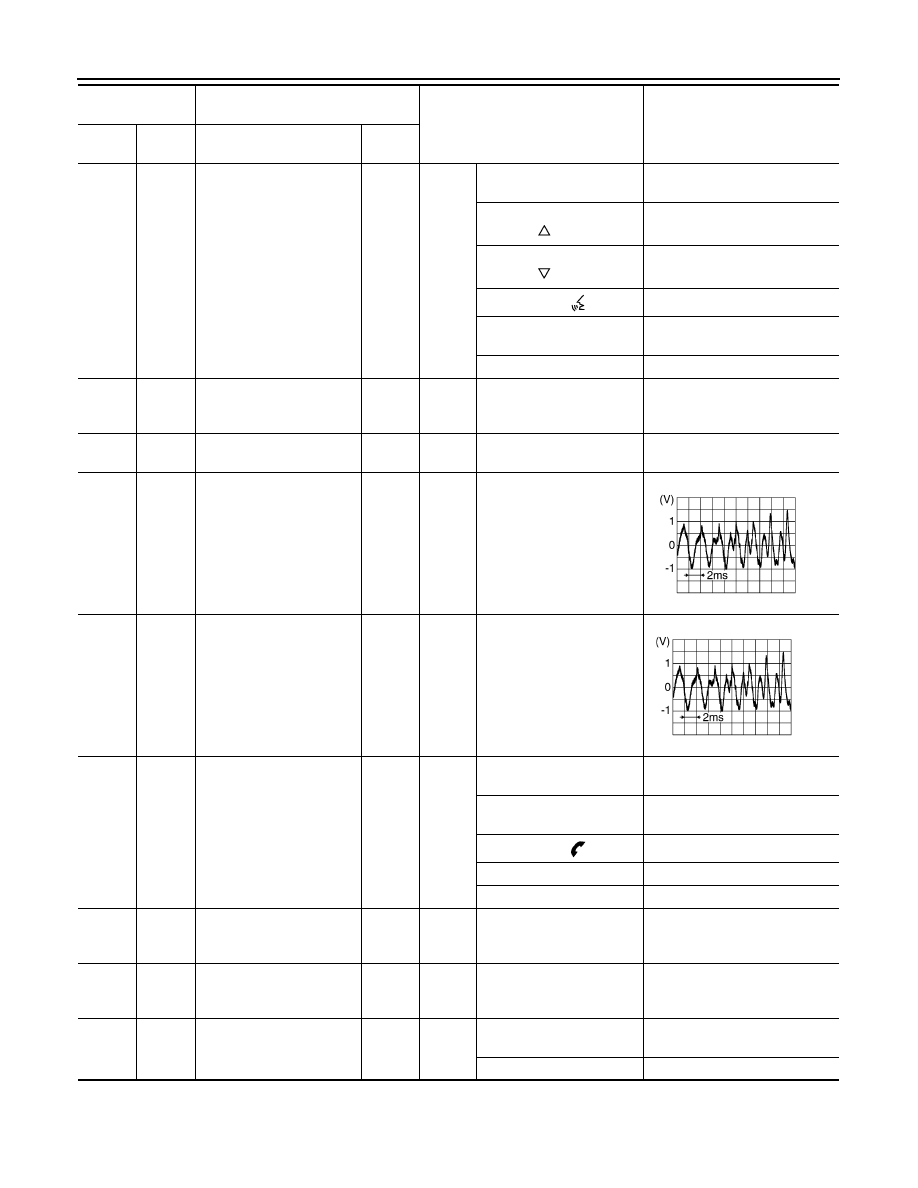

AV-34

< ECU DIAGNOSIS INFORMATION >

[BASE AUDIO WITH NAVIGATION]

AV CONTROL UNIT

6

(V)

15

(GR)

Steering switch signal A

Input

Ignition

switch

ON

Keep pressing SOURCE
switch.

 0 V

Keep pressing SEEK

switch to

.

1.0 V

Keep pressing SEEK

switch to

.

2.0 V

Keep pressing

 switch.

3.0 V

Keep pressing START /
STOP switch.

4.0 V

Except for above.

5.0 V

7

(V)

Ground

ACC power supply

Input

Ignition

switch

ACC

Battery voltage

10

(B)

Shield

11

(O/L)

12

(W/L)

Audio signal front RH

Output

Ignition

switch

ON

Sound output

13

(L/G)

14

(L/Y)

Audio signal rear RH

Output

Ignition

switch

ON

Sound output

16

(SB)

15

(GR)

Steering switch signal B

Input

Ignition

switch

ON

Keep pressing VOL switch
to -.

0 V

Keep pressing VOL switch
to +.

1.0 V

Keep pressing

 switch.

2.0 V

Keep pressing MRK switch.

3.0 V

Except for above.

5.0 V

19

(Y)

Ground

Battery power supply

Input

Ignition

switch

OFF

Battery voltage

20

(B)

Ground

Ground

Ignition

switch

ON

0  V

22

(G)

Ground

Camera power supply

Output

Ignition

switch

ON

At rear view camera image
is displayed.

6.0 V

Except for above.

0 V

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

Signal name

Input/

Output

SKIB3609E

SKIB3609E
