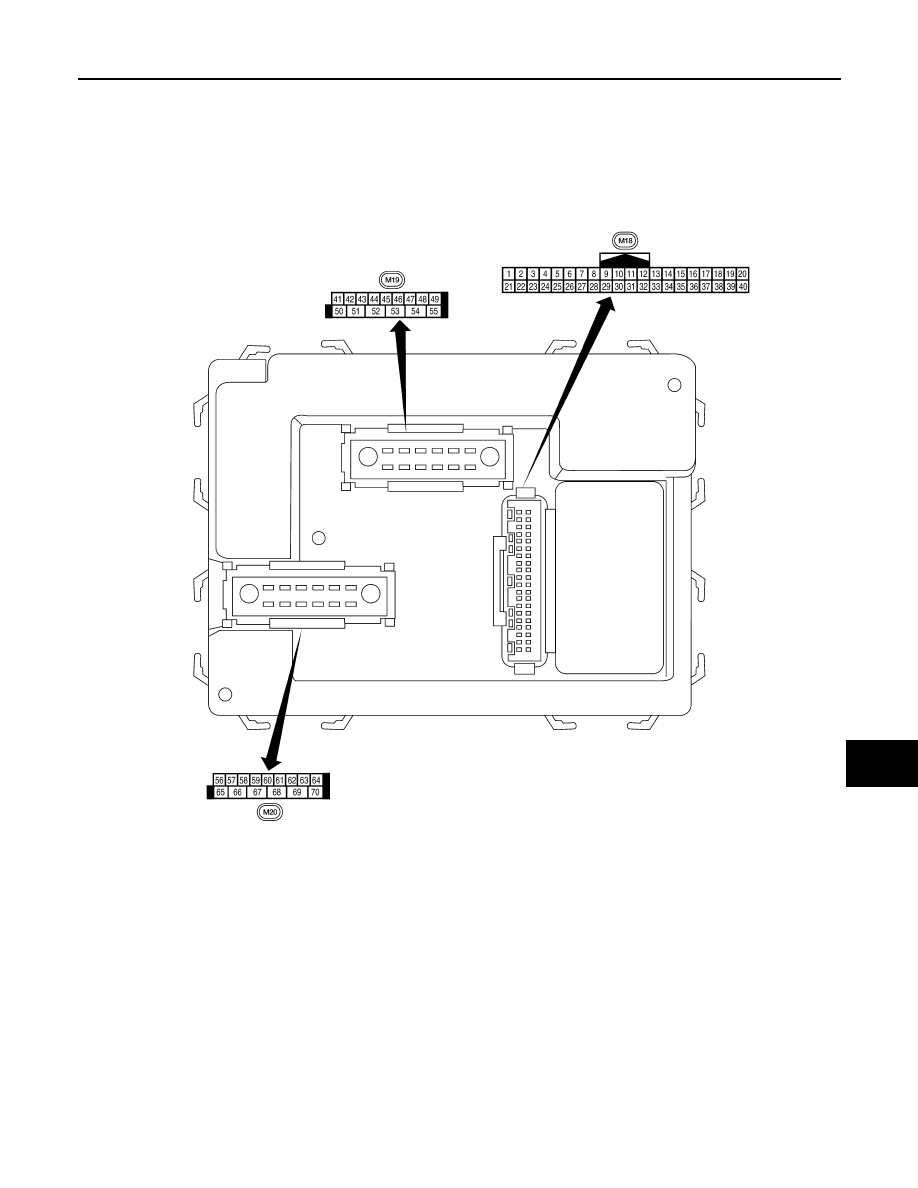

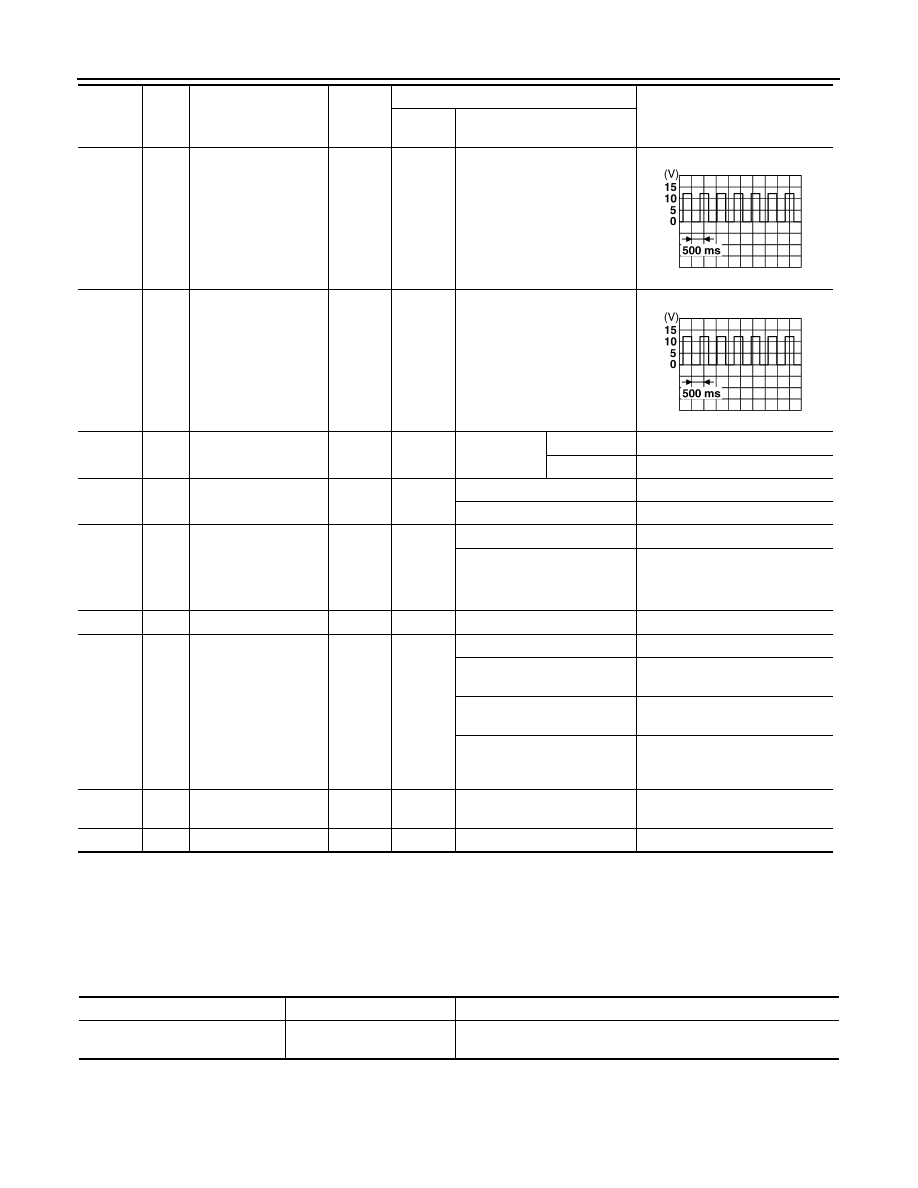

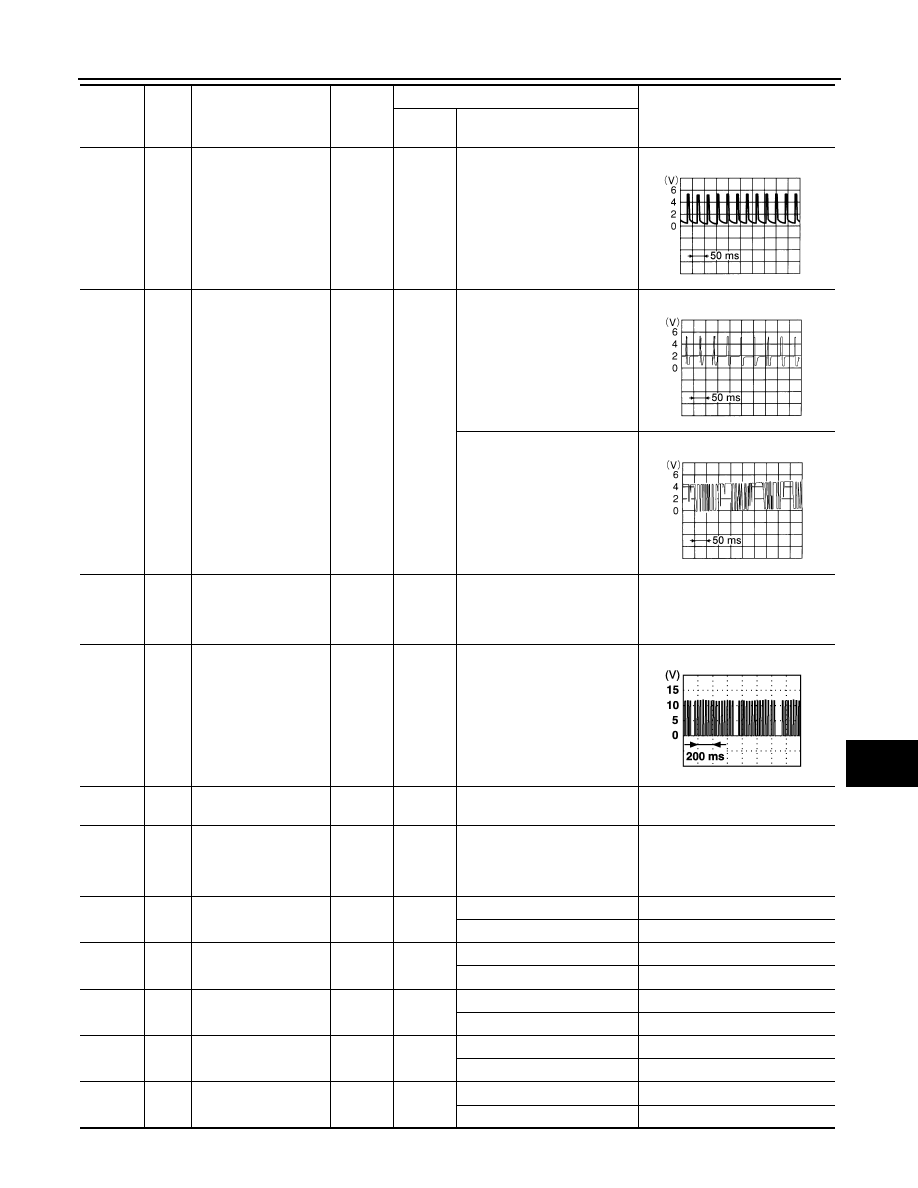

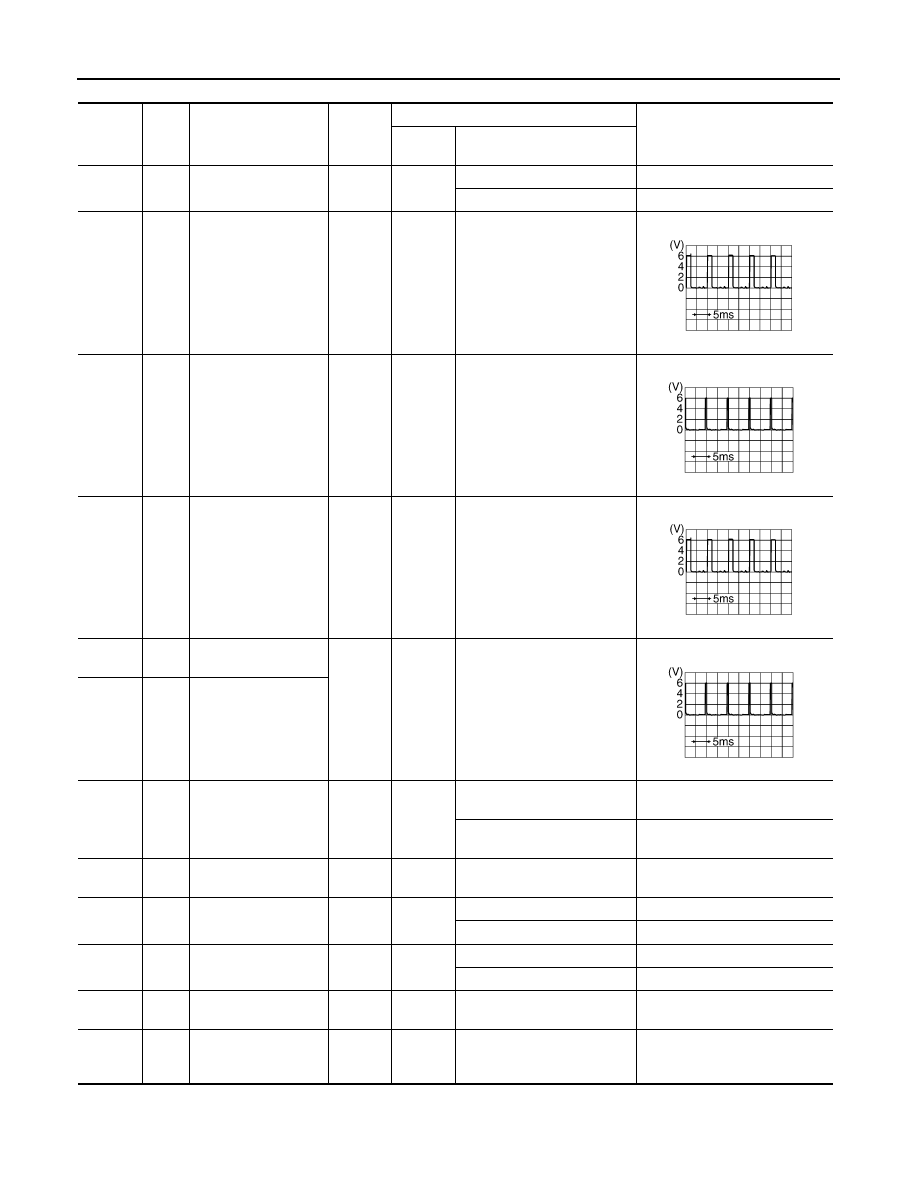

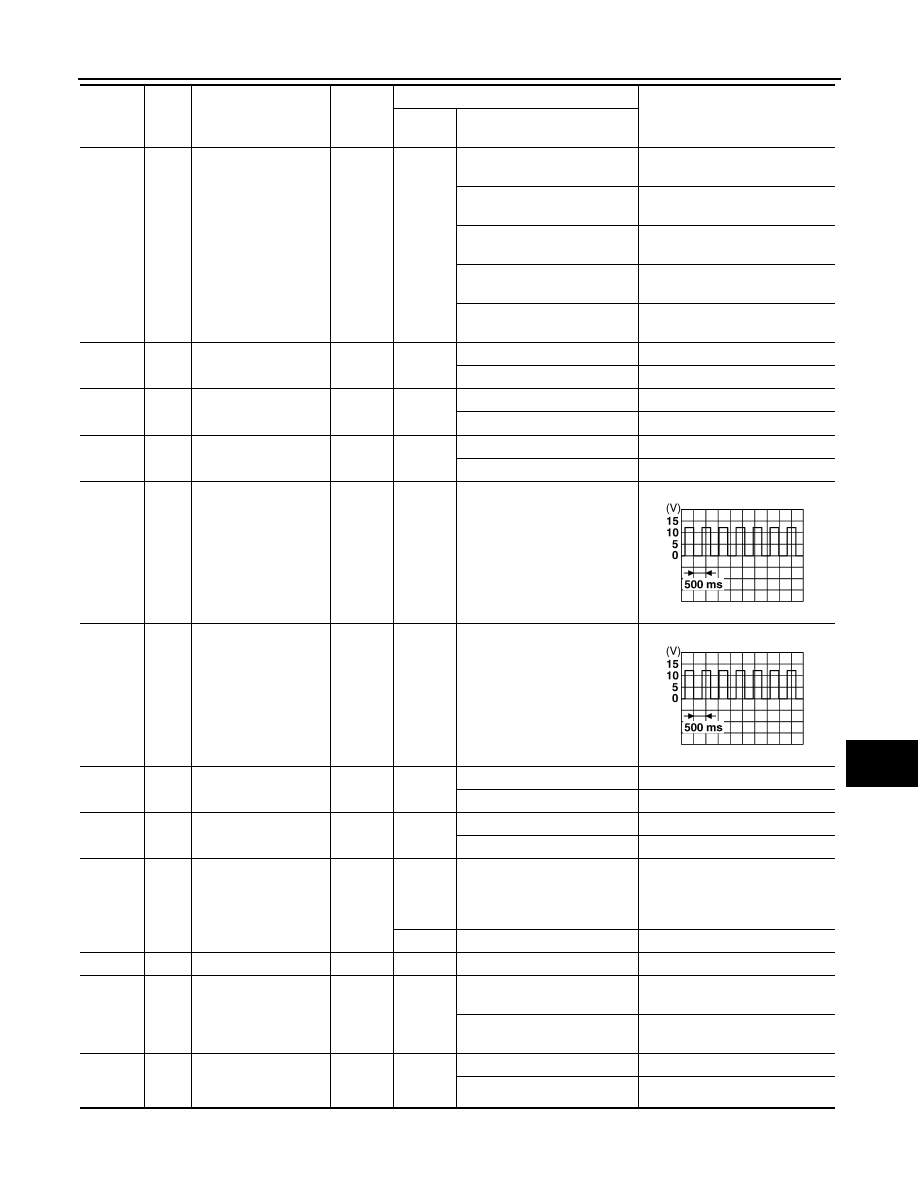

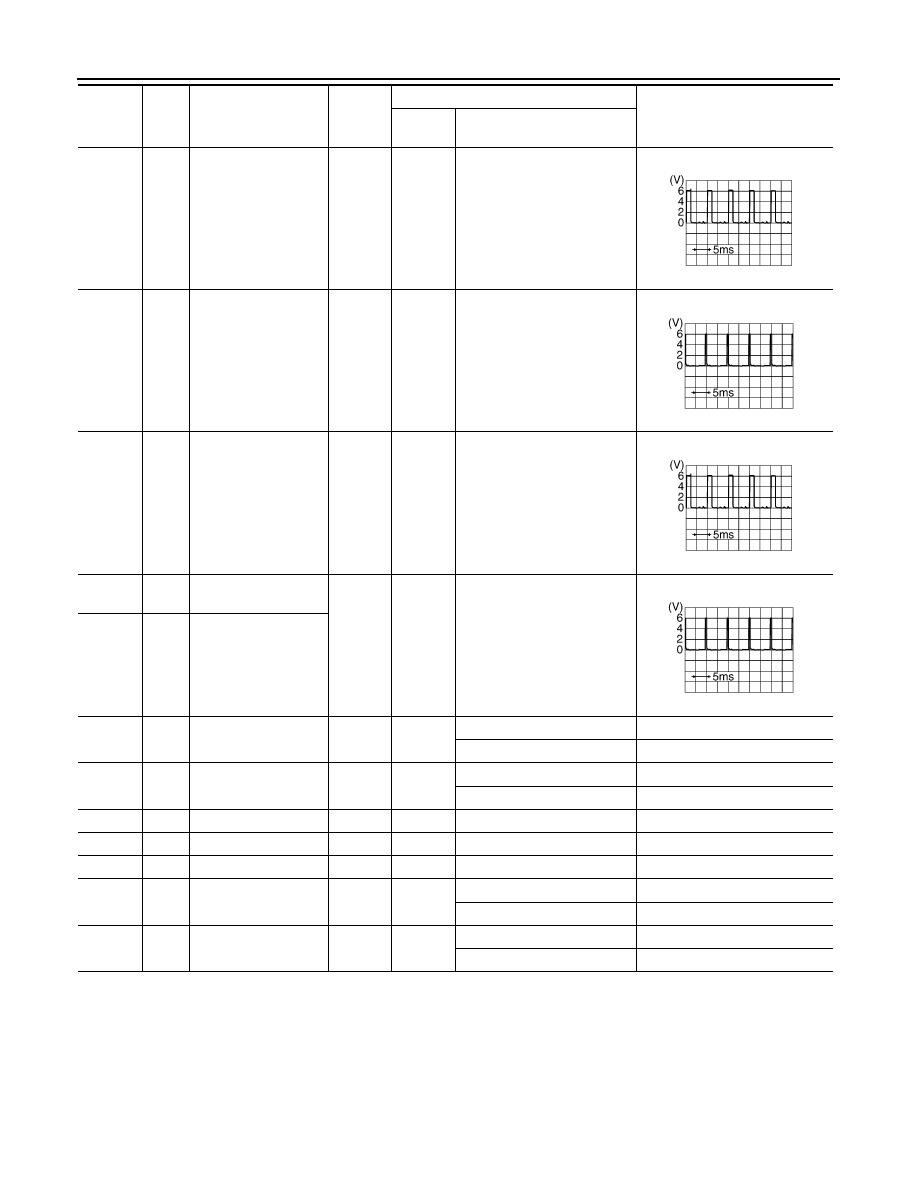

WW-34 < ECU DIAGNOSIS INFORMATION > BCM (BODY CONTROL MODULE) 1: With Intelligent Key KEY CYL UN-SW Door key cylinder UNLOCK position Off Door key cylinder other than UNLOCK position On KEY ON SW Mechanical key is removed from key cylinder Off Mechanical key is inserted to key cylinder On KEYLESS LOCK 2 LOCK button of key fob is not pressed Off LOCK button of key fob is pressed On KEYLESS PANIC 2 PANIC button of key fob is not pressed Off PANIC button of key fob is pressed On KEYLESS UNLOCK 2 UNLOCK button of key fob is not pressed Off UNLOCK button of key fob is pressed On LIGHT SW 1ST Lighting switch OFF Off Lighting switch 1st On OIL PRESS SW • Ignition switch OFF or ACC Off Ignition switch ON On OPTICAL SENSOR Bright outside of the vehicle Close to 5V Dark outside of the vehicle Close to 0V PASSING SW Other than lighting switch PASS Off Lighting switch PASS On PUSH SW 1 Return to ignition switch to LOCK position Off Press ignition switch On REAR DEF SW Rear window defogger switch OFF Off Rear window defogger switch ON On RR WASHER SW Rear washer switch OFF Off Rear washer switch ON On RR WIPER INT Rear wiper switch OFF Off Rear wiper switch INT On RR WIPER ON Rear wiper switch OFF Off Rear wiper switch ON On RR WIPER STOP Rear wiper stop position Off Other than rear wiper stop position On TURN SIGNAL L Turn signal switch OFF Off Turn signal switch LH On TURN SIGNAL R Turn signal switch OFF Off Turn signal switch RH On VEHICLE SPEED While driving Equivalent to speedometer reading WARNING LAMP Low tire pressure warning lamp in combination meter OFF Off Low tire pressure warning lamp in combination meter ON On Monitor Item Condition Value/Status August 2012 2012 Pathfinder |
