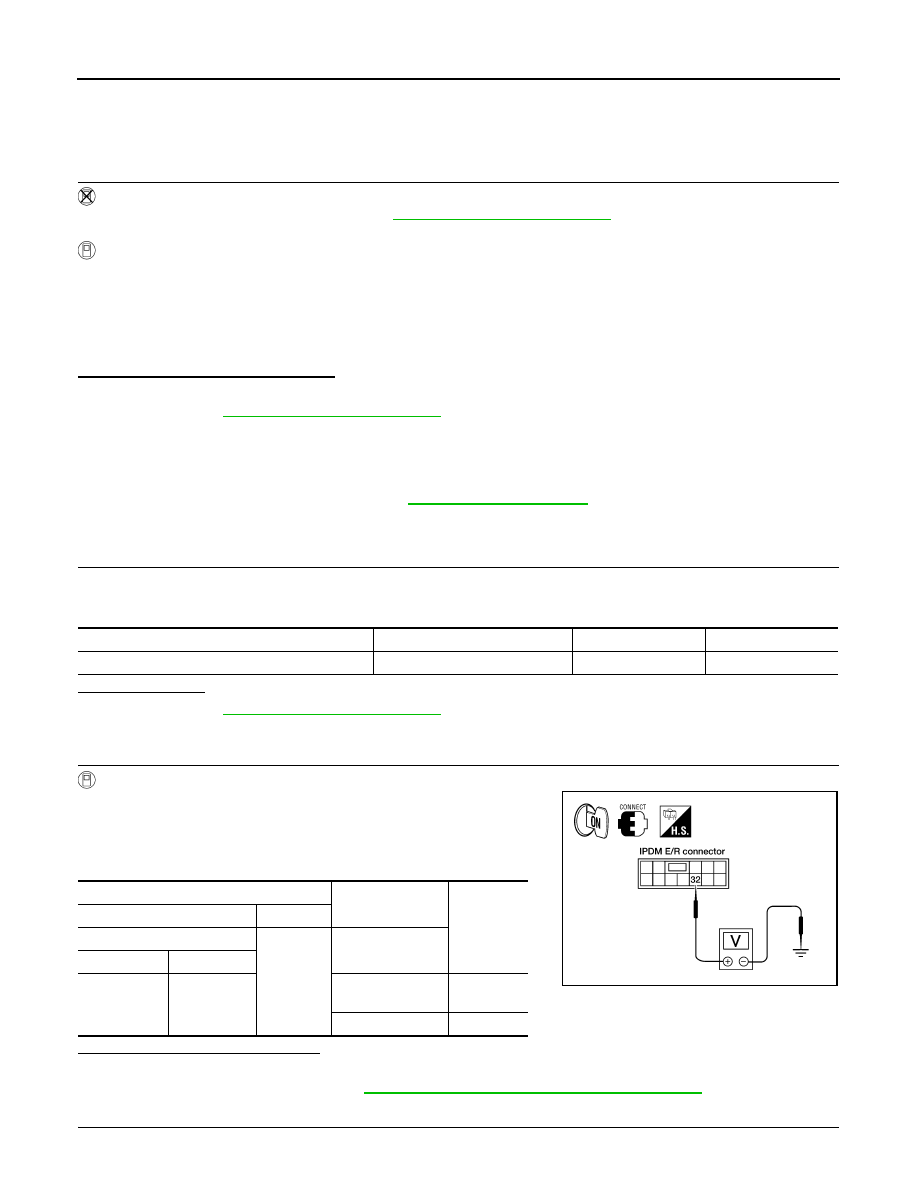

FRONT WIPER MOTOR LO CIRCUIT

FRONT WIPER MOTOR LO CIRCUIT

Component Function Check

INFOID:0000000007355273

1.

 CHECK FRONT WIPER LO OPERATION

IPDM E/R AUTO ACTIVE TEST

1. Start IPDM E/R auto active test. Refer to

PCS-9, "Diagnosis Description"

.

2. Check that the front wiper operates at the LO operation.

WITH CONSULT ACTIVE TEST

1. Select "FRONT WIPER" of IPDM E/R active test item.

2. While operating the test item, check front wiper operation.

Is front wiper (LO) operation normal?

YES

>> Front wiper motor LO circuit is normal.

NO

>> Refer to

WW-18, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000007355274

Regarding Wiring Diagram information, refer to

WW-50, "Wiring Diagram"

.

1.

 CHECK FRONT WIPER MOTOR FUSE

1. Turn the ignition switch OFF.

2. Check that the following fuse is not blown.

Is the fuse blown?

YES

>> Refer to

WW-66, "Diagnosis Procedure"

.

NO

>> GO TO 2

2.

 CHECK FRONT WIPER MOTOR (LO) OUTPUT VOLTAGE

WITH CONSULT ACTIVE TEST

1. Turn the ignition switch ON.

2. Select "FRONT WIPER" of IPDM E/R active test item.

3. While operating the test item, check voltage between IPDM E/R

harness connector and ground.

Is the measurement value normal?

YES

>> GO TO 3

NO

>> Replace IPDM E/R. Refer to

PCS-29, "Removal and Installation of IPDM E/R"

.

3.

 CHECK FRONT WIPER MOTOR (LO) OPEN CIRCUIT

1. Turn the ignition switch OFF.

LO

: Front wiper (LO) operation

OFF

: Stop the front wiper.

Unit

Location

Fuse No.

Capacity

Front wiper motor

IPDM E/R

39

30 A

Terminals

Test item

Voltage

(Approx.)

(+)

(-)

IPDM E/R

Ground

FRONT WIPER

Connector

Terminal

E121

32

LO

Battery
voltage

OFF

0V

WKIA3759E

August 2012

2012 Pathfinder

FRONT WIPER MOTOR LO CIRCUIT

WW-19

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

2. Disconnect IPDM E/R and front wiper motor.

3. Check continuity between IPDM E/R harness connector and front wiper motor harness connector.

Does continuity exist?

YES

>> Replace front wiper motor. Refer to

WW-70, "Removal and Installation"

.

NO

>> Repair or replace harness.

IPDM E/R

Front wiper motor

Continuity

Connector

Terminal

Connector

Terminal

E121

32

E23

1

Yes

August 2012

2012 Pathfinder

WW-20

< DTC/CIRCUIT DIAGNOSIS >

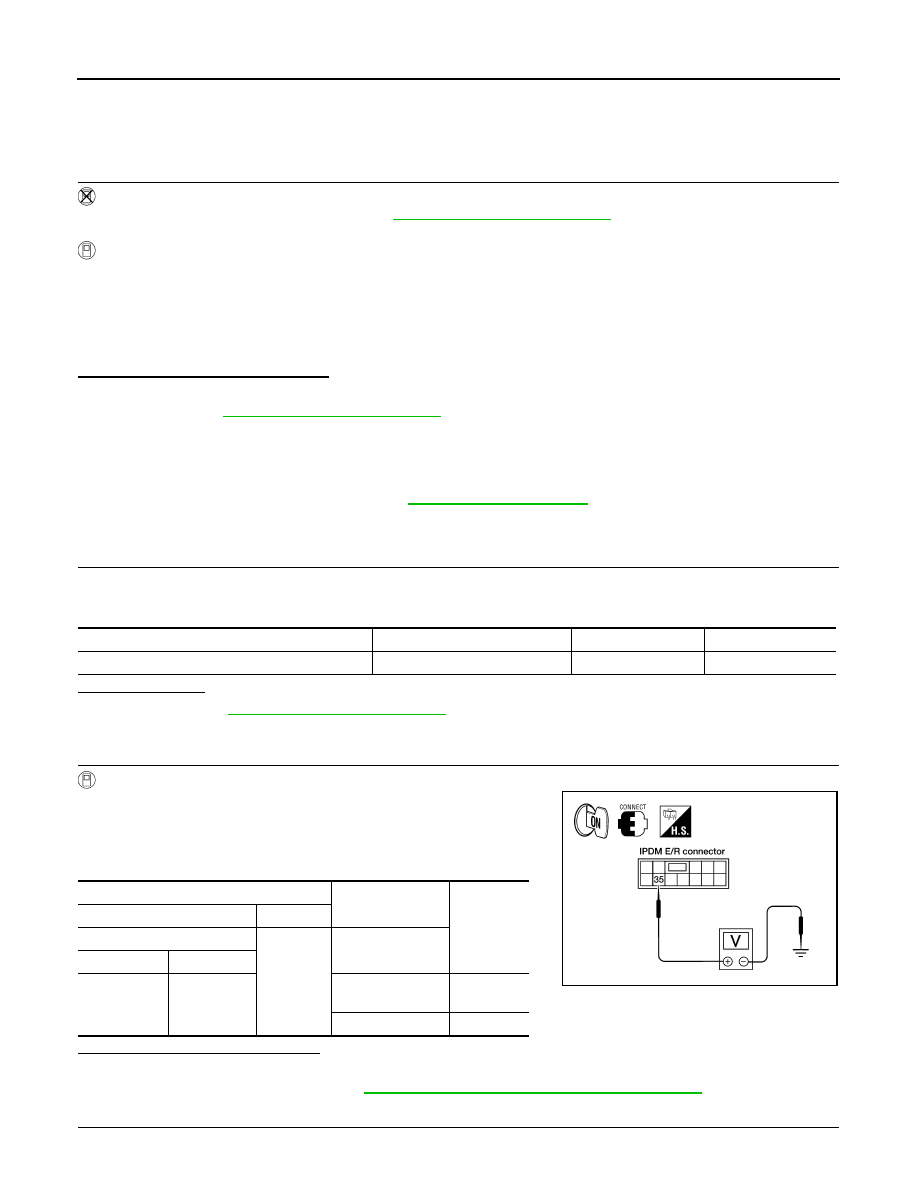

FRONT WIPER MOTOR HI CIRCUIT

FRONT WIPER MOTOR HI CIRCUIT

Component Function Check

INFOID:0000000007355275

1.

 CHECK FRONT WIPER HI OPERATION

IPDM E/R AUTO ACTIVE TEST

1. Start IPDM E/R auto active test. Refer to

PCS-9, "Diagnosis Description"

.

2. Check that the front wiper operates at the HI operation.

WITH CONSULT ACTIVE TEST

1. Select "FRONT WIPER" of IPDM E/R active test item.

2. While operating the test item, check front wiper operation.

Is front wiper (HI) operation normal?

YES

>> Front wiper motor HI circuit is normal.

NO

>> Refer to

WW-20, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000007355276

Regarding Wiring Diagram information, refer to

WW-50, "Wiring Diagram"

.

1.

 CHECK FRONT WIPER MOTOR FUSE

1. Turn the ignition switch OFF.

2. Check that the following fuse is not blown.

Is the fuse blown?

YES

>>  Refer to

WW-66, "Diagnosis Procedure"

.

NO

>> GO TO 2

2.

 CHECK FRONT WIPER MOTOR (HI) OUTPUT VOLTAGE

WITH CONSULT ACTIVE TEST

1. Turn the ignition switch ON.

2. Select "FRONT WIPER" of IPDM E/R active test item.

3. While operating the test item, check voltage between IPDM E/R

harness connector and ground.

Is the measurement value normal?

YES

>> GO TO 3

NO

>> Replace IPDM E/R. Refer to

PCS-29, "Removal and Installation of IPDM E/R"

.

3.

 CHECK FRONT WIPER MOTOR (HI) OPEN CIRCUIT

1. Turn the ignition switch OFF.

HI

: Front wiper (HI) operation

OFF

: Stop the front wiper.

Unit

Location

Fuse No.

Capacity

Front wiper motor

IPDM E/R

39

30 A

Terminals

Test item

Voltage

(Approx.)

(+)

(-)

IPDM E/R

Ground

FRONT WIPER

Connector

Terminal

E121

35

HI

Battery
voltage

OFF

0 V

WKIA3760E

August 2012

2012 Pathfinder

FRONT WIPER MOTOR HI CIRCUIT

WW-21

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

2. Disconnect IPDM E/R and front wiper motor.

3. Check continuity between IPDM E/R harness connector and front wiper motor harness connector.

Does continuity exist?

YES

>> Replace front wiper motor. Refer to

WW-70, "Removal and Installation"

.

NO

>> Repair or replace harness.

IPDM E/R

Front wiper motor

Continuity

Connector

Terminal

Connector

Terminal

E121

35

E23

4

Yes

August 2012

2012 Pathfinder

WW-22

< DTC/CIRCUIT DIAGNOSIS >

FRONT WIPER AUTO STOP SIGNAL CIRCUIT

FRONT WIPER AUTO STOP SIGNAL CIRCUIT

Component Function Check

INFOID:0000000007355277

1.

 CHECK FRONT WIPER (AUTO STOP) SIGNAL

WITH CONSULT DATA MONITOR

1. Select "WIP AUTO STOP" of IPDM E/R data monitor item.

2. Operate the front wiper.

3. Check that "WIP AUTO STOP" changes to "STOP P" and "ACT P" linked with the wiper operation.

Is the status of item normal?

YES

>> Front wiper auto stop signal circuit is normal.

NO

>> Refer to

WW-22, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000007355278

Regarding Wiring Diagram information, refer to

WW-50, "Wiring Diagram"

.

1.

 CHECK IPDM E/R OUTPUT VOLTAGE

1. Turn the ignition switch OFF.

2. Disconnect front wiper motor.

3. Turn the ignition switch ON.

4. Check voltage between front wiper motor harness connector and ground.

Is the measurement normal?

YES

>> Replace front wiper motor. Refer to

WW-70, "Removal and Installation"

.

NO

>> GO TO 2

2.

 CHECK FRONT WIPER MOTOR (AUTO STOP) CIRCUIT CONTINUITY

1. Turn the ignition switch OFF.

2. Disconnect IPDM E/R connector E122.

3. Check continuity between IPDM E/R harness connector and front wiper motor harness connector.

4. Check continuity between IPDM E/R harness connector and ground.

Is the inspection result normal?

Monitor item

Condition

Monitor status

WIP AUTO STOP

Front wiper motor

Stop position

STOP P

Except stop position

ACT P

Terminals

Voltage (V) (Approx.)

(+)

(-)

Front wiper motor

Ground

Connector

Terminal

E23

5

Battery voltage

IPDM E/R

Front wiper motor

Continuity

Connector

Terminal

Connector

Terminal

E122

43

E23

5

Yes

IPDM E/R

Ground

Continuity

Connector

Terminal

E122

43

No

August 2012

2012 Pathfinder

FRONT WIPER AUTO STOP SIGNAL CIRCUIT

WW-23

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

YES

>> Replace IPDM E/R. Refer to

PCS-29, "Removal and Installation of IPDM E/R"

.

NO

>> Repair or replace harness.

August 2012

2012 Pathfinder

WW-24

< DTC/CIRCUIT DIAGNOSIS >

FRONT WIPER MOTOR GROUND CIRCUIT

FRONT WIPER MOTOR GROUND CIRCUIT

Diagnosis Procedure

INFOID:0000000007355279

Regarding Wiring Diagram information, refer to

WW-50, "Wiring Diagram"

.

1.

 CHECK FRONT WIPER MOTOR (GROUND) OPEN CIRCUIT

1. Turn the ignition switch OFF.

2. Disconnect front wiper motor.

3. Check continuity between front wiper motor harness connector and ground.

Does continuity exist?

YES

>> Front wiper motor ground circuit is normal.

NO

>> Repair or replace harness.

Front wiper motor

Ground

Continuity

Connector

Terminal

E23

2

Yes

August 2012

2012 Pathfinder

WASHER SWITCH

WW-25

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

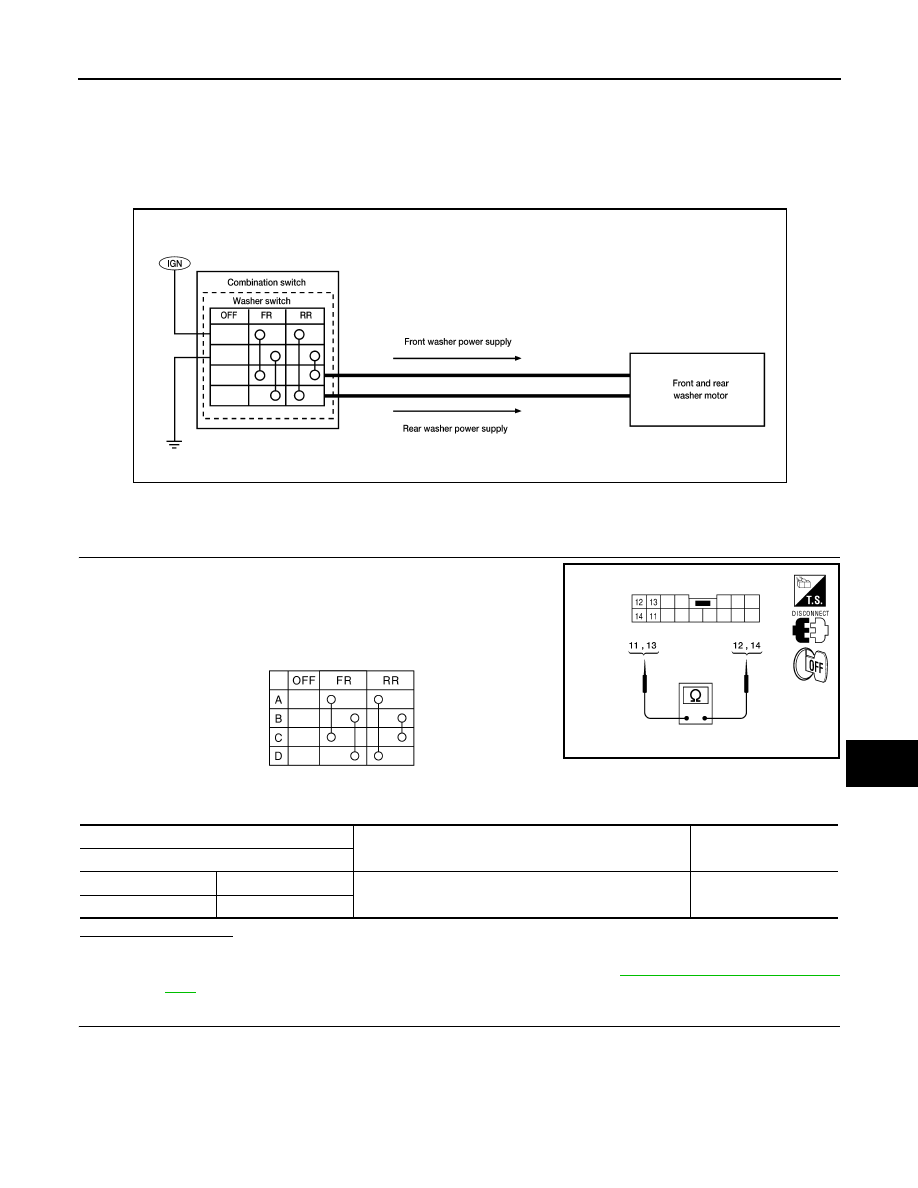

WASHER SWITCH

Description

INFOID:0000000007355280

• Washer switch is integrated with combination switch (wiper and washer switch).

• Combination switch (wiper and washer switch) switches polarity between front washer operating and rear

washer operating to supply power and ground to the front and rear washer motor.

Component Inspection

INFOID:0000000007355281

1.

 CHECK FRONT WASHER SWITCH

1. Turn the ignition switch OFF.

2. Disconnect combination switch (wiper and washer switch).

3. Check continuity between the combination switch (wiper and

washer switch) terminals.

Does continuity exist?

YES

>> GO TO 2

NO

>> Replace combination switch (wiper and washer switch). Refer to

WW-70, "Removal and Installa-

tion"

.

2.

 CHECK REAR WASHER SWITCH

ALLIA0350GB

A: Terminal 14
B: Terminal 12
C: Terminal 13

D: Terminal 11

ALLIA0839ZZ

JPLIA0164GB

Combination switch (wiper and washer switch)

Condition

Continuity

Terminal

11

12

Front washer switch ON

Yes

13

14

August 2012
