Nissan Pathfinder (2012 year). Manual - part 624

WHEEL

WT-49

< PERIODIC MAINTENANCE >

PERIODIC MAINTENANCE

WHEEL

Inspection

INFOID:0000000007357081

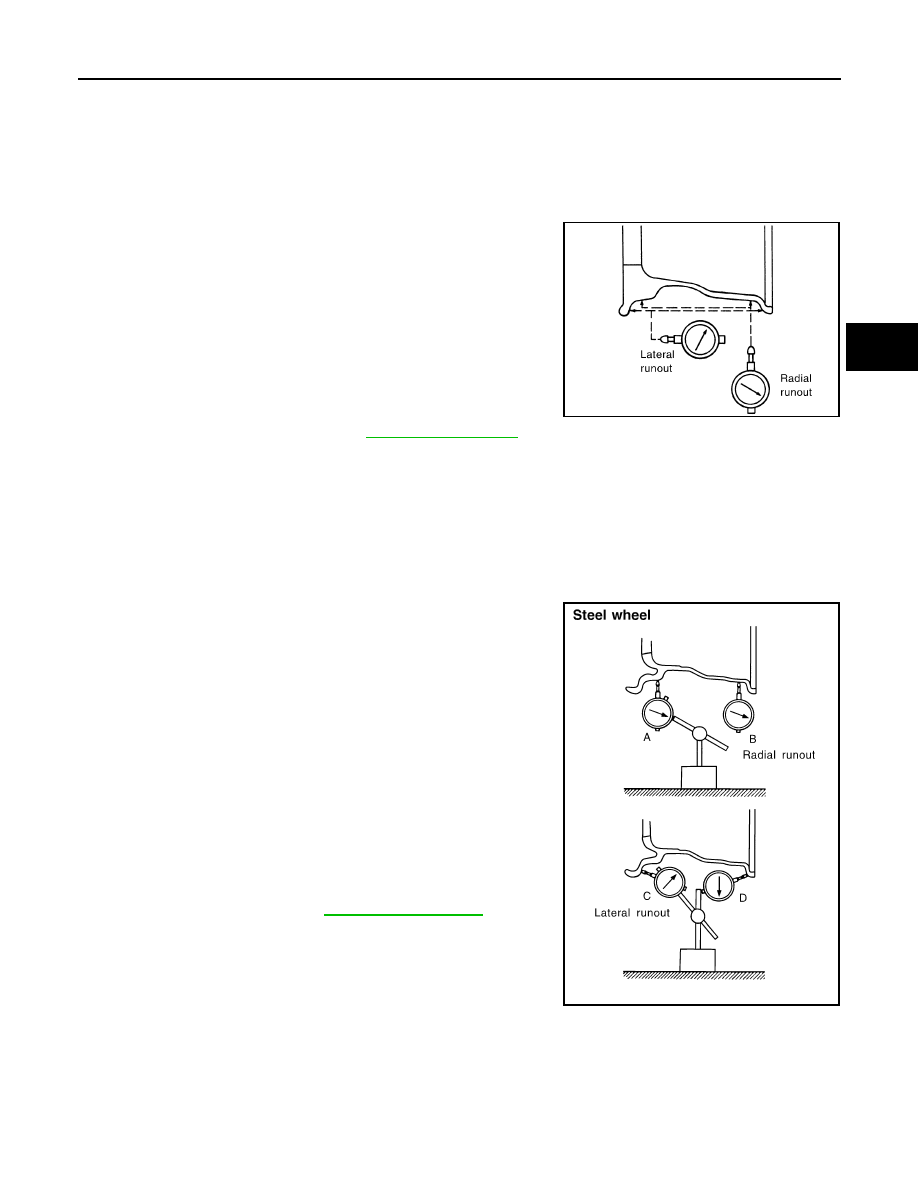

ALUMINUM WHEEL

1. Check tires for wear and improper inflation.
2. Check wheels for deformation, cracks and other damage. If

deformed, remove wheel and check wheel runout.

CAUTION:

DO NOT use center hole cone-type clamping machines to

hold the wheel assembly during tire removal/installation or

balancing or damage to the wheel paint, cladding or chrome

may result. Use only rim-type or universal lug-type clamp-

ing machines to hold the wheel assembly during servicing.

a. Remove tire from wheel and mount wheel on a tire balance

machine.

b. Set dial indicator as shown. Refer to

WT-55, "Road Wheel"

3. Check front wheel bearings for looseness.
4. Check front suspension for looseness.

STEEL WHEEL

1. Check tires for wear and improper inflation.
2. Check wheels for deformation, cracks, and other damage. If deformed, remove wheel and check wheel

runout.

a. Remove tire from steel wheel and mount on a tire balance machine.
b. Set two dial indicators as shown.
c. Set each dial indicator to 0.
d. Rotate wheel and check dial indicators at several points around

the circumference of the wheel.

e. Calculate runout at each point as shown.

Select maximum positive runout value and the maximum nega-

tive value.

Add the two values to determine total runout. In case a positive

or negative value is not available, use the maximum value (neg-

ative or positive) for total runout. If the total runout value

exceeds the limit, replace the steel wheel.

SFA975B

Radial runout = (A+B)/2
Lateral runout = (C+D)/2

Wheel runout

: Refer to

WT-55, "Road Wheel"

SEIA0558E

August 2012

2012 Pathfinder

WT-50

< PERIODIC MAINTENANCE >

WHEEL AND TIRE ASSEMBLY

WHEEL AND TIRE ASSEMBLY

Adjustment

INFOID:0000000007357082

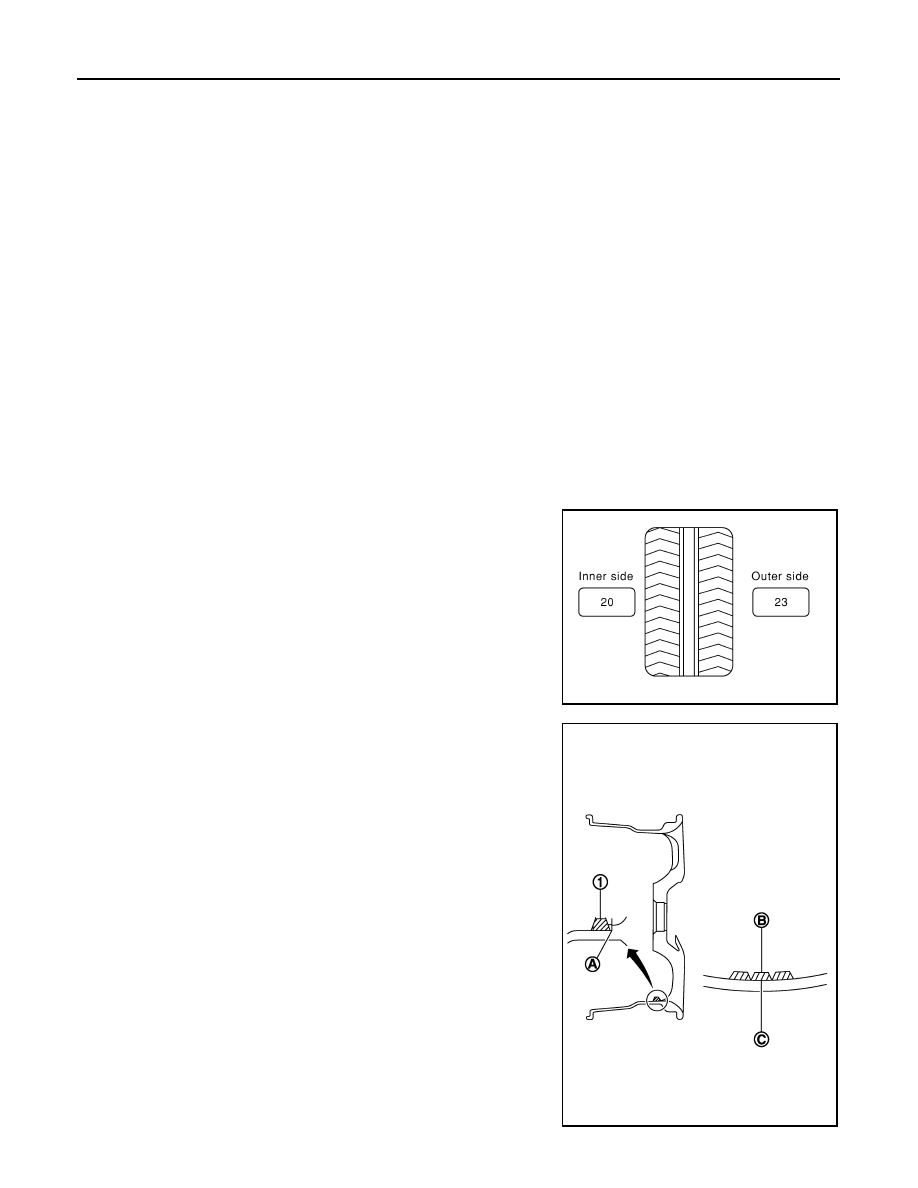

BALANCING WHEELS (ADHESIVE WEIGHT TYPE)

Preparation Before Adjustment

Remove inner and outer balance weights from the road wheel using releasing agent. Remove double-faced

adhesive tape from the road wheel.

CAUTION:

• Be careful not to scratch the road wheel during removal.

• After removing double-faced adhesive tape, wipe clean all traces of releasing agent from the road

wheel.

Wheel Balance Adjustment

• If a balancer machine has an adhesive weight mode setting, select the adhesive weight mode setting and

skip Step 2. below. If a balancer machine only has the clip-on (rim flange) weight mode setting, follow Step 2.

to calculate the correct size adhesive weight.

1. Set road wheel on balancer machine using the center hole as a guide. Start the balancer machine.
2. For balancer machines that only have a clip-on (rim flange) weight mode setting, follow this step to calcu-

late the correct size adhesive weight to use. When inner and outer imbalance values are shown on the

balancer machine indicator, multiply outer imbalance value by 5/3 (1.67) to determine balance weight that

should be used. Select the outer balance weight with a value closest to the calculated value above and

install in to the designated outer position of, or at the designated angle in relation to the road wheel.

a. Indicated imbalance value

5/3 = balance weight to be installed

Calculation example:

23 g (0.81 oz)

5/3 (1.67) = 38.33 g (1.35 oz)

⇒

40 g (1.41 oz)

balance weight (closer to calculated balance weight value)

NOTE:

Note that balance weight value must be closer to the calculated

balance weight value.

Example:

37.4

⇒

35 g (1.23 oz)

37.5

⇒

40 g (1.41 oz)

3. Install balance weight in the position shown.

CAUTION:

• Do not install the inner balance weight before installing

the outer balance weight.

• Before installing the balance weight, be sure to clean the

mating surface of the road wheel.

• When installing balance weight (1) to road wheel, set it into the

grooved area (A) on the inner wall of the road wheel as shown

so that the balance weight center (B) is aligned with the bal-

ancer machine indication position (angle) (C).

CAUTION:

• Always use genuine NISSAN adhesive balance weights.

• Balance weights are non-reusable; always replace with

new ones.

• Do not install more than three sheets of balance weight.

SMA054D

JPEIC0040ZZ

August 2012

2012 Pathfinder

WHEEL AND TIRE ASSEMBLY

WT-51

< PERIODIC MAINTENANCE >

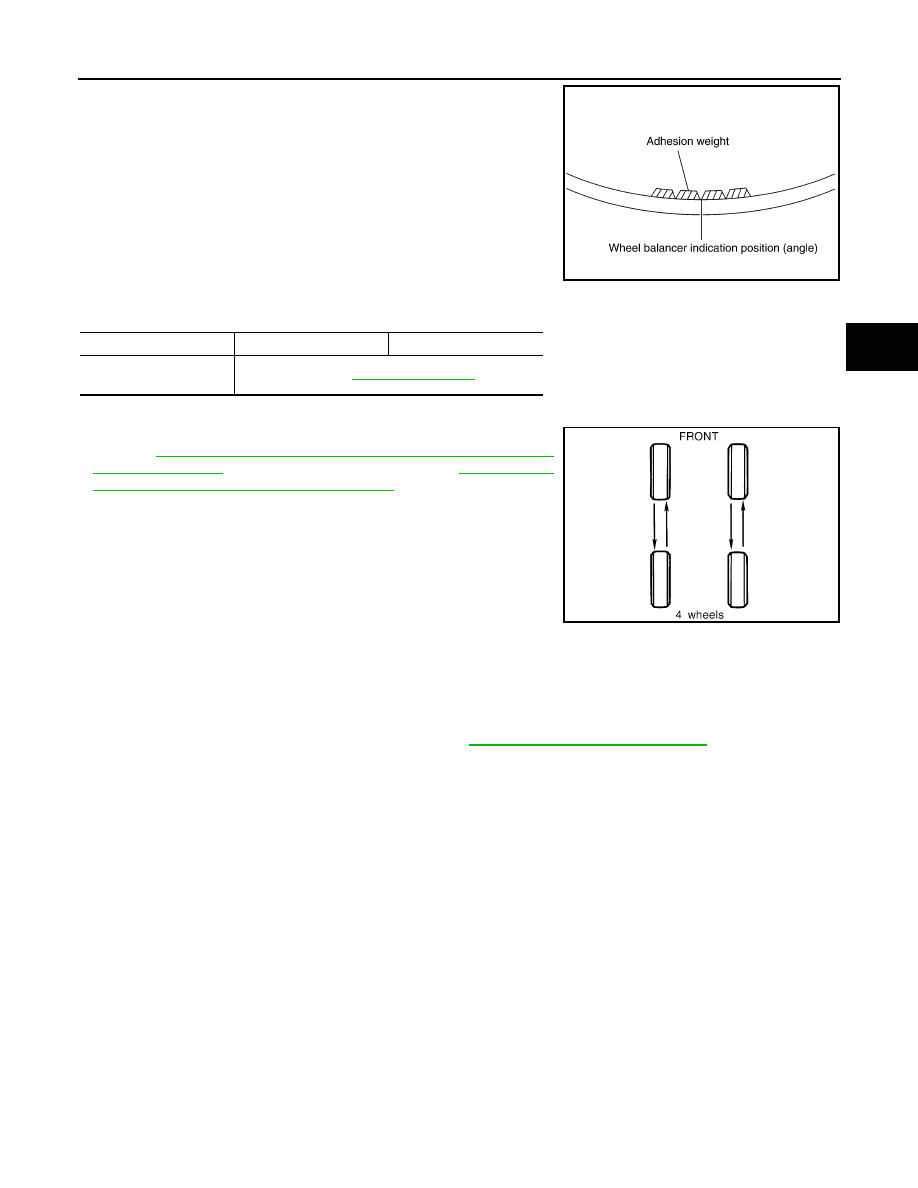

4. If calculated balance weight value exceeds 50 g (1.76 oz), install

two balance weight sheets in line with each other as shown.

CAUTION:

Do not install one balance weight sheet on top another.

5. Start balancer machine again.
6. Install balance weight on inner side of road wheel in the bal-

ancer machine indication position (angle).

CAUTION:

Do not install more than two balance weights.

7. Start balancer machine. Make sure that inner and outer residual

imbalance values are 5 g (0.17 oz) each or below.

8. If either residual imbalance value exceeds 5 g (0.17 oz), repeat installation procedures.

TIRE ROTATION

• Follow the maintenance schedule for tire rotation service intervals.

Refer to

MA-11, "FOR USA AND CANADA : Introduction to Peri-

odic Maintenance"

(United States and Canada), or

MA-15, "FOR

MEXICO : Periodic Maintenance Schedule"

(Mexico).

• When installing the wheel, tighten wheel nuts to the specified

torque.

CAUTION:

• Do not include the spare tire when rotating the tires.

• When installing wheels, tighten them diagonally by dividing

the work two to three times in order to prevent the wheels

from developing any distortion.

• Be careful not to tighten wheel nut at torque exceeding the

criteria for preventing strain of disc rotor.

• Use NISSAN genuine wheel nuts for aluminum wheels.

• Perform the ID registration, after tire rotation. Refer to

WT-6, "ID Registration Procedure"

Wheel balance

Dynamic (At flange)

Static (At flange)

Maximum allowable im-
balance

Refer to

WT-55, "Road Wheel"

PEIA0033E

Wheel nut tightening
torque

: 133 N·m (14 kg-m, 98 ft-lb)

SMA829C

August 2012

2012 Pathfinder

WT-52

< REMOVAL AND INSTALLATION >

REMOVAL AND INSTALLATION

REMOVAL AND INSTALLATION

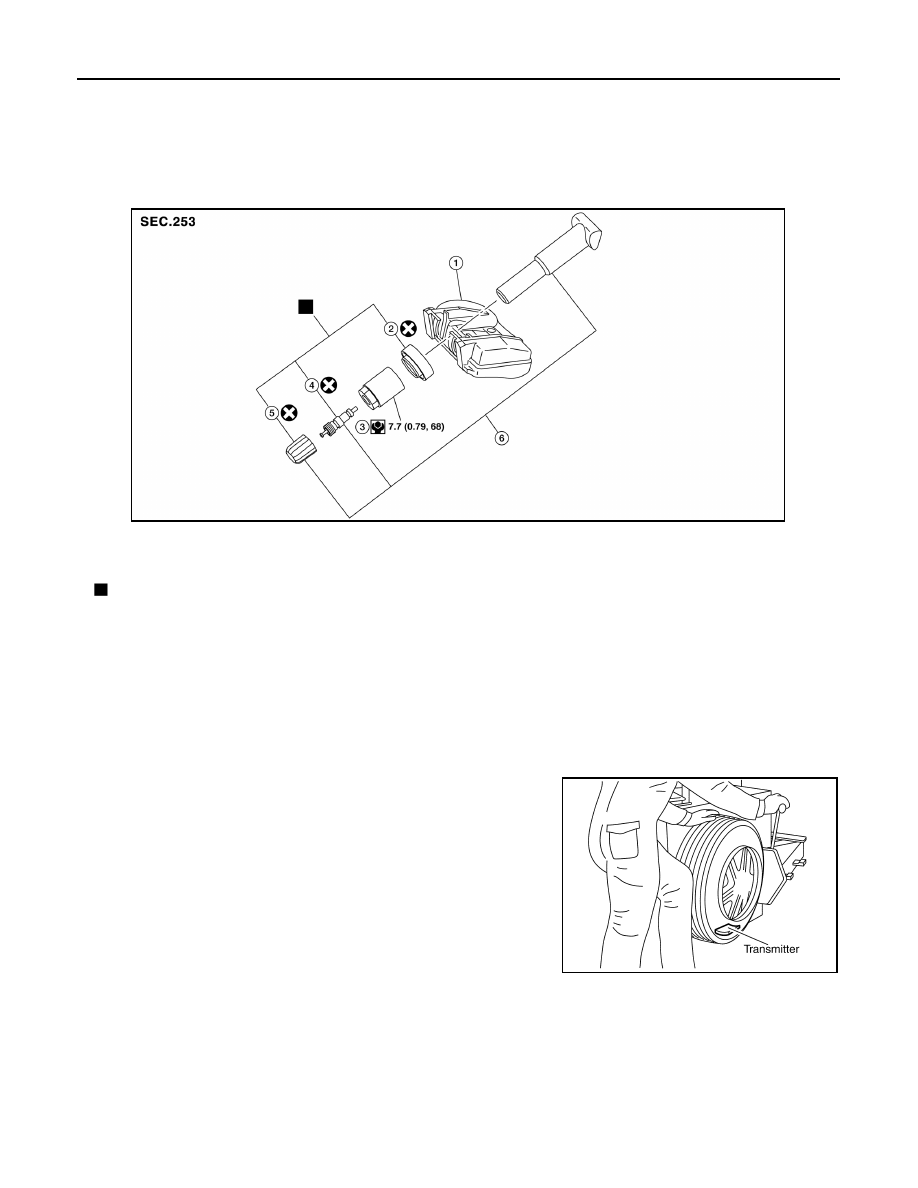

Exploded View

INFOID:0000000008807317

Transmitter (Pressure Sensor)

INFOID:0000000007357083

REMOVAL

1. Remove road wheel and tire assembly using power tool.
2. Remove valve cap and valve core to deflate the tire.

NOTE:

If the tire is to be reused, apply a matching mark on the tire in line with the position of the road wheel valve

stem assembly for the purpose of road wheel and tire balance adjustment after installation.

3. Remove the valve stem nut and allow transmitter to fall into tire.

4. Lubricate the tire outside bead well with a suitable non-silicone lubricant, and remove outside of tire from

the road wheel. Reach inside the tire and remove the transmitter.

CAUTION:

• Do not use silicone lubricant. Use of silicone lubricant will deteriorate the tire and road wheel.

• Be sure not to damage the road wheel or transmitter.

• Do not allow lubricant to make contact with transmitter.

5. Lubricate the tire inside bead well with a suitable non-silicone lubricant, and remove inside of tire from the

road wheel.

Transmitter (tire pressure sensor)

O-ring

Valve stem nut

Valve core

Valve cap

Valve stem assembly

Parts that are replaced as a set when the tire is replaced.

AWEIA0212GB

SEIA0047E

August 2012

2012 Pathfinder

REMOVAL AND INSTALLATION

WT-53

< REMOVAL AND INSTALLATION >

CAUTION:

• Do not use silicone lubricant. Use of silicone lubricant will deteriorate the tire and road wheel.

• Be sure not to damage the road wheel.

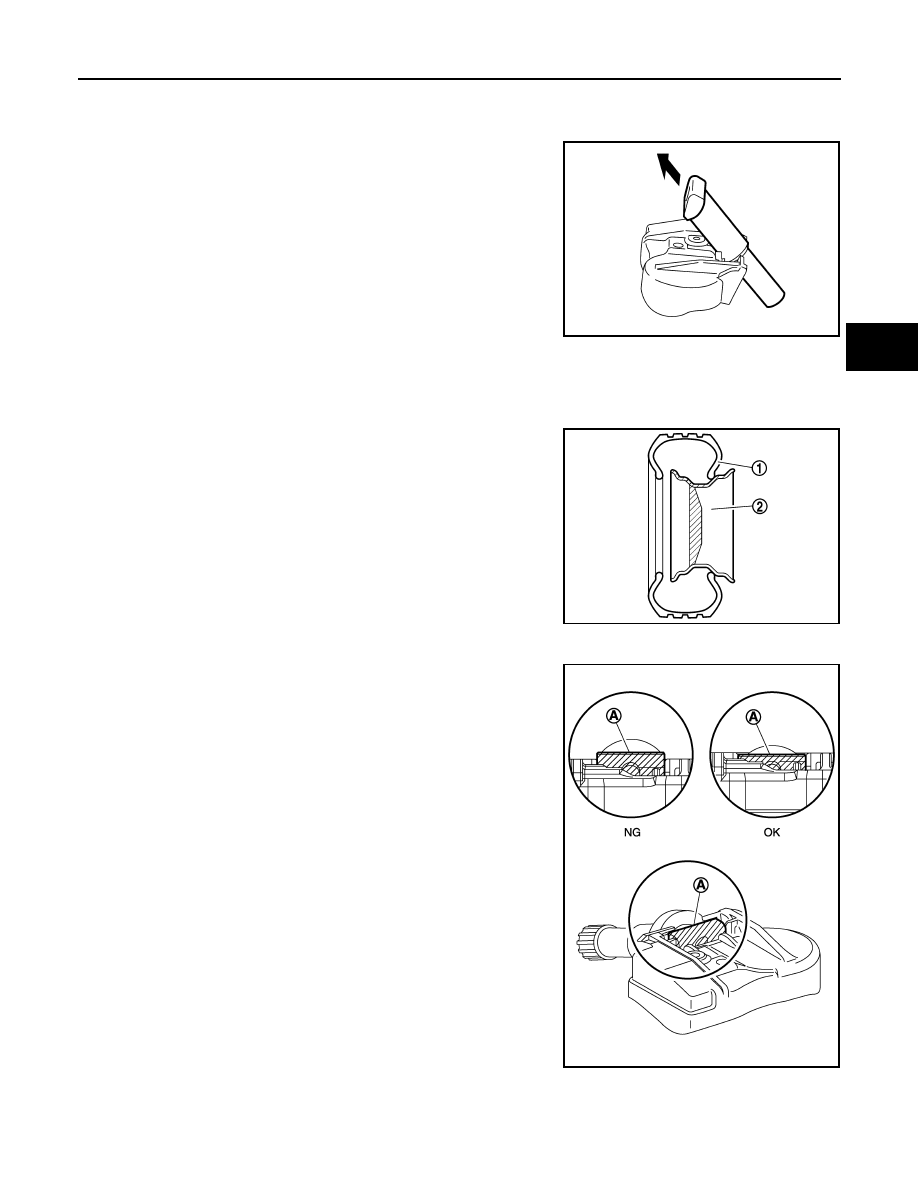

6. Remove the valve stem from the transmitter as shown.

INSTALLATION

1. Apply a suitable non-silicone lubricant to the tire inside bead.

CAUTION:

Do not use silicone lubricant. Use of silicone lubricant will deteriorate the tire and wheel.

2. Install the tire inside bead (1) onto the road wheel (2) in the posi-

tion shown.

3. Install the valve stem to the transmitter.
4. Install the O-ring to the transmitter.

CAUTION:

• Do not reuse O-ring

• Insert O-ring to the base of the transmitter.

• The base of the valve stem (A) must be positioned in the

groove of the metal plate as shown.

JSEIA0378ZZ

JPEIC0105ZZ

JSEIA0376GB

August 2012

2012 Pathfinder

WT-54

< REMOVAL AND INSTALLATION >

REMOVAL AND INSTALLATION

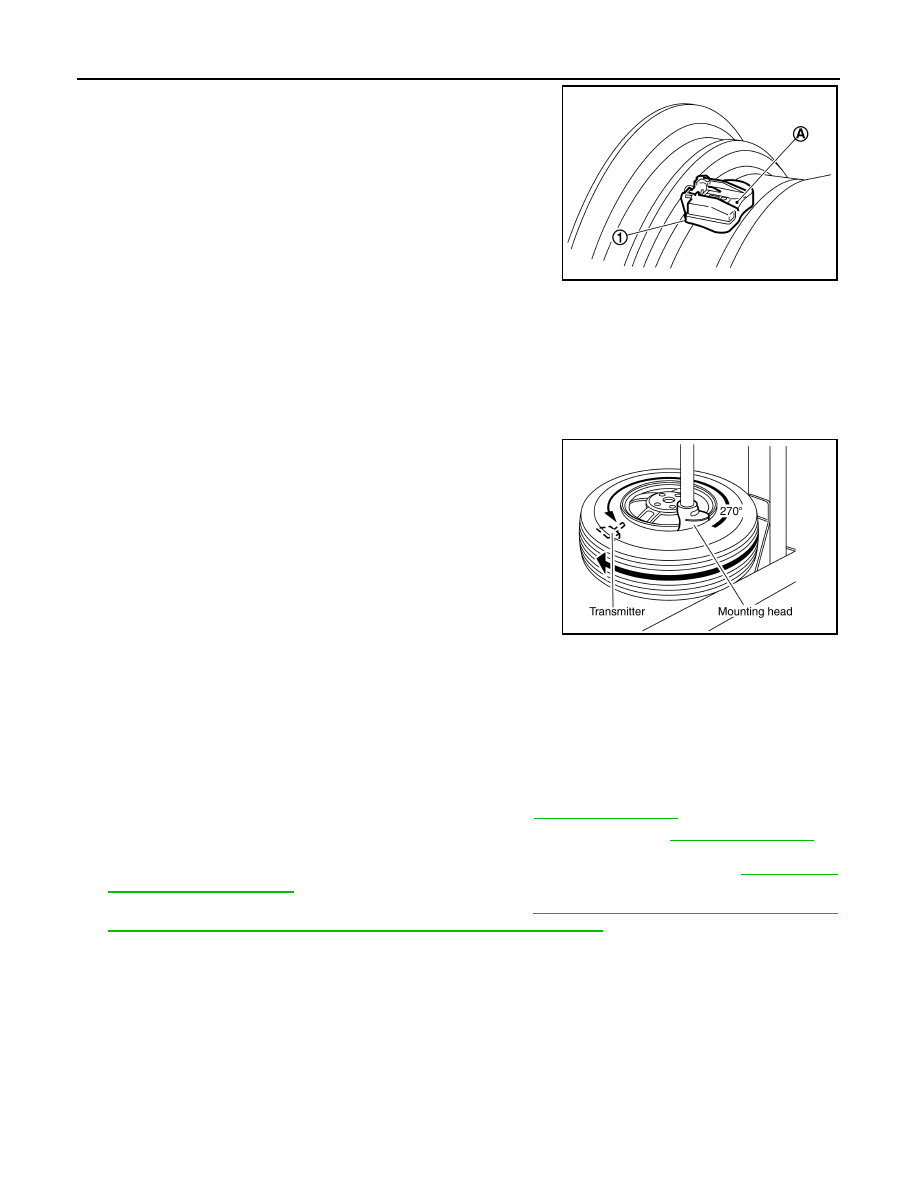

5. Install transmitter (1) to road wheel while pressing at position

(A).

CAUTION:

• Check that O-ring contacts horizontally with road wheel.

• Check that the base of the valve stem is positioned in the

groove of the metal plate.

6. Install and tighten the valve stem nut to the specified torque.

CAUTION:

Do not use power tool for installation.

7. Place wheel on turntable of tire machine. Ensure that transmitter

is 270 degrees from mounting/dismounting head.

NOTE:

Do not touch transmitter with mounting head.

8. Apply a suitable non-silicone lubricant to the tire outside bead.

CAUTION:

• Do not use silicone lubricant. Use of silicone lubricant will

deteriorate the tire and wheel.

• Do not allow lubricant to make contact with transmitter.

9. Install the tire outside bead onto the road wheel as normal.

NOTE:

If the tire is being reused, align the matching mark applied on

the tire with the position of the road wheel valve stem assembly for the purpose of road wheel and tire bal-

ance adjustment after installation. Ensure that the tire does not rotate relative to road wheel.

10. Install the valve core and inflate tire.

CAUTION:

Do not reuse valve core.

11. Install the valve cap.

CAUTION:

Do not reuse valve cap.

12. Inflate tire and balance the wheel and tire assembly. Refer to

WT-50, "Adjustment"

13. Install wheel and tire assembly in appropriate wheel position on vehicle. Refer to

WT-50, "Adjustment"

NOTE:

If replacing the transmitter, then transmitter wake up operation must be performed. Refer to

WT-5, "Trans-

mitter Wake Up Operation"

14. Adjust neutral position of steering angle sensor. Refer to

BRC-121, "ADJUSTMENT OF STEERING

ANGLE SENSOR NEUTRAL POSITION : Special Repair Requirement"

JSEIA0377ZZ

Valve stem nut
tightening torque

: 7.7 N·m (0.79 kg-m, 68 in-lb)

WEIA0046E

August 2012

2012 Pathfinder

SERVICE DATA AND SPECIFICATIONS (SDS)

WT-55

< SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Road Wheel

INFOID:0000000007357084

Tire

INFOID:0000000007357085

Unit: kPa (kg/cm

, psi)

Wheel type

Aluminum

Steel

Inside

Outside

Maximum radial
runout limit

Lateral mm (in)

0.3 (0.012) or less

1.0 (0.039) or less

0.9 (0.035) or less

Radial mm (in)

0.3 (0.012) or less

0.8 (0.031) or less

0.4 (0.016) or less

Maximum allowable
imbalance

Dynamic (at rim flange)

Less than 5 g (0.18 oz) (per side)

Static (at rim flange)

Less than 10 g (0.35 oz)

Tire size

Air pressure

Conventional tire

Spare tire

P245/75R16

240 (2.4, 35)

P265/65R17

240 (2.4, 35)

P265/60R18

240 (2.4, 35)

August 2012

2012 Pathfinder

WW-1

DRIVER CONTROLS

SECTION

CONTENTS

WIPER & WASHER

BASIC INSPECTION ....................................

DIAGNOSIS AND REPAIR WORKFLOW ..........

Work Flow .................................................................

SYSTEM DESCRIPTION ..............................

FRONT WIPER AND WASHER SYSTEM ..........

System Diagram ........................................................

System Description ...................................................

Component Parts Location ........................................

Component Description ............................................

REAR WIPER AND WASHER SYSTEM ............

System Diagram ........................................................

System Description ...................................................

Component Parts Location ......................................

Component Description ..........................................

DIAGNOSIS SYSTEM (BCM) ............................

COMMON ITEM .........................................................

COMMON ITEM : CONSULT Function (BCM -
COMMON ITEM) .....................................................

WIPER .......................................................................

WIPER : CONSULT Function (BCM - WIPER) .......

DIAGNOSIS SYSTEM (IPDM E/R) .....................

Diagnosis Description .............................................

CONSULT Function (IPDM E/R) .............................

DTC/CIRCUIT DIAGNOSIS .........................

WIPER AND WASHER FUSE ............................

Description ..............................................................

Diagnosis Procedure ...............................................

FRONT WIPER MOTOR LO CIRCUIT ...............

Component Function Check ....................................

Diagnosis Procedure ...............................................

FRONT WIPER MOTOR HI CIRCUIT ................

Component Function Check ....................................

Diagnosis Procedure ...............................................

FRONT WIPER AUTO STOP SIGNAL CIR-
CUIT ..................................................................

Component Function Check ....................................

Diagnosis Procedure ...............................................

FRONT WIPER MOTOR GROUND CIRCUIT ...

Diagnosis Procedure ...............................................

WASHER SWITCH ............................................

Description ...............................................................

Component Inspection .............................................

WASHER MOTOR CIRCUIT .............................

Diagnosis Procedure ...............................................

REAR WIPER MOTOR CIRCUIT ......................

Component Function Check ....................................

Diagnosis Procedure ...............................................

REAR WIPER AUTO STOP SIGNAL CIRCUIT

...

Component Function Check ....................................

Diagnosis Procedure ...............................................

ECU DIAGNOSIS INFORMATION ..............

BCM (BODY CONTROL MODULE) .................

Reference Value ......................................................

Terminal Layout .......................................................

Physical Values .......................................................

Fail Safe ..................................................................

DTC Inspection Priority Chart ...............................

DTC Index ...............................................................

IPDM E/R (INTELLIGENT POWER DISTRI-
BUTION MODULE ENGINE ROOM) ................

Reference Value ......................................................

Terminal Layout .......................................................

Physical Values .......................................................

August 2012

2012 Pathfinder

Content .. 622 623 624 625 ..
