WARNING CHIME SYSTEM

WCS-11

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

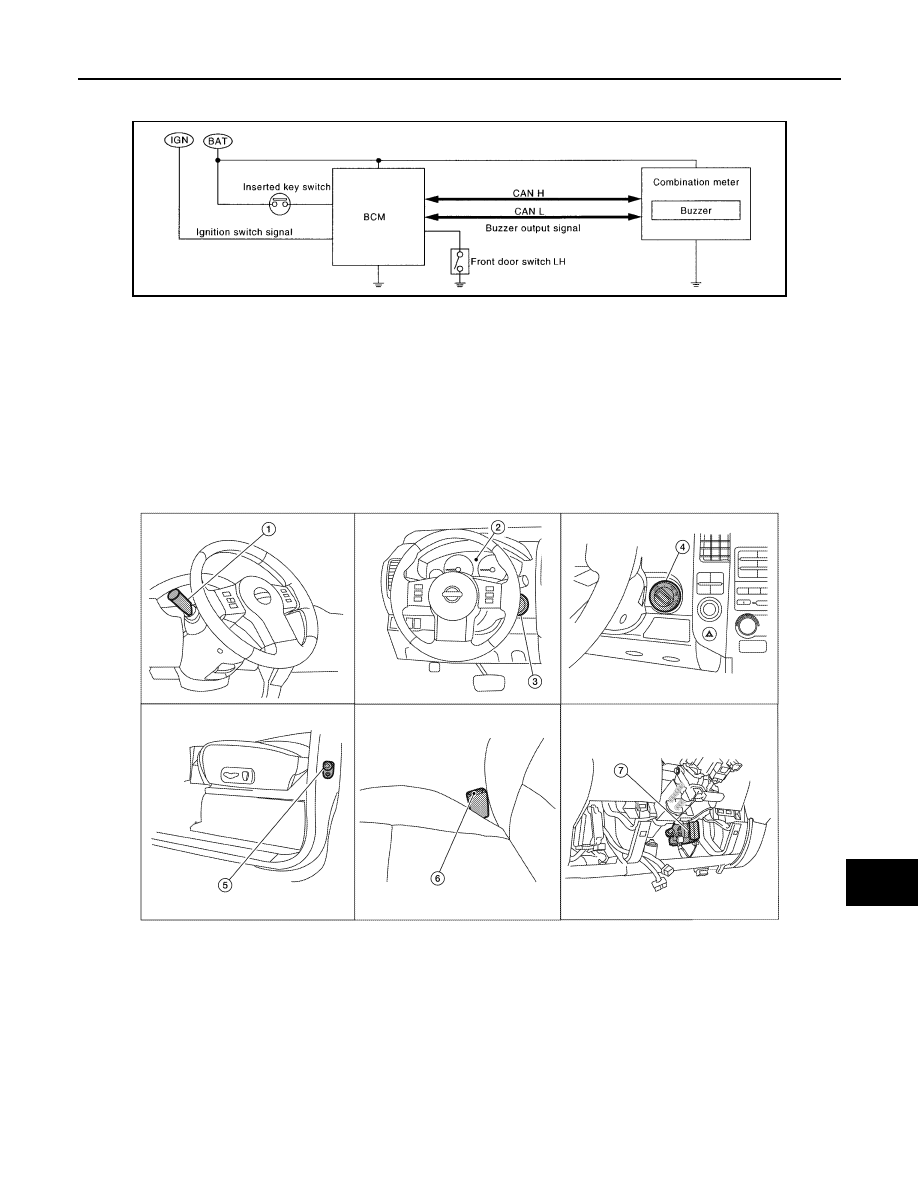

KEY WARNING CHIME (WITHOUT INTELLIGENT KEY) : System Diagram

INFOID:0000000007347532

KEY WARNING CHIME (WITHOUT INTELLIGENT KEY) : System Description

INFOID:0000000007347533

With the key inserted into the key switch, and the ignition switch in the OFF or ACC position, when driver's

door is opened, the warning chime will sound.

• BCM detects key inserted into the ignition switch, and sends key warning signal to combination meter with

CAN communication line.

• When combination meter receives key warning signal, it sounds warning chime.

KEY WARNING CHIME (WITHOUT INTELLIGENT KEY) : Component Parts Location

INFOID:0000000007347534

KEY WARNING CHIME (WITHOUT INTELLIGENT KEY) : Component Description

INFOID:0000000007347535

WKIA5463E

AWNIA0238ZZ

1.

Combination switch (lighting and turn
signal switch) M28

2.

Combination meter M24

3.

Key switch M27 (without Intelligent
Key)

4.

Key switch and ignition knob switch
M66 (with Intelligent Key)

5.

Front door switch LH B8

6.

Seat belt buckle switch LH B12

7.

BCM M18, M19, M20 (view with instru-
ment lower panel LH removed)

August 2012

2012 Pathfinder

WCS-12

< SYSTEM DESCRIPTION >

WARNING CHIME SYSTEM

Unit

Description

Combination meter

Receives key warning signal from BCM via CAN communication line and sounds the buzzer.

BCM

Judges the key warning condition from the door switch signal received from the front door switch
LH, and the key switch signal received from the key switch. It then transmits a buzzer output signal
to the combination meter via CAN communication line if necessary.

Front door switch LH

Transmits door switch signal to BCM.

Key switch

Transmits key switch signal to BCM.

August 2012

2012 Pathfinder

WCS

DIAGNOSIS SYSTEM (METER)

WCS-13

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

DIAGNOSIS SYSTEM (METER)

Diagnosis Description

INFOID:0000000007829989

SELF-DIAGNOSIS MODE

The following items can be checked during Combination Meter Self-Diagnosis Mode.

• Gauge sweep and present gauge values.

• Illuminates all odometer/trip meters and A/T indicator segments.

• Illuminates all micro controlled lamps/LEDs regardless of switch position.

• Displays estimated present battery voltage.

• Displays seat belt buckle switch LH status.

OPERATION PROCEDURE

NOTE:

• Once entered, combination meter self-diagnosis mode will function with the ignition switch in ON or START.

Combination meter self-diagnosis mode will exit upon turning the ignition switch to OFF or ACC.

• If the diagnosis function is activated with trip A displayed, the mileage on trip A is reset to 0000.0. (Trip B

operates the same way.)

To initiate combination meter self-diagnosis mode, refer to the following procedure.

1. Turn the ignition switch ON, while pressing the odometer/trip meter switch for 5 - 8 seconds. When the

diagnosis function is activated, the odometer/trip meter will display tESt.

NOTE:

Check combination meter power supply and ground circuit when self-diagnosis mode of combination meter

does not start. Refer to

WCS-18, "COMBINATION METER : Diagnosis Procedure"

. Replace combination

meter if normal. Refer to

MWI-89, "Removal and Installation"

.

COMBINATION METER SELF-DIAGNOSIS MODE FUNCTIONS

To interpret combination meter self-diagnosis mode functions, refer to the following table.

Event

Odometer Display

Description of Test/Data

Notes:

Odometer/trip meter A/B
switch held from 5 to 8
seconds (or until re-
leased)

tESt

Initiating self-diagnosis mode

Switch released

GAGE

Performs sweep of all
gauges, then displays
present gauge values.

Gauges sweep within 10 seconds

Switch pressed

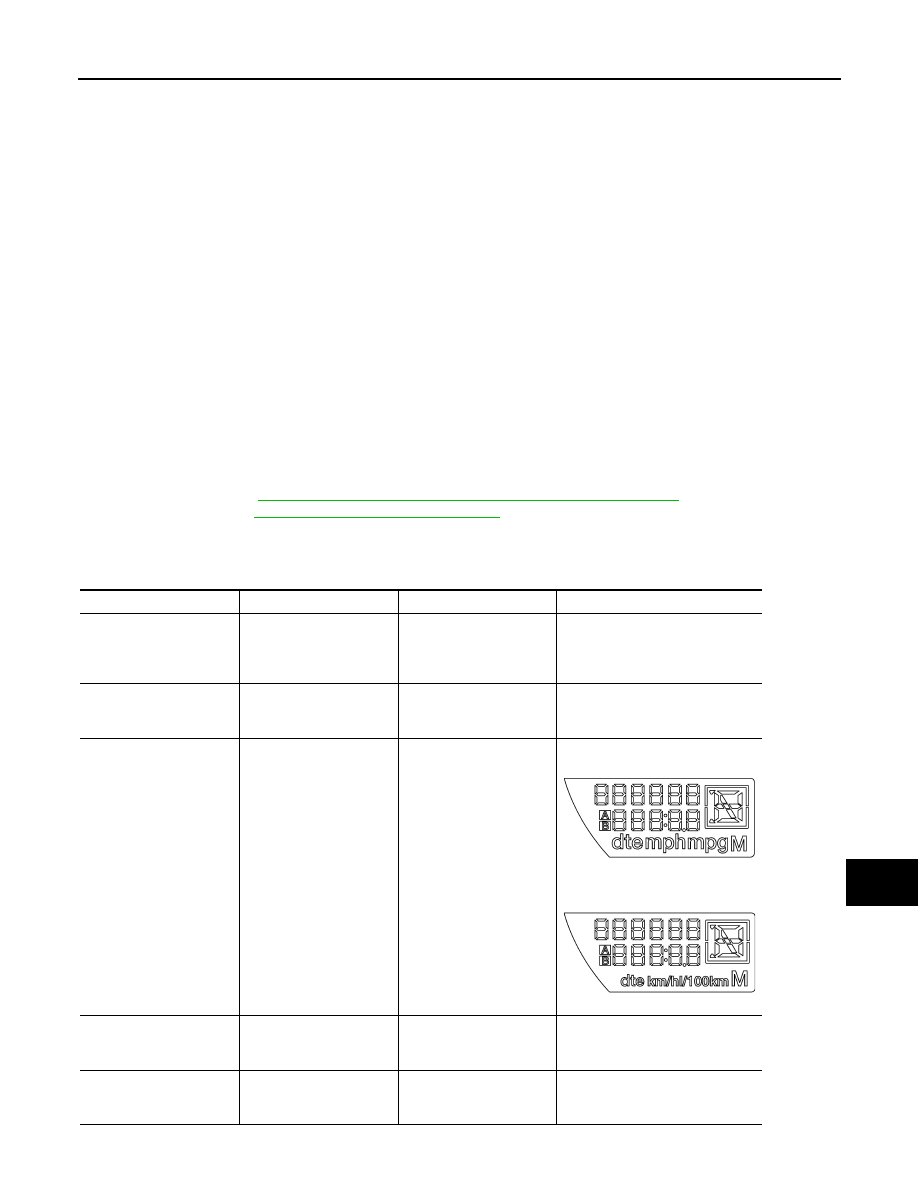

(All segments illuminated)

Lights all LCD segments.
Compare with picture.

USA

Except USA

Switch pressed

bulb

Illuminates all micro-con-
trolled lamps/LEDs.

Part may not be configured for all
lamps (functions) that turn on dur-
ing test. This is normal.

Switch pressed

r XXXX, FAIL

Return to normal opera-
tion of all lamps/LEDs and
displays “r XXXX”.

If a malfunction exists, “FAIL” will
flash.

AWNIA0219ZZ

AWNIA0220ZZ

August 2012

2012 Pathfinder

WCS-14

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (METER)

Switch pressed

nrXXXX

Displays Hex ROM rev as
stored in NVM.

Switch pressed

EE XX, FAIL

Displays “EE XX”.

If a malfunction exists, “FAIL” will
flash.

Switch pressed

dtXXXX

Hex coding of final manu-
facturing test date.

Switch pressed
(3 times)

Sc1 XX through Epr XX

Displays 8 bit software
configuration value in Hex
format

Switch pressed

1nF XX

Displays 8-bit market info
value in Hex format.

$31 = USA
$2A = Canada
$23 = EUR-R
$1C = EUR-L
$38 = Japan
$15 = Australia
$0E = Middle East
$FF = Other

Switch pressed
(3 times)

cYL XX through tF

N/A

Switch pressed

ot1 XX

Displays oil pressure tell-
tale “” in Hex format.

Switch pressed

ot0 XX

Displays oil pressure tell-
tale “” in Hex format.

Switch pressed

XXXXX

“Corrected” speed value
in hundredths of MPH.
Gauge indication may be
slightly higher. This is nor-
mal.

Will display “-----” if message is not
received. Will display “99999” if
data received is invalid.

Switch pressed

XXXXX

“Corrected” speed value
in hundredths of KPH.
Gauge indication may be
slightly different. This is
normal.

Will display “-----” if message is not
received. Will display “99999” if
data received is invalid.

Switch pressed

t XXXX

Tachometer value in
RPM. Gauge indication
may be higher at higher
RPM. This is normal.

Will display “-----” if message is not
received.

Switch pressed

F1XXXX

Present fuel level A/D in-
put. This input represents
fuel sender input.

000-009 = Short circuit
010-254 = Normal range
255 = Open circuit

Switch pressed

XXXC

Last temperature gauge
input value in degrees C.
Temperature gauge indi-
cates present tempera-
ture per indication
standard.

Will display “---”C if message is not
received.
Will display “999” if data received
is invalid.
High = 130 deg C
Normal = 70 - 105 deg C
Low = less than 50 deg C

Switch pressed

BAtXX.X

Estimated present battery
voltage.

Switch pressed

rES -X

Seat belt buckle switch LH
status.

1= Buckled
0 = Unbuckled

Switch pressed
(30 times)

PA -XX through PA1-XX

N/A

Switch pressed

GAGE

Return to beginning of self-diagno-
sis cycle.

Event

Odometer Display

Description of Test/Data

Notes:

August 2012

2012 Pathfinder

WCS

DIAGNOSIS SYSTEM (METER)

WCS-15

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

CONSULT Function (METER/M&A)

INFOID:0000000007829990

CONSULT can display each diagnostic item using the diagnostic test modes shown following.

SELF-DIAG RESULTS

Display Item List

Refer to

WCS-29, "DTC Index"

.

DATA MONITOR

Display Item List

X: Applicable

METER/M&A diagnosis mode

Description

SELF DIAGNOSTIC RESULTS

Displays combination meter self-diagnosis results.

DATA MONITOR

Displays combination meter input/output data in real time.

CAN DIAG SUPPORT MNTR

The result of transmit/receive diagnosis of CAN communication can be read.

Display item [Unit]

MAIN

SIGNALS

SELECTION

FROM MENU

Description

SPEED METER [km/h] or [mph]

X

X

Displays the value of vehicle speed signal.

SPEED OUTPUT [km/h] or [mph]

X

X

Displays the value of vehicle speed signal, which is transmitted to
each unit with CAN communication.

TACHO METER [rpm]

X

X

Displays the value of engine speed signal, which is input from ECM.

W TEMP METER [

°

C] or [

°

F]

X

X

Displays the value of engine coolant temperature signal, which is in-
put from ECM.

FUEL METER [lit.]

X

X

Displays the value, which processes a resistance signal from fuel
gauge.

DISTANCE [km] or [mile]

X

X

Displays the value, which is calculated by vehicle speed signal, fuel
gauge and fuel consumption from ECM.

FUEL W/L [ON/OFF]

X

X

Displays [ON/OFF] condition of low-fuel warning lamp.

C-ENG W/L [ON/OFF]

X

Displays [ON/OFF] condition of malfunction indicator lamp.

AIR PRES W/L [ON/OFF]

X

Displays [ON/OFF] condition of tire pressure warning lamp.

SEAT BELT W/L [ON/OFF]

X

Indicates [ON/OFF] condition of seat belt warning lamp.

BUZZER [ON/OFF]

X

X

Displays [ON/OFF] condition of buzzer.

DOOR W/L [ON/OFF]

X

Displays [ON/OFF] condition of door ajar warning lamp.

HI-BEAM IND [ON/OFF]

X

Displays [ON/OFF] condition of high beam indicator.

TURN IND [ON/OFF]

X

Displays [ON/OFF] condition of turn indicator.

OIL W/L [ON/OFF]

X

Displays [ON/OFF] condition of oil pressure warning lamp.

VDC/TCS IND [ON/OFF]

X

Displays [ON/OFF] condition of VDC OFF indicator lamp.

ABS W/L [ON/OFF]

X

Displays [ON/OFF] condition of ABS warning lamp.

SLIP IND [ON/OFF]

X

Displays [ON/OFF] condition of SLIP indicator lamp.

BRAKE W/L [ON/OFF]

X

Displays [ON/OFF] condition of brake warning lamp.*

KEY G/Y W/L [ON/OFF]

X

Displays [ON/OFF] condition of key green warning lamp.

KEY R W/L [ON/OFF]

X

Displays [ON/OFF] condition of key red warning lamp.

KEY KNOB W/L [ON/OFF]

X

Displays [ON/OFF] condition of key knob warning lamp.

M RANGE SW [ON/OFF]

X

X

Displays [ON/OFF] condition of manual mode range switch.

NM RANGE SW [ON/OFF]

X

X

Displays [ON/OFF] condition of except for manual mode range
switch.

AT SFT UP SW [ON/OFF]

X

X

Displays [ON/OFF] condition of A/T shift-up switch.

AT SFT DWN SW [ON/OFF]

X

X

Displays [ON/OFF] condition of A/T shift-down switch.

O/D OFF SW [ON/OFF]

X

Indicates [ON/OFF] condition of O/D OFF switch.

August 2012

2012 Pathfinder

WCS-16

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (METER)

NOTE:

Some items are not available due to vehicle specification.
*: The monitor will indicate “OFF” even though the brake warning lamp is on if either of the following conditions exist.
• The parking brake is engaged
• The brake fluid level is low

BRAKE SW [ON/OFF]

X

Indicates [ON/OFF] condition of parking brake switch.

AT-M IND [ON/OFF]

X

X

Indicates [ON/OFF] condition of A/T manual mode indicator.

AT-M GEAR [1, 2, 3, 4]

X

X

Indicates [1, 2, 3, 4] condition of A/T manual mode gear position.

P RANGE IND [ON/OFF]

X

X

Indicates [ON/OFF] condition of A/T shift P range indicator.

R RANGE IND [ON/OFF]

X

X

Indicates [ON/OFF] condition of A/T shift R range indicator.

N RANGE IND [ON/OFF]

X

X

Indicates [ON/OFF] condition of A/T shift N range indicator.

D RANGE IND [ON/OFF]

X

X

Indicates [ON/OFF] condition of A/T shift D range indicator.

4 RANGE IND [ON/OFF]

X

X

Indicates [ON/OFF] condition of A/T shift 4 range indicator.

3 RANGE IND [ON/OFF]

X

X

Indicates [ON/OFF] condition of A/T shift 3 range indicator.

2 RANGE IND [ON/OFF]

X

X

Indicates [ON/OFF] condition of A/T shift 2 range indicator.

1 RANGE IND [ON/OFF]

X

X

Indicates [ON/OFF] condition of A/T shift 1 range indicator.

O/D OFF W/L [ON/OFF]

X

Displays [ON/OFF] condition of AT CHECK (with manual mode) or
O/D OFF (without manual mode) warning lamp.

CRUISE IND [ON/OFF]

X

Displays [ON/OFF] condition of CRUISE indicator.

SET IND [ON/OFF]

X

Displays [ON/OFF] condition of SET indicator.

4WD LOCK SW [ON/OFF]

X

Indicates [ON/OFF] condition of 4WD lock switch.

4WD LOCK IND [ON/OFF]

X

Indicates [ON/OFF] condition of 4WD lock indicator.

FUEL CAP W/L [ON/OFF]

X

Displays [ON/OFF] condition of loose fuel cap indicator.

TPMS PRESS L [ON/OFF]

X

Displays [ON/OFF] condition of check tire pressure indicator.

Display item [Unit]

MAIN

SIGNALS

SELECTION

FROM MENU

Description

August 2012

2012 Pathfinder

WCS

DIAGNOSIS SYSTEM (BCM)

WCS-17

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

DIAGNOSIS SYSTEM (BCM)

BUZZER
BUZZER : CONSULT Function (BCM - BUZZER)

INFOID:0000000007829991

DATA MONITOR

ACTIVE TEST

Monitor Item [Unit]

Description

DOOR SW-DR [On/Off]

Indicates condition of front door switch LH.

IGN ON SW [On/Off]

Indicates condition of ignition switch ON position.

KEY ON SW [On/Off]

Indicates condition of key switch.

LIGHT SW 1ST [On/Off]

Indicates condition of combination switch.

BUCKLE SW [On/Off]

Indicates condition of seat belt buckle switch.

Test Item

Description

SEAT BELT WARN TEST

This test is able to check seat belt warning operation [Off/On].

LIGHT WARN ALM

This test is able to check light reminder warning operation [Off/On].

IGN KEY WARN ALM

This test is able to check key warning chime operation [Off/On].

August 2012

2012 Pathfinder

WCS-18

< DTC/CIRCUIT DIAGNOSIS >

POWER SUPPLY AND GROUND CIRCUIT

DTC/CIRCUIT DIAGNOSIS

POWER SUPPLY AND GROUND CIRCUIT

COMBINATION METER
COMBINATION METER : Diagnosis Procedure

INFOID:0000000007829994

Regarding Wiring Diagram information, refer to

MWI-63, "Wiring Diagram"

.

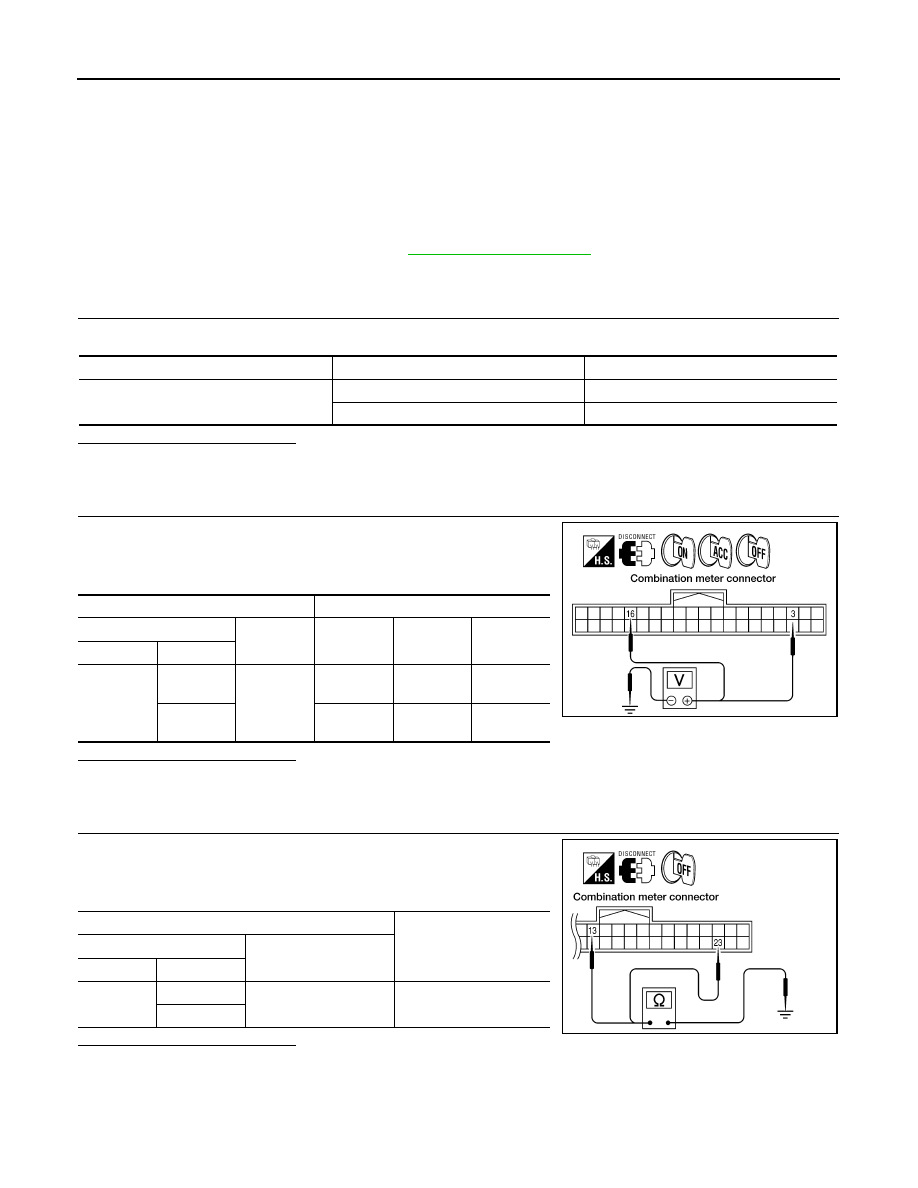

1.

CHECK FUSES

Check for blown combination meter fuses.

Is the inspection result normal?

YES

>> GO TO 2

NO

>> If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse.

2.

POWER SUPPLY CIRCUIT CHECK

1. Disconnect combination meter connector M24.

2. Check voltage between combination meter harness connector

M24 terminals 3, 16 and ground.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Check harness for open between combination meter and fuse.

3.

GROUND CIRCUIT CHECK

1. Turn ignition switch OFF.

2. Check continuity between combination meter harness connector

M24 terminals 13, 23 and ground.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Check ground harness.

BCM (BODY CONTROL MODULE)

Unit

Power source

Fuse No.

Combination meter

Battery 19

Ignition switch ON or START

14

Terminals

Ignition switch position

(+)

(–)

OFF

ACC

ON

Connector

Terminal

M24

3

Ground

Battery
voltage

Battery
voltage

Battery

 voltage

16

0V

0V

Battery
voltage

WKIA3279E

Terminals

Continuity

(+)

(–)

Connector

Terminal

M24

13

Ground

Yes

23

WKIA3280E

August 2012

2012 Pathfinder
