4. Remove the three screws and the air mix door motor.

Installation

Installation is in the reverse order of removal.

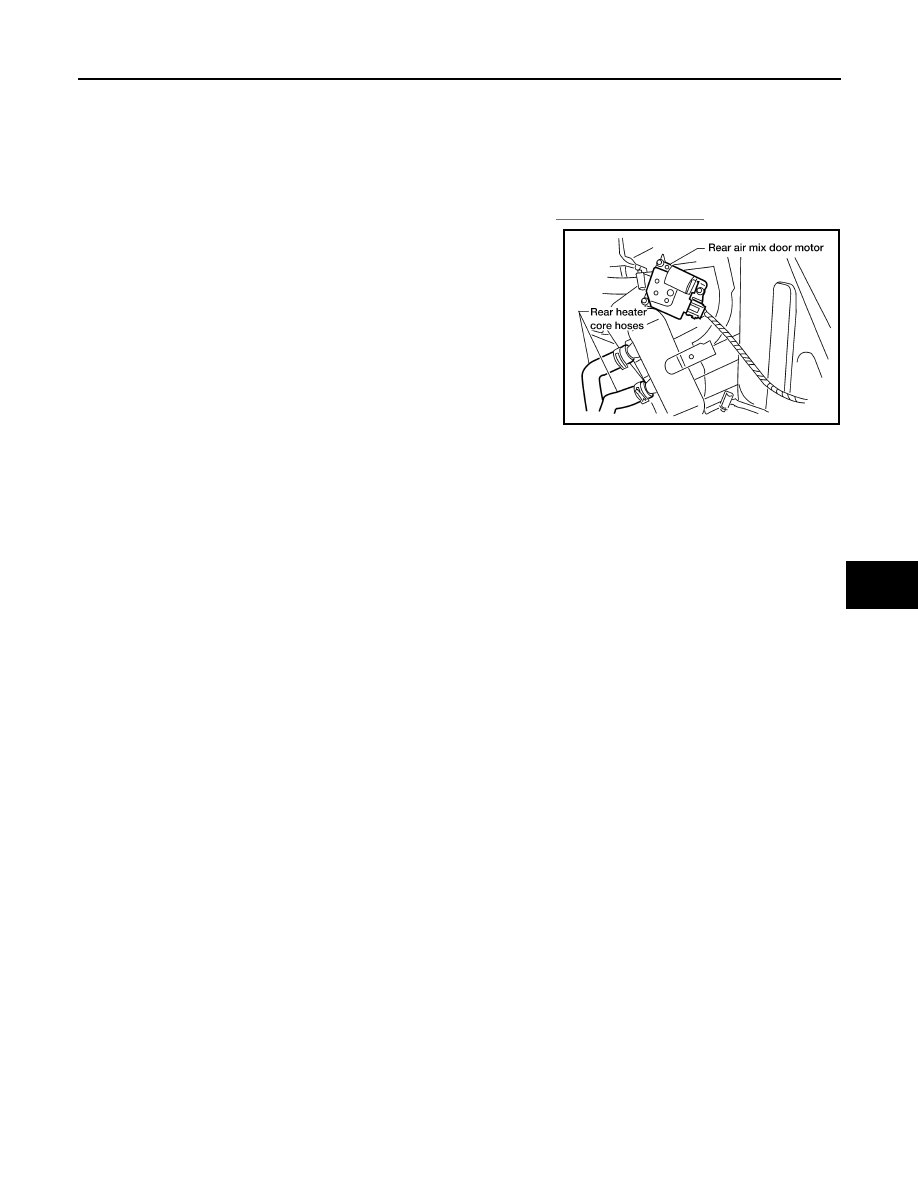

REAR AIR MIX DOOR MOTOR

Removal

1. Remove the luggage side lower and upper finisher RH. Refer to

INT-24, "Component"

.

2. Disconnect the rear air mix door motor electrical connector.
3. Remove the three screws and the rear air mix door motor.

Installation

Installation is in the reverse order of removal.

WJIA1134E

August 2012

2012 Pathfinder

VTL-32

< REMOVAL AND INSTALLATION >

DUCTS AND GRILLES

DUCTS AND GRILLES

Component

INFOID:0000000007356289

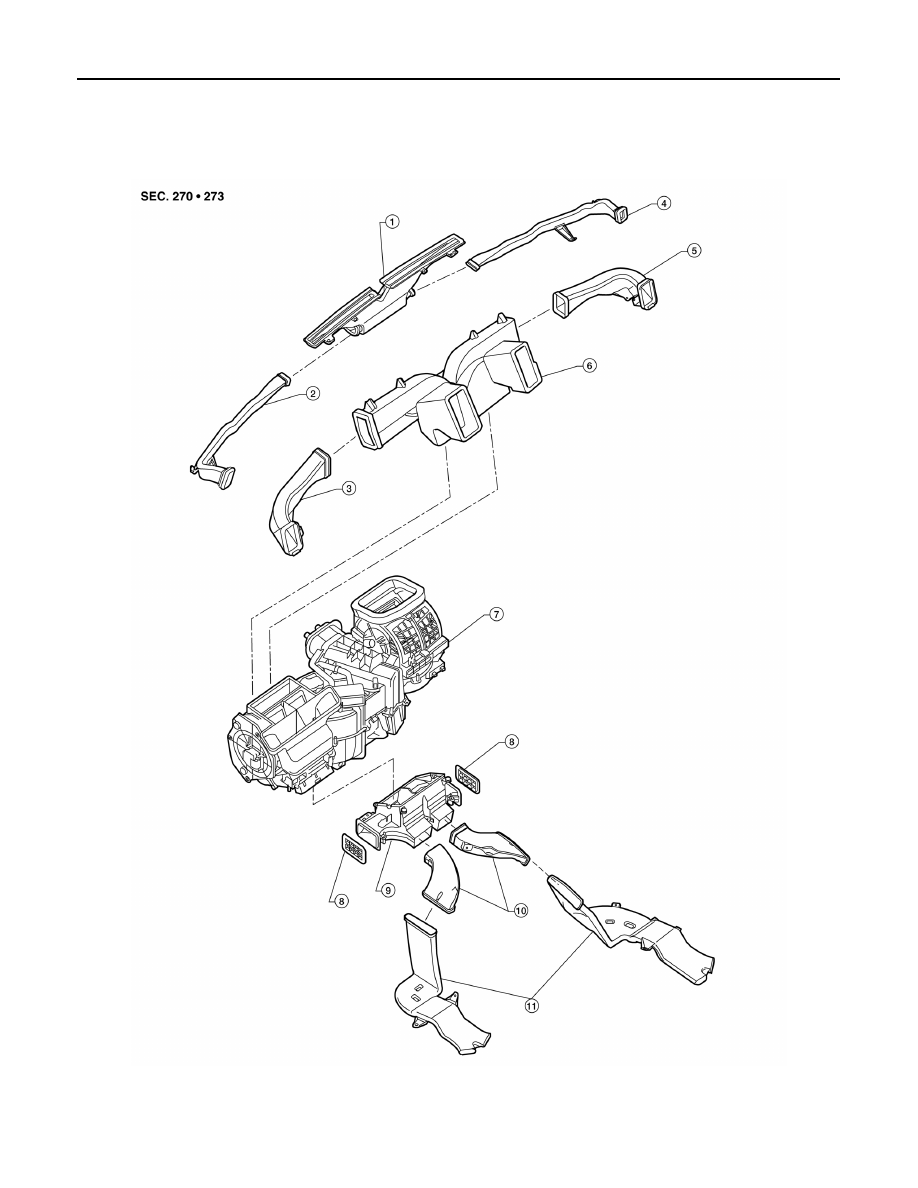

Ducts - Front Heater and Cooling Unit Assembly

AWIIA1479ZZ

1.

Defroster nozzle

2.

LH side demister duct

3.

LH ventilator duct

4.

RH side demister duct

5.

RH ventilator duct

6.

Center ventilator duct

August 2012

2012 Pathfinder

DUCTS AND GRILLES

VTL-33

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

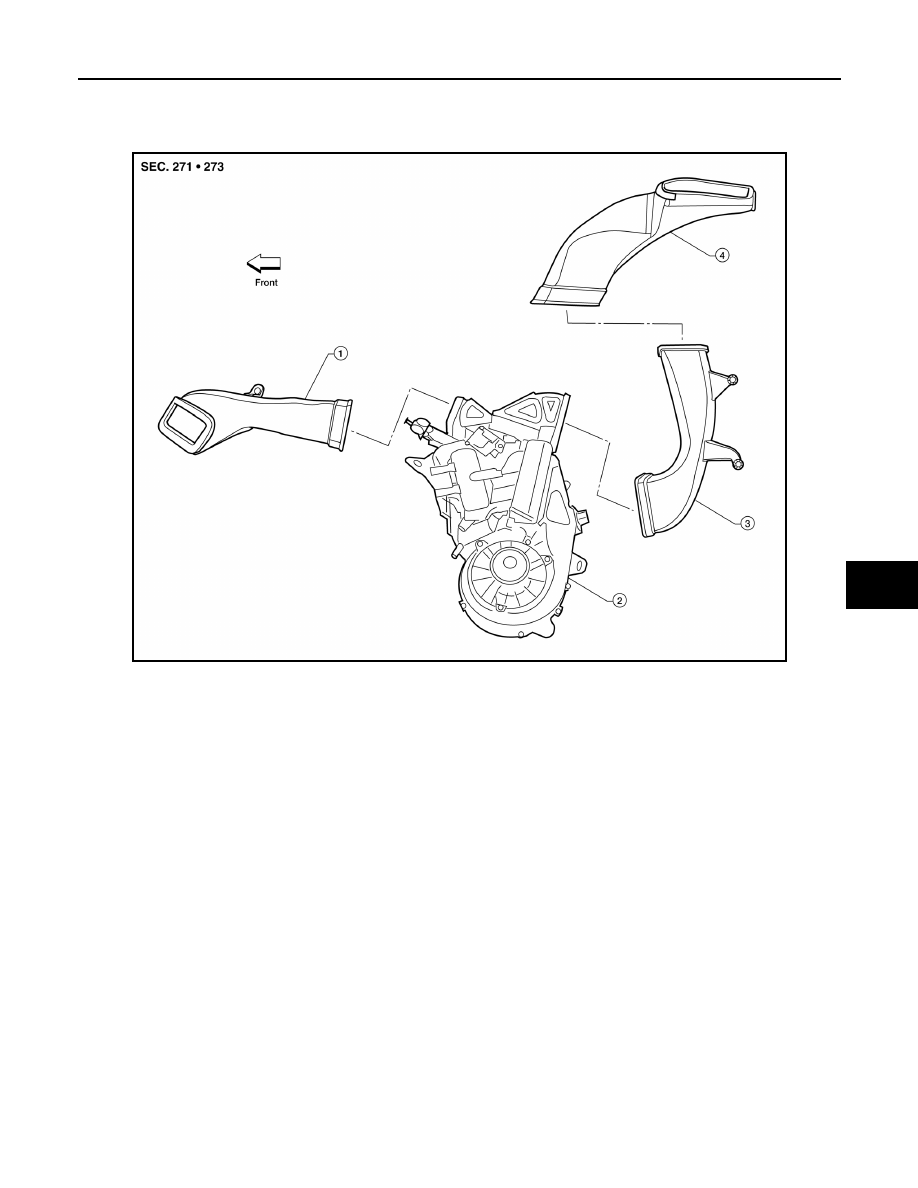

Ducts - Rear Heater and Cooling Unit Assembly

7.

Front heater and cooling unit assembly

8.

Floor connector duct grilles

9.

Floor connector duct

10. Front floor ducts

11. Rear floor ducts

AWIIA1480ZZ

1.

Side rear floor duct

2.

Rear heater and cooling unit assembly

3.

Rear lower overhead duct

4.

Rear upper overhead duct

August 2012

2012 Pathfinder

VTL-34

< REMOVAL AND INSTALLATION >

DUCTS AND GRILLES

Grilles

Removal and Installation

INFOID:0000000007356290

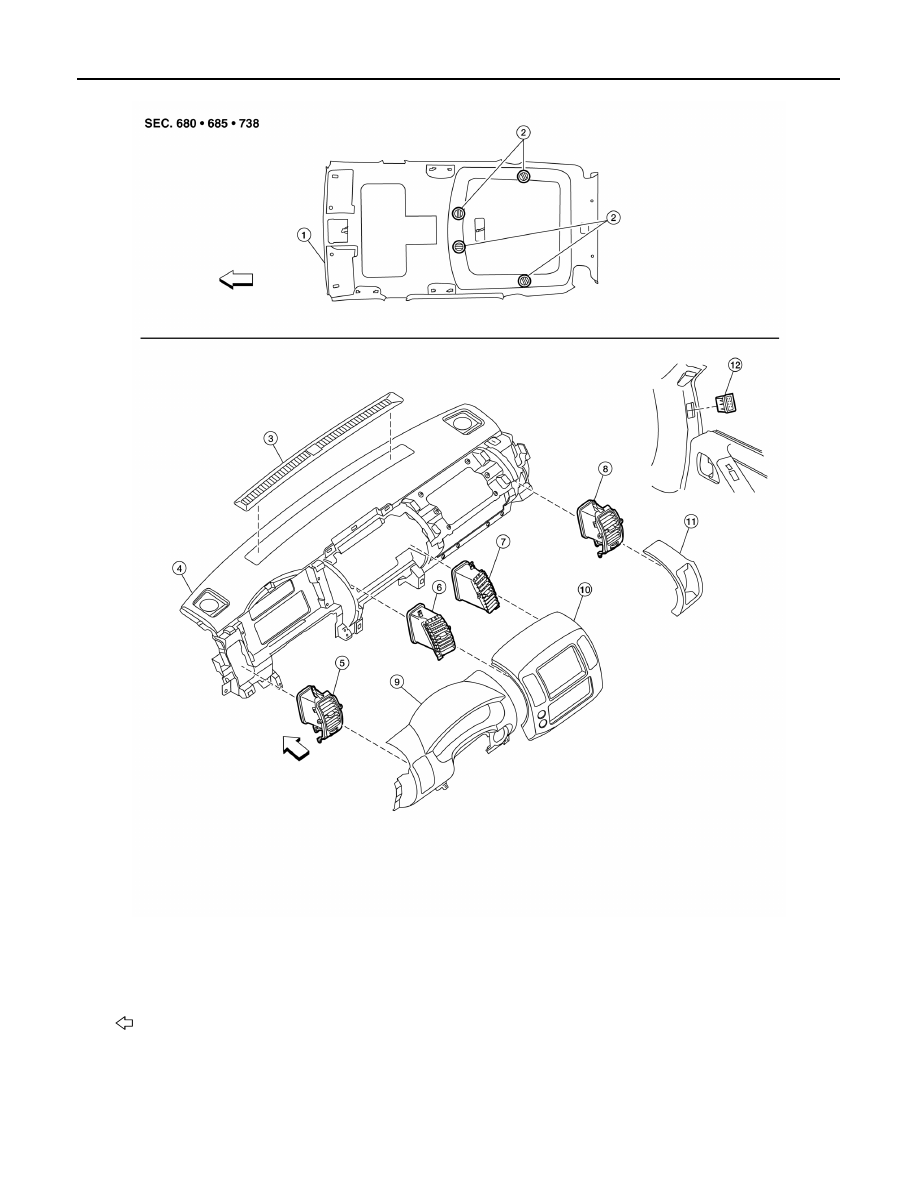

DEFROSTER NOZZLE

Removal

AWIIA1481ZZ

1.

Headliner

2.

Overhead grilles

3.

Defroster grille

4.

Instrument panel and pad assembly

5.

LH side ventilator grille

6.

LH ventilator grille

7.

RH ventilator grille

8.

RH side ventilator grille

9.

Cluster lid A

10. Cluster lid C

11. Instrument side finisher

12. RH side demister grille

Front

August 2012

2012 Pathfinder

DUCTS AND GRILLES

VTL-35

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

1. Remove the front heater and cooling unit assembly. Refer to

VTL-18, "Removal and Installation"

.

2. Remove the defroster nozzle.

Installation

Installation is in the reverse order of removal.

RH AND LH SIDE DEMISTER DUCT

Removal

1. Remove the front heater and cooling unit assembly. Refer to

VTL-18, "Removal and Installation"

.

2. Remove the RH or LH side demister duct.

Installation

Installation is in the reverse order of removal.

RH AND LH VENTILATOR DUCT

Removal

1. Remove the front heater and cooling unit assembly. Refer to

VTL-18, "Removal and Installation"

.

2. Remove the RH or LH ventilator duct.

Installation

Installation is in the reverse order of removal.

CENTER VENTILATOR DUCT

Removal

1. Remove the front heater and cooling unit assembly. Refer to

VTL-18, "Removal and Installation"

.

2. Remove the defroster nozzle.
3. Remove the RH and LH ventilator ducts.
4. Remove the RH and LH side demister ducts.
5. Remove the center ventilator duct.

Installation

Installation is in the reverse order of removal.

FLOOR CONNECTOR DUCT

Removal

1. Remove the front heater and cooling unit assembly. Refer to

VTL-18, "Removal and Installation"

.

2. Remove the floor connector duct.

Installation

Installation is in the reverse order of removal.

FRONT AND REAR FLOOR DUCTS

Removal

1. Remove the center console. Refer to

IP-22, "Removal and Installation"

.

2. Remove the floor carpet. Refer to

INT-21, "Removal and Installation"

.

3. Remove the clips and remove the front and rear floor ducts.

Installation

Installation is in the reverse order of removal.

REAR OVERHEAD DUCTS

Removal

1. Remove the luggage side lower finisher RH. Refer to

INT-24, "Component"

.

2. Remove the headliner. Refer to

INT-22, "Removal and Installation"

.

NOTE:

The rear headliner duct (connected to the rear upper overhead duct) is part of the headliner and is

replaced as an assembly.

3. Remove the clips and remove the rear upper and lower overhead ducts.

August 2012

2012 Pathfinder

VTL-36

< REMOVAL AND INSTALLATION >

DUCTS AND GRILLES

Installation

Installation is in the reverse order of removal.

SIDE REAR FLOOR DUCT

Removal

1. Remove the luggage side lower finisher RH. Refer to

INT-24, "Component"

.

2. Reposition the floor carpet out of the way.
3. Remove the clips and remove the side rear floor duct.

Installation

Installation is in the reverse order of removal.

GRILLES

Removal

1. Remove the necessary interior trim panel(s) to access the grille. Refer to

INT-18, "Component"

.

NOTE:

The overhead grilles are part of the headliner. To replace the overhead grilles the headliner must be

replaced. Refer to

VTL-34, "Removal and Installation"

.

2. Remove the grille from the interior trim panel.

Installation

Installation is in the reverse order of removal.

August 2012
