A/T CONTROL SYSTEM TM-19 < SYSTEM DESCRIPTION > C E F G H I J K L M A B TM N O P “D 4 ” and “M 4 ”

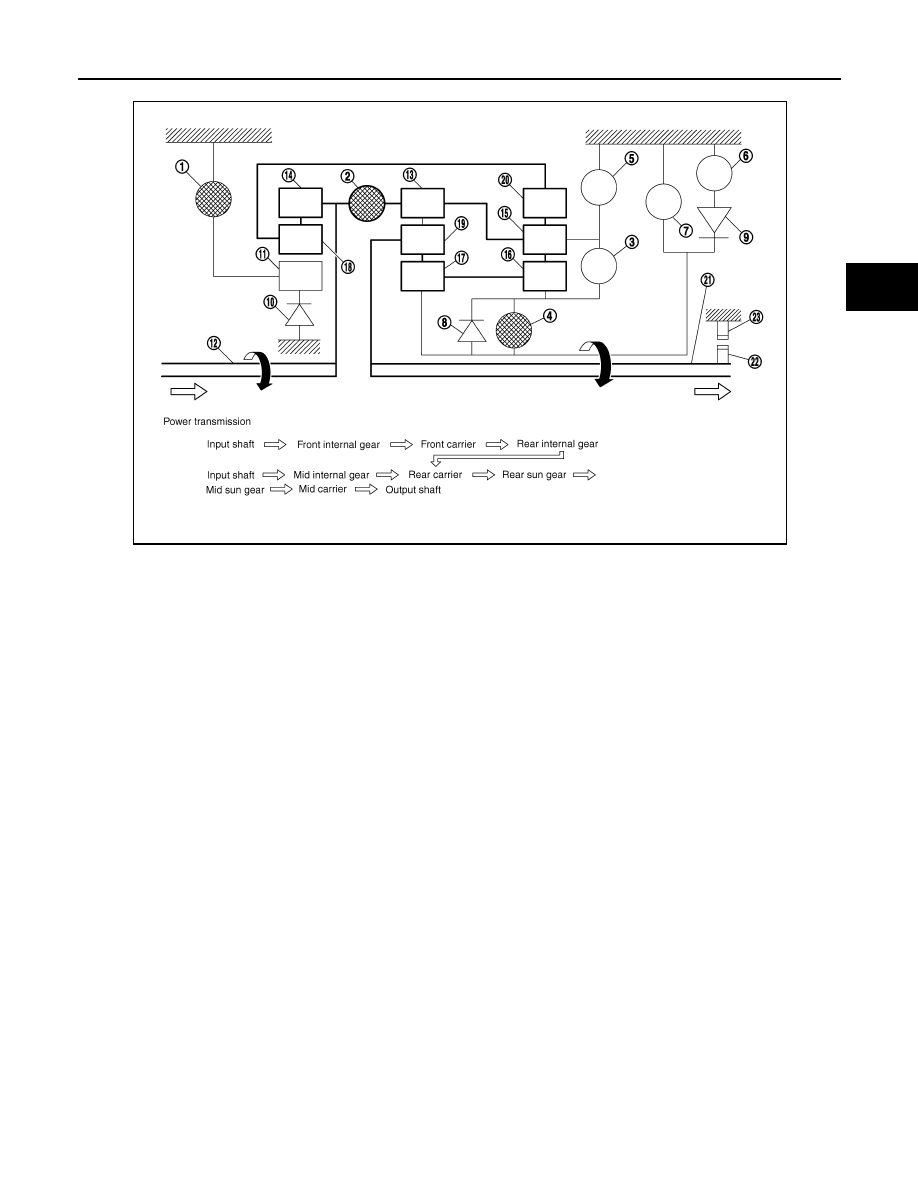

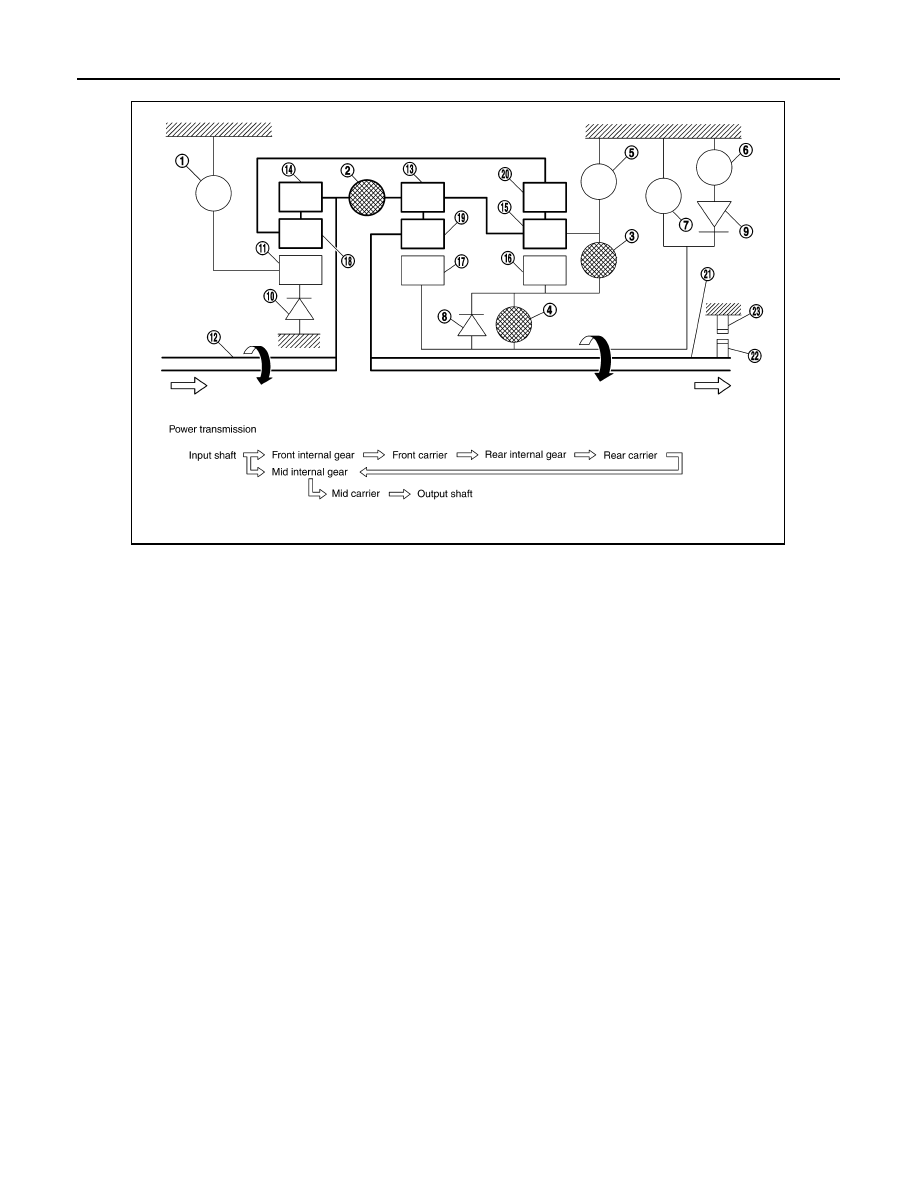

Positions (With Manual Mode) / "D 4 " Position (Without Manual Mode) • The direct clutch is coupled, and the rear carrier and rear sun gear are connected. • The high and low reverse clutch is coupled and the mid sun gear and rear sun gear are connected. • The input clutch is coupled and the front internal gear and mid internal gear are connected. • The drive power is conveyed to the front internal gear, mid internal gear, and rear carrier and the three plan- etary gears rotate forward as one unit. 1. Front brake 2. Input clutch 3. Direct clutch 4. High and low reverse clutch 5. Reverse brake 6. Forward brake 7. Low coast brake 8. 1st one-way clutch 9. Forward one-way clutch 10. 3rd one-way clutch 11. Front sun gear 12. Input shaft 13. Mid internal gear 14. Front internal gear 15. Rear carrier 16. Rear sun gear 17. Mid sun gear 18. Front carrier 19. Mid carrier 20. Rear internal gear 21. Output shaft 22. Parking gear 23. Parking pawl SCIA1516E August 2012 2012 Pathfinder |
