B1017 – B1022 OCCUPANT CLASSIFICATION SYSTEM

SRC-61

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

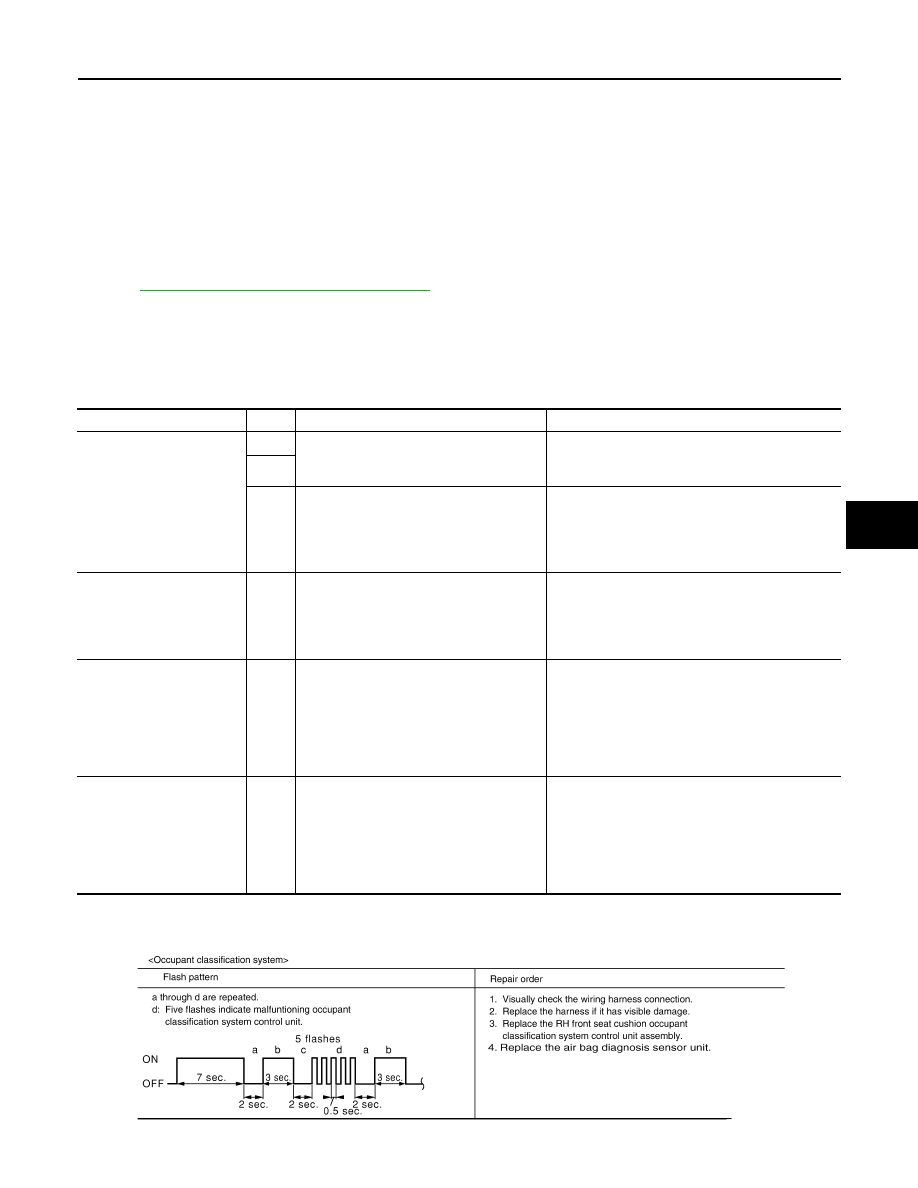

B1017 – B1022 OCCUPANT CLASSIFICATION SYSTEM

Description

INFOID:0000000007356552

DTC B1017 – B1022 OCCUPANT CLASSIFICATION SYSTEM (OCS)

The OCS control unit is wired to the air bag diagnosis sensor unit.  The air bag diagnosis sensor unit will mon-

itor the OCS for failures and interruptions in communication between the OCS control unit and the air bag

diagnosis sensor unit.

PART LOCATION

Refer to

SRC-7, "SRS Component Parts Location"

.

DTC Logic

INFOID:0000000007356553

DTC DETECTION LOGIC

With CONSULT

Without CONSULT

CONSULT name

DTC

DTC detecting condition

Repair order

OCCUPANT SENS C/U

[UNIT FAIL]

B1017 The OCS control unit is malfunctioning.

1.

Replace the RH front seat cushion assembly.
Do not disassemble the seat cushion assem-
bly.

B1021

B1020

The OCS control unit is malfunctioning.

1.

Replace the harness if it has visible damage.

2.

Replace the RH front seat cushion assembly.
Do not disassemble the seat cushion assem-
bly.

3.

Replace the RH front seat belt assembly.

OCCUPANT SENS

[UNIT FAIL]

B1018

The OCS sensor is malfunctioning.

1.

Visually check the wiring harness connection
to the OCS sensor.

2.

Replace the RH front seat cushion assembly.
Do not disassemble the seat cushion assem-
bly.

BELT TENSION SENS

[UNIT FAIL]

B1019

The belt tension sensor is malfunctioning.

1.

Visually check the wiring harness connection.

2.

Replace the harness if it has visible damage.

3.

Replace the RH front seat belt assembly.

4.

Replace the RH front seat cushion assembly.
Do not disassemble the seat cushion assem-
bly.

5.

Replace the related harness.

OCCUPANT SENS C/U

[COMM FAIL]

B1022

Communication between the OCS control
unit and the air bag diagnosis sensor unit is
interrupted.

1.

Visually check the wiring harness connection.

2.

Replace the harness if it has visible damage.

3.

Replace the RH front seat cushion assembly.
Do not disassemble the seat cushion assem-
bly.

4.

Replace the air bag diagnosis sensor unit.

5.

Replace the related harness.

WHIA0211E

August 2012

2012 Pathfinder

SRC-62

< DTC/CIRCUIT DIAGNOSIS >

B1017 – B1022 OCCUPANT CLASSIFICATION SYSTEM

DTC CONFIRMATION PROCEDURE (With CONSULT)

1.

INSPECTION START

Turn ignition switch ON.

>> GO TO 2.

2.

CHECK SELF-DIAG RESULT

Check for the DTC on CONSULT.
Is the DTC detected?

YES

>> Refer to

SRC-62, "Diagnosis Procedure (Component Diagnosis)"

.

NO

>> Inspection End.

DTC CONFIRMATION PROCEDURE (Without CONSULT)

NOTE:

SRS will not enter diagnosis mode if no malfunction is detected in user mode.

1.

IGNITION SWITCH

Turn ignition switch ON.

>> GO TO 2

2.

IGNITION SWITCH

After air bag warning lamp lights for 7 seconds, turn ignition switch OFF within 1 second.

>> GO TO 3

3.

WAIT TIME

Wait more than 3 seconds.

>> GO TO 4

4.

REPEAT STEPS

Repeat steps 1 to 3 twice.

>> GO TO 5

5.

IGNITION SWITCH

Turn ignition switch ON.

>> GO TO 6

6.

DIAGNOSTIC MODE

SRS system is now in diagnostic mode and AIR BAG warning lamp flashes. Refer to

SRC-7, "SRS Compo-

nent Parts Location"

.

>>

END

Diagnosis Procedure (Component Diagnosis)

INFOID:0000000007356554

Recheck SRS after each corrective action.

1.

CHECK CURRENT DTC

Does CONSULT indicate B1018, B1019, B1020 or B1022?
YES or NO

YES

>> GO TO 2

NO

>> GO TO 13

August 2012

2012 Pathfinder

B1017 – B1022 OCCUPANT CLASSIFICATION SYSTEM

SRC-63

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

2.

HARNESS CONNECTOR

Is there any visible damage to the OCS sub-harness connector (DTC B1022) or to the belt tension sensor con-

nector (DTC B1019)?
YES or NO

YES

>> Replace the harness.

NO

>> GO TO 3

3.

WIRING HARNESS

Is there any visible damage to the body or seat sub harness?
YES or NO

YES

>> Replace the harness.

NO

>> GO TO 4

4.

CHECK CURRENT DTC

Does CONSULT indicate B1022?
YES or NO

YES

>> GO TO 5

NO

>> GO TO 6

5.

OCS CONTROL UNIT HARNESS CONNECTOR

Is the OCS control unit or body harness connector disconnected?
YES or NO

YES

>> Connect the harness.  Clear the DTC.

NO

>> GO TO 13

6.

CHECK CURRENT DTC

Does CONSULT indicate B1018?
YES or NO

YES

>> GO TO 7

NO

>> GO TO 8

7.

OCS SENSOR HARNESS CONNECTOR

Is the OCS sensor harness connector disconnected?
YES or NO

YES

>> Connect the harness.  Clear the DTC.

NO

>> GO TO 8

8.

CHECK CURRENT DTC

Does CONSULT indicate B1020?
YES or NO

YES

>> GO TO 9

NO

>> GO TO 10

9.

BELT TENSION SENSOR

Inspect the belt tension sensor, belt tension sensor connector and harness.
Are the inspection results normal?

YES

>> GO TO 10

NO

>> GO TO 12

10.

CHECK CURRENT DTC

Does CONSULT indicate B1019?
YES or NO

YES

>> GO TO 11

NO

>> GO TO 12

11.

BELT TENSION SENSOR HARNESS CONNECTOR

August 2012

2012 Pathfinder

SRC-64

< DTC/CIRCUIT DIAGNOSIS >

B1017 – B1022 OCCUPANT CLASSIFICATION SYSTEM

Is the belt tension sensor harness connector disconnected?
YES or NO

YES

>> Connect the harness.  Clear the DTC.

NO

>> GO TO 12

12.

REPLACE RH FRONT SEAT BELT ASSEMBLY

Replace the RH front seat belt assembly.

>> GO TO 13

13.

REPLACE RH FRONT SEAT CUSHION ASSEMBLY

Replace the RH front seat cushion assembly.  Refer to

SE-33, "Removal and Installation"

.

>> GO TO 14

14.

AIR BAG DIAGNOSIS SENSOR UNIT

Replace the air bag diagnosis sensor unit.  Refer to

SR-16, "Removal and Installation"

.

>>

END.

August 2012

2012 Pathfinder

B1209 – B1211 COLLISION DETECTION

SRC-65

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

B1209 – B1211 COLLISION DETECTION

Description

INFOID:0000000007356555

DTC B1209 - B1211 COLLISION DETECTION

The air bag diagnosis sensor unit will set this DTC if it has detected a collision or rollover which has resulted in

a deployment of one or more air bags or pre-tensioners.  If this DTC is detected after a SRS repair, the air bag

diagnosis sensor unit has not yet been replaced.  This DTC can not be erased.

PART LOCATION

Refer to

SRC-7, "SRS Component Parts Location"

.

DTC Logic

INFOID:0000000007356556

DTC DETECTION LOGIC

With CONSULT

DTC CONFIRMATION PROCEDURE (With CONSULT)

1.

INSPECTION START

Turn ignition switch ON.

>> GO TO 2.

2.

CHECK SELF-DIAG RESULT

Check for the DTC on CONSULT.
Is the DTC detected?

YES

>> Refer to

SRC-65, "Diagnosis Procedure (Component Diagnosis)"

.

NO

>> Inspection End.

Diagnosis Procedure (Component Diagnosis)

INFOID:0000000007356557

Refer to

SR-19, "For Frontal Collision"

 or

SR-21, "For Side and Rollover Collision"

.

CONSULT name

DTC

DTC detecting condition

Repair order

FRONTAL COLLISION

DETECTION

B1209

Driver and/or front passenger air bag mod-
ules are deployed.

Refer to

SR-19, "For Frontal Collision"

.

SIDE COLLISION DE-

TECTION

B1210

Side and/or curtain air bag modules are
deployed.

Refer to

SR-21, "For Side and Rollover Collision"

.

ROLLOVER DETEC-

TION

B1211

Curtain air bag module and seat belt pre-
tensioner are deployed.

August 2012

2012 Pathfinder

SRC-66

< ECU DIAGNOSIS INFORMATION >

DIAGNOSIS SENSOR UNIT

ECU DIAGNOSIS INFORMATION

DIAGNOSIS SENSOR UNIT

Trouble Diagnosis with CONSULT

INFOID:0000000007356558

DIAGNOSTIC CODE CHART

NOTE:

Follow the procedures in numerical order when repairing malfunctioning parts. Confirm whether malfunction is

eliminated using air bag warning lamp or CONSULT each time repair is finished. If malfunction is still

observed, proceed to the next step. When malfunction is eliminated, further repair work is not required.

CONSULT name

DTC

DTC detecting condition

Repair order

DRIVER AIRBAG MODULE

[OPEN]

B1049

Driver air bag module circuit (DR1) is
open
(including the spiral cable).

1.

Visually check the wiring harness connection.

2.

Replace the harness if it has visible damage.

3.

Inspect the spiral cable circuit.

4.

Replace the air bag diagnosis sensor unit.

5.

Replace the driver air bag module.

6.

Replace the related harness.

B1054

Driver air bag module circuit (DR2) is
open
(including the spiral cable).

DRIVER AIRBAG MODULE

[VB-SHORT]

B1050

Driver air bag module circuit (DR1) is
shorted to a power supply circuit
(including the spiral cable).

B1055

Driver air bag module circuit (DR2) is
shorted to a power supply circuit
(including the spiral cable).

DRIVER AIRBAG MODULE

[GND-SHORT]

B1051

Driver air bag module circuit (DR1) is
shorted to ground
(including the spiral cable).

B1056

Driver air bag module circuit (DR2) is
shorted to ground
(including the spiral cable).

DRIVER AIRBAG MODULE

[SHORT]

B1052

Driver air bag module circuits (DR1) are
shorted to each other
(including the spiral cable).

B1057

Driver air bag module circuits (DR2) are
shorted to each other
(including the spiral cable).

ASSIST A/B MODULE

[OPEN]

B1065

Front passenger air bag module circuit
(AS1) is open.

1.

Visually check the wiring harness connection.

2.

Replace the harness if it has visible damage.

3.

Replace the air bag diagnosis sensor unit.

4.

Replace the front passenger air bag module.

5.

Replace the related harness.

B1070

Front passenger air bag module circuit
(AS2) is open.

ASSIST A/B MODULE

[VB-SHORT]

B1066

Front passenger air bag module circuit
(AS1) is shorted to a power supply cir-
cuit.

B1071

Front passenger air bag module circuit
(AS2) is shorted to a power supply cir-
cuit.

ASSIST A/B MODULE

[GND-SHORT]

B1067

Front passenger air bag module circuit
(AS1) is shorted to ground.

B1072

Front passenger air bag module circuit
(AS2) is shorted to ground.

ASSIST A/B MODULE

[SHORT]

B1068

Front passenger air bag module circuits
(AS1) are shorted to each other.

B1073

Front passenger air bag module circuits
(AS2) are shorted to each other.

August 2012

2012 Pathfinder

DIAGNOSIS SENSOR UNIT

SRC-67

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

SIDE MODULE LH

[OPEN]

B1134

Front LH side air bag module circuit is
open.

1.

Visually check the wiring harness connection.

2.

Replace the harness if it has visible damage.

3.

Replace the air bag diagnosis sensor unit.

4.

Replace the front LH side air bag module.

5.

Replace the related harness.

SIDE MODULE LH

[VB-SHORT]

B1135

Front LH side air bag module circuit is
shorted to a power supply circuit.

SIDE MODULE LH

[GND-SHORT]

B1136

Front LH side air bag module circuit is
shorted to ground.

SIDE MODULE LH

[SHORT]

B1137

Front LH side air bag module circuits are
shorted to each other.

SIDE MODULE RH

[OPEN]

B1129

Front RH side air bag module circuit is
open.

1.

Visually check the wiring harness connection.

2.

Replace the harness if it has visible damage.

3.

Replace the air bag diagnosis sensor unit.

4.

Replace the front RH side air bag module.

5.

Replace the related harness.

SIDE MODULE RH

[VB-SHORT]

B1130

Front RH side air bag module circuit is
shorted to a power supply circuit.

SIDE MODULE RH

[GND-SHORT]

B1131

Front RH side air bag module circuit is
shorted to ground.

SIDE MODULE RH

[SHORT]

B1132

Front RH side air bag module circuits
are shorted to each other.

FR CURTN MODULE LH

[OPEN]

B1198

LH side curtain air bag module (front)
circuit is open.

1.

Visually check the wiring harness connection.

2.

Replace the harness if it has visible damage.

3.

Replace the air bag diagnosis sensor unit.

4.

Replace the LH side curtain air bag module.

5.

Replace the related harness.

FR CURTN MODULE LH

[VB-SHORT]

B1199

LH side curtain air bag module (front)
circuit is shorted to a power supply cir-
cuit.

FR CURTN MODULE LH

[GND-SHORT]

B1200

LH side curtain air bag module (front)
circuit is shorted to ground.

FR CURTN MODULE LH

[SHORT]

B1201

LH side curtain air bag module (front)
circuits are shorted to each other.

FR CURTN MODULE RH

[OPEN]

B1193

RH side curtain air bag module (front)
circuit is open.

1.

Visually check the wiring harness connection.

2.

Replace the harness if it has visible damage.

3.

Replace the air bag diagnosis sensor unit.

4.

Replace the RH side curtain air bag module.

5.

Replace the related harness.

FR CURTN MODULE RH

[VB-SHORT]

B1194

RH side curtain air bag module (front)
circuit is shorted to a power supply cir-
cuit.

FR CURTN MODULE RH

[GND-SHORT]

B1195

RH side curtain air bag module (front)
circuit is shorted to ground.

FR CURTN MODULE RH

[SHORT]

B1196

RH side curtain air bag module (front)
circuits are shorted to each other.

CURTAIN MODULE LH

[OPEN]

B1150

LH side curtain air bag module (rear) cir-
cuit is open.

1.

Visually check the wiring harness connection.

2.

Replace the harness if it has visible damage.

3.

Replace the air bag diagnosis sensor unit.

4.

Replace the LH side curtain air bag module.

5.

Replace the related harness.

CURTAIN MODULE LH

[VB-SHORT]

B1151

LH side curtain air bag module (rear) cir-
cuit is shorted to a power supply circuit.

CURTAIN MODULE LH

[GND-SHORT]

B1152

LH side curtain air bag module (rear) cir-
cuit is shorted to ground.

CURTAIN MODULE LH

[SHORT]

B1153

LH side curtain air bag module (rear) cir-
cuits are shorted to each other.

CURTAIN MODULE RH

[OPEN]

B1145

RH side curtain air bag module (rear)
circuit is open.

1.

Visually check the wiring harness connection.

2.

Replace the harness if it has visible damage.

3.

Replace the air bag diagnosis sensor unit.

4.

Replace the RH side curtain air bag module.

5.

Replace the related harness.

CURTAIN MODULE RH

[VB-SHORT]

B1146

RH side curtain air bag module (rear)
circuit is shorted to a power supply cir-
cuit.

CURTAIN MODULE RH

[GND-SHORT]

B1147

RH side curtain air bag module (rear)
circuit is shorted to ground.

CURTAIN MODULE RH

[SHORT]

B1148

RH side curtain air bag module (rear)
circuits are shorted to each other.

CONSULT name

DTC

DTC detecting condition

Repair order

August 2012

2012 Pathfinder















Content      ..     558      559      560      561     ..
