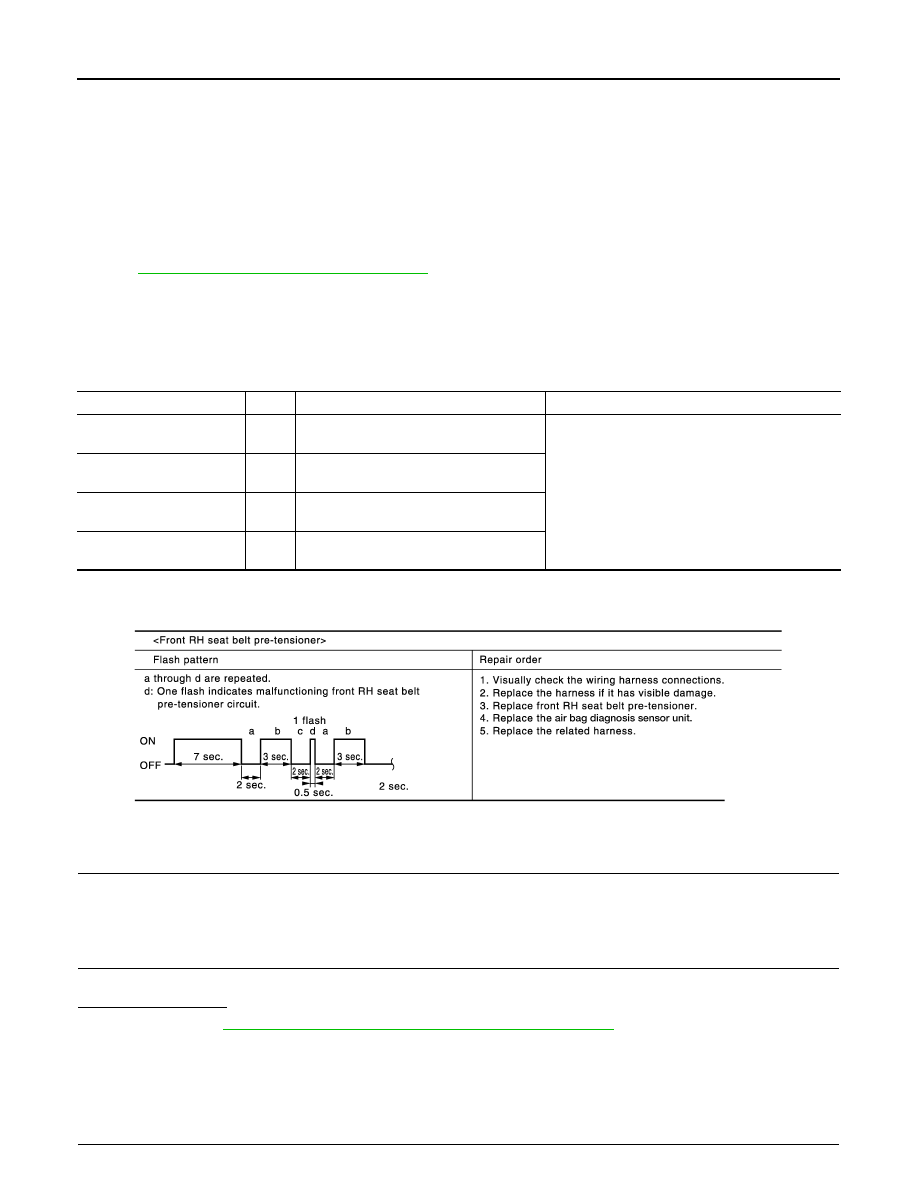

SRC-44

< DTC/CIRCUIT DIAGNOSIS >

B1081 – B1084 SEAT BELT PRE-TENSIONER RH

B1081 – B1084 SEAT BELT PRE-TENSIONER RH

Description

INFOID:0000000007356534

DTC B1081 – B1084 SEAT BELT PRE-TENSIONER RH

The seat belt pre-tensioner RH is wired to the air bag diagnosis sensor unit.  The air bag diagnosis sensor unit

will monitor for opens and shorts in detected lines to the seat belt pre-tensioner RH.

PART LOCATION

Refer to

SRC-7, "SRS Component Parts Location"

.

DTC Logic

INFOID:0000000007356535

DTC DETECTION LOGIC

With CONSULT

Without CONSULT

DTC CONFIRMATION PROCEDURE (With CONSULT)

1.

INSPECTION START

Turn ignition switch ON.

>> GO TO 2.

2.

CHECK SELF-DIAG RESULT

Check for the DTC on CONSULT.
Is the DTC detected?

YES

>> Refer to

SRC-45, "Diagnosis Procedure (Component Diagnosis)"

.

NO

>> Inspection End.

DTC CONFIRMATION PROCEDURE (Without CONSULT)

NOTE:

SRS will not enter diagnosis mode if no malfunction is detected in user mode.

1.

IGNITION SWITCH

CONSULT name

DTC

DTC detecting condition

Repair order

PRE-TEN FRONT RH

[OPEN]

B1081

RH seat belt pre-tensioner circuit is open.

1.

Visually check the wiring harness connection.

2.

Replace the harness if it has visible damage.

3.

Replace the front RH seat belt pre-tensioner.

4.

Replace the air bag diagnosis sensor unit.

5.

Replace the related harness.

PRE-TEN FRONT RH

[VB-SHORT]

B1082

RH seat belt pre-tensioner circuit is short-
ed to a power supply circuit.

PRE-TEN FRONT RH

[GND-SHORT]

B1083

RH seat belt pre-tensioner circuit is short-
ed to ground.

PRE-TEN FRONT RH

[SHORT]

B1084

RH seat belt pre-tensioner circuits are
shorted to each other.

WHIA0262E

August 2012

2012 Pathfinder

B1081 – B1084 SEAT BELT PRE-TENSIONER RH

SRC-45

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

Turn ignition switch ON.

>> GO TO 2

2.

IGNITION SWITCH

After air bag warning lamp lights for 7 seconds, turn ignition switch OFF within 1 second.

>> GO TO 3

3.

WAIT TIME

Wait more than 3 seconds.

>> GO TO 4

4.

REPEAT STEPS

Repeat steps 1 to 3 twice.

>> GO TO 5

5.

IGNITION SWITCH

Turn ignition switch ON.

>> GO TO 6

6.

DIAGNOSTIC MODE

SRS system is now in diagnostic mode and AIR BAG warning lamp flashes. Refer to

SRC-15, "Trouble Diag-

nosis without CONSULT"

.

>>

END

Diagnosis Procedure (Component Diagnosis)

INFOID:0000000007356536

Recheck SRS after each replacement.

1.

HARNESS CONNECTOR

Is there any visible damage to the connector?
YES or NO

YES

>> Replace the harness.

NO

>> GO TO 2

2.

WIRING HARNESS

Is there any visible damage to the harness?
YES or NO

YES

>> Replace the harness.

NO

>> GO TO 3

3.

FRONT RH SEAT BELT PRE-TENSIONER

Replace the front RH seat belt pre-tensioner.  Refer to

SR-15, "Removal and Installation"

.

>> GO TO 4

4.

AIR BAG DIAGNOSIS SENSOR UNIT

Replace the air bag diagnosis sensor unit.  Refer to

SR-16, "Removal and Installation"

.

>> GO TO 5

5.

RELATED HARNESS

August 2012

2012 Pathfinder

SRC-46

< DTC/CIRCUIT DIAGNOSIS >

B1081 – B1084 SEAT BELT PRE-TENSIONER RH

Replace the related harness.

>>

END

August 2012

2012 Pathfinder

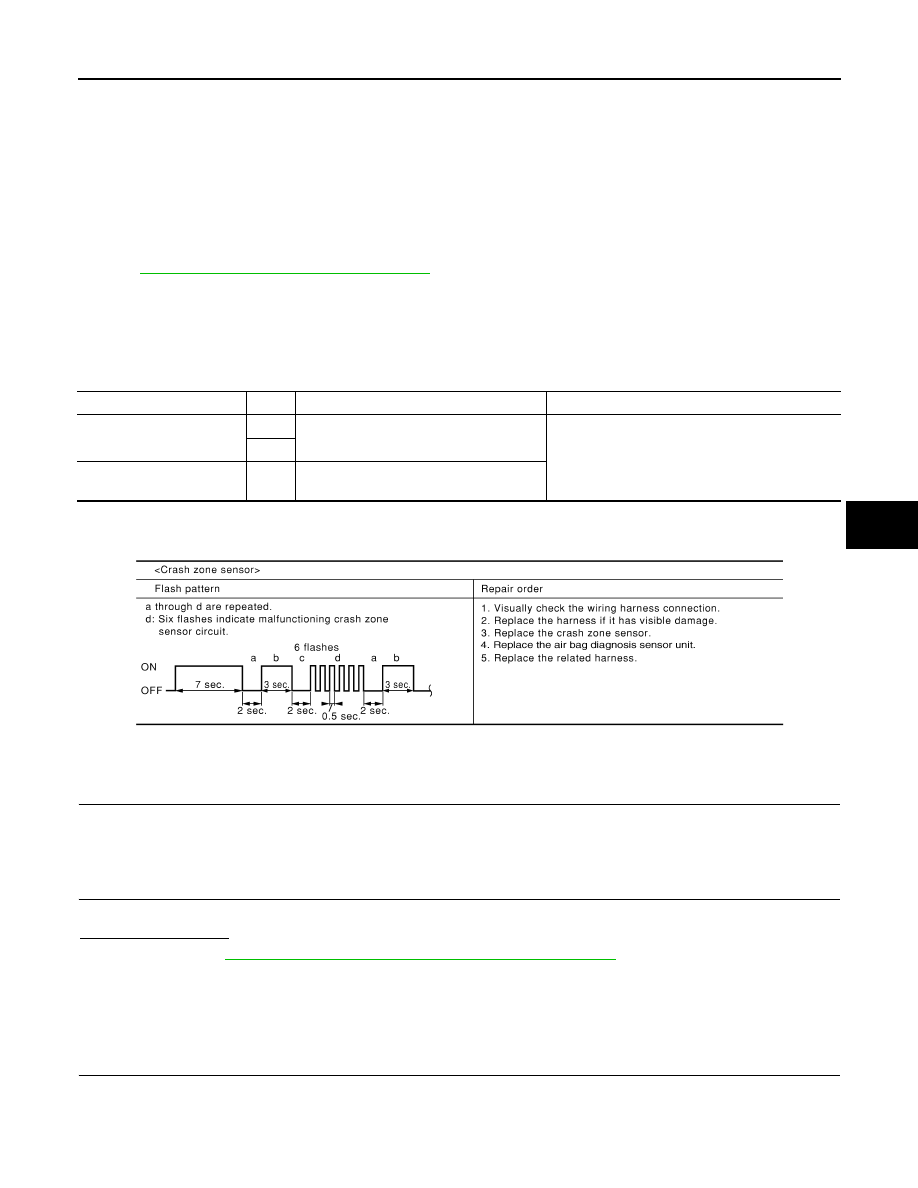

B1033 – B1035 CRASH ZONE SENSOR

SRC-47

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

B1033 – B1035 CRASH ZONE SENSOR

Description

INFOID:0000000007356537

DTC B1033 – B1035 CRASH ZONE SENSOR

The crash zone sensor is wired to the air bag diagnosis sensor unit.  The air bag diagnosis sensor unit will

monitor for opens and shorts in detected lines to the crash zone sensor.

PART LOCATION

Refer to

SRC-7, "SRS Component Parts Location"

.

DTC Logic

INFOID:0000000007356538

DTC DETECTION LOGIC

With CONSULT

Without CONSULT

DTC CONFIRMATION PROCEDURE (With CONSULT)

1.

INSPECTION START

Turn ignition switch ON.

>> GO TO 2.

2.

CHECK SELF-DIAG RESULT

Check for the DTC on CONSULT.
Is the DTC detected?

YES

>> Refer to

SRC-48, "Diagnosis Procedure (Component Diagnosis)"

.

NO

>> Inspection End.

DTC CONFIRMATION PROCEDURE (Without CONSULT)

NOTE:

SRS will not enter diagnosis mode if no malfunction is detected in user mode.

1.

IGNITION SWITCH

Turn ignition switch ON.

>> GO TO 2

CONSULT name

DTC

DTC detecting condition

Repair order

CRASH ZONE SEN

[UNIT FAIL]

B1033 Crash zone sensor has malfunctioned.

1.

Visually check the wiring harness connection.

2.

Replace the harness if it has visible damage.

3.

Replace the crash zone sensor.

4.

Replace the air bag diagnosis sensor unit.

5.

Replace the related harness.

B1034

CRASH ZONE SEN

[COMM FAIL]

B1035

Crash zone sensor communication error.

WHIA0200E

August 2012

2012 Pathfinder

SRC-48

< DTC/CIRCUIT DIAGNOSIS >

B1033 – B1035 CRASH ZONE SENSOR

2.

IGNITION SWITCH

After air bag warning lamp lights for 7 seconds, turn ignition switch OFF within 1 second.

>> GO TO 3

3.

WAIT TIME

Wait more than 3 seconds.

>> GO TO 4

4.

REPEAT STEPS

Repeat steps 1 to 3 twice.

>> GO TO 5

5.

IGNITION SWITCH

Turn ignition switch ON.

>> GO TO 6

6.

DIAGNOSTIC MODE

SRS system is now in diagnostic mode and AIR BAG warning lamp flashes. Refer to

SRC-15, "Trouble Diag-

nosis without CONSULT"

.

>>

END

Diagnosis Procedure (Component Diagnosis)

INFOID:0000000007356539

Recheck SRS after each replacement.

1.

HARNESS CONNECTOR

Is there any visible damage to the connector?
YES or NO

YES

>> Replace the harness.

NO

>> GO TO 2

2.

WIRING HARNESS

Is there any visible damage to the harness?
YES or NO

YES

>> Replace the harness.

NO

>> GO TO 3

3.

CRASH ZONE SENSOR

Replace the crash zone sensor.  Refer to

SR-13, "Removal and Installation"

.

>> GO TO 4

4.

AIR BAG DIAGNOSIS SENSOR UNIT

Replace the air bag diagnosis sensor unit.  Refer to

SR-16, "Removal and Installation"

.

>> GO TO 5

5.

RELATED HARNESS

Replace the related harness.

August 2012

2012 Pathfinder

B1033 – B1035 CRASH ZONE SENSOR

SRC-49

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

>>

END

August 2012

2012 Pathfinder

SRC-50

< DTC/CIRCUIT DIAGNOSIS >

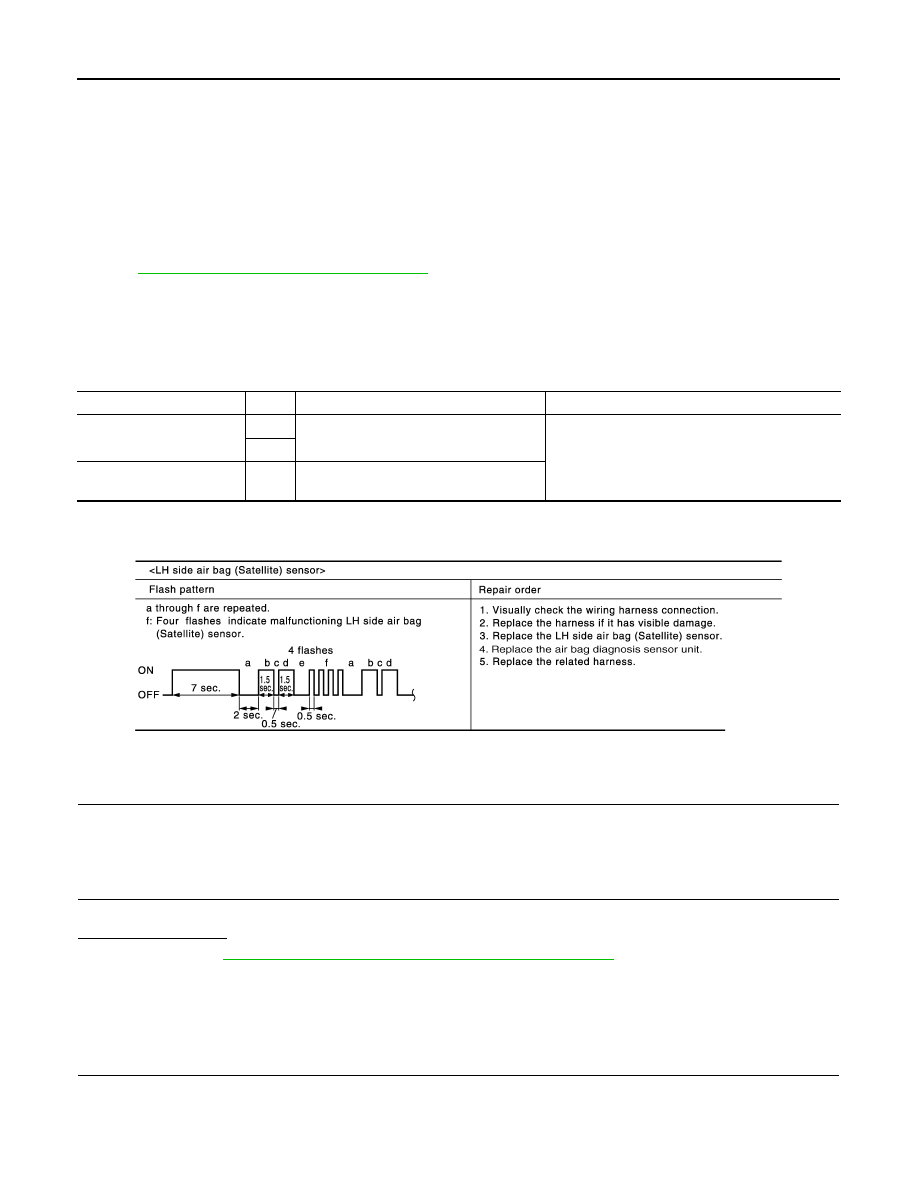

B1118 – B1120 SATELLITE SENSOR LH

B1118 – B1120 SATELLITE SENSOR LH

Description

INFOID:0000000007356540

DTC B1118 – B1120 SATELLITE SENSOR LH

The satellite sensor LH is wired to the air bag diagnosis sensor unit.  The air bag diagnosis sensor unit will

monitor the satellite sensor LH for internal failures and it's circuits for communication errors.

PART LOCATION

Refer to

SRC-7, "SRS Component Parts Location"

.

DTC Logic

INFOID:0000000007356541

DTC DETECTION LOGIC

With CONSULT

Without CONSULT

DTC CONFIRMATION PROCEDURE (With CONSULT)

1.

INSPECTION START

Turn ignition switch ON.

>> GO TO 2.

2.

CHECK SELF-DIAG RESULT

Check for the DTC on CONSULT.
Is the DTC detected?

YES

>> Refer to

SRC-51, "Diagnosis Procedure (Component Diagnosis)"

.

NO

>> Inspection End.

DTC CONFIRMATION PROCEDURE (Without CONSULT)

NOTE:

SRS will not enter diagnosis mode if no malfunction is detected in user mode.

1.

IGNITION SWITCH

Turn ignition switch ON.

>> GO TO 2

CONSULT name

DTC

DTC detecting condition

Repair order

SATELLITE SENS LH

[UNIT FAIL]

B1118 LH side air bag satellite sensor has mal-

functioned.

1.

Visually check the wiring harness connection.

2.

Replace the harness if it has visible damage.

3.

Replace the LH side air bag satellite sensor.

4.

Replace the air bag diagnosis sensor unit.

5.

Replace the related harness.

B1119

SATELLITE SENS LH

[COMM FAIL]

B1120

LH side air bag satellite sensor communi-
cation error.

WHIA0204E

August 2012

2012 Pathfinder

B1118 – B1120 SATELLITE SENSOR LH

SRC-51

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

2.

IGNITION SWITCH

After air bag warning lamp lights for 7 seconds, turn ignition switch OFF within 1 second.

>> GO TO 3

3.

WAIT TIME

Wait more than 3 seconds.

>> GO TO 4

4.

REPEAT STEPS

Repeat steps 1 to 3 twice.

>> GO TO 5

5.

IGNITION SWITCH

Turn ignition switch ON.

>> GO TO 6

6.

DIAGNOSTIC MODE

SRS system is now in diagnostic mode and AIR BAG warning lamp flashes. Refer to

SRC-15, "Trouble Diag-

nosis without CONSULT"

.

>>

END

Diagnosis Procedure (Component Diagnosis)

INFOID:0000000007356542

Recheck SRS after each replacement.

1.

HARNESS CONNECTOR

Is there any visible damage to the connector?
YES or NO

YES

>> Replace the harness.

NO

>> GO TO 2

2.

WIRING HARNESS

Is there any visible damage to the harness?
YES or NO

YES

>> Replace the harness.

NO

>> GO TO 3

3.

LH SIDE AIR BAG SATELLITE SENSOR

Replace the LH side air bag satellite sensor.  Refer to

SR-14, "Removal and Installation"

.

>> GO TO 4

4.

AIR BAG DIAGNOSIS SENSOR UNIT

Replace the air bag diagnosis sensor unit.  Refer to

SR-16, "Removal and Installation"

.

>> GO TO 5

5.

RELATED HARNESS

Replace the related harness.
