SIDE CURTAIN AIR BAG MODULE

SIDE CURTAIN AIR BAG MODULE

Removal and Installation

INFOID:0000000007356478

REMOVAL

CAUTION:

• Do not attempt to repair or replace damaged direct-connect SRS component connectors. If a direct-

connect harness connector is damaged, the harness must be replaced.

• Before servicing the SRS, turn the ignition switch off, disconnect both battery terminals and wait at

least 3 minutes.

• When servicing the SRS, do not work from directly in front of air bag module.

1. Remove headlining. Refer to

INT-22, "Removal and Installation"

.

2. Disconnect front and rear side curtain air bag module connectors.

• For removal/installation of the direct-connect SRS connectors, refer to

SRC-9, "Direct-connect SRS

Component Connectors"

.

3. Remove the bolts in order starting at the front, and remove the side curtain air bag module.

CAUTION:

• When servicing the SRS, do not work from directly in front of air bag module.

• Do not insert any foreign objects (screwdriver, etc.) into air bag module or harness connectors.

• Do not disassemble air bag module.

• Do not expose the air bag module to temperatures exceeding 90

°

C (194

°

F).

• Replace side curtain air bag module if it has been dropped or

sustained an impact.

• Do not allow oil, grease or water to come in contact with the

air bag module.

INSTALLATION

Installation is in the reverse order of removal.

• For removal/installation of the direct-connect SRS connectors, refer to

SRC-9, "Direct-connect SRS Compo-

nent Connectors"

.

• After replacement of side curtain air bag module, perform self-diagnosis to check that no malfunction is

detected. Refer to

SRC-13, "SRS Operation Check"

.

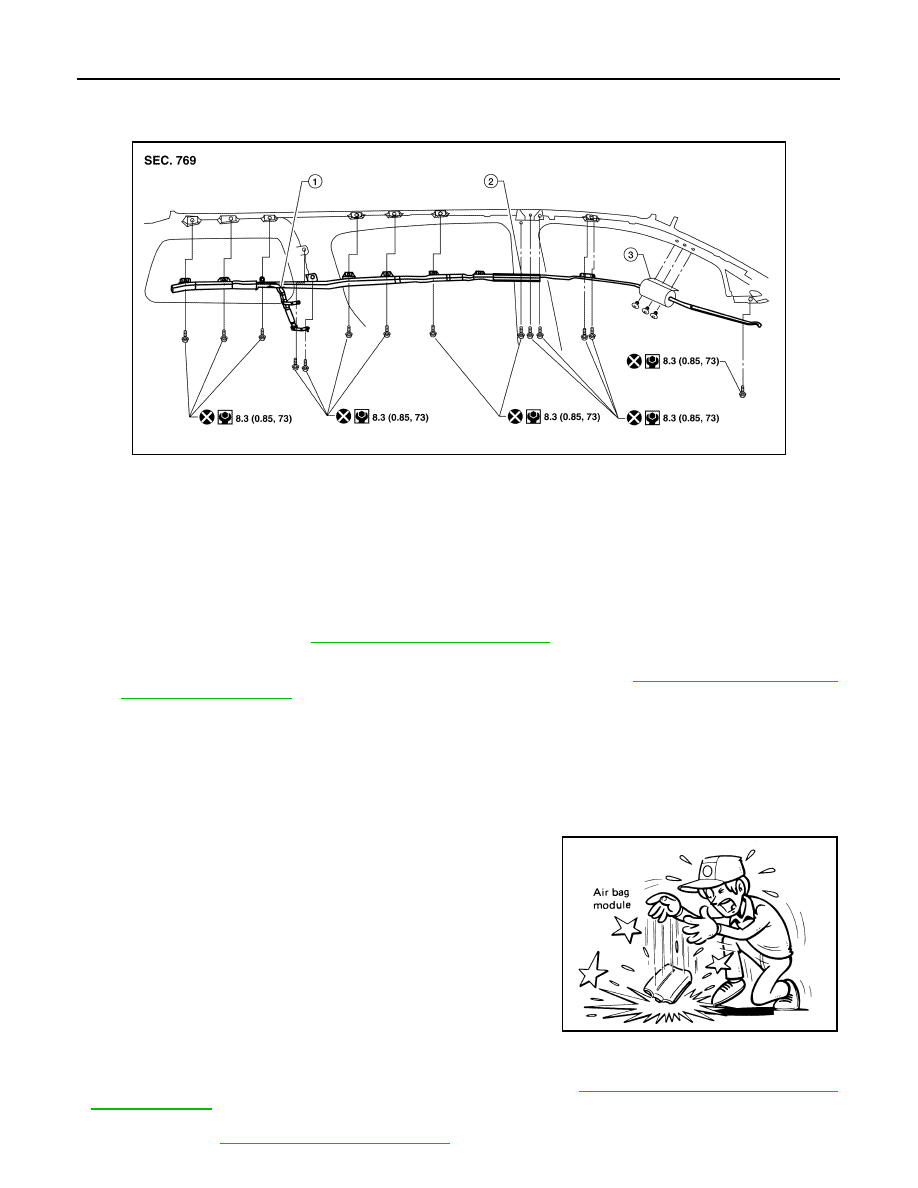

WHIA0299E

1.

Rear side curtain air bag module

2.

Front side curtain air bag module

3.

Sail panel extrusion

SBF814E

August 2012

2012 Pathfinder

CRASH ZONE SENSOR

SR-13

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

CRASH ZONE SENSOR

Removal and Installation

INFOID:0000000007356479

REMOVAL

CAUTION:

• Before servicing the SRS, turn the ignition switch off, disconnect both battery terminals and wait at

least three minutes.

1. Disconnect the negative and positive battery terminals, then wait at least three minutes.
2. Remove crash zone sensor nuts and shield from support mem-

ber.

3. Disconnect the crash zone sensor harness connector.
4. Remove crash zone sensor.

CAUTION:

• Replace crash zone sensor if it has been dropped or sustained an impact.

• Do not disassemble crash zone sensor.

INSTALLATION

Installation is in the reverse order of removal.

• After the work is complete, perform self-diagnosis to check that no malfunction is detected. Refer to

SRC-13,

"SRS Operation Check"

.

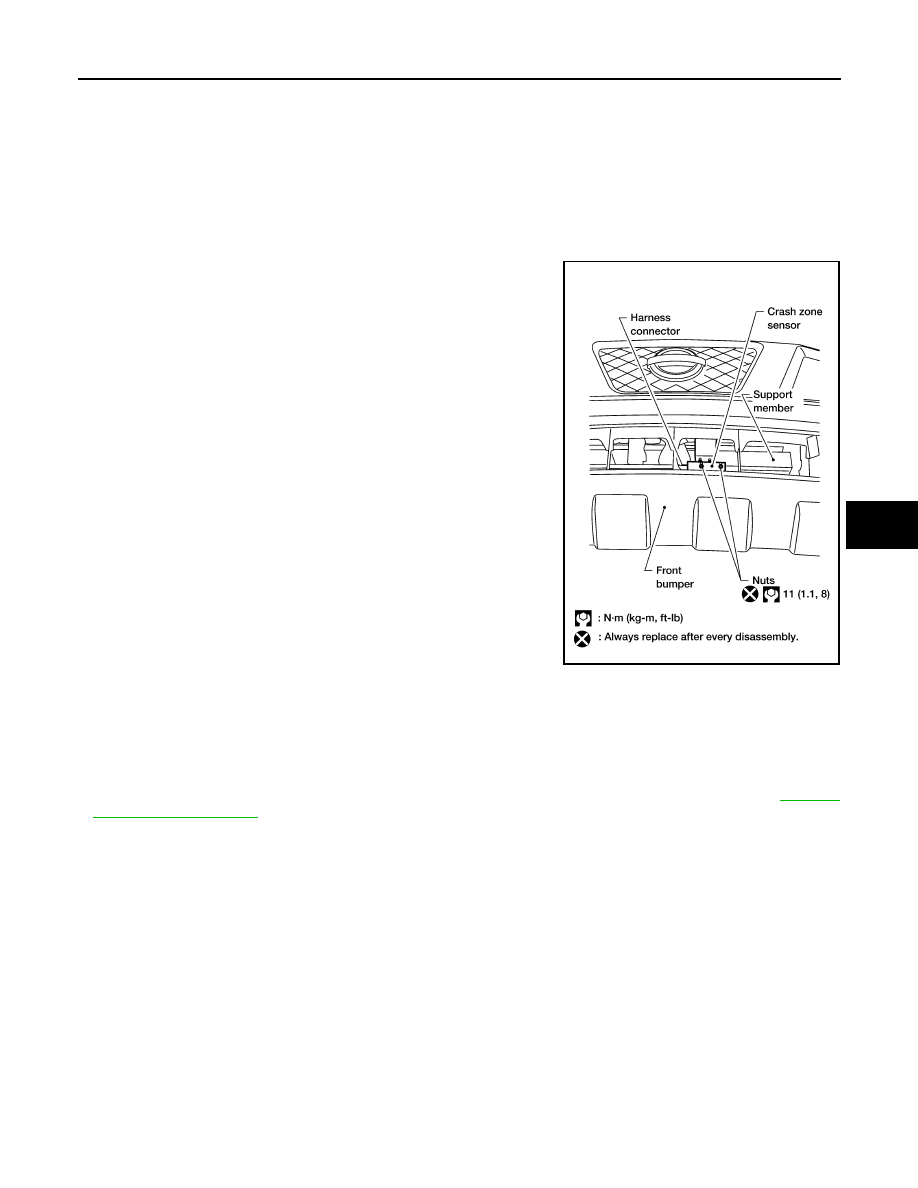

LHIA0090E

August 2012

2012 Pathfinder

SR-14

< REMOVAL AND INSTALLATION >

SIDE AIR BAG (SATELLITE) SENSOR

SIDE AIR BAG (SATELLITE) SENSOR

Removal and Installation

INFOID:0000000007356480

REMOVAL

CAUTION:

• Before servicing the SRS, turn the ignition switch off, disconnect both battery terminals and wait at

least three minutes.

• Do not disassemble side air bag (satellite) sensor.

• Replace side air bag (satellite) sensor if it has been dropped or sustained an impact.

1. Disconnect the negative and positive battery terminals, then wait at least three minutes.
2. Remove front door sill finisher and lift carpet.
3. Remove side air bag (satellite) sensor nuts and release the clip.
4. Disconnect the side air bag (satellite) sensor connector.

INSTALLATION

Installation is in the reverse order of removal.

• After the work is completed, perform self-diagnosis to check that no malfunction is detected. Refer to

SRC-

13, "SRS Operation Check"

.

CAUTION:

• Do not use old nuts after removal; replace with new nuts.

• Check side air bag (satellite) sensor to ensure it is free of deformities, dents, cracks or rust. If it

shows any visible signs of damage, replace it with new one.

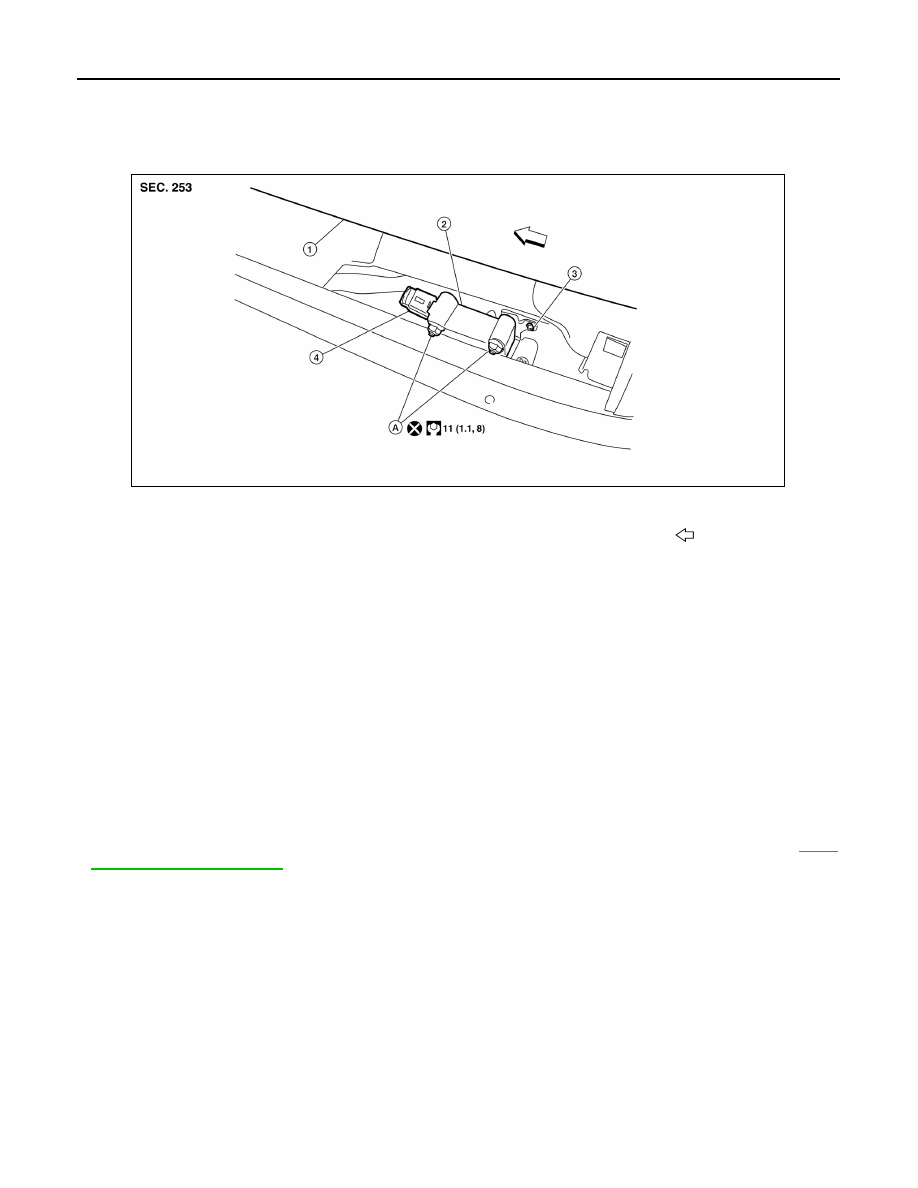

1.

Front seat finisher

2.

Side air bag (satellite) sensor

3.

Clip

4.

Side air bag (Satellite) sensor connector

A.

Nuts

Vehicle front

AWHIA0284GB

August 2012

2012 Pathfinder

FRONT SEAT BELT PRE-TENSIONER

SR-15

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

FRONT SEAT BELT PRE-TENSIONER

Removal and Installation

INFOID:0000000007356481

For removal and installation procedures, refer to

SB-4, "Removal and Installation of Front Seat Belt"

.

August 2012

2012 Pathfinder

SR-16

< REMOVAL AND INSTALLATION >

DIAGNOSIS SENSOR UNIT

DIAGNOSIS SENSOR UNIT

Removal and Installation

INFOID:0000000007356482

REMOVAL

CAUTION:

• Before servicing the SRS, turn the ignition switch off, disconnect both battery terminals and wait at

least three minutes.

• Do not use old bolts; replace with new bolts.

• Check diagnosis sensor unit bracket to make sure it is free of deformities, dents, cracks or rust. If it

shows any visible signs of damage, replace with new one.

• Replace diagnosis sensor unit if it has been dropped or sustained an impact.

• Never use air tools or electric tools for servicing.

• When replacing the air bag diagnosis sensor unit, always check with the parts department for the lat-

est parts information. Installing an incorrect air bag diagnosis sensor unit may or may not cause the

air bag warning lamp to illuminate and may cause incorrect deployment of the supplemental air bags

and seat belt pre-tensioner in a collision resulting in serious personal injury or death.

1. Always check the air bag diagnosis sensor unit ECU discriminated number (identification number) or part

number using CONSULT.

2. Disconnect the negative and positive battery terminals, then wait at least three minutes.
3. Disconnect the harness connectors for the following SRS components. Refer to

SE-41, "Seatback

Assembly"

 (Side Air Bag Module),

SR-12, "Removal and Installation"

 (Side Curtain Air Bag Module),

SB-

4, "Removal and Installation of Front Seat Belt"

 (Seat Belt Pretensioner).

4. Remove center console. Refer to

IP-22, "Removal and Installation"

.

5. Disconnect diagnosis sensor unit harness connectors.
6. Remove bolts from the diagnosis sensor unit.

INSTALLATION

Installation is in the reverse order of removal.

• Always follow the tightening sequence shown.

• After the work is completed, perform self-diagnosis to check that no malfunction is detected. Refer to

SRC-

13, "SRS Operation Check"

.

CAUTION:

• Do not use old bolts, replace with new bolts.

• Check diagnosis sensor unit bracket to ensure it is free of deformities, dents, cracks or rust. If it

shows any visible signs of damage, replace with new one.

• The diagnosis sensor unit must always be installed with the arrow mark "

⇐

" pointing toward the

front of the vehicle for proper operation.

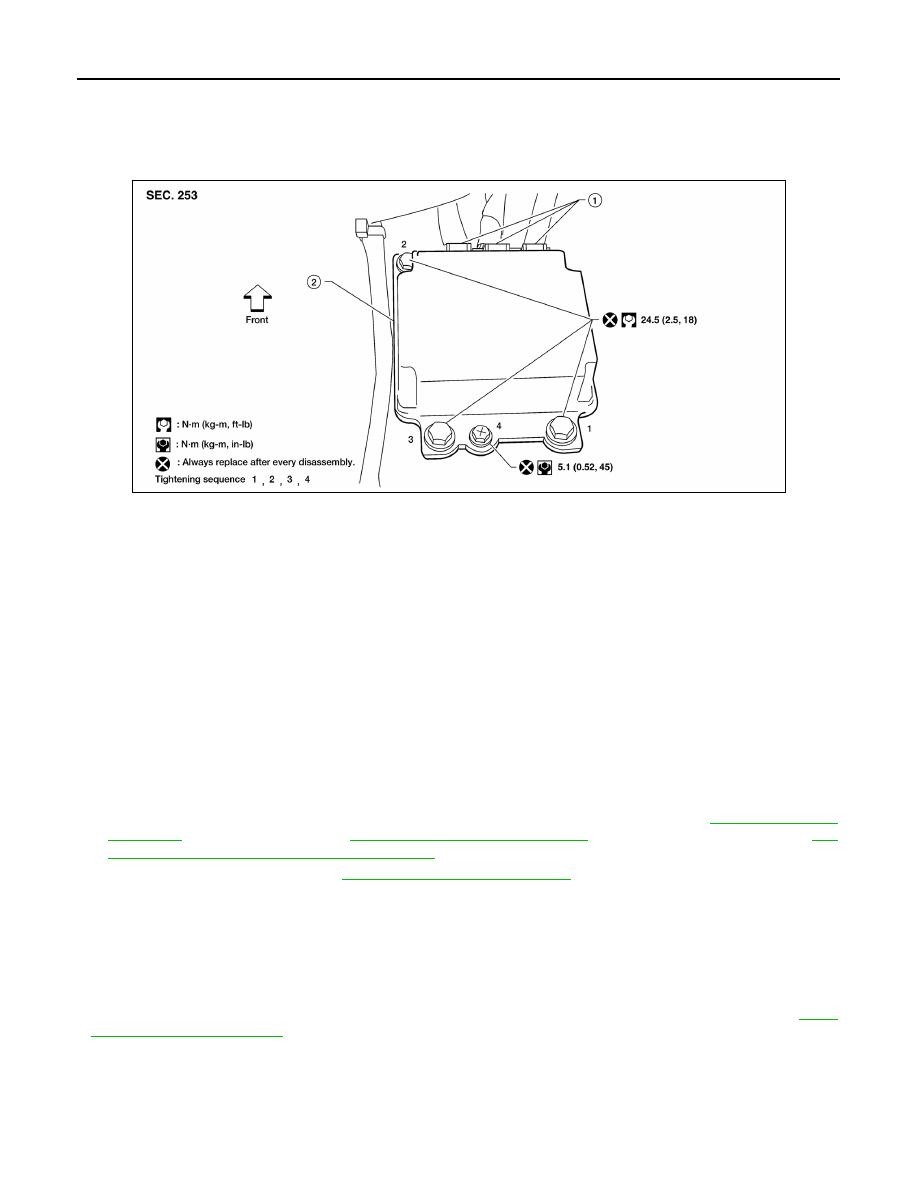

AWHIA0283GB

1.

Diagnosis sensor unit connectors

2.

Diagnosis sensor unit

August 2012

2012 Pathfinder

DIAGNOSIS SENSOR UNIT

SR-17

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

• When installing diagnosis sensor unit bolt, use proper tightening sequence.

• Never damage the harness while installing.

• If malfunction is detected by the air bag warning lamp after repair or replacement of the malfunction-

ing parts, reset the memory using self-diagnosis or CONSULT. Refer to

SRC-15, "Self-Diagnosis

Function (Without CONSULT)"

.

• After the work is completed, check that no system malfunction is detected by air bag warning lamp.

• After replacing the air bag diagnosis sensor unit, confirm using CONSULT that the ECU discrimi-

nated number (identification number) or part number of the new replacement air bag diagnosis sen-

sor unit matches the ECU discriminated number (identification number) or part number of the

replaced (old) air bag diagnosis sensor unit.

NOTE:

If the ECU discriminated number or part number of the new replacement air bag diagnosis sensor unit differs

from the ECU discriminated number or part number of the replaced air bag diagnosis sensor unit, reconfirm

the parts information and verify that the correct air bag diagnosis sensor unit was installed.

August 2012

2012 Pathfinder

SR-18

< REMOVAL AND INSTALLATION >

OCCUPANT CLASSIFICATION SYSTEM CONTROL UNIT

OCCUPANT CLASSIFICATION SYSTEM CONTROL UNIT

Removal and Installation

INFOID:0000000007356483

The occupant classification control unit, occupant classification (pressure) sensor, and bladder are an integral

part of the front passenger seat cushion and are replaced as an assembly. Refer to

SE-33, "Removal and

Installation"

 to remove the seat, and

SE-45, "Seat Cushion Trim and Pad"

 to replace the seat cushion.

August 2012

2012 Pathfinder

COLLISION DIAGNOSIS

SR-19

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

COLLISION DIAGNOSIS

For Frontal Collision

INFOID:0000000007356484

FOR FRONTAL COLLISION: When SRS is activated in a collision

CAUTION:

Due to varying models and option levels, not all parts listed in the chart below apply to all vehicles.

WORK PROCEDURE

1. Before performing any of the following steps, ensure that all vehicle body and structural repairs have been

completed.

2. Replace the diagnosis sensor unit.

3. Remove the front air bag modules, crash zone sensor assembly, bracket and seat belt pre-tensioner

assemblies.

4. Check the SRS components using the table below:

Replace any SRS components showing visible signs of damage. (dents, cracks and deformation, etc.)

5. Install new front air bag modules, crash zone sensor assembly, bracket and seat belt pre-tensioner

assemblies.

6. Perform self-diagnosis using CONSULT or air bag warning lamp. Refer to

SRC-15, "Trouble Diagnosis

without CONSULT"

 for details.

Ensure entire SRS operates properly.

7. After the work is completed, perform self-diagnosis to check that no malfunction is detected. Refer to

SRC-13, "SRS Operation Check"

.

SRS INSPECTION (FOR FRONTAL COLLISION)

Part

Inspection

Driver air bag module

If the driver air bag has deployed:
REPLACE
Install with new fasteners.

Front passenger air bag module
(if equipped)

If the front passenger air bag has deployed:
REPLACE
Install with new fasteners.

Crash zone sensor

If any of the front air bags or seat belt pre-tensioners* have been activated:
REPLACE the crash zone sensor and bracket with new fasteners.
*: Confirm seat belt pre-tensioner activation using CONSULT only.

Seat belt pre-tensioner assem-
blies
(All applicable locations: buckle,
retractor, lap outer)

If either the driver or passenger seat belt pre-tensioner* has been activated:
REPLACE all seat belt pre-tensioner assemblies with new fasteners.
*: Confirm seat belt pre-tensioner activation using CONSULT only.

Diagnosis sensor unit

If any of the SRS components have been activated:
REPLACE the diagnosis sensor unit.
Install with new fasteners.

Steering wheel

1.

Visually check steering wheel for deformities.

2.

Check harness (built into steering wheel) and connectors for damage, and terminals for defor-
mities.

3.

Install driver air bag module into the steering wheel to check fit and alignment with the wheel.

4.

Check steering wheel for excessive free play.

5.

If no damage is found, reinstall.

6.

If damaged—REPLACE.

Spiral cable

If the driver front air bag has deployed:
REPLACE the spiral cable.

Occupant classification system
(Passenger seat)

1.

Remove passenger seat assembly.

2.

Check control unit case for dents, cracks of deformities.

3.

Check connectors and pressure sensor tube for damage, and terminals for deformities.

4.

Check seat frame and cushion pan for dents or deformities.

5.

If no damage is found, reinstall seat with new fasteners.

6.

If damaged — REPLACE seat cushion assembly with new fasteners.
