SR-4

< PREPARATION >

PREPARATION

PREPARATION

Special Service Tool

INFOID:0000000007356474

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Tool number
(Kent-Moore No.)
Tool name

Description

—

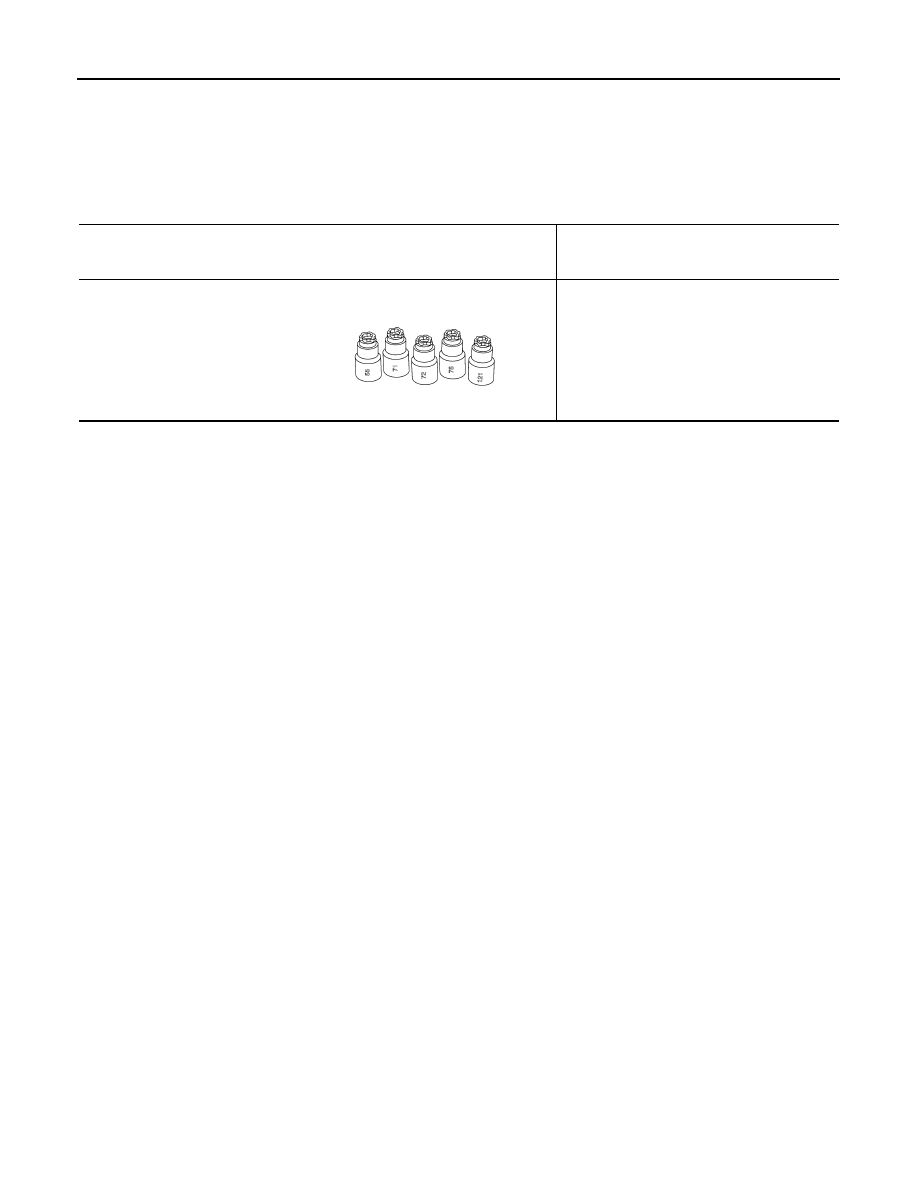

(J-42057-UPD)
Air bag key set
Part of kit (J-42057)

Removing and installing air bag lock

LRS210

August 2012

2012 Pathfinder

DRIVER AIR BAG MODULE

SR-5

< REMOVAL AND INSTALLATION >

REMOVAL AND INSTALLATION

DRIVER AIR BAG MODULE

Removal and Installation

INFOID:0000000007356475

REMOVAL

CAUTION:

• Do not attempt to repair or replace damaged direct-connect SRS component connectors. If a driver

air bag direct-connect harness connector is damaged, the spiral cable must be replaced.

• Before servicing the SRS, turn ignition switch OFF, disconnect both battery terminals and wait at

least three minutes.

• When servicing the SRS, do not work from directly in front of air bag module.

1. Disconnect the negative and positive battery terminals, then wait at least three minutes.
2. Locate retaining clip access hole and insert suitable 4mm - 6mm blunt tool.

NOTE:

Do not use sharp edged objects such as screwdrivers to release driver air bag module from steering

wheel, SRS components may be unintentionally damaged.

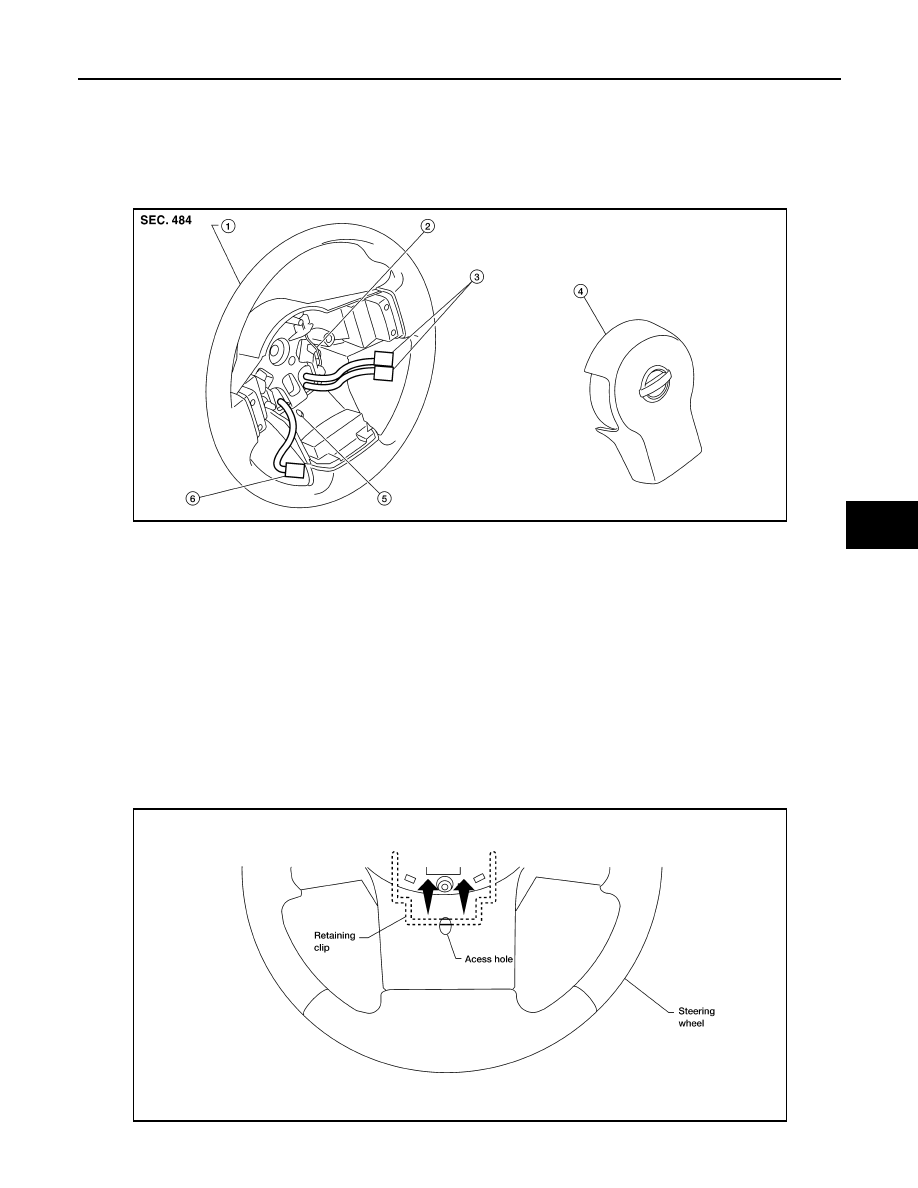

Steering wheel

Retaining clip

Driver air bag module connectors

Driver air bag module

Retaining clip access hole

Horn connector

LHIA0084E

LHIA0085E

August 2012

2012 Pathfinder

SR-6

< REMOVAL AND INSTALLATION >

DRIVER AIR BAG MODULE

3. Press upward (toward center of steering wheel) on retaining clip until driver air bag module is released

from steering wheel.

4. Lift the driver air bag module from the steering wheel.
5. Disconnect the driver air bag module and horn connectors, then remove the driver air bag module.

• For removal/installation of the direct-connect SRS connectors, refer to

SRC-9, "Direct-connect SRS

Component Connectors"

CAUTION:

• When servicing the SRS, do not work from directly in front of air bag module.

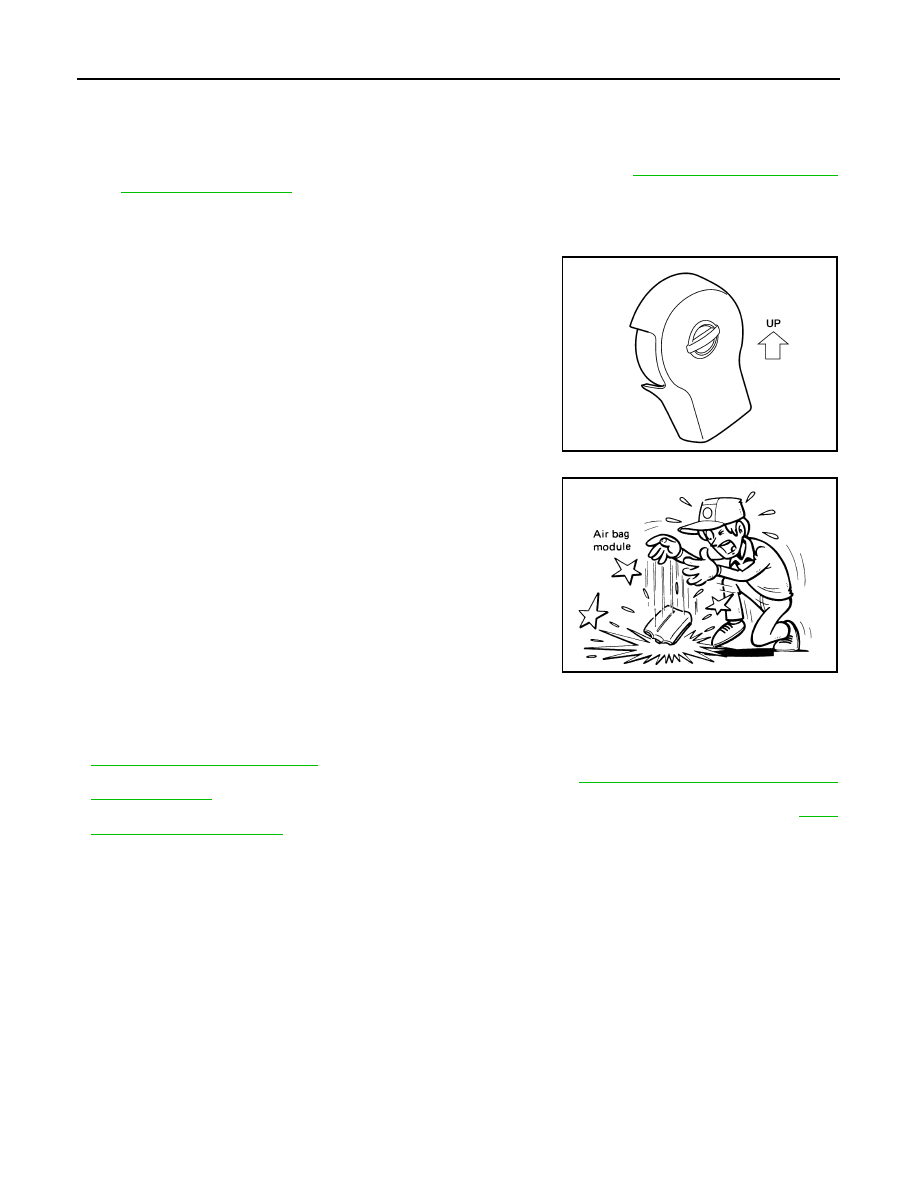

• Always place air bag module with pad side facing upward.

• Do not insert any foreign objects (screwdriver, etc.) into air

bag module or connectors.

• Do not disassemble air bag module.

• Do not expose the air bag module to temperatures exceeding

C (194

F).

• Replace the air bag module if it has been dropped or sus-

tained an impact.

• Do not allow oil, grease or water to come in contact with the

air bag module.

INSTALLATION

Installation is in the reverse order of installation.

• If driver air bag module is being replaced due to deployment, spiral cable must also be replaced. Refer to

SR-7, "Removal and Installation"

• For removal/installation of the direct-connect SRS connectors, refer to

SRC-9, "Direct-connect SRS Compo-

nent Connectors"

• After the work is completed, perform self-diagnosis to check that no malfunction is detected. Refer to

SRC-

13, "SRS Operation Check"

LHIA0086E

SBF814E

August 2012

2012 Pathfinder

SPIRAL CABLE

SR-7

< REMOVAL AND INSTALLATION >

SPIRAL CABLE

Removal and Installation

INFOID:0000000007356476

REMOVAL

CAUTION:

• Before servicing the SRS, turn ignition switch OFF, disconnect both battery terminals and wait at

least three minutes.

• When servicing the SRS, do not work from directly in front of air bag module.

1. Disconnect the negative and positive battery terminals, then wait at least three minutes.
2. Set the front wheels in the straight-ahead position.
3. Remove the steering wheel. Refer to

ST-20, "Removal and Installation"

4. Remove the steering column upper and lower covers.

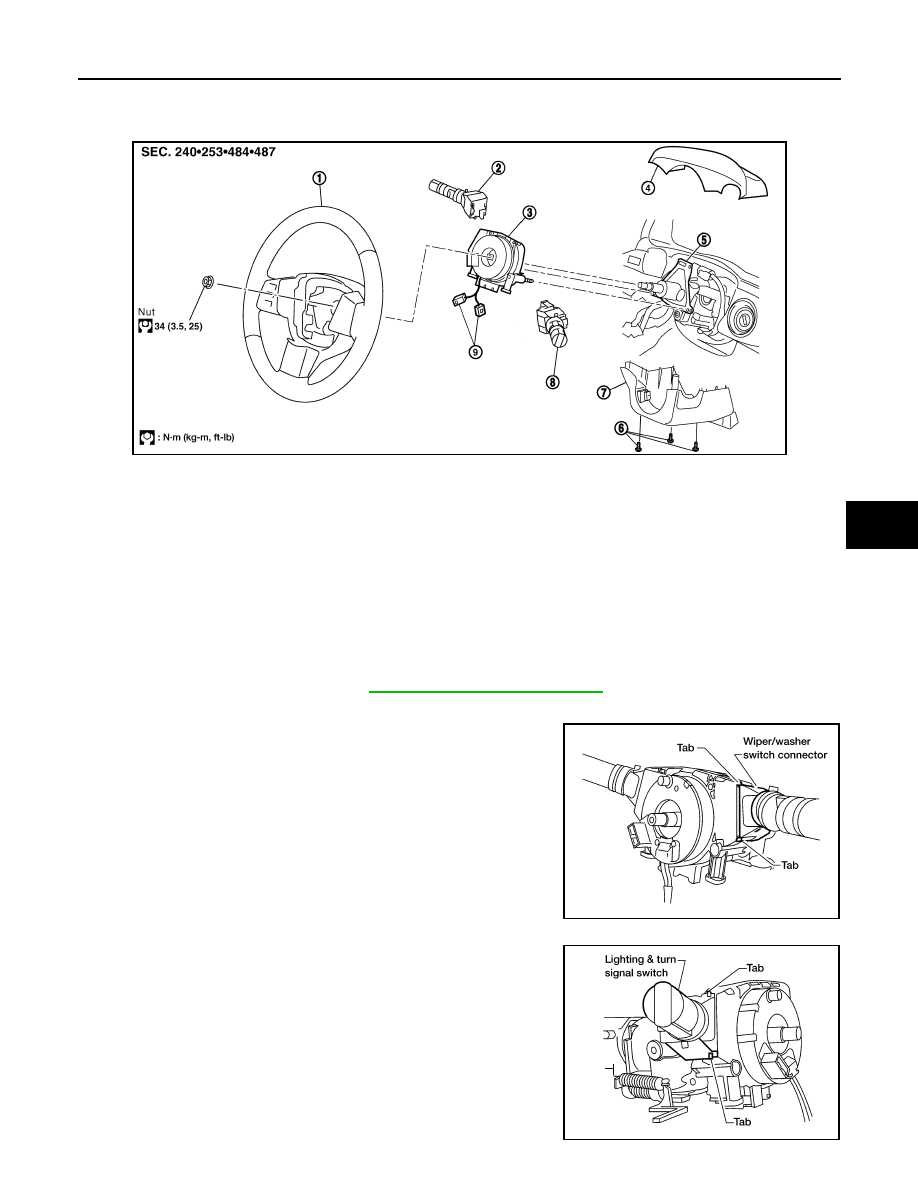

5. Disconnect wiper and washer switch connector. Then while

pressing tabs, pull wiper and washer switch away from spiral

cable to remove.

6. Disconnect lighting and turn signal switch connector. Then while

pressing tabs, pull lighting and turn signal switch toward driver

door to remove.

LHIA0087E

Steering wheel

Lighting and turn signal switch

Spiral cable

Steering column upper cover

Steering column assembly

Screw

Steering column lower cover

Wiper and washer switch

Driver air bag module connectors

LHIA0034E

LHIA0035E

August 2012

2012 Pathfinder

SR-8

< REMOVAL AND INSTALLATION >

SPIRAL CABLE

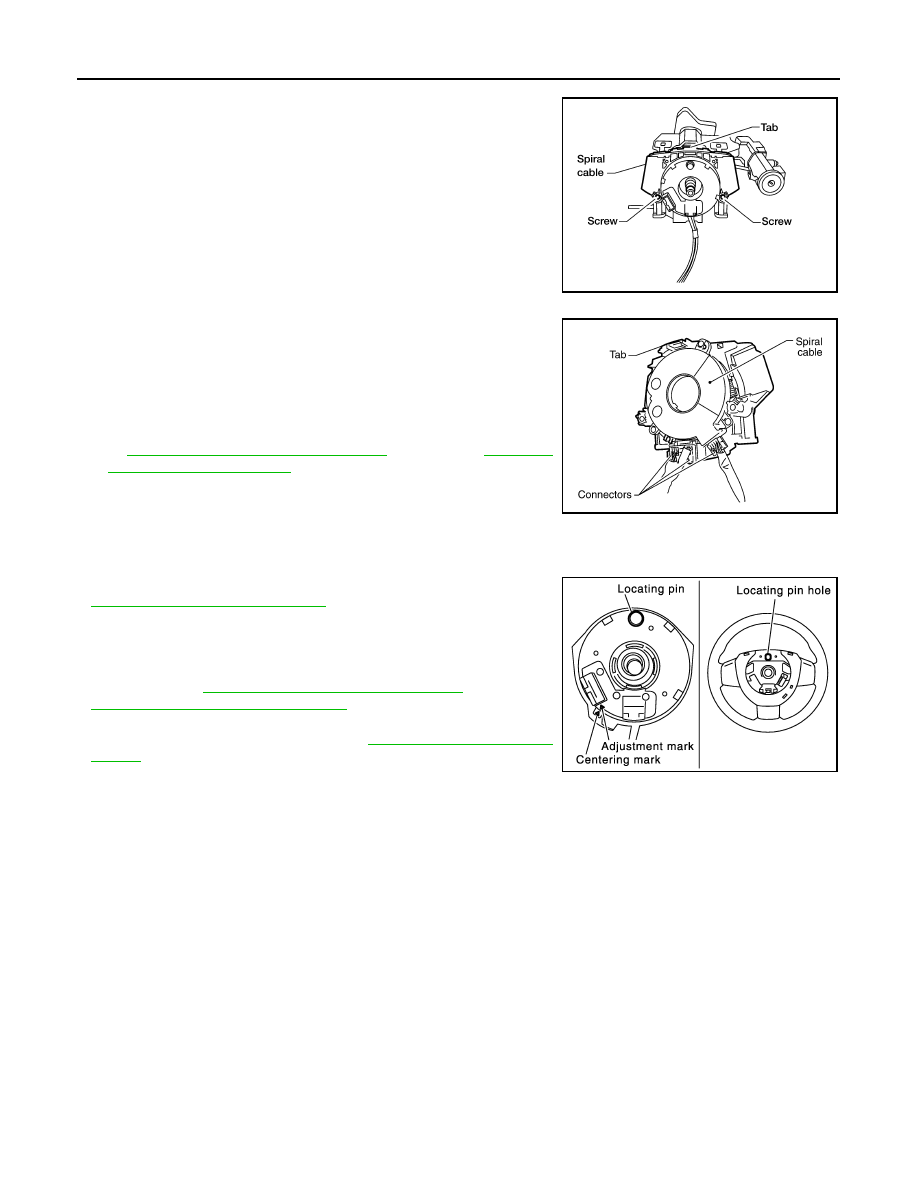

7. Remove the screws. Then while pressing the tab, pull the spiral

cable away from steering column assembly.

CAUTION:

• Do not disassemble spiral cable.

• Do not apply lubricant to the spiral cable.

8. Disconnect the spiral cable connectors.

CAUTION:

With the steering linkage disconnected, the spiral cable

may snap by turning the steering wheel beyond the limited

number of turns. The spiral cable can be turned counter-

clockwise about 2.5 turns from the neutral position.

9. Remove the steering angle sensor from the spiral cable. Refer

BRC-114, "Removal and Installation"

(Type 1), or

BRC-233,

"Removal and Installation"

(Type 2).

INSTALLATION

Installation is in the reverse order of removal.

• Align spiral cable correctly when installing steering wheel, refer to

ST-20, "Removal and Installation"

. Make sure that the spiral cable

is in the neutral position. The neutral position is detected by turning

left 2.5 revolutions from the right end position and ending with the

locating pin at the top.

• Reset the steering angle sensor calibration after installing spiral

cable. Refer to

BRC-114, "Removal and Installation"

(Type 1), or

BRC-233, "Removal and Installation"

(Type 2).

• After the work is completed, perform self-diagnosis to make sure

no malfunction is detected. Refer to

SRC-13, "SRS Operation

Check"

CAUTION:

• The spiral cable may snap due to steering operation if the cable is not installed in the correct posi-

tion.

• With the steering linkage disconnected, the cable may snap by turning the steering wheel beyond

the limited number of turns. The spiral cable can be turned counterclockwise about 2.5 turns from

the neutral position.

LHIA0036E

LHIA0088E

PHIA0275E

August 2012

2012 Pathfinder

FRONT PASSENGER AIR BAG MODULE

SR-9

< REMOVAL AND INSTALLATION >

FRONT PASSENGER AIR BAG MODULE

Removal and Installation

INFOID:0000000007356477

The passenger air bag module originally installed in the vehicle uses direct-connect style harness connectors.

Service replacement passenger air bag modules use tab-locking style harness connectors. If the passenger

air bag module is replaced or if the direct-connect harness connectors are damaged, the vehicle wiring har-

ness must be modified to allow connection of the service replacement passenger air bag module. Follow the

"WIRING HARNESS MODIFICATION" procedure.

REMOVAL

CAUTION:

• Do not attempt to repair or replace damaged direct-connect front passenger air bag module connec-

tors. If a direct-connect harness connector is damaged, the front passenger air bag must be

replaced and the wiring harness modified.

• Before servicing SRS, turn the ignition switch off, disconnect both battery terminals and wait at least

three minutes.

• Always work from the side of or under front passenger air bag module.

1. Disconnect the negative and positive battery terminals, then wait at least three minutes.
2. Remove the upper glove box. Refer to

IP-19, "Removal and Installation"

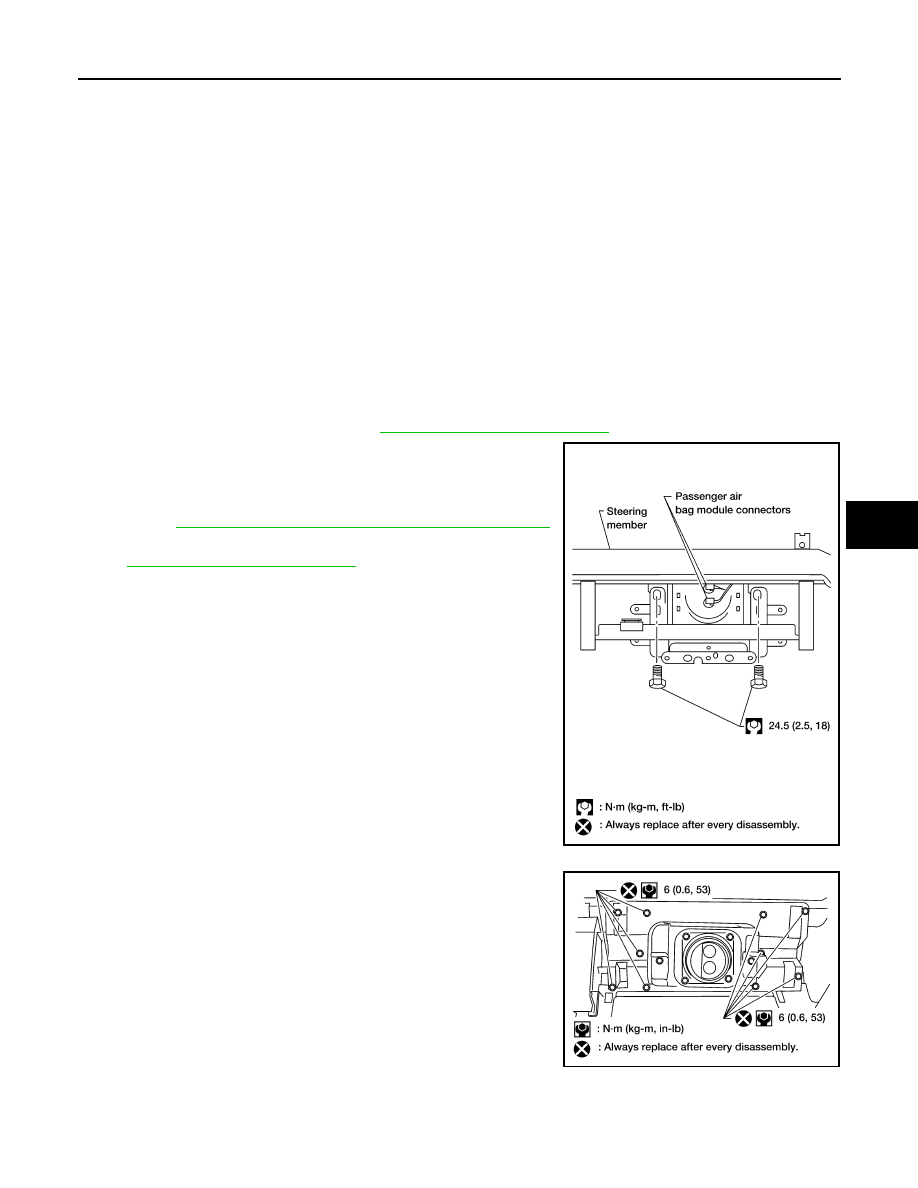

3. Remove two bolts (through glove box opening) retaining front

passenger air bag module to the steering member.

4. Disconnect the passenger air bag module connectors.

• For removal/installation of the direct-connect SRS connectors,

refer to

SRC-9, "Direct-connect SRS Component Connectors"

5. Remove the instrument panel assembly from the vehicle. Refer

IP-12, "Removal and Installation"

6. Remove front passenger air bag module screws then remove

passenger air bag module from instrument panel assembly.

CAUTION:

LHIA0093E

WHIA0269E

August 2012

2012 Pathfinder

SR-10

< REMOVAL AND INSTALLATION >

FRONT PASSENGER AIR BAG MODULE

• When servicing the SRS, do not work from directly in front of

air bag module.

• Always place front passenger air bag module with caution

label side facing upward.

• Do not insert any foreign objects (screwdriver, etc.) into air

bag module or harness connectors.

• Do not disassemble air bag module.

• Do not use old nuts after removal; replace with new nuts.

• Do not expose the front passenger air bag module to tempera-

tures exceeding 90

C (194

F).

• Replace the air bag module if it has been dropped or sus-

tained an impact.

• Do not allow oil, grease or water to come in contact with the

air bag module.

• For removal/installation of the direct-connect SRS connec-

tors, refer to

SRC-9, "Direct-connect SRS Component Con-

nectors"

INSTALLATION

Original Passenger Air Bag Module

Installation is in the reverse order of removal.

• For removal/installation of the direct-connect SRS connectors, refer to

SRC-9, "Direct-connect SRS Compo-

nent Connectors"

CAUTION:

• Always work from the side of or under front passenger air bag module.

• After the work is completed, perform self-diagnosis to check that no malfunction is detected. Refer

SRC-13, "SRS Operation Check"

Service Replacement Passenger Air Bag Module

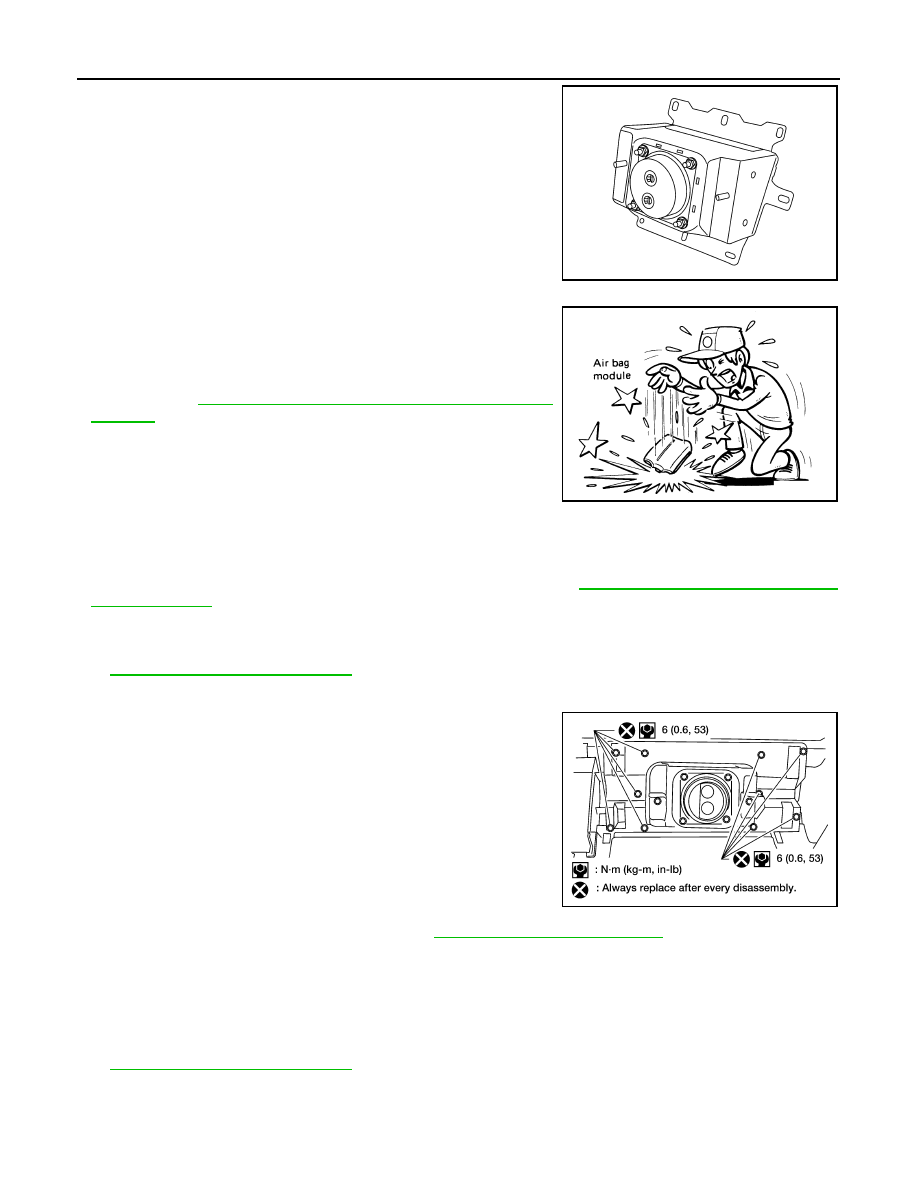

1. Install the front passenger air bag module to the instrument

panel pad assembly.

2. Install the instrument panel assembly. Refer to

IP-12, "Removal and Installation"

3. Connect the front passenger air bag module harness connector to yellow 4-pin service replacement air

bag connector and fasten connector to mounting bracket.

CAUTION:

• Always work from the side of or under front passenger air bag module.

• After the work is completed, perform self-diagnosis to check that no malfunction is detected. Refer

SRC-13, "SRS Operation Check"

WIRING HARNESS MODIFICATION

The passenger air bag module originally installed in the vehicle uses direct-connect style harness connectors.

Service replacement passenger air bag modules use tab-locking style harness connectors. If the passenger

WHIA0111E

SBF814E

WHIA0269E

August 2012

2012 Pathfinder

FRONT PASSENGER AIR BAG MODULE

SR-11

< REMOVAL AND INSTALLATION >

air bag module is replaced or if the direct-connect harness connectors are damaged, the vehicle wiring har-

ness must be modified to allow connection of the service replacement passenger air bag module.

NOTE:

The wiring harness modification is to be performed only if the vehicle is equipped with the original passenger

air bag which uses direct-connect harness connectors. If the passenger air bag is to be replaced in a vehicle

that has already had the service replacement passenger air bag installed, the wiring harness modification is

not required.

CAUTION:

• Do not attempt to repair or replace damaged direct-connect front passenger air bag module connec-

tors. If a direct-connect harness connector is damaged, the front passenger air bag must be

replaced and the wiring harness modified.

• Before servicing SRS, turn the ignition switch off, disconnect both battery terminals and wait at least

3 minutes.

• Always work from the side of or under front passenger air bag module.

• After the work is completed, perform self-diagnosis to check that no malfunction is detected. Refer

SRC-13, "SRS Operation Check"

1. Locate the yellow and orange direct-connect passenger air bag module harness connectors.
2. Use wire cutters to cut back both previously used direct-connect passenger air bag module harness con-

nectors from the vehicle wiring harness approximately 50 mm (1.9 in) from the connectors.

3. Remove approximately 150 mm (5.9 in) of the vehicle harness covering from the cut end.

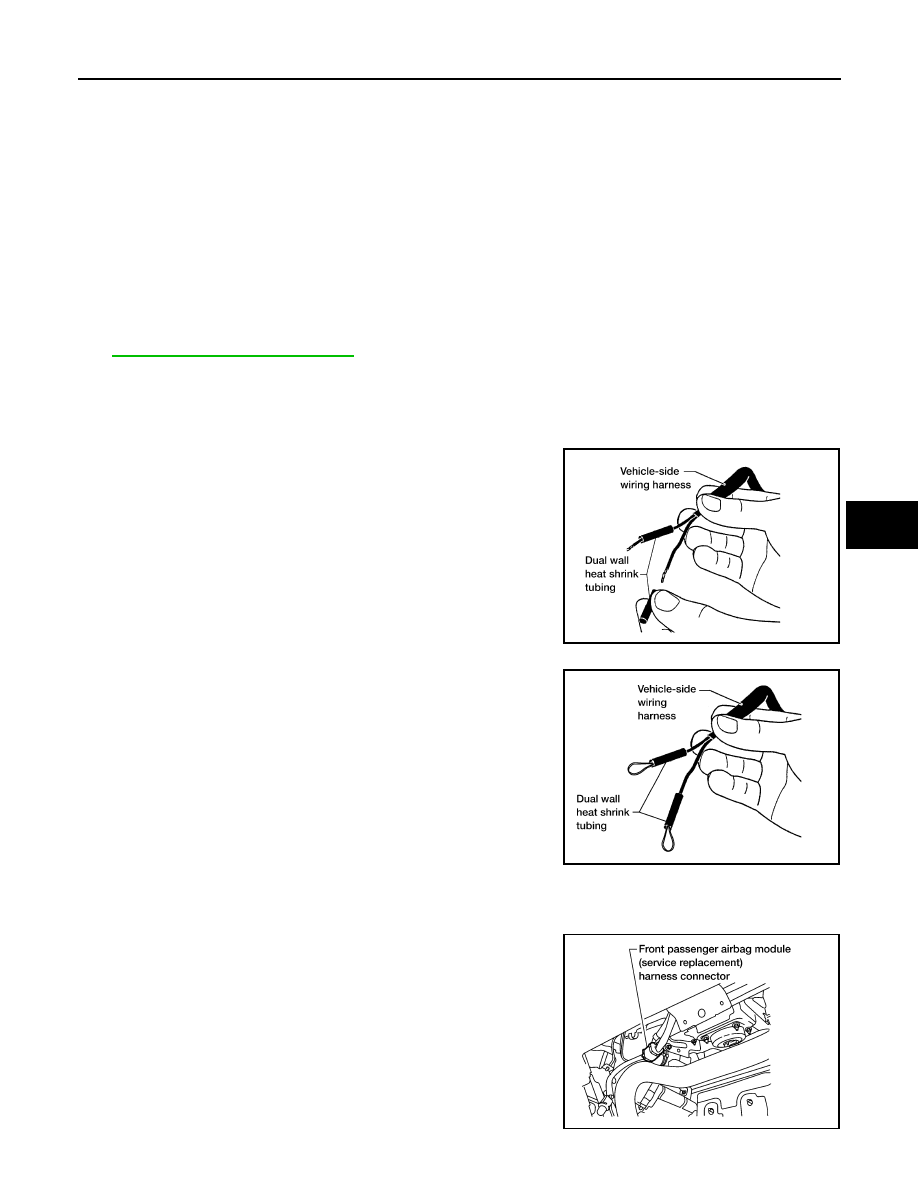

4. Slide a piece of dual-wall heat shrink tubing (provided in the pas-

senger air bag service kit) onto each wire of the previously used

vehicle wiring harness.

5. Fold each wire back and insert into the end of the heat shrink

tubing so that the end of the wire is approximately centered in

the heat shrink tubing.

6. Use a heat gun to shrink the heat shrink tubing and seal the wire.
7. Use electrical tape to secure the modified circuits to the outside of the wiring harness.
8. Locate the front passenger air bag service replacement connec-

tor that is taped back to the main harness. Unwrap the tape to

access the yellow service replacement connector and remove

the dust cover from the connector.

LHIA0017E

WHIA0062E

WHIA0118E

August 2012

2012 Pathfinder
