Nissan Pathfinder (2012 year). Manual - part 508

PWO

POWER SOCKET

PWO-7

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

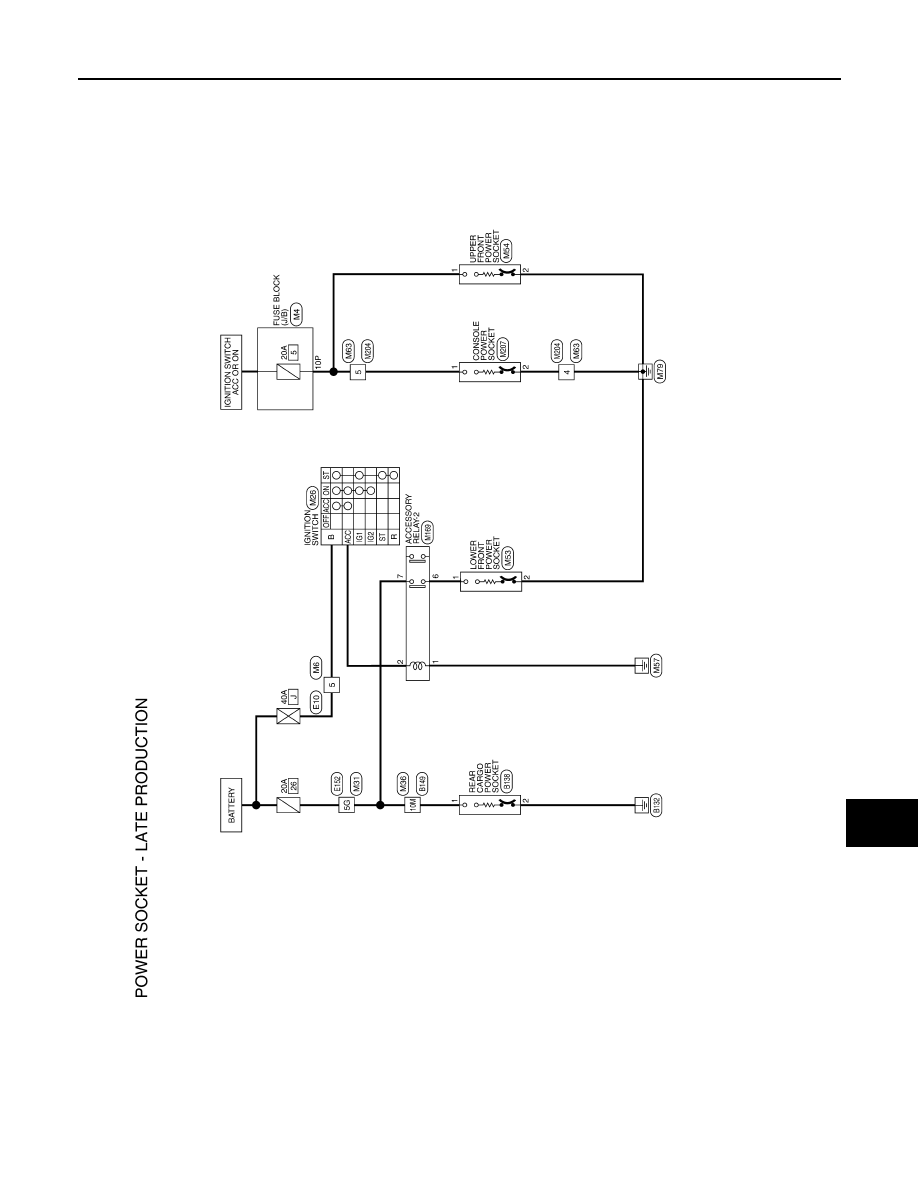

Wiring Diagram - Late Production

INFOID:0000000007354895

ABMWA1708GB

August 2012

2012 Pathfinder

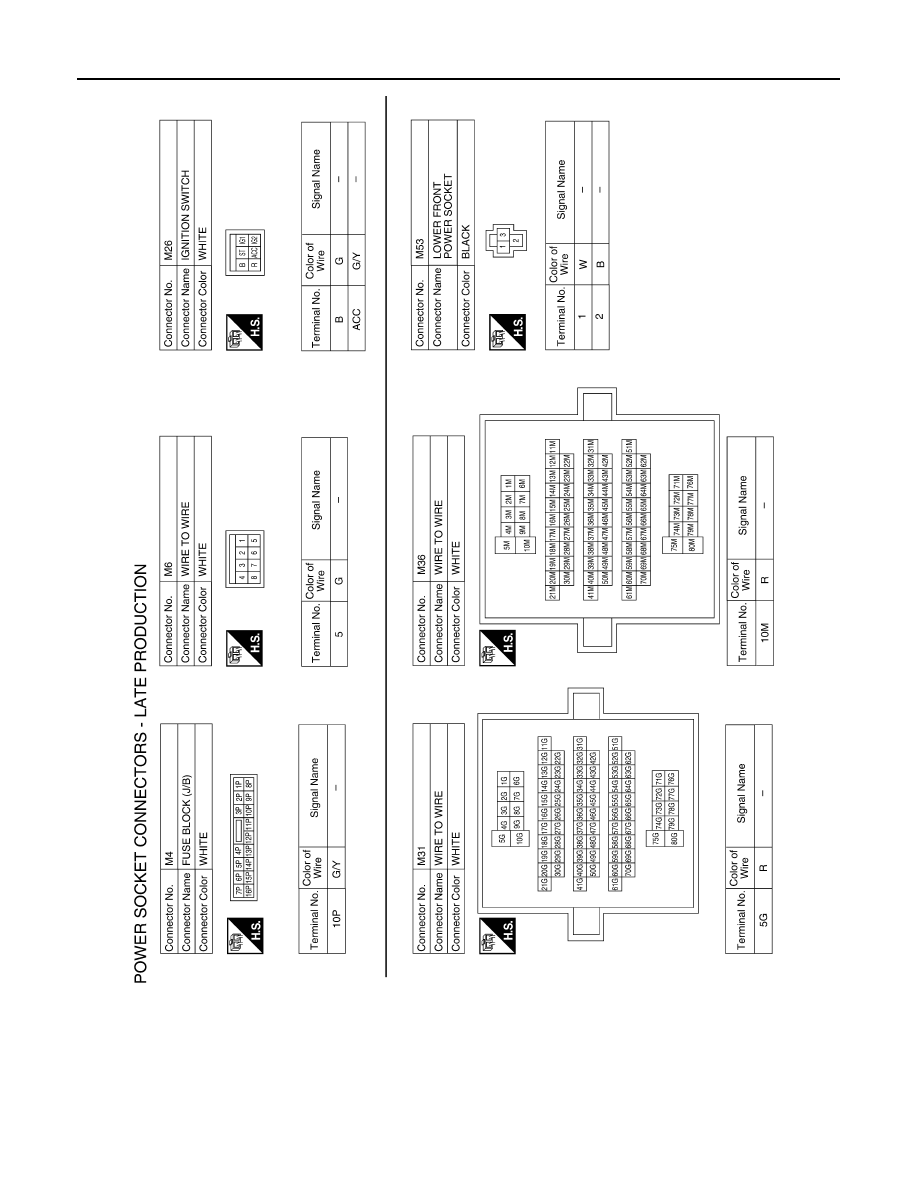

PWO-8

< WIRING DIAGRAM >

POWER SOCKET

ABMIA3956GB

August 2012

2012 Pathfinder

PWO

POWER SOCKET

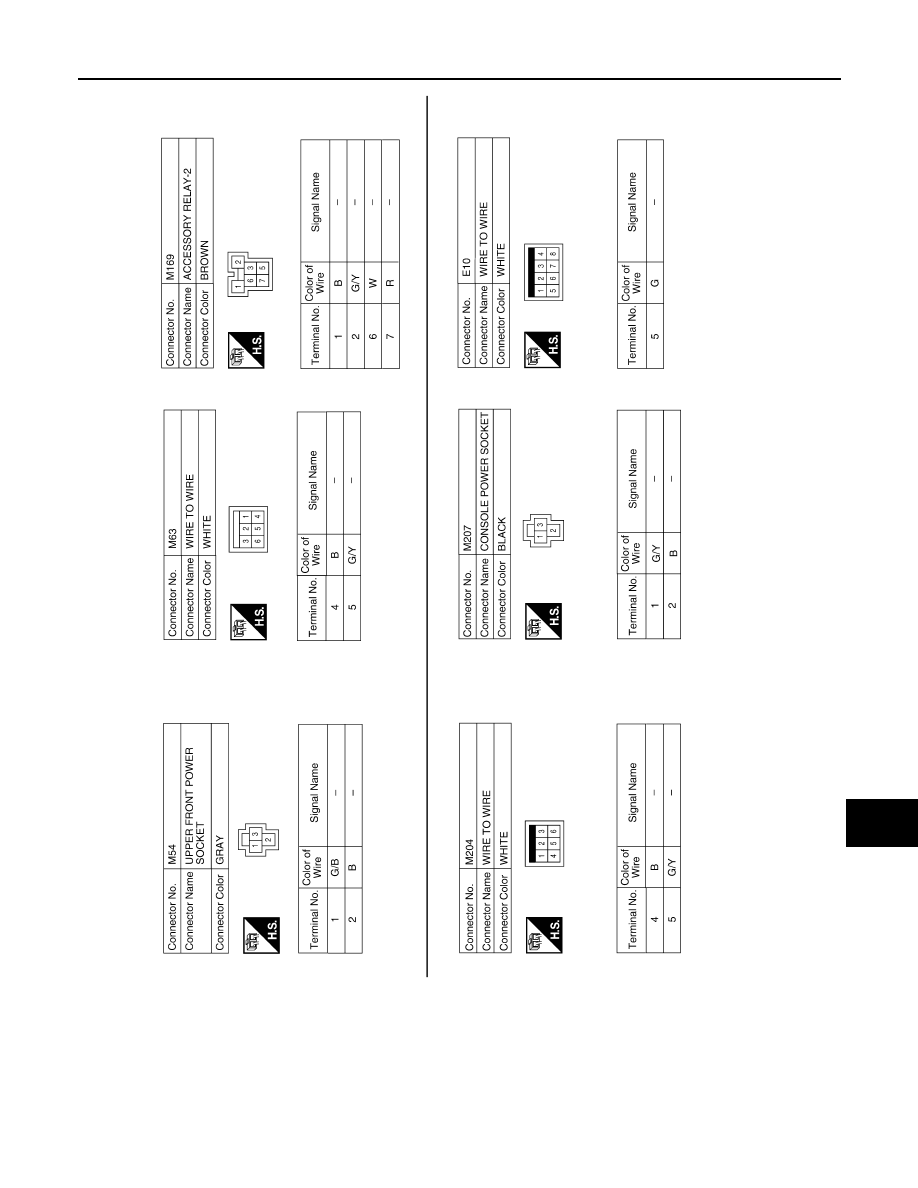

PWO-9

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

AAMIA0870GB

August 2012

2012 Pathfinder

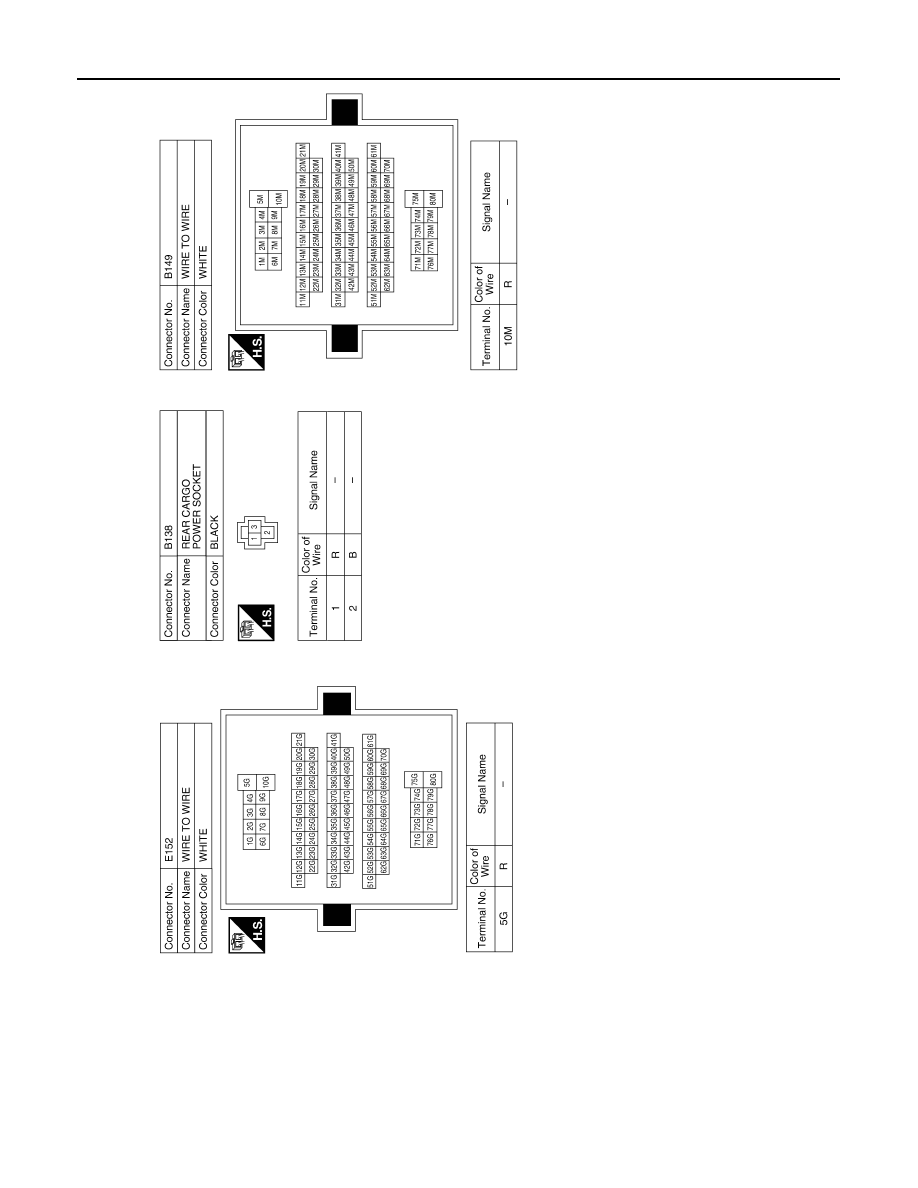

PWO-10

< WIRING DIAGRAM >

POWER SOCKET

AAMIA0871GB

August 2012

2012 Pathfinder

PWO

PREPARATION

PWO-11

< PREPARATION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

PREPARATION

PREPARATION

Special Service Tool

INFOID:0000000007354896

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Tool number
(Kent-Moore No.)
Tool name

Description

—

(J-42059)
Power socket removal tool

For removing power sockets

AWMIA1148GB

August 2012

2012 Pathfinder

PWO-12

< REMOVAL AND INSTALLATION >

POWER SOCKET

REMOVAL AND INSTALLATION

POWER SOCKET

Removal and Installation

INFOID:0000000007354897

UPPER AND LOWER FRONT POWER SOCKET, CONSOLE POWER SOCKET, AND REAR CAR-
GO POWER SOCKET

NOTE:

If the tool does not fit because of the location of the power socket, further disassembly may be required. Refer

to

IP-11, "Exploded View"

 (Instrument Panel),

IP-23, "Disassembly and Assembly"

 (Center Console), or

INT-

25, "Removal and Installation"

 (Luggage Floor Trim).

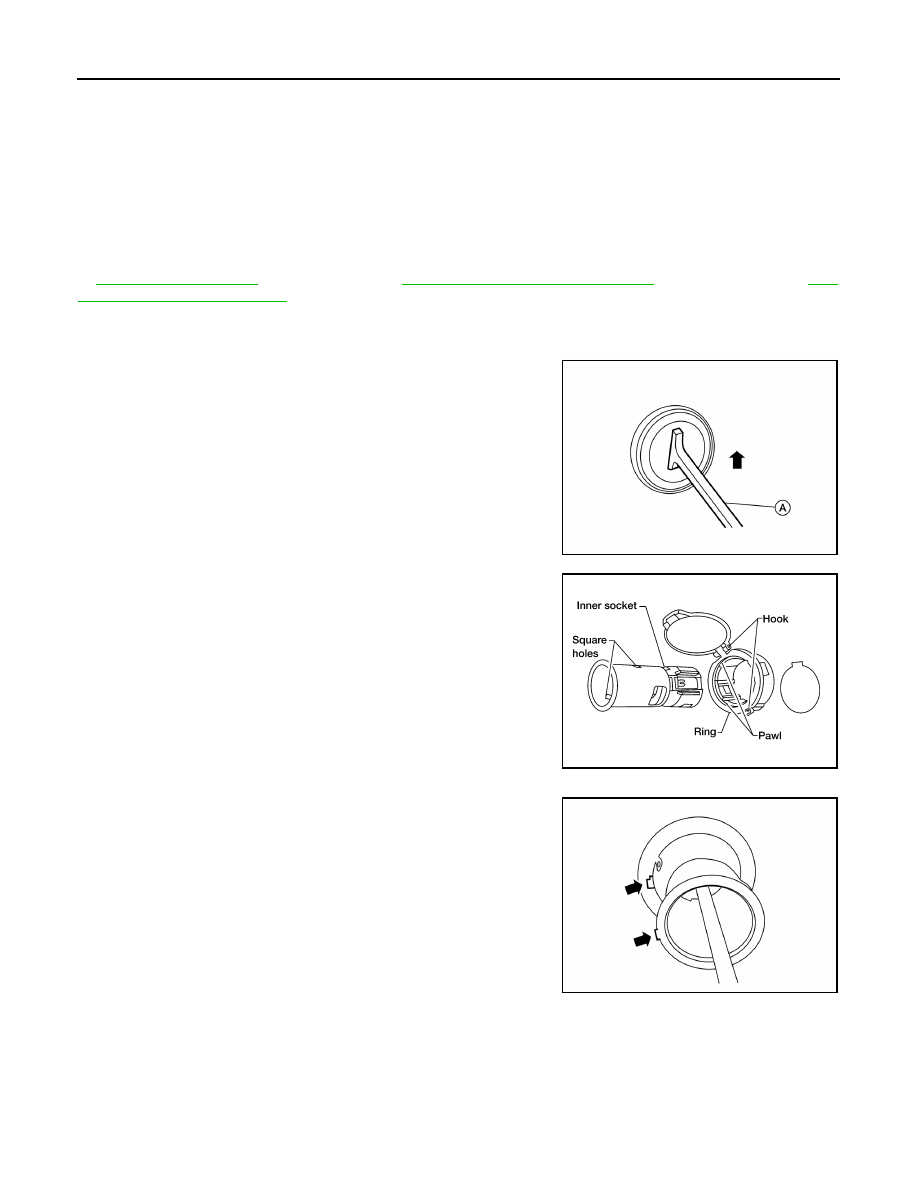

Removal

1. Remove the fuse for the power socket.
2. Insert one end of the Tool (A) into one of the square holes inside

the power socket.

3. Lift up the handle of the Tool until the other end of the Tool is

inside the socket and snaps into the other square hole in the

power socket.

4. Pull the power socket straight out with the Tool.

5. Disconnect power socket connector.
6. Remove ring from power socket finisher while pressing pawls.

Installation

Installation is in the reverse order of removal.

NOTE:

Make sure to align the tab with the square notched area during

installation.

Tool number:

—   (J-42059)

AWMIA1182GB

WKIA1035E

AWMIA1183GB

August 2012

2012 Pathfinder

RF-1

BODY EXTERIOR, DOORS, ROOF & VEHICLE SECURITY

C

D

E

F

G

H

I

J

L

M

SECTION

RF

A

B

RF

N

O

P

CONTENTS

ROOF

BASIC INSPECTION  ....................................

3

DIAGNOSIS AND REPAIR WORKFLOW  ..........

3

Work Flow  .................................................................

3

INSPECTION AND ADJUSTMENT .....................

5

ADDITIONAL SERVICE WHEN REPLACING
CONTROL UNIT  ..........................................................

5

ADDITIONAL SERVICE WHEN REPLACING
CONTROL UNIT : Description  ..................................

5

ADDITIONAL SERVICE WHEN REPLACING
CONTROL UNIT : Special Repair Requirement  .......

5

BASIC INSPECTION  ...................................................

5

BASIC INSPECTION : Special Repair Require-
ment ..........................................................................

5

SYSTEM DESCRIPTION  ..............................

6

SUNROOF SYSTEM  ...........................................

6

System Diagram .......................................................

6

System Description  ...................................................

6

Component Parts Location ......................................

7

Component Description ............................................

7

DIAGNOSIS SYSTEM (BCM)  .............................

8

COMMON ITEM ...........................................................

8

COMMON ITEM : CONSULT Function (BCM -
COMMON ITEM) .......................................................

8

RETAINED PWR  .........................................................

9

RETAINED PWR : CONSULT Function (BCM -
RETAINED PWR)  .....................................................

9

DTC/CIRCUIT DIAGNOSIS  .........................

10

POWER SUPPLY AND GROUND CIRCUIT ......

10

SUNROOF MOTOR ASSEMBLY ..............................

10

SUNROOF MOTOR ASSEMBLY :
Diagnosis Procedure ..............................................

10

SUNROOF MOTOR ASSEMBLY : Special Repair
Requirement ............................................................

11

SUNROOF SWITCH CIRCUIT  ..........................

12

Description ...............................................................

12

Component Function Check ..................................

12

Diagnosis Procedure  ...............................................

12

VEHICLE SPEED SIGNAL CIRCUIT ................

14

Component Function Check ..................................

14

Diagnosis Procedure ..............................................

14

DOOR SWITCH .................................................

15

Description ...............................................................

15

Component Function Check ..................................

15

Diagnosis Procedure  ...............................................

15

ECU DIAGNOSIS INFORMATION ..............

17

BCM (BODY CONTROL MODULE)  .................

17

Reference Value ......................................................

17

Terminal Layout .......................................................

20

Physical Values  .......................................................

20

Fail Safe ..................................................................

25

DTC Inspection Priority Chart ...............................

25

DTC Index ...............................................................

26

SUNROOF MOTOR ASSEMBLY  .....................

28

Reference Value ......................................................

28

WIRING DIAGRAM ......................................

29

SUNROOF .........................................................

29

Wiring Diagram ........................................................

29

SYMPTOM DIAGNOSIS  ..............................

34

SUNROOF DOES NOT OPERATE PROPER-
LY ......................................................................

34

Diagnosis Procedure  ...............................................

34

AUTO OPERATION DOES NOT OPERATE  ....

35

Diagnosis Procedure  ...............................................

35

August 2012

2012 Pathfinder

RF-2

DOES NOT STOP FULLY-OPEN OR FULLY-
CLOSED POSITION  ..........................................

36

Diagnosis Procedure  ..............................................

36

RETAINED POWER OPERATION DOES NOT
OPERATE PROPERLY  .....................................

37

Diagnosis Procedure  ..............................................

37

SUNROOF DOES NOT OPERATE ANTI-
PINCH FUNCTION .............................................

38

Diagnosis Procedure  ..............................................

38

SQUEAK AND RATTLE TROUBLE DIAG-
NOSES ...............................................................

39

Work Flow ...............................................................

39

Generic Squeak and Rattle Troubleshooting ..........

41

Diagnostic Worksheet .............................................

43

PRECAUTION .............................................

45

PRECAUTIONS  .................................................

45

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................

45

Precaution Necessary for Steering Wheel Rota-
tion After Battery Disconnect  ..................................

45

Precaution for Work  ................................................

46

PREPARATION ..........................................

47

PREPARATION .................................................

47

Special Service Tool  ...............................................

47

Commercial Service Tool ........................................

47

REMOVAL AND INSTALLATION ..............

48

SUNROOF SYSTEM  .........................................

48

Adjustment ..............................................................

48

Removal and Installation .........................................

49

August 2012

2012 Pathfinder
