A/T FINISHER

IP-21

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

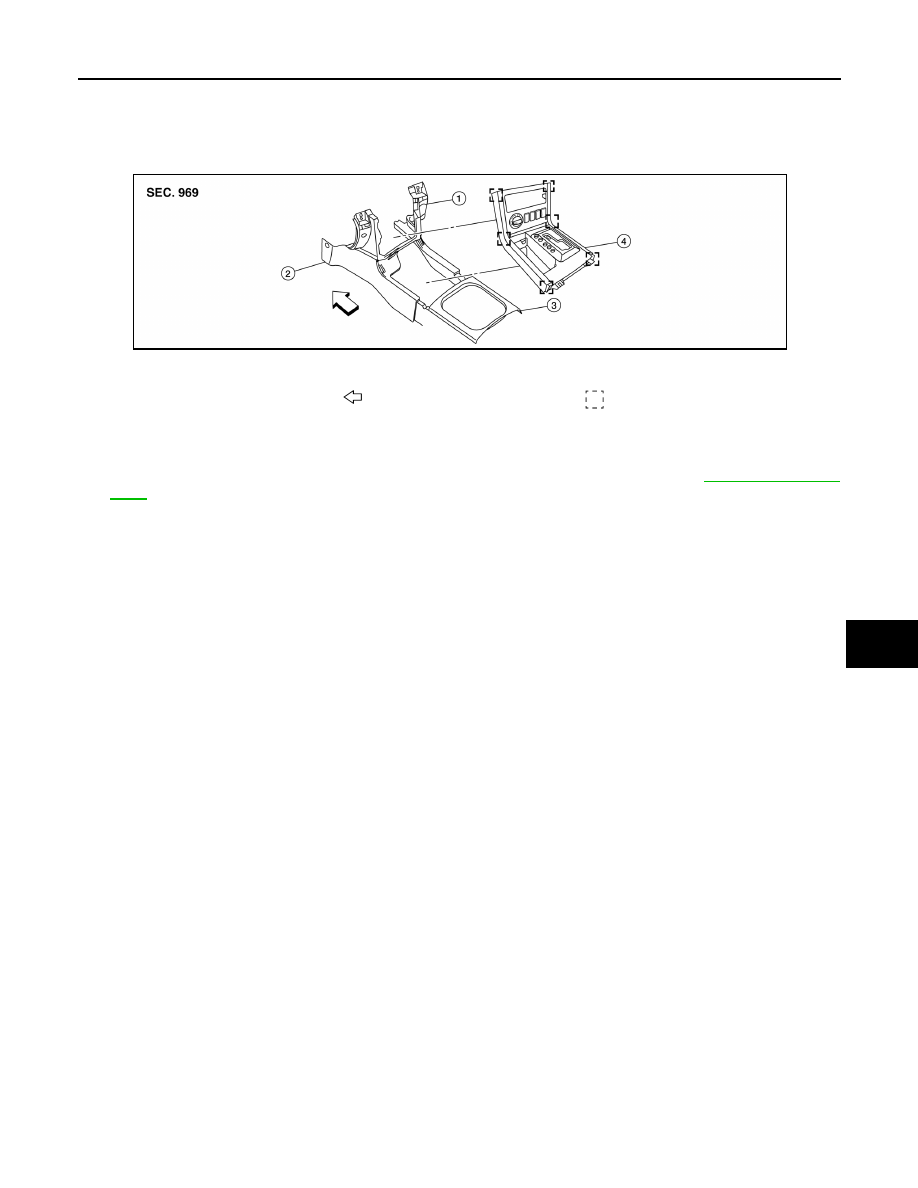

A/T FINISHER

Removal and Installation

INFOID:0000000007356053

REMOVAL

1. Remove cup holder finisher.
2. Release the shift selector handle clip, then remove shift selector handle. Refer to

TM-172, "Exploded

view"

.

3. Pull up to release clips, disconnect the harness connectors, then remove the A/T finisher.

INSTALLATION

Installation is in the reverse order of removal.

1.

Cluster lid D

2.

Center console front base

3.

Cup holder finisher

4.

A/T finisher

Front

Metal clip

AWJIA0663ZZ

August 2012

2012 Pathfinder

IP-22

< REMOVAL AND INSTALLATION >

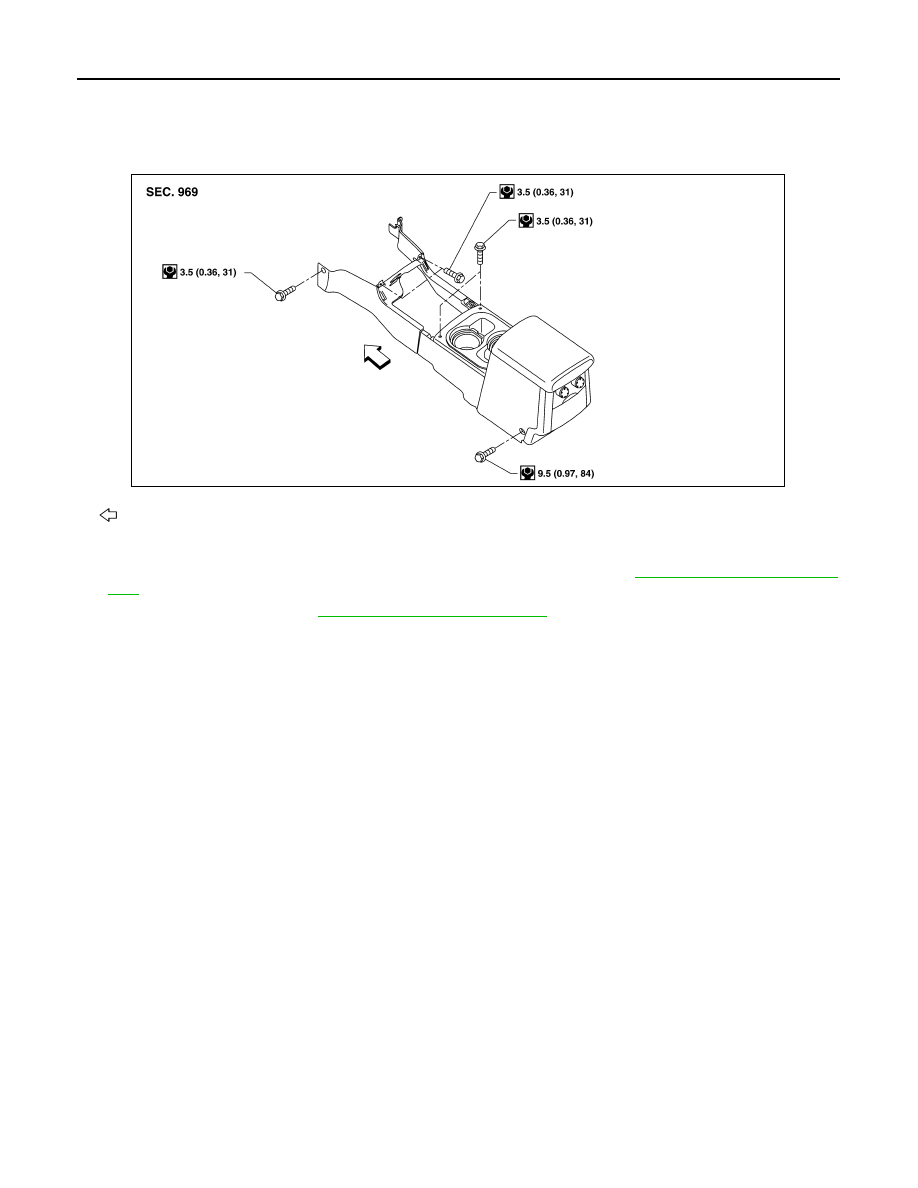

CENTER CONSOLE

CENTER CONSOLE

Removal and Installation

INFOID:0000000007356054

REMOVAL

1. Remove instrument lower panel RH and lower glove box assembly. Refer to

IP-20, "Removal and Installa-

tion"

.

2. Remove A/T finisher. Refer to

IP-21, "Removal and Installation"

.

3. Remove center console screws, then lift center console rear base away from center console front base

and disconnect harness connectors.

4. Disconnect harness connectors and remove center console front base.

INSTALLATION

Installation is in the reverse order of removal.

Vehicle front

WIIA1058E

August 2012

2012 Pathfinder

CENTER CONSOLE ASSEMBLY

IP-23

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

UNIT DISASSEMBLY AND ASSEMBLY

CENTER CONSOLE ASSEMBLY

Disassembly and Assembly

INFOID:0000000007356055

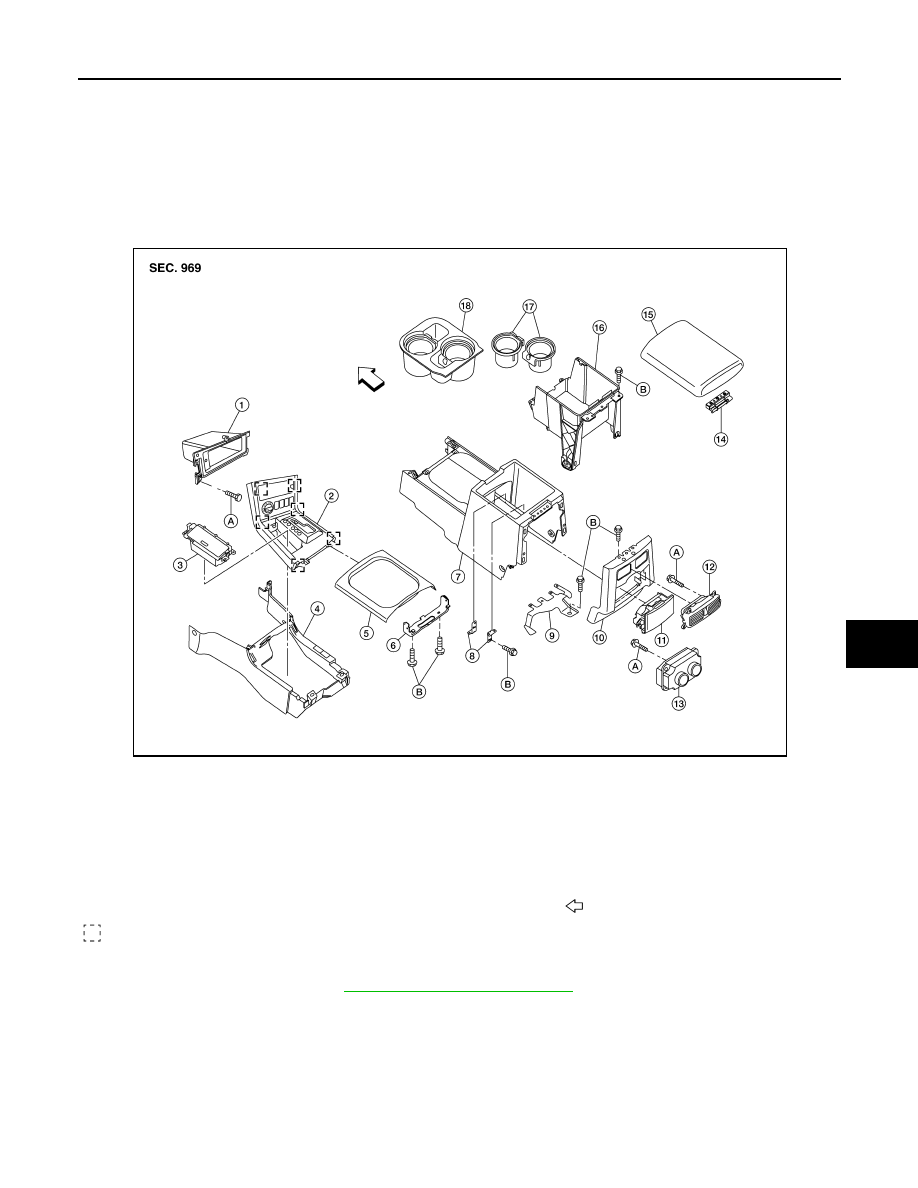

EXPLODED VIEW

DISASSEMBLY

1. Remove center console. Refer to

IP-12, "Removal and Installation"

.

2. Remove center console lid.
3. Remove latch from center console lid.
4. Remove hinge from center console lid.
5. Remove rear finisher assembly.
6. Remove rear cup holder assembly.

AWJIA0058ZZ

1.

Console bin upper

2.

A/T finisher

3.

Console bin lower

4.

Center console front base

5.

Cup holder finisher

6.

Bracket

7.

Center console rear base

8.

Bracket DVD (if equipped)

9.

Wire harness bracket

10. Rear finisher assembly

11. Rear cup holder assembly

12. Ventilator console grille (if equipped)

13. Rear air control (rear) (if equipped) 14. Hinge

15. Center console lid

16. Center console bin

17. Cup holder insert

18. Cup holder assembly

A.

Screw

B.

Bolt

Vehicle front

Metal clip

August 2012

2012 Pathfinder

IP-24

< UNIT DISASSEMBLY AND ASSEMBLY >

CENTER CONSOLE ASSEMBLY

7. Remove DVD player (if equipped). Refer to

AV-267, "Removal and Installation of DVD Player"

 (BOSE

AUDIO WITHOUT NAVIGATION) or

AV-429, "Removal and Installation of DVD Player"

 (BOSE AUDIO

WITH NAVIGATION).

8. Disconnect center console harness connectors.
9. Remove cup holder insert and cup holder assembly.
10. Remove center console bin.
11. Remove center console bracket.
12. Remove wire harness bracket.

ASSEMBLY

Assembly is in the reverse order of disassembly.

August 2012

2012 Pathfinder

INSTRUMENT LOWER PANEL RH AND GLOVE BOX

IP-25

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

INSTRUMENT LOWER PANEL RH AND GLOVE BOX

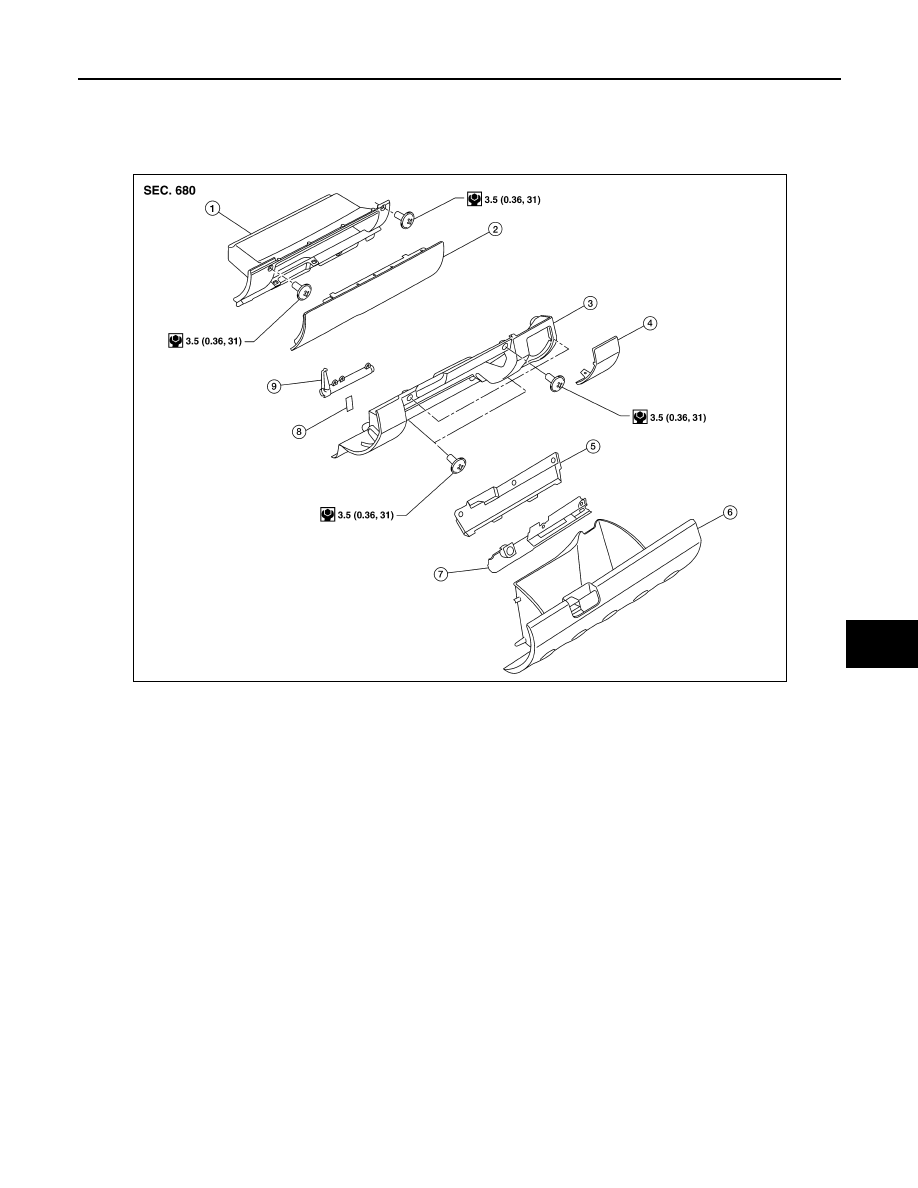

Exploded View

INFOID:0000000007356056

Disassembly and Assembly

INFOID:0000000007356057

LOWER GLOVE BOX

Disassembly

1. Remove fuse block cover.
2. Remove damper hook.
3. Remove lower glove box latch cover.
4. Remove lower glove box latch assembly.

Assembly

Assembly is in the reverse order of disassembly.

UPPER GLOVE BOX

Disassembly

1. Remove upper glove box lid screws.
2. Remove upper glove box lid.

Assembly

Assembly is in the reverse order of disassembly.

1.

Upper glove box

2.

Upper glove box lid

3.

Instrument lower panel (RH)

4.

Fuse block cover

5.

Lower glove box latch assembly cover 6.

Lower glove box

7.

Lower glove box latch assembly

8.

Damper hook

9.

Lower glove box damper

WIIA1049E

August 2012

2012 Pathfinder

LAN

LAN-1

ELECTRICAL & POWER CONTROL

C

D

E

F

G

H

I

J

K

L

B

SECTION

LAN

A

O

P

N

CONTENTS

LAN SYSTEM

CAN FUNDAMENTAL

PRECAUTION ...............................................

3

PRECAUTIONS ...................................................

3

Precaution for Trouble Diagnosis ..............................

3

Precaution for Harness Repair ..................................

3

SYSTEM DESCRIPTION  ..............................

4

CAN COMMUNICATION SYSTEM  .....................

4

System Description  ...................................................

4

System Diagram ........................................................

4

CAN Communication Control Circuit .........................

5

DIAG ON CAN .....................................................

6

Description ................................................................

6

System Diagram ........................................................

6

TROUBLE DIAGNOSIS  ......................................

7

Condition of Error Detection ......................................

7

Symptom When Error Occurs in CAN Communi-
cation System ............................................................

7

Self-Diagnosis .........................................................

10

CAN Diagnostic Support Monitor  ............................

10

BASIC INSPECTION  ...................................

13

DIAGNOSIS AND REPAIR WORKFLOW  .........

13

Information Needed for Trouble Diagnosis  .............

13

How to Use CAN Communication Signal Chart  ......

13

Trouble Diagnosis Flow Chart .................................

14

Trouble Diagnosis Procedure ..................................

14

CAN

HOW TO USE THIS MANUAL .....................

36

HOW TO USE THIS SECTION ...........................

36

Caution ....................................................................

36

Abbreviation List ......................................................

36

PRECAUTION ..............................................

37

PRECAUTIONS .................................................

37

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................

37

Precaution Necessary for Steering Wheel Rota-
tion After Battery Disconnect  ...................................

37

Precautions for Trouble Diagnosis  ..........................

38

Precautions for Harness Repair  ..............................

38

BASIC INSPECTION  ...................................

39

DIAGNOSIS AND REPAIR WORKFLOW  ........

39

Interview Sheet ........................................................

39

Diagnosis Sheet (CAN Type 1)  ...............................

40

Diagnosis Sheet (CAN Type 2)  ...............................

41

Diagnosis Sheet (CAN Type 3)  ...............................

42

Diagnosis Sheet (CAN Type 4)  ...............................

43

Diagnosis Sheet (CAN Type 5)  ...............................

44

Diagnosis Sheet (CAN Type 6)  ...............................

45

Diagnosis Sheet (CAN Type 7)  ...............................

46

Diagnosis Sheet (CAN Type 8)  ...............................

47

Diagnosis Sheet (CAN Type 9)  ...............................

48

Diagnosis Sheet (CAN Type 10)  .............................

49

Diagnosis Sheet (CAN Type 11)  .............................

50

Diagnosis Sheet (CAN Type 12)  .............................

51

SYSTEM DESCRIPTION  .............................

52

CAN COMMUNICATION SYSTEM ...................

52

CAN System Specification Chart .............................

52

CAN Communication Signal Chart  ..........................

53

TROUBLE DIAGNOSIS  ....................................

56

CAN Diagnostic Support Monitor .............................

56

DTC Index  ...............................................................

60

WIRING DIAGRAM ......................................

61

CAN SYSTEM  ...................................................

61

Wiring Diagram ........................................................

61

DTC/CIRCUIT DIAGNOSIS  .........................

69

August 2012

2012 Pathfinder

LAN-2

CAN COMMUNICATION SYSTEM  ...................

69

Component Parts Location  .....................................

69

MALFUNCTION AREA CHART  ........................

70

Main Line  ................................................................

70

Branch Line  ............................................................

70

Short Circuit ............................................................

70

MAIN LINE BETWEEN TCM AND A-BAG
CIRCUIT .............................................................

71

Diagnosis Procedure  ..............................................

71

MAIN LINE BETWEEN A-BAG AND DLC CIR-
CUIT ...................................................................

73

Diagnosis Procedure  ..............................................

73

MAIN LINE BETWEEN DLC AND ABS CIR-
CUIT ...................................................................

74

Diagnosis Procedure  ..............................................

74

ECM BRANCH LINE CIRCUIT  ..........................

75

Diagnosis Procedure  ..............................................

75

TCM BRANCH LINE CIRCUIT  ..........................

76

Diagnosis Procedure  ..............................................

76

A-BAG BRANCH LINE CIRCUIT  ......................

77

Diagnosis Procedure  ..............................................

77

AV BRANCH LINE CIRCUIT  .............................

78

Diagnosis Procedure  ..............................................

78

I-KEY BRANCH LINE CIRCUIT  ........................

79

Diagnosis Procedure ...............................................

79

4WD BRANCH LINE CIRCUIT ..........................

80

Diagnosis Procedure ...............................................

80

ADP BRANCH LINE CIRCUIT  ..........................

81

Diagnosis Procedure ...............................................

81

BCM BRANCH LINE CIRCUIT ..........................

82

Diagnosis Procedure ...............................................

82

DLC BRANCH LINE CIRCUIT  ..........................

83

Diagnosis Procedure ...............................................

83

HVAC BRANCH LINE CIRCUIT ........................

84

Diagnosis Procedure ...............................................

84

M&A BRANCH LINE CIRCUIT ..........................

85

Diagnosis Procedure ...............................................

85

STRG BRANCH LINE CIRCUIT ........................

86

Diagnosis Procedure ...............................................

86

ABS BRANCH LINE CIRCUIT  ..........................

87

Diagnosis Procedure ...............................................

87

IPDM-E BRANCH LINE CIRCUIT  .....................

88

Diagnosis Procedure ...............................................

88

CAN COMMUNICATION CIRCUIT  ...................

89

Diagnosis Procedure ...............................................

89

August 2012

2012 Pathfinder

LAN

PRECAUTIONS

LAN-3

< PRECAUTION >

[CAN FUNDAMENTAL]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

PRECAUTION

PRECAUTIONS

Precaution for Trouble Diagnosis

INFOID:0000000007801293

CAUTION:

• Never apply 7.0 V or more to the measurement terminal.

• Use a tester with open terminal voltage of 7.0 V or less.

• Turn the ignition switch OFF and disconnect the battery cable from the negative terminal when

checking the harness.

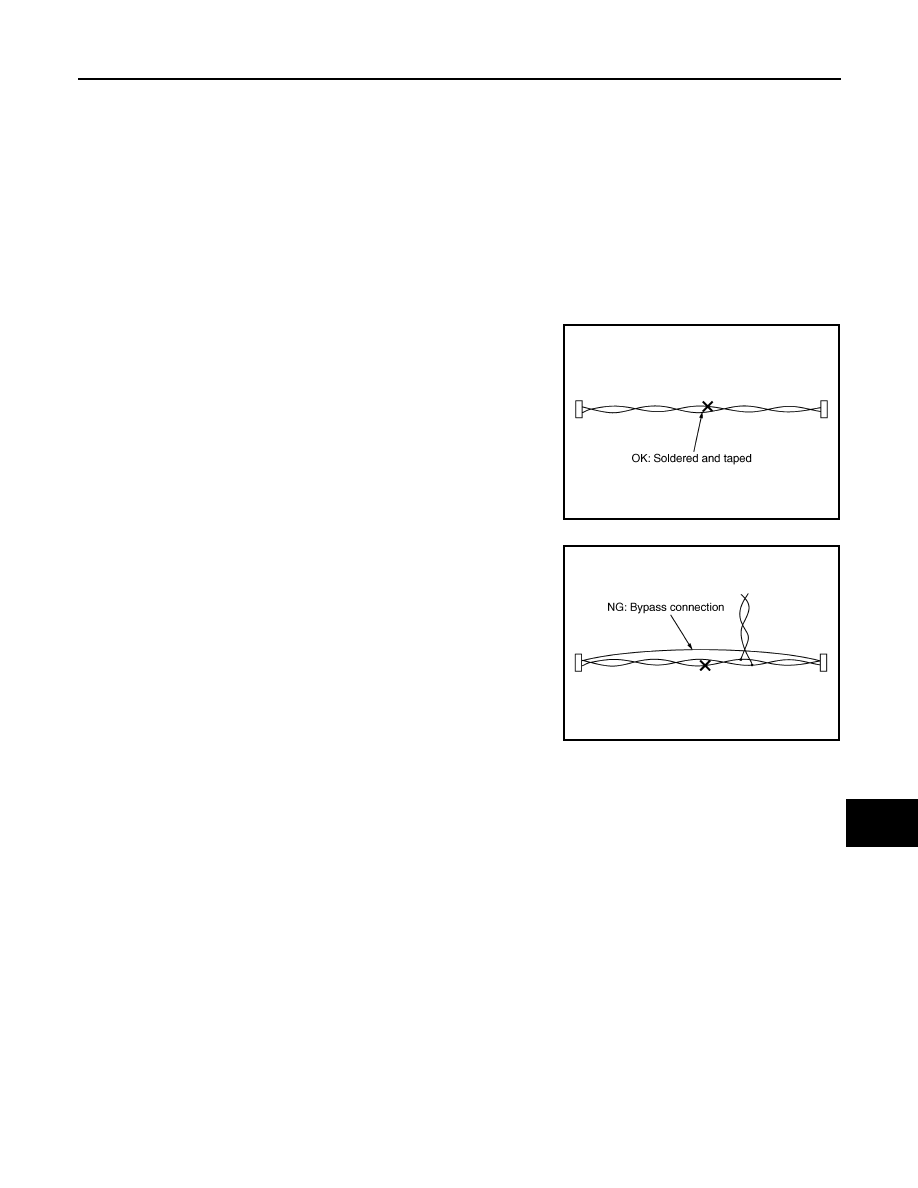

Precaution for Harness Repair

INFOID:0000000007801294

• Solder the repaired area and wrap tape around the soldered area.

NOTE:

A fray of twisted lines must be within 110 mm (4.33 in).

• Bypass connection is never allowed at the repaired area.

NOTE:

Bypass connection may cause CAN communication error. The

spliced wire becomes separated and the characteristics of twisted

line are lost.

• Replace the applicable harness as an assembly if error is detected on the shield lines of CAN communica-

tion line.

SKIB8766E

SKIB8767E

August 2012

2012 Pathfinder
