Nissan Pathfinder (2012 year). Manual - part 445

STEERING COLUMN COVERS

IP-13

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

STEERING COLUMN COVERS

Removal and Installation

INFOID:0000000007830126

REMOVAL

1. Remove front pillar lower finisher (LH). Refer to

INT-19, "Removal and Installation"

.

2. Remove instrument lower panel LH. Refer to

IP-15, "Removal and Installation"

.

3. Remove the steering column cover screws, then remove the steering column upper and lower covers.

INSTALLATION

Installation is in the reverse order of removal.

August 2012

2012 Pathfinder

IP-14

< REMOVAL AND INSTALLATION >

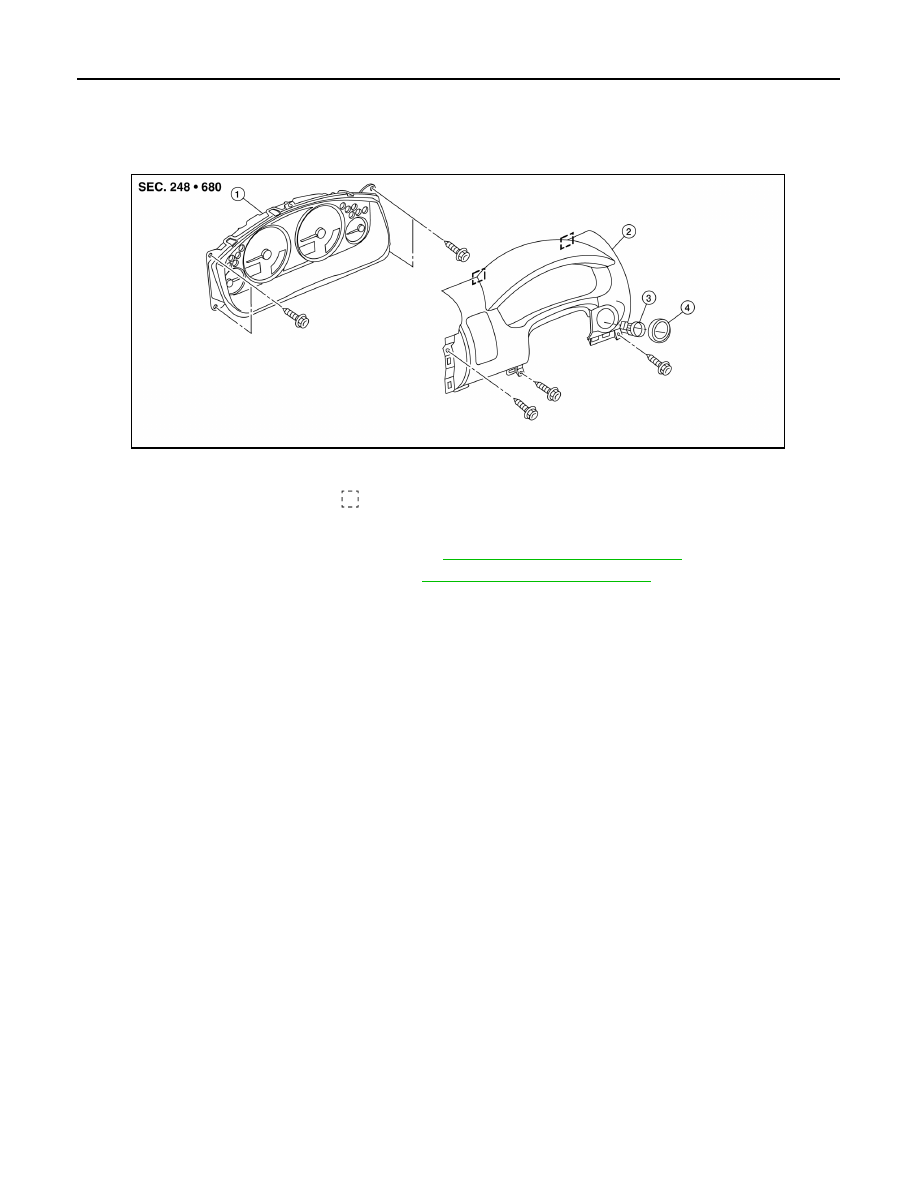

CLUSTER LID A

CLUSTER LID A

Removal and Installation

INFOID:0000000007356047

REMOVAL

1. Remove front pillar upper finisher (LH). Refer to

INT-19, "Removal and Installation"

.

2. Remove instrument lower panel LH. Refer to

IP-15, "Removal and Installation"

.

3. Remove steering lock escutcheon.
4. Remove cluster lid A screws, release the clips, then remove cluster lid A.

INSTALLATION

Installation is in the reverse order of removal.

1.

Combination meter

2.

Cluster lid A

3.

Ignition key lamp assembly

4.

Steering lock escutcheon

Metal clip

AWJIA0787ZZ

August 2012

2012 Pathfinder

INSTRUMENT LOWER PANEL LH

IP-15

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

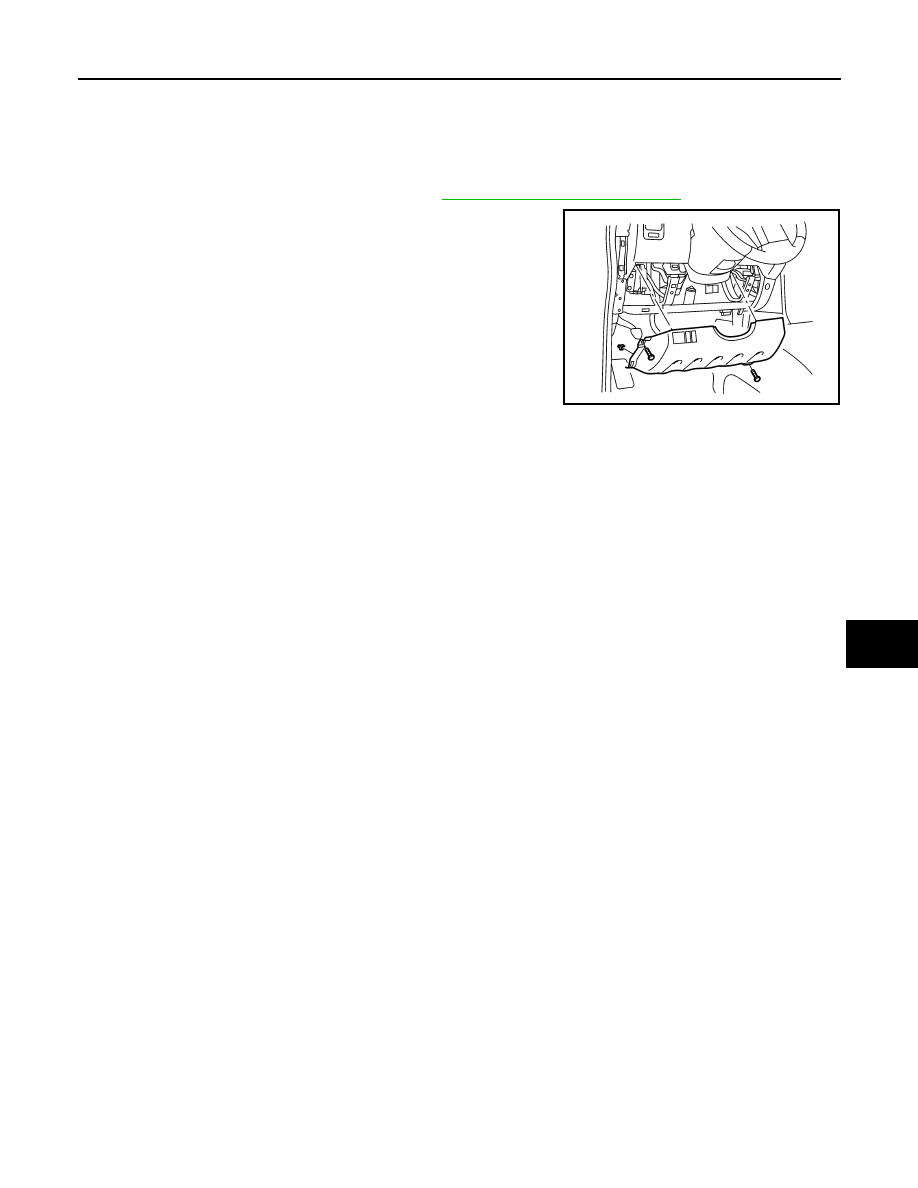

INSTRUMENT LOWER PANEL LH

Removal and Installation

INFOID:0000000007356048

REMOVAL

1. Remove front pillar lower finisher (LH). Refer to

INT-19, "Removal and Installation"

.

2. Remove instrument lower panel LH screws.
3. Pull rearward to release instrument lower panel LH.
4. Disconnect instrument lower panel LH harness connectors, then

remove instrument lower panel LH.

INSTALLATION

Installation is in the reverse order of removal.

LIIA1744E

August 2012

2012 Pathfinder

IP-16

< REMOVAL AND INSTALLATION >

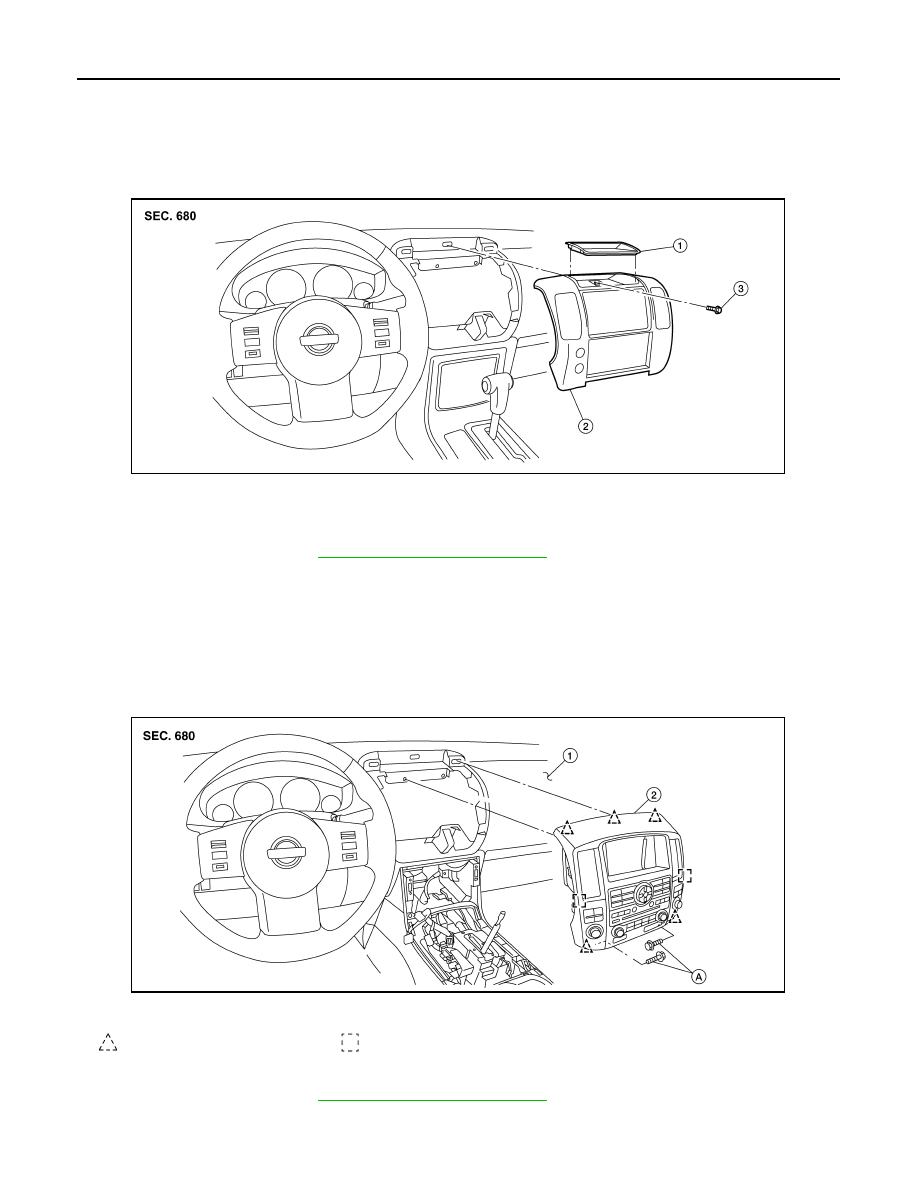

CLUSTER LID C

CLUSTER LID C

Removal and Installation

INFOID:0000000007356049

WITHOUT DISPLAY UNIT

REMOVAL

1. Remove A/T finisher. Refer to

IP-21, "Removal and Installation"

.

2. Remove storage tray, then remove cluster lid C screw.
3. Pull cluster lid C rearward to release clips.
4. Disconnect harness connectors and remove cluster lid C.

INSTALLATION

Installation is in the reverse order of removal.

WITH DISPLAY UNIT

REMOVAL

1. Remove A/T finisher. Refer to

IP-21, "Removal and Installation"

.

2. Remove the center console bin screws and center console bin.
3. Remove cluster lid C bolts, then release cluster lid C clips.

1.

Storage tray

2.

Cluster lid C

3.

Cluster lid C screw

AWJIA0463ZZ

1.

Instrument panel

2.

Cluster lid C

A.

Cluster lid C bolt

Clip C103

Metal clip

AWJIA0055ZZ

August 2012

2012 Pathfinder

CLUSTER LID C

IP-17

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

4. Disconnect harness connectors and remove cluster lid C.

INSTALLATION

Installation is in the reverse order of removal.

August 2012

2012 Pathfinder

IP-18

< REMOVAL AND INSTALLATION >

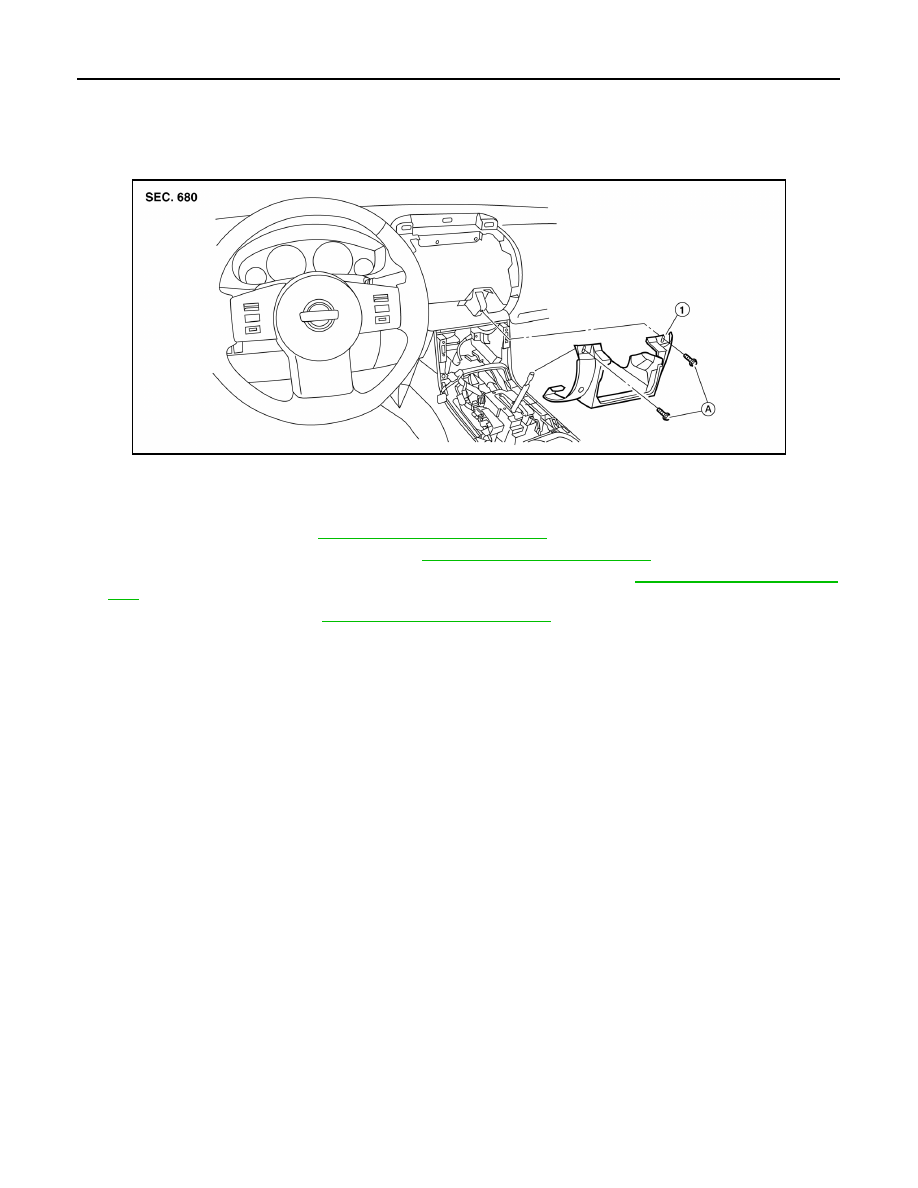

CLUSTER LID D

CLUSTER LID D

Removal and Installation

INFOID:0000000007356050

REMOVAL

1. Remove A/T finisher. Refer to

IP-21, "Removal and Installation"

.

2. Remove instrument lower panel LH. Refer to

IP-15, "Removal and Installation"

.

3. Remove instrument lower panel RH and lower glove box assembly. Refer to

IP-20, "Removal and Installa-

tion"

.

4. Remove cluster lid C. Refer to

IP-16, "Removal and Installation"

.

5. Disconnect harness connectors and remove cluster lid D.

INSTALLATION

Installation is in the reverse order of removal.

AWJIA0662ZZ

1.

Cluster lid D

A.

Cluster lid D screw

August 2012

2012 Pathfinder

UPPER GLOVE BOX

IP-19

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

UPPER GLOVE BOX

Removal and Installation

INFOID:0000000007356051

REMOVAL

1. Remove instrument lower panel RH and lower glove box assembly. Refer to

IP-20, "Removal and Installa-

tion"

.

2. Remove cluster lid C. Refer to

IP-16, "Removal and Installation"

.

3. Remove upper glove box.
a. Remove upper glove box screws.
b. Pull upper glove box rearward to release and remove.

INSTALLATION

Installation is in the reverse order of removal.

August 2012

2012 Pathfinder

IP-20

< REMOVAL AND INSTALLATION >

INSTRUMENT LOWER PANEL RH AND GLOVE BOX

INSTRUMENT LOWER PANEL RH AND GLOVE BOX

Removal and Installation

INFOID:0000000007356052

REMOVAL

1. Remove front pillar lower finisher (RH). Refer to

INT-19, "Removal and Installation"

.

2. Remove instrument lower panel RH screws.
3. Remove instrument lower panel RH and lower glove box assembly.

INSTALLATION

Installation is in the reverse order of removal.

NOTE:

Install upper glove box before installing lower glove box if both have been removed.

August 2012

2012 Pathfinder
