ILLUMINATION CONTROL SYSTEM

INL-9

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

ILLUMINATION CONTROL SYSTEM

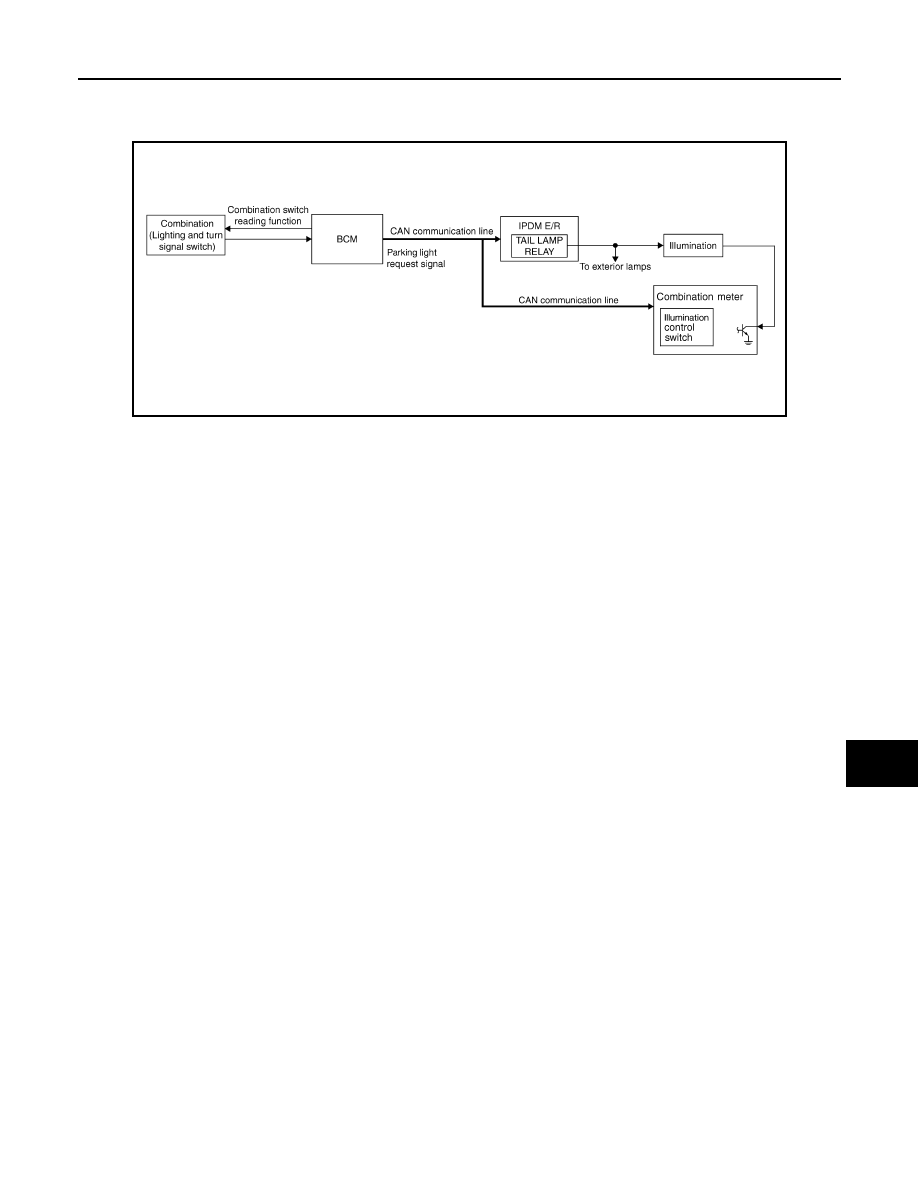

System Diagram

INFOID:0000000007355222

System Description

INFOID:0000000007355223

The illumination lamps operation is dependent upon the position of the lighting switch (combination switch).

When the lighting switch is placed in the 1ST or 2ND position (or if the auto light system is activated) the BCM

(body control module) receives input requesting the parking lamps to illuminate. This input is communicated to

the IPDM E/R (intelligent power distribution module engine room) via the CAN communication lines. The CPU

(central processing unit) of the IPDM E/R controls the tail lamp relay coil. When energized, this relay directs

power to the parking and illumination lamps, which then illuminate.

BATTERY SAVER CONTROL

When the lighting switch (combination switch) is in the 1ST or 2ND position and the ignition switch is turned

from ON or ACC to OFF, the battery saver control feature is activated. Under this condition, the illumination

lamps remain illuminated for 15 minutes (early production) or 10 minutes (late production) unless the lighting

switch position is changed. If the lighting switch position is changed, then the illumination lamps are turned off

after a 30 second delay. When the lighting switch is turned from OFF to 1ST or 2ND position (or if auto light

system is activated) after illumination lamps have been turned off by the battery saver control, the illumination

lamps illuminate again.

AWLIA1754GB

August 2012

2012 Pathfinder

INL-10

< SYSTEM DESCRIPTION >

ILLUMINATION CONTROL SYSTEM

Component Parts Location

INFOID:0000000007355224

Component Description

INFOID:0000000007355225

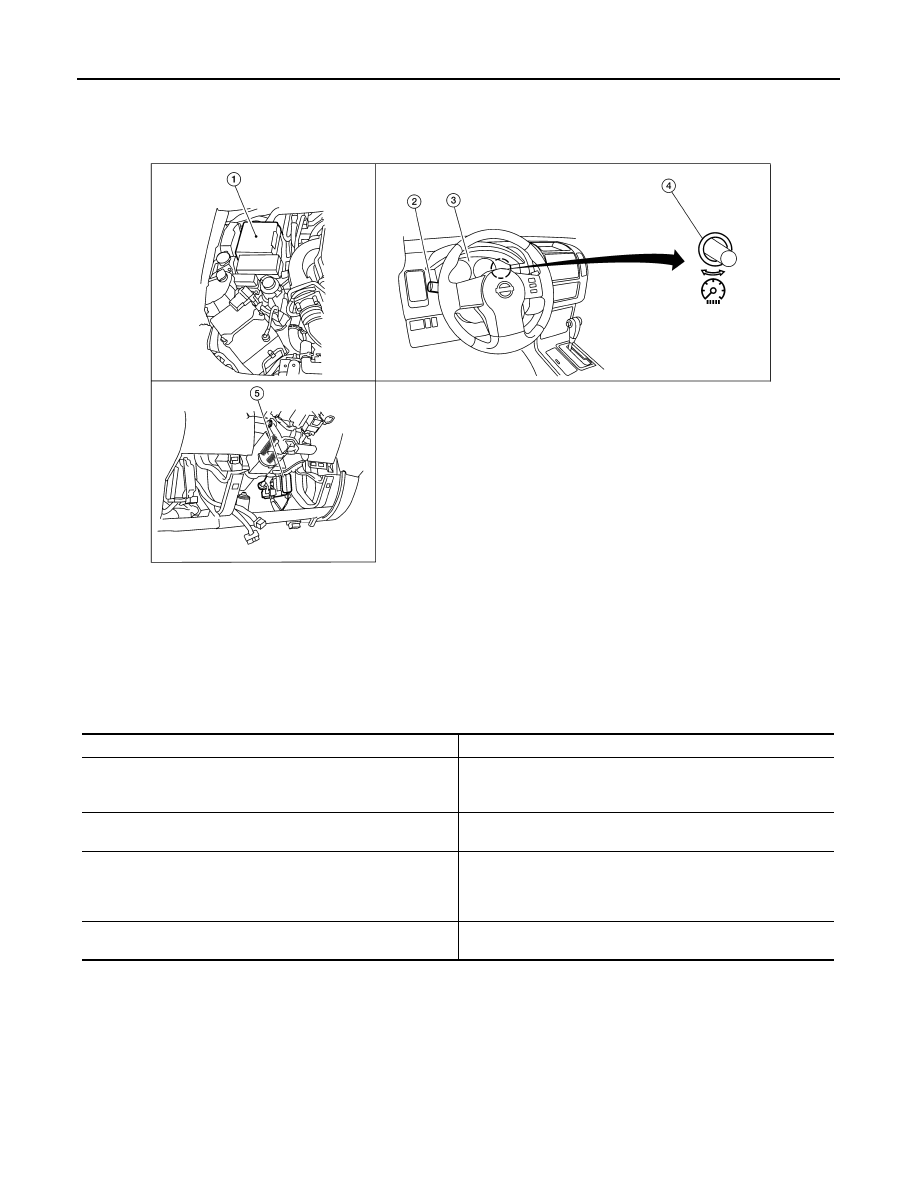

1.

IPDM E/R E122, E124

2.

Combination switch (lighting and turn
signal switch) M28

3.

Combination meter M24

4.

Illumination control switch (built into
combination meter)

5.

BCM M18, M20 (view with instrument
panel removed)

WKIA4973E

Part name

Description

BCM

The BCM monitors the lighting switch position with the combina-
tion switch reading function. The BCM requests, via CAN commu-
nication, that the IPDM E/R activate the tail lamp relay.

IPDM E/R

The IPDM E/R activates the tail lamp relay based on inputs re-
ceived from the BCM via the CAN communication network.

Combination meter (illumination control switch)

The illumination control switch is a part of the combination meter.
The combination meter controls illumination intensity by varying
ground to the illumination lamps based on the illumination control
switch position.

Combination switch (lighting and turn signal switch)

The combination switch provides input to the BCM about the light-
ing switch position.

August 2012

2012 Pathfinder

DIAGNOSIS SYSTEM (BCM)

INL-11

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

DIAGNOSIS SYSTEM (BCM)

COMMON ITEM
COMMON ITEM : CONSULT Function (BCM - COMMON ITEM)

INFOID:0000000007830014

APPLICATION ITEM

CONSULT performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions.

Direct Diagnostic Mode

Description

Ecu Identification

The BCM part number is displayed.

Self Diagnostic Result

The BCM self diagnostic results are displayed.

Data Monitor

The BCM input/output data is displayed in real time.

Active Test

The BCM activates outputs to test components.

Work support

The settings for BCM functions can be changed.

Configuration

• The vehicle specification can be read and saved.
• The vehicle specification can be written when replacing BCM.

CAN Diag Support Mntr

The result of transmit/receive diagnosis of CAN communication is displayed.

System

Sub System

Direct Diagnostic Mode

E

cu

 Id

en

tifi

ca

tio

n

Se

lf Di

ag

no

st

ic Re

su

lt

Da

ta

 Mo

ni

tor

A

cti

ve

 T

est

W

o

rk support

Co

nf

igu

rat

ion

CA

N Diag

 Su

pp

ort Mn

tr

Door lock

DOOR LOCK

×

×

×

Rear window defogger

REAR DEFOGGER

×

×

Warning chime

BUZZER

×

×

Interior room lamp timer

INT LAMP

×

×

×

Remote keyless entry system

MULTI REMOTE ENT

×

×

×

Exterior lamp

HEAD LAMP

×

×

×

Wiper and washer

WIPER

×

×

×

Turn signal and hazard warning lamps FLASHER

×

×

Air conditioner

AIR CONDITIONER

×

Intelligent Key system

INTELLIGENT KEY

×

Combination switch

COMB SW

×

BCM

BCM

×

×

×

×

×

Immobilizer

IMMU

×

×

×

Interior room lamp battery saver

BATTERY SAVER

×

×

×

Back door open

TRUNK

×

×

Vehicle security system

THEFT ALM

×

×

×

RAP system

RETAINED PWR

×

×

×

Signal buffer system

SIGNAL BUFFER

×

×

TPMS

AIR PRESSURE MONITOR

×

×

×

×

Panic alarm system

PANIC ALARM

×

August 2012

2012 Pathfinder

INL-12

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (BCM)

INT LAMP
INT LAMP : CONSULT Function (BCM - INT LAMP)

INFOID:0000000007830015

DATA MONITOR

* : with Intelligent Key
** : without Intelligent Key

ACTIVE TEST

WORK SUPPORT

Monitor Item [Unit]

Description

IGN ON SW [On/Off]

Indicates condition of ignition switch ON position.

KEY ON SW [On/Off]

Indicates condition of key switch.

DOOR SW-DR [On/Off]

Indicates condition of front door switch LH.

DOOR SW-AS [On/Off]

Indicates condition of front door switch RH.

DOOR SW-RR [On/Off]

Indicates condition of rear door switch RH.

DOOR SW-RL [On/Off]

Indicates condition of rear door switch LH.

BACK DOOR SW [On/Off]

Indicates condition of back door switch.

KEY CYL LK-SW [On/Off]

Indicates condition of lock signal from door key cylinder switch.

KEY CYL UN-SW [On/Off]

Indicates condition of unlock signal from door key cylinder switch.

CDL LOCK SW [On/Off]

Indicates condition of lock signal from door lock and unlock switch.

CDL UNLOCK SW [On/Off]

Indicates condition of unlock signal from door lock and unlock switch.

I-KEY LOCK* [On/Off]

Indicates condition of lock signal from Intelligent Key.

I-KEY UNLOCK* [On/Off]

Indicates condition of unlock signal from Intelligent Key.

KEYLESS LOCK** [On/Off]

Indicates condition of lock signal from keyfob.

KEYLESS UNLOCK** [On/Off]

Indicates condition of unlock signal from keyfob.

Test Item

Description

IGN ILLUM

This test is able to check ignition keyhole illumination operation [Off/On].

INT LAMP

This test is able to check interior room lamp operation [Off/On].

LUGGAGE LAMP TEST

This test is able to check cargo lamp operation [Off/On].

Support Item

Setting

Description

SET I/L D-UNLCK INTCON

Off

Interior room lamp timer function OFF.

On*

Interior room lamp timer function ON.

ROOM LAMP ON TIME SET

MODE7

0 sec.

Sets the interior room lamp gradual brightening time.

MODE6

5 sec.

MODE5

4 sec.

MODE4

3 sec.

MODE3

2 sec.

MODE2*

1 sec.

MODE1

0.5 sec.

August 2012

2012 Pathfinder

DIAGNOSIS SYSTEM (BCM)

INL-13

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

* : Initial setting

BATTERY SAVER
BATTERY SAVER : CONSULT Function (BCM - BATTERY SAVER)

INFOID:0000000007830016

DATA MONITOR

* : with Intelligent Key
** : without Intelligent Key

ACTIVE TEST

WORK SUPPORT

*: Initial setting

ROOM LAMP OFF TIME SET

MODE7

0 sec.

Sets the interior room lamp gradual dimming time.

MODE6

5 sec.

MODE5

4 sec.

MODE4

3 sec.

MODE3

2 sec.

MODE2*

1 sec.

MODE1

0.5 sec.

Support Item

Setting

Description

Monitor Item [Unit]

Description

IGN ON SW [On/Off]

Indicates condition of ignition switch ON position.

KEY ON SW [On/Off]

Indicates condition of key switch.

DOOR SW-DR [On/Off]

Indicates condition of front door switch LH.

DOOR SW-AS [On/Off]

Indicates condition of front door switch RH.

DOOR SW-RR [On/Off]

Indicates condition of rear door switch RH.

DOOR SW-RL [On/Off]

Indicates condition of rear door switch LH.

BACK DOOR SW [On/Off]

Indicates condition of back door switch.

KEY CYL LK SW [On/Off]

Indicates condition of lock signal from door key cylinder switch.

KEY CYL UN SW [On/Off]

Indicates condition of unlock signal from door key cylinder switch.

CDL LOCK SW [On/Off]

Indicates condition of lock signal from door lock and unlock switch.

CDL UNLOCK SW [On/Off]

Indicates condition of unlock signal from door lock and unlock switch.

I-KEY LOCK* [On/Off]

Indicates condition of lock signal from Intelligent Key.

I-KEY UNLOCK* [On/Off]

Indicates condition of unlock signal from Intelligent Key.

KEYLESS LOCK** [On/Off]

Indicates condition of lock signal from keyfob.

KEYLESS UNLOCK** [On/Off]

Indicates condition of unlock signal from keyfob.

Test item

Description

BATTERY SAVER

This test is able to check battery saver operation [Off/On].

Support Item

Setting

Description

ROOM LAMP TIMER SET

MODE2

60 min

Sets the interior room lamp battery saver timer
operating time.

MODE1*

15 min (early production)
10 min (late production)

August 2012

2012 Pathfinder

INL-14

< DTC/CIRCUIT DIAGNOSIS >

POWER SUPPLY AND GROUND CIRCUIT

DTC/CIRCUIT DIAGNOSIS

POWER SUPPLY AND GROUND CIRCUIT

BCM
BCM : Diagnosis Procedure

INFOID:0000000007830017

Regarding Wiring Diagram information, refer to

BCS-46, "Wiring Diagram"

.

1.

 CHECK FUSES AND FUSIBLE LINK

Check that the following fuses and fusible link are not blown.

Is the fuse blown?

YES

>> Replace the blown fuse or fusible link after repairing the affected circuit.

NO

>> GO TO 2

2.

 CHECK POWER SUPPLY CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect BCM.

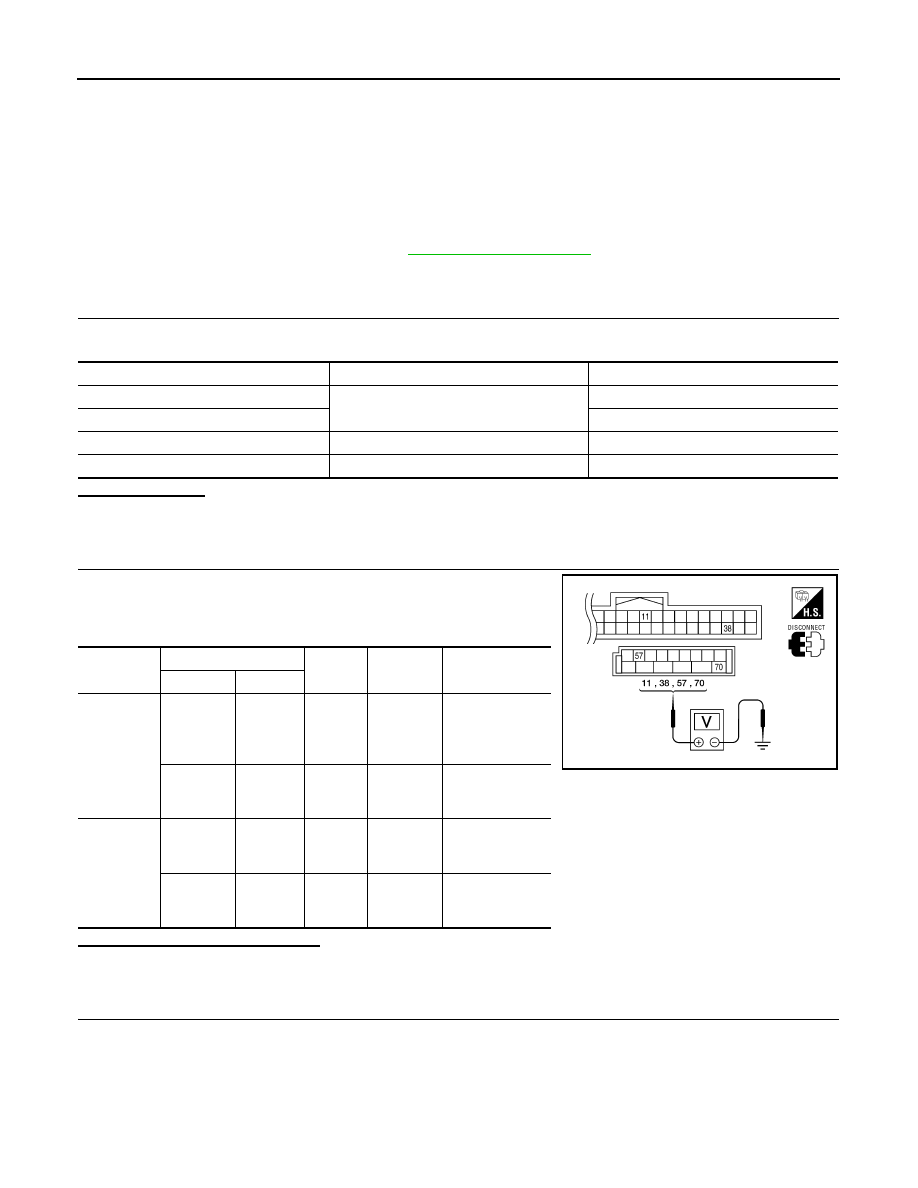

3. Check voltage between BCM harness connector and ground.

Is the measurement value normal?

YES

>> GO TO 3

NO

>> Repair or replace harness.

3.

 CHECK GROUND CIRCUIT

Terminal No.

Signal name

Fuses and fusible link No.

57

Battery power supply

21 (10A)

70

G (50A)

11

Ignition ACC or ON

4 (10A)

38

Ignition ON or START

1 (10A)

Connector

Terminals

Power

source

Condition

Voltage (V) (Ap-

prox.)

(+)

(-)

M18

11

Ground

ACC

power

supply

Ignition

switch

ACC or

ON

Battery voltage

38

Ground

Ignition

power

supply

Ignition

switch ON

or START

Battery voltage

M20

57

Ground

Battery

power

supply

Ignition

switch

OFF

Battery voltage

70

Ground

Battery

power

supply

Ignition

switch

OFF

Battery voltage

LIIA2415E

August 2012

2012 Pathfinder

POWER SUPPLY AND GROUND CIRCUIT

INL-15

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

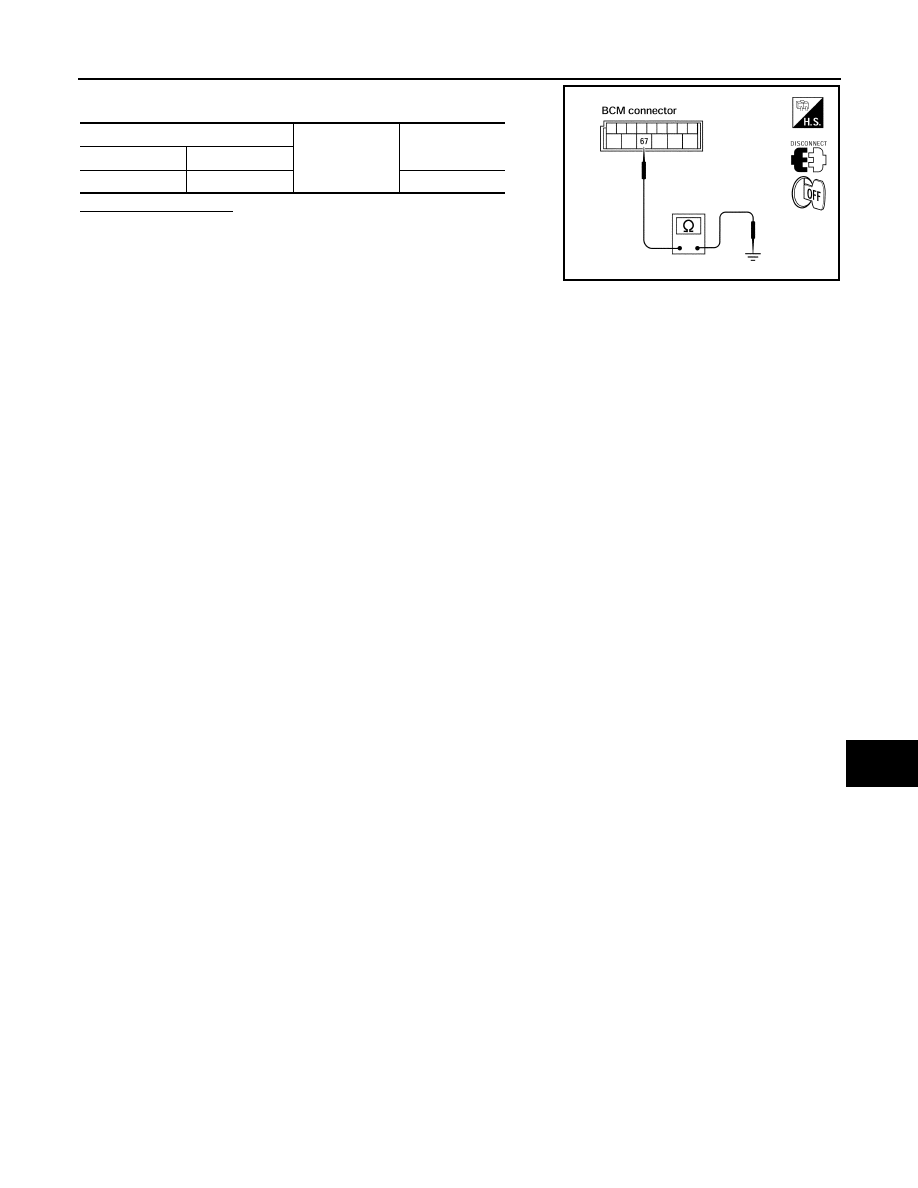

Check continuity between BCM harness connector and ground.

Does continuity exist?

YES

>> Inspection End.

NO

>> Repair or replace harness.

BCM

Ground

Continuity

Connector

Terminal

M20

67

Yes

LIIA0915E

August 2012

2012 Pathfinder

INL-16

< DTC/CIRCUIT DIAGNOSIS >

BATTERY SAVER OUTPUT/POWER SUPPLY CIRCUIT

BATTERY SAVER OUTPUT/POWER SUPPLY CIRCUIT

Description

INFOID:0000000007355230

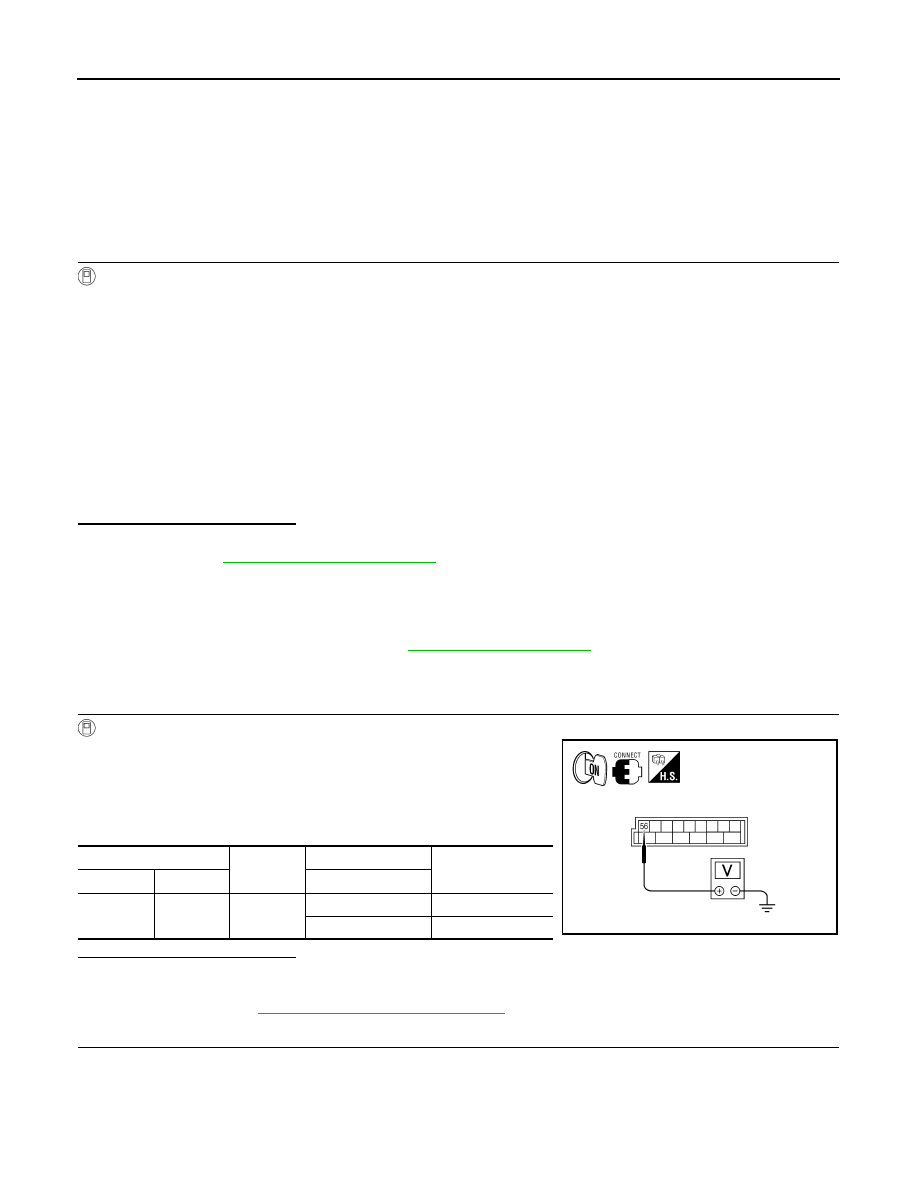

Provides the battery saver output/power supply. Also cuts the power supply when the interior room lamp bat-

tery saver is activating.

Component Function Check

INFOID:0000000007355231

1.

CHECK BATTERY SAVER OUTPUT/POWER SUPPLY FUNCTION

WITH CONSULT

1. Turn ignition switch ON.

2. Turn each interior room lamp ON.

-

Front room/map lamp assembly

-

Vanity lamps (if equipped)

-

Cargo lamp

-

Personal lamp 2nd row (with personal lamp 2nd row)

-

Room lamp 2nd row (without personal lamp 2nd row)

3. Select “BATTERY SAVER” of BCM (BATTERY SAVER) active test item.

4.  While operating the test item, check that each interior room lamp turns ON/OFF.

Is the inspection result normal?

YES

>> Battery saver output/power supply circuit is normal.

NO

>> Refer to

INL-16, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000007355232

Regarding Wiring Diagram information, refer to

BCS-46, "Wiring Diagram"

.

1.

CHECK BATTERY SAVER OUTPUT/POWER SUPPLY OUTPUT

WITH CONSULT

1. Turn ignition switch ON.

2. Select “BATTERY SAVER” of BCM (BATTERY SAVER) active

test item.

3. While operating the test item, check voltage between BCM con-

nector M20 terminal 56 and ground.

Is the inspection result normal?

YES

>> GO TO 2

NO

>> Replace BCM after making sure battery saver output/power supply circuit is not shorted to volt-

age. Refer to

BCS-53, "Removal and Installation"

.

2.

CHECK BATTERY SAVER OUTPUT/POWER SUPPLY OPEN CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect the following connectors.

-

BCM  M20

-

Ignition keyhole illumination

-

Front room/map lamp assembly

OFF

: Interior room lamp OFF

ON

: Interior room lamp ON

(+)

(-)

Test item

Voltage

Connector

Terminal

BATTERY SAVER

M20

56

Ground

OFF

0V

ON

Battery voltage

ALLIA0408GB

August 2012

2012 Pathfinder















Content      ..     434      435      436      437     ..
