Nissan Pathfinder (2012 year). Manual - part 412





HAC-18

< SYSTEM DESCRIPTION >

[AUTOMATIC AIR CONDITIONER]

AUTOMATIC AIR CONDITIONER SYSTEM

ECM judges whether compressor can be turned ON, based on each sensor status (refrigerant pressure sen-

sor signal, throttle angle sensor, etc.). If it judges compressor can be turned ON, it sends compressor ON sig-

nal to IPDM E/R, via CAN communication line.

Upon receipt of compressor ON signal from ECM, IPDM E/R turns air conditioner relay ON to operate com-

pressor.

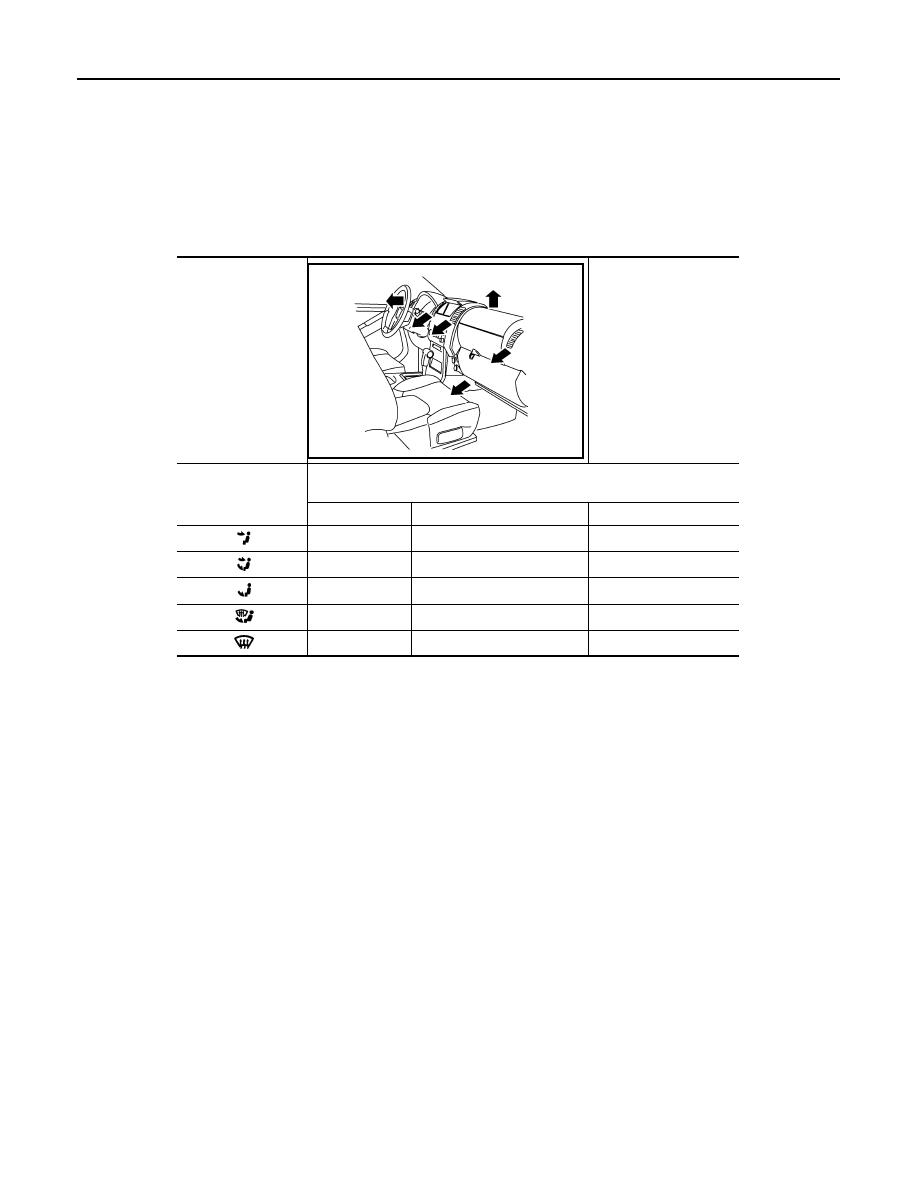

Discharge Air Flow (Front)

INFOID:0000000007356342

Mode door position

Air outlet/distribution

Vent

Foot

Defroster

100%

0%

60%

40%

18%

64%

18%

14%

53%

33%

13%

87%

LJIA0172E

August 2012

2012 Pathfinder

AUTOMATIC AIR CONDITIONER SYSTEM

HAC-19

< SYSTEM DESCRIPTION >

[AUTOMATIC AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

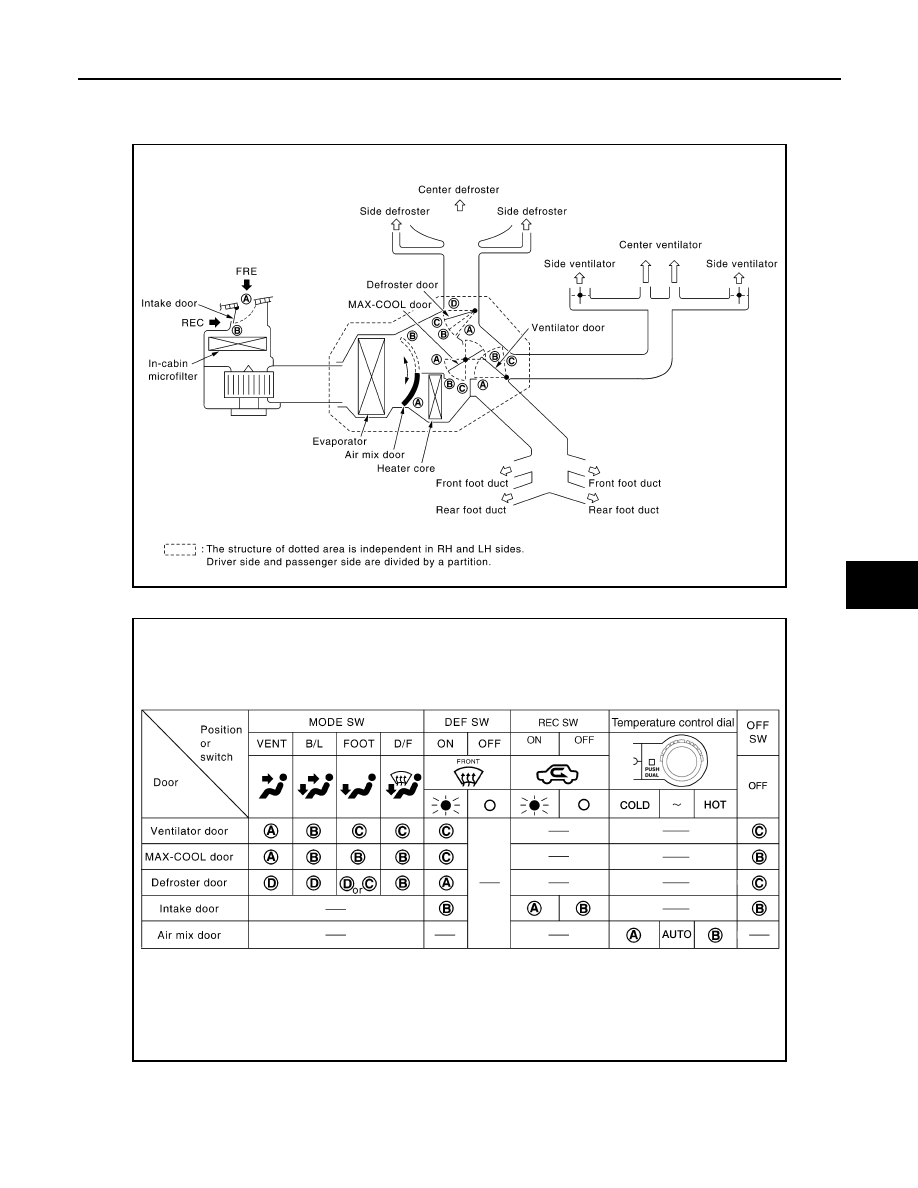

Switches And Their Control Function (Front)

INFOID:0000000007356343

WJIA1680E

AWIIA0236GB

August 2012

2012 Pathfinder

HAC-20

< SYSTEM DESCRIPTION >

[AUTOMATIC AIR CONDITIONER]

AUTOMATIC AIR CONDITIONER SYSTEM

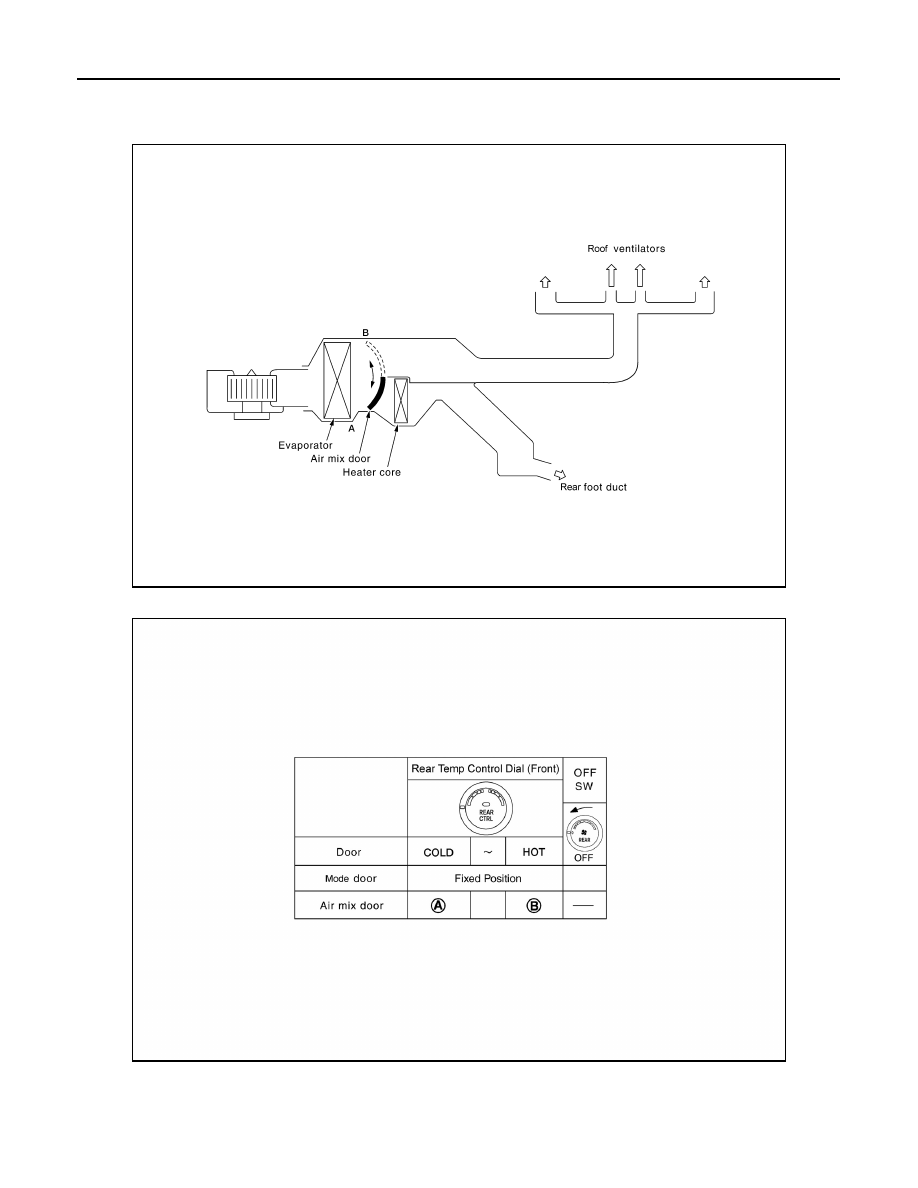

Switches And Their Control Function (Rear)

INFOID:0000000007356344

AWIIA0239GB

AWIIA0240GB

August 2012

2012 Pathfinder

DIAGNOSIS SYSTEM (HVAC)

HAC-21

< SYSTEM DESCRIPTION >

[AUTOMATIC AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

DIAGNOSIS SYSTEM (HVAC)

CONSULT Function (HVAC)

INFOID:0000000007356345

CONSULT can display each diagnostic item using the diagnostic test modes shown following.

SELF-DIAGNOSIS

Display Item List

DATA MONITOR

Display Item List

Diagnostic mode

Description

SELF DIAGNOSTIC RESULT

Displays A/C auto amp. self-diagnosis results.

DATA MONITOR

Displays A/C auto amp.l input/output data in real time.

CAN DIAG SUPPORT MNTR

The result of transmit/receive diagnosis of CAN communication can be read.

ECU IDENTIFICATION

A/C auto amp. part number can be read.

DTC

Description

Reference page

B2573

Battery voltage out of range

CHG-5, "Work Flow (With EXP-800 NI or GR8-1200 NI)"

 or

CHG-8, "Work Flow (Without EXP-800 NI or GR8-1200 NI)"

B2578

In-vehicle sensor circuit out of range (low)

HAC-82, "In-Vehicle Sensor Diagnosis Procedure"

B2579

In-vehicle sensor circuit out of range (high)

B257B

Ambient sensor circuit short

HAC-79, "Ambient Sensor Diagnosis Procedure"

B257C

Ambient sensor circuit open

B257F

Optical sensor (Driver) circuit open or short

HAC-85, "Optical Sensor Diagnosis Procedure"

.

B2580

Optical sensor (Passenger) circuit open or short

B2581

Intake sensor circuit short

HAC-87, "Intake Sensor Diagnosis Procedure"

B2582

Intake sensor circuit open

U1000

CAN bus fault

LAN-4, "System Description"

Monitor item

Value

Contents

BATT VIA CAN

"V"

Displays battery voltage signal.

IGN VIA CAN

"ON/OFF"

Displays ignition switch signal.

DVR SUNLD SEN

"w/m2"

Displays optical sensor (driver) signal.

PAS SUNLD SEN

"w/m2"

Displays optical sensor (passenger) signal.

AMB TEMP SEN

"

°

C/

°

F"

Displays ambient sensor signal.

EVAP TEMP SEN

"

°

C/

°

F"

Displays intake sensor signal.

INCAR TMP SEN

"

°

C/

°

F"

Displays in-vehicle sensor signal.

RR TEMPSET FR

"V"

Displays air mix door (front) set point signal.

RR TEMPSET RR

"V"

Displays air mix door (rear) set point signal.

MODE FDBCK

"V"

Displays mode door motor feedback signal.

DVR MIX FDBCK

"V"

Displays air mix door motor (driver) feedback signal.

PAS MIX FDBCK

"V"

Displays air mix door motor (passenger) feedback signal.

RR FDBCK

"V"

Displays air mix door motor (rear) feedback signal.

August 2012

2012 Pathfinder

HAC-22

< SYSTEM DESCRIPTION >

[AUTOMATIC AIR CONDITIONER]

DIAGNOSIS SYSTEM (BCM)

DIAGNOSIS SYSTEM (BCM)

COMMON ITEM
COMMON ITEM : CONSULT Function (BCM - COMMON ITEM)

INFOID:0000000007808140

APPLICATION ITEM

CONSULT performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions.

Direct Diagnostic Mode

Description

Ecu Identification

The BCM part number is displayed.

Self Diagnostic Result

The BCM self diagnostic results are displayed.

Data Monitor

The BCM input/output data is displayed in real time.

Active Test

The BCM activates outputs to test components.

Work support

The settings for BCM functions can be changed.

Configuration

• The vehicle specification can be read and saved.
• The vehicle specification can be written when replacing BCM.

CAN Diag Support Mntr

The result of transmit/receive diagnosis of CAN communication is displayed.

System

Sub System

Direct Diagnostic Mode

E

cu

 Id

en

tifi

ca

tio

n

Se

lf Di

ag

no

st

ic Re

su

lt

Da

ta

 Mo

ni

tor

A

cti

ve

 T

est

W

o

rk support

Co

nf

igu

rat

ion

CA

N Diag

 Su

pp

ort Mn

tr

Door lock

DOOR LOCK

×

×

×

Rear window defogger

REAR DEFOGGER

×

×

Warning chime

BUZZER

×

×

Interior room lamp timer

INT LAMP

×

×

×

Remote keyless entry system

MULTI REMOTE ENT

×

×

×

Exterior lamp

HEAD LAMP

×

×

×

Wiper and washer

WIPER

×

×

×

Turn signal and hazard warning lamps FLASHER

×

×

Air conditioner

AIR CONDITIONER

×

Intelligent Key system

INTELLIGENT KEY

×

Combination switch

COMB SW

×

BCM

BCM

×

×

×

×

×

Immobilizer

IMMU

×

×

×

Interior room lamp battery saver

BATTERY SAVER

×

×

×

Back door open

TRUNK

×

×

Vehicle security system

THEFT ALM

×

×

×

RAP system

RETAINED PWR

×

×

×

Signal buffer system

SIGNAL BUFFER

×

×

TPMS

AIR PRESSURE MONITOR

×

×

×

×

Panic alarm system

PANIC ALARM

×

August 2012

2012 Pathfinder

DIAGNOSIS SYSTEM (BCM)

HAC-23

< SYSTEM DESCRIPTION >

[AUTOMATIC AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

AIR CONDITIONER
AIR CONDITIONER : CONSULT Function (BCM - AIR CONDITIONER)

INFOID:0000000007808142

DATA MONITOR

Monitor Item [Unit]

Description

IGN ON SW [On/Off]

Indicates condition of ignition switch ON position.

FAN ON SIG [On/Off]

Indicates condition of fan switch.

AIR COND SW [On/Off]

Indicates condition of A/C switch.

August 2012

2012 Pathfinder

HAC-24

< SYSTEM DESCRIPTION >

[AUTOMATIC AIR CONDITIONER]

SELF-DIAGNOSIS FUNCTION

SELF-DIAGNOSIS FUNCTION

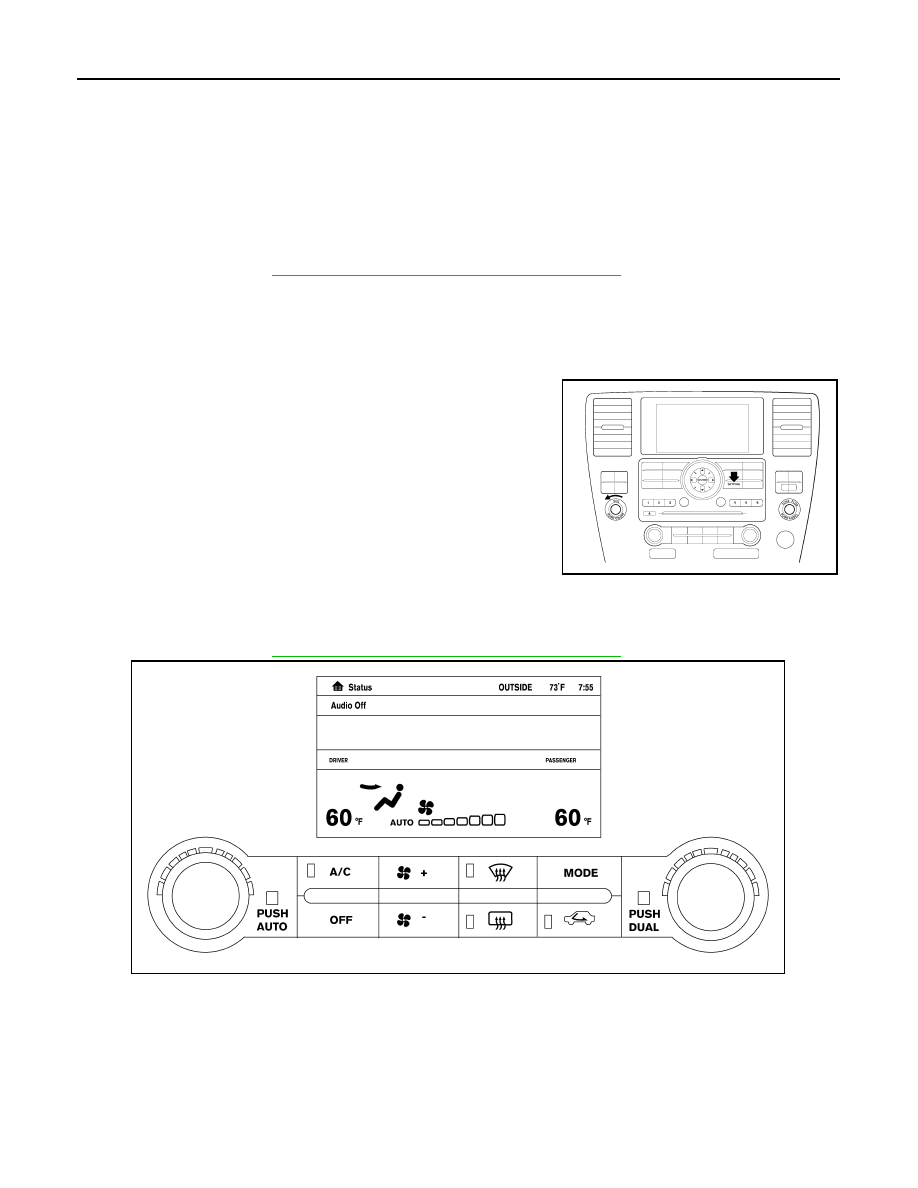

A/C Auto Amp. Self-Diagnosis

INFOID:0000000007356348

A/C SYSTEM SELF-DIAGNOSIS FUNCTION

The self-diagnosis function is built into the A/C auto amp. to quickly locate the cause of malfunctions.

DESCRIPTION

The self-diagnostic system diagnoses sensors, CAN system, and battery voltage on A/C auto amp. Refer to

applicable sections (items) for details. Fault codes (if any are present) will be displayed in the ambient temper-

ature display area. Refer to

HAC-25, "A/C System Self-Diagnosis Code Chart"

.

SELF-DIAGNOSTIC MODE

NOTE:

Radio must be OFF.

1. Turn the ignition switch ON.

2. On the A/C and AV switch assembly, press the "SETTING" but-

ton and twist the volume knob clockwise and counterclockwise

until the Self-Diagnosis screen shows on the display.

3. Scroll down to "Confirmation/Adjustment" and press the

"ENTER" button.

4. Scroll down to "Climate Control" and press the "ENTER" button.

5. The fan bars will flash on the display during the self-test, and

then the fault codes will display in the ambient temperature area.

They will continue scrolling until diagnostic mode is exited.

6. Exit by pressing the "BACK" button on A/C and AV switch

assembly until display returns to its normal operation screen.

HVAC system will be OFF or by turning the ignition switch OFF.

The self-diagnostic system diagnoses sensors, CAN system, and battery voltage on A/C auto amp. Refer to

applicable sections (items) for details. Fault codes (if any are present) will be displayed in the ambient temper-

ature display area. Refer to

HAC-25, "A/C System Self-Diagnosis Code Chart"

.

A/C and AV Switch Assembly Self-Diagnosis

INFOID:0000000007356349

A/C and AV switch assembly self-diagnosis function

The ON/OFF operation (continuity) of each switch in the A/C and AV switch assembly can be checked.

Self-diagnosis mode

AWNIA0098ZZ

AWIIA0081ZZ

August 2012

2012 Pathfinder

SELF-DIAGNOSIS FUNCTION

HAC-25

< SYSTEM DESCRIPTION >

[AUTOMATIC AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

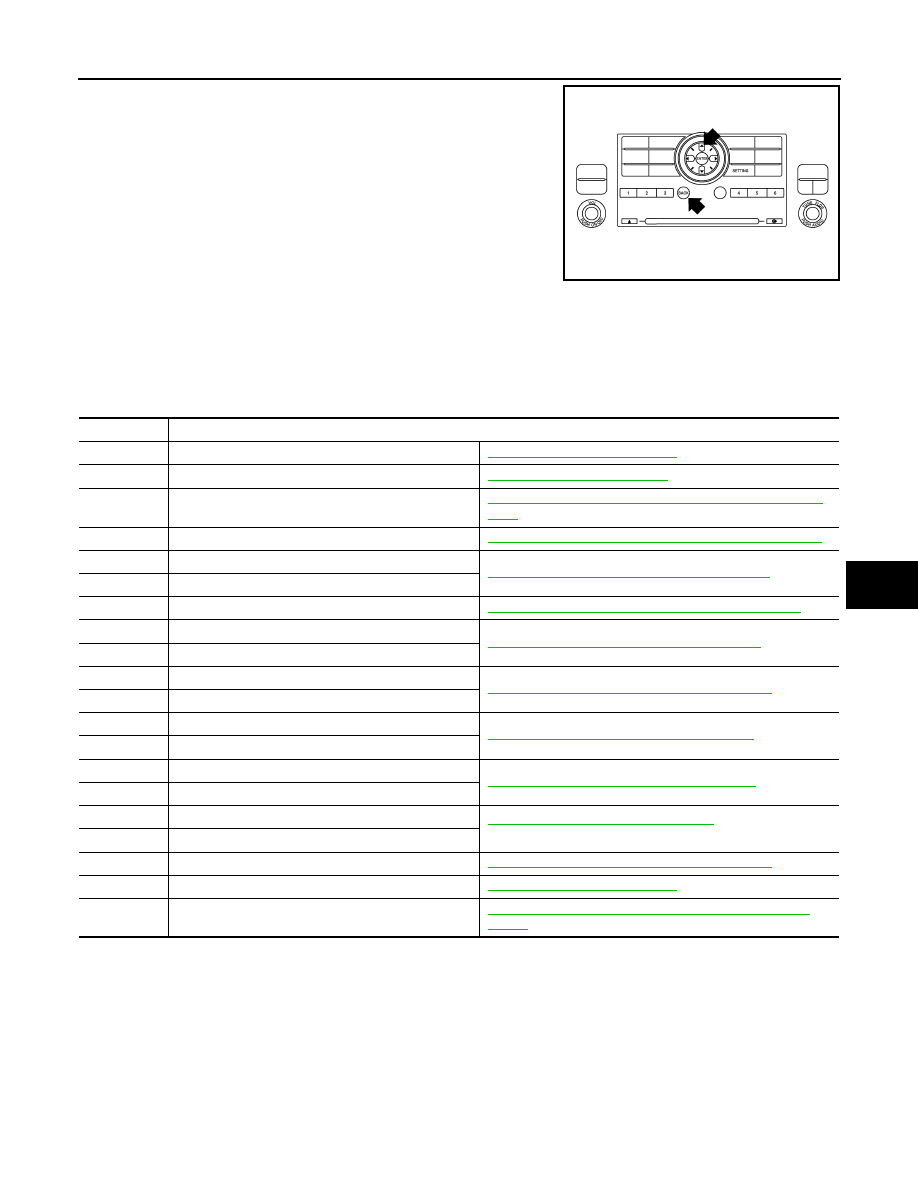

• Press the “BACK” switch and the “UP” switch within 10 seconds

after turning the ignition switch from OFF to ACC and hold them for

3 seconds or more. Then the buzzer sounds, all indicators of the

preset switch illuminate, and the self-diagnosis mode starts.

• The continuity of each switch and control dials (A/C and AV switch

assembly only) at the ON position can be checked by pressing

each switch and turning each control dial. The buzzer sounds and

LED's will illuminate if the switch is normal.

Finishing self-diagnosis mode

Self-diagnosis mode is canceled when turning the ignition switch OFF.

A/C System Self-Diagnosis Code Chart

INFOID:0000000007356350

SELF-DIAGNOSTIC CODE CHART

AWIIA0171GB

Code No.

Reference page

02

EE changed by calibration

VTL-7, "Removal and Installation"

03

Battery voltage out of range

CHG-14, "Diagnosis Procedure"

12

Passenger air mix door open/short/out of limits

HAC-34, "Air Mix Door Motor (Passenger) Diagnosis Proce-
dure"

22

Driver air mix door open/short

HAC-32, "Air Mix Door Motor (Driver) Diagnosis Procedure"

30

In-vehicle sensor circuit out of range (low)

HAC-82, "In-Vehicle Sensor Diagnosis Procedure"

31

In-vehicle sensor circuit out of range (high)

38

Air mix door motor (rear) circuit failure

HAC-57, "Rear Air Control Component Function Check"

40

Ambient sensor circuit short

HAC-79, "Ambient Sensor Diagnosis Procedure"

41

Ambient sensor circuit open

44

Intake door motor open

HAC-39, "Intake Door Motor Diagnosis Procedure"

46

Intake door motor short

50

Optical sensor (Driver) circuit open or short

HAC-85, "Optical Sensor Diagnosis Procedure"

52

Optical sensor (Passenger) circuit open or short

56

Intake sensor circuit short

HAC-164, "Intake Sensor Diagnosis Procedure"

57

Intake sensor circuit open

80

CAN bus fault

LAN-14, "Trouble Diagnosis Flow Chart"

81

BCM message missing

82

Intake door motor circuit malfunction

HAC-39, "Intake Door Motor Diagnosis Procedure"

90

Stuck button

VTL-7, "Removal and Installation"

92

Mode door motor circuit malfunction

HAC-27, "Mode Door Motor (Front) Component Function
Check"

August 2012

2012 Pathfinder
