Nissan Pathfinder (2012 year). Manual - part 410





HAC-2

Rear Air Control System Description ......................

57

Rear Air Control Component Function Check  ........

57

Rear Air Control (Front) Diagnosis Procedure ........

58

Rear Air Control (Rear) Diagnosis Procedure  ........

62

MAGNET CLUTCH  ............................................

69

System Description .................................................

69

Magnet Clutch Component Function Check ...........

69

Magnet Clutch Diagnosis Procedure  ......................

69

WATER VALVE CIRCUIT ..................................

74

Water Valve Description (VK56DE)  ........................

74

Water Valve Diagnosis Procedure (VK56DE) .........

74

HEATER PUMP  .................................................

76

System Description (VQ40DE)  ...............................

76

Diagnosis Procedure (VQ40DE) .............................

76

Component Inspection (VQ40DE)  ..........................

78

AMBIENT SENSOR ...........................................

79

Component Description  ..........................................

79

Ambient Sensor Diagnosis Procedure ....................

79

Ambient Sensor Component Inspection  .................

80

IN-VEHICLE SENSOR .......................................

82

Component Description  ..........................................

82

In-Vehicle Sensor Diagnosis Procedure .................

82

In-Vehicle Sensor Component Inspection  ..............

84

OPTICAL SENSOR  ...........................................

85

Component Description  ..........................................

85

Optical Sensor Diagnosis Procedure ......................

85

INTAKE SENSOR ..............................................

87

System Description .................................................

87

Intake Sensor Diagnosis Procedure  .......................

87

Intake Sensor Component Inspection  ....................

88

POWER SUPPLY AND GROUND CIRCUIT
FOR CONTROLLER ..........................................

90

Component Description  ..........................................

90

A/C Auto Amp. Component Function Check  ..........

90

A/C Auto Amp Power and Ground Diagnosis Pro-
cedure ....................................................................
.

91

ECU DIAGNOSIS INFORMATION ..............

93

AIR CONDITIONER CONTROL  ........................

93

A/C Auto Amp. Terminals Reference Values  .........

93

WIRING DIAGRAM  .....................................

95

AIR CONDITIONER CONTROL  ........................

95

Wiring Diagram - Automatic ....................................

95

SYMPTOM DIAGNOSIS  ............................

111

AIR CONDITIONER CONTROL  ......................

111

Symptom Matrix Chart .........................................

111

INSUFFICIENT COOLING ...............................

112

Component Function Check  ..................................

112

Diagnostic Work Flow  ...........................................

113

Performance Chart ................................................

115

Trouble Diagnoses for Abnormal Pressure ...........

116

INSUFFICIENT HEATING  ................................

120

Component Function Check  .................................

120

NOISE ...............................................................

122

Component Function Check  .................................

122

MEMORY FUNCTION DOES NOT OPERATE ..

124

Memory Function Check  .......................................

124

PRECAUTION ...........................................

125

PRECAUTIONS  ................................................

125

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...............................................................

125

Precaution Necessary for Steering Wheel Rota-
tion After Battery Disconnect  ................................

125

Working with HFC-134a (R-134a) .........................

126

Precaution for Service Equipment ........................

126

MANUAL AIR CONDITIONER

BASIC INSPECTION .................................

128

DIAGNOSIS AND REPAIR WORKFLOW ........

128

How to Perform Trouble Diagnosis For Quick And
Accurate Repair  ....................................................

128

INSPECTION AND ADJUSTMENT ..................

129

Operational Check  ................................................

129

SYSTEM DESCRIPTION  ..........................

131

FUNCTION INFORMATION  .............................

131

Component Part Location  .....................................

131

Symptom Table .....................................................

133

REFRIGERATION SYSTEM .............................

134

Refrigerant Cycle  ..................................................

134

Refrigerant System Protection ..............................

134

MANUAL AIR CONDITIONER SYSTEM  .........

136

Control System Diagram .......................................

136

Control System Description ..................................

136

Discharge Air Flow ................................................

138

Switches And Their Control Function ....................

138

DIAGNOSIS SYSTEM (BCM) ...........................

140

COMMON ITEM .......................................................

140

COMMON ITEM : CONSULT Function (BCM -
COMMON ITEM)  ..................................................

140

AIR CONDITIONER .................................................

141

AIR CONDITIONER : CONSULT Function (BCM -
AIR CONDITIONER) .............................................

141

DTC/CIRCUIT DIAGNOSIS .......................

142

MODE DOOR MOTOR  .....................................

142

August 2012

2012 Pathfinder

HAC-3

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

System Description  ...............................................

142

Mode Door Motor (Front) Component Function
Check ....................................................................

142

Mode Door Motor (Front) Diagnosis Procedure  ....

143

AIR MIX DOOR MOTOR  ..................................

146

System Description  ...............................................

146

Air Mix Door Motor Component Function Check ...

147

Air Mix Door Motor Diagnosis Procedure ..............

147

INTAKE DOOR MOTOR  ..................................

150

System Description  ...............................................

150

Intake Door Motor Component Function Check ....

150

Intake Door Motor Diagnosis Procedure  ...............

151

BLOWER MOTOR ............................................

153

System Description  ...............................................

153

Front Blower Motor Component Function Check ..

153

Front Blower Motor Diagnosis Procedure  .............

154

Front Blower Motor Component Inspection ...........

157

MAGNET CLUTCH ...........................................

160

System Description  ...............................................

160

Magnet Clutch Component Function Check  .........

160

Magnet Clutch Diagnosis Procedure .....................

160

INTAKE SENSOR  ............................................

164

System Description  ...............................................

164

Intake Sensor Diagnosis Procedure ......................

164

Intake Sensor Component Inspection ...................

165

POWER SUPPLY AND GROUND CIRCUIT
FOR CONTROLLER  ........................................

167

Component Description .........................................

167

Front Air Control Component Function Check  ......

167

Front Air Control Power and Ground Diagnosis
Procedure ..............................................................

167

ECU DIAGNOSIS INFORMATION ............

169

AIR CONDITIONER CONTROL ......................

169

System Description ................................................

169

System Operation ..................................................

169

Front Air Control Terminals Reference Values ......

170

WIRING DIAGRAM ....................................

172

AIR CONDITIONER CONTROL ......................

172

Wiring Diagram - Manual .......................................

172

SYMPTOM DIAGNOSIS  ............................

179

AIR CONDITIONER CONTROL ......................

179

Symptom Matrix Chart .........................................

179

INSUFFICIENT COOLING  ..............................

180

Component Function Check  ..................................

180

Diagnostic Work Flow ............................................

181

Performance Chart  ................................................

183

Trouble Diagnoses for Abnormal Pressure  ...........

184

INSUFFICIENT HEATING ...............................

188

Component Function Check  ..................................

188

NOISE ..............................................................

190

Component Function Check  ..................................

190

PRECAUTION ............................................

192

PRECAUTIONS ...............................................

192

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...............................................................

192

Precaution Necessary for Steering Wheel Rota-
tion After Battery Disconnect  .................................

192

Working with HFC-134a (R-134a) .........................

193

Precaution for Service Equipment  .........................

193

August 2012

2012 Pathfinder

HAC-4

< BASIC INSPECTION >

[AUTOMATIC AIR CONDITIONER]

DIAGNOSIS AND REPAIR WORKFLOW

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

How to Perform Trouble Diagnosis For Quick And Accurate Repair

INFOID:0000000007356333

WORK FLOW

1.

LISTEN TO CUSTOMER COMPLAINT

Listen to customer complaint. Get detailed information about the conditions and environment when the symp-

tom occurs.

>> GO TO 2

2.

CHECK FOR SERVICE BULLETINS

Check for any service bulletins.

>> GO TO 3.

3.

VERIFY THE SYMPTOM WITH OPERATIONAL CHECK

Verify the symptom with operational check. Refer to

HAC-5, "Operational Check (Front)"

 or

HAC-6, "Opera-

tional Check (Rear)"

Is the inspection result normal?

YES

>> GO TO 4

NO

>> GO TO 5

4.

GO TO APPROPRIATE TROUBLE DIAGNOSIS

Go to appropriate trouble diagnosis. Refer to

HAC-111, "Symptom Matrix Chart"

.

Is the inspection result normal?

>> GO TO 5.

5.

PERFORM THE A/C AUTO AMP SELF-DIAGNOSIS

Perform A/C auto amp. self-diagnosis. Refer to

HAC-24, "A/C Auto Amp. Self-Diagnosis"

.

>> If any diagnostic trouble codes set. Refer to

HAC-25, "A/C System Self-Diagnosis Code Chart"

.

>> Confirm the repair by performing operational check. Refer to

HAC-5, "Operational Check (Front)"

or

HAC-6, "Operational Check (Rear)"

.

August 2012

2012 Pathfinder

INSPECTION AND ADJUSTMENT

HAC-5

< BASIC INSPECTION >

[AUTOMATIC AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

INSPECTION AND ADJUSTMENT

Operational Check (Front)

INFOID:0000000007356334

The purpose of the operational check is to confirm that the system operates properly.

CHECKING MEMORY FUNCTION

1. Set the temperature to 32

°

C (90

°

F).

2. Press the OFF switch.
3. Turn ignition switch OFF.
4. Turn ignition switch ON.

5. Press the AUTO switch.
6. Confirm that the set temperature remains at previous temperature.

7. Press the OFF switch.
If NG, go to trouble diagnosis procedure for

HAC-124, "Memory Function Check"

.

If OK, continue with next check.

CHECKING BLOWER

1. Press the blower speed control switch (+) once, blower should operate on low speed. The fan display

should have one bar lit (on display).

2. Press the blower speed control switch (+) again, and continue checking blower speed and fan display until

all speeds are checked.

3. Leave blower on maximum speed.
If NG, go to trouble diagnosis procedure for

HAC-42, "Front Blower Motor Diagnosis Procedure"

.

If OK, continue with next check.

CHECKING DISCHARGE AIR

1. Press MODE switch four times and the DEF

 switch.

2. Each position indicator should change shape (on display).

3. Confirm that discharge air comes out according to the air distribution table. Refer to

HAC-18, "Discharge

Air Flow (Front)"

.

Mode door position is checked in the next step.

If NG, go to trouble diagnosis procedure for

HAC-27, "Mode Door Motor (Front) Diagnosis Procedure"

.

If OK, continue the check.

NOTE:

Confirm that the compressor clutch is engaged (sound or visual inspection) and intake door position is at

fresh when the FOOT, DEF or D/F is selected.

CHECKING RECIRCULATION ( ,   ONLY)

1. Press recirculation (

) switch one time. Recirculation indicator should illuminate.

2. Press recirculation (

) switch one more time. Recirculation indicator should go off.

3. Listen for intake door position change (blower sound should change slightly).
If NG, go to trouble diagnosis procedure for

HAC-39, "Intake Door Motor Diagnosis Procedure"

.

If OK, continue the check.

NOTE:

Confirm that the compressor clutch is engaged (sound or visual inspection) and intake door position is at fresh
when the FOOT, DEF or D/F is selected. REC (

) is not allowed in DEF (

) D/F (

) or FOOT (

).

CHECKING TEMPERATURE DECREASE

1. Rotate temperature control dial (drive or passenger) counterclockwise until 18

°

C (60

°

F) is displayed.

2. Check for cold air at appropriate discharge air outlets.

Conditions

: Engine running and at normal operating temperature

August 2012

2012 Pathfinder

HAC-6

< BASIC INSPECTION >

[AUTOMATIC AIR CONDITIONER]

INSPECTION AND ADJUSTMENT

If NG, listen for sound of air mix door motor operation. If OK, go to trouble diagnosis procedure for

HAC-112,

"Component Function Check"

. If air mix door motor appears to be malfunctioning, go to

HAC-31, "Air Mix Door

Motor (Driver) Component Function Check"

If OK, continue the check.

CHECKING TEMPERATURE INCREASE

1. Rotate temperature control dial clockwise (drive or passenger) until 32

°

C (90

°

F) is displayed.

2. Check for hot air at appropriate discharge air outlets.
If NG, listen for sound of air mix door motor operation. If OK, go to trouble diagnosis procedure for

HAC-120,

"Component Function Check"

. If air mix door motor appears to be malfunctioning, go to

HAC-31, "Air Mix Door

Motor (Driver) Component Function Check"

.

If OK, continue with next check.

CHECK A/C SWITCH

1. Press A/C switch when AUTO switch is ON, or in manual mode.
2. A/C switch indicator will turn ON.

• Confirm that the compressor clutch engages (sound or visual inspection).

NOTE:

If current mode setting is DEF or D/F, compressor clutch will already be engaged and cannot be turned off.

If NG, go to trouble diagnosis procedure for

HAC-69, "Magnet Clutch Diagnosis Procedure"

.

If OK, continue with next check.

CHECKING AUTO MODE

1. Press AUTO switch.
2. Display should indicate AUTO.

• If ambient temperature is warm, and selected temperature is cool, confirm that the compressor clutch

engages (sound or visual inspection). (Discharge air and blower speed will depend on ambient, in-vehi-

cle, and set temperatures.)

If NG, go to trouble diagnosis procedure for

HAC-91, "A/C Auto Amp Power and Ground Diagnosis Proce-

dure"

, then if necessary, trouble diagnosis procedure for

HAC-69, "Magnet Clutch Diagnosis Procedure"

.

If all operational checks are OK (inspection results are normal), go to malfunction Simulation Tests in

HAC-4,

"How to Perform Trouble Diagnosis For Quick And Accurate Repair"

 and perform tests as outlined to simulate

driving conditions environment. If symptom appears. Refer to

HAC-111, "Symptom Matrix Chart"

, and per-

form applicable trouble diagnosis procedures.

Operational Check (Rear)

INFOID:0000000007356335

The purpose of the operational check is to confirm that the system operates properly.

CHECKING REAR BLOWER MOTOR

1. Turn the ignition switch ON.
2. Rotate rear air control (front) blower control dial to low speed.
3. Rotate the blower control dial clockwise and continue checking blower speed until all speeds are checked.
4. Leave blower on maximum speed.
5. Press the REAR CTRL switch from the rear air control (front).
6. Rotate rear air control (rear) blower control dial to low speed.
7. Rotate the blower control dial clockwise and continue checking blower speed until all speeds are checked.
8. Leave blower on maximum speed.
If NG, go to trouble diagnosis procedure for

HAC-48, "Rear Blower Motor Component Function Check"

.

If OK, continue with next check.

CHECKING REAR TEMPERATURE DECREASE

1. Press the REAR CTRL switch (indicator off).
2. Rotate the rear air control (front) temperature control dial counterclockwise to maximum cold.
3. Check for cold air at appropriate discharge air outlets.

Conditions

: Engine running and at normal operating temperature

August 2012

2012 Pathfinder

INSPECTION AND ADJUSTMENT

HAC-7

< BASIC INSPECTION >

[AUTOMATIC AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

4. Press the REAR CTRL switch (indicator on) from the rear air control (front).
5. Rotate the rear air control (rear) temperature control dial counterclockwise to maximum cold.
6. Check for cold air at appropriate discharge air outlets.
If NG, listen for sound of air mix door motor operation. If OK, go to trouble diagnosis procedure for

HAC-57,

"Rear Air Control Component Function Check"

. If air mix door motor appears to be malfunctioning, go to

HAC-

58, "Rear Air Control (Front) Diagnosis Procedure"

.

If OK, continue with next check.

CHECKING REAR TEMPERATURE INCREASE

1. Press the REAR CTRL switch (indicator off).
2. Rotate the rear air control (front) temperature control dial clockwise to maximum heat.
3. Check for hot air at appropriate discharge air outlets.
4. Press the REAR CTRL switch (indicator on) from the rear air control (front).
5. Rotate the rear air control (rear) temperature control dial clockwise to maximum heat.
6. Check for hot air at appropriate discharge air outlets.
If NG, listen for sound of air mix door motor operation. If OK, go to trouble diagnosis procedure for

HAC-120,

"Component Function Check"

. If air mix door motor appears to be malfunctioning, go to

HAC-58, "Rear Air

Control (Front) Diagnosis Procedure"

.

If NG, go to trouble diagnosis procedure for

HAC-120, "Component Function Check"

.

If all operational checks are OK (inspection results are normal), go to

HAC-4, "How to Perform Trouble Diag-

nosis For Quick And Accurate Repair"

 and perform tests as outlined. If symptom appears, refer to

HAC-111,

"Symptom Matrix Chart"

 and perform applicable trouble diagnosis procedures.

August 2012

2012 Pathfinder

HAC-8

< SYSTEM DESCRIPTION >

[AUTOMATIC AIR CONDITIONER]

FUNCTION INFORMATION

SYSTEM DESCRIPTION

FUNCTION INFORMATION

Component Part Location

INFOID:0000000007356336

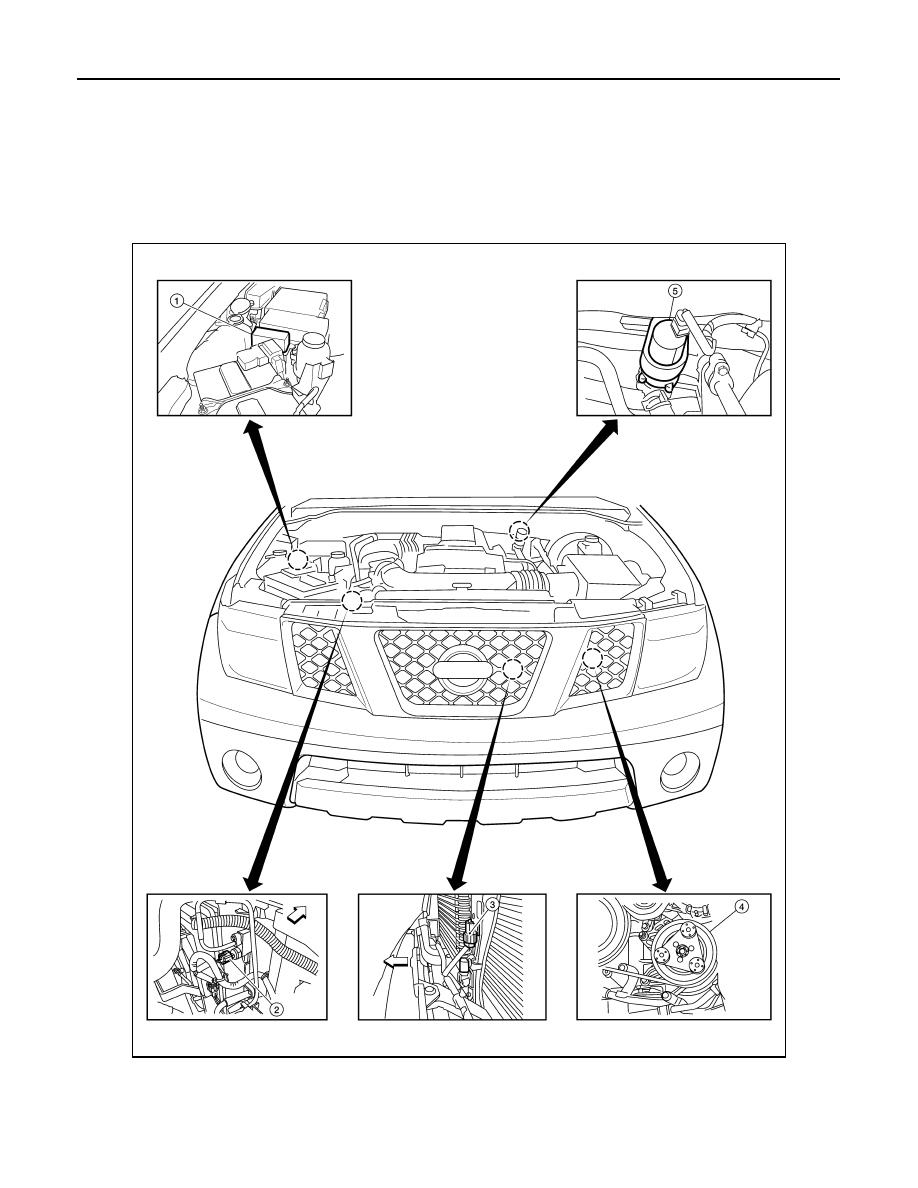

ENGINE COMPARTMENT

VQ40DE

WJIA2270E

1.

Heater pump relay E144

2.

Refrigerant pressure sensor E48
(View with battery removed)

: Front

3.

Ambient sensor E1 (View with grille
removed)

4.

A/C compressor F3

5.

Heater pump E141

August 2012

2012 Pathfinder

FUNCTION INFORMATION

HAC-9

< SYSTEM DESCRIPTION >

[AUTOMATIC AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

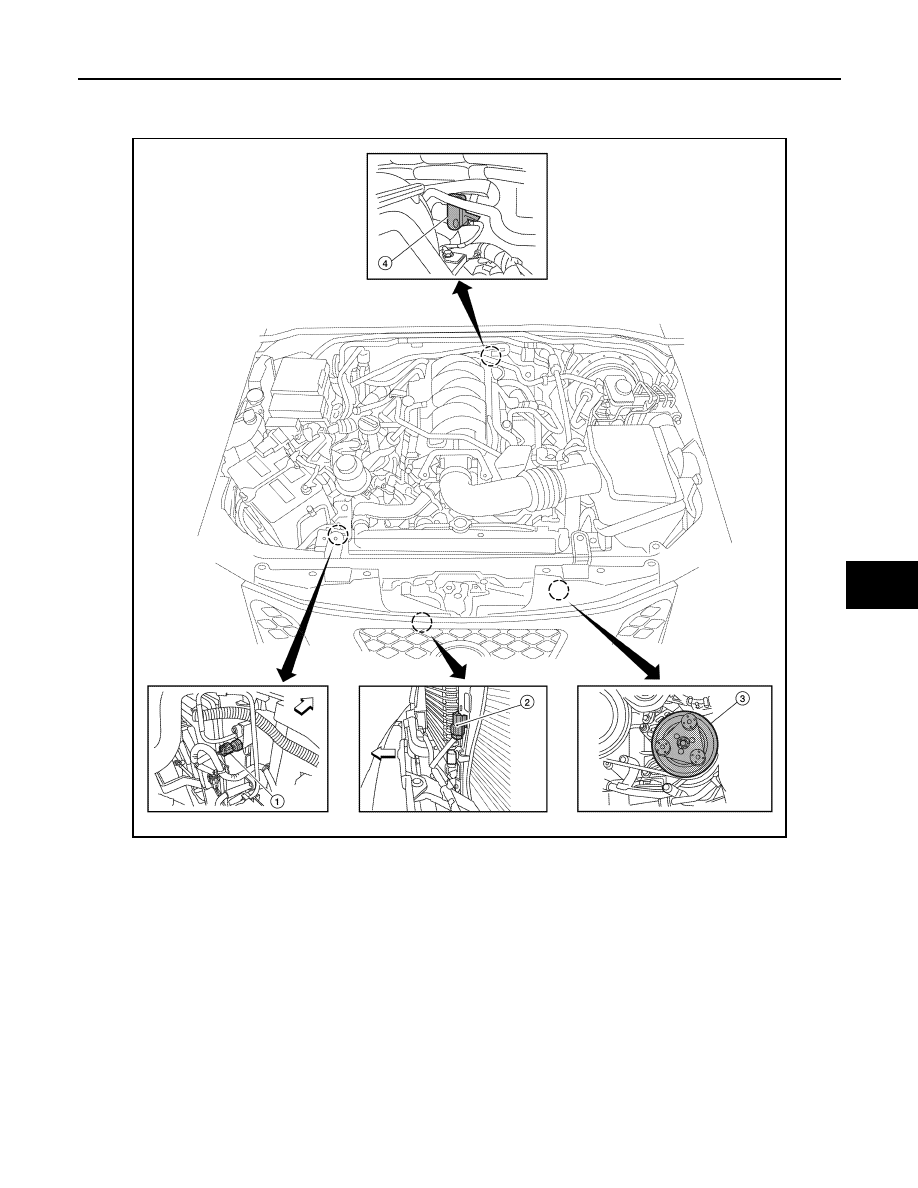

VK56DE

PASSENGER COMPARTMENT

AWIIA0220ZZ

1.

Refrigerant pressure sensor E50
(View with battery removed)

: Front

2.

Ambient sensorE1 (View with grille
removed)

3.

A/C compressor F3

4.

Water valve F68

August 2012

2012 Pathfinder
