Nissan Pathfinder (2012 year). Manual - part 404

PRECAUTIONS

HA-13

< PRECAUTION >

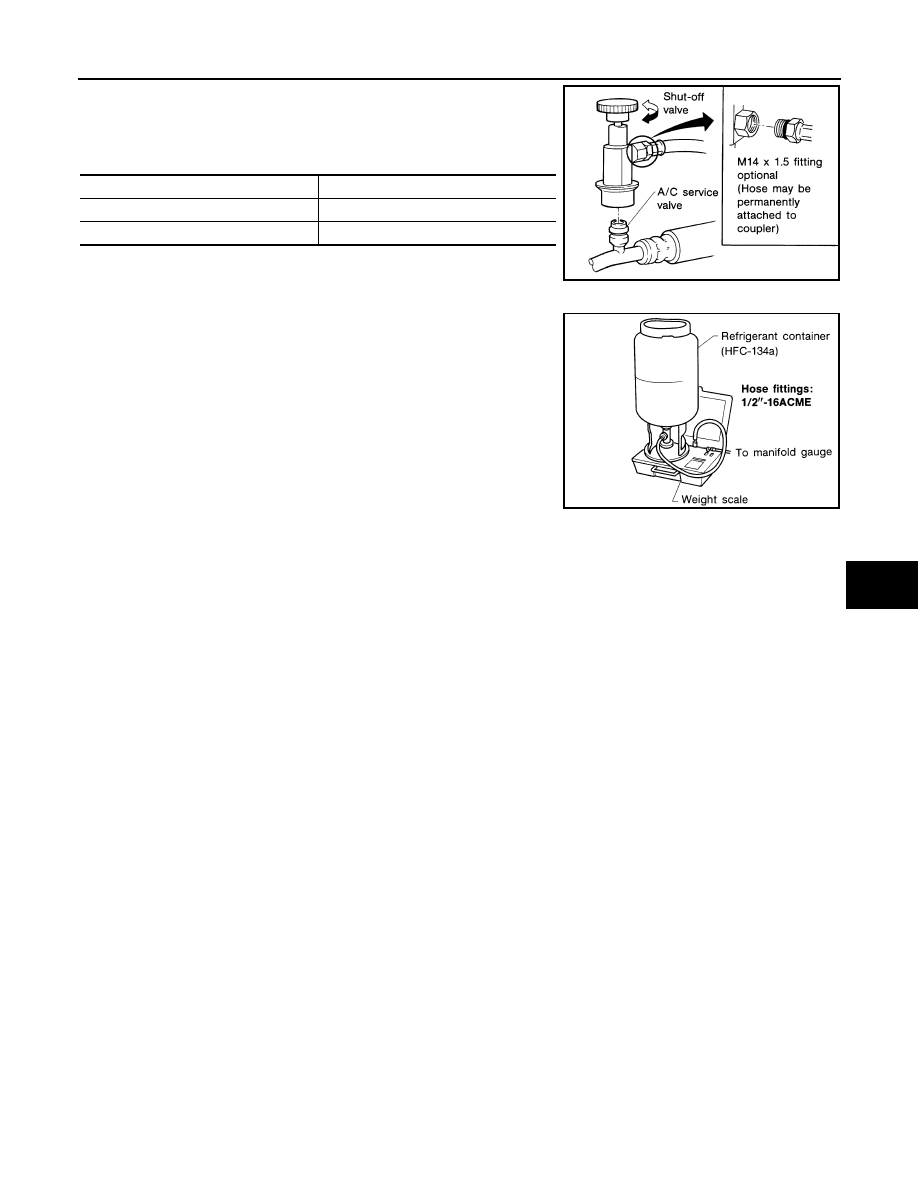

Never attempt to connect HFC-134a (R-134a) service couplers to a

CFC-12 (R-12) A/C system. The HFC-134a (R-134a) couplers will

not properly connect to the CFC-12 (R-12) system. If an improper

connection is attempted, discharging and contamination may occur.

REFRIGERANT WEIGHT SCALE

Verify that no refrigerant other than HFC134a (R-134a) and specified

oils have been used with the scale. If the scale controls refrigerant

flow electronically, the hose fitting must be 1/2”-16 ACME.

CHARGING CYLINDER

Using a charging cylinder is not recommended. Refrigerant may be vented into air from cylinder's top valve

when filling the cylinder with refrigerant. Also, the accuracy of the cylinder is generally less than that of an

electronic scale or of quality recycle/recharge equipment.

Shut-off valve rotation

A/C service valve

Clockwise

Open

Counterclockwise

RHA273D

RHA274D

August 2012

2012 Pathfinder

HA-14

< PREPARATION >

PREPARATION

PREPARATION

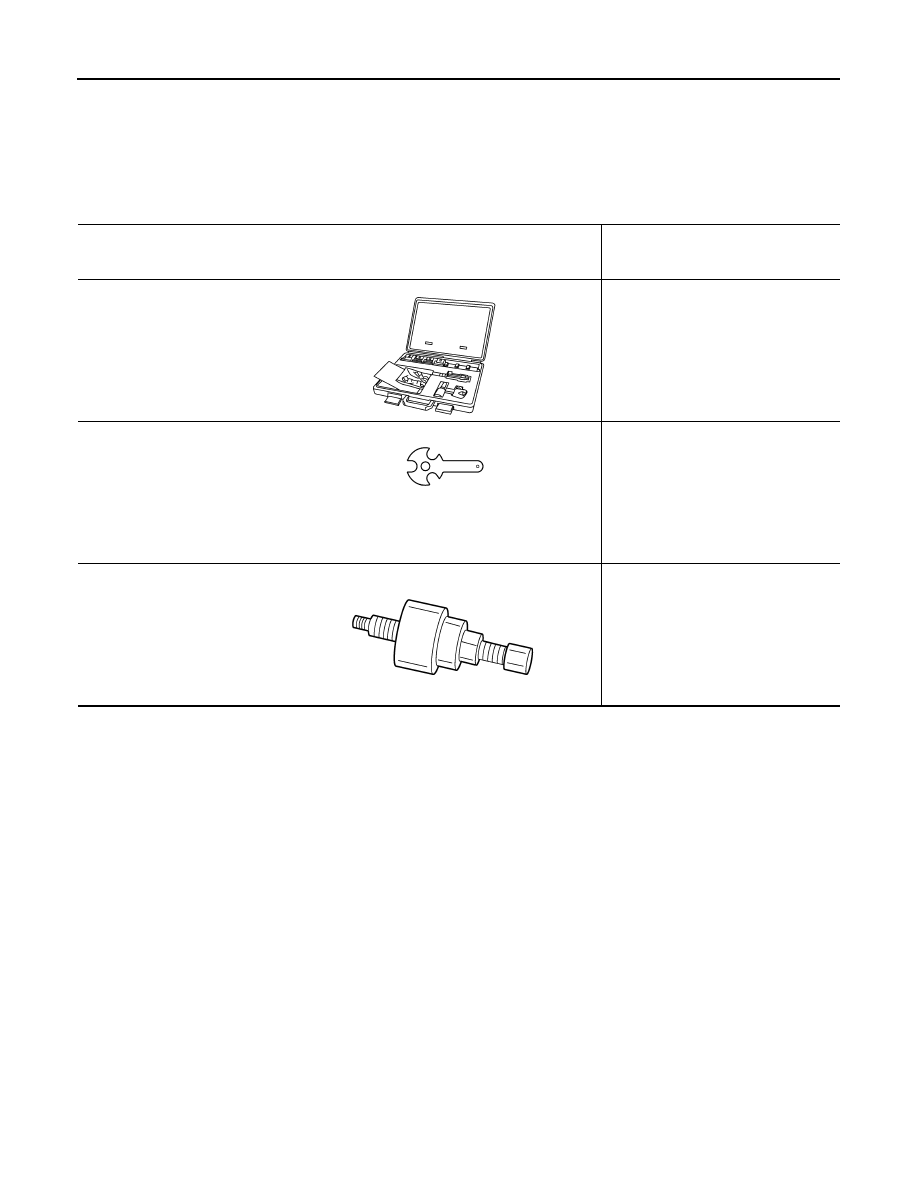

Special Service Tool

INFOID:0000000007356301

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

HFC-134a (R-134a) Service Tool and Equipment

INFOID:0000000007356302

Never mix HFC-134a (R-134a) refrigerant and/or its specified oil with CFC-12 (R-12) refrigerant and/or its oil.

Separate and non-interchangeable service equipment must be used for handling each type of refrigerant/oil.

Refrigerant container fittings, service hose fittings and service equipment fittings (equipment which handles

refrigerant and/or oil) are different between CFC-12 (R-12) and HFC-134a (R-134a). This is to avoid mixed

use of the refrigerants/oil.

Adapters that convert one size fitting to another must never be used refrigerant/oil contamination will occur

and compressor failure will result.

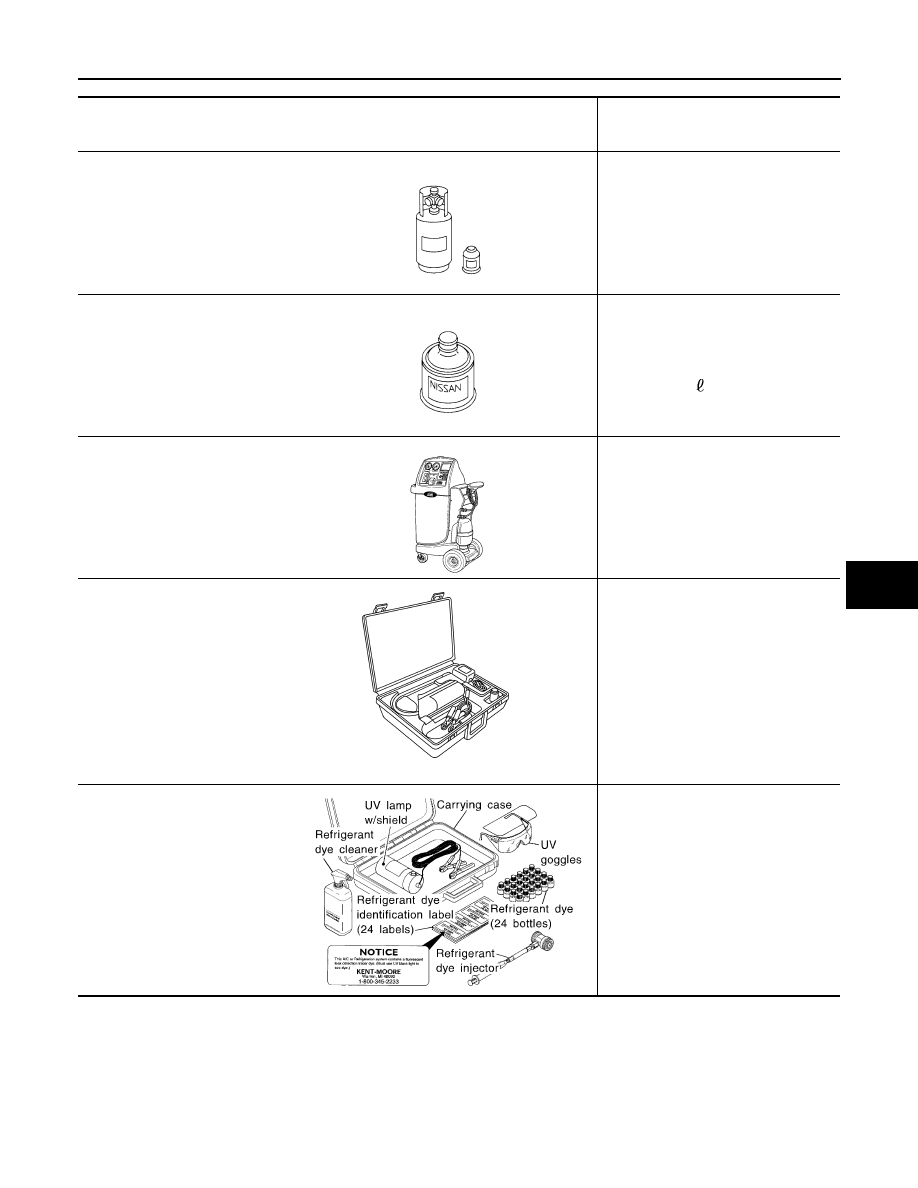

Tool number
(Kent-Moore No.)

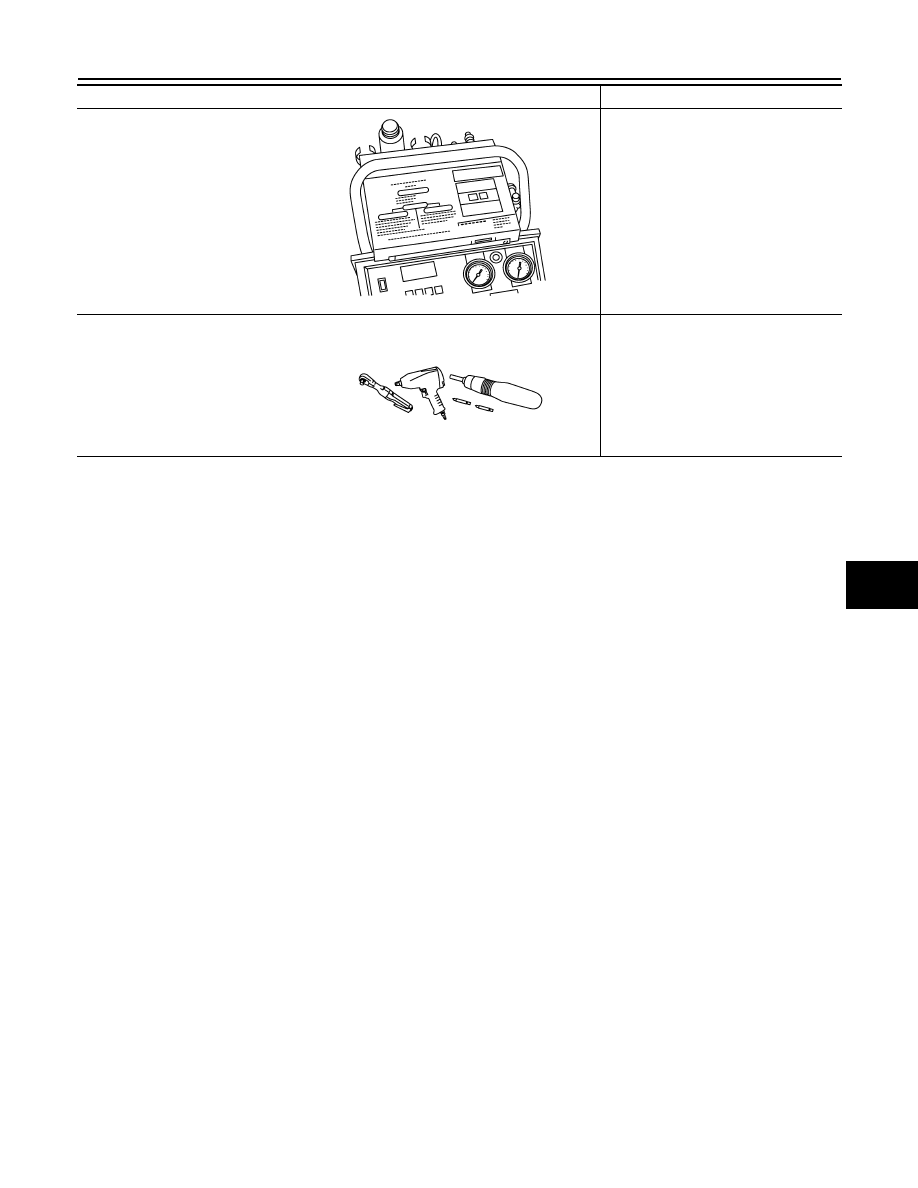

Tool name

Description

—

(J-41425-NIS)
Aluminum tube repair kit

Repairing leaks in A/C tubes

—

(J-44614)
Clutch disc holding tool

Clutch disc holding tool

—

(J-38873-A)
Drive plate installer

Installing pulley and drive plate

ALIIA0390ZZ

WHA230

WJIA0367E

August 2012

2012 Pathfinder

PREPARATION

HA-15

< PREPARATION >

Tool number
(Kent-Moore No.)
Tool name

Description

—

( — )
HFC-134a (R-134a) Refrigerant

Container color: Light blue
Container marking: HFC-134a (R-
134a)
Fitting size: Thread size
• large container 1/2”-16 ACME

—

( — )
NISSAN A/C System Oil Type S

Type: Poly alkylene glycol oil (PAG),
type S
Application: HFC-134a (R-134a)
swash plate compressors (NISSAN
only)
Lubricity: 40 m (1.4 US fl oz, 1.4 Imp
fl oz)

—

(J-48710)
NISSAN ACR2009 RRR Unit

Refrigerant Recovery and Recycling
and Recharging

—

(J-41995)
Electronic refrigerant leak detector

Power supply:
• DC 12V (battery terminal)

—

(J-43926)
Refrigerant dye leak detection kit
Kit includes:
(J-42220)
UV lamp and UV safety goggles
(J-41459)
Refrigerant dye injector
(J-41447)
Fluorescent leak detection dye
(box of 24, 1/4 ounce bottles)
(J-43872)
Refrigerant dye cleaner

Power supply:
• DC 12V (battery terminal)

S-NT196

S-NT197

WJIA0293E

AHA281A

ZHA200H

August 2012

2012 Pathfinder

HA-16

< PREPARATION >

PREPARATION

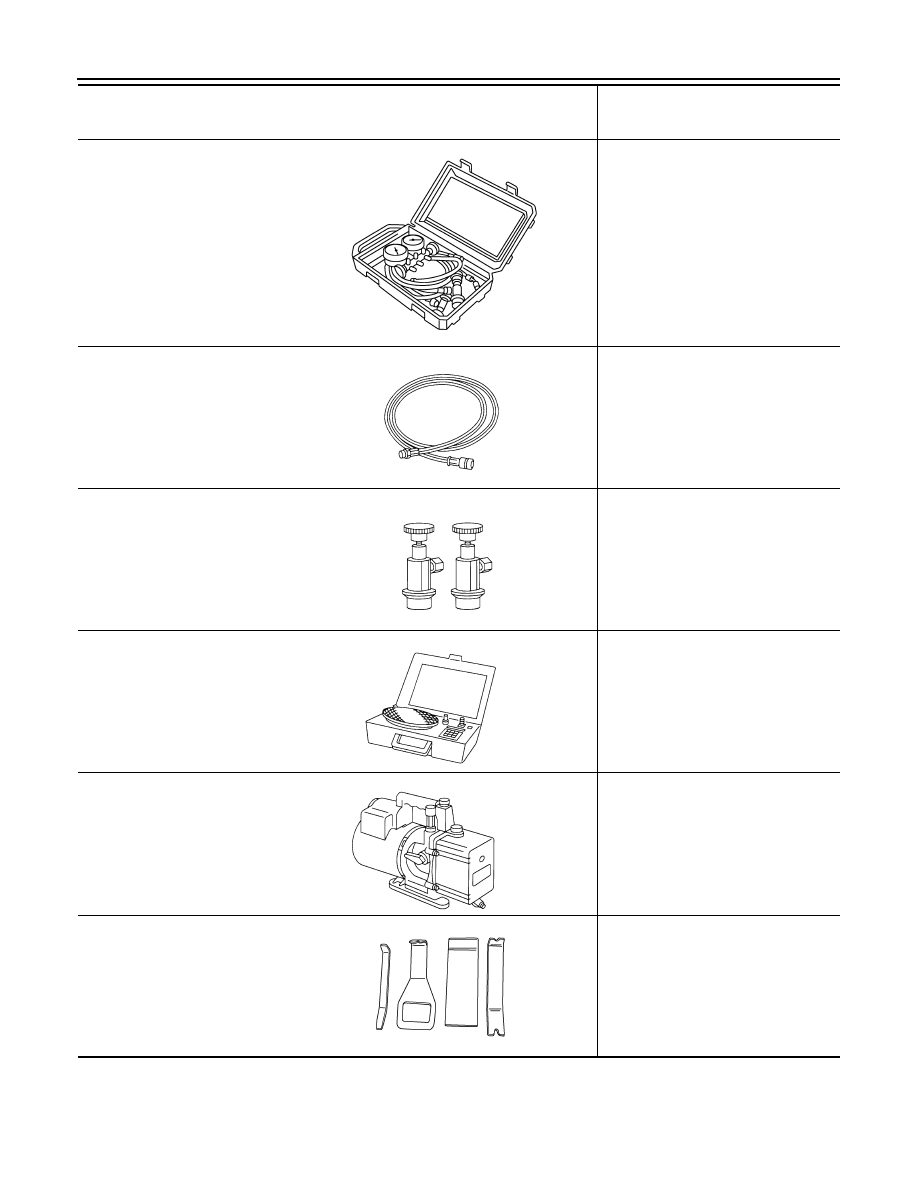

Commercial Service Tool

INFOID:0000000007356303

—

(J-39183-C)
Manifold gauge set (with hoses
and couplers)

Identification:
• The gauge face indicates R-134a.

Fitting size-Thread size

• 1/2”-16 ACME

Service hoses:
• High side hose

(J-39500-72B)

• Low side hose

(J-39500-72R)

• Utility hose

(J-39500-72Y)

Hose color:
• Low side hose: Blue with black stripe
• High side hose: Red with black stripe
• Utility hose: Yellow with black stripe

or green with black stripe
Hose fitting to gauge:

• 1/2”-16 ACME

Service couplers
• High side coupler

(J-39500-20A)

• Low side coupler

(J-39500-24A)

Hose fitting to service hose:
• M14 x 1.5 fitting is optional or perma-

nently attached.

—

(J-39699)
Refrigerant weight scale

For measuring of refrigerant
Fitting size-Thread size
• 1/2”-16 ACME

—

(J-39649)
Vacuum pump
(Including the isolator valve)

Capacity:
• Air displacement: 4 CFM
• Micron rating: 20 microns
• Oil capacity: 482 g (17 oz)

Fitting size-Thread size

• 1/2”-16 ACME

—

(J-46534)
Trim tool set

For removing trim

Tool number
(Kent-Moore No.)
Tool name

Description

RJIA0196E

S-NT201

S-NT202

S-NT200

S-NT203

AWJIA0483ZZ

August 2012

2012 Pathfinder

PREPARATION

HA-17

< PREPARATION >

Tool name

Description

(J-41810-NI)
Refrigerant identifier equipment (R-
134a)

For checking refrigerant purity and
system contamination

Power tool

Loosening nuts, screws and bolts

RJIA0197E

PIIB1407E

August 2012

2012 Pathfinder

HA-18

< SYSTEM DESCRIPTION >

REFRIGERATION SYSTEM

SYSTEM DESCRIPTION

REFRIGERATION SYSTEM

Component

INFOID:0000000007356304

CAUTION:

The new and former refrigerant connections use different O-ring configurations. Do not confuse O-

rings since they are not interchangeable. If a wrong O-ring is installed, refrigerant will leak at or

around the connection.

FRONT REFRIGERATION SYSTEM

August 2012

2012 Pathfinder

REFRIGERATION SYSTEM

HA-19

< SYSTEM DESCRIPTION >

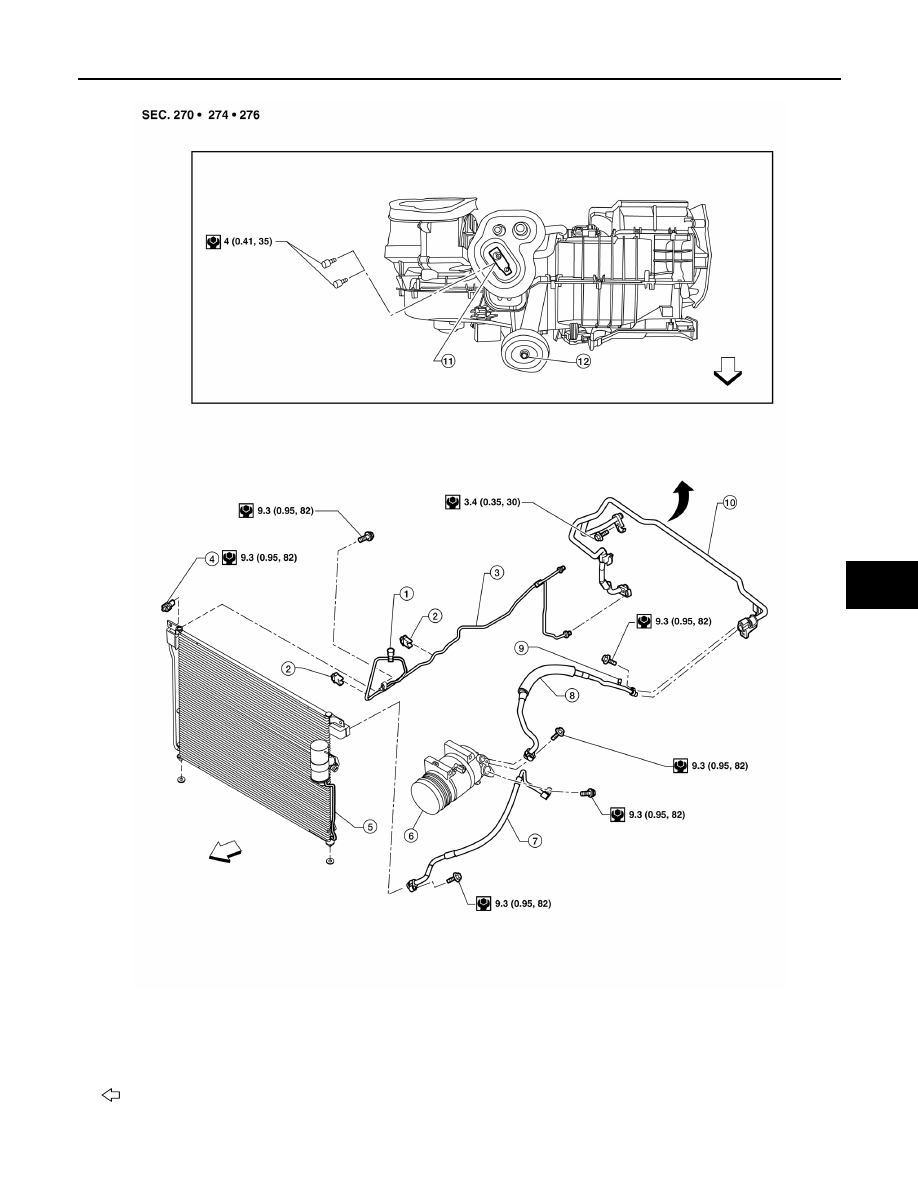

Front A/C Compressor and Condenser - VK56DE

AWIIA1537GB

High-pressure service valve

Clip

Front high-pressure A/C pipe

Refrigerant pressure sensor

Condenser and liquid tank assembly 6.

Compressor shaft seal

Front high-pressure flexible A/C hose

Front low-pressure flexible A/C hose 9.

Low-pressure service valve

10. Front low-pressure A/C pipe

11. Front expansion valve

12. Front A/C drain hose

Vehicle front

August 2012

2012 Pathfinder

HA-20

< SYSTEM DESCRIPTION >

REFRIGERATION SYSTEM

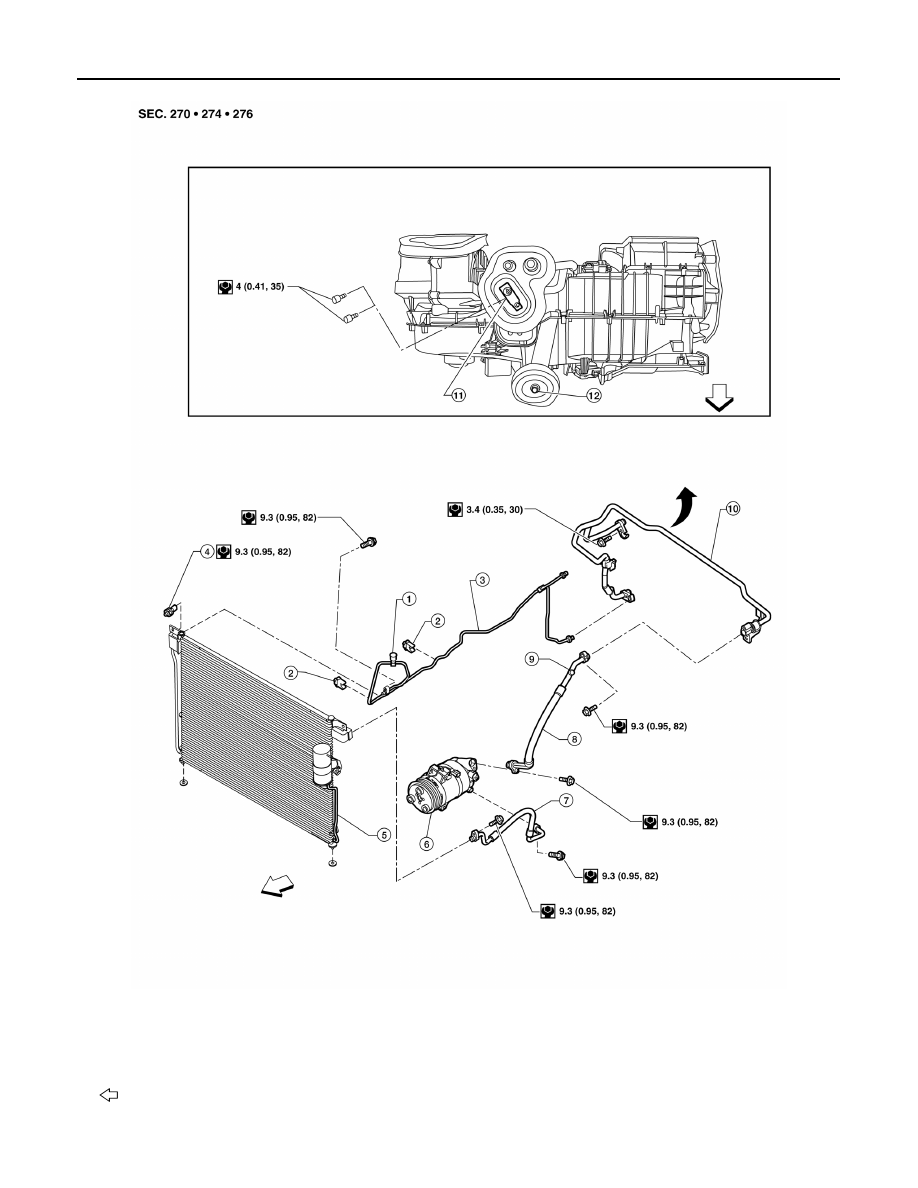

Front A/C Compressor and Condenser - VQ40DE

REAR REFRIGERATION SYSTEM

AWIIA1538GB

High-pressure service valve

Clip

Front high-pressure A/C pipe

Refrigerant pressure sensor

Condenser and liquid tank assembly 6.

Compressor shaft seal

Front high-pressure flexible A/C hose

Front low-pressure flexible A/C hose 9.

Low-pressure service valve

10. Front low-pressure A/C pipe

11. Front expansion valve

12. Front A/C drain hose

Vehicle front

August 2012

2012 Pathfinder
