FAX-20

< UNIT DISASSEMBLY AND ASSEMBLY >

DRIVE SHAFT

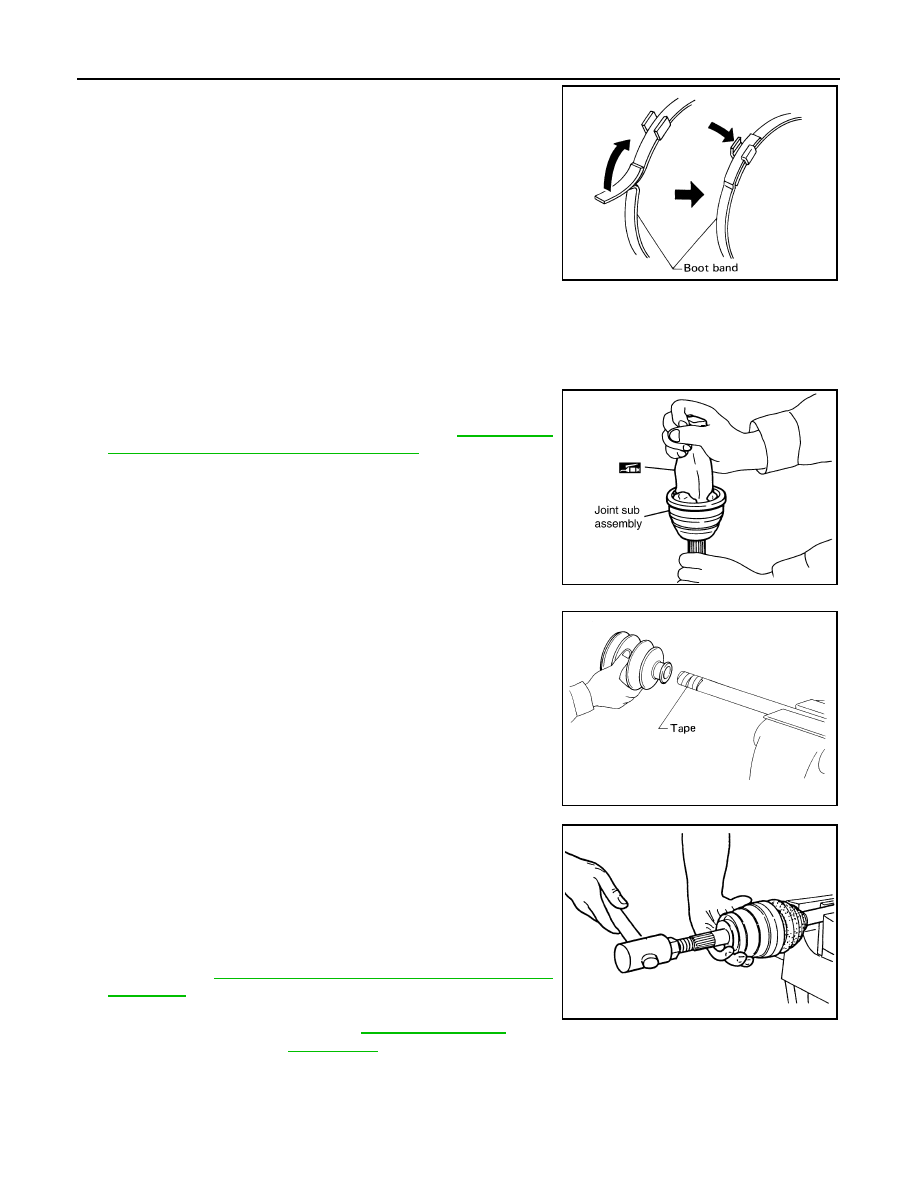

9. Secure the large and small ends of the boot with the new boot

bands as shown.

NOTE:

Discard the old boot bands and use new ones for assembly.

10. After installing the sliding joint housing to the drive shaft, rotate the boot to check that the boot is posi-

tioned correctly. If the boot is not positioned correctly, reposition the boot and secure the boot using a new

boot band.

Wheel Side

1. Insert the Genuine NISSAN Grease or equivalent, into the joint

sub-assembly serration hole until the grease begins to ooze

from the ball groove and serration hole. Refer to

MA-18, "FOR

USA AND CANADA : Fluids and Lubricants"

. After inserting the

grease, use a shop cloth to wipe off the grease that has oozed

out.

2. Wrap the serrated part of the drive shaft with tape. Install the

boot band and boot onto the shaft. Do not damage the boot.

NOTE:

Discard the old boot band and boot and use a new one for

assembly.

3. Remove the protective tape wound around the serrated part of

the drive shaft.

4. Attach the circlip to the drive shaft. The circlip must fit securely

into the drive shaft groove. Attach the nut to the joint sub-assem-

bly.

Use a soft hammer to press-fit the circlip.

NOTE:

Discard the old circlip and use a new one for assembly.

5. Insert the specified quantity of Genuine NISSAN Grease or

equivalent, into the joint sub-assembly and the large end of the

boot. Refer to

MA-18, "FOR USA AND CANADA : Fluids and

Lubricants"

SFA395

SDIA1127E

SFA800

Grease capacity

: Refer to

FAX-23, "VK56DE :

Drive Shaft"

RAC0049D

August 2012

2012 Pathfinder

DRIVE SHAFT

FAX-21

< UNIT DISASSEMBLY AND ASSEMBLY >

FAX

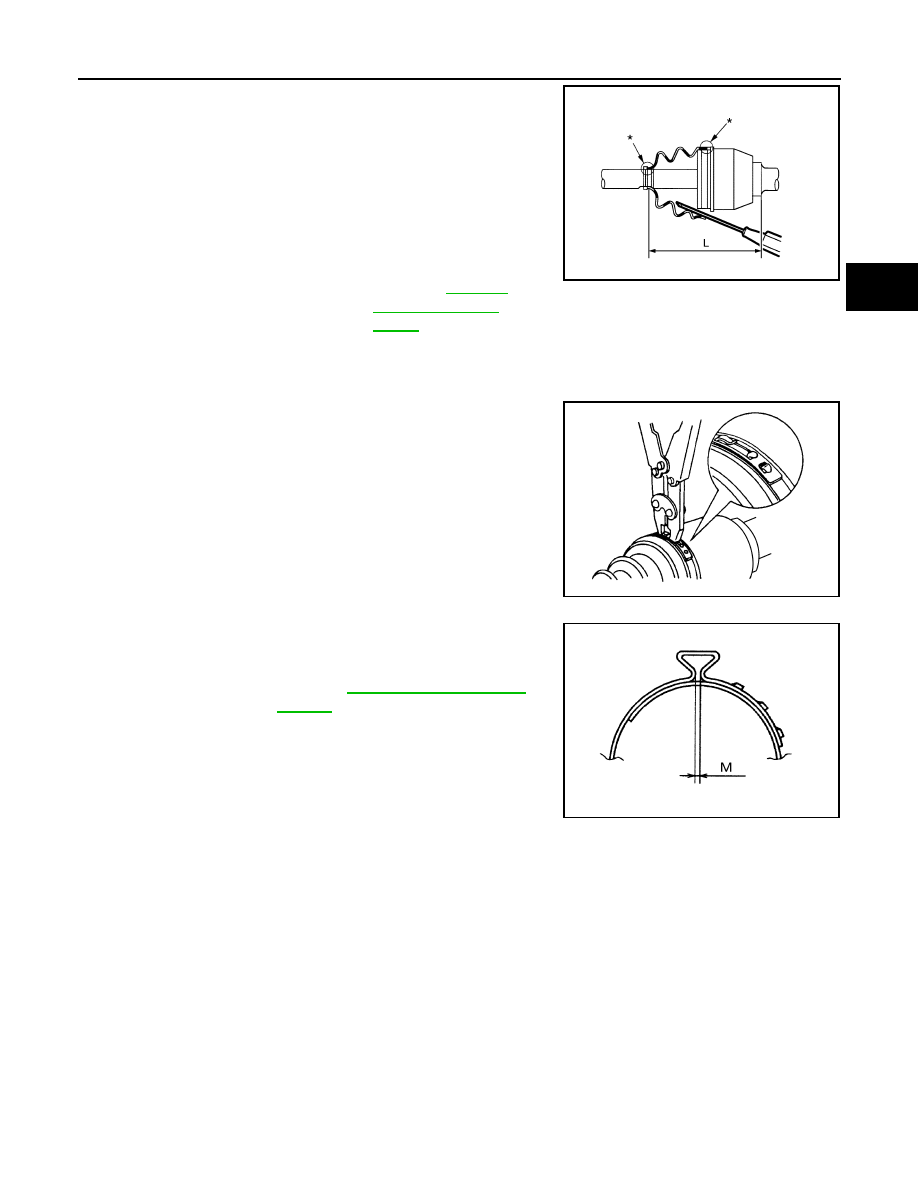

6. Install the boot securely into the grooves (indicated by the *

marks) as shown.

CAUTION:

If there is grease on the boot mounting surfaces (indicated

by the * marks) of the drive shaft and joint sub-assembly,

the boot may come off. Remove all grease from the drive

shaft surfaces.

7. Check that the boot installation length (L) is the specified length.

Insert a suitable tool into the large end of the boot. Bleed the air

from the boot to prevent boot deformation.

CAUTION:

• The boot may break if the boot installation length is less than the specified length.

• Do not contact inside surface of boot with the tip of the suitable tool.

8. Secure large and small ends of the boot using new boot bands

using tool as shown.

NOTE:

Discard the old boot bands and use new ones for assembly.

• Secure boot band so that dimension (M) meets specification

as shown.

9. After installing the housing to the shaft, rotate the boot to check that it is positioned correctly. If the boot is

not positioned correctly, remove the old boot bands then reposition the boot and secure the boot with new

boot bands.

Boot installation length (L)

: Refer to

FAX-23,

"VK56DE : Drive
Shaft"

Tool number : KV40107300 ( — )

JPDIF0142ZZ

RAC1133D

Dimension (M)

: Refer to

FAX-23, "VK56DE : Boot

Bands"

DSF0047D

August 2012

2012 Pathfinder

FAX-22

< SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

VQ40DE
VQ40DE : Wheel Bearing

INFOID:0000000007357683

VQ40DE : Drive Shaft

INFOID:0000000007357684

VQ40DE : Boot Bands

INFOID:0000000007357685

Unit: mm (in)

VK56DE
VK56DE : Wheel Bearing

INFOID:0000000007357686

Axial end play limit

0.05 mm (0.002 in) or less

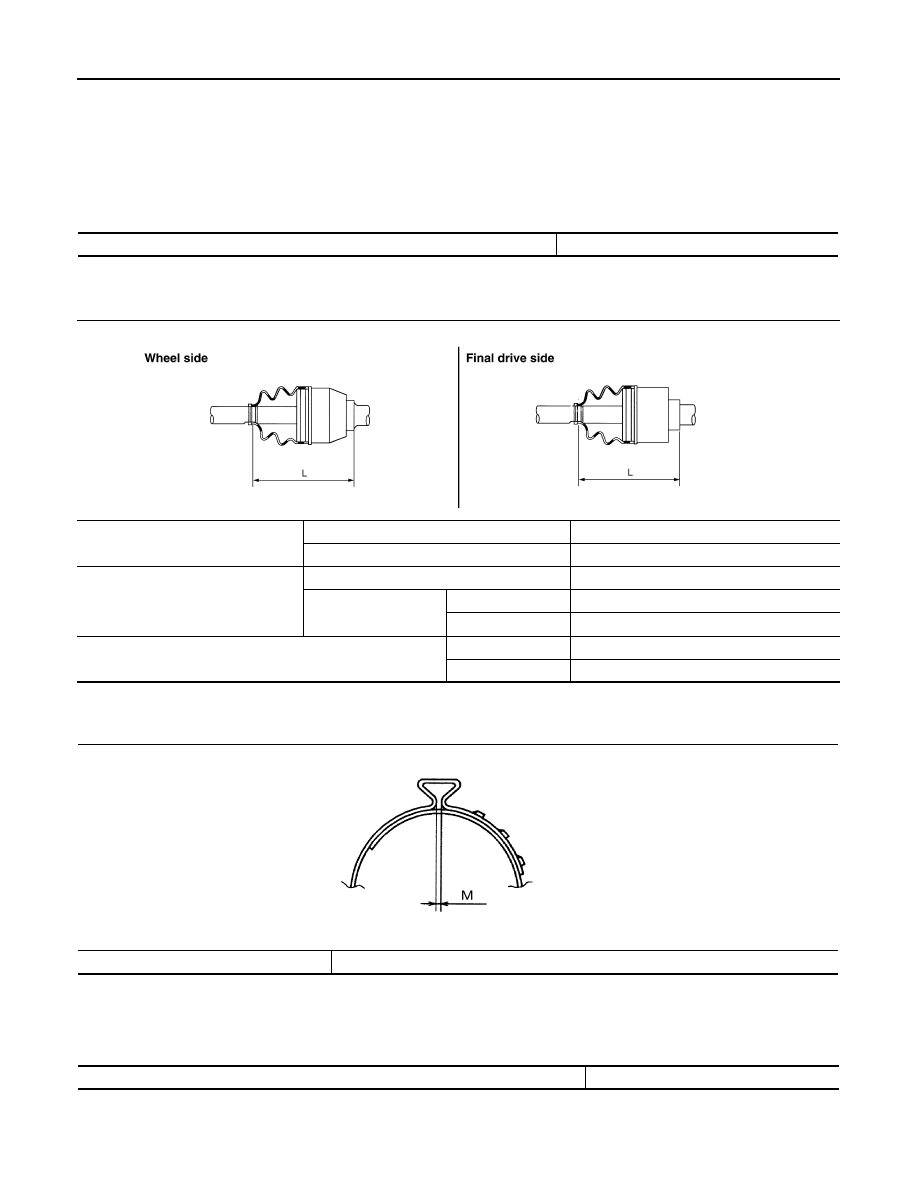

Drive shaft joint type

Final drive side

Rzeppa

Wheel side

Rzeppa

Grease

Quality

Genuine NISSAN Grease or equivalent

Capacity

Final drive side

120 - 140 g (4.23 - 4.94 oz)

Wheel side

110 - 130 g (3.88 - 4.59 oz)

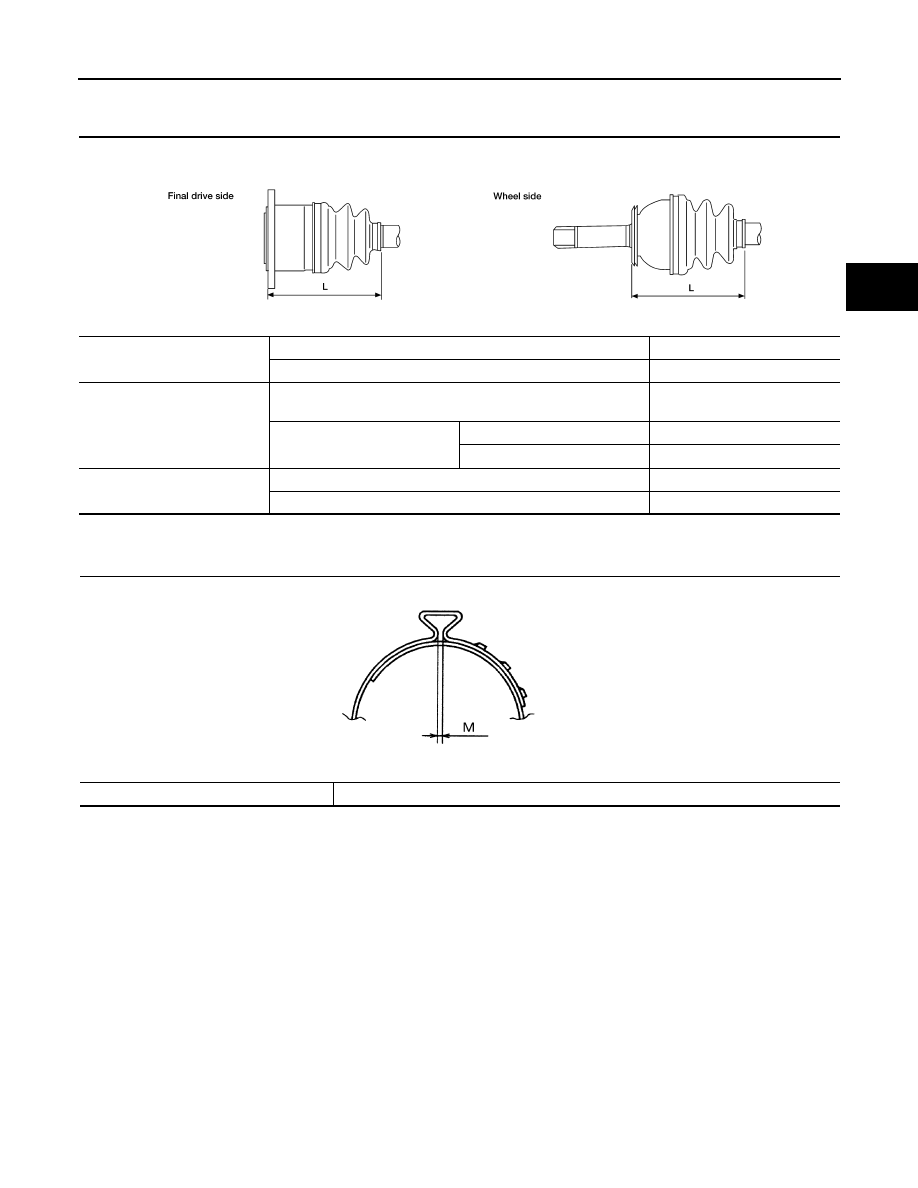

Boot installed length (L)

Final drive side

163.9 - 164.3 mm (6.45 - 6.47 in)

Wheel side

135.1 mm (5.32 in)

AWDIA0682GB

Dimension (M)

1.0 - 4.0 (0.039 - 0.157)

DSF0047D

Wheel bearing axial end play

0.05 mm (0.002 in) or less

August 2012

2012 Pathfinder

SERVICE DATA AND SPECIFICATIONS (SDS)

FAX-23

< SERVICE DATA AND SPECIFICATIONS (SDS)

FAX

VK56DE : Drive Shaft

INFOID:0000000007357687

VK56DE : Boot Bands

INFOID:0000000007357688

Unit: mm (in)

Drive shaft joint type

Final drive side

Rzeppa

Wheel side

Rzeppa

Grease

Quality

Nissan Genuine Grease or

equivalent

Capacity

Final drive side

110 - 130 g (3.88 - 4.59 oz)

Wheel side

130 - 150 g (4.59 - 5.29 oz)

Boot length

Final drive side (L)

145 mm (5.71 in)

Wheel side (L)

135.1 mm (5.32 in)

WDIA0055E

Dimension (M)

1.0 - 4.0 (0.039 - 0.157)

DSF0047D

August 2012

2012 Pathfinder

FL-1

ENGINE

SECTION

CONTENTS

FUEL SYSTEM

PRECAUTION ...............................................

PRECAUTIONS ...................................................

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...................................................................

Precaution Necessary for Steering Wheel Rota-
tion After Battery Disconnect .....................................

General Precaution ...................................................

PREPARATION ............................................

PREPARATION ...................................................

Special Service Tool .................................................

Commercial Service Tool ..........................................

PERIODIC MAINTENANCE ..........................

FUEL SYSTEM ....................................................

Checking Fuel Line ...................................................

REMOVAL AND INSTALLATION ................

FUEL TANK .......................................................

Removal and Installation ..........................................

FUEL LEVEL SENSOR UNIT, FUEL FILTER
AND FUEL PUMP ASSEMBLY ........................

Removal and Installation .........................................

EVAP CANISTER ..............................................

Component Inspection .............................................

Removal and Installation .........................................

UNIT DISASSEMBLY AND ASSEMBLY ....

FUEL LEVEL SENSOR UNIT, FUEL FILTER
AND FUEL PUMP ASSEMBLY ........................

Disassembly and Assembly .....................................

SERVICE DATA AND SPECIFICATIONS
(SDS) ............................................................

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

Standard and Limit ..................................................

August 2012

2012 Pathfinder

FL-2

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000007358878

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS

system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front

air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.

Information necessary to service the system safely is included in the SR and SB section of this Service Man-

ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Precaution Necessary for Steering Wheel Rotation After Battery Disconnect

INFOID:0000000007358879

NOTE:

• This Procedure is applied only to models with Intelligent Key system and NATS (NISSAN ANTI-THEFT SYS-

TEM).

• Remove and install all control units after disconnecting both battery cables with the ignition knob in the

″

LOCK

″

position.

• Always use CONSULT to perform self-diagnosis as a part of each function inspection after finishing work. If

DTC is detected, perform trouble diagnosis according to self-diagnostic results.

For models equipped with the Intelligent Key system and NATS, an electrically controlled steering lock mech-

anism is adopted on the key cylinder.

For this reason, if the battery is disconnected or if the battery is discharged, the steering wheel will lock and

steering wheel rotation will become impossible.

If steering wheel rotation is required when battery power is interrupted, follow the procedure below before

starting the repair operation.

OPERATION PROCEDURE

1. Connect both battery cables.

NOTE:

Supply power using jumper cables if battery is discharged.

2. Use the Intelligent Key or mechanical key to turn the ignition switch to the

″

ACC

″

position. At this time, the

steering lock will be released.

3. Disconnect both battery cables. The steering lock will remain released and the steering wheel can be

rotated.

4. Perform the necessary repair operation.

August 2012

2012 Pathfinder

PRECAUTIONS

FL-3

< PRECAUTION >

5. When the repair work is completed, return the ignition switch to the

″

LOCK

″

position before connecting

the battery cables. (At this time, the steering lock mechanism will engage.)

6. Perform a self-diagnosis check of all control units using CONSULT.

General Precaution

INFOID:0000000007358880

WARNING:

When replacing fuel line parts, be sure to observe the following.

• Put a “CAUTION: FLAMMABLE” sign in the workshop.

• Be sure to work in a well ventilated area and furnish the workshop with a CO

fire extinguisher.

• Do not smoke while servicing the fuel system. Keep open flames and sparks away from the work

area.

CAUTION:

• Use gasoline required by the regulations for the octane rating number. Refer to

GI-26, "Precaution

for Fuel (Unleaded Premium Gasoline Recommended)"

• Before removing fuel line parts, carry out the following procedures:

- Put drained fuel in an explosion-proof container and put the lid on securely. Keep the container in

safe area.

- Release fuel pressure from the fuel lines. Refer to

EC-487, "Fuel Pressure Check"

(VQ40DE),

EC-952,

"Fuel Pressure Check"

(VK56DE).

- Disconnect the battery negative terminal.

• Always replace O-rings and clamps with new ones.

• Do not kink or twist hoses when they are being installed.

• Do not tighten hose clamps excessively to avoid damaging hoses.

• Tighten high-pressure rubber hose clamp so that clamp end is 3 mm (0.12 in) from hose end.

• Ensure that clamp screw does not contact adjacent parts.

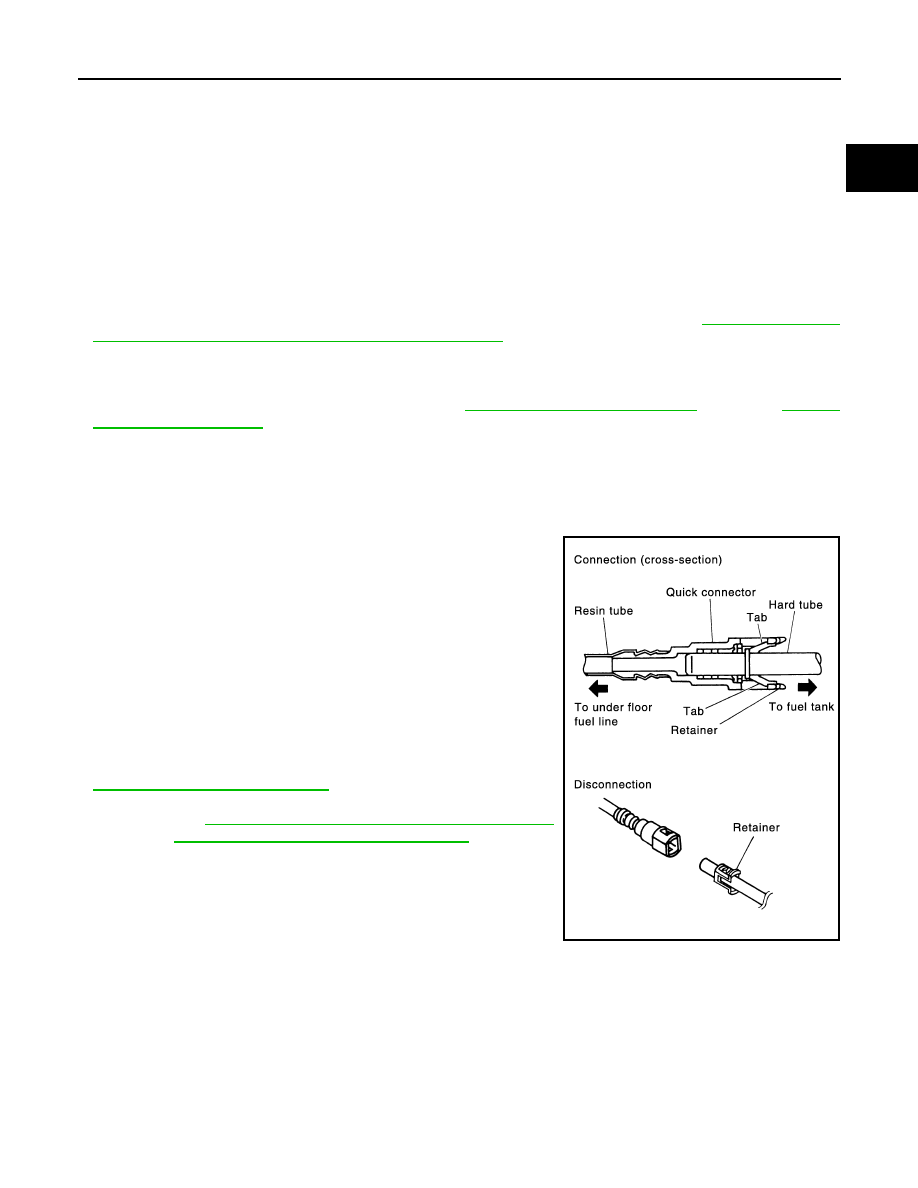

• After connecting the fuel tube quick connectors, make sure

the quick connectors are secure.

Ensure that the connector and resin tube do not contact any

adjacent parts.

• After installing tubes, make sure there is no fuel leakage at

connections in the following steps.

- Apply fuel pressure to fuel lines with turning ignition switch

ON (with engine stopped). Then check for fuel leaks at con-

nections.

- Start the engine and rev it up and check for fuel leaks at con-

nections.

• Use only a Genuine NISSAN fuel filler cap as a replacement. If

an incorrect fuel filler cap is used, the MIL may come on.

• For servicing “Evaporative Emission System” parts, refer to

FL-16, "Component Inspection"

• For checking “On Board Refueling Vapor Recovery (ORVR)”

parts, refer to

EC-489, "How to Detect Fuel Vapor Leakage"

(VQ40DE),

EC-954, "How to Detect EVAP Leakage"

(VK56DE).

PBIC1268E

August 2012

2012 Pathfinder

FL-4

< PREPARATION >

PREPARATION

PREPARATION

Special Service Tool

INFOID:0000000007358881

The actual shapes of the Kent-Moore tools may differ from those of the special tools illustrated here.

Commercial Service Tool

INFOID:0000000007358882

Tool number
(Kent-Moore No.)
Tool name

Description

—

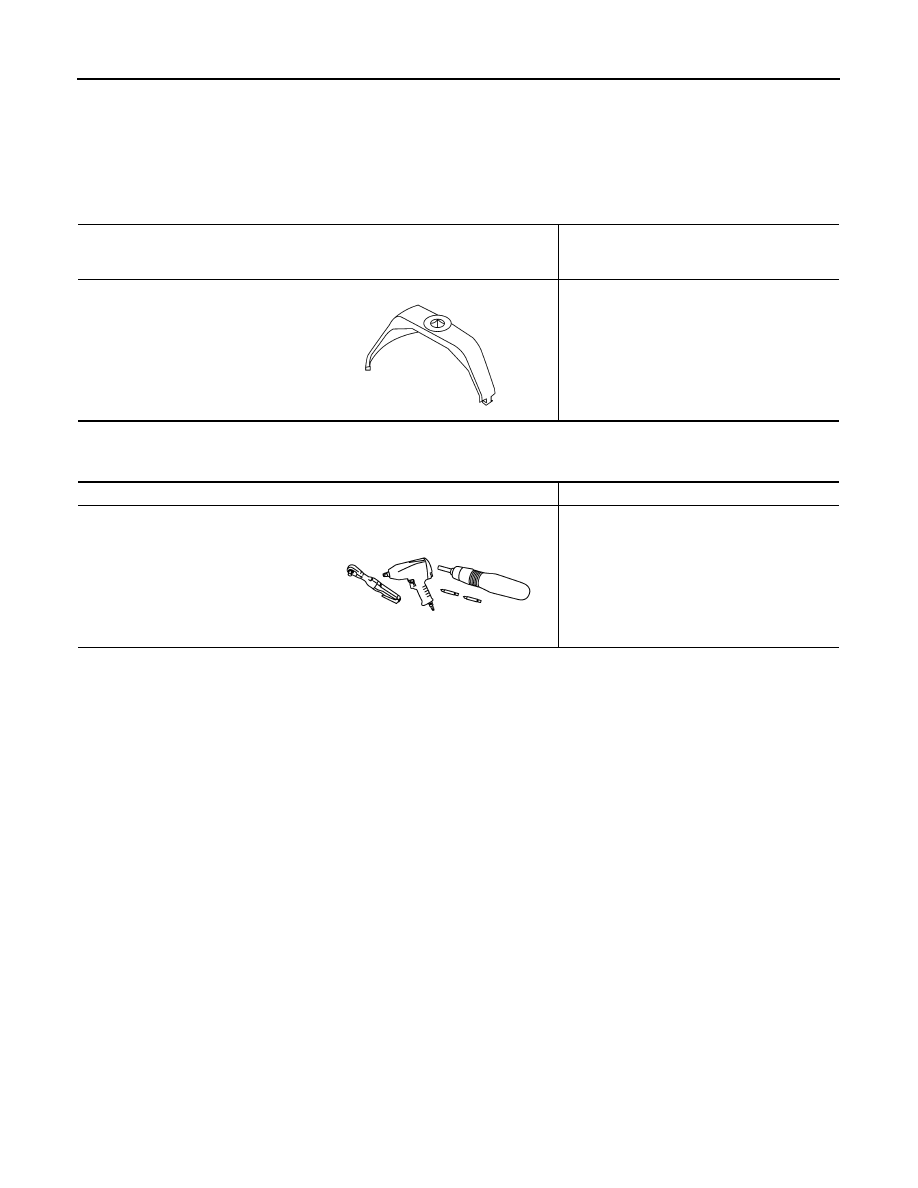

(J-45722)
130 mm lock ring tool

Removing and installing fuel tank lock ring

LBIA0398E

Tool name

Description

Power tool

Loosening nuts, screws and bolts

PIIB1407E

August 2012

2012 Pathfinder

Content .. 384 385 386 387 ..
