DIAGNOSIS SYSTEM (BCM)

HEADLAMP
HEADLAMP : CONSULT Function (BCM - HEAD LAMP)

INFOID:0000000007827520

DATA MONITOR

ACTIVE TEST

WORK SUPPORT

Monitor Item [Unit]

Description

IGN ON SW [On/Off]

Indicates condition of ignition switch ON position.

ACC ON SW [On/Off]

Indicates condition of ignition switch ACC position.

HI BEAM SW [On/Off]

Indicates condition of combination switch.

HEAD LAMP SW 1 [On/Off]

HEAD LAMP SW 2 [On/Off]

LIGHT SW 1ST [On/Off]

AUTO LIGHT SW [On/Off]

PASSING SW [On/Off]

FR FOG SW [On/Off]

DOOR SW-DR [On/Off]

Indicates condition of front door switch LH.

DOOR SW-AS [On/Off]

Indicates condition of front door switch RH.

DOOR SW-RR [On/Off]

Indicates condition of rear door switch RH.

DOOR SW-RL [On/Off]

Indicates condition of rear door switch LH.

BACK DOOR SW [On/Off]

Indicates condition of back door switch.

TURN SIGNAL R [On/Off]

Indicates condition of combination switch.

TURN SIGNAL L [On/Off]

OPTICAL SENSOR [V]

Indicates voltage signal from optical sensor.

Test Item

Description

TAIL LAMP

This test is able to check tail lamp operation [Off/On].

HEAD LAMP

This test is able to check head lamp operation [Off/Lo/Hi].

FR FOG LAMP

This test is able to check front fog lamp operation [Off/On].

Support Item

Setting

Description

BATTERY SAVER SET

Off

Exterior lamp battery saver function OFF.

On*

Exterior lamp battery saver function ON.

CUSTOM A/LIGHT SETTING

MODE4

Less sensitive setting than normal setting (Turns ON later than
normal operation).

MODE3

More sensitive setting than MODE 2 (Turns ON earlier than
MODE 2).

MODE2

More sensitive setting than normal setting (Turns ON earlier
than normal operation).

MODE1*

Normal.

August 2012

2012 Pathfinder

DIAGNOSIS SYSTEM (BCM)

EXL-29

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

*: Initial setting

FLASHER
FLASHER : CONSULT Function (BCM - FLASHER)

INFOID:0000000007827521

DATA MONITOR

ACTIVE TEST

COMB SW
COMB SW : CONSULT Function (BCM - COMB SW)

INFOID:0000000007827522

DATA MONITOR

ILL DELAY SET

MODE8

180 sec

Sets delay timer function operation time
(All doors closed).

MODE7

150 sec

MODE6

120 sec

MODE5

90 sec

MODE4

60 sec

MODE3

30 sec

MODE2

OFF

MODE1*

45 sec

Support Item

Setting

Description

Monitor Item [Unit]

Description

IGN ON SW [On/Off]

Indicates condition of ignition switch ON position.

HAZARD SW [On/Off]

Indicates condition of hazard switch.

TURN SIGNAL R [On/Off]

Indicates condition of turn signal function of combination switch.

TURN SIGNAL L [On/Off]

BRAKE SW [On/Off]

Indicates condition of brake switch.

Test Item

Description

FLASHER

This test is able to check turn signal lamp operation [Off/LH/RH].

Monitor Item [Unit]

Description

TURN SIGNAL R [On/Off]

Indicates condition of turn signal operation of combination switch.

TURN SIGNAL L [On/Off]

HI BEAM SW [On/Off]

Indicates condition of hi beam operation of combination switch.

HEAD LAMP SW 1 [On/Off]

Indicates condition of headlamp operation of combination switch.

HEAD LAMP SW 2 [On/Off]

LIGHT SW 1ST [On/Off]

Indicates condition of lighting operation of combination switch.

PASSING SW [On/Off]

Indicates condition of passing switch operation of combination switch.

AUTO LIGHT SW [On/Off]

Indicates condition of auto light operation of combination switch.

FR FOG SW [On/Off]

Indicates condition of front fog light operation of combination switch.

FR WIPER HI [On/Off]

Indicates condition of front wiper operation of combination switch.

FR WIPER LOW [On/Off]

FR WIPER INT [On/Off]

FR WASHER SW [On/Off]

Indicates condition of front washer operation of combination switch.

INT VOLUME [1 - 7]

Indicates condition of intermittent wiper operation of combination switch.

August 2012

2012 Pathfinder

EXL-30

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (BCM)

RR WIPER ON [On/Off]

Indicates condition of rear wiper operation of combination switch.

RR WIPER INT [On/Off]

RR WASHER SW [On/Off]

Indicates condition of rear washer operation of combination switch.

Monitor Item [Unit]

Description

August 2012

2012 Pathfinder

DIAGNOSIS SYSTEM (IPDM E/R)

EXL-31

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

DIAGNOSIS SYSTEM (IPDM E/R)

Diagnosis Description

INFOID:0000000007827530

AUTO ACTIVE TEST

Description

In auto active test mode, the IPDM E/R sends a drive signal to the following systems to check their operation.

• Oil pressure low warning indicator

• Oil pressure gauge

• Rear window defogger

• Front wipers

• Tail, license and parking lamps

• Front fog lamps (if equipped)

• Headlamps (Hi, Lo)

• A/C compressor (magnetic clutch)

• Cooling fan

Operation Procedure

1. Close the hood and front door RH, and lift the wiper arms from the windshield (to prevent windshield dam-

age due to wiper operation).

NOTE:

When auto active test is performed with hood opened, sprinkle water on windshield before hand.

2. Turn ignition switch OFF.
3. Turn the ignition switch ON and, within 20 seconds, press the front door switch LH 10 times. Then turn the

ignition switch OFF.

4. Turn the ignition switch ON within 10 seconds. After that the horn sounds once and the auto active test

starts.

5. After a series of the following operations is repeated 3 times, auto active test is completed.

NOTE:

When auto active test mode has to be cancelled halfway through test, turn ignition switch OFF.

CAUTION:

• If auto active test mode cannot be actuated, check door switch system. Refer to

DLK-56, "Descrip-

tion"

 (with Intelligent Key system),

DLK-229, "Description"

 (without Intelligent Key system).

• Do not start the engine.

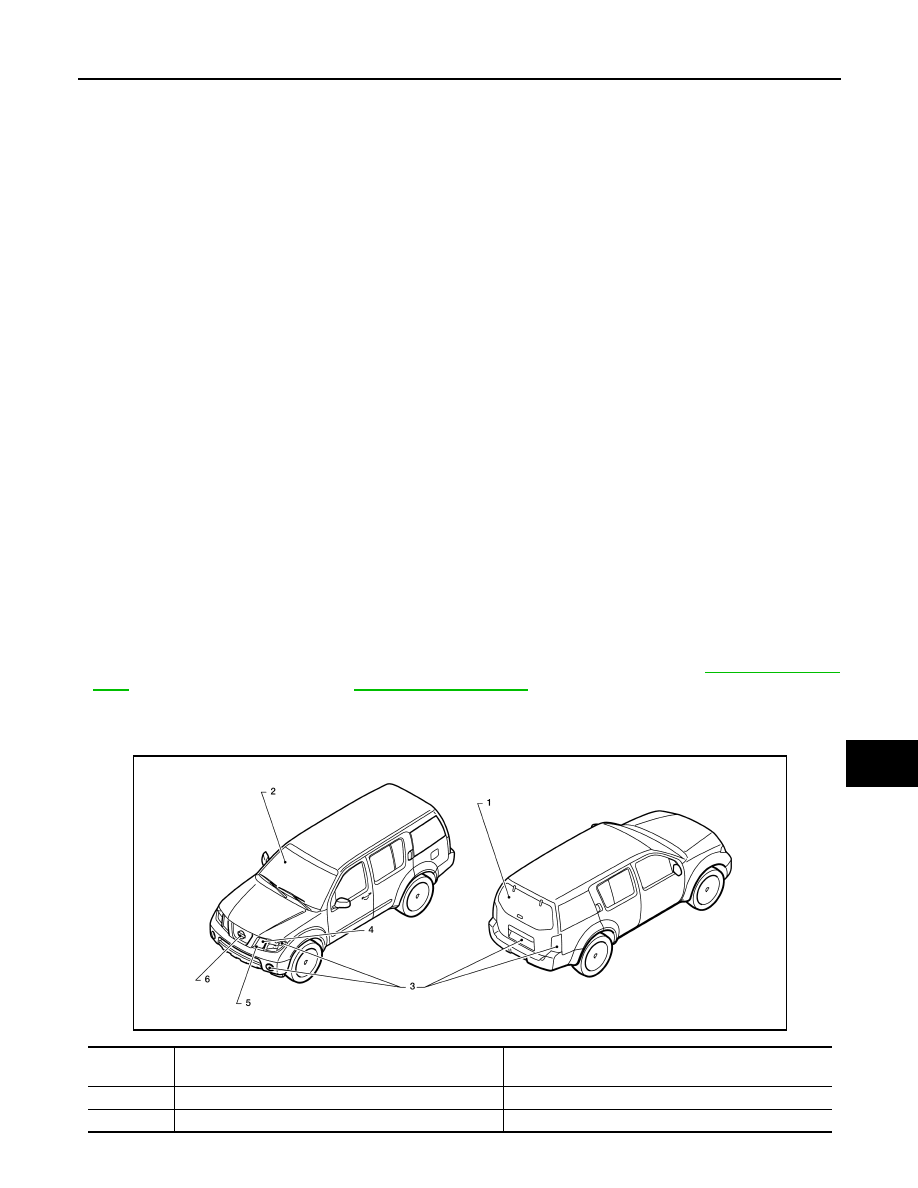

Inspection in Auto Active Test Mode

When auto active test mode is actuated, the following 7 steps are repeated 3 times.

Operation
sequence

Inspection Location

Operation

1

Rear window defogger

10 seconds

2

Front wipers

LO for 5 seconds

→

 HI for 5 seconds

WKIA4991E

August 2012

2012 Pathfinder

EXL-32

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (IPDM E/R)

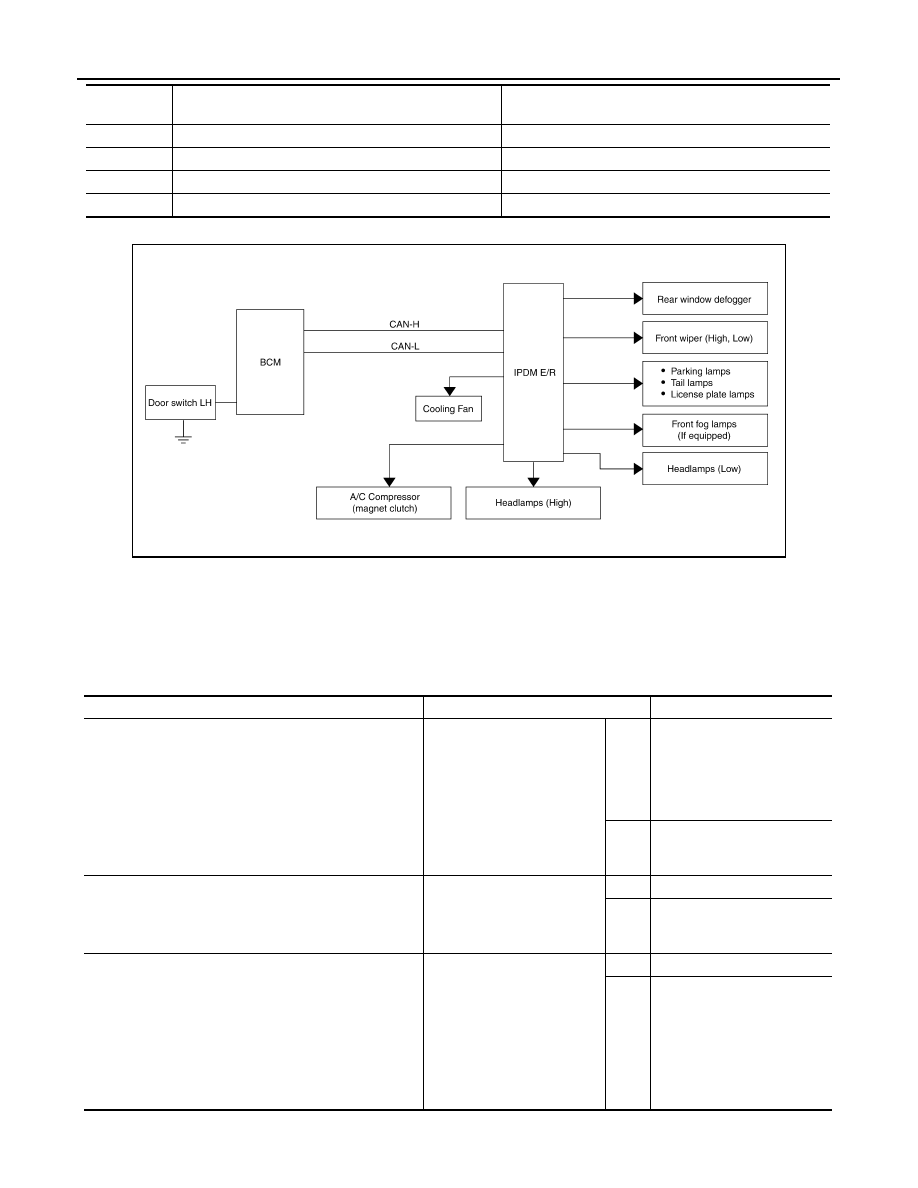

Concept of auto active test

• IPDM E/R starts the auto active test with the door switch signals transmitted by BCM via CAN communica-

tion. Therefore, the CAN communication line between IPDM E/R and BCM is considered normal if the auto

active test starts successfully.

• The auto active test facilitates troubleshooting if any systems controlled by IPDM E/R cannot be operated.

Diagnosis chart in auto active test mode

3

Tail, license, front fog and parking lamps

10 seconds

4

Headlamps

LO for 10 seconds

→

 HI on-off for 5 seconds

5

A/C compressor (magnetic clutch)

ON

⇔

 OFF 5 times

6

Cooling fan

10 seconds

Operation
sequence

Inspection Location

Operation

AWMIA1124GB

Symptom

Inspection contents

Possible cause

Oil pressure low warning indicator does not operate

Perform auto active test.
Does the oil pressure low
warning indicator operate?

YES

• IPDM E/R signal input cir-

cuit

• ECM signal input circuit
• CAN communication signal

between ECM and combi-
nation meter

NO

• CAN communication signal

between IPDM E/R, BCM
and combination meter

Oil pressure gauge does not operate

Perform auto active test.
Does the oil pressure gauge
operate?

YES

IPDM E/R signal input circuit

NO

• CAN communication signal

between IPDM E/R, BCM
and combination meter

Rear window defogger does not operate

Perform auto active test.
Does the rear window defog-
ger operate?

YES

BCM signal input circuit

NO

• Harness or connector be-

tween A/C and AV switch
assembly and AV control
unit

• CAN communication signal

between BCM and IPDM E/
R

August 2012

2012 Pathfinder

DIAGNOSIS SYSTEM (IPDM E/R)

EXL-33

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

CONSULT Function (IPDM E/R)

INFOID:0000000007827531

APPLICATION ITEM

CONSULT performs the following functions via CAN communication with IPDM E/R.

SELF DIAGNOSTIC RESULT

Refer to

EXL-76, "DTC Index"

.

DATA MONITOR

Any of the following components do not operate

• Front wipers
• Tail  lamps
• License plate lamps
• Parking  lamps
• Front fog lamps (if equipped)
• Headlamps (Hi, Lo)

Perform auto active test.
Does the applicable system
operate?

YES

BCM signal input system

NO

• Lamp or front wiper motor

malfunction

• Lamp or front wiper motor

ground circuit

• Harness or connector be-

tween IPDM E/R and appli-
cable system

• IPDM E/R (integrated relay

malfunction)

A/C compressor does not operate

Perform auto active test.
Does the A/C compressor op-
erate?

YES

• BCM signal input circuit
• CAN communication signal

between BCM and ECM

• CAN communication signal

between ECM and IPDM E/
R

NO

• Magnetic clutch malfunction
• Harness or connector be-

tween IPDM E/R and mag-
netic clutch

• IPDM E/R (integrated relay

malfunction)

Cooling fan does not operate

Perform auto active test.
Does the cooling fan operate?

YES

• ECM signal input circuit
• CAN communication signal

between ECM and IPDM E/
R

NO

• Cooling fan motor malfunc-

tion

• Harness or connector be-

tween IPDM E/R and cool-
ing fan

• IPDM E/R (integrated relay

malfunction)

Symptom

Inspection contents

Possible cause

Direct Diagnostic Mode

Description

Self Diagnostic Result

The IPDM E/R self diagnostic results are displayed.

Data Monitor

The IPDM E/R input/output data is displayed in real time.

Active Test

The IPDM E/R activates outputs to test components.

CAN Diag Support Mntr

The result of transmit/receive diagnosis of CAN communication is diplayed.

Monitor Item [Unit]

Main

Signals

Description

MOTOR FAN REQ [1/2/3/4]

×

Indicates cooling fan speed signal received from ECM on CAN communication
line

AC COMP REQ [On/Off]

×

Indicates A/C compressor request signal received from ECM on CAN commu-
nication line

August 2012

2012 Pathfinder

EXL-34

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (IPDM E/R)

ACTIVE TEST

TAIL&CLR REQ [On/Off]

×

Indicates position light request signal received from BCM on CAN communica-
tion line

HL LO REQ [On/Off]

×

Indicates low beam request signal received from BCM on CAN communication
line

HL HI REQ [On/Off]

×

Indicates high beam request signal received from BCM on CAN communication
line

FR FOG REQ [On/Off]

×

Indicates front fog light request signal received from BCM on CAN communica-
tion line

FR WIP REQ [Stop/1LOW/Low/Hi]

×

Indicates front wiper request signal received from BCM on CAN communication
line

WIP AUTO STOP [STOP P/ACT P]

×

Indicates condition of front wiper auto stop signal

WIP PROT [Off/BLOCK]

×

Indicates condition of front wiper fail-safe operation

ST RLY REQ [On/Off]

Indicates starter request signal received from ECM on CAN communication line

IGN RLY [On/Off]

×

Indicates condition of ignition relay

RR DEF REQ [On/Off]

×

Indicates rear defogger request signal received from BCM on CAN communica-
tion line

OIL P SW [Open/Close]

Indicates condition of oil pressure switch

DTRL REQ [Off]

Indicates daytime light request signal received from BCM on CAN communica-
tion line

THFT HRN REQ [On/Off]

Indicates theft warning horn request signal received from BCM on CAN commu-
nication line

HORN CHIRP [On/Off]

Indicates horn reminder signal received from BCM on CAN communication line

Monitor Item [Unit]

Main

Signals

Description

Test item

Description

REAR DEFOGGER

This test is able to check rear defogger operation [On/Off].

FRONT WIPER

This test is able to check wiper motor operation [Hi/Lo/Off].

MOTOR FAN

This test is able to check cooling fan operation [4/3/2/1].

EXTERNAL LAMPS

This test is able to check external lamp operation [Fog/Hi/Lo/TAIL/Off].

HORN

This test is able to check horn operation [On].

August 2012

2012 Pathfinder

POWER SUPPLY AND GROUND CIRCUIT

EXL-35

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

DTC/CIRCUIT DIAGNOSIS

POWER SUPPLY AND GROUND CIRCUIT

BCM (BODY CONTROL MODULE)
BCM (BODY CONTROL MODULE) : Diagnosis Procedure

INFOID:0000000007827523

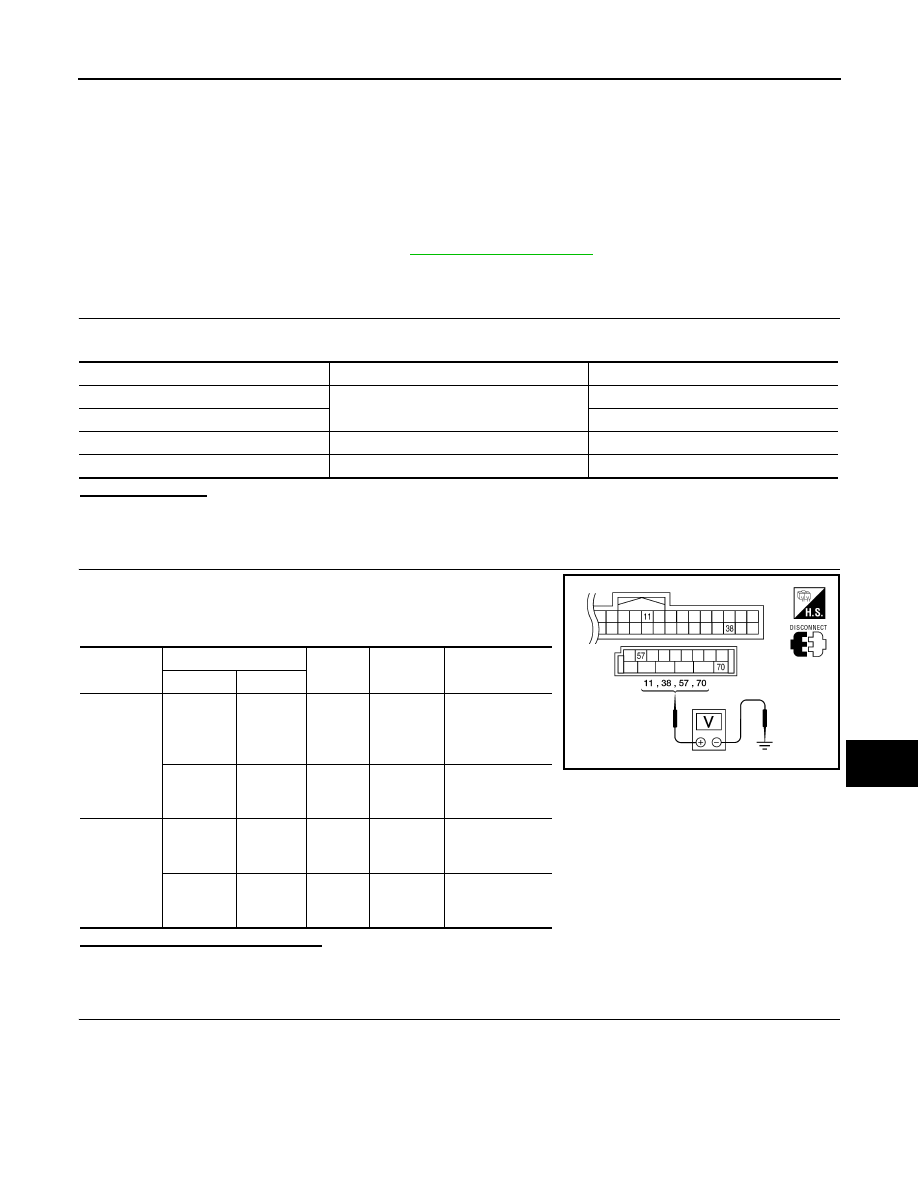

Regarding Wiring Diagram information, refer to

BCS-46, "Wiring Diagram"

.

1.

 CHECK FUSES AND FUSIBLE LINK

Check that the following fuses and fusible link are not blown.

Is the fuse blown?

YES

>> Replace the blown fuse or fusible link after repairing the affected circuit.

NO

>> GO TO 2

2.

 CHECK POWER SUPPLY CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect BCM.

3. Check voltage between BCM harness connector and ground.

Is the measurement value normal?

YES

>> GO TO 3

NO

>> Repair or replace harness.

3.

 CHECK GROUND CIRCUIT

Terminal No.

Signal name

Fuses and fusible link No.

57

Battery power supply

21 (10A)

70

G (50A)

11

Ignition ACC or ON

4 (10A)

38

Ignition ON or START

1 (10A)

Connector

Terminals

Power

source

Condition

Voltage (V) (Ap-

prox.)

(+)

(-)

M18

11

Ground

ACC

power

supply

Ignition

switch

ACC or

ON

Battery voltage

38

Ground

Ignition

power

supply

Ignition

switch ON

or START

Battery voltage

M20

57

Ground

Battery

power

supply

Ignition

switch

OFF

Battery voltage

70

Ground

Battery

power

supply

Ignition

switch

OFF

Battery voltage

LIIA2415E

August 2012

2012 Pathfinder
