AUTO LIGHT SYSTEM

AUTO LIGHT SYSTEM

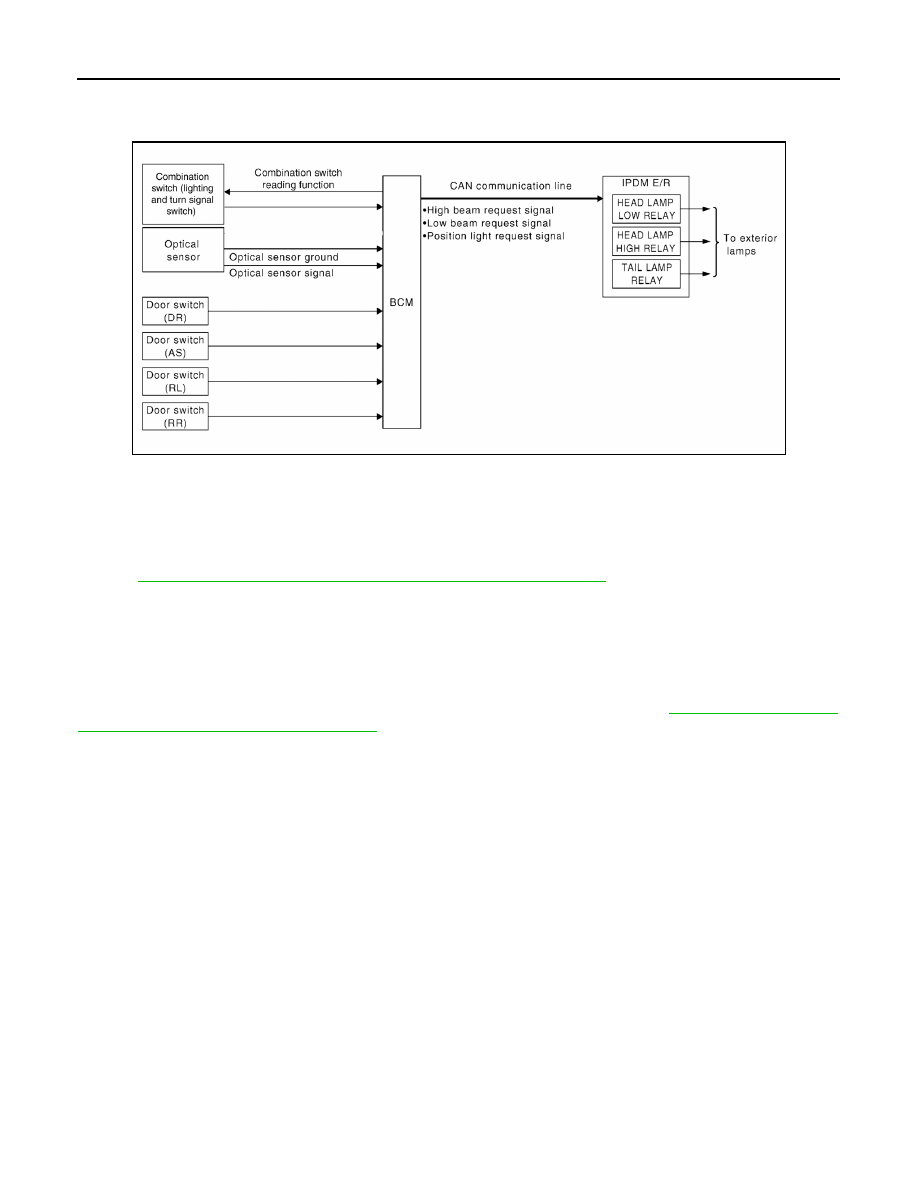

System Diagram

INFOID:0000000007355112

System Description

INFOID:0000000007355113

The auto light control system has an optical sensor that detects outside brightness.

When the lighting switch is in AUTO position, it automatically turns ON/OFF the parking, license plate, tail and

headlamps in accordance with the ambient light. Sensitivity can be adjusted in four steps. For the details,

Refer to

BCS-21, "HEADLAMP : CONSULT Function (BCM - HEAD LAMP)"

.

AUTO LIGHT OPERATION

The auto light system operates the low beam and high beam headlamps, parking lamps, tail lamps and license

plate lamps. The BCM monitors the combination switch (lighting and turn signal switch) position as a part of

the BCM combination switch reading function. When the lighting switch is in the AUTO position, the BCM auto-

matically turns the lamps ON/OFF according to ambient light brightness.

NOTE:

Timing for when lamps turn ON/OFF can be changed by the CONSULT. Refer to

BCS-21, "HEADLAMP :

CONSULT Function (BCM - HEAD LAMP)"

.

AWLIA1910GB

August 2012

2012 Pathfinder

AUTO LIGHT SYSTEM

EXL-13

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

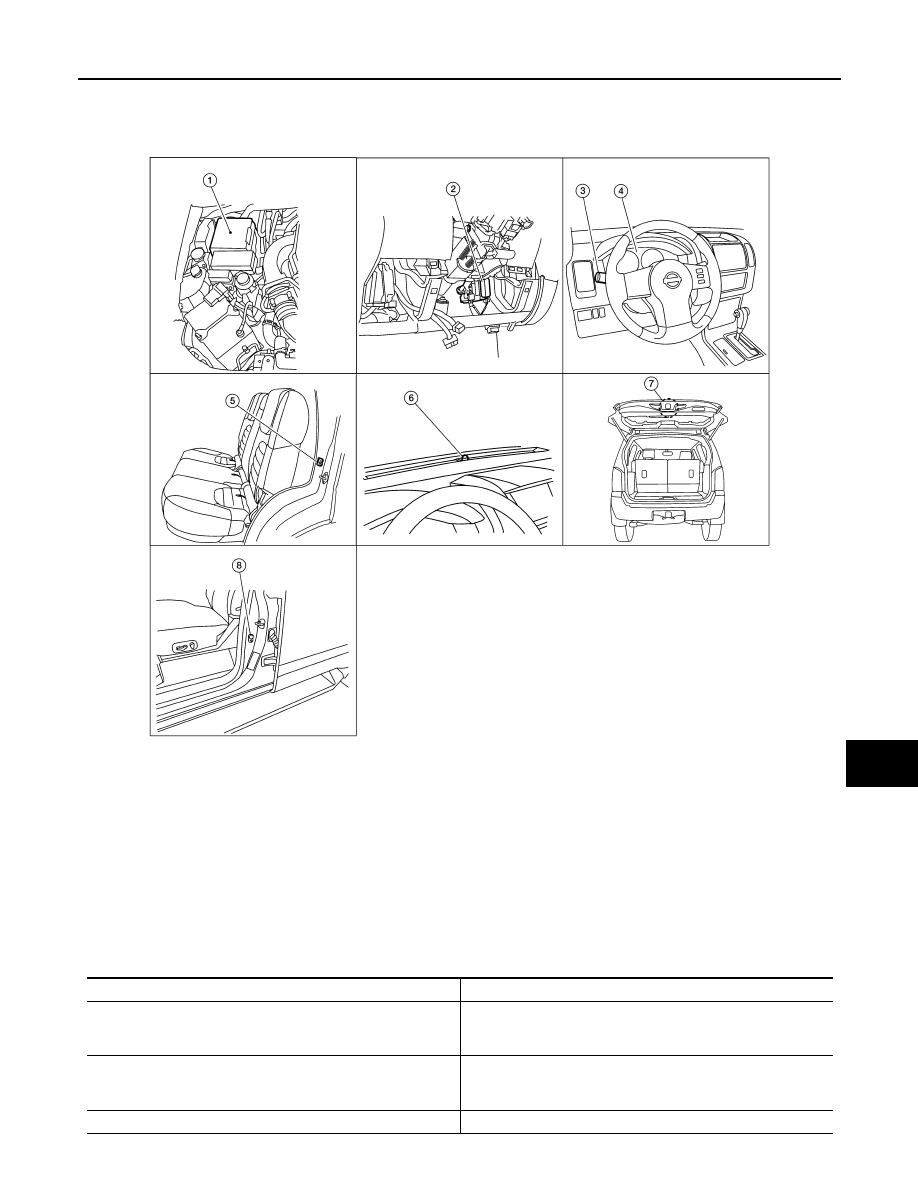

Component Parts Location

INFOID:0000000007355114

Component Description

INFOID:0000000007355115

1.

IPDM E/R E122, E123, E124

2.

BCM M18, M19, M20 (view with lower
instrument panel LH removed)

3.

Combination switch (lighting and turn
signal switch) M28

4.

Combination meter M24

5.

Rear door switch
LH B18
RH B116

6.

Optical sensor M145

7.

Back door latch (door ajar switch)
D502

8.

Front door switch
LH B8
RH B108

WKIA4959E

Part name

Description

BCM

BCM (Body Control Module) controls auto light operation accord-
ing to signals from optical sensor, lighting switch, door switches,
and ignition switch.

IPDM E/R

IPDM E/R (Intelligent Power Distribution Module Engine Room)
operates parking, license plate, tail and headlamps according to
CAN communication signals from BCM.

Combination switch (lighting switch)

The lighting switch outputs lighting requests to the BCM.

August 2012

2012 Pathfinder

EXL-14

< SYSTEM DESCRIPTION >

AUTO LIGHT SYSTEM

Optical sensor

Optical sensor detects ambient brightness and converts light
(lux) to voltage, then sends the optical sensor signal to BCM.

Door switches

Provides door OPEN input to BCM for auto light timer.

August 2012

2012 Pathfinder

FRONT FOG LAMP

EXL-15

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

FRONT FOG LAMP

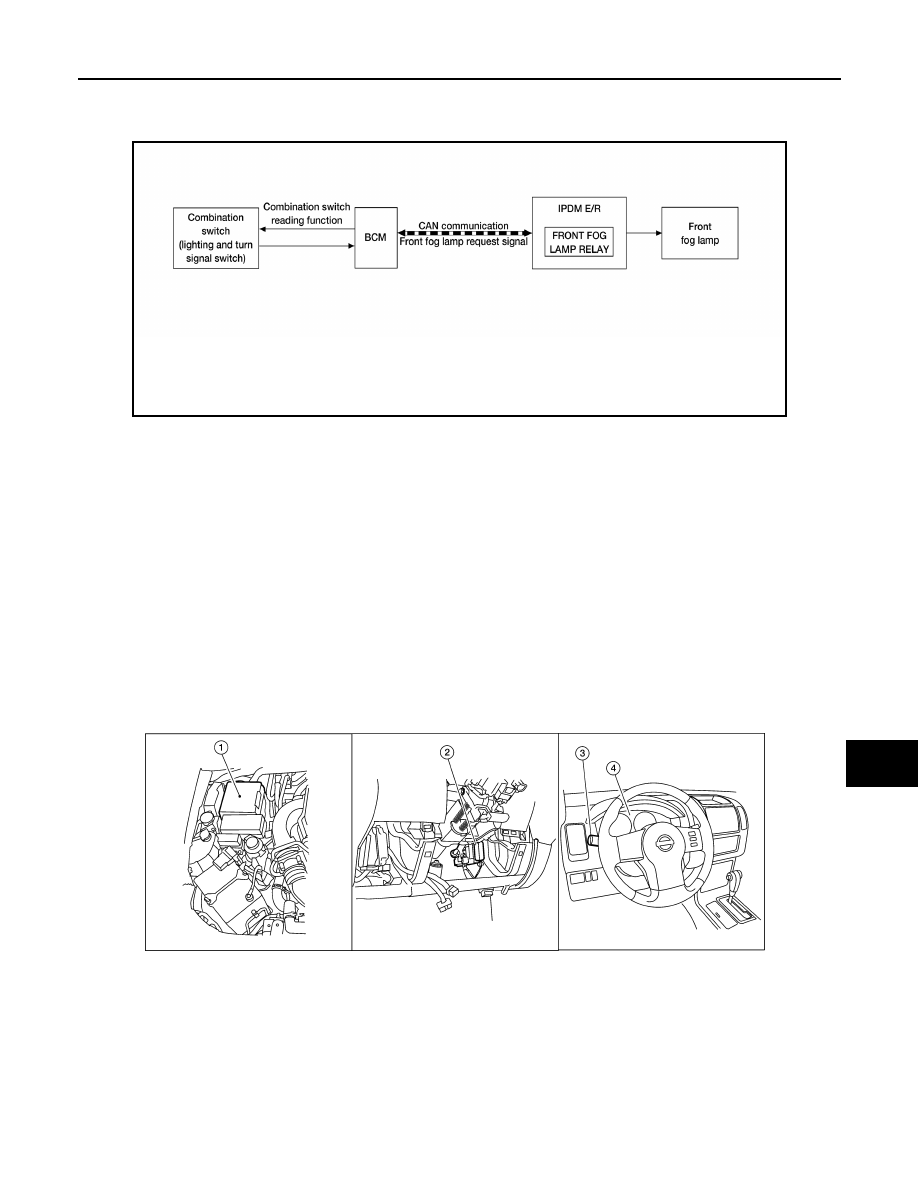

System Diagram

INFOID:0000000007355116

System Description

INFOID:0000000007355117

The front fog lamps are activated with the combination switch (lighting and turn signal switch). The lighting

switch signal to the BCM is monitored with the BCM combination switch reading function. When the fog lamps

are turned ON with the lighting switch, the BCM sends a front fog lamp request signal via CAN communication

lines to the IPDM E/R. The IPDM E/R grounds the front fog lamp relay coil to activate the front fog lamps.

FRONT FOG LAMP OPERATION

When the lighting switch is in front fog lamp ON position and also in 1ST or 2ND position or AUTO position

(headlamp is ON), the BCM detects FR FOG ON and the HEAD LAMP1, 2 ON or the AUTO LIGHT ON. The

BCM sends a front fog lamp request ON signal via the CAN communication lines to the IPDM E/R. The IPDM

E/R then turns ON the front fog lamp relay sending power to the front fog lamps.

Component Parts Location

INFOID:0000000007355118

AWLIA1719GB

1.

IPDM E/R E122, E123, E124

2.

BCM M18, M20 (view with lower instru-
ment panel LH removed)

3.

Combination switch (lighting and turn
signal switch) M28

4.

Combination meter M24

WKIA4960E

August 2012

2012 Pathfinder

EXL-16

< SYSTEM DESCRIPTION >

FRONT FOG LAMP

Component Description

INFOID:0000000007355119

Part name

Description

BCM

• Receives lighting switch requests via BCM combination switch

reading function.

• Sends headlamp high/low request signal to the IPDM E/R.

IPDM E/R

Activates the front fog lamp relay upon request from the BCM.

Combination switch (lighting and turn signal switch)

Outputs lighting requests to the BCM.

August 2012

2012 Pathfinder

TURN SIGNAL AND HAZARD WARNING LAMPS

EXL-17

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

TURN SIGNAL AND HAZARD WARNING LAMPS

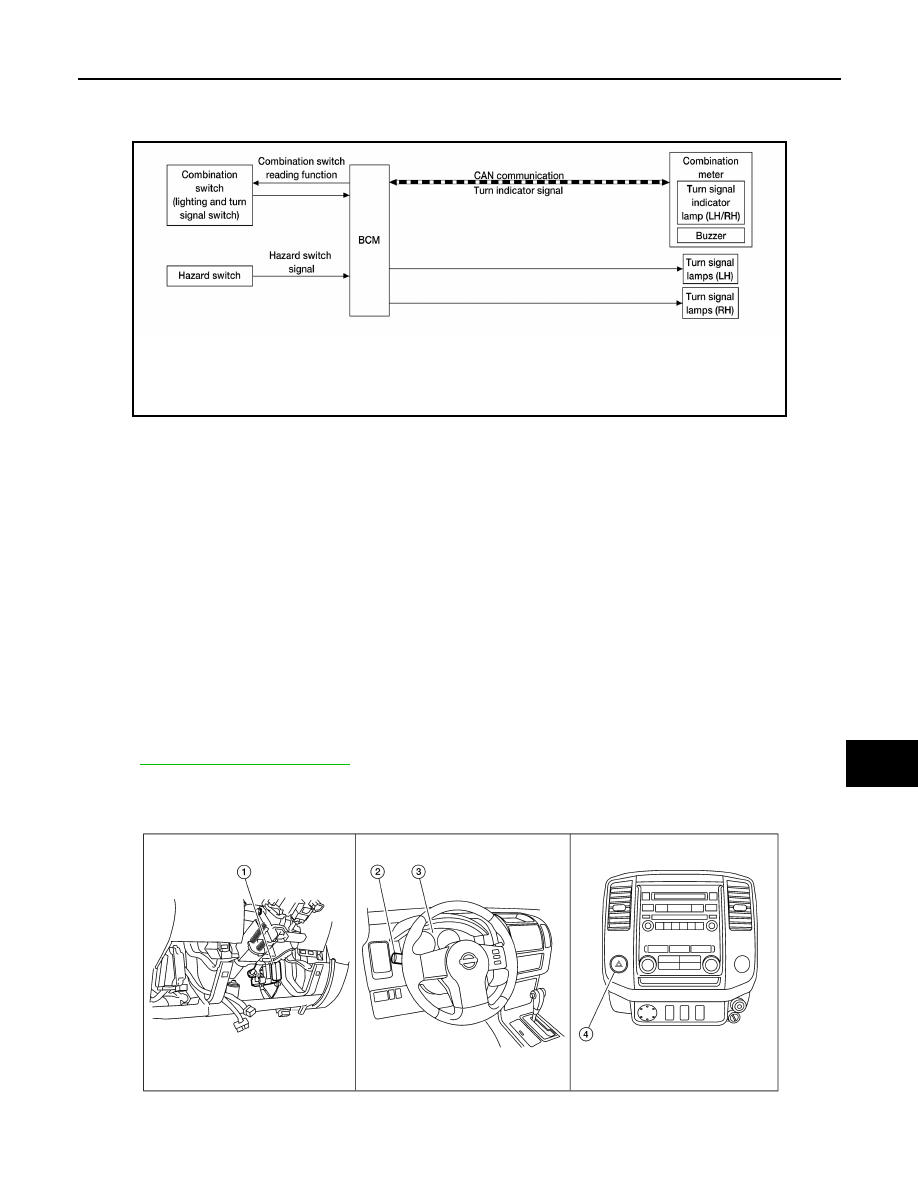

System Diagram

INFOID:0000000007355120

System Description

INFOID:0000000007355121

TURN SIGNAL OPERATION

When the turn signal switch is in LH or RH position with the ignition switch in ON position, the BCM detects the

TURN RH or TURN LH ON request. The BCM outputs the flasher signal to the respective turn signal lamp.

The BCM also sends a turn indicator signal ON request via the CAN communication lines to the combination

meter. The combination meter then activates the appropriate turn signal indicator and audible buzzer.

HAZARD LAMP OPERATION

When the hazard switch is in ON position, the BCM detects the hazard switch signal ON. The BCM outputs the

flasher signal (right and left). The BCM sends a hazard indicator signal ON request via the CAN communica-

tion lines to the combination meter. The combination meter then activates the hazard indicator and audible

buzzer.

REMOTE KEYLESS ENTRY OPERATION

The remote keyless entry receiver transmits a hazard request signal to the BCM, then BCM controls hazard

lamps.

Refer to

SEC-19, "System Description"

.

Component Parts Location

INFOID:0000000007355122

AWLIA1721GB

AWLIA1683ZZ

August 2012

2012 Pathfinder

EXL-18

< SYSTEM DESCRIPTION >

TURN SIGNAL AND HAZARD WARNING LAMPS

Component Description

INFOID:0000000007355123

1.

BCM M18, M20 (view with lower instru-
ment panel LH removed)

2.

Combination switch (lighting and turn
signal switch) M28

3.

Combination meter M24

4.

Hazard switch M55

Part name

Description

BCM

Controls turn signal and hazard flasher operation.

Combination switch (lighting and turn signal switch)

Lighting and turn signal switch requests are output to the BCM.

Hazard switch

Hazard flasher request signal is output to the BCM.

Combination meter

Outputs turn and hazard indicator as requested by the BCM.

August 2012

2012 Pathfinder

PARKING, LICENSE PLATE AND TAIL LAMPS

EXL-19

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

PARKING, LICENSE PLATE AND TAIL LAMPS

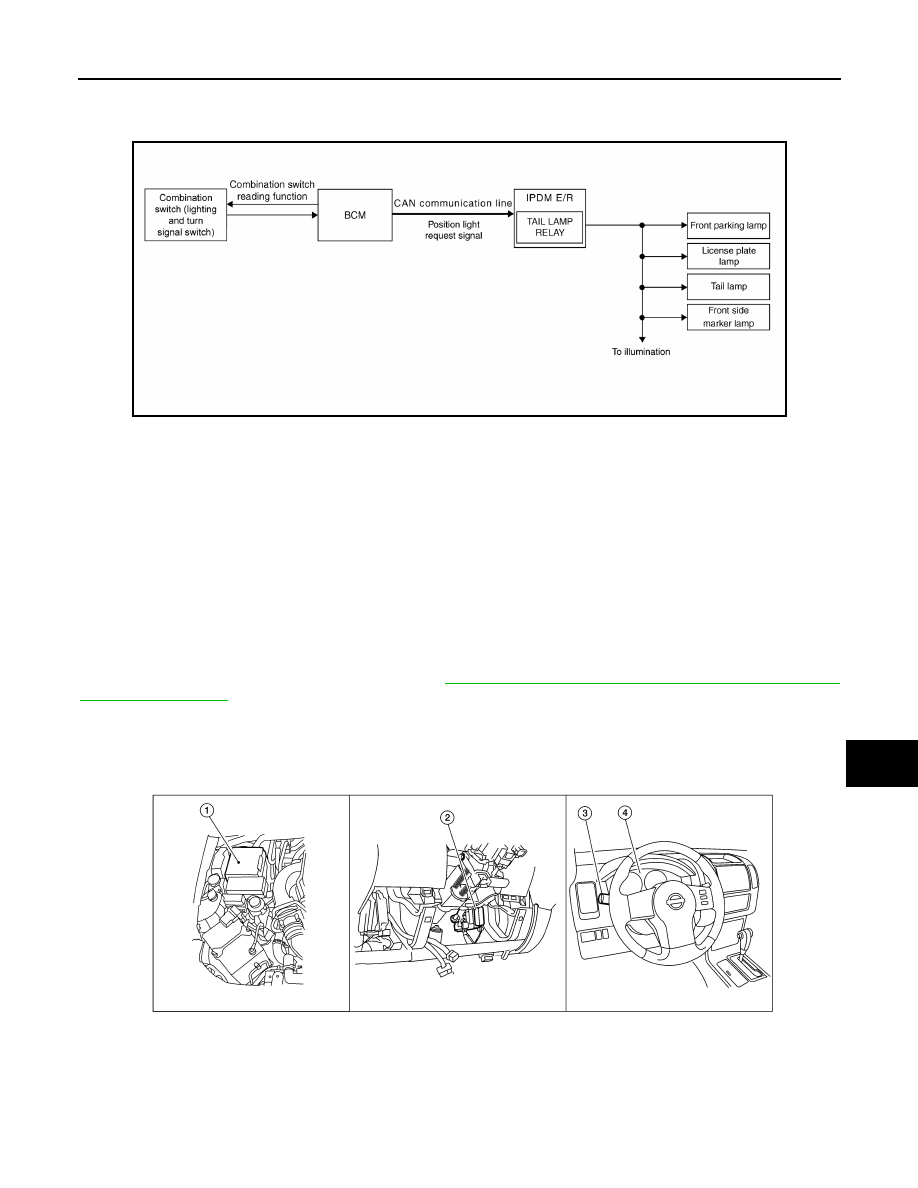

System Diagram

INFOID:0000000007355124

System Description

INFOID:0000000007355125

PARKING, LICENSE PLATE AND TAIL LAMPS OPERATION

When the lighting switch is in 1ST position, BCM detects the LIGHTING SWITCH 1ST POSITION ON. The

BCM sends a parking light ON request via the CAN communication lines to the IPDM E/R. The IPDM E/R then

activates the tail lamp relay which sends power to the parking and instrument illumination circuits.

EXTERIOR LAMP BATTERY SAVER CONTROL

With the combination switch (lighting and turn signal switch) in the 2ND position and the ignition switch is

turned from ON or ACC to OFF, the battery saver feature is activated.

Under this condition, the headlamps remain illuminated for 5 minutes (early production) or 45 seconds (late

production) unless the lighting switch position is changed. If the lighting switch position is changed, then the

headlamps are turned off.

This setting can be changed by CONSULT. Refer to

BCS-24, "BATTERY SAVER : CONSULT Function (BCM

- BATTERY SAVER)"

.

Component Parts Location

INFOID:0000000007355126

ABLIA2837GB

1.

IPDM E/R E121, E122, E123, E124

2.

BCM M18, M20 (view with lower instru-
ment panel LH removed)

3.

Combination switch (lighting and turn
signal switch) M28

4.

Combination meter M24

WKIA4963E
