Nissan Pathfinder (2012 year). Manual

EX-4

< PREPARATION >

PREPARATION

PREPARATION

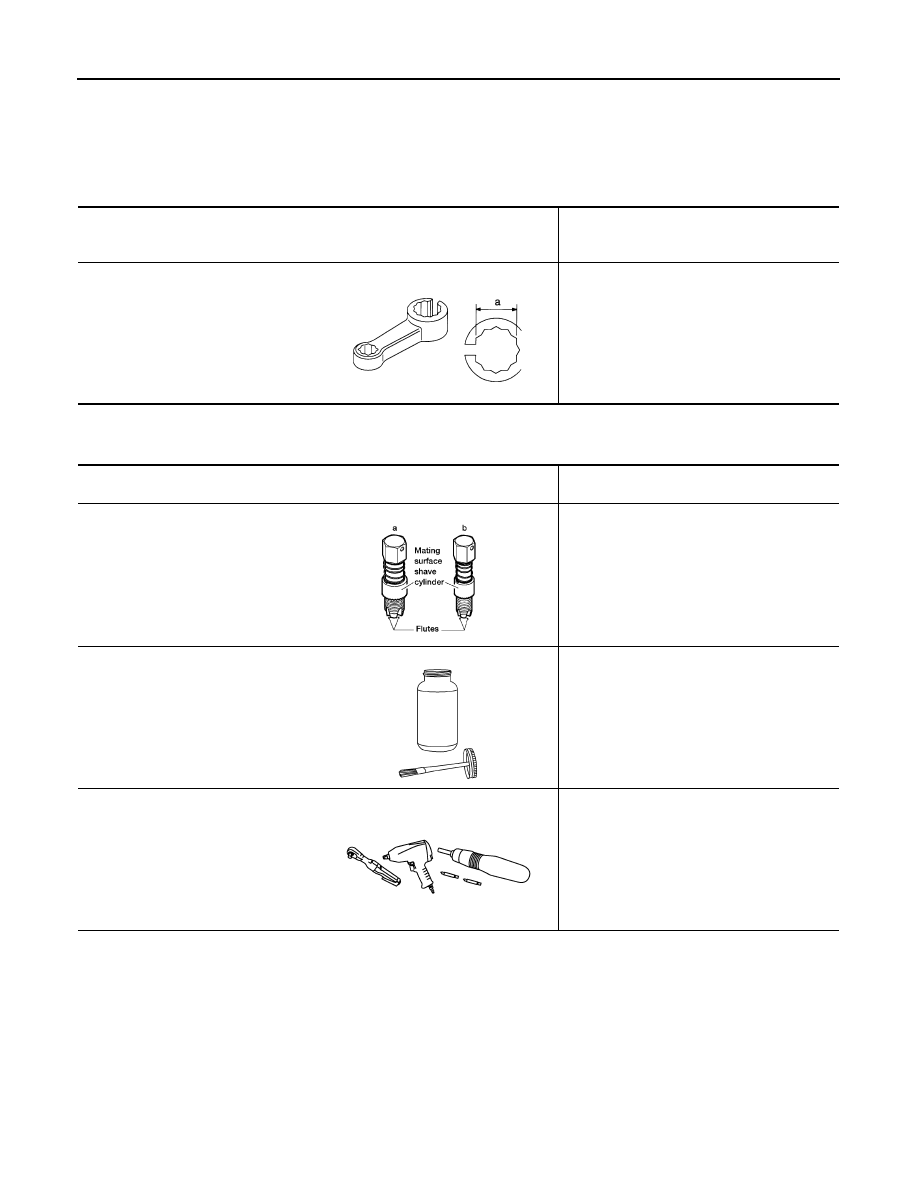

Special Service Tool

INFOID:0000000007358892

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Commercial Service Tool

INFOID:0000000007358893

Tool number
(Kent-Moore No.)
Tool name

Description

KV10114400
(J-38365)
Heated oxygen sensor wrench

Loosening or tightening heated oxygen sen-
sors:

a: 22 mm (0.87 in)

S-NT636

(Kent-Moore No.)
Tool name

Description

(J-43897-18)
(J-43897-12)
Oxygen sensor thread cleaner

Reconditioning the exhaust system threads
before installing a new heated oxygen sensor
(Use with anti-seize lubricant shown below):

a: J-43897-18 (18 mm, 0.71 in) diameter for
zirconia oxygen sensor
b: J-43897-12 (12 mm, 0.47 in) diameter for
titania oxygen sensor

Anti-seize lubricant (Permatex 133AR
or equivalent meeting MIL specifica-
tion MIL-A-907)

Lubricating oxygen sensor thread cleaning
tool when reconditioning exhaust system
threads

Power tool

Loosening nuts, screws and bolts

AEM488

AEM489

PIIB1407E

August 2012

2012 Pathfinder

EX-6

< REMOVAL AND INSTALLATION >

EXHAUST SYSTEM

REMOVAL AND INSTALLATION

EXHAUST SYSTEM

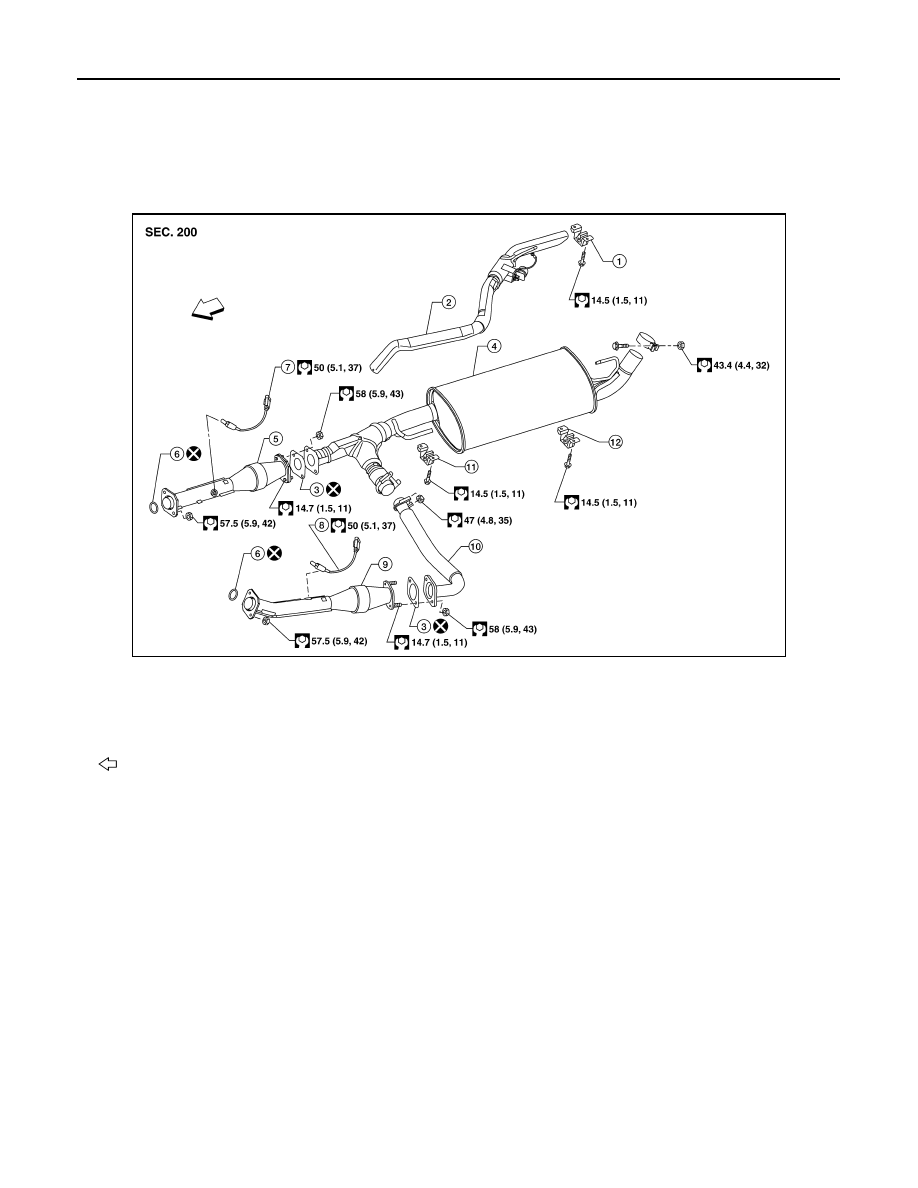

Exploded View

INFOID:0000000007358895

VQ40DE Exhaust System

AWBIA0855GB

Tailpipe hanger bracket

Tailpipe

Gasket

Main muffler

Right front exhaust tube

Ring gasket

Heated oxygen sensor 2 (bank 1)

Heated oxygen sensor 2 (bank 2)

Left front exhaust tube

10. Center exhaust tube

11. Muffler hanger bracket front

12. Muffler hanger bracket rear

Front

August 2012

2012 Pathfinder

EXHAUST SYSTEM

EX-7

< REMOVAL AND INSTALLATION >

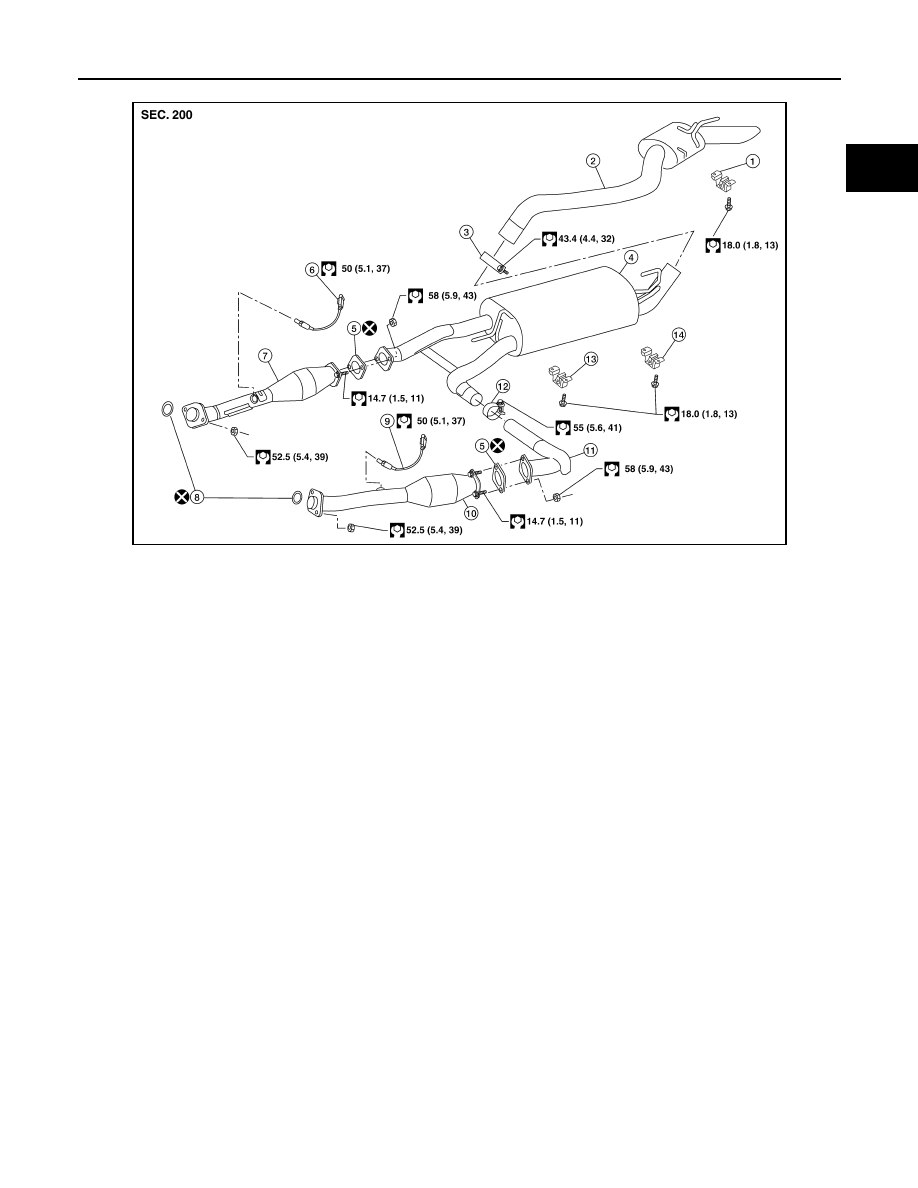

VK56DE Exhaust System

Removal and Installation

INFOID:0000000007358896

WARNING:

• Perform the operation with the exhaust system fully cooled. The system will be hot just after the

engine stops.

• Be careful not to cut your hand on the heat insulator edge.

CAUTION:

• Be sure to use genuine exhaust system parts or equivalents which are specially designed for heat

resistance, corrosion resistance, and shape.

REMOVAL

Remove exhaust system components using power tool.

• Remove heated oxygen sensor using Tool as needed.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Always replace exhaust gaskets with new ones when reassembling.

• Before installing a new heated oxygen sensor, clean and lube the exhaust tube threads using suit-

able tool.

AWBIA0080GB

Tailpipe hanger bracket

Tailpipe

Clamp

Main muffler

Gasket

Heated oxygen sensor 2 (bank 2)

Right front exhaust tube

Ring gasket

Heated oxygen sensor 2 (bank 1)

10. Left front exhaust tube

11. Center exhaust tube

12. Clamp

13. Muffler hanger bracket front

14. Muffler hanger bracket rear

Tool number

: KV10114400 (J-38365)

Oxygen sensor thread cleaner

: — (J-43897-18)

Oxygen sensor thread cleaner

: — (J-43897-12)

August 2012

2012 Pathfinder

EX-8

< REMOVAL AND INSTALLATION >

EXHAUST SYSTEM

• Discard any heated oxygen sensor which has been dropped from a height of more than 0.5 m (19.7

in) onto a hard surface such as a concrete floor; install a new one.

• Do not over-tighten the heated oxygen sensor. Doing so may damage the heated oxygen sensor,

resulting in the MIL coming on.

• If any mounting insulator is badly deformed, repair or replace it. If deposits such as mud pile up on

the mounting insulators, clean and inspect them.

• Temporarily tighten the nuts on the exhaust manifold side and the bolts on the vehicle side. Check

each part for interference with other components, and then tighten the nuts and bolts to specifica-

tion.

INSPECTION AFTER INSTALLATION

• With the engine running, check exhaust tube joints for exhaust gas leaks and unusual noises.

• Check to ensure that mounting brackets and mounting rubbers are installed properly and free from undue

stress. Improper installation could result in excessive noise and vibration.

August 2012

2012 Pathfinder

EXL-2

BCM (BODY CONTROL MODULE) : Diagnosis
Procedure ...............................................................

IPDM E/R (INTELLIGENT POWER DISTRIBU-
TION MODULE ENGINE ROOM) .............................

IPDM E/R (INTELLIGENT POWER DISTRIBU-
TION MODULE ENGINE ROOM) : Diagnosis Pro-
cedure .....................................................................

HEADLAMP (HI) CIRCUIT ................................

Description ..............................................................

Component Function Check ...................................

Diagnosis Procedure ..............................................

HEADLAMP (LO) CIRCUIT ...............................

Description ..............................................................

Component Function Check ...................................

Diagnosis Procedure ..............................................

Component Inspection ............................................

DAYTIME LIGHT RELAY CIRCUIT ...................

Description ..............................................................

Diagnosis Procedure ..............................................

Component Inspection ............................................

FRONT FOG LAMP CIRCUIT ...........................

Description ..............................................................

Component Function Check ...................................

Diagnosis Procedure ..............................................

PARKING LAMP CIRCUIT ................................

Description ..............................................................

Component Function Check ...................................

Diagnosis Procedure ..............................................

TURN SIGNAL LAMP CIRCUIT ........................

Description ..............................................................

Component Function Check ...................................

Diagnosis Procedure ..............................................

OPTICAL SENSOR ...........................................

Description ..............................................................

Component Function Check ...................................

Diagnosis Procedure ..............................................

ECU DIAGNOSIS INFORMATION ..............

BCM (BODY CONTROL MODULE) ..................

Reference Value .....................................................

Terminal Layout ......................................................

Physical Values ......................................................

Fail Safe .................................................................

DTC Inspection Priority Chart ..............................

DTC Index ..............................................................

IPDM E/R (INTELLIGENT POWER DISTRI-
BUTION MODULE ENGINE ROOM) .................

Reference Value .....................................................

Terminal Layout ......................................................

Physical Values ......................................................

Fail Safe .................................................................

DTC Index ..............................................................

WIRING DIAGRAM ....................................

HEADLAMP .......................................................

Wiring Diagram .......................................................

DAYTIME LIGHT SYSTEM ...............................

Wiring Diagram .......................................................

AUTO LIGHT SYSTEM .....................................

Wiring Diagram .......................................................

FRONT FOG LAMP SYSTEM ...........................

Wiring Diagram .......................................................

TURN SIGNAL AND HAZARD WARNING
LAMP SYSTEM ................................................

101

Wiring Diagram .....................................................

101

PARKING, LICENSE PLATE AND TAIL
LAMPS SYSTEM ..............................................

107

Wiring Diagram .....................................................

107

STOP LAMP .....................................................

114

Wiring Diagram .....................................................

114

BACK-UP LAMP ..............................................

119

Wiring Diagram .....................................................

119

TRAILER TOW .................................................

123

Wiring Diagram .....................................................

123

SYMPTOM DIAGNOSIS ...........................

132

EXTERIOR LIGHTING SYSTEM SYMPTOMS ..

132

Symptom Table .....................................................

132

NORMAL OPERATING CONDITION ...............

134

Description ............................................................

134

BOTH SIDE HEADLAMPS DO NOT SWITCH
TO HIGH BEAM ................................................

135

Description ............................................................

135

Diagnosis Procedure .............................................

135

DAYTIME LIGHT SYSTEM INOPERATIVE .....

136

Description ............................................................

136

Diagnosis Procedure .............................................

136

BOTH SIDE HEADLAMPS (LO) ARE NOT
TURNED ON .....................................................

137

Description ............................................................

137

Diagnosis Procedure .............................................

137

PARKING, LICENSE PLATE AND TAIL
LAMPS ARE NOT TURNED ON ......................

138

Description ............................................................

138

Diagnosis Procedure .............................................

138

BOTH SIDE FRONT FOG LAMPS ARE NOT
TURNED ON .....................................................

139

Description ............................................................

139

August 2012

2012 Pathfinder
