FUEL FILLER CAP WARNING SYSTEM

EC-521

< SYSTEM DESCRIPTION >

[VK56DE]

• DTC erased by using CONSULT.

NOTE:

MIL turns ON if a malfunction is detected in leak diagnosis results again at the trip after the fuel filler cap warn-

ing display turns ON/OFF.

August 2012

2012 Pathfinder

EC-522

< SYSTEM DESCRIPTION >

[VK56DE]

ON BOARD DIAGNOSTIC (OBD) SYSTEM

ON BOARD DIAGNOSTIC (OBD) SYSTEM

Diagnosis Description

INFOID:0000000007358437

This system is an on board diagnostic system that records exhaust emission-related diagnostic information

and detects a sensors/actuator-related malfunction. A malfunction is indicated by the malfunction indicator

lamp (MIL) and stored in ECU memory as a DTC. The diagnostic information can be obtained with the diag-

nostic tool (GST: Generic Scan Tool).

GST (Generic Scan Tool)

INFOID:0000000007358438

When GST is connected with a data link connector equipped on the vehicle side, it will communicate with the

control unit equipped in the vehicle and then enable various kinds of diagnostic tests. Refer to

EC-522, "Diag-

nosis Description"

NOTE:

Service $0A is not applied for regions where it is not mandated.

August 2012

2012 Pathfinder

DIAGNOSIS SYSTEM (ECM)

EC-523

< SYSTEM DESCRIPTION >

[VK56DE]

DIAGNOSIS SYSTEM (ECM)

DIAGNOSIS DESCRIPTION
DIAGNOSIS DESCRIPTION : 1st Trip Detection Logic and Two Trip Detection Logic

INFOID:0000000007799369

When a malfunction is detected for the first time, 1st trip DTC and 1st trip Freeze Frame data are stored in the

ECM memory. The MIL will not illuminate at this stage. <1st trip>

If the same malfunction is detected again during the next drive, the DTC and Freeze Frame data are stored in

the ECM memory, and the MIL illuminates. The MIL illuminates at the same time when the DTC is stored.

<2nd trip> The “trip” in the “Two Trip Detection Logic” means a driving mode in which self-diagnosis is per-

formed during vehicle operation. Specific on board diagnostic items will cause the ECM to illuminate or blink

the MIL, and store DTC and Freeze Frame data, even in the 1st trip, as shown below.

: Applicable —: Not applicable

DIAGNOSIS DESCRIPTION : DTC and Freeze Frame Data

INFOID:0000000007799370

DTC AND 1ST TRIP DTC

The 1st trip DTC (whose number is the same as the DTC number) is displayed for the latest self-diagnostic

result obtained. If the ECM memory was cleared previously, and the 1st trip DTC did not recur, the 1st trip DTC

will not be displayed.

If a malfunction is detected during the 1st trip, the 1st trip DTC is saved in the ECM memory. The MIL will not

light up (two trip detection logic). If the same malfunction is not detected in the 2nd trip (meeting the required

driving pattern), the 1st trip DTC is cleared from the ECM memory. If the same malfunction is detected in the

2nd trip, both the 1st trip DTC and DTC are saved in the ECM memory and the MIL lights up. In other words,

the DTC is stored in the ECM memory and the MIL lights up when the same malfunction occurs in two consec-

utive trips. If a 1st trip DTC is stored and a non-diagnostic operation is performed between the 1st and 2nd

trips, only the 1st trip DTC will continue to be stored. For malfunctions that blink or light up the MIL during the

1st trip, the DTC and 1st trip DTC are stored in the ECM memory.

For malfunctions in which 1st trip DTCs are displayed, refer to

EC-555, "DTC Index"

. These items are required

by legal regulations to continuously monitor the system/component. In addition, the items monitored non-con-

tinuously are also displayed on CONSULT.

1st trip DTC is specified in Service $07 of SAE J1979/ISO 15031-5. 1st trip DTC detection occurs without illu-

minating the MIL and therefore does not warn the driver of a malfunction.

When a 1st trip DTC is detected, check, print out or write down and erase (1st trip) DTC and Freeze Frame

data as specified in Work Flow procedure Step 2, refer to

EC-587, "Trouble Diagnosis Introduction"

. Then per-

form DTC Confirmation Procedure or Component Function Check to try to duplicate the malfunction. If the

malfunction is duplicated, the item requires repair.

FREEZE FRAME DATA AND 1ST TRIP FREEZE FRAME DATA

The ECM records the driving conditions such as fuel system status, calculated load value, engine coolant tem-

perature, short term fuel trim, long term fuel trim, engine speed, vehicle speed, absolute throttle position, base

fuel schedule and intake air temperature at the moment a malfunction is detected.

Data which are stored in the ECM memory, along with the 1st trip DTC, are called 1st trip freeze frame data.

The data, stored together with the DTC data, are called freeze frame data and displayed on CONSULT or

GST. The 1st trip freeze frame data can only be displayed on the CONSULT screen.

Items

MIL

DTC

1st trip DTC

1st trip

2nd trip

1st trip

displaying

2nd trip

displaying

1st trip

displaying

2nd trip

displaying

Blinking

Illuminate

Blinking

Illuminate

Misfire (Possible three way catalyst
damage) — DTC: P0300 - P0308 is
being detected

—

Misfire (Possible three way catalyst
damage) — DTC: P0300 - P0308 is
being detected

—

One trip detection diagnoses (Re-
fer to

EC-555, "DTC Index"

—

Except above

—

August 2012

2012 Pathfinder

EC-524

< SYSTEM DESCRIPTION >

[VK56DE]

DIAGNOSIS SYSTEM (ECM)

Only one set of freeze frame data (either 1st trip freeze frame data or freeze frame data) can be stored in the

ECM. 1st trip freeze frame data is stored in the ECM memory along with the 1st trip DTC. There is no priority

for 1st trip freeze frame data and it is updated each time a different 1st trip DTC is detected. However, once

freeze frame data (2nd trip detection/MIL on) is stored in the ECM memory, 1st trip freeze frame data is no

longer stored. Remember, only one set of freeze frame data can be stored in the ECM. The ECM has the fol-

lowing priorities to update the data.

For example, the EGR malfunction (Priority: 2) was detected and the freeze frame data was saved in the 2nd

trip. After that when the misfire (Priority: 1) is detected in another trip, the freeze frame data will be updated

from the EGR malfunction to the misfire. The 1st trip freeze frame data is updated each time a different mal-

function is detected. There is no priority for 1st trip freeze frame data. However, once freeze frame data is

stored in the ECM memory, 1st trip freeze data is no longer stored (because only one freeze frame data or 1st

trip freeze frame data can be stored in the ECM). If freeze frame data is stored in the ECM memory and freeze

frame data with the same priority occurs later, the first (original) freeze frame data remains unchanged in the

ECM memory.

Both 1st trip freeze frame data and freeze frame data (along with the DTCs) are cleared when the ECM mem-

ory is erased.

DIAGNOSIS DESCRIPTION : Counter System

INFOID:0000000007799371

RELATIONSHIP BETWEEN MIL, 1ST TRIP DTC, DTC, AND DETECTABLE ITEMS

• When a malfunction is detected for the first time, the 1st trip DTC and the 1st trip freeze frame data are

stored in the ECM memory.

• When the same malfunction is detected in two consecutive trips, the DTC and the freeze frame data are

stored in the ECM memory, and the MIL will come on.

• The MIL will turn OFF after the vehicle is driven 3 times (driving pattern B) with no malfunction. The drive is

counted only when the recorded driving pattern is met (as stored in the ECM). If another malfunction occurs

while counting, the counter will reset.

• The DTC and the freeze frame data will be stored until the vehicle is driven 40 times (driving pattern A) with-

out the same malfunction recurring (except for Misfire and Fuel Injection System). For Misfire and Fuel Injec-

tion System, the DTC and freeze frame data will be stored until the vehicle is driven 80 times (driving pattern

C) without the same malfunction recurring. The “TIME” in “SELF-DIAGNOSTIC RESULTS” mode of CON-

SULT will count the number of times the vehicle is driven.

• The 1st trip DTC is not displayed when the self-diagnosis results in OK for the 2nd trip.

COUNTER SYSTEM CHART

For details about patterns B and C under “Fuel Injection System” and “Misfire”, see “EXPLANATION FOR

DRIVING PATTERNS FOR “MISFIRE <EXHAUST QUALITY DETERIORATION>”, “FUEL INJECTION SYS-

TEM”.

For details about patterns A and B under Other, see “EXPLANATION FOR DRIVING PATTERNS FOR “MIS-

FIRE <EXHAUST QUALITY DETERIORATION>”, “FUEL INJECTION SYSTEM”.

• *1: Clear timing is at the moment OK is detected.

• *2: Clear timing is when the same malfunction is detected in the 2nd trip.

Relationship Between MIL, DTC, 1st Trip DTC and Driving Patterns for “Misfire <Exhaust Quality De-
terioration>”, “Fuel Injection System”

Priority

Items

Freeze frame data

Misfire — DTC: P0300 - P0308
Fuel Injection System Function — DTC: P0171, P0172, P0174, P0175

Except the above items

1st trip freeze frame data

Items

Fuel Injection System

Misfire

Other

MIL (turns OFF)

3 (pattern B)

DTC, Freeze Frame Data (no display)

80 (pattern C)

40 (pattern A)

1st Trip DTC (clear)

1 (pattern C), *1

1 (pattern B)

1st Trip Freeze Frame Data (clear)

*1, *2

1 (pattern B)

August 2012

2012 Pathfinder

DIAGNOSIS SYSTEM (ECM)

EC-525

< SYSTEM DESCRIPTION >

[VK56DE]

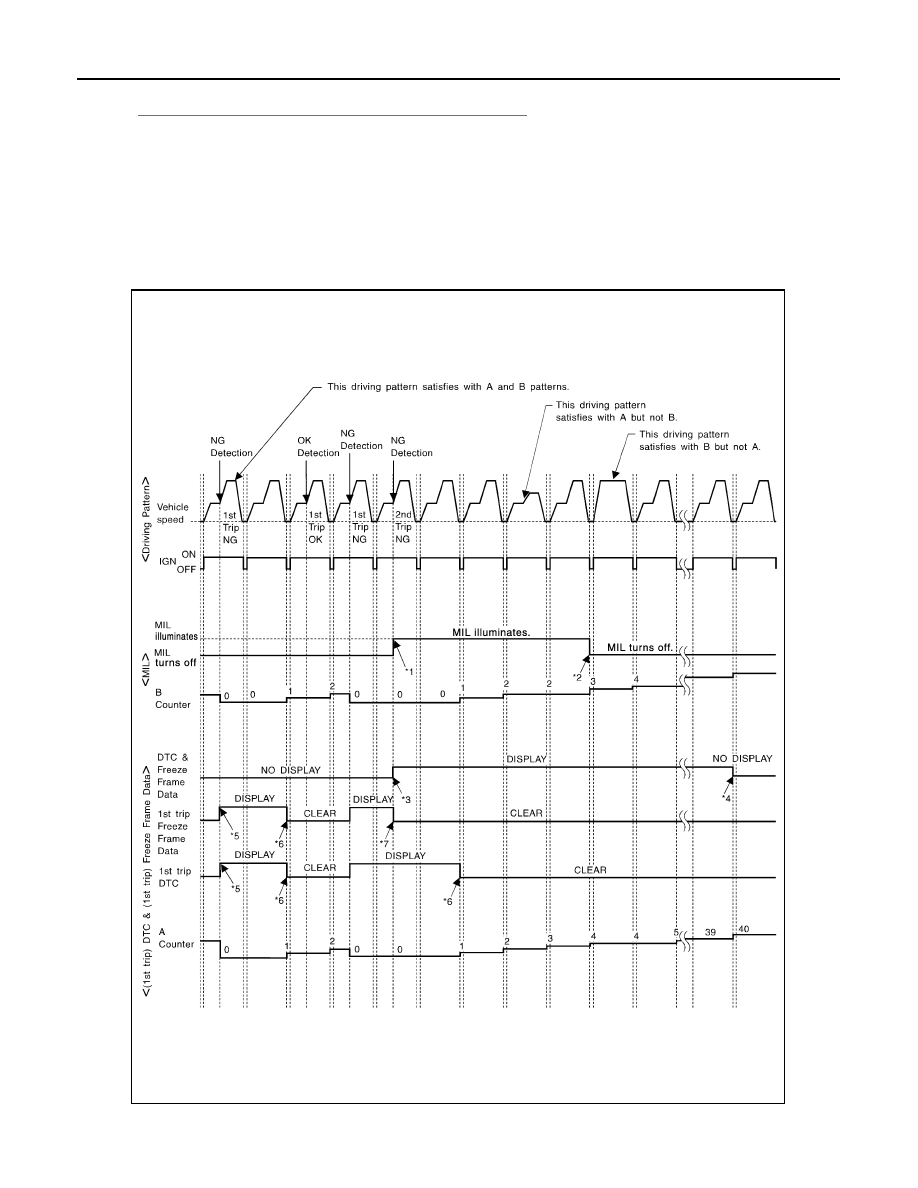

Explanation for Driving Patterns for “Misfire <Exhaust Quality Deterioration>”, “Fuel Injection System”

Driving Pattern B

Refer to

EC-527, "DIAGNOSIS DESCRIPTION : Driving Pattern"

*1: When the same malfunction is de-

tected in two consecutive trips, MIL
will light up.

*2: MIL will turn OFF after vehicle is driv-

en 3 times (pattern B) without any
malfunctions.

*3: When the same malfunction is de-

tected in two consecutive trips, the
DTC and the freeze frame data will be
stored in ECM.

*4: The DTC and the freeze frame data

will not be displayed any longer after
vehicle is driven 80 times (pattern C)
without the same malfunction. (The
DTC and the freeze frame data still
remain in ECM.)

*5: When a malfunction is detected for

the first time, the 1st trip DTC and the
1st trip freeze frame data will be
stored in ECM.

*6: The 1st trip DTC and the 1st trip

freeze frame data will be cleared at
the moment OK is detected.

*7: When the same malfunction is de-

tected in the 2nd trip, the 1st trip
freeze frame data will be cleared.

*8: 1st trip DTC will be cleared when ve-

hicle is driven once (pattern C) with-
out the same malfunction after DTC
is stored in ECM.

JMBIA1417GB

August 2012

2012 Pathfinder

EC-526

< SYSTEM DESCRIPTION >

[VK56DE]

DIAGNOSIS SYSTEM (ECM)

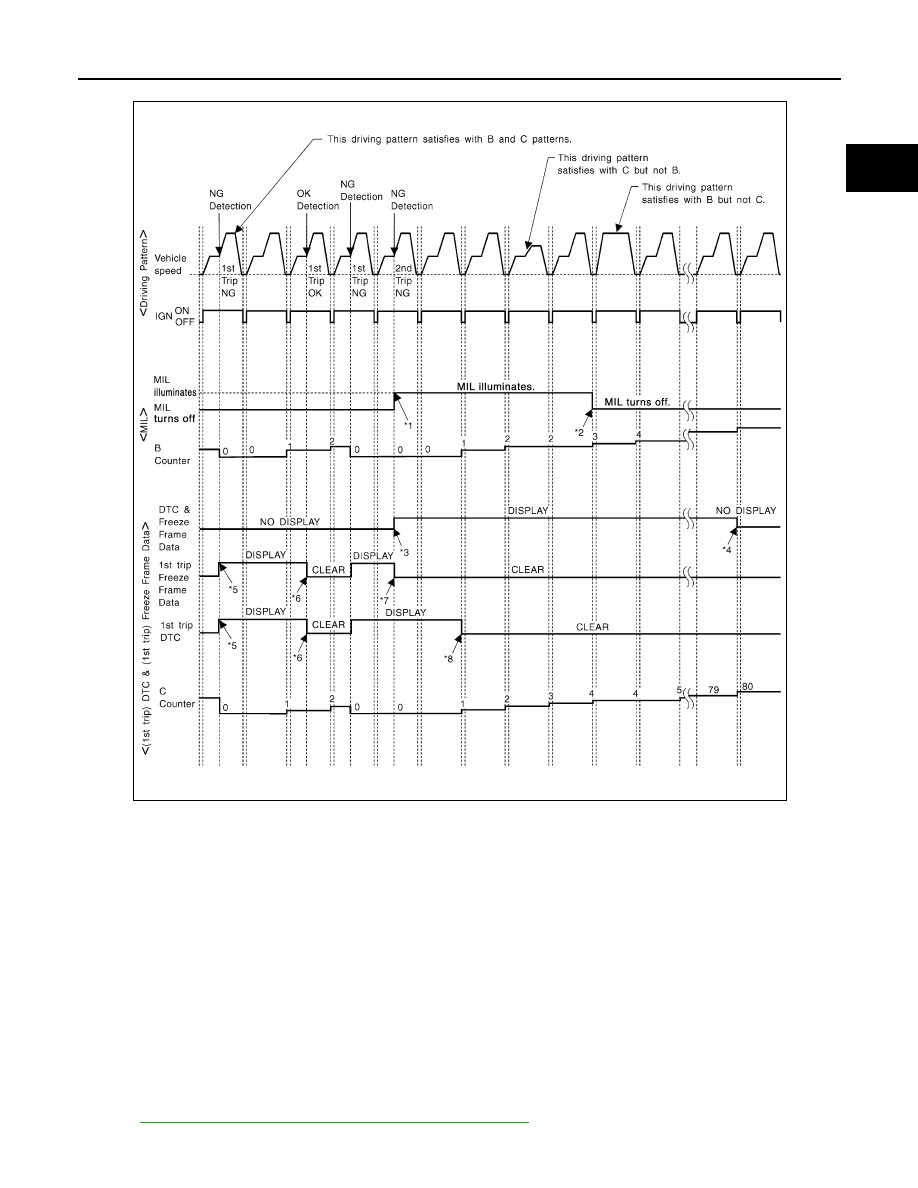

Driving Pattern C

Refer to

EC-527, "DIAGNOSIS DESCRIPTION : Driving Pattern"

Example:

If the stored freeze frame data is as per the following:

Engine speed: 850 rpm, Calculated load value: 30%, Engine coolant temperature: 80

C (176

To be satisfied with driving pattern C, the vehicle should run under the following conditions:

Engine speed: 475 – 1,225 rpm, Calculated load value: 27 – 33%, Engine coolant temperature: more than

C (158

Relationship Between MIL, DTC, 1st Trip DTC and Driving Patterns Except For “Misfire <Exhaust
Quality Deterioration>”, “Fuel Injection System”

JMBIA1418GB

August 2012

2012 Pathfinder

DIAGNOSIS SYSTEM (ECM)

EC-527

< SYSTEM DESCRIPTION >

[VK56DE]

Explanation for Driving Patterns Except for “Misfire <Exhaust Quality Deterioration>”, “Fuel Injection
System”

Driving Pattern A

Refer to

EC-527, "DIAGNOSIS DESCRIPTION : Driving Pattern"

Driving Pattern B

Refer to

EC-527, "DIAGNOSIS DESCRIPTION : Driving Pattern"

DIAGNOSIS DESCRIPTION : Driving Pattern

INFOID:0000000007799372

CAUTION:

Always drive at a safe speed.

DRIVING PATTERN A

Driving pattern A means a trip satisfying the following conditions.

• Engine speed reaches 400 rpm or more.

• Engine coolant temperature rises by 20

C (36

F) or more after starting the engine.

• Engine coolant temperature reaches 70

C (158

F) or more.

• The ignition switch is turned from ON to OFF.

NOTE:

• When the same malfunction is detected regardless of driving conditions, reset the counter of driving pattern

• When the above conditions are satisfied without detecting the same malfunction, reset the counter of driving

pattern A.

DRIVING PATTERN B

Driving pattern B means a trip satisfying the following conditions.

• Engine speed reaches 400 rpm or more.

• Engine coolant temperature reaches 70

C (158

F) or more.

• Vehicle speed of 70 – 120 km/h (44 – 75 MPH) is maintained for 60 seconds or more under the control of

closed loop.

• Vehicle speed of 30 – 60 km/h (19 – 37 MPH) is maintained for 10 seconds or more under the control of

closed loop.

• Under the closed loop control condition, the following state reaches 12 seconds or more in total: Vehicle

speed of 4 km/h (2 MPH) or less with idling condition.

• The state of driving at 10 km/h (7 MPH) or more reaches 10 minutes or more in total.

• A lapse of 22 minutes or more after engine start.

NOTE:

• Drive the vehicle at a constant velocity.

• When the same malfunction is detected regardless of driving conditions, reset the counter of driving pattern

• When the above conditions are satisfied without detecting the same malfunction, reset the counter of driving

pattern B.

DRIVING PATTERN C

Driving pattern C means operating vehicle as per the following:

The following conditions should be satisfied at the same time:

Engine speed: (Engine speed in the freeze frame data)

375 rpm

*1: When the same malfunction is de-

tected in two consecutive trips, MIL
will light up.

*2: MIL will turn OFF after vehicle is driv-

en 3 times (pattern B) without any
malfunctions.

*3: When the same malfunction is de-

tected in two consecutive trips, the
DTC and the freeze frame data will be
stored in ECM.

*4: The DTC and the freeze frame data

will not be displayed any longer after
vehicle is driven 40 times (pattern A)
without the same malfunction.
(The DTC and the freeze frame data
still remain in ECM.)

*5: When a malfunction is detected for

the first time, the 1st trip DTC and the
1st trip freeze frame data will be
stored in ECM.

*6: 1st trip DTC will be cleared after vehi-

cle is driven once (pattern B) without
the same malfunction.

*7: When the same malfunction is de-

tected in the 2nd trip, the 1st trip
freeze frame data will be cleared.

August 2012

2012 Pathfinder

EC-528

< SYSTEM DESCRIPTION >

[VK56DE]

DIAGNOSIS SYSTEM (ECM)

Calculated load value: (Calculated load value in the freeze frame data) x (1

0.1) [%]

Engine coolant temperature condition:

• When the freeze frame data shows lower than 70

C (158

F), engine coolant temperature should be lower

than 70

C (158

F).

• When the freeze frame data shows higher than or equal to 70

C (158

F), engine coolant temperature should

be higher than or equal to 70

C (158

F).

NOTE:

• When the same malfunction is detected regardless of the above vehicle conditions, reset the counter of driv-

ing pattern C.

• When the above conditions are satisfied without detecting the same malfunction, reset the counter of driving

pattern C.

• The 1st trip DTC will be cleared when C counter is counted once without the same malfunction after DTC is

stored in ECM.

DRIVING PATTERN D

Driving pattern D means a trip satisfying the following conditions.

• The state of driving at 40 km/h (25 MPH) reaches 300 seconds or more in total.

• Idle speed lasts 30 seconds or more.

• A lapse of 600 seconds or more after engine start.

NOTE:

• When the same malfunction is detected regardless of driving conditions, reset the counter of driving pattern

• When the above conditions are satisfied without detecting the same malfunction, reset the counter of driving

pattern D.

DIAGNOSIS DESCRIPTION : System Readiness Test (SRT) Code

INFOID:0000000007799373

System Readiness Test (SRT) code is specified in Service $01 of SAE J1979/ISO 15031-5.

As part of an enhanced emissions test for Inspection & Maintenance (I/M), certain states require the status of

SRT be used to indicate whether the ECM has completed self-diagnosis of major emission systems and com-

ponents. Completion must be verified in order for the emissions inspection to proceed.

If a vehicle is rejected for a State emissions inspection due to one or more SRT items indicating “INCMP”, use

the information in this Service Manual to set the SRT to “CMPLT”.

In most cases the ECM will automatically complete its self-diagnosis cycle during normal usage, and the SRT

status will indicate “CMPLT” for each application system. Once set as “CMPLT”, the SRT status remains

“CMPLT” until the self-diagnosis memory is erased.

Occasionally, certain portions of the self-diagnostic test may not be completed as a result of the customer's

normal driving pattern; the SRT will indicate “INCMP” for these items.

NOTE:

The SRT will also indicate “INCMP” if the self-diagnosis memory is erased for any reason or if the ECM mem-

ory power supply is interrupted for several hours.

If, during the state emissions inspection, the SRT indicates “CMPLT” for all test items, the inspector will con-

tinue with the emissions test. However, if the SRT indicates “INCMP” for one or more of the SRT items the

vehicle is returned to the customer untested.

NOTE:

If permanent DTC is stored or MIL illuminates during the state emissions inspection, the vehicle is also

returned to the customer untested even though the SRT indicates “CMPLT” for all test items. Therefore, it is

important to check SRT (“CMPLT”), DTC (No DTCs) and permanent DTC (NO permanent DTCs) before the

inspection.

SRT SET TIMING

SRT is set as “CMPLT” after self-diagnosis has been performed one or more times. Completion of SRT is

done regardless of whether the result is OK or NG. The set timing is different between OK and NG results and

is shown in the table below.

August 2012

2012 Pathfinder

Content .. 303 304 305 306 ..
