EVAP LEAK CHECK

EC-489

< PERIODIC MAINTENANCE >

[VQ40DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

EVAP LEAK CHECK

How to Detect Fuel Vapor Leakage

INFOID:0000000007358404

CAUTION:

• Never use compressed air or a high pressure pump.
• Never exceed 4.12 kPa (0.042 kg/cm

2

, 0.6 psi) of pressure in EVAP system.

NOTE:

• Do not start engine.

• Improper installation of EVAP service port adapter to the EVAP service port may cause a leak.

 WITH CONSULT

1. Attach the EVAP service port adapter securely to the EVAP service port.

2. Also attach the pressure pump and hose to the EVAP service port adapter.

3. Turn ignition switch ON.

4. Select the “EVAP SYSTEM CLOSE” of “WORK SUPPORT MODE” with CONSULT.

5. Touch “START”. A bar graph (Pressure indicating display) will appear on the screen.

6. Apply positive pressure to the EVAP system until the pressure indicator reaches the middle of the bar

graph.

7. Remove EVAP service port adapter and hose with pressure pump.

8. Locate the leak using a leak detector. Refer to

EC-57, "Descrip-

tion"

.

 WITHOUT CONSULT

1. Attach the EVAP service port adapter securely to the EVAP ser-

vice port.

2. Also attach the pressure pump with pressure gauge to the EVAP

service port adapter.

3. Apply battery voltage between the terminals of EVAP canister

vent control valve (3) to make a closed EVAP system.

-

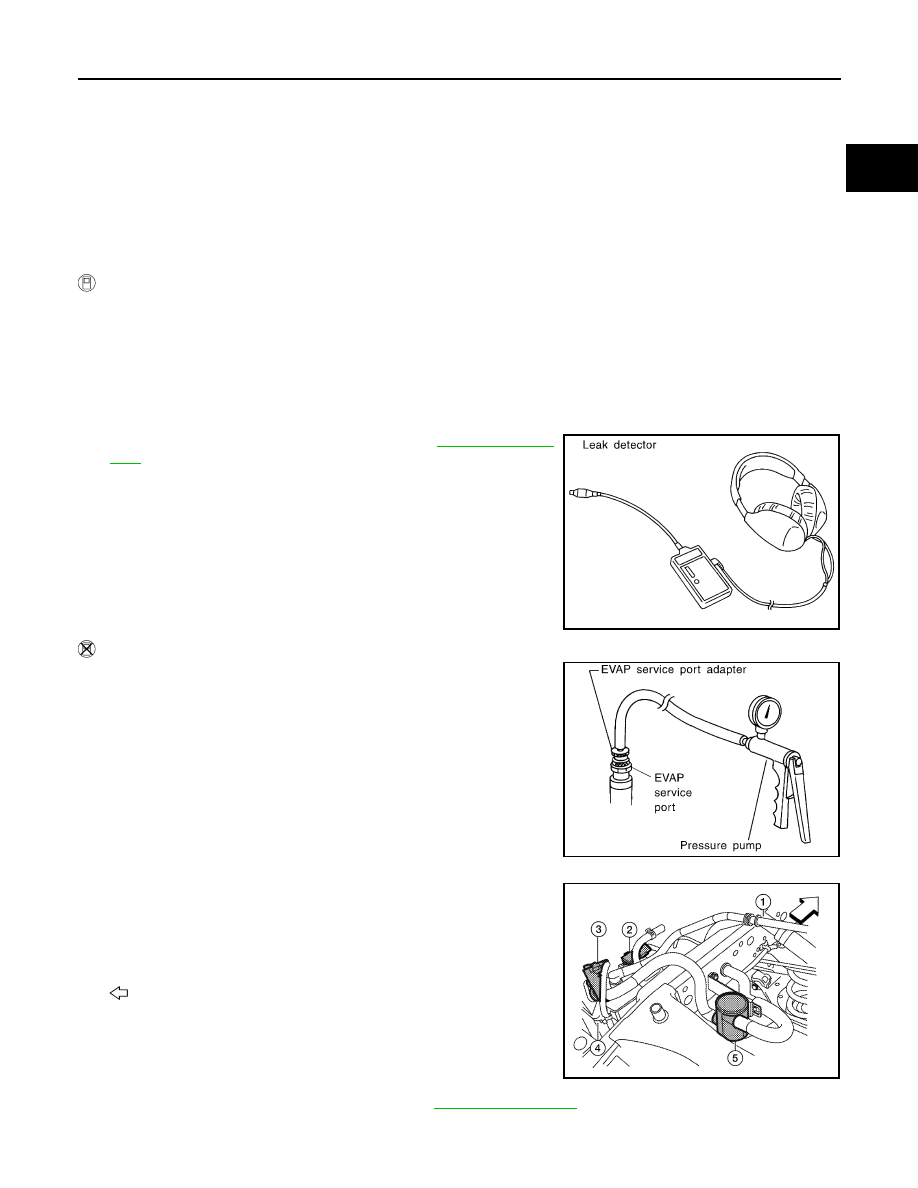

Fuel filler pipe (top of frame view) (1)

-

EVAP control system pressure sensor (2)

-

EVAP ccanister (4)

-

Drain filter (5)

-

: Vehicle front

4. To locate the leak, deliver positive pressure to the EVAP system

until pressure gauge points reach 1.38 to 2.76 kPa (0.014 to
0.028 kg/cm

2

, 0.2 to 0.4 psi).

5. Remove EVAP service port adapter and hose with pressure

pump.

6. Locate the leak using a leak detector. Refer to

EC-57, "Description"

.

SEF200U

SEF462UA

AWBIA0134ZZ

August 2012

2012 Pathfinder

EC-490

< SERVICE DATA AND SPECIFICATIONS (SDS)

[VQ40DE]

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Fuel Pressure

INFOID:0000000007358405

Idle Speed and Ignition Timing

INFOID:0000000007358406

*: Under the following conditions:
• Air conditioner switch: OFF
• Electric load: OFF (Lights, heater fan & rear window defogger)
• Steering wheel: Kept in straight-ahead position

Calculated Load Value

INFOID:0000000007358407

Mass Air Flow Sensor

INFOID:0000000007358408

*: Engine is warmed up to normal operating temperature and running under no load.

Intake Air Temperature Sensor

INFOID:0000000007358409

Engine Coolant Temperature Sensor

INFOID:0000000007358410

Air Fuel Ratio (A/F) Sensor 1 Heater

INFOID:0000000007358411

Fuel pressure at idling kPa (kg/cm

2

, psi)

Approximately 350 (3.57, 51)

Target idle speed

No load* (in P or N position)

625

±

 50 rpm

Air conditioner: ON

In P or N position

625 rpm or more

Ignition timing

In P or N position

15

±

 5

°

 BTDC

Condition

Calculated load value% (Using CONSULT or GST)

At idle

5 - 35

At 2,500 rpm

5 - 35

Supply voltage

Battery voltage (11 - 14V)

Output voltage at idle

0.9 - 1.2*V

Mass air flow (Using CONSULT or GST)

2.0 - 6.0 g/s at idle*

7.0 - 20.0 g/s at 2,500 rpm*

Temperature

°

C (

°

F)

Resistance k

25 (77)

1.800 - 2.200

Temperature

°

C (

°

F)

Resistance k

20 (68)

2.1 - 2.9

50 (122)

0.68 - 1.00

90 (194)

0.236 - 0.260

Resistance [at 25

°

C (77

°

F)]

1.80 - 2.44

August 2012

2012 Pathfinder

SERVICE DATA AND SPECIFICATIONS (SDS)

EC-491

< SERVICE DATA AND SPECIFICATIONS (SDS)

[VQ40DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

Heated Oxygen sensor 2 Heater

INFOID:0000000007358412

Crankshaft Position Sensor (POS)

INFOID:0000000007358413

Refer to

EC-221, "Component Inspection"

.

Camshaft Position Sensor (PHASE)

INFOID:0000000007358414

Refer to

EC-226, "Component Inspection"

.

Throttle Control Motor

INFOID:0000000007358415

Fuel Injector

INFOID:0000000007358416

Fuel Pump

INFOID:0000000007358417

Resistance [at 25

°

C (77

°

F)]

9.9 - 13.3

Resistance [at 25

°

C (77

°

F)]

Approximately 1 - 15

Resistance [at 10 - 60

°

C (50 - 140

°

F)]

11.1 - 14.5

Resistance [at 25

°

C (77

°

F)]

0.2 - 5.0

August 2012

2012 Pathfinder

EC-492

< PRECAUTION >

[VK56DE]

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000008832069

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS

system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front

air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.

Information necessary to service the system safely is included in the SR and SB section of this Service Man-

ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery and wait at least 3 minutes before performing any service.

Precaution Necessary for Steering Wheel Rotation After Battery Disconnect

INFOID:0000000007833553

NOTE:

• This Procedure is applied only to models with Intelligent Key system and NATS (NISSAN ANTI-THEFT SYS-

TEM).

• Remove and install all control units after disconnecting both battery cables with the ignition knob in the

LOCK

 position.

• Always use CONSULT to perform self-diagnosis as a part of each function inspection after finishing work. If

DTC is detected, perform trouble diagnosis according to self-diagnostic results.

For models equipped with the Intelligent Key system and NATS, an electrically controlled steering lock mech-

anism is adopted on the key cylinder.

For this reason, if the battery is disconnected or if the battery is discharged, the steering wheel will lock and

steering wheel rotation will become impossible.

If steering wheel rotation is required when battery power is interrupted, follow the procedure below before

starting the repair operation.

OPERATION PROCEDURE

1. Connect both battery cables.

NOTE:

Supply power using jumper cables if battery is discharged.

2. Use the Intelligent Key or mechanical key to turn the ignition switch to the

ACC

 position. At this time, the

steering lock will be released.

3. Disconnect both battery cables. The steering lock will remain released and the steering wheel can be

rotated.

4. Perform the necessary repair operation.

August 2012

2012 Pathfinder

PRECAUTIONS

EC-493

< PRECAUTION >

[VK56DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

5. When the repair work is completed, return the ignition switch to the

LOCK

 position before connecting

the battery cables. (At this time, the steering lock mechanism will engage.)

6. Perform a self-diagnosis check of all control units using CONSULT.

On Board Diagnosis (OBD) System of Engine and A/T

INFOID:0000000007358419

The ECM has an on board diagnostic system. It will illuminate the malfunction indicator lamp (MIL) to warn the

driver of a malfunction causing emission deterioration.

CAUTION:

• Always turn the ignition switch OFF and disconnect the negative battery cable before any repair or

inspection work. The open/short circuit of related switches, sensors, solenoid valves, etc. will cause

the MIL to illuminate.

• Always connect and lock the connectors securely after work. A loose (unlocked) connector will

cause the MIL to illuminate due to the open circuit. (Check that the connector is free from water,

grease, dirt, bent terminals, etc.)

• Certain systems and components, especially those related to OBD, may use a new style slide-lock-

ing type harness connector. For description and how to disconnect, refer to

PG-67, "Description"

.

• Always route and secure the harnesses properly after work. The interference of the harness with a

bracket, etc. may cause the MIL to illuminate due to the short circuit.

• Always connect rubber tubes properly after work. A misconnected or disconnected rubber tube may

cause the MIL to illuminate due to the malfunction of the EVAP system or fuel injection system, etc.

• Always erase the unnecessary malfunction information (repairs completed) from the ECM and TCM

(Transmission control module) before returning the vehicle to the customer.

Precaution

INFOID:0000000007358420

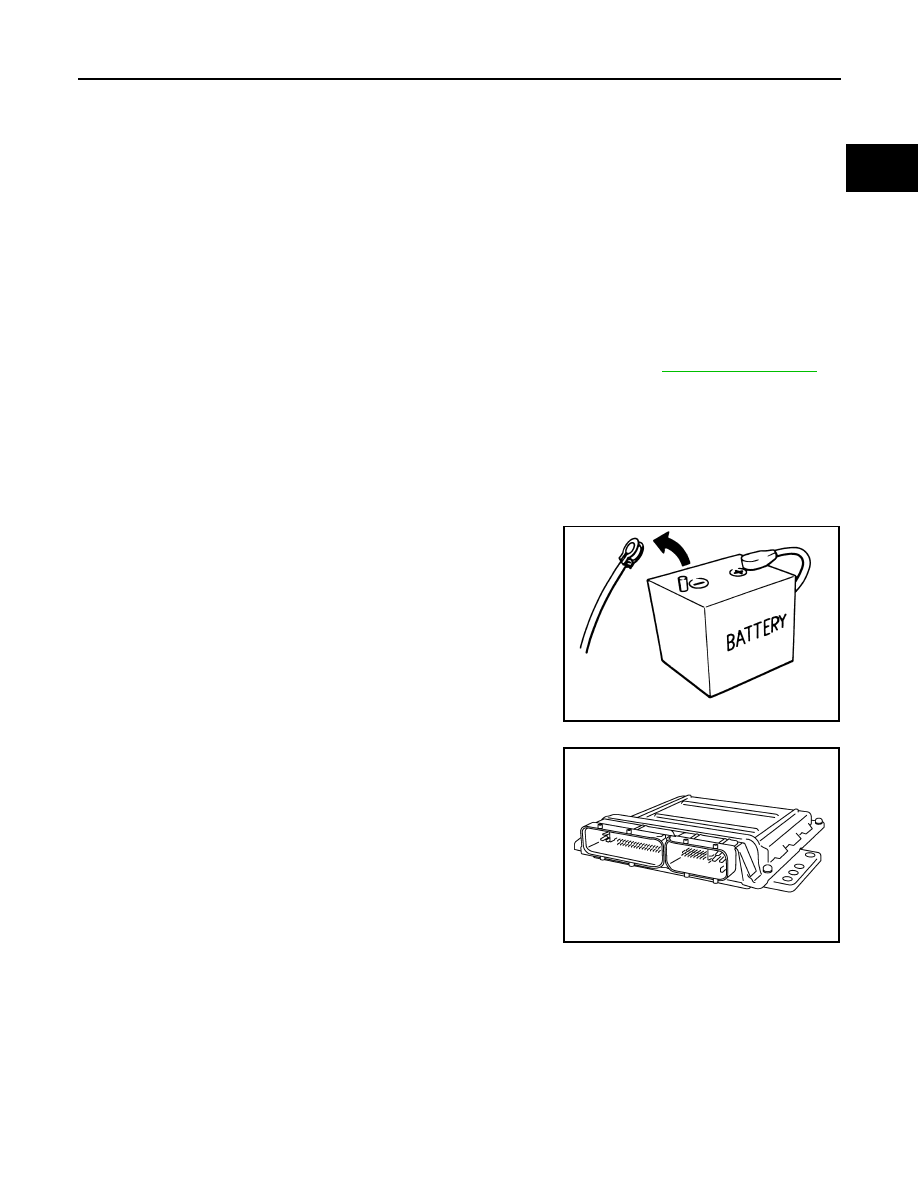

Always use a 12 volt battery as power source.

Never attempt to disconnect battery cables while engine is

running.

Before connecting or disconnecting the ECM harness con-

nector, turn ignition switch OFF and disconnect negative bat-

tery cable. Failure to do so may damage the ECM because

battery voltage is applied to ECM even if ignition switch is

turned OFF.

Before removing parts, turn ignition switch OFF and then dis-

connect negative battery cable.

Never disassemble ECM.

If a battery cable is disconnected, the memory will return to

the ECM value.

The ECM will now start to self-control at its initial value. Thus,

engine operation can vary slightly in this case. However, this

is not an indication of a malfunction. Never replace parts

because of a slight variation.

If the battery is disconnected, the following emission-related

diagnostic information will be cleared within 24 hours.

-

Diagnostic trouble codes

-

1st trip diagnostic trouble codes

-

Freeze frame data

-

1st trip freeze frame data

-

System readiness test (SRT) codes

-

Test values

SEF289H

PBIB1164E

August 2012

2012 Pathfinder

EC-494

< PRECAUTION >

[VK56DE]

PRECAUTIONS

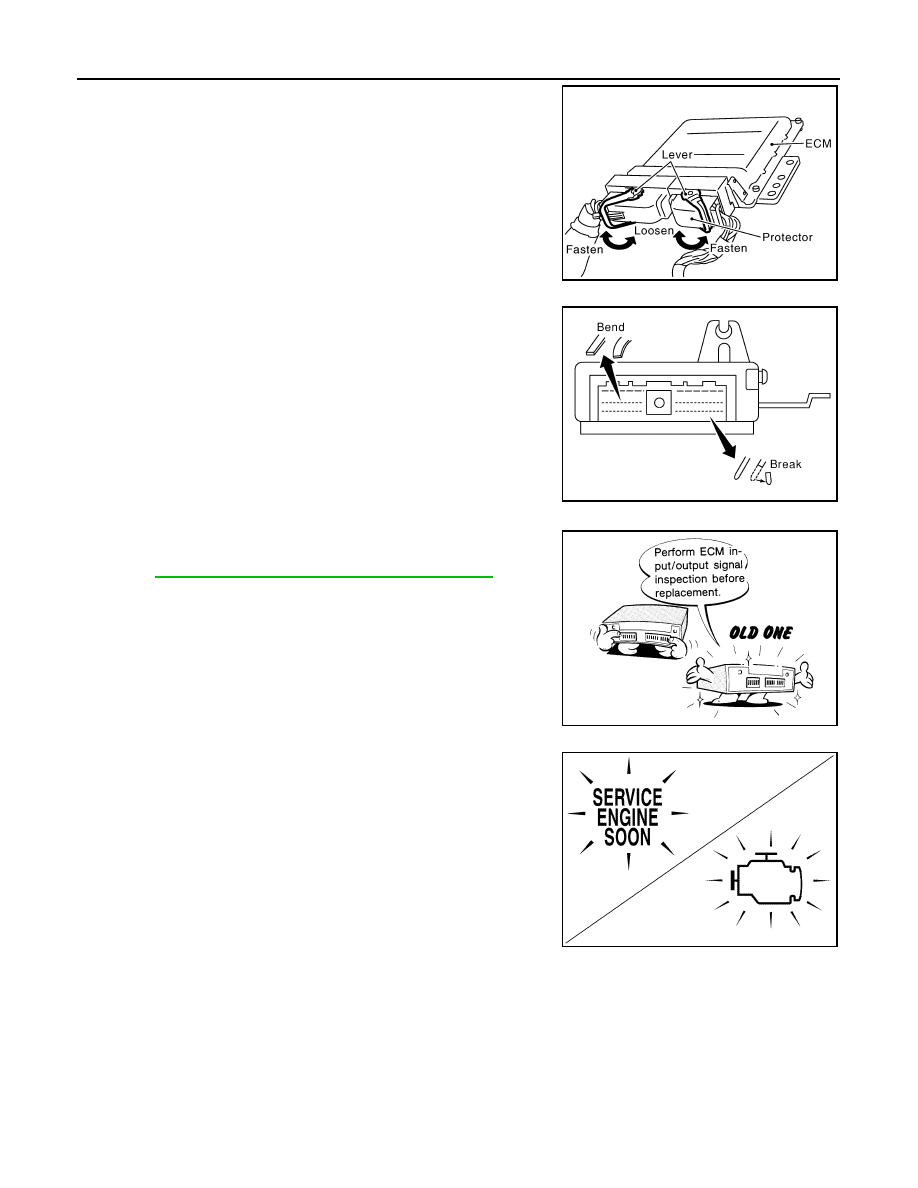

When connecting ECM harness connector, fasten it securely

with a lever as far as it will go as shown in the figure.

When connecting or disconnecting pin connectors into or

from ECM, never damage pin terminals (bends or breaks).

Check that there are not any bends or breaks on ECM pin ter-

minal, when connecting pin connectors.

Securely connect ECM harness connectors.

A poor connection can cause an extremely high (surge) volt-

age to develop in coil and condenser, thus resulting in dam-

age to ICs.

Keep engine control system harness at least 10 cm (4 in) away

from adjacent harness, to prevent engine control system mal-

functions due to receiving external noise, degraded operation

of ICs, etc.

Keep engine control system parts and harness dry.

Before replacing ECM, perform ECM Terminals and Reference

Value inspection and check that ECM functions properly.

Refer to

EC-545, "ECM Terminal and Reference Value"

.

Handle mass air flow sensor carefully to avoid damage.

Never disassemble mass air flow sensor.

Never clean mass air flow sensor with any type of detergent.

Never disassemble electric throttle control actuator.

Even a slight leakage in the air intake system can cause seri-

ous incidents.

Never shock or jar the camshaft position sensor (PHASE),

crankshaft position sensor (POS).

After performing each TROUBLE DIAGNOSIS, perform DTC

Confirmation Procedure or Overall Function Check.

The DTC should not be displayed in the DTC Confirmation

Procedure if the repair is completed. The Overall Function

Check should be a good result if the repair is completed.

PBIB1512E

PBIB0090E

MEF040D

JSBIA1315ZZ

August 2012

2012 Pathfinder

PRECAUTIONS

EC-495

< PRECAUTION >

[VK56DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

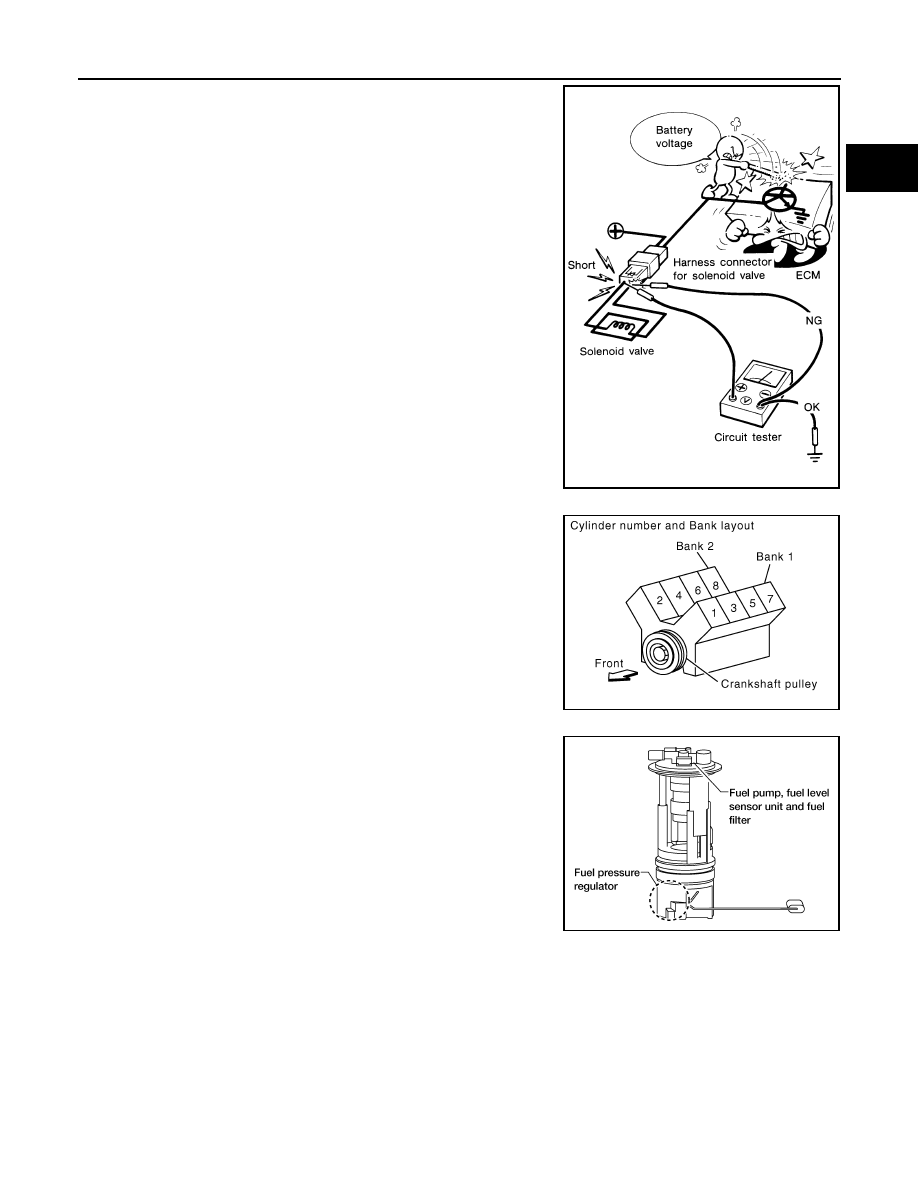

When measuring ECM signals with a circuit tester, never allow

the two tester probes to contact.

Accidental contact of probes will cause a short circuit and

damage the ECM power transistor.

Never use ECM ground terminals when measuring input/out-

put voltage. Doing so may result in damage to the ECM's tran-

sistor. Use a ground other than ECM terminals, such as the

ground.

B1 indicates bank 1, B2 indicates bank 2 as shown in the fig-

ure.

Never operate fuel pump when there is no fuel in lines.

Tighten fuel hose clamps to the specified torque.

SEF348N

PBIB1144E

BBIA0529E

August 2012

2012 Pathfinder

EC-496

< PRECAUTION >

[VK56DE]

PRECAUTIONS

Never depress accelerator pedal when starting.

Immediately after starting, do not rev up engine unnecessar-

ily.

Never rev up engine just prior to shutdown.

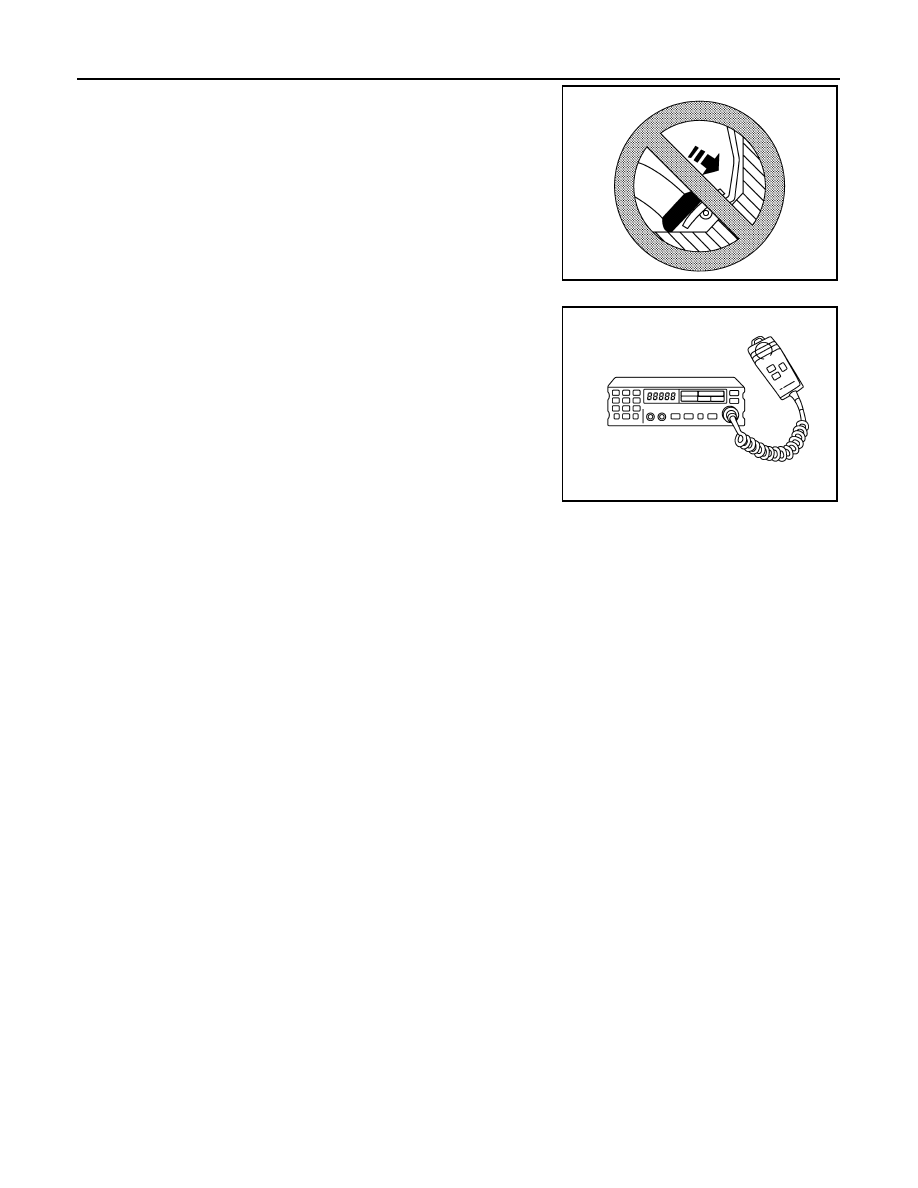

When installing C.B. ham radio or a mobile phone, always

observe the following as it may adversely affect electronic

control systems depending on installation location.

-

Keep the antenna as far as possible from the electronic con-

trol units.

-

Keep the antenna feeder line more than 20 cm (8 in) away

from the harness of electronic controls.

Never let them run parallel for a long distance.

-

Adjust the antenna and feeder line so that the standing-wave

radio can be kept smaller.

-

Always ground the radio to vehicle body.

SEF709Y

SEF708Y

August 2012

2012 Pathfinder















Content      ..     299      300      301      302     ..
