PREPARATION

DLN-453

< PREPARATION >

[REAR FINAL DRIVE: R230]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

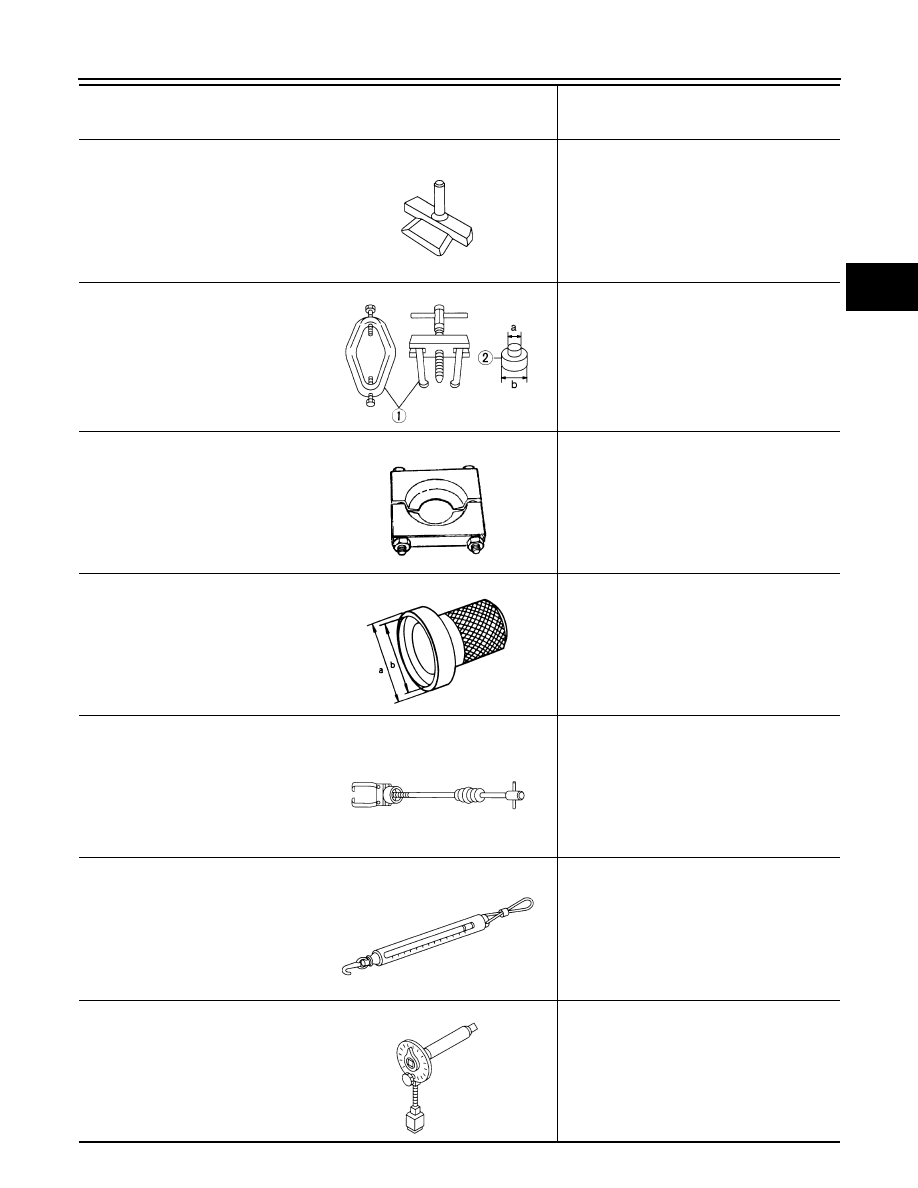

KV10111100
(J-37228)
Seal cutter

Removing carrier cover

ST3306S001
(

)

Differential side bearing puller set
1: ST33051001

(J-22888-20)
Puller

2: ST33061000

(J-8107-2)
Base

Removing and installing side bearing inner
race

a: 28.5 mm (1.122 in) dia.
b: 38 mm (1.50 in) dia.

ST30031000
(J-22912-01)
Puller

Removing drive pinion rear bearing inner race

ST35271000
( — )
Drift

Installing oil seal

a: 72 mm (2.83 in) dia.
b: 63 mm (2.48 in) dia.

HT72400000
( — )
Slide hammer

Removing differential case assembly

(J-8129)
Spring gauge

Measuring turning torque

KV10112100
(BT-8653-A)
Angle wrench

Tightening bolts for drive gear

Tool number
(Kent-Moore No.)
Tool name

Description

S-NT046

NT072

ZZA0700D

ZZA0837D

S-NT125

NT127

NT014

August 2012

2012 Pathfinder

DLN-454

< PREPARATION >

[REAR FINAL DRIVE: R230]

PREPARATION

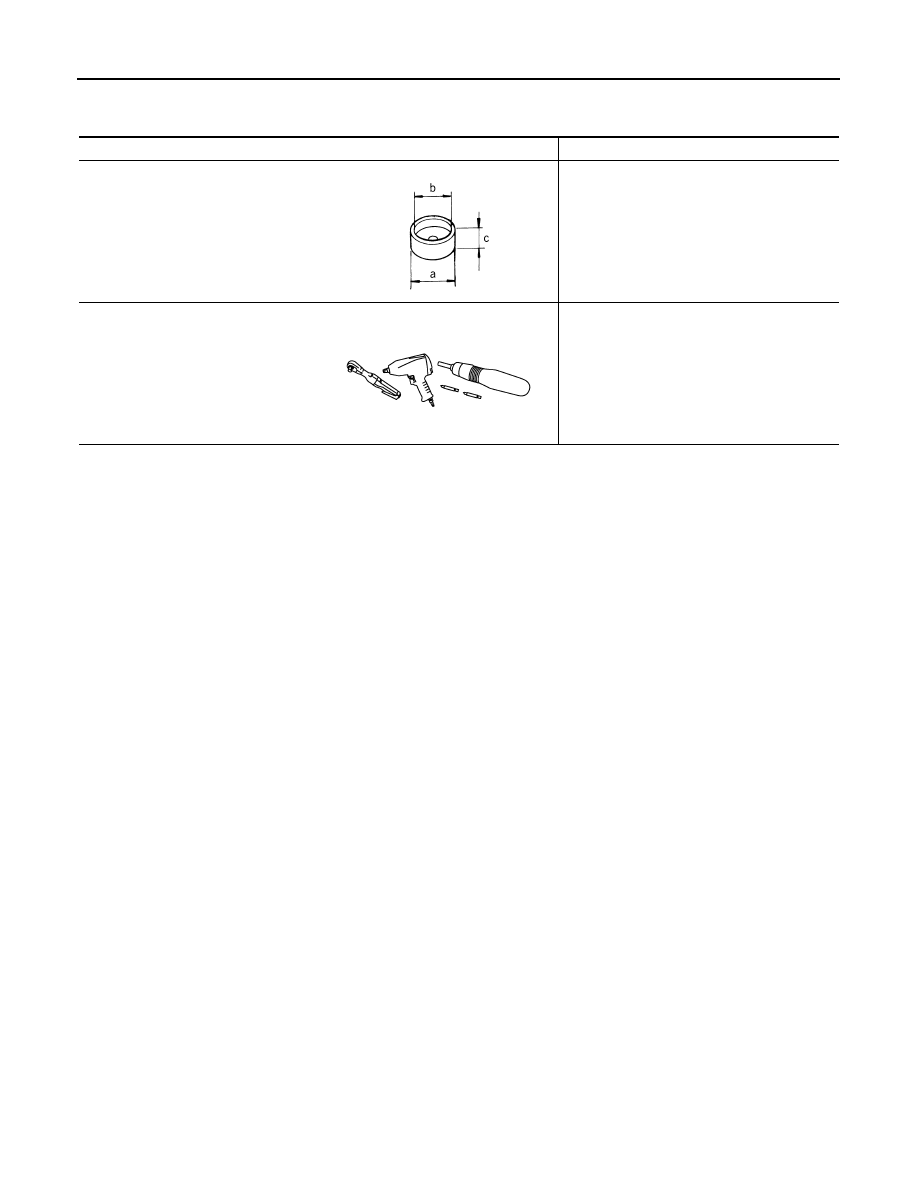

Commercial Service Tool

INFOID:0000000007357658

Tool name

Description

Spacer

Installing drive pinion front bearing inner race

a: 60 mm (2.36 in) dia.
b: 36 mm (1.42 in) dia.
c: 30 mm (1.18 in)

Power tool

Loosening nuts, screws and bolts

ZZA1133D

PIIB1407E

August 2012

2012 Pathfinder

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

DLN-455

< SYSTEM DESCRIPTION >

[REAR FINAL DRIVE: R230]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

SYSTEM DESCRIPTION

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

NVH Troubleshooting Chart

INFOID:0000000007357659

Use the chart below to help you find the cause of the symptom. If necessary, repair or replace these parts.

×

: Applicable

Reference page

DLN-467

DLN-467

DLN-467

DLN-467

DLN-483

MA-18,

"FOR USA A

N

CANADA

 :

Fl

ui

ds an

d L

u

br

ic

an

ts"

DL

N-32

7,

"NVH T

rou

bl

es

ho

oti

ng

 Cha

rt"

DL

N-33

8,

"NVH T

rou

bl

es

ho

oti

ng

 Cha

rt"

RAX-5,

 "NVH T

rou

bl

es

ho

ot

in

g Cha

rt"

RSU-5,

 "NVH T

rou

bl

es

ho

ot

in

g Cha

rt

"

WT

-4

8,

 "NVH T

rou

bl

es

ho

ot

in

g Cha

rt"

WT

-4

8,

 "NVH T

rou

bl

es

ho

ot

in

g Cha

rt"

RAX-5,

 "NVH T

rou

bl

es

ho

ot

in

g Cha

rt"

BR-6,

 "NVH T

rou

bl

es

ho

ot

in

g Cha

rt"

ST

-1

1

, "NV

H

 T

rou

ble

shoo

ting Cha

rt"

Possible cause and SUSPECTED PARTS

Ge

ar t

o

ot

h rou

g

h

Ge

ar co

nt

act

 im

pro

p

er

To

o

th su

rfac

es

 wo

rn

Ba

ck

la

sh

 in

co

rrec

t

Com

pa

ni

on

 fl

an

ge ex

ce

ss

iv

e run

ou

t

Ge

ar oi

l im

pro

p

er

PROPELLER S

H

AFT

REAR A

XLE

REAR S

U

S

PENSION

TI

RE

S

ROAD WHEEL

DRIVE SHAFT

BRAKE

S

STE

E

RING

Symptom

Noise

×

×

×

×

×

×

×

×

×

×

×

×

×

August 2012

2012 Pathfinder

DLN-456

< SYSTEM DESCRIPTION >

[REAR FINAL DRIVE: R230]

DESCRIPTION

DESCRIPTION

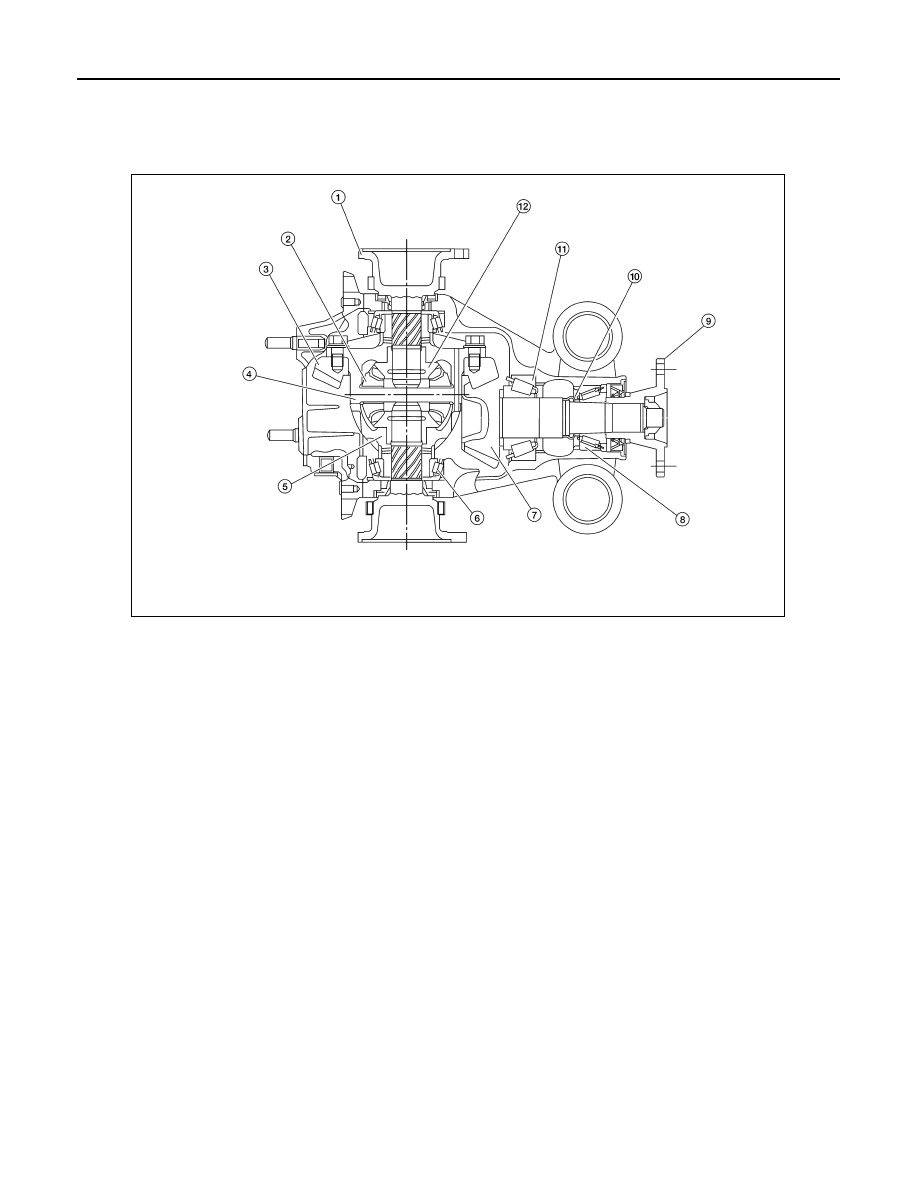

Cross-Sectional View

INFOID:0000000007357660

1.

Side flange

2.

Pinion mate gear

3.

Drive gear

4.

Pinion mate shaft

5.

Differential case

6.

Side bearing

7.

Drive pinion

8.

Drive pinion front bearing

9.

Companion flange

10. Collapsible spacer

11. Drive pinion rear bearing

12. Side gear

WDIA0119E

August 2012

2012 Pathfinder

DIFFERENTIAL GEAR OIL

DLN-457

< PERIODIC MAINTENANCE >

[REAR FINAL DRIVE: R230]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

PERIODIC MAINTENANCE

DIFFERENTIAL GEAR OIL

Changing Differential Gear Oil

INFOID:0000000007357661

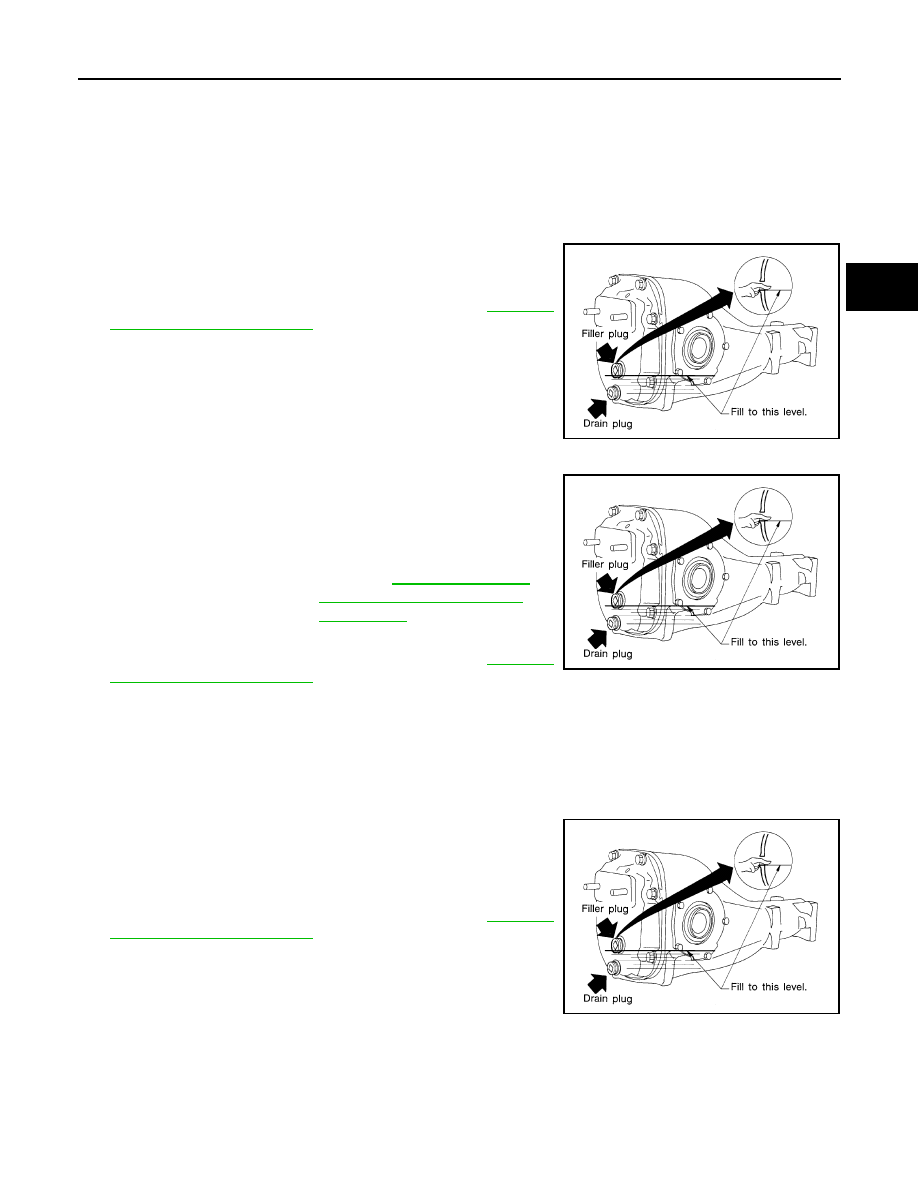

DRAINING

1. Stop the engine.
2. Remove the drain plug and gasket from the rear final drive

assembly to drain the differential gear oil.

3. Install the drain plug with a new gasket to the rear final drive

assembly. Tighten to the specified torque. Refer to

DLN-467,

"Disassembly and Assembly"

CAUTION:

Do not reuse gasket.

FILLING

1. Remove the filler plug and gasket from the rear final drive

assembly.

2. Fill the rear final drive assembly with new differential gear oil

until the level reaches the specified level near the filler plug hole.

3. Install the filler plug with a new gasket on it to the rear final drive

assembly. Tighten to the specified torque. Refer to

DLN-467,

"Disassembly and Assembly"

.

CAUTION:

Do not reuse gasket.

Checking Differential Gear Oil

INFOID:0000000007357662

OIL LEAKAGE AND OIL LEVEL

1. Make sure that differential gear oil is not leaking from the rear final drive assembly or around it.
2. Check the differential gear oil level from the filler plug hole as

shown.

CAUTION:

Do not start engine while checking differential gear oil level.

3. Install the filler plug with a new gasket on it to the rear final drive

assembly. Tighten to the specified torque. Refer to

DLN-467,

"Disassembly and Assembly"

CAUTION:

Do not reuse gasket.

LLIA0068E

Differential gear oil
grade and capacity

: Refer to

MA-18, "FOR USA

AND CANADA : Fluids and
Lubricants"

.

LLIA0068E

LLIA0068E

August 2012

2012 Pathfinder

DLN-458

< REMOVAL AND INSTALLATION >

[REAR FINAL DRIVE: R230]

FRONT OIL SEAL

REMOVAL AND INSTALLATION

FRONT OIL SEAL

Removal and Installation

INFOID:0000000007357663

NOTE:

When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spill-

ing.

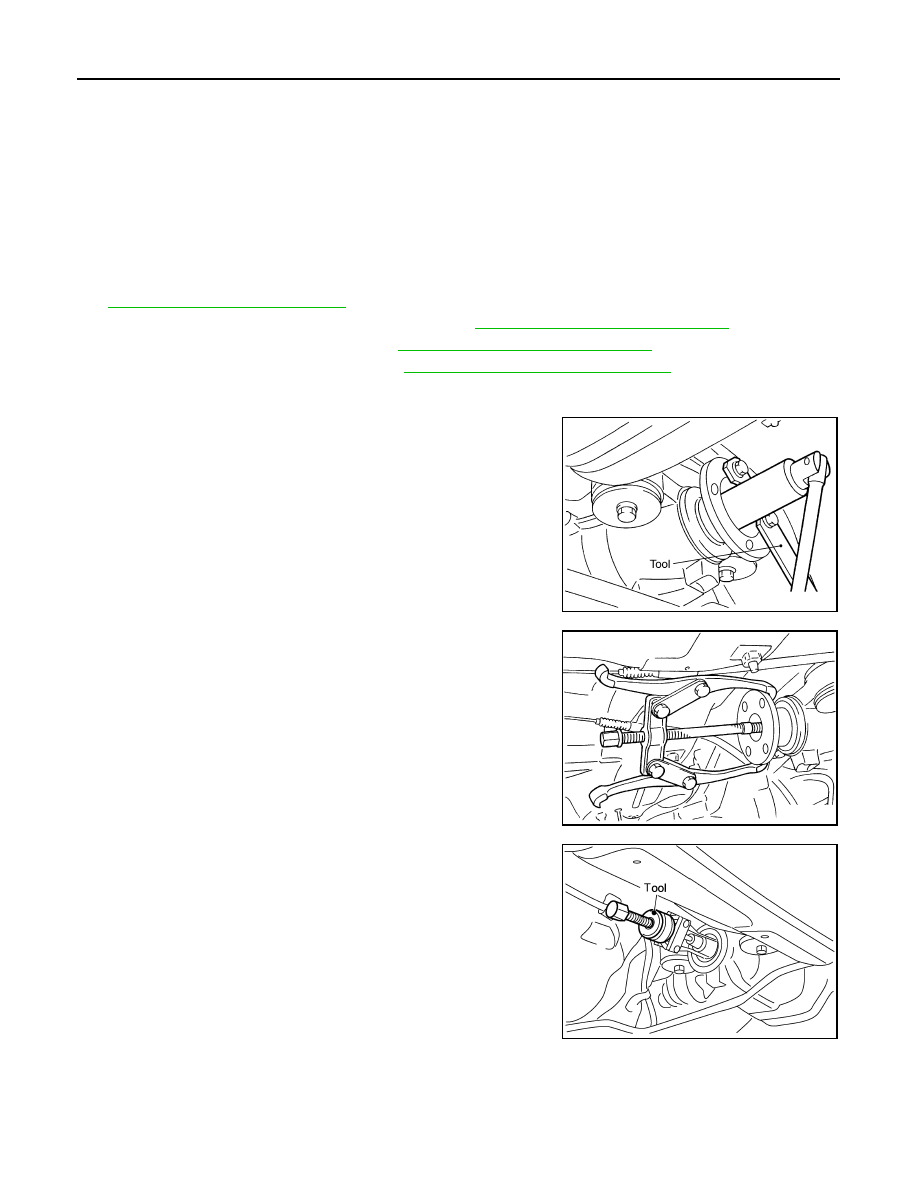

REMOVAL

1. Remove the drive shafts from the rear final drive assembly and support them using suitable wire. Refer to

RAX-8, "Removal and Installation"

.

2. Remove the side flanges and side oil seals. Refer to

DLN-460, "Removal and Installation"

.

3. Remove the rear propeller shaft. Refer to

DLN-340, "Removal and Installation"

.

4. Measure the total preload torque. Refer to

DLN-483, "Inspection and Adjustment"

.

NOTE:

Record the total preload torque measurement.

5. Remove the drive pinion lock nut using suitable tool.
6. Put matching marks on the companion flange and drive pinion

using paint.

CAUTION:

Use paint to make the matching marks. Do not damage the

companion flange or drive pinion.

7. Remove the companion flange using suitable tool.

8. Remove the front oil seal using Tool.

INSTALLATION

SDIA1142E

SDIA1054E

Tool number

: ST33290001 (J-34286)

SDIA0485E

August 2012

2012 Pathfinder

FRONT OIL SEAL

DLN-459

< REMOVAL AND INSTALLATION >

[REAR FINAL DRIVE: R230]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

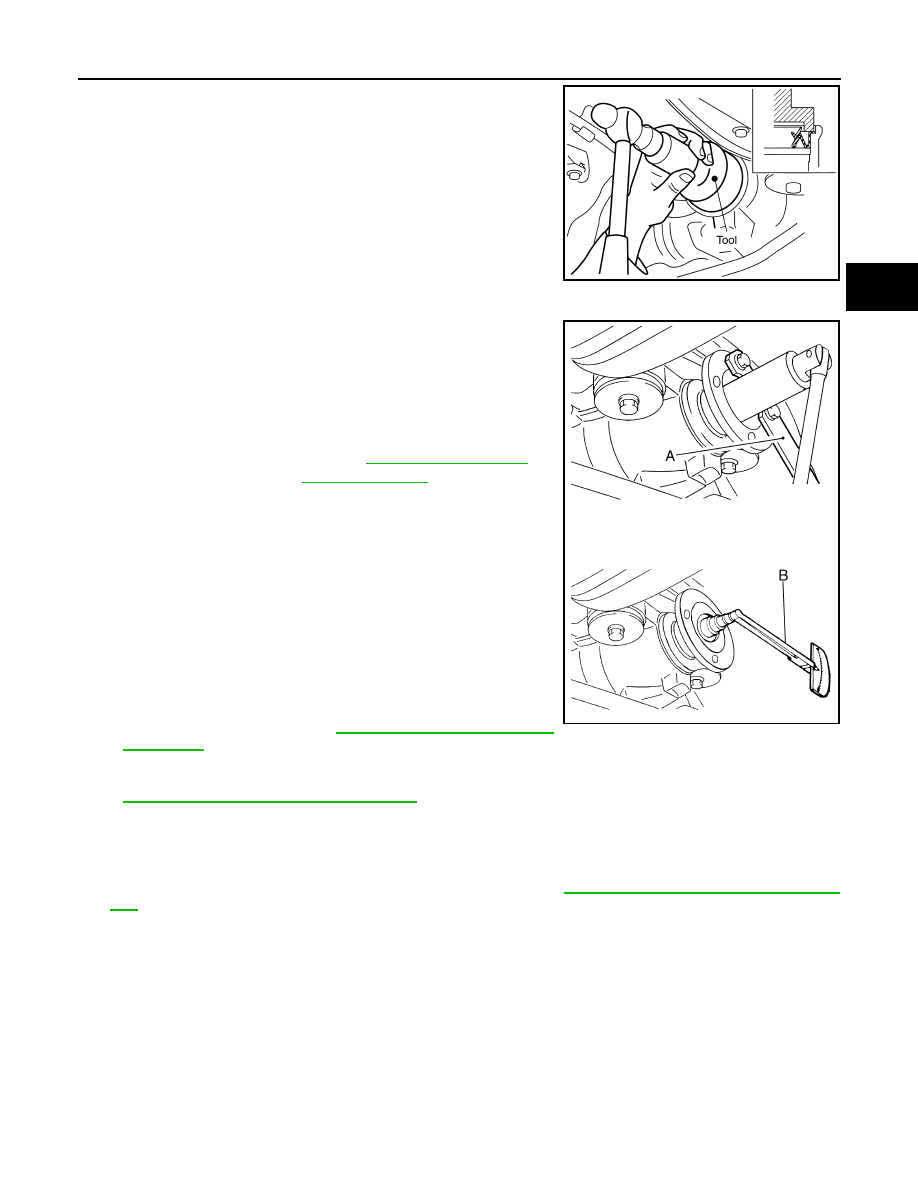

1. Apply multi-purpose grease to the lips of the new front oil seal.

Then drive the new front oil seal in evenly until it becomes flush

with the gear carrier using Tool.

CAUTION:

• Do not reuse front oil seal.

• Do not incline the new front oil seal when installing.

• Apply multi-purpose grease to the lips of the new front oil

seal.

2. Install the companion flange to the drive pinion while aligning the matching marks.
3. Apply anti-corrosive oil to the threads of the drive pinion and the

seating surface of the new drive pinion lock nut. Then adjust the

drive pinion lock nut tightening torque using suitable tool (A),

and check the total preload torque using Tool (B).

• The total preload torque should be within the total preload

torque specification. When not replacing the collapsible

spacer, it should also be equal to the measurement taken dur-

ing removal plus an additional 0.56 N·m (0.06 Kg-m, 5 in-lb).

• If the total preload torque is low, tighten the drive pinion lock

nut in 6.8 N·m (0.69 Kg-m, 5ft-lb) increments until the total pre-

load torque is met.

CAUTION:

• Do not reuse drive pinion lock nut.

• Apply anti-corrosive oil to the threads of the drive pinion

and the seating surface of the new drive pinion lock nut.

• Adjust the drive pinion lock nut tightening torque to the

lower limit first. Do not exceed the drive pinion lock nut

specified torque. Refer to

DLN-467, "Disassembly and

Assembly"

.

• Do not loosen drive pinion lock nut to adjust the total preload torque. If the total preload torque

exceeds the specifications, replace the collapsible spacer and tighten it again to adjust. Refer to

DLN-467, "Disassembly and Assembly"

.

• After adjustment, rotate drive pinion back and forth 2 to 3 times to check for unusual noise, rota-

tion malfunction, and other malfunctions.

4. Installation of the remaining components is in the reverse order of removal.

CAUTION:

Check the differential gear oil level after installation. Refer to

DLN-457, "Checking Differential Gear

Oil"

.

Tool number

: ST15310000 ( — )

PDIA0565E

Tool number

(B): ST3127S000 (J-25765-A)

Total preload torque: Refer to

DLN-483, "Inspection

and Adjustment"

.

WDIA0380E

August 2012

2012 Pathfinder

DLN-460

< REMOVAL AND INSTALLATION >

[REAR FINAL DRIVE: R230]

SIDE OIL SEAL

SIDE OIL SEAL

Removal and Installation

INFOID:0000000007357664

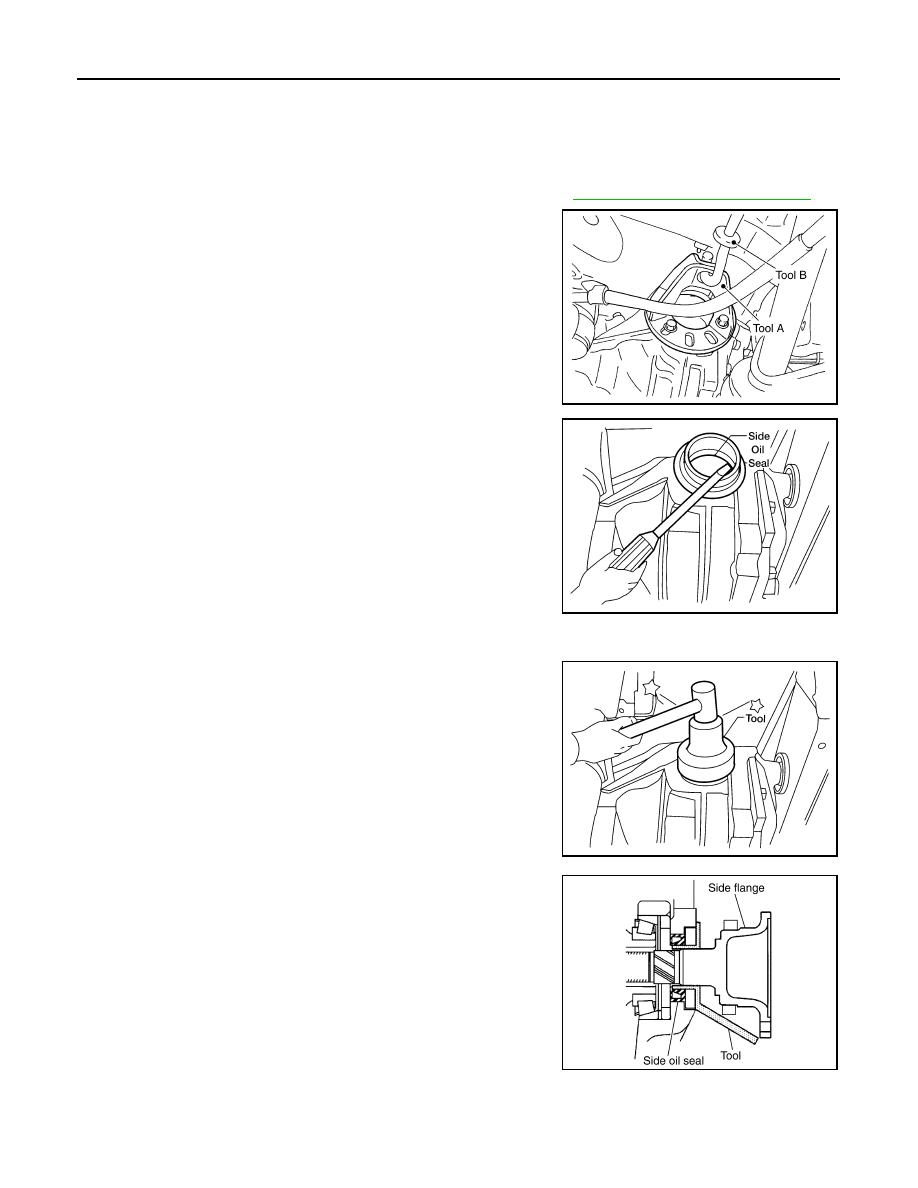

REMOVAL

1. Remove the drive shaft from the rear final drive assembly. Refer to

RAX-8, "Removal and Installation"

.

2. Remove the side flange using Tools.

3. Remove the side oil seal using suitable tool.

CAUTION:

Do not to damage gear carrier.

INSTALLATION

1. Apply multi-purpose grease to the lips of the new side oil seal.

Then drive the new side oil seal in evenly until it becomes flush

with the gear carrier using Tool.

CAUTION:

• Do not reuse side oil seal.

• Do not incline the new side oil seal when installing.

• Apply multi-purpose grease to the lips of the new side oil

seal.

2. Install the side flange using Tool.
a. Install the Tool to the side oil seal as shown.

b. Insert the side flange until the serrated part of the side flange

has engaged the serrated part of the side gear and remove the

Tool.

c.

Drive in the side flange using suitable tool.

NOTE:

Installation is completed when the driving sound of the side

flange turns into a sound which seems to affect the whole rear

final drive assembly.

3. Installation of the remaining components is in the reverse order of removal.

CAUTION:

Tool numbers

(A): KV40104100 ( — )
(B): ST36230000 (J-25840-A)

WDIA0115E

LDIA0109E

Tool number

: ST35271000 (J-26091)

LDIA0111E

Tool number

: KV38107900 (J-39352)

SDIA0822E

August 2012

2012 Pathfinder
