Nissan Pathfinder (2012 year). Manual - part 213

PRECAUTIONS

DLN-269

< PRECAUTION >

[TRANSFER: TX15B]

DLN

5. When the repair work is completed, return the ignition switch to the

″

LOCK

″

position before connecting

the battery cables. (At this time, the steering lock mechanism will engage.)

6. Perform a self-diagnosis check of all control units using CONSULT.

Precaution for Transfer Assembly and Transfer Control Unit Replacement

INFOID:0000000007357557

When replacing transfer assembly or transfer control unit, check the 4WD shift indicator pattern and adjust-

ment of the position between transfer assembly and transfer control unit if necessary.

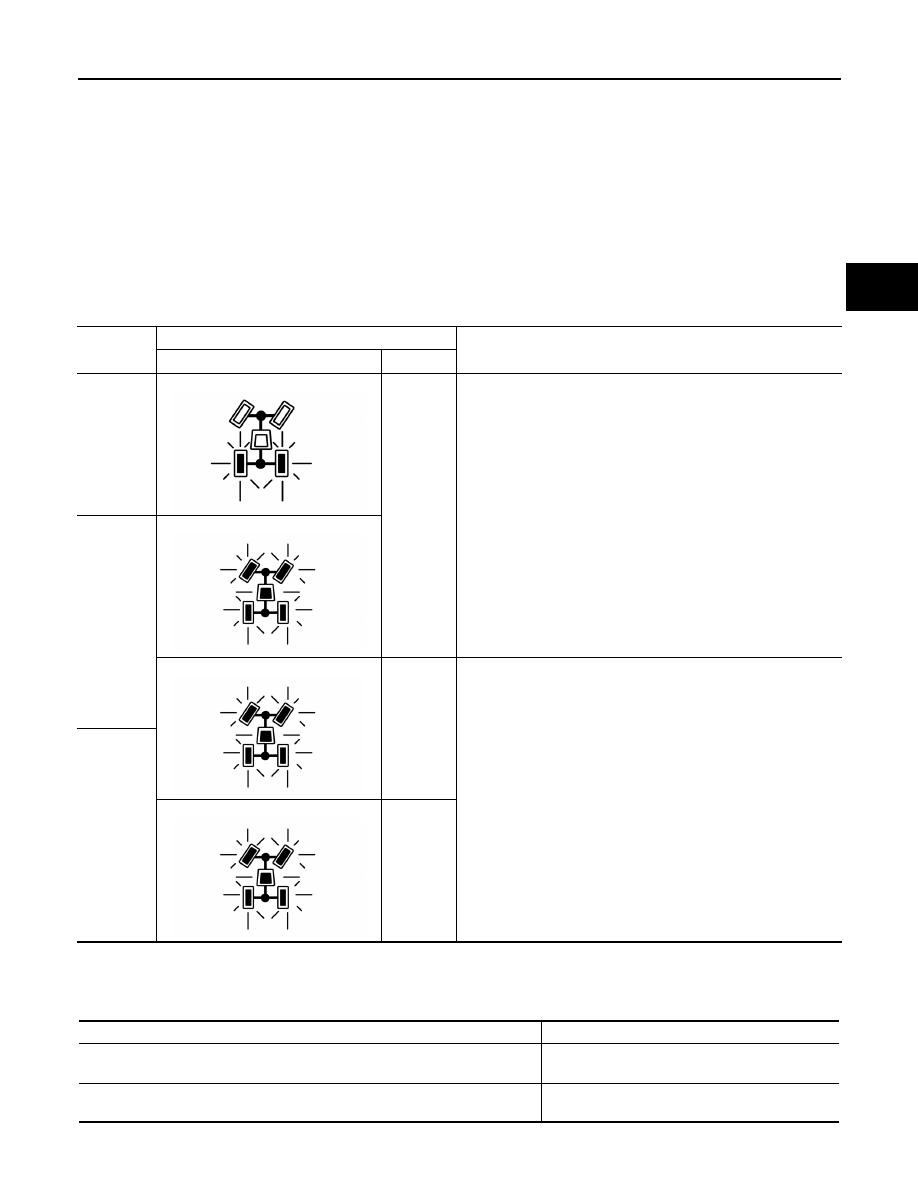

CHECK 4WD SHIFT INDICATOR PATTERN

1. Set 4WD shift switch to “2WD”, “4H”, “4LO”, “4H” and “2WD” in order. Stay at each switch position for at

least 2 seconds.

2. Confirm 4WD shift indicator lamp and 4LO indicator lamp are changed properly as follows.

• If OK, the position between transfer assembly and transfer control unit is correct.

• If NG, the position is different between transfer assembly and transfer control unit.

Adjust the position between transfer assembly and transfer control unit. Refer to pattern table below.

Transfer position adjustment pattern

NOTE:

4WD shift

switch

Indicator lamp

Operation of 4WD shift switch

4WD shift

4LO

2WD

OFF

2WD

⇔

4H switching can be done while driving. The indicator lamp

will change when the driving mode is changed. Gear shifting be-
tween 2WD

⇔

4H position must be performed at speeds below 100

km/h (60 MPH).

Flashing

To shift between 4H

⇔

4LO, stop vehicle and shift transmission

shift selector to the "N" position with brake pedal depressed.

4LO

The 4WD shift switch will not shift to the desired mode if the trans-
mission is not in "N" or the vehicle is moving.
You must wait for the 4LO indicator lamp to stop flashing and re-
main lit or turned off before shifting your transmission into gear or
releasing the clutch pedal.

AWDIA0872ZZ

AWDIA0873ZZ

4WD shift switch condition

Refer procedure

4WD shift switch is under “2WD” condition when engine is being stopped.

"METHOD FOR ADJUSTMENT WITH 4WD SHIFT

SWITCH AT “2WD”"

4WD shift switch is under “4H” or “4LO” condition when engine is being stopped.

"METHOD FOR ADJUSTMENT WITH 4WD SHIFT

SWITCH AT “4H” OR “4LO”"

August 2012

2012 Pathfinder

DLN-270

< PRECAUTION >

[TRANSFER: TX15B]

PRECAUTIONS

Method of adjustment can be chosen voluntarily, according to location of 4WD shift switch.

METHOD FOR ADJUSTMENT WITH 4WD SHIFT SWITCH AT “2WD”

Select Adjustment Pattern

1. Start engine. Run engine for at least 10 seconds.
2. Check 4WD shift indicator lamp and 4LO indicator lamp.

Pattern A

1. Stop vehicle and move A/T shift selector to “N” position with brake pedal depressed. Stay in "N" for at least

2 seconds.

2. Turn 4WD shift switch to “4LO” position. Stay in "4LO" for at least 2 seconds.
3. Turn ignition switch “OFF”.
4. Start engine.
5. Erase self-diagnosis. Refer to

DLN-202, "CONSULT Function (ALL MODE AWD/4WD)"

6. Check 4WD shift indicator lamp and 4LO indicator lamp again. Refer to "CHECK 4WD SHIFT INDICATOR

PATTERN".

If 4WD shift indicator lamp and 4LO indicator lamp do not indicate proper pattern, install new transfer con-

trol unit and retry the above check.

Pattern B

1. Stop vehicle and move A/T shift selector to “N” position with brake pedal depressed. Stay in "N" for at least

2 seconds.

2. Turn ignition switch “OFF”.
3. Start engine.
4. Erase self-diagnosis. Refer to

DLN-202, "CONSULT Function (ALL MODE AWD/4WD)"

5. Check 4WD shift indicator lamp and 4LO indicator lamp again. Refer to "CHECK 4WD SHIFT INDICATOR

PATTERN".

If 4WD shift indicator lamp and 4LO indicator lamp do not indicate proper pattern, install new transfer con-

trol unit and retry the above check.

METHOD FOR ADJUSTMENT WITH 4WD SHIFT SWITCH AT “4H” OR “4LO”

1. Start engine. Run the engine for at least 10 seconds.
2. Stop vehicle and move A/T shift selector to “N” position with brake pedal depressed. Stay in "N" for at least

2 seconds.)

3. Turn 4WD shift switch to “2WD” position. Stay in "2WD" for at least 2 seconds.
4. Turn ignition switch “OFF”.
5. Start engine.
6. Erase self-diagnosis. Refer to

DLN-202, "CONSULT Function (ALL MODE AWD/4WD)"

7. Check 4WD shift indicator lamp and 4LO indicator lamp again. Refer to "CHECK 4WD SHIFT INDICATOR

PATTERN".

If 4WD shift indicator lamp and 4LO indicator lamp do not indicate proper pattern, install new transfer con-

trol unit and retry the above check.

Indicator lamp condition

Refer procedure

When 4WD shift indicator lamp or 4LO indicator lamp is flashing.

"Pattern A"

Except for above.

"Pattern B"

August 2012

2012 Pathfinder

PRECAUTIONS

DLN-271

< PRECAUTION >

[TRANSFER: TX15B]

DLN

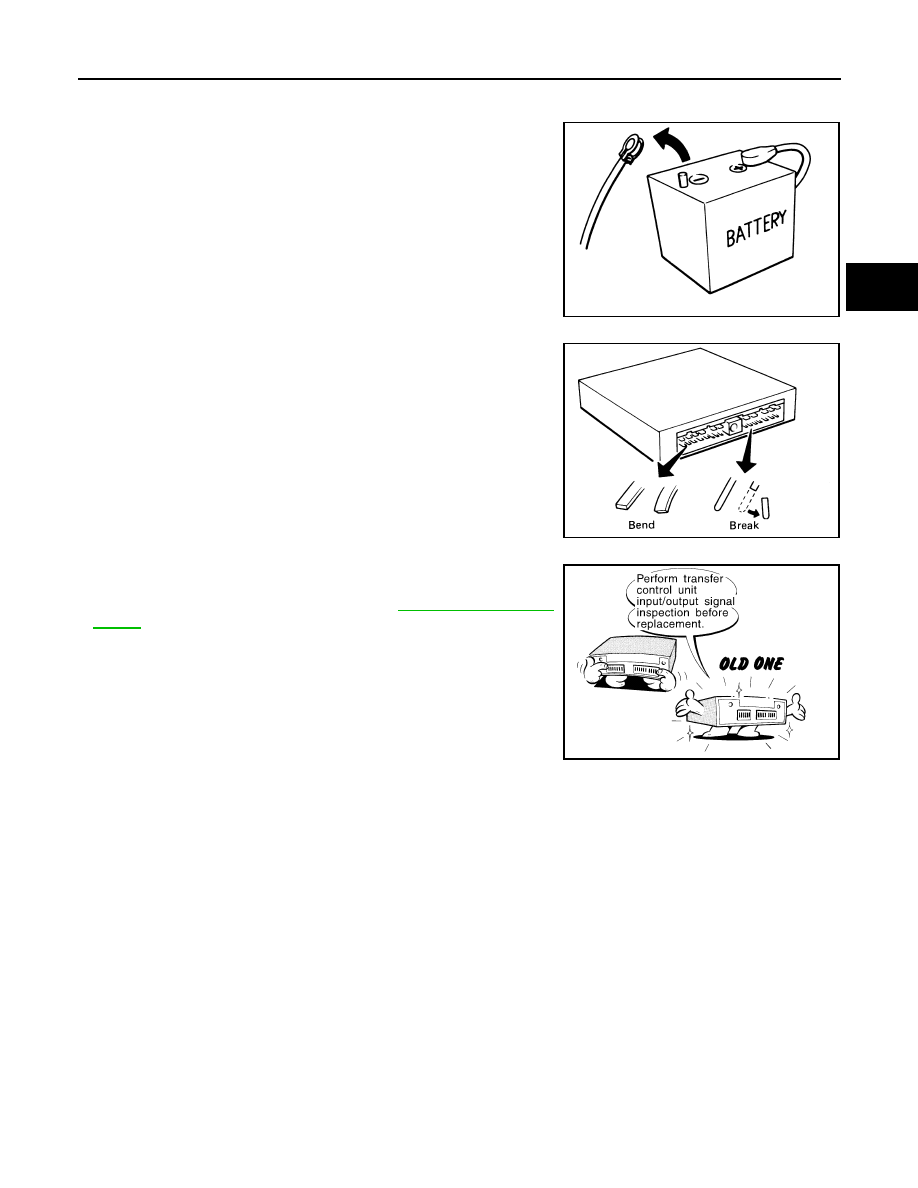

Precaution

INFOID:0000000007357558

•

Before connecting or disconnecting the transfer control unit

harness connector, turn ignition switch “OFF” and disconnect

the battery cables. Battery voltage is applied to transfer con-

trol unit even if ignition switch is turned “OFF”.

•

When connecting or disconnecting pin connectors into or

from transfer control unit, take care not to damage pin termi-

nals (bend or break).

When connecting pin connectors make sure that there are not

any bends or breaks on transfer control unit pin terminals.

•

Before replacing transfer control unit, perform transfer con-

trol unit input/output signal inspection and make sure transfer

control unit functions properly. Refer to

DLN-238, "Reference

Value"

Service Notice

INFOID:0000000007357559

• After overhaul refill the transfer with new transfer fluid.

• Check the fluid level or replace the fluid only with the vehicle parked on level ground.

• During removal or installation, keep inside of transfer clear of dust or dirt.

• Disassembly should be done in a clean work area.

• Before proceeding with disassembly, thoroughly clean the transfer. It is important to prevent the internal

parts from becoming contaminated by dirt or other foreign matter.

• Check for the correct installation status prior to removal or disassembly. If matchmarks are required, be cer-

tain they do not interfere with the function of the parts when applied.

• All parts should be carefully cleaned with a general purpose, non-flammable solvent before inspection or

reassembly.

• Check appearance of the disassembled parts for damage, deformation, and unusual wear. Replace them

with a new ones if necessary.

• Gaskets, seals and O-rings should replaced any time the transfer is disassembled.

• In principle, tighten bolts or nuts gradually in several steps working diagonally from inside to outside. If tight-

ening sequence is specified, use it.

• Observe the specified torque when assembling.

• Clean and flush the parts sufficiently and blow-dry them.

• Be careful not to damage sliding surfaces and mating surfaces.

SEF289H

SEF291H

MEF040DB

August 2012

2012 Pathfinder

DLN-272

< PRECAUTION >

[TRANSFER: TX15B]

PRECAUTIONS

• Use lint-free cloth or towels for wiping parts clean. Common shop rags can leave fibers that could interfere

with the operation of the transfer.

August 2012

2012 Pathfinder

PREPARATION

DLN-273

< PREPARATION >

[TRANSFER: TX15B]

DLN

PREPARATION

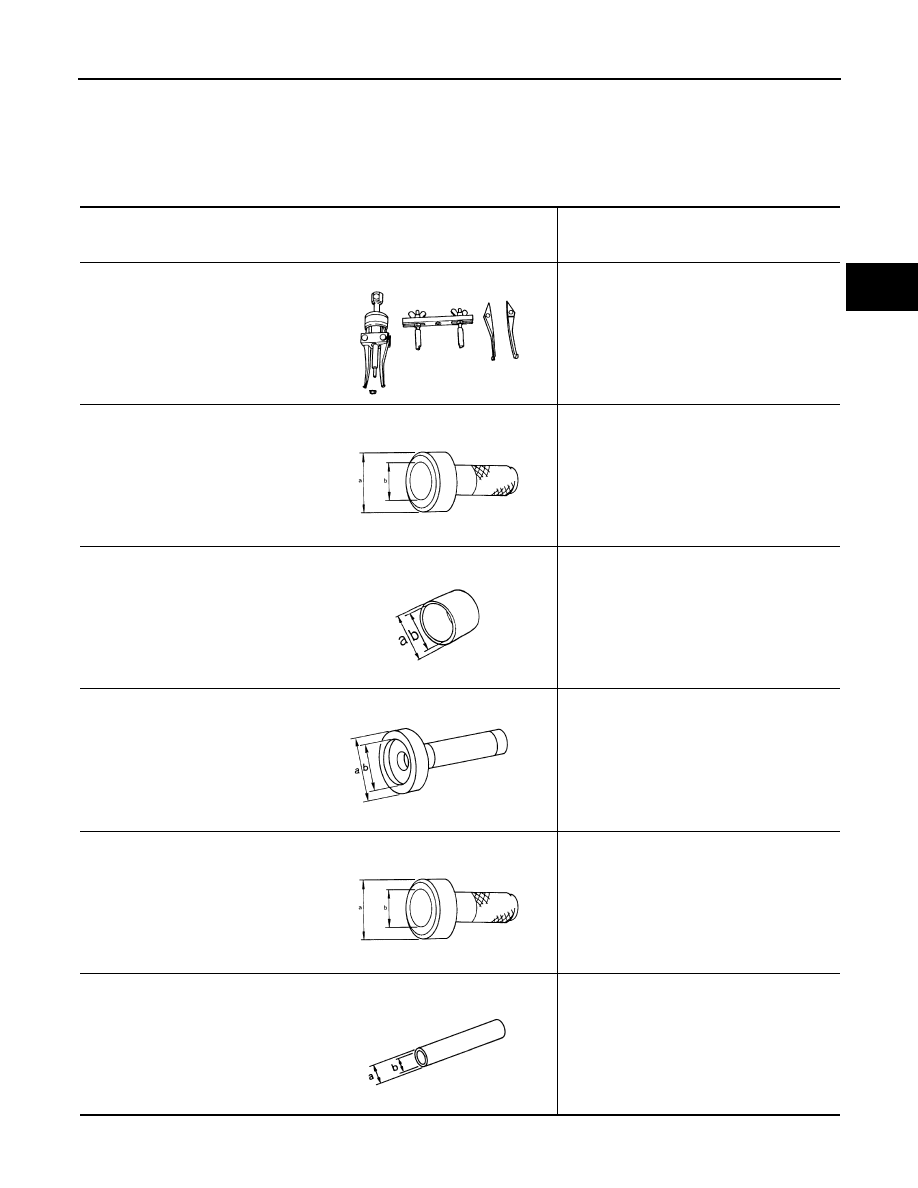

Special Service Tool

INFOID:0000000007357560

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Tool number
(Kent-Moore No.)
Tool name

Description

ST33290001
(J-34286)
Puller

• Removing front oil seal
• Removing rear oil seal
• Removing metal bushing

KV38100500
(

—

)

Drift

• Installing front oil seal
• Installing rear oil seal
• Installing rear bearing
• Installing front bearing

a: 80 mm (3.15 in) dia.
b: 60 mm (2.36 in) dia.

KV40105310
(

—

)

Drift

• Installing dust cover

a: 89 mm (3.50 in) dia.
b: 80.7 mm (3.17 in) dia.

KV38100200
(

—

)

Drift

• Removing sun gear assembly and planetary

carrier assembly

• Removing input bearing
• Installing sun gear assembly and planetary

carrier assembly

a: 65 mm (2.56 in) dia.
b: 49 mm (1.93 in) dia.

ST30720000
(J-25405)
Drift

• Installing input bearing
• Installing input oil seal
• Installing carrier bearing

a: 77 mm (3.03 in) dia.
b: 55 mm (2.17 in) dia.

KV32102700
(

—

)

Drift

• Installing mainshaft rear bearing

a: 48 mm (1.89 in) dia.
b: 41 mm (1.61 in) dia.

ZZA0601D

ZZA0811D

ZZA1003D

ZZA1143D

ZZA0811D

ZZA0534D

August 2012

2012 Pathfinder

DLN-274

< PREPARATION >

[TRANSFER: TX15B]

PREPARATION

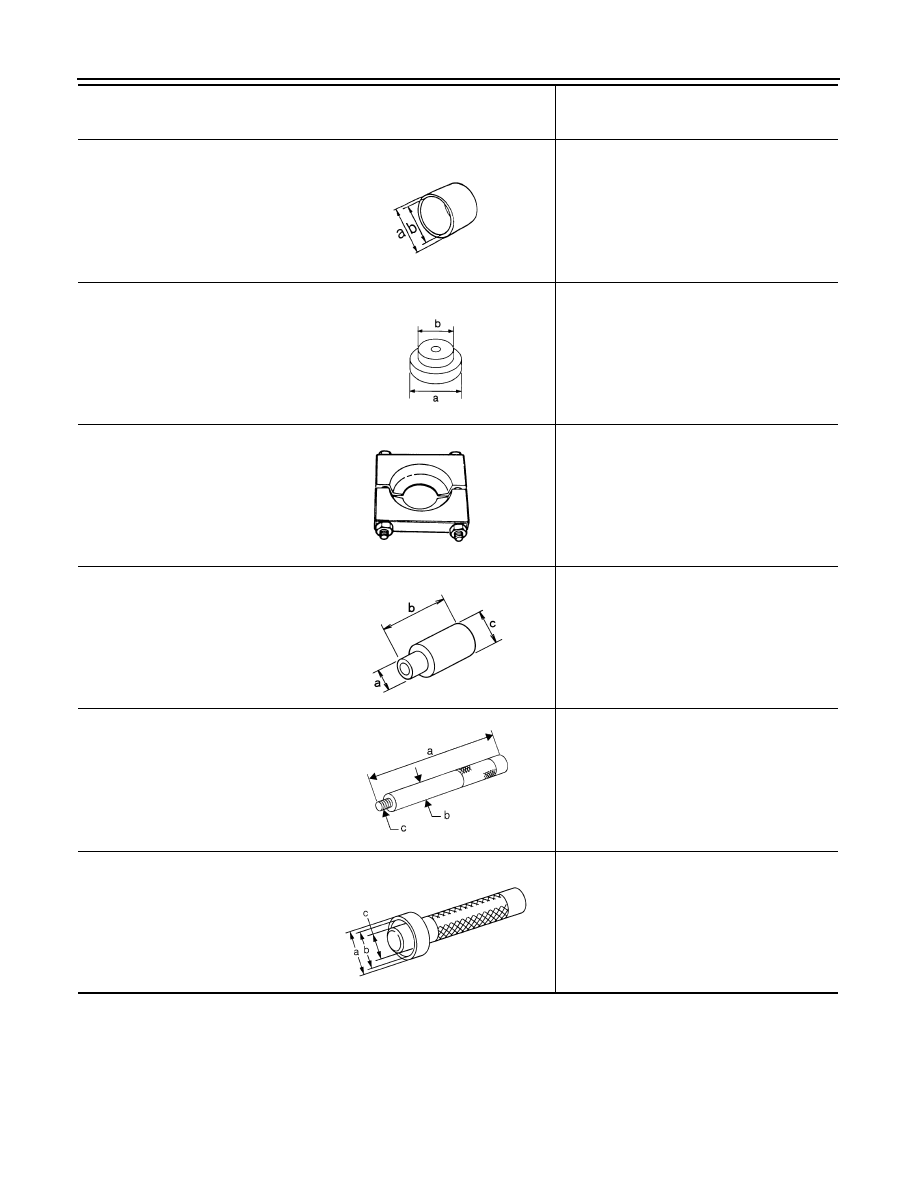

KV40104830
(

—

)

Drift

• Installing input oil seal

a: 70 mm (2.76 in) dia.
b: 63.5 mm (2.50 in) dia.

ST35300000
(

—

)

Drift

• Removing carrier bearing
• Installing metal bushing
• Removing front bearing

a: 59 mm (2.32 in) dia.
b: 45 mm (1.77 in) dia.

ST30021000
(J-22912-01)
Puller

• Removing carrier bearing
• Removing front bearing
• Removing rear bearing

ST33710000
(

—

)

Drift

• Removing needle bearing
• Removing metal bushing
• Removing rear bearing

a: 89 mm (3.5 in)
b: 30 mm (1.18 in) dia.
c: 24 mm (0.94 in) dia.

ST35325000
(

—

)

Drift bar

• Removing metal bushing

a: 215 mm (8.46 in)
b: 25 mm (0.98 in) dia.
c: M12

1.5P

ST33220000
(

—

)

Drift

• Installing needle bearing

a: 37 mm (1.46 in) dia.
b: 31 mm (1.22 in) dia.
c: 22 mm (0.87 in) dia.

Tool number
(Kent-Moore No.)
Tool name

Description

ZZA1003D

NT073

ZZA0537D

ZZA1057D

NT663

ZZA1046D

August 2012

2012 Pathfinder

PREPARATION

DLN-275

< PREPARATION >

[TRANSFER: TX15B]

DLN

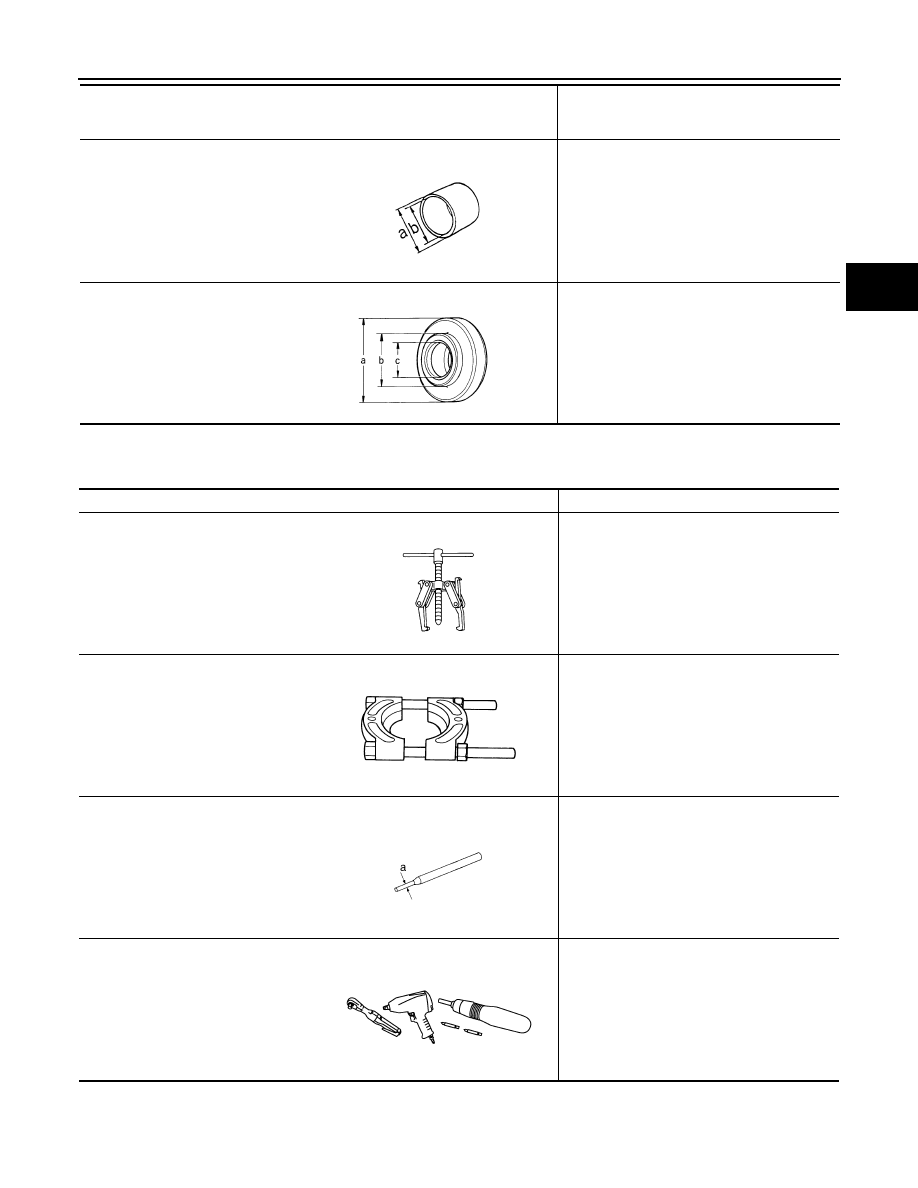

Commercial Service Tool

INFOID:0000000007357561

ST27863000
(

—

)

Drift

• Installing carrier bearing

a: 75 mm (2.95 in) dia.
b: 62 mm (2.44 in) dia.

ST30901000
(J-26010-01)
Drift

• Installing rear bearing
• Installing front bearing

a: 79 mm (3.11 in) dia.
b: 45 mm (1.77 in) dia.
c: 35.2 mm (1.38 in) dia.

Tool number
(Kent-Moore No.)
Tool name

Description

ZZA1003D

ZZA0978D

Tool name

Description

Puller

• Removing companion flange
• Removing mainshaft rear bearing

Puller

• Removing mainshaft rear bearing

Pin punch

• Removing retaining pin

a: 6 mm (0.24 in) dia.

Power tool

Loosening nuts, screws and bolts

NT077

ZZB0823D

NT410

PIIB1407E

August 2012

2012 Pathfinder

DLN-276

< PERIODIC MAINTENANCE >

[TRANSFER: TX15B]

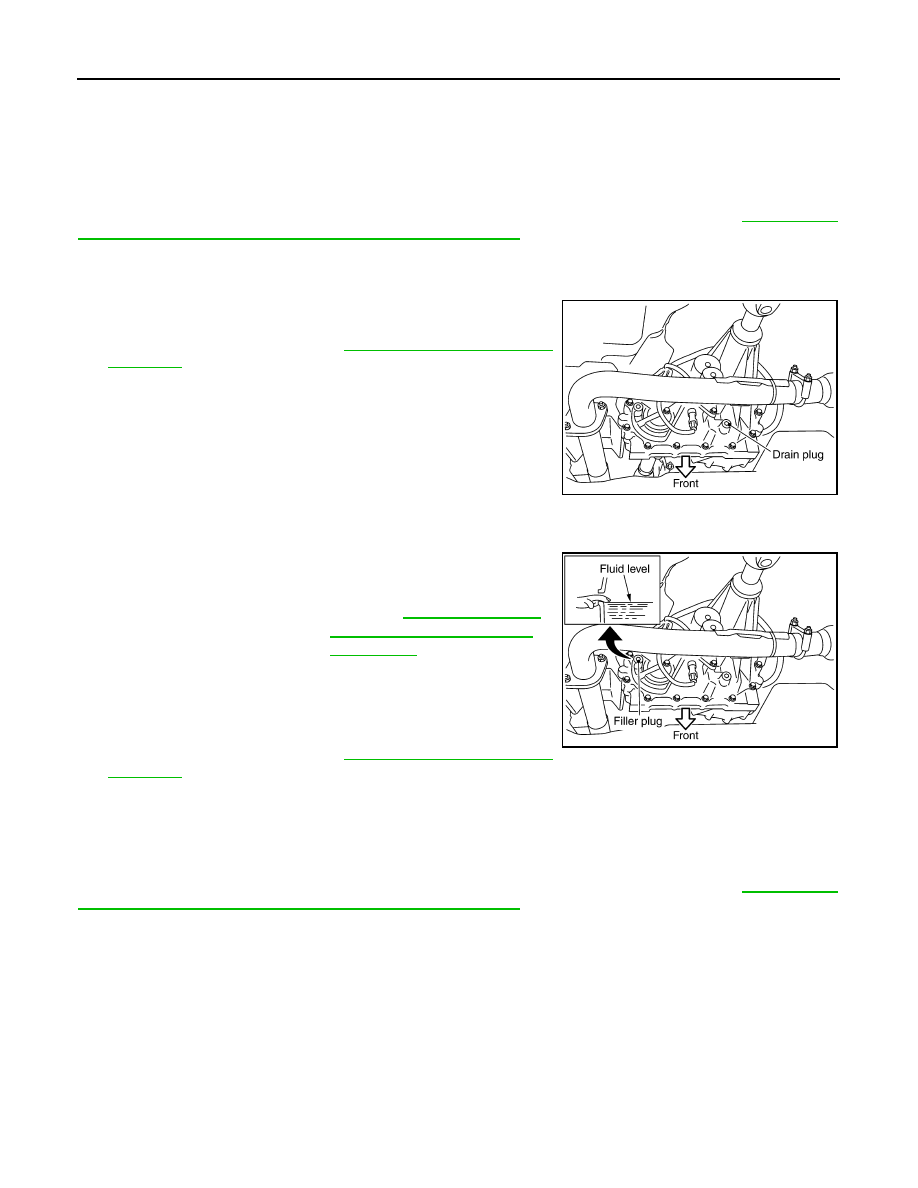

TRANSFER FLUID

PERIODIC MAINTENANCE

TRANSFER FLUID

Replacement

INFOID:0000000007357562

CAUTION:

If using the vehicle for towing, the transfer fluid must be replaced as specified. Refer to

MA-11, "FOR

USA AND CANADA : Introduction to Periodic Maintenance"

DRAINING

1. Stop engine.
2. Remove the drain plug and gasket and drain the fluid.
3. Install the drain plug with a new gasket to the transfer. Tighten to

the specified torque. Refer to

DLN-289, "Disassembly and

Assembly"

CAUTION:

Do not reuse gasket.

FILLING

1. Remove the filler plug and gasket.
2. Fill the transfer with new fluid until the fluid level reaches the

specified limit near the filler plug hole.

CAUTION:

Carefully fill fluid. (Fill up for approx. 3 minutes.)

3. Leave the vehicle for 3 minutes, and check fluid level again.
4. Install the filler plug with a new gasket to the transfer. Tighten to

the specified torque. Refer to

DLN-289, "Disassembly and

Assembly"

CAUTION:

Do not reuse gasket.

Inspection

INFOID:0000000007357563

CAUTION:

If using the vehicle for towing, the transfer fluid must be replaced as specified. Refer to

MA-11, "FOR

USA AND CANADA : Introduction to Periodic Maintenance"

FLUID LEAKAGE AND FLUID LEVEL

1. Make sure that fluid is not leaking from the transfer assembly or around it.

SDIA3286E

Fluid grade and capacity : Refer to

MA-18, "FOR USA

AND CANADA : Fluids and
Lubricants"

SDIA3287E

August 2012

2012 Pathfinder
