KEYFOB ID SET UP WITHOUT CONSULT

DLK-263

< DTC/CIRCUIT DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

KEYFOB ID SET UP WITHOUT CONSULT

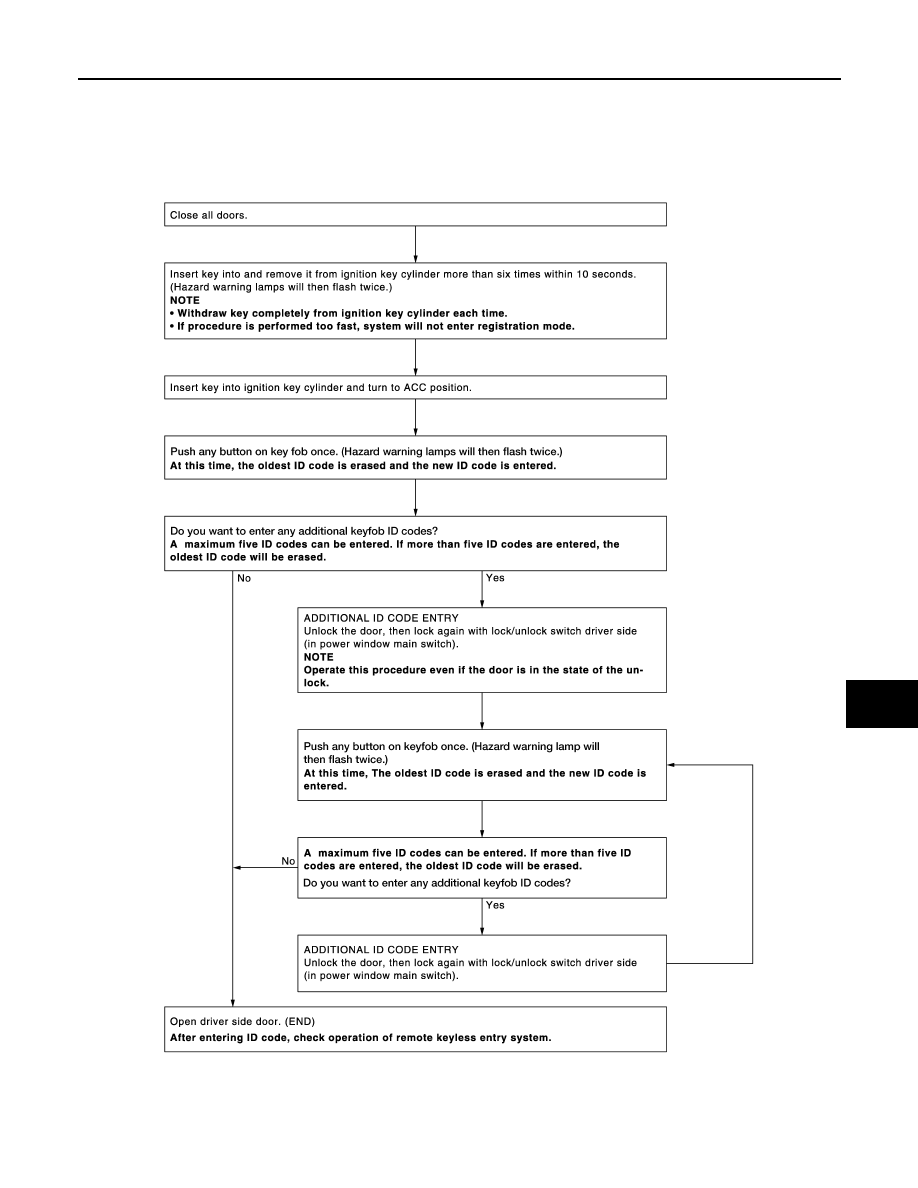

ID Code Entry Procedure

INFOID:0000000007355626

KEYFOB ID SET UP WITHOUT CONSULT

NOTE:

• If a keyfob is lost, the ID code of the lost keyfob must be erased to prevent unauthorized use. A specific ID

code can be erased with CONSULT. However, when the ID code of a lost keyfob is not known, all controller

LIIA1670E

August 2012

2012 Pathfinder

2012 Pathfinder

DLK-264

< DTC/CIRCUIT DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

KEYFOB ID SET UP WITHOUT CONSULT

ID codes should be erased. After all ID codes are erased, the ID codes of all remaining and/or new keyfobs

must be re-registered.

To erase all ID codes in memory, register one ID code (keyfob) five times. After all ID codes are erased, the

ID codes of all remaining and/or new keyfobs must be re-registered.

• When registering an additional keyfob, the existing ID codes in memory may or may not be erased. If five ID

codes are stored in memory, when an additional code is registered, only the oldest code is erased. If less

than five ID codes are stored in memory, when an additional ID code is registered, the new ID code is added

and no ID codes are erased.

• If you need to activate more than two additional new keyfobs, repeat the procedure “Additional ID code

entry” for each new keyfob.

• Entry of maximum five ID codes is allowed. When more than five ID codes are entered, the oldest ID code

will be erased.

• Even if same ID code that is already in the memory is input, the same ID code can be entered. The code is

counted as an additional code.

August 2012

2012 Pathfinder

2012 Pathfinder

HOMELINK UNIVERSAL TRANSCEIVER

DLK-265

< DTC/CIRCUIT DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

HOMELINK UNIVERSAL TRANSCEIVER

Description

INFOID:0000000007355627

Homelink universal transceiver can store and transmit a maximum of 3 radio signals.

Allows operation of garage doors, gates, home and office lighting, entry door locks and security system, etc.

Homelink universal transceiver power supply uses vehicle battery, which enables it to maintain every program

in case battery is discharged or removed.

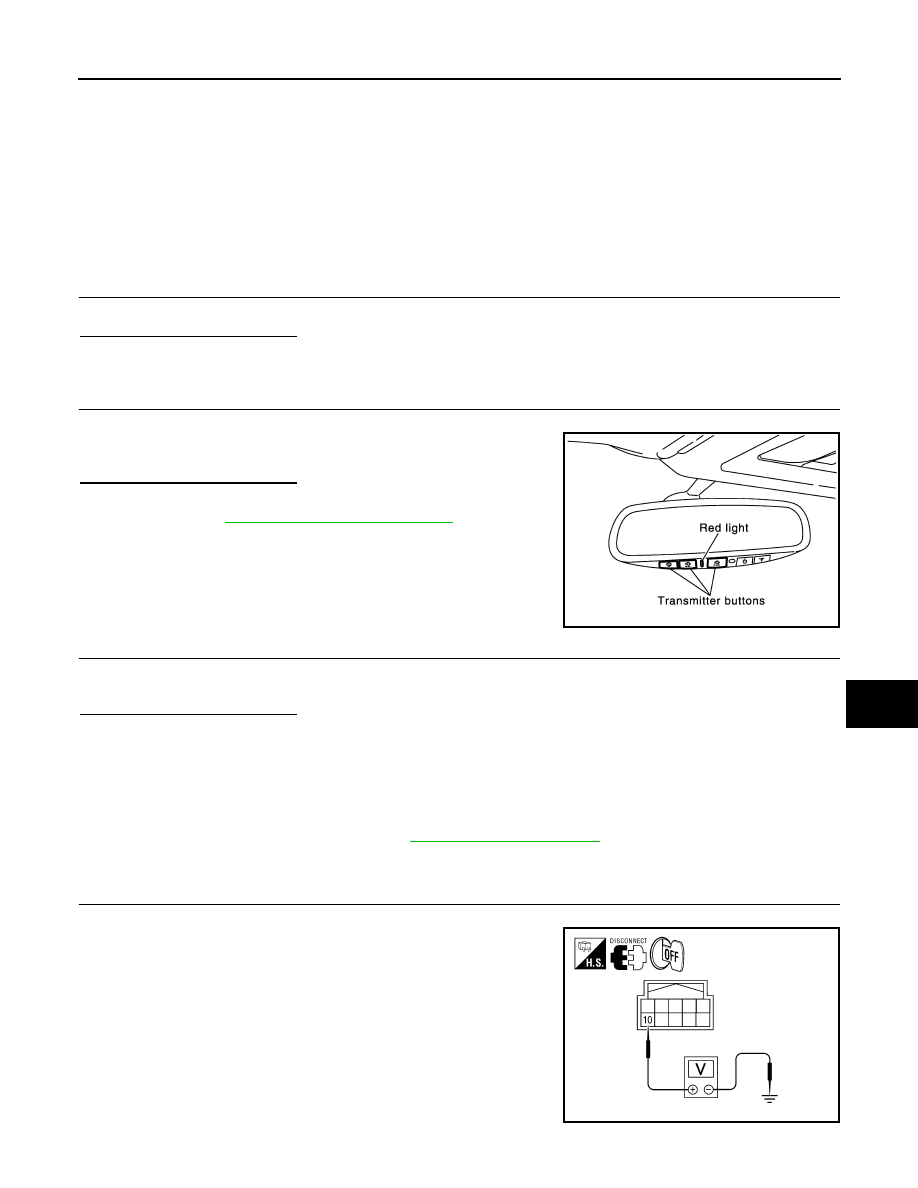

Component Function Check

INFOID:0000000007355628

1.

CHECK FUNCTION

Check that system receiver (garage door opener, etc.) operates with original hand-held transmitter.
Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Receiver or hand-held transmitter is malfunctioning.

2.

CHECK ILLUMINATION

1. Turn ignition switch “OFF”.

2. Press each of the transmitter buttons and watch for the red light

to illuminate with each button.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Refer to

DLK-265, "Diagnosis Procedure"

.

3.

CHECK TRANSMITTER

Check transmitter with Tool*.

*:For details, refer to Technical Service Bulletin.
Is the inspection result normal?

YES

>> Receiver or hand-held transmitter malfunction, not vehicle related.

NO

>> Replace auto anti-dazzling inside mirror (homelink universal transceiver).

Diagnosis Procedure

INFOID:0000000007355629

Regarding Wiring Diagram information, refer to

DLK-292, "Wiring Diagram"

.

1.

CHECK POWER SUPPLY

1. Disconnect auto anti-dazzling inside mirror (homelink universal transceiver) connector.

2. Check voltage between auto anti-dazzling inside mirror

(homelink universal transceiver) harness connector and ground.

PIIA4815E

ALKIA0426ZZ

August 2012

2012 Pathfinder

2012 Pathfinder

DLK-266

< DTC/CIRCUIT DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

HOMELINK UNIVERSAL TRANSCEIVER

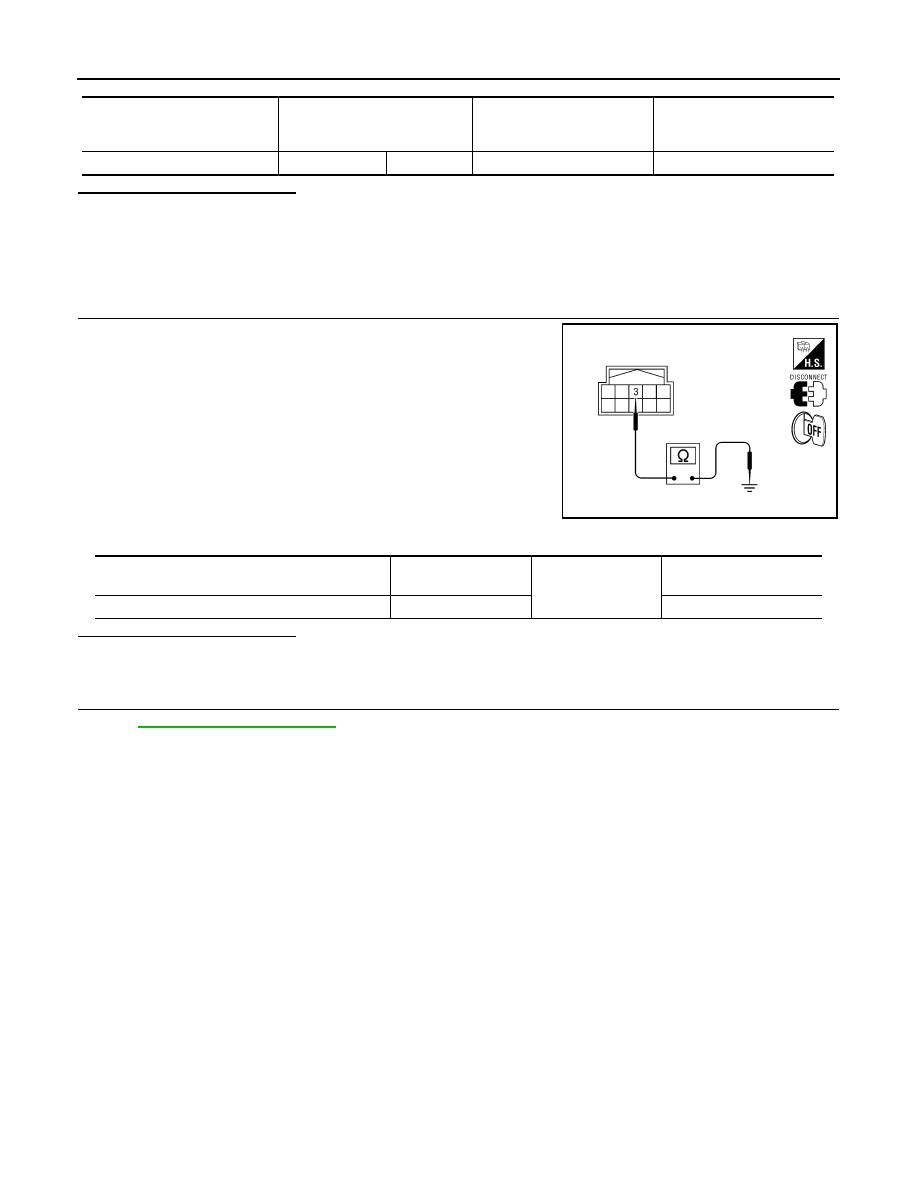

Is the inspection result normal?

YES

>> GO TO 2

NO

>> Check the following.

• 10A fuse [No. 19 located in the fuse block (J/B)]

• Harness for open or short between fuse and auto anti-dazzling inside mirror (homelink universal

transceiver).

2.

CHECK GROUND CIRCUIT

Check continuity between auto anti-dazzling inside mirror (homelink

universal transceiver) harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Repair harness.

3.

CHECK INTERMITTENT INCIDENT

Refer to

GI-37, "Intermittent Incident"

.

>> Inspection End.

Auto anti-dazzling inside mirror

(Homelink universal transceiver)

connector

Terminal Condition

Voltage (V)

(Approx.)

R7

10

Ground

Ignition switch position: LOCK

Battery voltage

ALKIA1245ZZ

Auto anti-dazzling inside mirror

(Homelink universal transceiver) connector

Terminal

Ground

Continuity

R7

3

Yes

August 2012

2012 Pathfinder

2012 Pathfinder

BCM (BODY CONTROL MODULE)

DLK-267

< ECU DIAGNOSIS INFORMATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

ECU DIAGNOSIS INFORMATION

BCM (BODY CONTROL MODULE)

Reference Value

INFOID:0000000007818272

NOTE:

The Signal Tech II Tool (J-50190) can be used to perform the following functions. Refer to the Signal Tech II

User Guide for additional information.

• Activate and display TPMS transmitter IDs

• Display tire pressure reported by the TPMS transmitter

• Read TPMS DTCs

• Register TPMS transmitter IDs

VALUES ON THE DIAGNOSIS TOOL

Monitor Item

Condition

Value/Status

ACC ON SW

Ignition switch OFF or ON

Off

Ignition switch ACC

On

AIR COND SW

A/C switch OFF

Off

A/C switch ON

On

AIR PRESS FL

Front left tire air pressure value

kPa, kg/cm

2

, psi

AIR PRESS FR

Front right tire air pressure value

kPa, kg/cm

2

, psi

AIR PRESS RL

Rear left tire air pressure value

kPa, kg/cm

2

, psi

AIR PRESS RR

Rear right tire air pressure value

kPa, kg/cm

2

, psi

AUTO LIGHT SW

Lighting switch OFF

Off

Lighting switch AUTO

On

BACK DOOR SW

Back door closed

Off

Back door opened

On

BRAKE SW

Brake pedal released

Off

Brake pedal applied

On

BUCKLE SW

Seat belt buckle unfastened

Off

Seat belt buckle fastened

On

BUZZER

Buzzer in combination meter OFF

Off

Buzzer in combination meter ON

On

CDL LOCK SW

Door lock/unlock switch does not operate

Off

Press door lock/unlock switch to the LOCK side

On

CDL UNLOCK SW

Door lock/unlock switch does not operate

Off

Press door lock/unlock switch to the UNLOCK side

On

DOOR SW-AS

Front door RH closed

Off

Front door RH opened

On

DOOR SW-DR

Front door LH closed

Off

Front door LH opened

On

DOOR SW-RL

Rear door LH closed

Off

Rear door LH opened

On

DOOR SW-RR

Rear door RH closed

Off

Rear door RH opened

On

FAN ON SIG

Blower motor fan switch OFF

Off

Blower motor fan switch ON

On

August 2012

2012 Pathfinder

2012 Pathfinder

DLK-268

< ECU DIAGNOSIS INFORMATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

BCM (BODY CONTROL MODULE)

FR FOG SW

Front fog lamp switch OFF

Off

Front fog lamp switch ON

On

FR WASHER SW

Front washer switch OFF

Off

Front washer switch ON

On

FR WIPER LOW

Front wiper switch OFF

Off

Front wiper switch LO

On

FR WIPER HI

Front wiper switch OFF

Off

Front wiper switch HI

On

FR WIPER INT

Front wiper switch OFF

Off

Front wiper switch INT

On

FR WIPER STOP

Any position other than front wiper stop position

Off

Front wiper stop position

On

HAZARD SW

When hazard switch is not pressed

Off

When hazard switch is pressed

On

HEAD LAMP SW 1

Headlamp switch OFF

Off

Headlamp switch 1st

On

HEAD LAMP SW 2

Headlamp switch OFF

Off

Headlamp switch 1st

On

HI BEAM SW

High beam switch OFF

Off

High beam switch HI

On

ID REGST FL1

ID registration of front left tire incomplete

YET

ID registration of front left tire complete

DONE

ID REGST FR1

ID registration of front right tire incomplete

YET

ID registration of front right tire complete

DONE

ID REGST RL1

ID registration of rear left tire incomplete

YET

ID registration of rear left tire complete

DONE

ID REGST RR1

ID registration of rear right tire incomplete

YET

ID registration of rear right tire complete

DONE

IGN ON SW

Ignition switch OFF or ACC

Off

Ignition switch ON

On

IGN SW CAN

Ignition switch OFF or ACC

Off

Ignition switch ON

On

INT VOLUME

Wiper intermittent dial is in a dial position 1 - 7

1 - 7

I-KEY LOCK

1

LOCK button of Intelligent Key is not pressed

Off

LOCK button of Intelligent Key is pressed

On

I-KEY PANIC

1

PANIC button of Intelligent Key is not pressed

Off

PANIC button of Intelligent Key is pressed

On

I-KEY PW DWN

1

UNLOCK button of Intelligent Key is not pressed

Off

UNLOCK button of Intelligent Key is pressed for greater than 3 sec-
onds and driver’s window operating in DOWN direction

On

I-KEY UNLOCK

1

UNLOCK button of Intelligent Key is not pressed

Off

UNLOCK button of Intelligent Key is pressed

On

KEY CYL LK-SW

Door key cylinder LOCK position

Off

Door key cylinder other than LOCK position

On

Monitor Item

Condition

Value/Status

August 2012

2012 Pathfinder

2012 Pathfinder

BCM (BODY CONTROL MODULE)

DLK-269

< ECU DIAGNOSIS INFORMATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

1: With Intelligent Key
2: With remote keyless entry system

KEY CYL UN-SW

Door key cylinder UNLOCK position

Off

Door key cylinder other than UNLOCK position

On

KEY ON SW

Mechanical key is removed from key cylinder

Off

Mechanical key is inserted to key cylinder

On

KEYLESS LOCK

2

LOCK button of key fob is not pressed

Off

LOCK button of key fob is pressed

On

KEYLESS PANIC

2

PANIC button of key fob is not pressed

Off

PANIC button of key fob is pressed

On

KEYLESS UNLOCK

2

UNLOCK button of key fob is not pressed

Off

UNLOCK button of key fob is pressed

On

LIGHT SW 1ST

Lighting switch OFF

Off

Lighting switch 1st

On

OIL PRESS SW

• Ignition switch OFF or ACC
• Engine running

Off

Ignition switch ON

On

OPTICAL SENSOR

Bright outside of the vehicle

Close to 5V

Dark outside of the vehicle

Close to 0V

PASSING SW

Other than lighting switch PASS

Off

Lighting switch PASS

On

PUSH SW

1

Return to ignition switch to LOCK position

Off

Press ignition switch

On

REAR DEF SW

Rear window defogger switch OFF

Off

Rear window defogger switch ON

On

RR WASHER SW

Rear washer switch OFF

Off

Rear washer switch ON

On

RR WIPER INT

Rear wiper switch OFF

Off

Rear wiper switch INT

On

RR WIPER ON

Rear wiper switch OFF

Off

Rear wiper switch ON

On

RR WIPER STOP

Rear wiper stop position

Off

Other than rear wiper stop position

On

TURN SIGNAL L

Turn signal switch OFF

Off

Turn signal switch LH

On

TURN SIGNAL R

Turn signal switch OFF

Off

Turn signal switch RH

On

VEHICLE SPEED

While driving

Equivalent to speedometer reading

WARNING LAMP

Low tire pressure warning lamp in combination meter OFF

Off

Low tire pressure warning lamp in combination meter ON

On

Monitor Item

Condition

Value/Status

August 2012

2012 Pathfinder

2012 Pathfinder

DLK-270

< ECU DIAGNOSIS INFORMATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

BCM (BODY CONTROL MODULE)

Terminal Layout

INFOID:0000000007818273

Physical Values

INFOID:0000000007818274

LIIA2443E

August 2012

2012 Pathfinder

2012 Pathfinder
