Nissan Pathfinder (2012 year). Manual - part 136

REAR WINDOW DEFOGGER

DEF-29

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

M

A

B

DEF

N

O

P

WIRING DIAGRAM

REAR WINDOW DEFOGGER

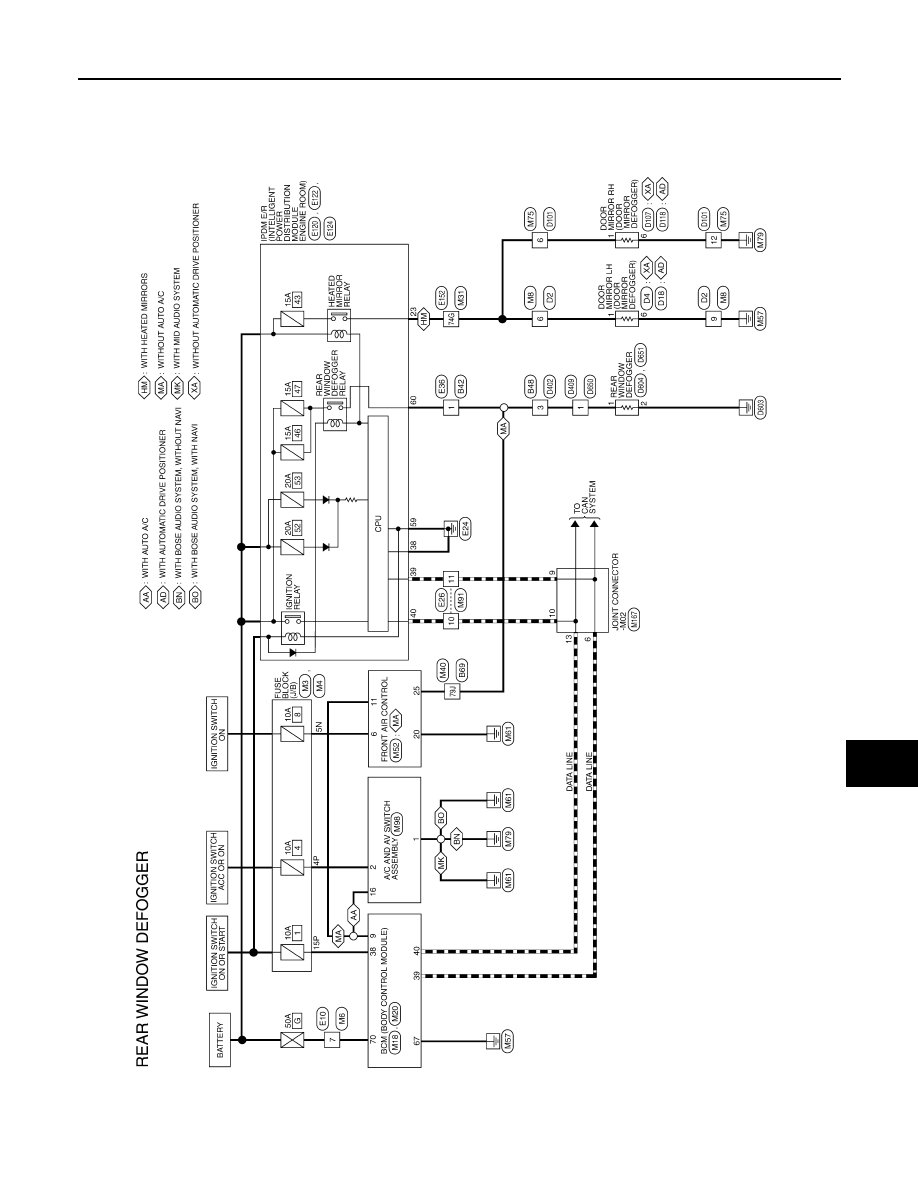

Wiring Diagram

INFOID:0000000007355340

ABLWA1597GB

August 2012

2012 Pathfinder

DEF-30

< WIRING DIAGRAM >

REAR WINDOW DEFOGGER

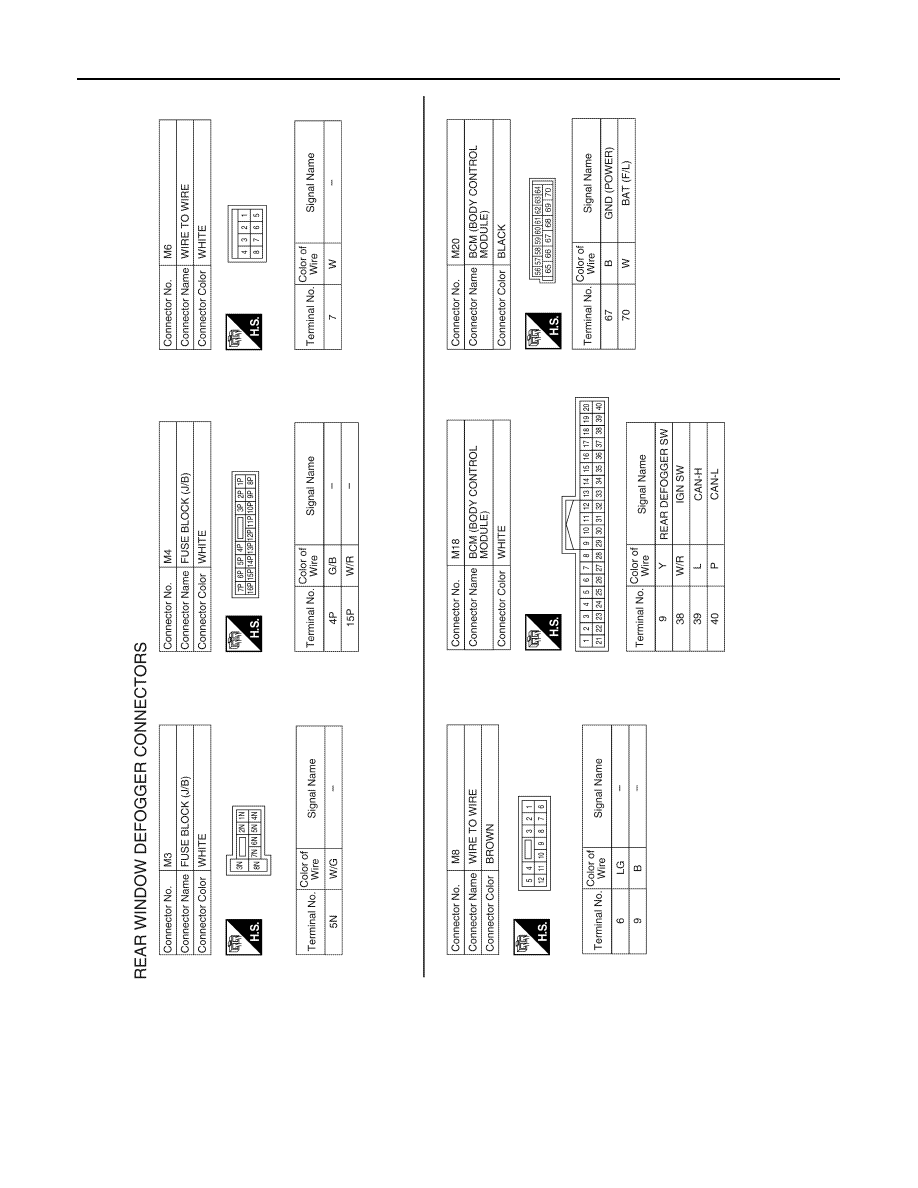

ABLIA1665GB

August 2012

2012 Pathfinder

REAR WINDOW DEFOGGER

DEF-31

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

M

A

B

DEF

N

O

P

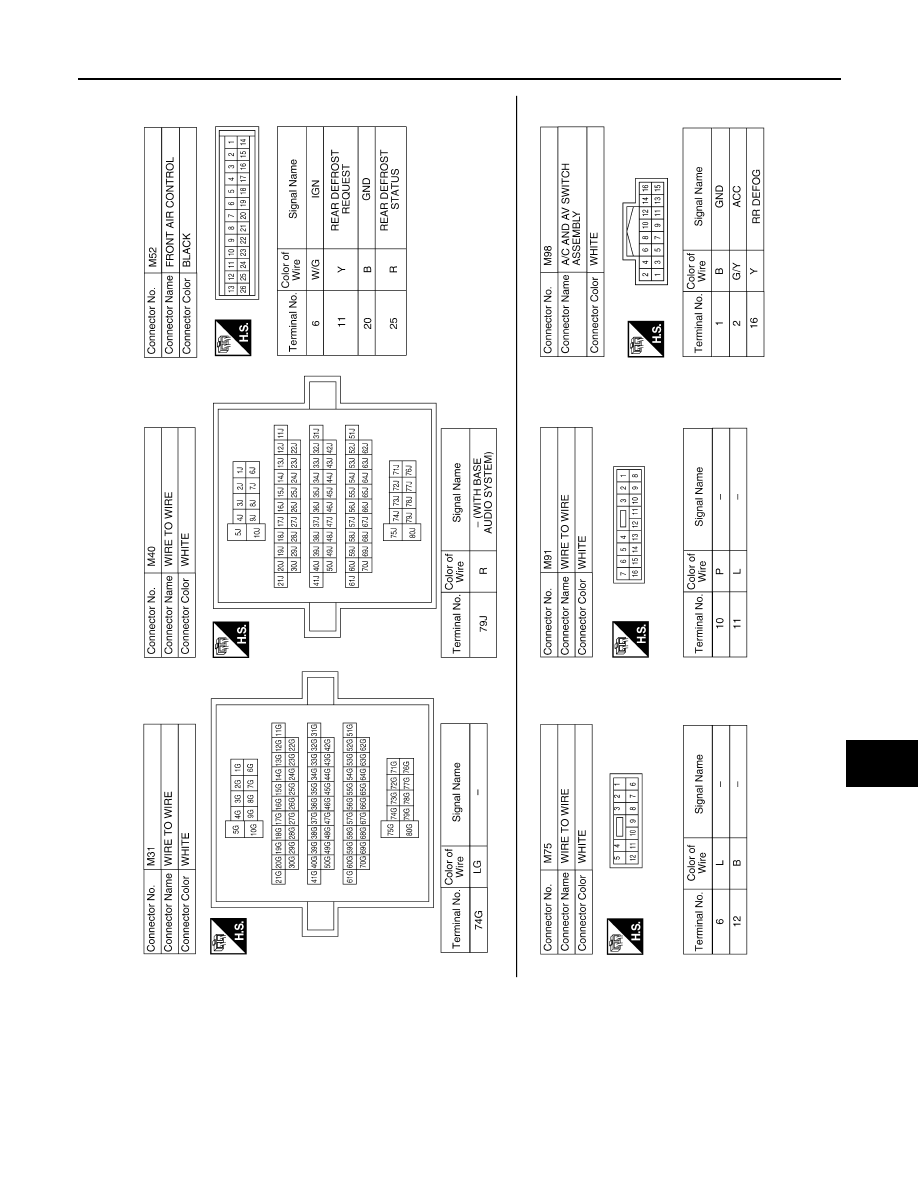

ABLIA2795GB

August 2012

2012 Pathfinder

DEF-32

< WIRING DIAGRAM >

REAR WINDOW DEFOGGER

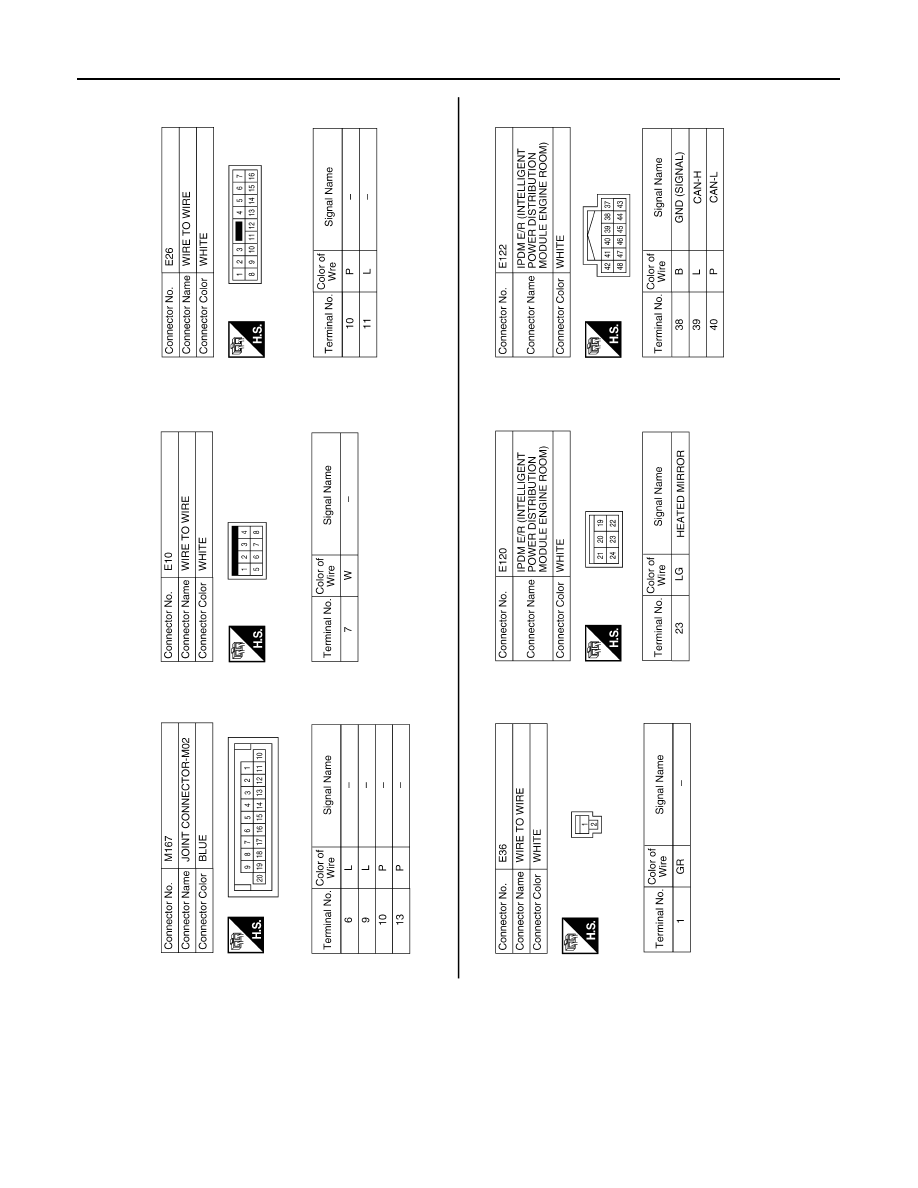

ABLIA3331GB

August 2012

2012 Pathfinder

REAR WINDOW DEFOGGER

DEF-33

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

M

A

B

DEF

N

O

P

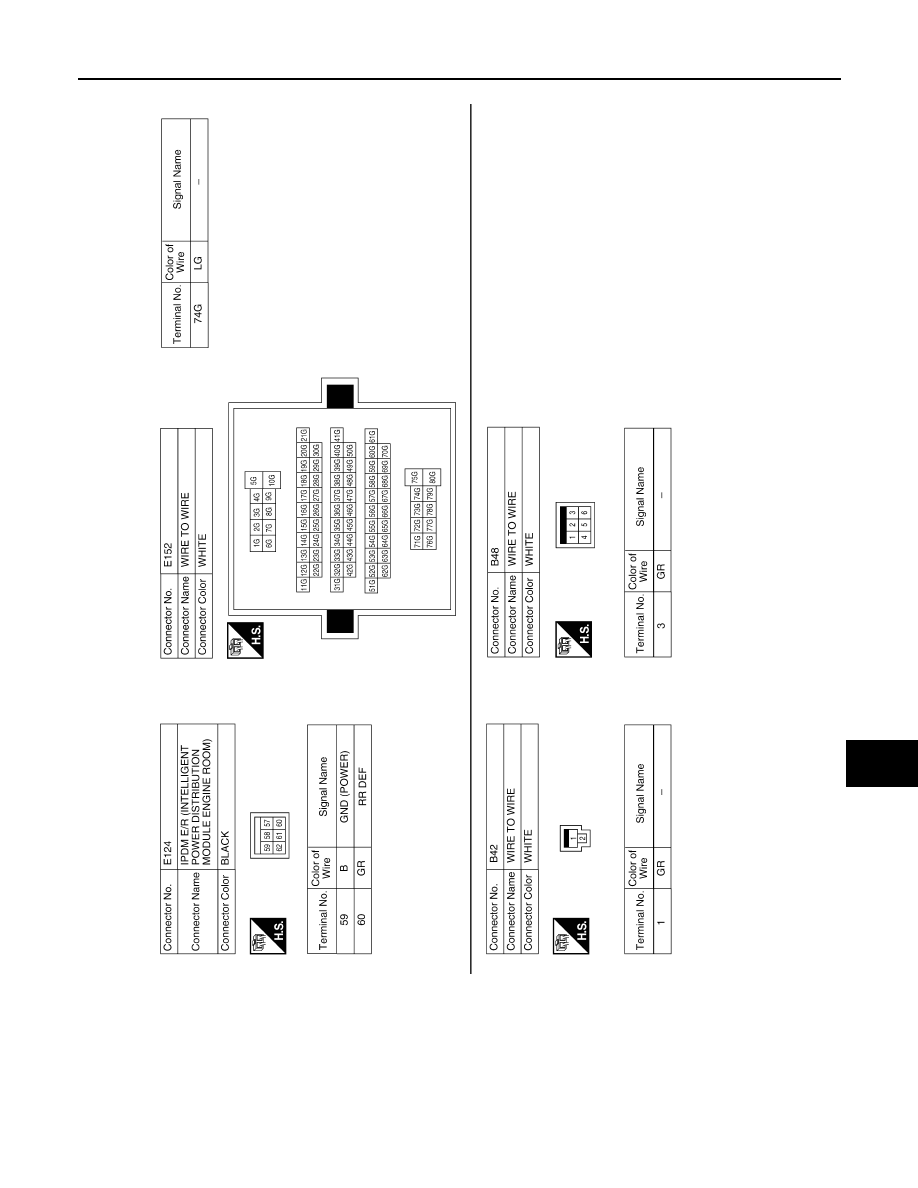

ABLIA3332GB

August 2012

2012 Pathfinder

DEF-34

< WIRING DIAGRAM >

REAR WINDOW DEFOGGER

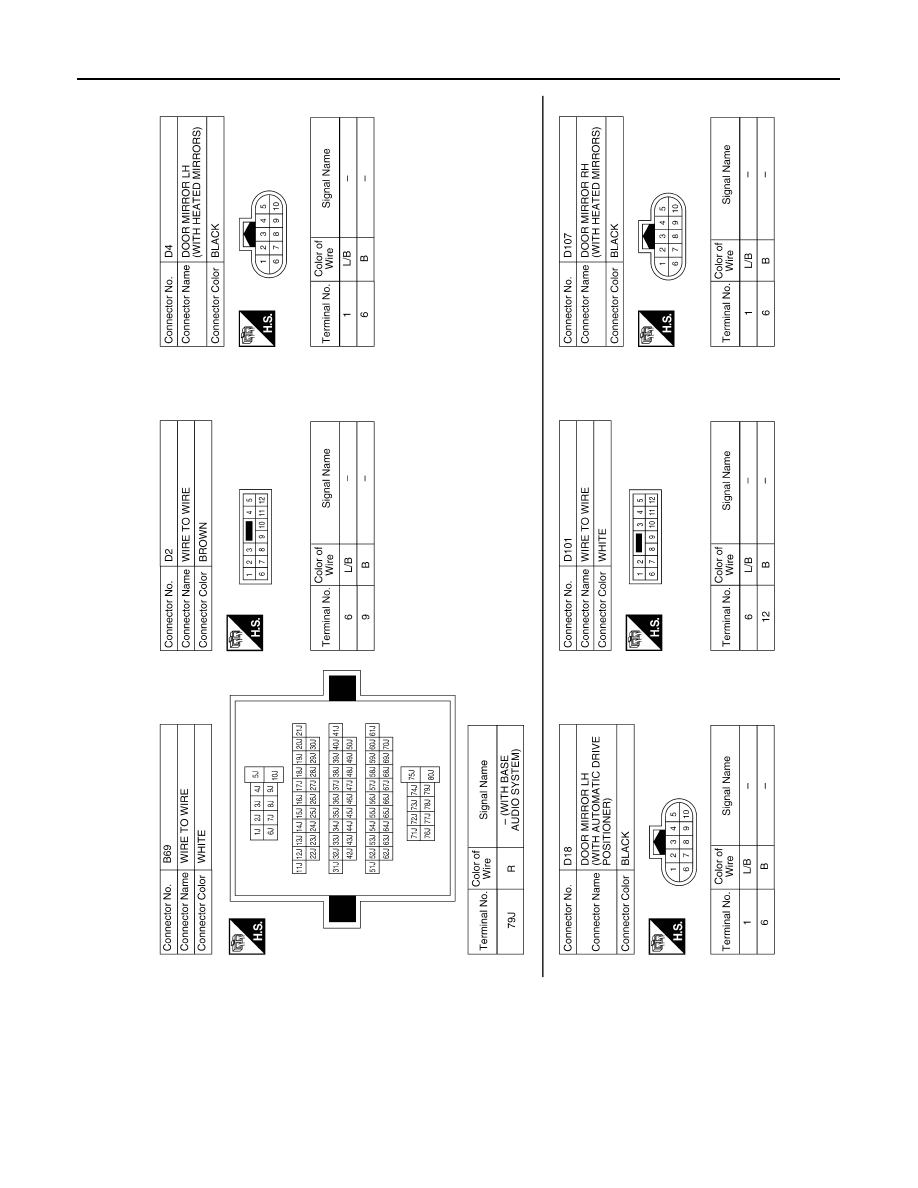

ABLIA3333GB

August 2012

2012 Pathfinder

REAR WINDOW DEFOGGER

DEF-35

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

M

A

B

DEF

N

O

P

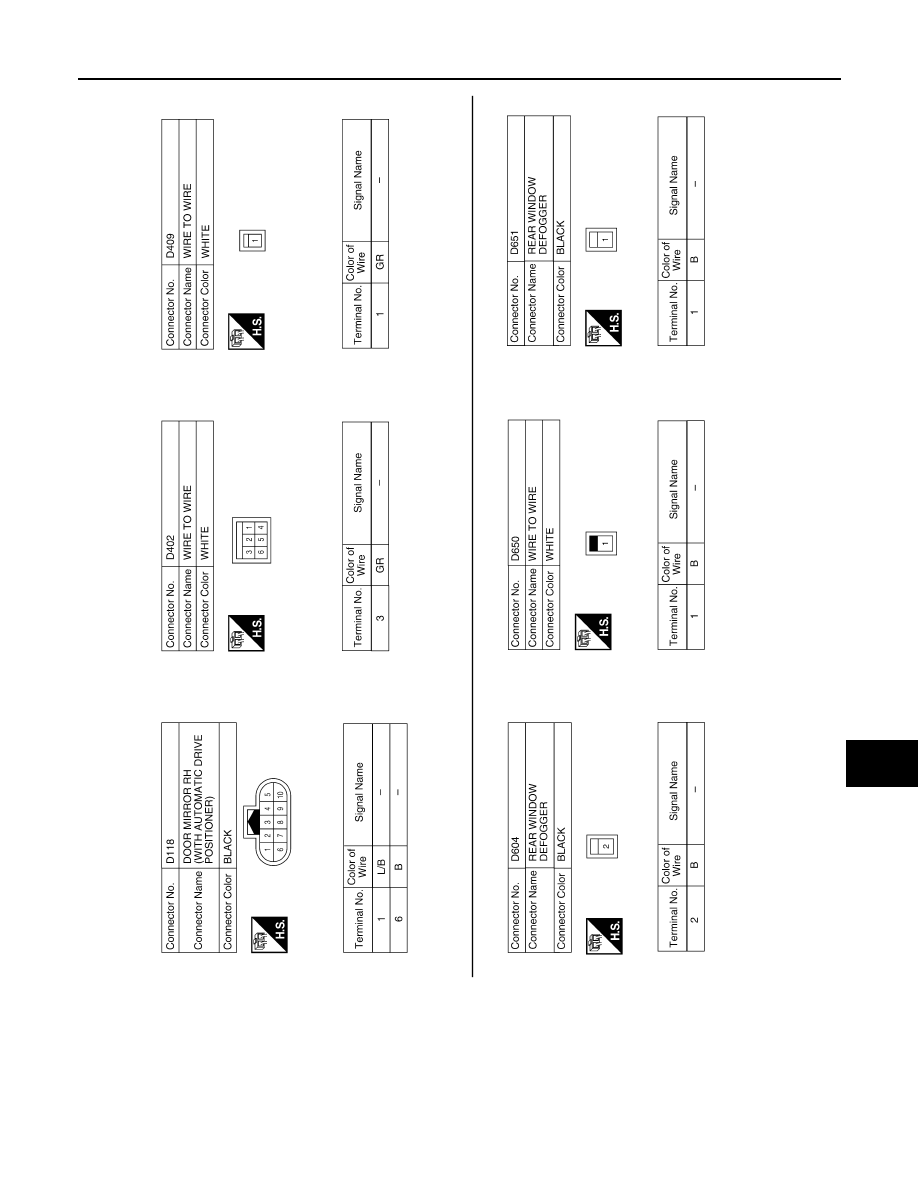

ABLIA3334GB

August 2012

2012 Pathfinder

DEF-36

< SYMPTOM DIAGNOSIS >

REAR WINDOW DEFOGGER AND DOOR MIRROR DEFOGGER DO NOT OPER-

ATE.

SYMPTOM DIAGNOSIS

REAR WINDOW DEFOGGER AND DOOR MIRROR DEFOGGER DO NOT
OPERATE.

Diagnosis Procedure

INFOID:0000000007355341

1.

 CHECK REAR WINDOW DEFOGGER SWITCH

Check rear window defogger switch.

Refer to

DEF-8, "Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 2

NO

>> Repair or replace the malfunctioning parts.

2.

 CHECK REAR WINDOW DEFOGGER RELAY

Check rear window defogger relay.

Refer to

DEF-10, "Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Repair or replace the malfunctioning parts.

3.

 CHECK REAR WINDOW DEFOGGER POWER SUPPLY AND GROUND CIRCUIT

Check rear window defogger power supply and ground circuit.

Refer to

DEF-12, "Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 4

NO

>> Repair or replace the malfunctioning parts.

4.

 CHECK DOOR MIRROR DEFOGGER

Check door mirror defogger.

Refer to

DEF-38, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> Check intermittent incident. Refer to

GI-37, "Intermittent Incident"

.

NO

>> Repair or replace the malfunctioning parts.
