Nissan Pathfinder (2011 year). Manual - part 603





TM-170

< REMOVAL AND INSTALLATION >

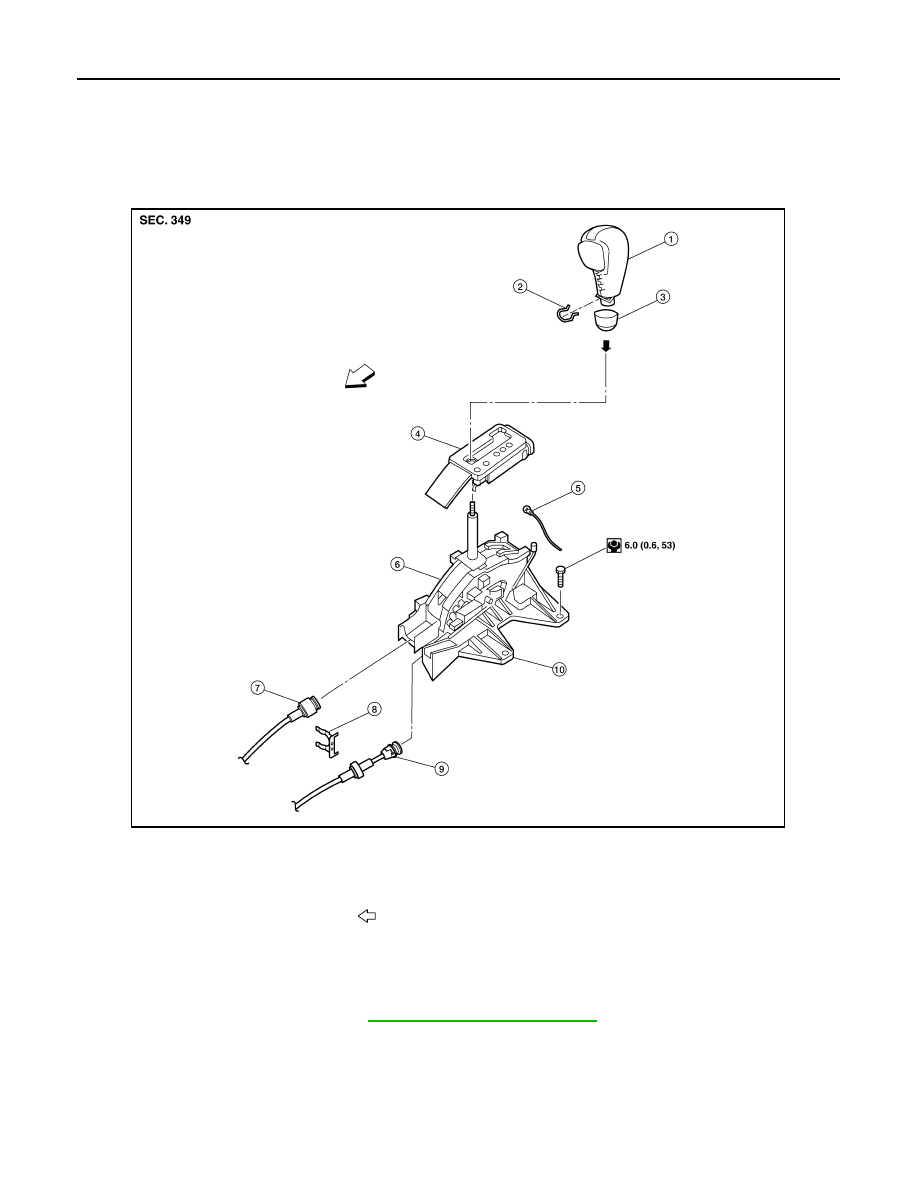

SHIFT CONTROL SYSTEM

REMOVAL AND INSTALLATION

SHIFT CONTROL SYSTEM

Exploded view

INFOID:0000000006244874

Removal and Installation

INFOID:0000000006244875

REMOVAL

1. Remove the center console. Refer to

IP-21, "Removal and Installation"

.

2. Disconnect the following from the shift selector assembly.

• A/T shift selector control cable

• A/T key interlock cable

• A/T shift selector connector

3. Remove the shift selector assembly.

INSTALLATION

1.

Shift selector handle

2.

Shift selector handle clip

3.

Shift selector handle cover

4.

A/T finisher

5.

Position lamp

6.

Position indicator

7.

A/T shift selector control cable

8.

Lock plate

9.

A/T key interlock cable

10. Shift selector assembly

Front

AWDIA0754GB

2011 Pathfinder

SHIFT CONTROL SYSTEM

TM-171

< REMOVAL AND INSTALLATION >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

Installation is in the reverse order of removal.

• Be sure to adjust shift selector cable. Refer to

TM-171, "Inspection and Adjustment"

.

Inspection and Adjustment

INFOID:0000000006244876

INSPECTION

With the shift selector in the “P” position, turn the ignition switch to the ON position with the engine OFF.

Confirm that the following conditions apply.

• The shift selector can be shifted from the “P” position only when the brake pedal is depressed.

• The shift selector stops at each position with the feel of engagement when it is moved through all the posi-

tions.

• There is no excessive effort, sticking, noise or rattle.

• The actual position of the shift selector matches the position shown by the shift position indicator and the A/

T body.

• The back-up lamps illuminate only when the shift selector is placed in the “R” position.

• The back-up lamps do not illuminate when the shift selector is pushed against the “R” position when in the

“P” or “N” position.

• The engine can only be started with the shift selector in the “P” and “N” positions.

• The A/T is locked completely when in the “P” position.

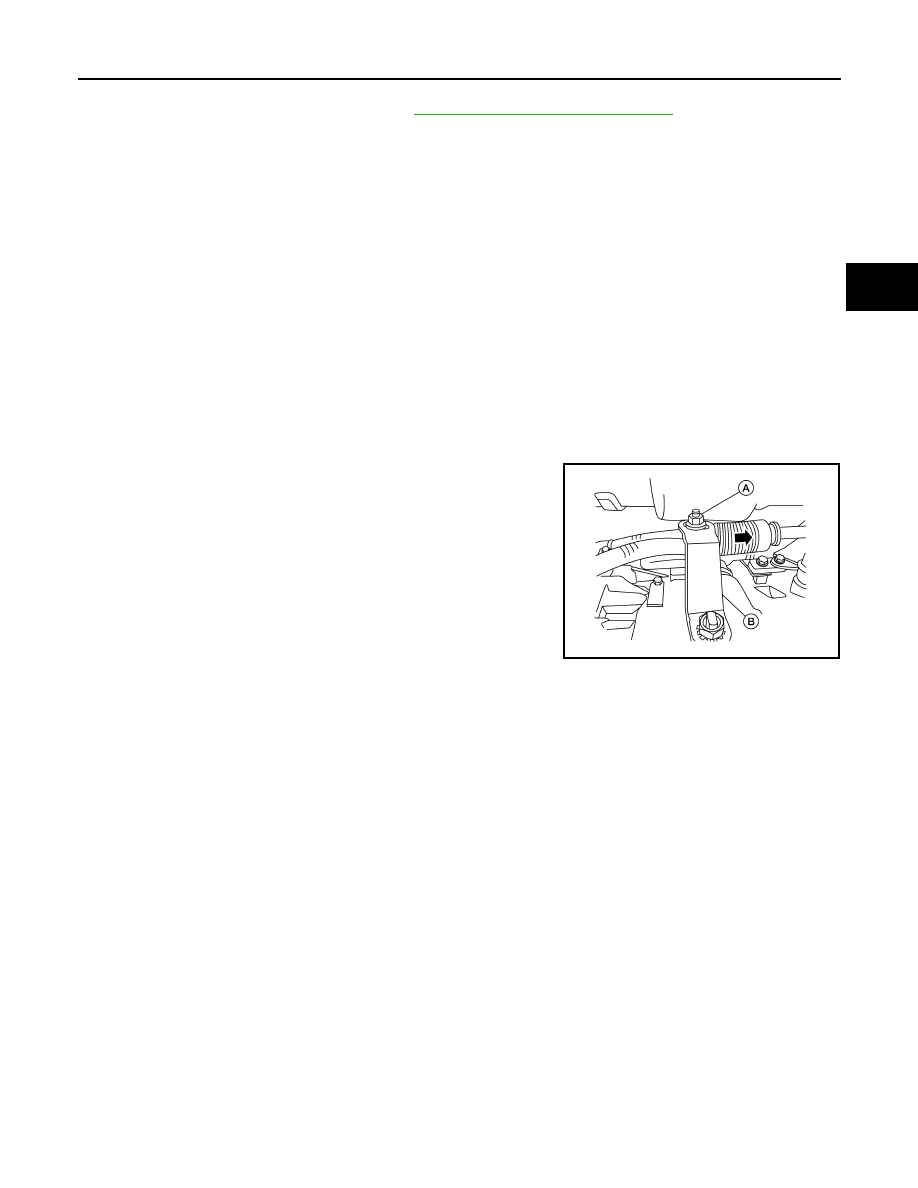

ADJUSTMENT

1. Loosen nut (A) of A/T shift selector control cable.
2. Place the manual lever (B) and A/T shift selector in “P” position.
3. Push the shift selector control cable in the direction shown with a

force of 9.8 N (1kg, 2.2 lb), and release it, this is in the natural

state. Tighten A/T shift selector control cable nut (A) to specifica-

tions.

A/T shift selector
control cable nut

: 14.7 N·m (1.5 kg-m, 11 ft-lb)

AWDIA0755ZZ

2011 Pathfinder

TM-172

< REMOVAL AND INSTALLATION >

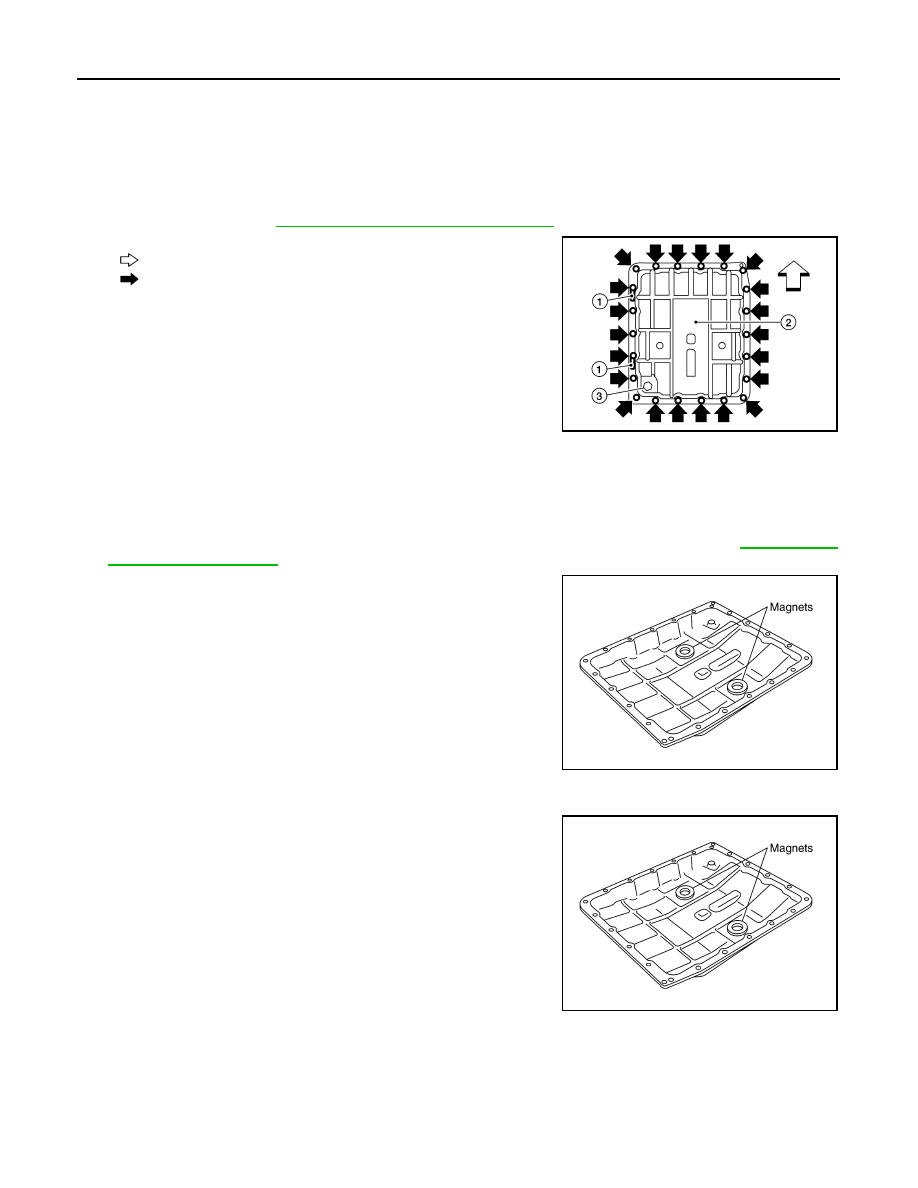

OIL PAN

OIL PAN

Removal and Installation

INFOID:0000000006244877

Removal

1. Drain A/T fluid. Refer to

TM-157, "Changing the A/T Fluid (ATF)"

.

2. Remove clips (1) (VK56DE engine models) and oil pan bolts.

•

 Vehicle front

•

 Oil pan bolts

• Drain plug (3)

3. Remove oil pan (2) and oil pan gasket.

4. Check for foreign materials in oil pan to help determine cause of malfunction. If the A/T fluid is very dark,

has some burned smell, or contains foreign particles then friction material (clutches, band) may need

replacement. A tacky film that will not wipe clean indicates varnish build up. Varnish can cause valves,

servo, and clutches to stick and can inhibit pump pressure.

CAUTION:

If friction material is detected, flush the transmission cooler after repair. Refer to

TM-158, "A/T

Fluid Cooler Cleaning"

.

5. Remove magnets from oil pan.

Installation

1. Install the oil pan magnets as shown.

AWDIA0023ZZ

SCIA5200E

SCIA5200E

2011 Pathfinder

OIL PAN

TM-173

< REMOVAL AND INSTALLATION >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

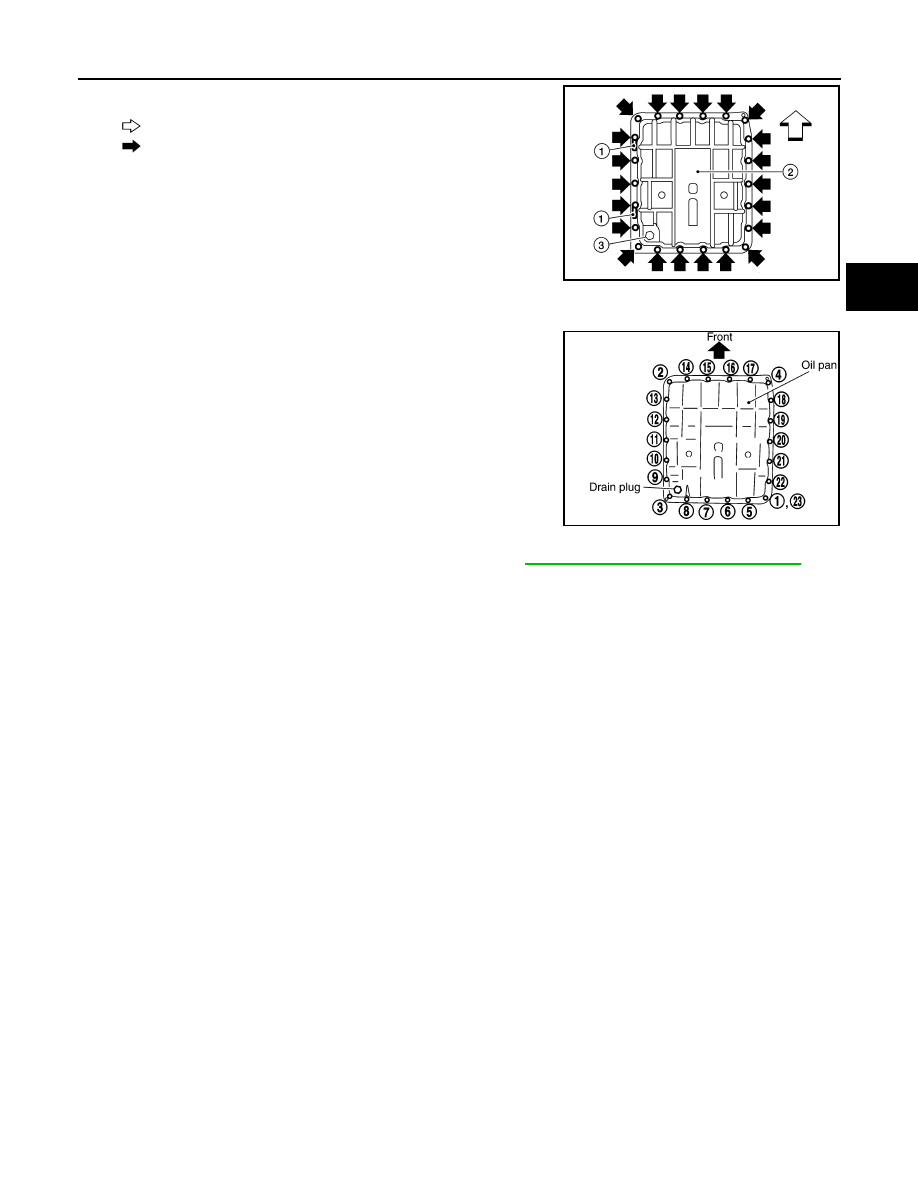

2. Install the oil pan (2) with new oil pan gasket and clips (1)

(VK56DE engine models).
•

: Vehicle Front

•

: Oil pan bolts

• Drain plug (3)

CAUTION:

• Be sure the oil drain plug is located to the rear of the

transmission assembly.

• Before installing oil pan bolts, remove any traces of old

sealant from the sealing surfaces and threaded holes.

• Do not reuse old gasket, replace with a new one.

• Always replace the oil pan bolts as they are self-sealing.

• Partially install the oil pan bolts in a criss-cross pattern to prevent dislocation of the gasket.

3. Tighten oil pan bolts in numerical order as shown.

4. Install drain plug with new gasket to oil pan and tighten to speci-

fication.

CAUTION:

Do not reuse drain plug gasket.

5. Refill the A/T with fluid and check for fluid leakage. Refer to

TM-155, "Checking the A/T Fluid (ATF)"

.

AWDIA0023ZZ

Oil pan bolts

: 7.9 N·m (0.81 kg-m, 70 in-lb)

Drain plug

: 34 N·m (3.5 kg-m, 25 ft-lb)

SCIA4113E

2011 Pathfinder

TM-174

< REMOVAL AND INSTALLATION >

CONTROL VALVE WITH TCM

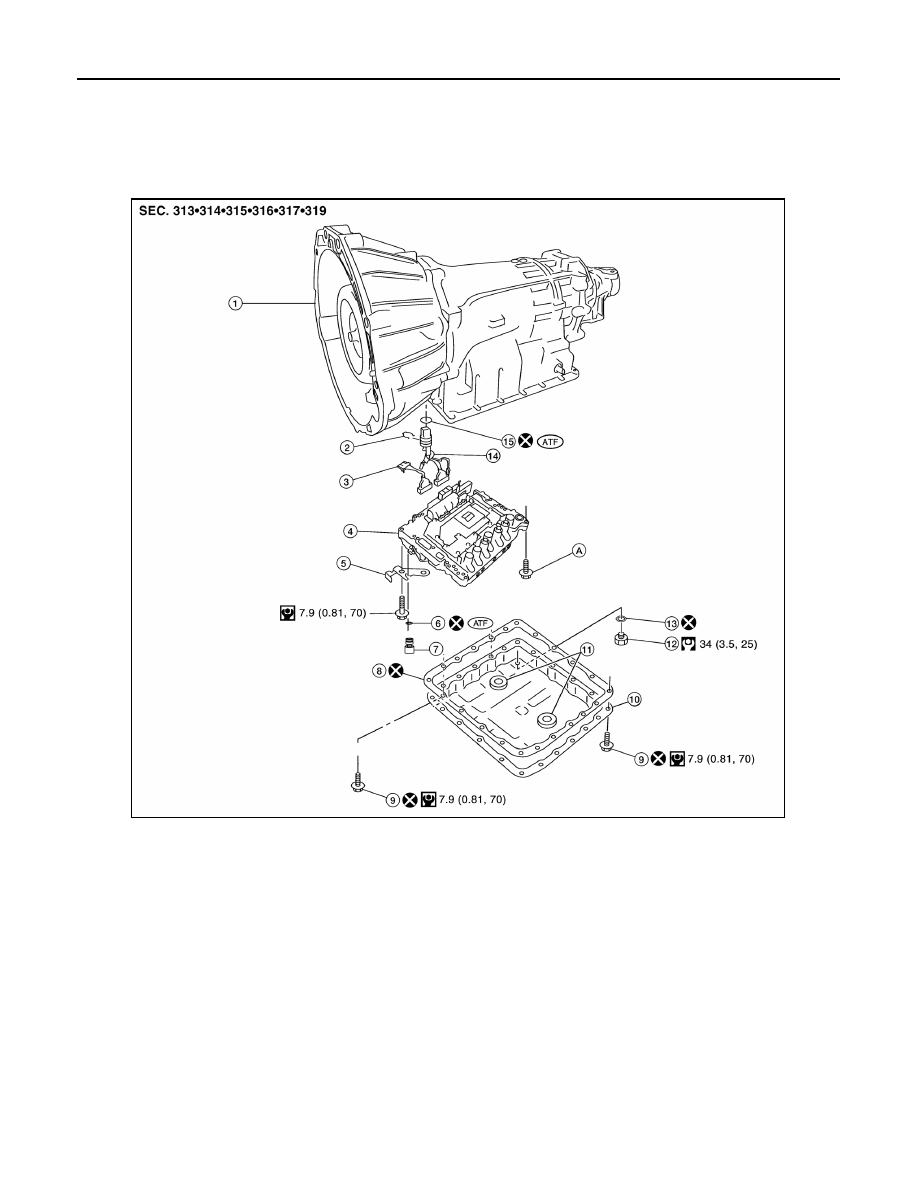

CONTROL VALVE WITH TCM

Removal and Installation

INFOID:0000000006244878

VQ40DE MODELS

VK56DE MODELS

1.

Transmission

2.

Snap ring

3.

Sub-harness

4.

Control valve with TCM

5.

Bracket

6.

O-ring

7.

Plug

8.

Oil pan gasket

9.

Oil pan bolts

10. Oil pan

11. Magnet

12. Drain plug

13. Drain plug gasket

14. Terminal cord assembly

15.  O-ring

A.

For tightening torque, refer to "Installation"

AWDIA0890GB

2011 Pathfinder

CONTROL VALVE WITH TCM

TM-175

< REMOVAL AND INSTALLATION >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

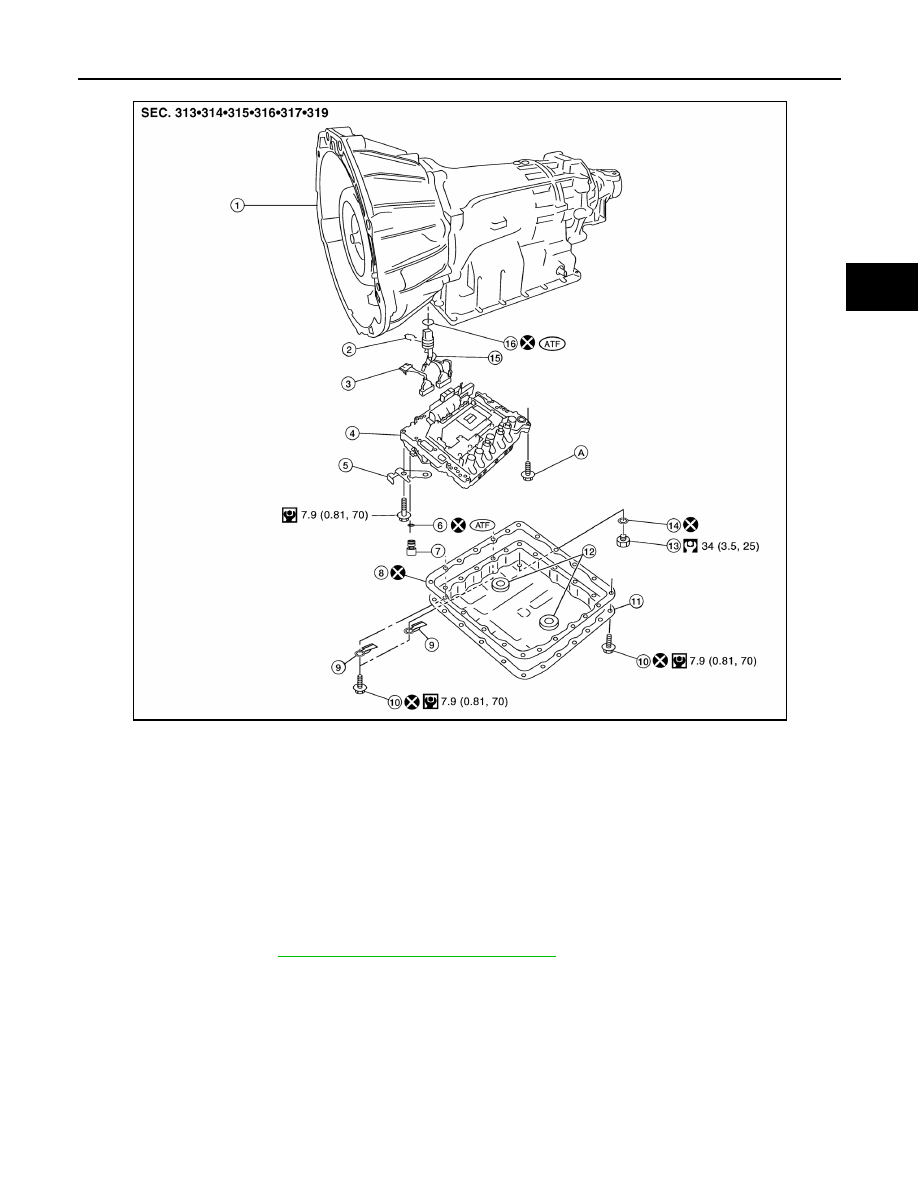

REMOVAL AND INSTALLATION OF CONTROL VALVE WITH TCM

Removal

1. Disconnect negative battery terminal.
2. Drain A/T fluid. Refer to

TM-157, "Changing the A/T Fluid (ATF)"

.

3. Disconnect A/T assembly harness connector.

1.

Transmission

2.

Snap ring

3.

Sub-harness

4.

Control valve with TCM

5.

Bracket

6.

O-ring

7.

Plug

8.

Oil pan gasket

9.

Brackets

10. Oil pan bolt

11. Oil pan

12. Magnet

13. Drain plug

14. Drain plug gasket

15.  Terminal cord assembly

16. O-ring

A.

For tightening torque, refer to "Installation"

AWDIA0886GB

2011 Pathfinder

TM-176

< REMOVAL AND INSTALLATION >

CONTROL VALVE WITH TCM

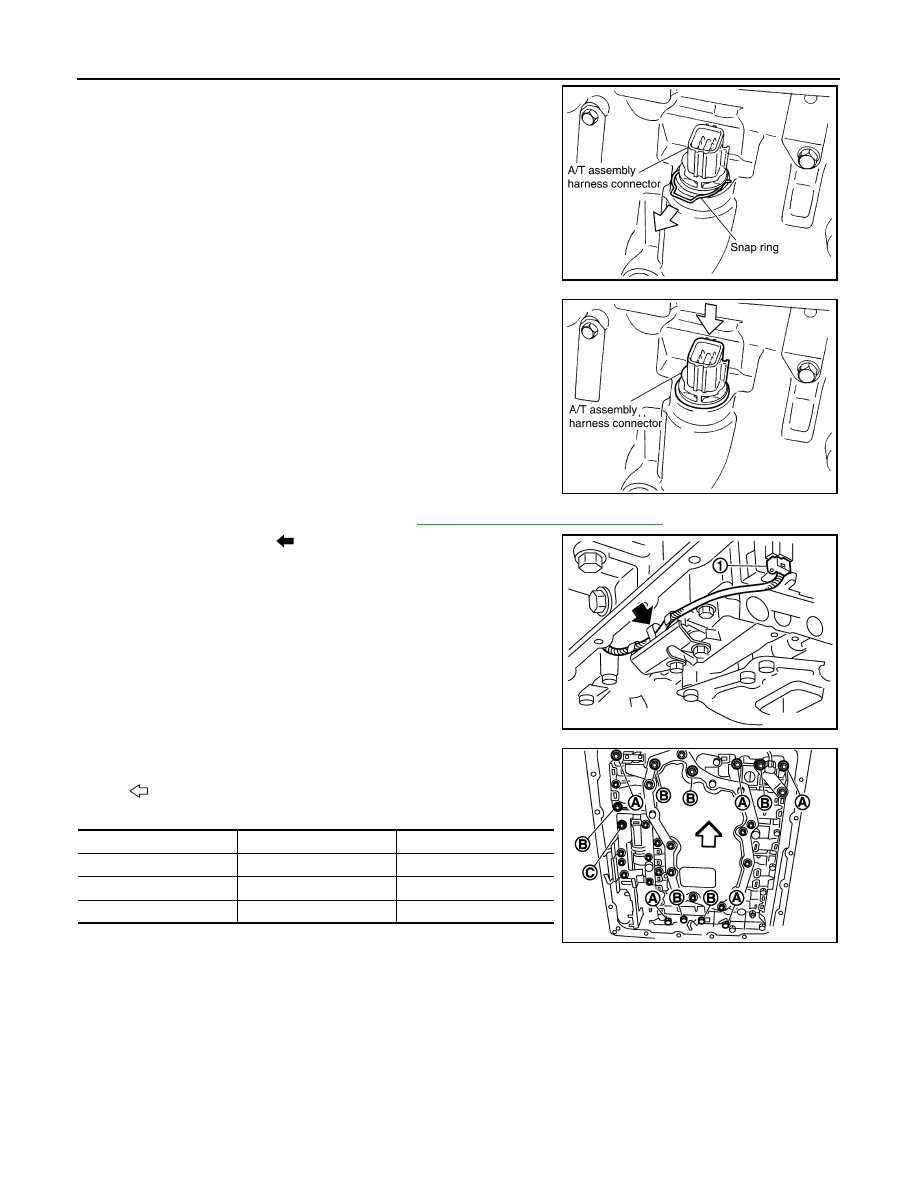

4. Remove snap ring from A/T assembly harness connector.

5. Push A/T assembly harness connector.

CAUTION:

Do not damage connector.

6. Remove oil pan and oil pan gasket. Refer to

TM-172, "Removal and Installation"

.

7. Straighten terminal clip (

) to free the output speed sensor har-

ness.

8. Disconnect output speed sensor connector (1).

CAUTION:

Do not damage connector.

9. Remove bolts (A), (B) and (C) from control valve with TCM.

SCIA5021E

SCIA5022E

JSDIA1316ZZ

: Front

Bolt symbol

Length mm (in)

Number of bolts

A

42 (1.65)

5

B

55 (2.17)

6

C

40 (1.57)

1

SCIA8074E

2011 Pathfinder

CONTROL VALVE WITH TCM

TM-177

< REMOVAL AND INSTALLATION >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

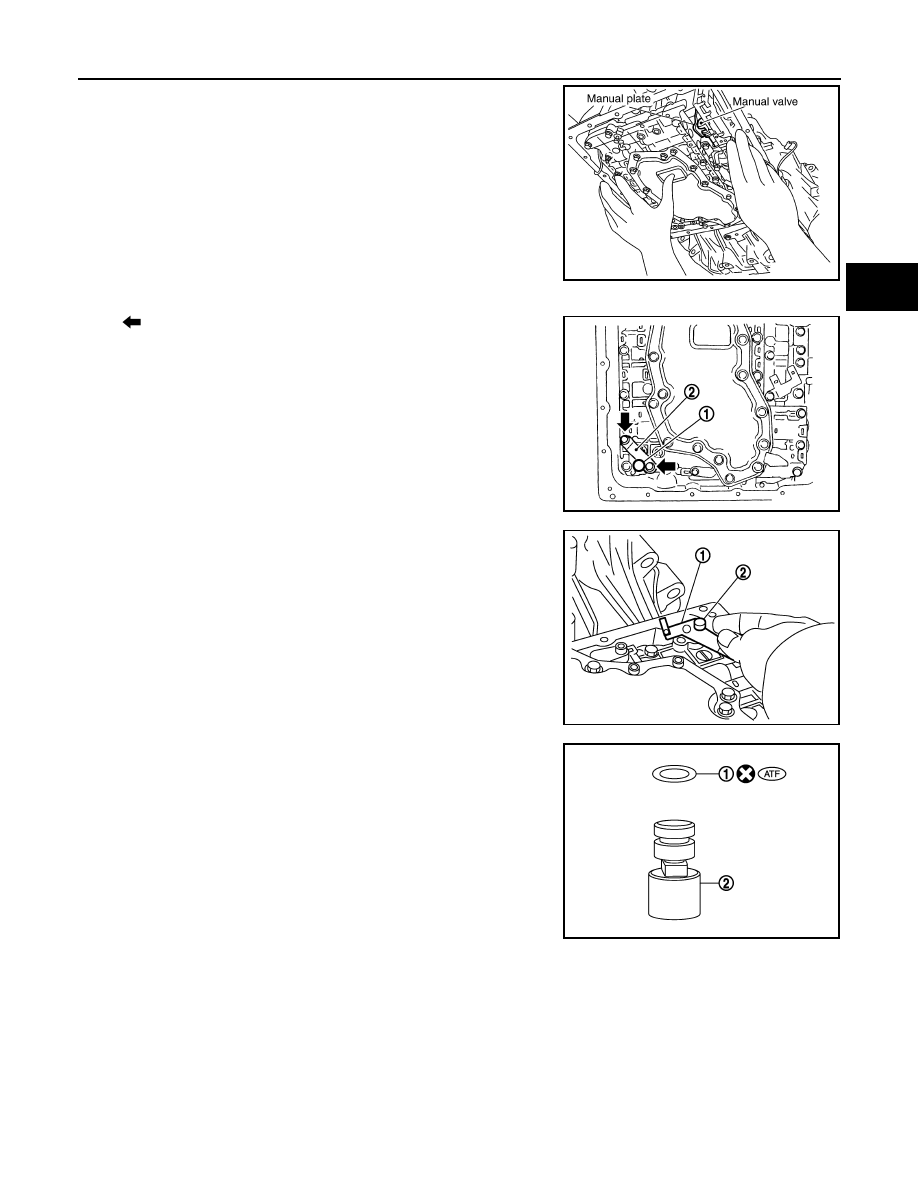

10. Remove control valve with TCM from transmission case.

CAUTION:

When removing, be careful with the manual valve notch and

manual plate height. Remove it vertically.

11. Remove plug (1) with bracket (2) from control valve with TCM.

•



:Bolt

12. Remove the bracket (1) from plug (2).

13. Remove O-ring (1) from plug (2).

CAUTION:

Do not reuse O-ring.

SCIA5142E

JSDIA1311ZZ

JSDIA1312ZZ

JSDIA1313ZZ

2011 Pathfinder
