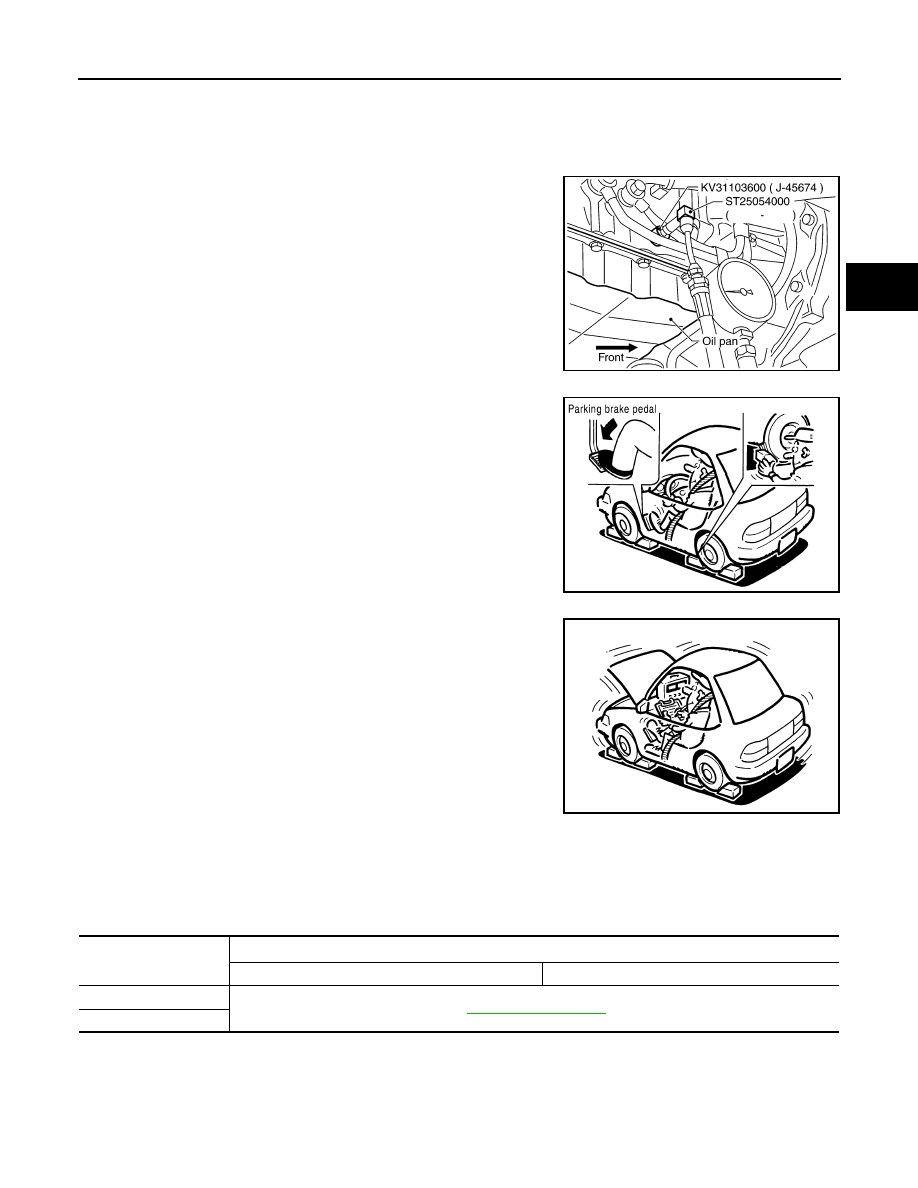

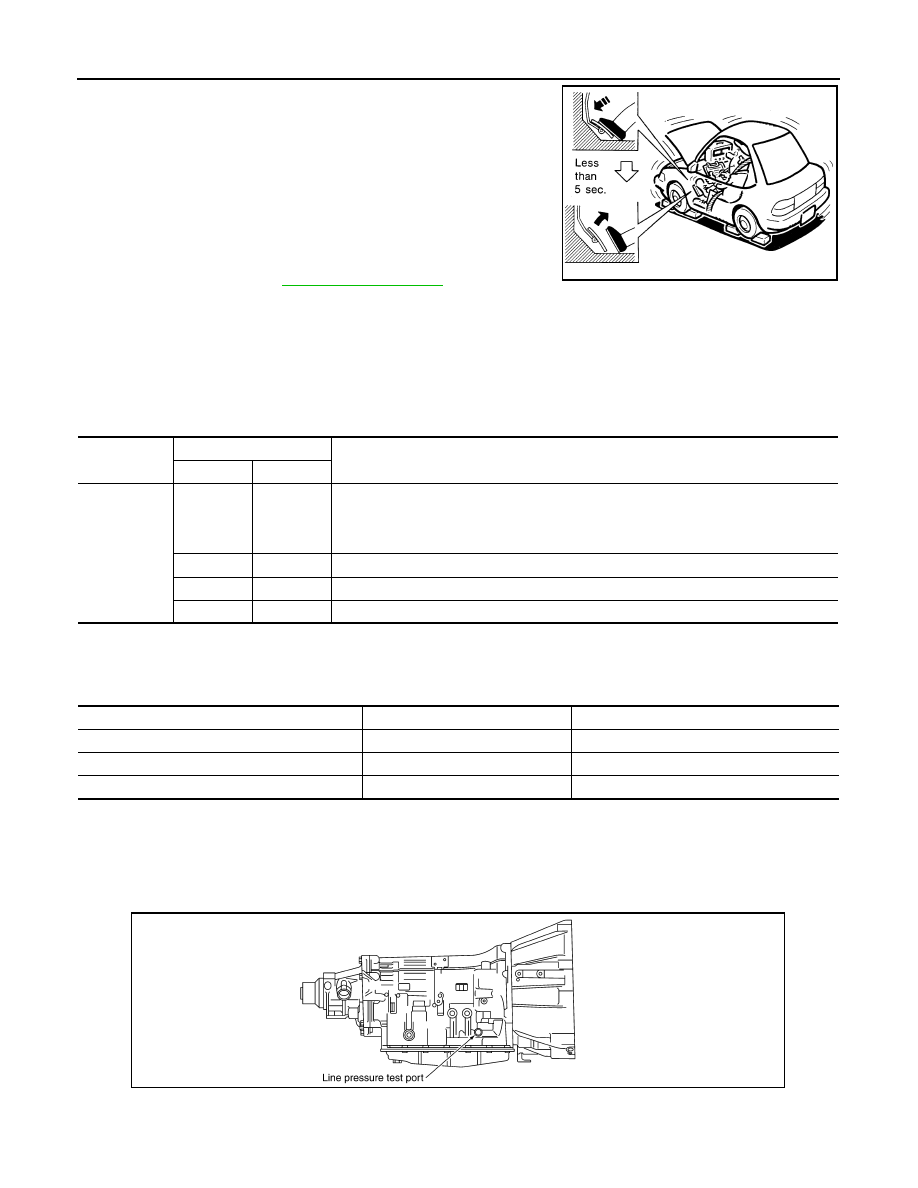

TM-162 < PERIODIC MAINTENANCE > INSPECTIONS BEFORE TROUBLE DIAGNOSIS 4. Engine start, apply foot brake, and place shift selector in “D” position. 5. While holding down the foot brake, gradually press down the accelerator pedal. 6. Quickly read off the stall speed, then quickly remove your foot from the accelerator pedal. CAUTION: Do not hold down the accelerator pedal for more than 5 sec- onds during this test. 7. Move the shift selector to the “N” position. CAUTION: Run the engine at idle for at least one minute. 9. Repeat steps 5 through 8 with shift selector in “R” position. Judgment of Stall Test O: Stall speed within standard value position Stall test standard value position Line Pressure Test INFOID:0000000006244868 LINE PRESSURE TEST Line Pressure Test Port Line Pressure Test Procedure 1. Inspect the amount of engine oil and replenish if necessary. Stall speed: SAT514G Shift selector position Expected problem location D R Stall rotation H O • Forward brake O H • Reverse brake L L • Engine and torque converter one-way clutch H H • Line pressure low Does not shift-up D position 1 → 2 Slipping in 2GR, 3GR, 4GR Direct clutch slippage Does not shift-up D position 2 → 3 Slipping in 3GR, 4GR, 5GR High and low reverse clutch slippage Does not shift-up D position 3 → 4 Slipping in 4GR, 5GR Input clutch slippage Does not shift-up D position 4 → 5 Slipping in 5GR Front brake slippage SCIA2187E 2011 Pathfinder |
