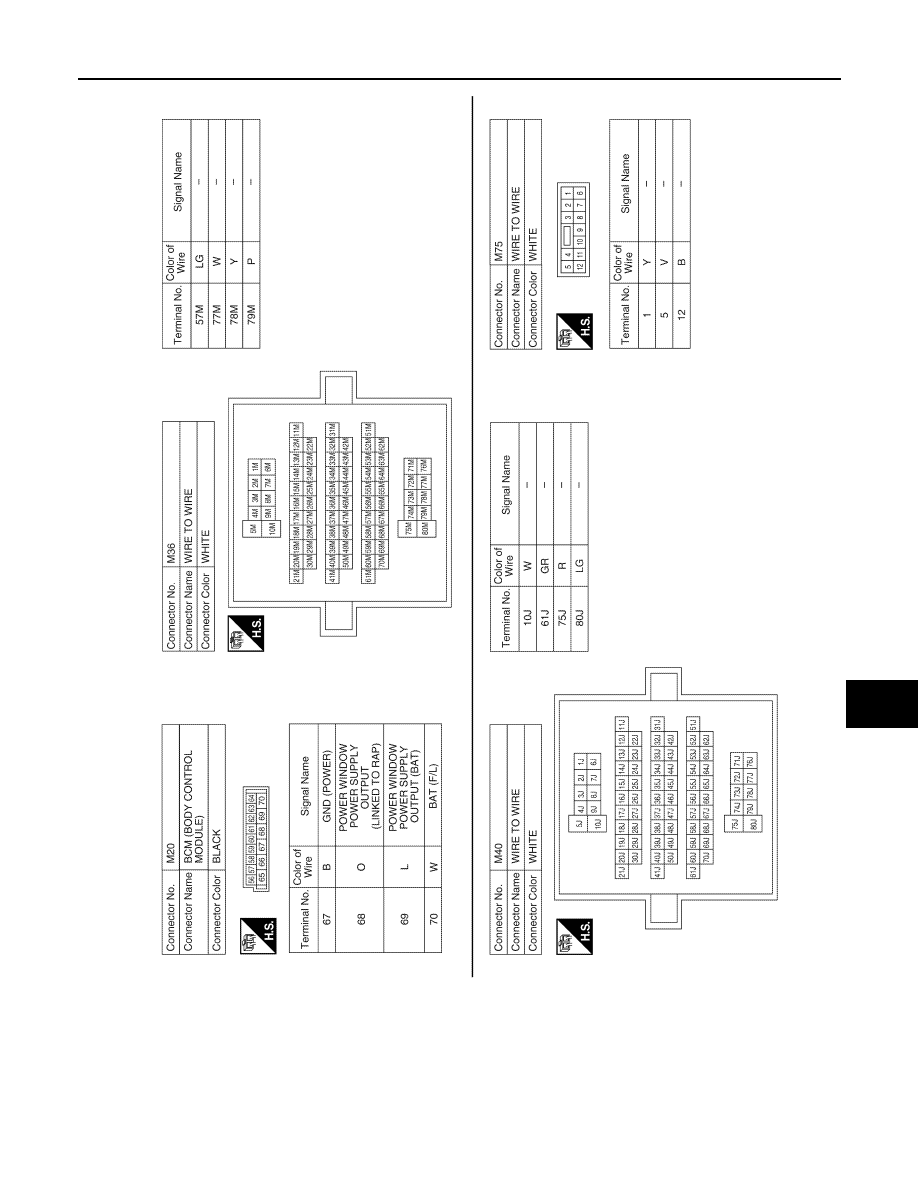

POWER WINDOW SYSTEM

PWC-63

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

ABKIA1747GB

2011 Pathfinder

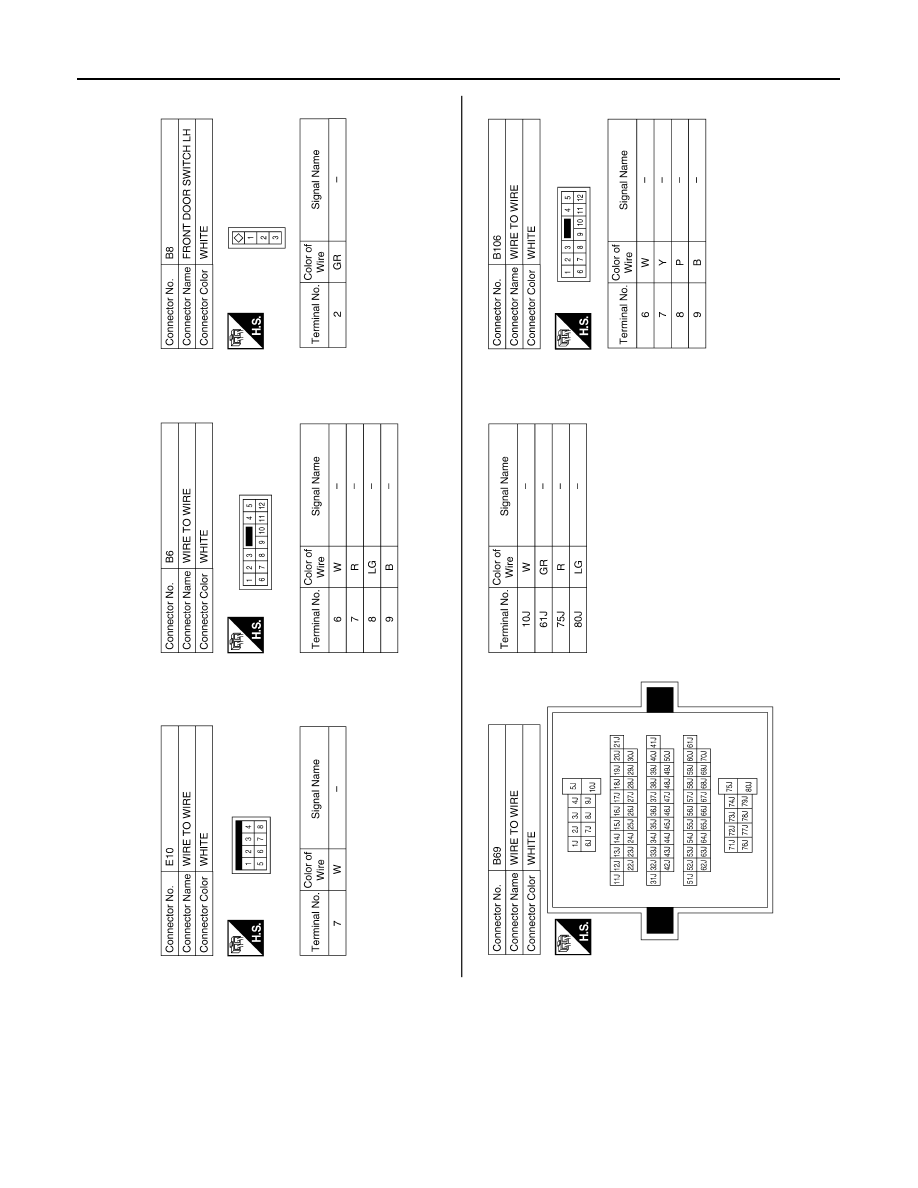

PWC-64

< WIRING DIAGRAM >

POWER WINDOW SYSTEM

ABKIA0331GB

2011 Pathfinder

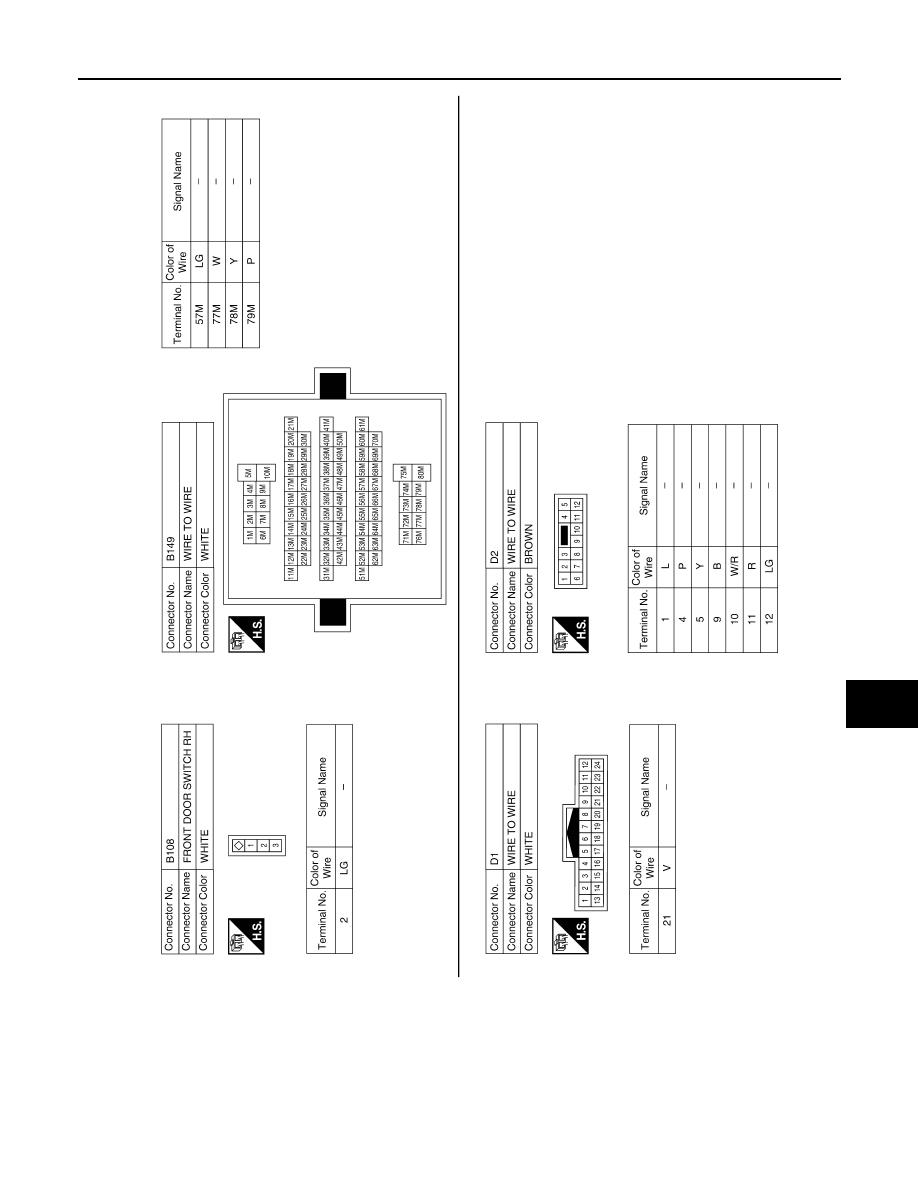

POWER WINDOW SYSTEM

PWC-65

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

ABKIA0332GB

2011 Pathfinder

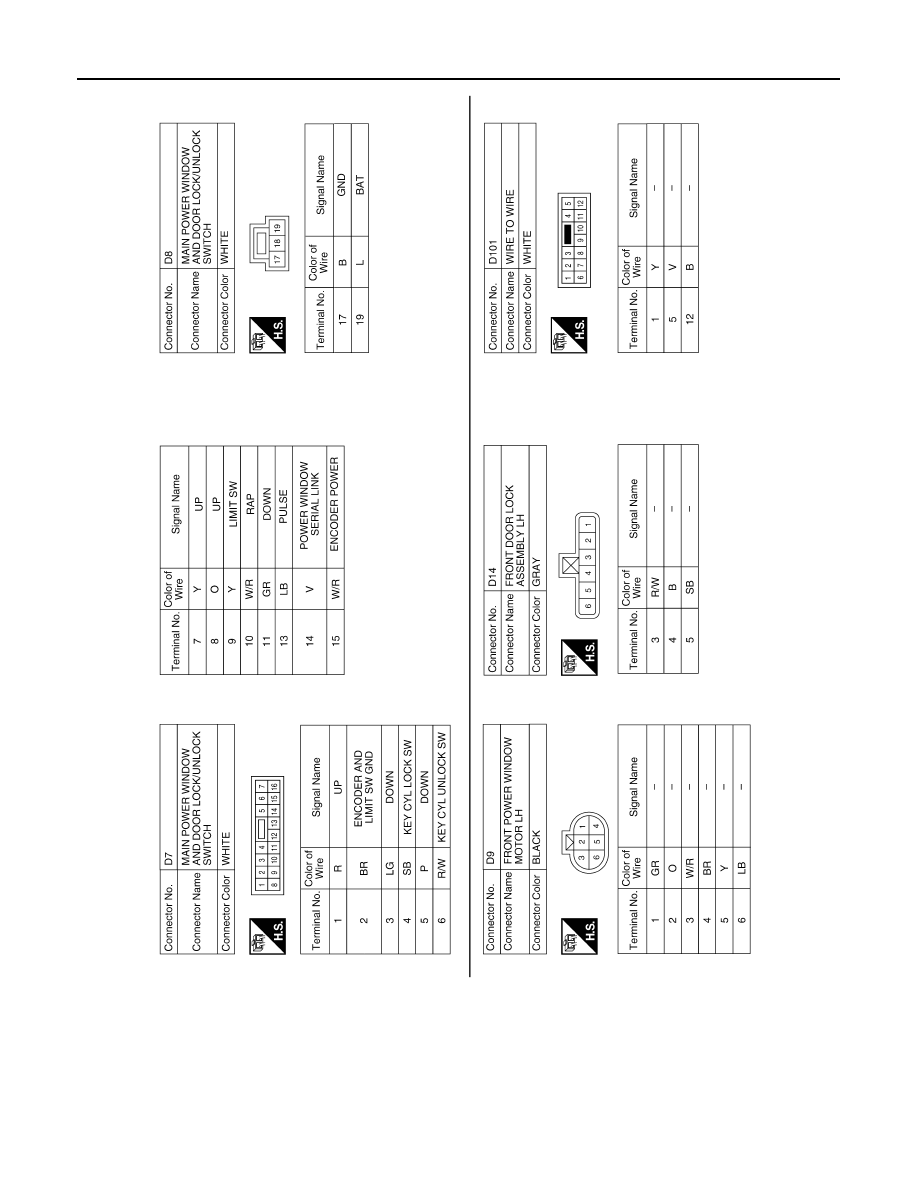

PWC-66

< WIRING DIAGRAM >

POWER WINDOW SYSTEM

ABKIA2885GB

2011 Pathfinder

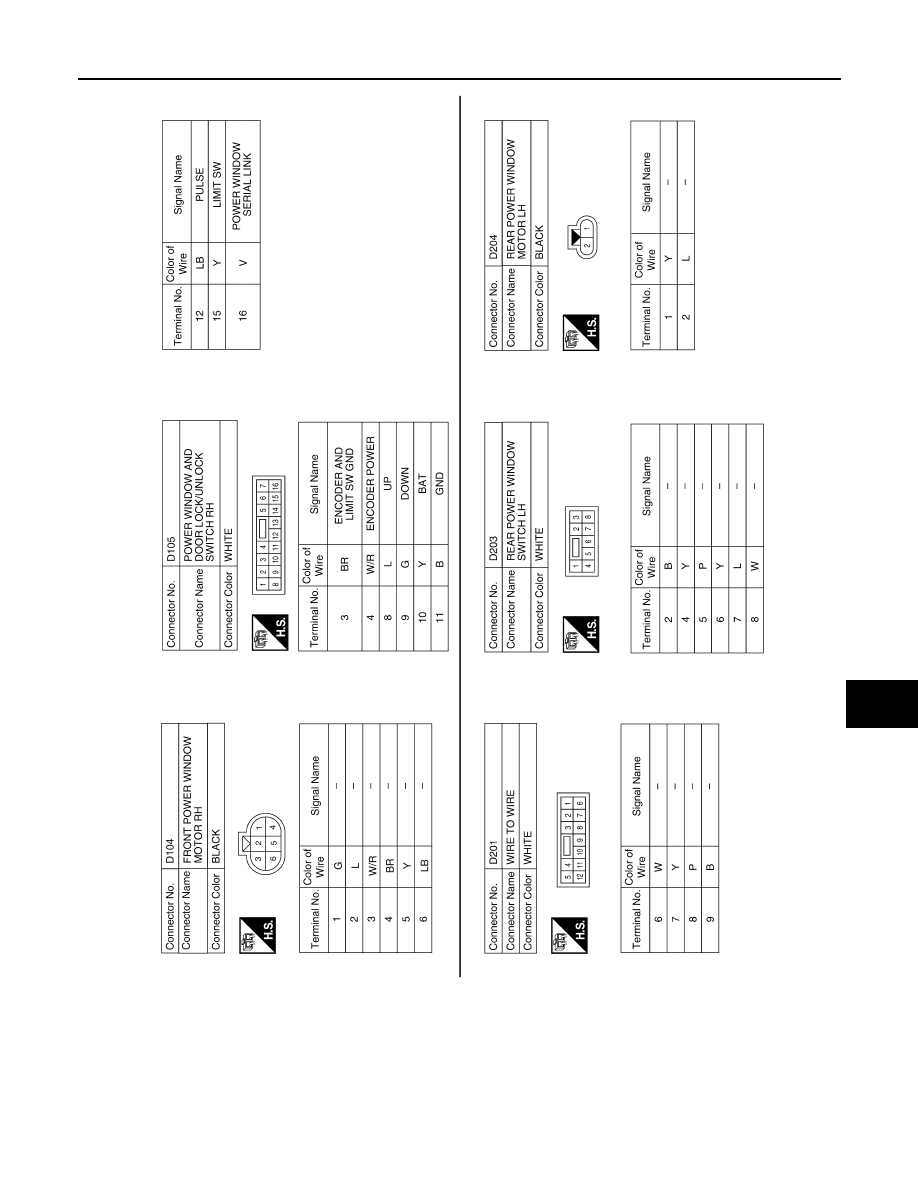

POWER WINDOW SYSTEM

PWC-67

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

ABKIA0334GB

2011 Pathfinder

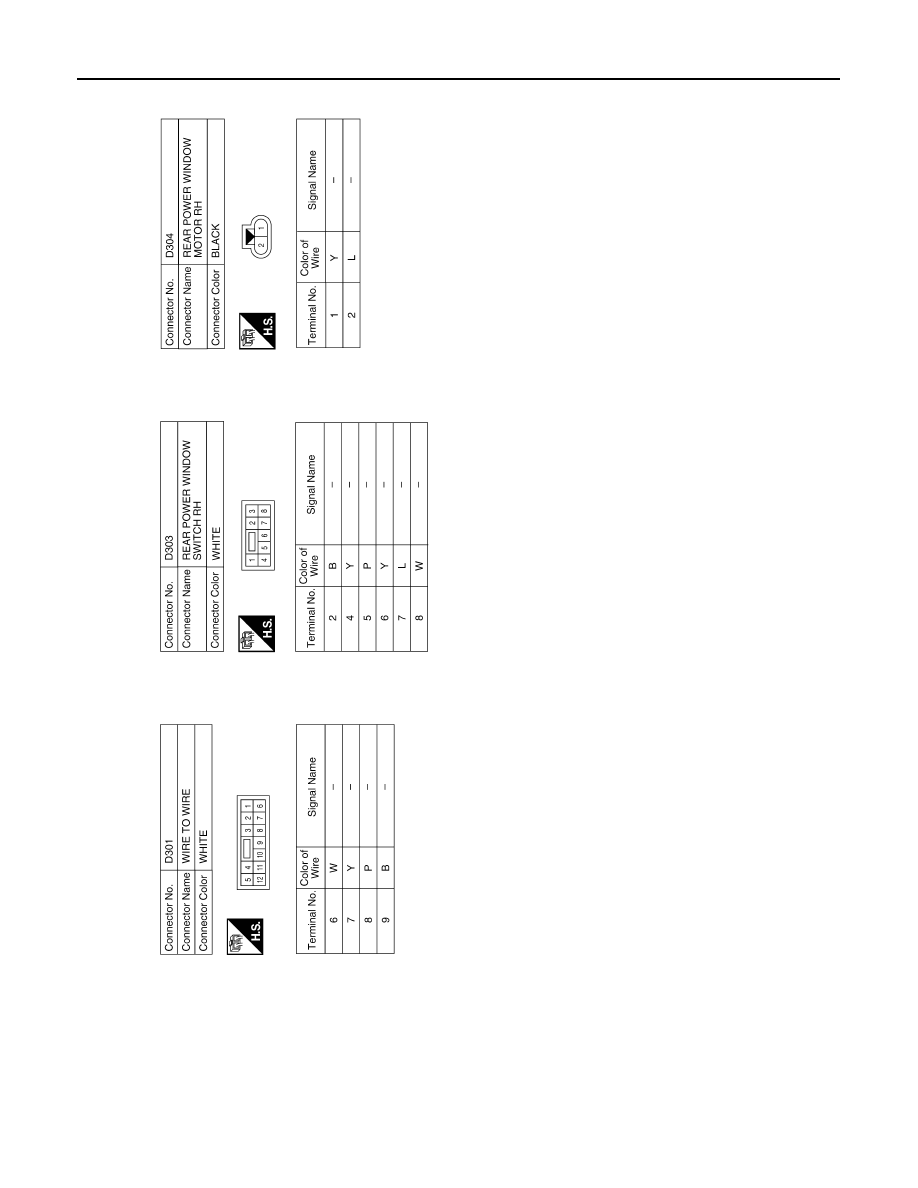

PWC-68

< WIRING DIAGRAM >

POWER WINDOW SYSTEM

ABKIA2886GB

2011 Pathfinder

NONE OF THE POWER WINDOWS CAN BE OPERATED USING ANY SWITCH

PWC-69

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

SYMPTOM DIAGNOSIS

NONE OF THE POWER WINDOWS CAN BE OPERATED USING ANY
SWITCH

Diagnosis Procedure

INFOID:0000000006243522

1.

 CHECK BCM POWER SUPPLY AND GROUND CIRCUIT

Check BCM power supply and ground circuit.

Refer to

PWC-12, "BCM : Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> GO TO 2

NO

>> Repair or replace the malfunctioning parts.

2.

 CHECK MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH POWER SUPPLY AND

GROUND CIRCUIT

Check power window switch main power supply and ground circuit.

Refer to

PWC-13, "POWER WINDOW MAIN SWITCH : Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Repair or replace the malfunctioning parts.

3.

 CHECK MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH

Check main power window and door lock/unlock switch.

Refer to

PWC-13, "POWER WINDOW MAIN SWITCH : Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 4

NO

>> Repair or replace the malfunctioning parts.

4.

 CHECK MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH SERIAL CIRCUIT

Check main power window and door lock/unlock switch serial circuit.

Refer to

PWC-40, "POWER WINDOW MAIN SWITCH : Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Check intermittent incident. Refer to

GI-37, "Intermittent Incident"

.

2011 Pathfinder

PWC-70

< SYMPTOM DIAGNOSIS >

DRIVER SIDE POWER WINDOW ALONE DOES NOT OPERATE

DRIVER SIDE POWER WINDOW ALONE DOES NOT OPERATE

Diagnosis Procedure

INFOID:0000000006243523

1.

 CHECK FRONT POWER WINDOW MOTOR LH

Check front power window motor LH.

Refer to

PWC-22, "DRIVER SIDE : Component Function Check"

.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Check intermittent incident. Refer to

GI-37, "Intermittent Incident"

.
